See 7.3.2.95 of 802.11s draft 2.07. More...

#include <ie-dot11s-rann.h>

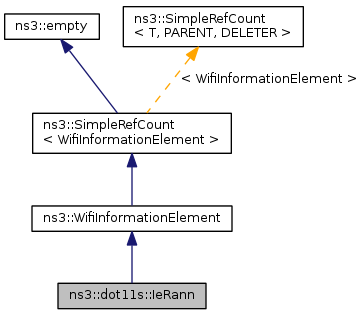

Inheritance diagram for ns3::dot11s::IeRann:

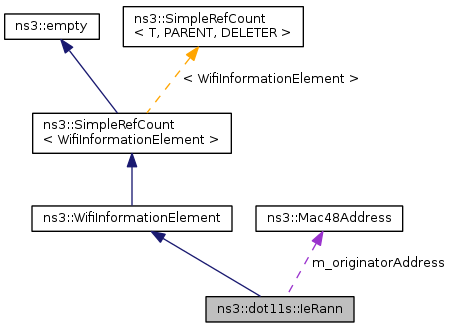

Collaboration diagram for ns3::dot11s::IeRann:

Public Member Functions
	IeRann ()
virtual	~IeRann ()
void	DecrementTtl ()
uint32_t	GetDestSeqNumber ()
uint8_t	GetFlags ()
uint8_t	GetHopcount ()
uint32_t	GetMetric ()
Mac48Address	GetOriginatorAddress ()
uint8_t	GetTtl ()
void	IncrementMetric (uint32_t metric)
void	SetDestSeqNumber (uint32_t dest_seq_number)
void	SetFlags (uint8_t flags)
void	SetHopcount (uint8_t hopcount)
void	SetMetric (uint32_t metric)
void	SetOriginatorAddress (Mac48Address originator_address)
void	SetTTL (uint8_t ttl)
Inherited from WifiInformationElement
virtual WifiInformationElementId	ElementId () const
	Own unique Element ID.
virtual void	SerializeInformationField (Buffer::Iterator i) const
virtual uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)
virtual uint8_t	GetInformationFieldSize () const
virtual void	Print (std::ostream &os) const
	In addition, a subclass may optionally override the following...
Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()
Buffer::Iterator	Deserialize (Buffer::Iterator i)
Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
uint16_t	GetSerializedSize () const
Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields.
virtual bool	operator< (WifiInformationElement const &a) const
	Compare information elements using Element ID.
virtual bool	operator== (WifiInformationElement const &a) const
Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
uint32_t	m_destSeqNumber
uint8_t	m_flags
uint8_t	m_hopcount
uint32_t	m_metric
Mac48Address	m_originatorAddress
uint8_t	m_ttl

Friends
bool	operator== (const IeRann &a, const IeRann &b)

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void	Cleanup (void)

Detailed Description

See 7.3.2.95 of 802.11s draft 2.07.

Definition at line 33 of file ie-dot11s-rann.h.

Constructor & Destructor Documentation

ns3::dot11s::IeRann::IeRann ( )

Definition at line 32 of file ie-dot11s-rann.cc.

ns3::dot11s::IeRann::~IeRann ( )

virtual

Definition at line 29 of file ie-dot11s-rann.cc.

Member Function Documentation

void ns3::dot11s::IeRann::DecrementTtl ( )

Definition at line 100 of file ie-dot11s-rann.cc.

References m_hopcount, and m_ttl.

uint8_t ns3::dot11s::IeRann::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Implements ns3::WifiInformationElement.

Definition at line 128 of file ie-dot11s-rann.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_destSeqNumber, m_flags, m_hopcount, m_metric, m_originatorAddress, m_ttl, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

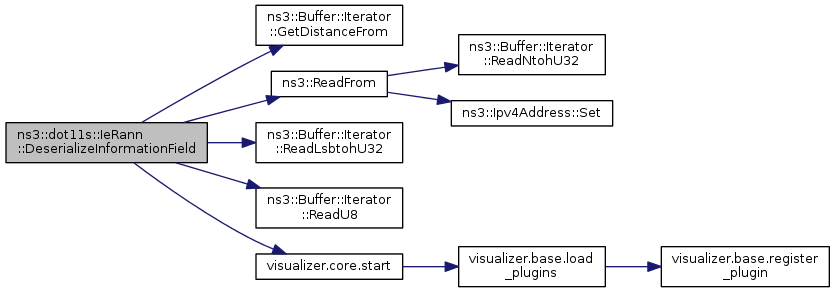

Here is the call graph for this function:

WifiInformationElementId ns3::dot11s::IeRann::ElementId ( ) const

virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 38 of file ie-dot11s-rann.cc.

References IE11S_RANN.

Referenced by Print().

Here is the caller graph for this function:

uint32_t ns3::dot11s::IeRann::GetDestSeqNumber ( )

Definition at line 90 of file ie-dot11s-rann.cc.

References m_destSeqNumber.

uint8_t ns3::dot11s::IeRann::GetFlags ( )

Definition at line 75 of file ie-dot11s-rann.cc.

References m_flags.

uint8_t ns3::dot11s::IeRann::GetHopcount ( )

Definition at line 80 of file ie-dot11s-rann.cc.

References m_hopcount.

uint8_t ns3::dot11s::IeRann::GetInformationFieldSize ( ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. This is the value that will appear in the second octet of the entire IE - the length field)

Implements ns3::WifiInformationElement.

Definition at line 140 of file ie-dot11s-rann.cc.

uint32_t ns3::dot11s::IeRann::GetMetric ( void )

Definition at line 95 of file ie-dot11s-rann.cc.

References m_metric.

Mac48Address ns3::dot11s::IeRann::GetOriginatorAddress ( )

Definition at line 113 of file ie-dot11s-rann.cc.

References m_originatorAddress.

uint8_t ns3::dot11s::IeRann::GetTtl ( void )

Definition at line 85 of file ie-dot11s-rann.cc.

References m_ttl.

void ns3::dot11s::IeRann::IncrementMetric ( uint32_t metric )
