Public Member Functions
def	__init__
def	add_link
def	get_position
def	has_mobility
def	on_enter_notify_event
def	on_leave_notify_event
def	remove_link
def	set_color
def	set_label
def	set_position
def	set_size
def	set_svg_icon
def	tooltip_query

Public Attributes
	canvas_item
	links
	menu
	node_index
	svg_align_x
	svg_align_y
	svg_item
	visualizer

Properties
	highlighted = property(_get_highlighted, _set_highlighted)
	selected = property(_get_selected, _set_selected)

Private Member Functions
def	_get_highlighted
def	_get_selected
def	_set_highlighted
def	_set_selected
def	_update_appearance
def	_update_position
def	_update_svg_position

Private Attributes
	_color
	_has_mobility
	_highlighted
	_label
	_label_canvas_item
	_selected
	_size

Static Private Attributes
dictionary	__gsignals__

Detailed Description

Definition at line 69 of file core.py.

Constructor & Destructor Documentation

def visualizer.core.Node.__init__	(	self,
		visualizer,
		node_index
	)

Definition at line 79 of file core.py.

Member Function Documentation

def visualizer.core.Node._get_highlighted ( self )

private

Definition at line 229 of file core.py.

References visualizer.core.Node._highlighted.

def visualizer.core.Node._get_selected ( self )

private

Definition at line 222 of file core.py.

References visualizer.core.Node._selected.

def visualizer.core.Node._set_highlighted	(	self,
		value
	)

private

Definition at line 226 of file core.py.

References visualizer.core.Node._highlighted, and visualizer.core.Node._update_appearance().

Here is the call graph for this function:

def visualizer.core.Node._set_selected	(	self,
		value
	)

private

Definition at line 219 of file core.py.

References visualizer.core.Node._selected, and visualizer.core.Node._update_appearance().

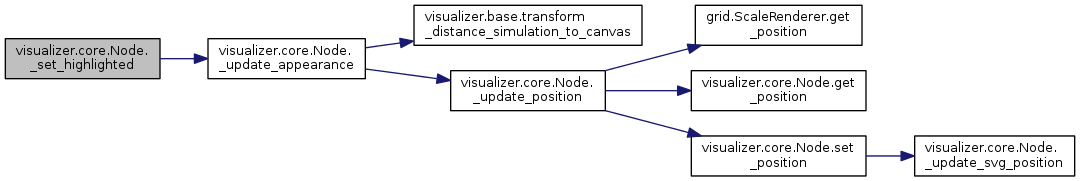

Here is the call graph for this function:

def visualizer.core.Node._update_appearance ( self )

private

Update the node aspect to reflect the selected/highlighted state

Definition at line 237 of file core.py.

References visualizer.core.Node._color, visualizer.core.Node._label, visualizer.core.Node._label_canvas_item, visualizer.core.Node._selected, visualizer.core.Node._size, visualizer.core.Node._update_position(), visualizer.core.Node.highlighted, visualizer.core.Node.svg_item, and visualizer.base.transform_distance_simulation_to_canvas().

Referenced by visualizer.core.Node._set_highlighted(), visualizer.core.Node._set_selected(), visualizer.core.Node.set_color(), visualizer.core.Node.set_label(), visualizer.core.Node.set_size(), and visualizer.core.Node.set_svg_icon().

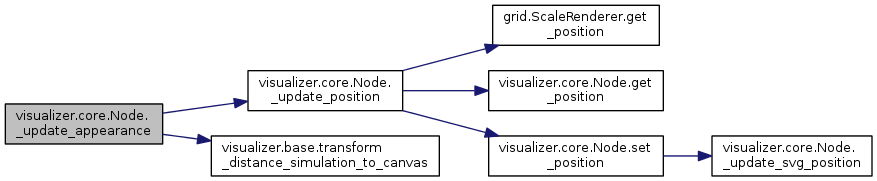

Here is the call graph for this function:

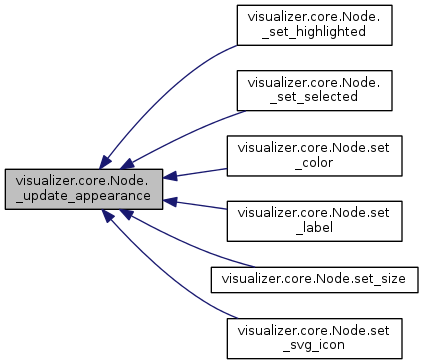

Here is the caller graph for this function:

def visualizer.core.Node._update_position ( self )

private

Definition at line 288 of file core.py.

References visualizer.core.Node.get_position(), grid.ScaleRenderer.get_position(), and visualizer.core.Node.set_position().

Referenced by visualizer.core.Node._update_appearance().

Here is the call graph for this function:

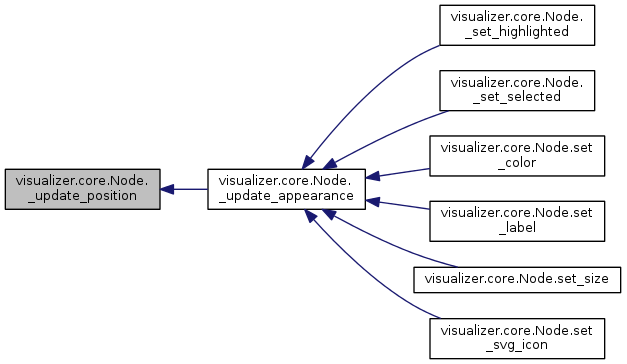

Here is the caller graph for this function:

def visualizer.core.Node._update_svg_position	(	self,
		x,
		y
	)

private

Definition at line 152 of file core.py.

References visualizer.core.Node.svg_align_x, and visualizer.core.Node.svg_align_y.

Referenced by visualizer.core.Node.set_position(), and visualizer.core.Node.set_svg_icon().

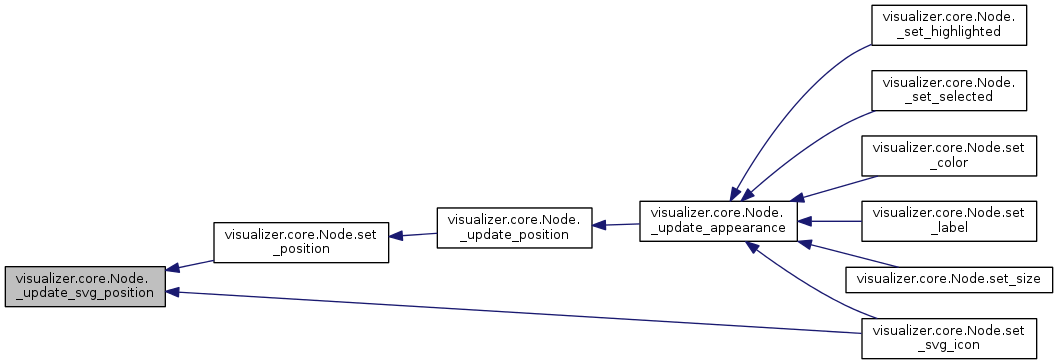

Here is the caller graph for this function:

def visualizer.core.Node.add_link	(	self,
		link
	)

Definition at line 299 of file core.py.

def visualizer.core.Node.get_position ( self )

Definition at line 285 of file core.py.

Referenced by visualizer.core.Node._update_position().

Here is the caller graph for this function:

def visualizer.core.Node.has_mobility ( self )

Definition at line 308 of file core.py.

References visualizer.core.Node._has_mobility, and visualizer.core.Node.node_index.

def visualizer.core.Node.on_enter_notify_event	(	self,
		view,
		target,
		event
	)

Definition at line 214 of file core.py.

References visualizer.core.Node.highlighted.

def visualizer.core.Node.on_leave_notify_event	(	self,
		view,
		target,
		event
	)

Definition at line 216 of file core.py.

References visualizer.core.Node.highlighted.

def visualizer.core.Node.remove_link	(	self,
		link
	)

Definition at line 303 of file core.py.

def visualizer.core.Node.set_color	(	self,
		color
	)

Definition at line 292 of file core.py.

References visualizer.core.Node._color, and visualizer.core.Node._update_appearance().

Here is the call graph for this function:

def visualizer.core.Node.set_label	(	self,
		label
	)

Definition at line 147 of file core.py.

References visualizer.core.Node._label, and visualizer.core.Node._update_appearance().

Here is the call graph for this function:

def visualizer.core.Node.set_position	(	self,
		x,
		y
	)

Definition at line 273 of file core.py.

References visualizer.core.Node._label_canvas_item, visualizer.core.Node._size, visualizer.core.Node._update_svg_position(), visualizer.core.Node.links, and visualizer.core.Node.svg_item.

Referenced by visualizer.core.Node._update_position().

Here is the call graph for this function:

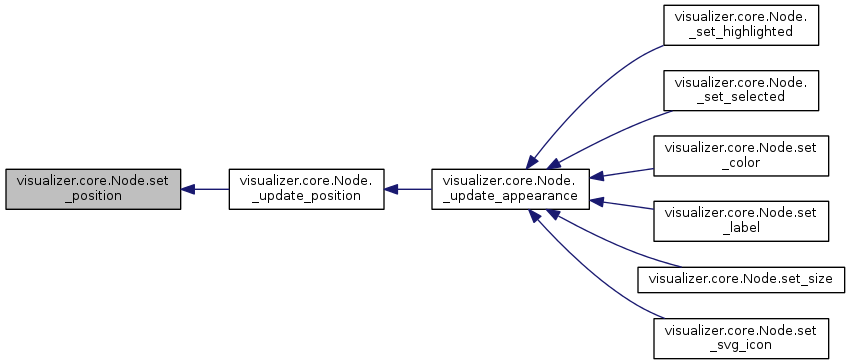

Here is the caller graph for this function:

def visualizer.core.Node.set_size	(	self,
		size
	)

Definition at line 233 of file core.py.

References visualizer.core.Node._size, and visualizer.core.Node._update_appearance().

Here is the call graph for this function:

def visualizer.core.Node.set_svg_icon	(	self,
		file_base_name,
		width = `None`,
		height = `None`,
		align_x = `0.5`,
		align_y = `0.5`
	)

Set a background SVG icon for the node.

@param file_base_name: base file name, including .svg
extension, of the svg file.  Place the file in the folder
src/contrib/visualizer/resource.

@param width: scale to the specified width, in meters
@param width: scale to the specified height, in meters

@param align_x: horizontal alignment of the icon relative to
the node position, from 0 (icon fully to the left of the node)
to 1.0 (icon fully to the right of the node)

@param align_y: vertical alignment of the icon relative to the
node position, from 0 (icon fully to the top of the node) to
1.0 (icon fully to the bottom of the node)

Definition at line 103 of file core.py.

References visualizer.core.Node._update_appearance(), visualizer.core.Node._update_svg_position(), visualizer.core.Node.svg_align_x, visualizer.core.Node.svg_align_y, visualizer.core.Node.svg_item, and visualizer.base.transform_distance_simulation_to_canvas().

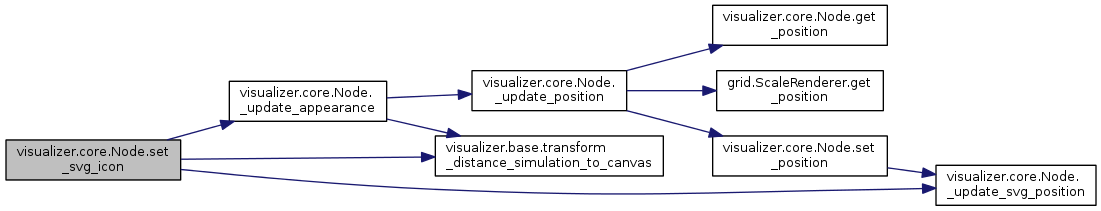

Here is the call graph for this function:

def visualizer.core.Node.tooltip_query	(	self,
		tooltip
	)

Definition at line 159 of file core.py.

References visualizer.core.Node.node_index.

Member Data Documentation

dictionary visualizer.core.Node.__gsignals__

staticprivate

Initial value:

{
        # signal emitted whenever a tooltip is about to be shown for the node
        # the first signal parameter is a python list of strings, to which information can be appended
        'query-extra-tooltip-info': (gobject.SIGNAL_RUN_LAST, None, (object,)),

        }

Definition at line 71 of file core.py.

visualizer.core.Node._color

private

Definition at line 90 of file core.py.

Referenced by visualizer.core.Node._update_appearance(), and visualizer.core.Node.set_color().

visualizer.core.Node._has_mobility

private

Definition at line 87 of file core.py.

Referenced by visualizer.core.Node.has_mobility().

visualizer.core.Node._highlighted

private

Definition at line 89 of file core.py.
