visualizer.core Namespace Reference

Classes
class	Channel
class	Node
class	ShowTransmissionsMode
class	SimulationThread
class	Visualizer
class	WiredLink

Functions
def	add_initialization_hook
def	set_bounds
def	start

Variables
	_import_error = None
int	BITRATE_FONT_SIZE = 10
float	DEFAULT_NODE_SIZE = 3.0
int	DEFAULT_TRANSMISSIONS_MEMORY = 5
list	initialization_hooks = []
	ipython_view = None
string	LAYOUT_ALGORITHM = 'neato'
int	PI_OVER_2 = 2
int	PI_TIMES_2 = 2
int	PRIORITY_UPDATE_MODEL = 100
int	PRIORITY_UPDATE_VIEW = 200
int	REPRESENT_CHANNELS_AS_NODES = 1
float	SAMPLE_PERIOD = 0.1
string	SHELL_FONT = "Lucida Console 9"
	svgitem = None

Function Documentation

def visualizer.core.add_initialization_hook	(		hook,
			args
	)

Adds a callback to be called after
the visualizer is initialized, like this::
   initialization_hook(visualizer, *args)

Definition at line 1462 of file core.py.

Referenced by visualizer.core.set_bounds().

Here is the caller graph for this function:

def visualizer.core.set_bounds	(		x1,
			y1,
			x2,
			y2
	)

Definition at line 1472 of file core.py.

References visualizer.core.add_initialization_hook(), and visualizer.base.transform_point_simulation_to_canvas().

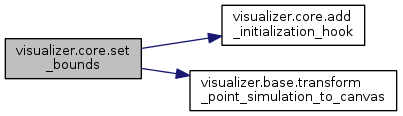

Here is the call graph for this function:

def visualizer.core.start

(

)

Definition at line 1482 of file core.py.

References visualizer.base.load_plugins().

Referenced by ns3::TcpRxBuffer.Add(), ns3::Buffer.AddAtStart(), ns3::UanPhyCalcSinrFhFsk.CalcSinrDb(), ns3::StatusCode.Deserialize(), ns3::AmsduSubframeHeader.Deserialize(), ns3::CapabilityInformation.Deserialize(), ns3::GtpuHeader.Deserialize(), ns3::flame::FlameHeader.Deserialize(), ns3::LlcSnapHeader.Deserialize(), ns3::CtrlBAckRequestHeader.Deserialize(), ns3::ArpHeader.Deserialize(), ns3::MgtAssocRequestHeader.Deserialize(), ns3::SeqTsHeader.Deserialize(), ns3::WifiInformationElementVector.Deserialize(), ns3::dot11s::MeshHeader.Deserialize(), ns3::aodv::TypeHeader.Deserialize(), ns3::LtePdcpHeader.Deserialize(), ns3::dsdv::DsdvHeader.Deserialize(), ns3::ManagementMessageType.Deserialize(), ns3::dot11s::PeerLinkFrameStart.Deserialize(), ns3::UanHeaderRcData.Deserialize(), ns3::UanHeaderCommon.Deserialize(), ns3::LteRlcHeader.Deserialize(), ns3::MgtAssocResponseHeader.Deserialize(), ns3::OfdmDownlinkFramePrefix.Deserialize(), ns3::olsr::PacketHeader.Deserialize(), ns3::WifiMacHeader.Deserialize(), ns3::EthernetHeader.Deserialize(), ns3::Ipv6ExtensionHeader.Deserialize(), ns3::CtrlBAckResponseHeader.Deserialize(), ns3::GenericMacHeader.Deserialize(), ns3::aodv::RreqHeader.Deserialize(), ns3::MgtProbeRequestHeader.Deserialize(), ns3::Icmpv4DestinationUnreachable.Deserialize(), ns3::dsr::DsrOptionHeader.Deserialize(), ns3::Ipv6OptionHeader.Deserialize(), ns3::UdpHeader.Deserialize(), ns3::LteRlcAmHeader.Deserialize(), ns3::WifiInformationElement.Deserialize(), ns3::MgtProbeResponseHeader.Deserialize(), ns3::Icmpv4TimeExceeded.Deserialize(), ns3::TcpHeader.Deserialize(), ns3::UanHeaderRcRts.Deserialize(), ns3::PacketMetadata.Deserialize(), ns3::dsr::DsrFsHeader.Deserialize(), ns3::PbbTlvBlock.Deserialize(), ns3::BandwidthRequestHeader.Deserialize(), ns3::Ipv6Header.Deserialize(), ns3::dsr::DsrOptionPad1Header.Deserialize(), ns3::aodv::RrepHeader.Deserialize(), ns3::RngRsp.Deserialize(), ns3::Icmpv6Header.Deserialize(), ns3::Ipv6OptionPad1Header.Deserialize(), ns3::olsr::MessageHeader.Deserialize(), ns3::Ipv4Header.Deserialize(), ns3::Ucd.Deserialize(), ns3::olsr::MessageHeader::Mid.Deserialize(), ns3::UanHeaderRcCtsGlobal.Deserialize(), ns3::GrantManagementSubheader.Deserialize(), ns3::Dcd.Deserialize(), ns3::dsr::DsrOptionPadnHeader.Deserialize(), ns3::WifiActionHeader.Deserialize(), ns3::aodv::RrepAckHeader.Deserialize(), ns3::Ipv6OptionPadnHeader.Deserialize(), ns3::Ipv6ExtensionHopByHopHeader.Deserialize(), ns3::MgtAddBaRequestHeader.Deserialize(), ns3::olsr::MessageHeader::Hello.Deserialize(), ns3::FragmentationSubheader.Deserialize(), ns3::aodv::RerrHeader.Deserialize(), ns3::olsr::MessageHeader::Tc.Deserialize(), ns3::DsaReq.Deserialize(), ns3::UanHeaderRcCts.Deserialize(), ns3::dsr::DsrRoutingHeader.Deserialize(), ns3::MgtAddBaResponseHeader.Deserialize(), ns3::Ipv6ExtensionDestinationHeader.Deserialize(), ns3::Ipv6OptionJumbogramHeader.Deserialize(), ns3::PbbAddressTlvBlock.Deserialize(), ns3::DlMap.Deserialize(), ns3::UlMap.Deserialize(), ns3::olsr::MessageHeader::Hna.Deserialize(), ns3::UanHeaderRcAck.Deserialize(), ns3::MgtDelBaHeader.Deserialize(), ns3::dsr::DsrOptionRreqHeader.Deserialize(), ns3::DsaRsp.Deserialize(), ns3::Ipv6OptionRouterAlertHeader.Deserialize(), ns3::Icmpv6NS.Deserialize(), ns3::Ipv6ExtensionFragmentHeader.Deserialize(), ns3::DsaAck.Deserialize(), ns3::RngReq.Deserialize(), ns3::Ipv6ExtensionRoutingHeader.Deserialize(), ns3::Icmpv6NA.Deserialize(), ns3::dsr::DsrOptionRrepHeader.Deserialize(), ns3::Ipv6ExtensionLooseRoutingHeader.Deserialize(), ns3::PbbPacket.Deserialize(), ns3::dsr::DsrOptionSRHeader.Deserialize(), ns3::Icmpv6RA.Deserialize(), ns3::Icmpv6RS.Deserialize(), ns3::dsr::DsrOptionRerrHeader.Deserialize(), ns3::Icmpv6Redirection.Deserialize(), ns3::PbbMessage.Deserialize(), ns3::dsr::DsrOptionRerrUnreachHeader.Deserialize(), ns3::Icmpv6Echo.Deserialize(), ns3::Icmpv6DestinationUnreachable.Deserialize(), ns3::dsr::DsrOptionRerrUnsupportHeader.Deserialize(), ns3::Icmpv6TooBig.Deserialize(), ns3::dsr::DsrOptionAckReqHeader.Deserialize(), ns3::Icmpv6TimeExceeded.Deserialize(), ns3::Icmpv6ParameterError.Deserialize(), ns3::dsr::DsrOptionAckHeader.Deserialize(), ns3::Icmpv6OptionMtu.Deserialize(), ns3::Icmpv6OptionPrefixInformation.Deserialize(), ns3::PbbTlv.Deserialize(), ns3::Icmpv6OptionLinkLayerAddress.Deserialize(), ns3::Icmpv6OptionRedirected.Deserialize(), ns3::CtrlBAckResponseHeader.DeserializeBitmap(), ns3::WifiInformationElement.DeserializeIfPresent(), ns3::dot11s::IePeeringProtocol.DeserializeInformationField(), ns3::dot11s::IeLinkMetricReport.DeserializeInformationField(), ns3::dot11s::IeMeshId.DeserializeInformationField(), ns3::dot11s::IePerr.DeserializeInformationField(), ns3::dot11s::IeRann.DeserializeInformationField(), ns3::dot11s::IePrep.DeserializeInformationField(), ns3::dot11s::IePeerManagement.DeserializeInformationField(), ns3::dot11s::IeBeaconTiming.DeserializeInformationField(), ns3::dot11s::IeConfiguration.DeserializeInformationField(), ns3::dot11s::IePreq.DeserializeInformationField(), ns3::MeshInformationElementVector.DeserializeSingleIe(), ns3::WifiInformationElementVector.DeserializeSingleIe(), ns3::PacketTest.DoCheck(), ns3::OfdmUcdChannelEncodings.DoRead(), ns3::OfdmDcdChannelEncodings.DoRead(), ns3::OfdmUcdChannelEncodings.DoWrite(), ns3::OfdmDcdChannelEncodings.DoWrite(), FillHistoRangeUniformly(), anonymous_namespace{random-variable-stream-test-suite.cc}.FillHistoRangeUniformly(), main(), ns3::DlFramePrefixIe.Read(), ns3::DcdChannelEncodings.Read(), ns3::UcdChannelEncodings.Read(), ns3::OfdmUlBurstProfile.Read(), ns3::OfdmDlBurstProfile.Read(), ns3::OfdmUlMapIe.Read(), ns3::OfdmDlMapIe.Read(), ns3::PacketTagList.Remove(), ns3::PacketMetadata.RemoveAtStart(), ns3::Buffer.RemoveAtStart(), ns3::PacketMetadata.ReserveCopy(), ns3::BlockAckCache.ResetPortionOfBitmap(), ns3::StatusCode.Serialize(), ns3::CapabilityInformation.Serialize(), ns3::GtpuHeader.Serialize(), ns3::flame::FlameHeader.Serialize(), ns3::LlcSnapHeader.Serialize(), ns3::Icmpv4Header.Serialize(), ns3::CtrlBAckRequestHeader.Serialize(), ns3::ArpHeader.Serialize(), ns3::MgtAssocRequestHeader.Serialize(), ns3::SeqTsHeader.Serialize(), ns3::dot11s::MeshHeader.Serialize(), ns3::LtePdcpHeader.Serialize(), ns3::ExtendedSupportedRatesIE.Serialize(), ns3::dot11s::PeerLinkFrameStart.Serialize(), ns3::ManagementMessageType.Serialize(), ns3::LteRlcHeader.Serialize(), ns3::MgtAssocResponseHeader.Serialize(), ns3::OfdmDownlinkFramePrefix.Serialize(), ns3::olsr::PacketHeader.Serialize(), ns3::Ipv6ExtensionHeader.Serialize(), ns3::EthernetHeader.Serialize(), ns3::CtrlBAckResponseHeader.Serialize(), ns3::GenericMacHeader.Serialize(), ns3::dsr::DsrOptionHeader.Serialize(), ns3::Ipv6OptionHeader.Serialize(), ns3::MgtProbeRequestHeader.Serialize(), ns3::UdpHeader.Serialize(), ns3::LteRlcAmHeader.Serialize(), ns3::MgtProbeResponseHeader.Serialize(), ns3::TcpHeader.Serialize(), ns3::PacketMetadata.Serialize(), ns3::dsr::DsrFsHeader.Serialize(), ns3::PbbTlvBlock.Serialize(), ns3::Ipv6Header.Serialize(), ns3::BandwidthRequestHeader.Serialize(), ns3::dsr::DsrOptionPad1Header.Serialize(), ns3::RngRsp.Serialize(), ns3::Icmpv6Header.Serialize(), ns3::Ipv6OptionPad1Header.Serialize(), ns3::olsr::MessageHeader.Serialize(), ns3::Ipv4Header.Serialize(), ns3::Ucd.Serialize(), ns3::olsr::MessageHeader::Mid.Serialize(), ns3::GrantManagementSubheader.Serialize(), ns3::dsr::DsrOptionPadnHeader.Serialize(), ns3::Dcd.Serialize(), ns3::Ipv6OptionPadnHeader.Serialize(), ns3::Ipv6ExtensionHopByHopHeader.Serialize(), ns3::MgtAddBaRequestHeader.Serialize(), ns3::olsr::MessageHeader::Hello.Serialize(), ns3::FragmentationSubheader.Serialize(), ns3::olsr::MessageHeader::Tc.Serialize(), ns3::DsaReq.Serialize(), ns3::dsr::DsrRoutingHeader.Serialize(), ns3::Ipv6ExtensionDestinationHeader.Serialize(), ns3::MgtAddBaResponseHeader.Serialize(), ns3::Ipv6OptionJumbogramHeader.Serialize(), ns3::PbbAddressTlvBlock.Serialize(), ns3::DlMap.Serialize(), ns3::UlMap.Serialize(), ns3::olsr::MessageHeader::Hna.Serialize(), ns3::MgtDelBaHeader.Serialize(), ns3::dsr::DsrOptionRreqHeader.Serialize(), ns3::DsaRsp.Serialize(), ns3::Ipv6OptionRouterAlertHeader.Serialize(), ns3::Icmpv6NS.Serialize(), ns3::Ipv6ExtensionFragmentHeader.Serialize(), ns3::DsaAck.Serialize(), ns3::RngReq.Serialize(), ns3::Ipv6ExtensionRoutingHeader.Serialize(), ns3::Icmpv6NA.Serialize(), ns3::dsr::DsrOptionRrepHeader.Serialize(), ns3::Ipv6ExtensionLooseRoutingHeader.Serialize(), ns3::PbbPacket.Serialize(), ns3::dsr::DsrOptionSRHeader.Serialize(), ns3::Icmpv6RA.Serialize(), ns3::Icmpv6RS.Serialize(), ns3::dsr::DsrOptionRerrHeader.Serialize(), ns3::Icmpv6Redirection.Serialize(), ns3::PbbMessage.Serialize(), ns3::dsr::DsrOptionRerrUnreachHeader.Serialize(), ns3::Icmpv6Echo.Serialize(), ns3::Icmpv6DestinationUnreachable.Serialize(), ns3::dsr::DsrOptionRerrUnsupportHeader.Serialize(), ns3::Icmpv6TooBig.Serialize(), ns3::dsr::DsrOptionAckReqHeader.Serialize(), ns3::Icmpv6TimeExceeded.Serialize(), ns3::Icmpv6ParameterError.Serialize(), ns3::dsr::DsrOptionAckHeader.Serialize(), ns3::PbbAddressBlock.Serialize(), ns3::Icmpv6OptionMtu.Serialize(), ns3::Icmpv6OptionPrefixInformation.Serialize(), ns3::PbbTlv.Serialize(), ns3::Icmpv6OptionLinkLayerAddress.Serialize(), ns3::Icmpv6OptionRedirected.Serialize(), ns3::CtrlBAckResponseHeader.SerializeBitmap(), ns3::Application.SetStartTime(), ns3::YansWifiPhy.SetTxPowerStart(), ns3::PbbTlv.SetValue(), ns3::RawTextConfigLoad.Strip(), ns3::UanPdp.SumTapsFromMaxC(), ns3::UanPdp.SumTapsFromMaxNc(), TestDeterministicByTime(), ns3::HeapScheduler.TopDown(), ns3::DlFramePrefixIe.Write(), ns3::DcdChannelEncodings.Write(), ns3::UcdChannelEncodings.Write(), ns3::OfdmUlBurstProfile.Write(), ns3::OfdmDlBurstProfile.Write(), ns3::OfdmUlMapIe.Write(), and ns3::OfdmDlMapIe.Write().

Here is the call graph for this function:

Variable Documentation

visualizer.core._import_error = None

Definition at line 54 of file core.py.

int visualizer.core.BITRATE_FONT_SIZE = 10

Definition at line 9 of file core.py.

float visualizer.core.DEFAULT_NODE_SIZE = 3.0

Definition at line 7 of file core.py.

int visualizer.core.DEFAULT_TRANSMISSIONS_MEMORY = 5

Definition at line 8 of file core.py.

list visualizer.core.initialization_hooks = []

Definition at line 1460 of file core.py.

visualizer.core.ipython_view = None

Definition at line 59 of file core.py.

string visualizer.core.LAYOUT_ALGORITHM = 'neato'

Definition at line 5 of file core.py.

int visualizer.core.PI_OVER_2 = 2

Definition at line 66 of file core.py.

int visualizer.core.PI_TIMES_2 = 2

Definition at line 67 of file core.py.

int visualizer.core.PRIORITY_UPDATE_MODEL = 100

Definition at line 13 of file core.py.

int visualizer.core.PRIORITY_UPDATE_VIEW = 200

Definition at line 14 of file core.py.

int visualizer.core.REPRESENT_CHANNELS_AS_NODES = 1

Definition at line 6 of file core.py.

float visualizer.core.SAMPLE_PERIOD = 0.1

Definition at line 12 of file core.py.

string visualizer.core.SHELL_FONT = "Lucida Console 9"

Definition at line 18 of file core.py.

visualizer.core.svgitem = None

Definition at line 50 of file core.py.
