ns3::UplinkScheduler Class Referenceabstract
WiMAX Models

Virtual class for uplink scheduler. More...

#include <bs-uplink-scheduler.h>

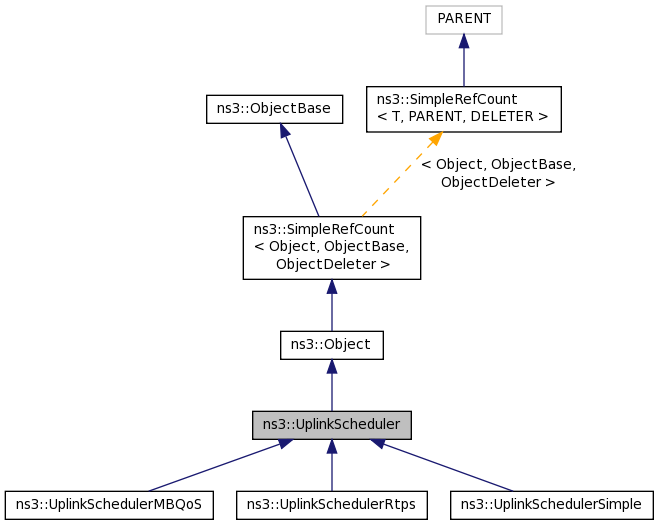

+ Inheritance diagram for ns3::UplinkScheduler:

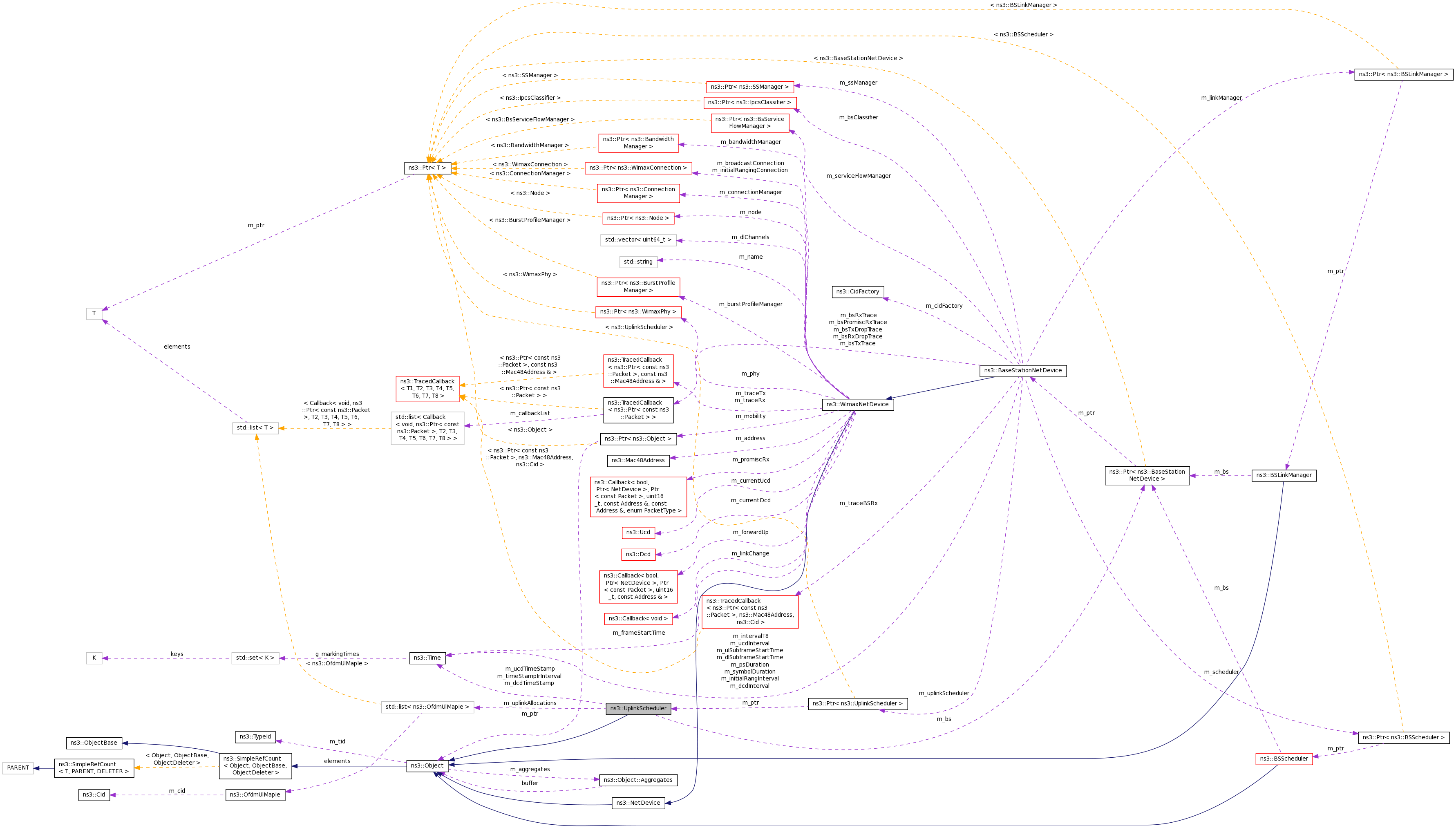

+ Collaboration diagram for ns3::UplinkScheduler:

Public Member Functions

 UplinkScheduler (void)

 UplinkScheduler (Ptr< BaseStationNetDevice > bs)

virtual ~UplinkScheduler (void)

virtual void AddUplinkAllocation (OfdmUlMapIe &ulMapIe, const uint32_t &allocationSize, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)=0

virtual void AllocateInitialRangingInterval (uint32_t &symbolsToAllocation, uint32_t &availableSymbols)=0

virtual uint32_t CalculateAllocationStartTime (void)=0

virtual Ptr< BaseStationNetDevice > GetBs (void)

virtual void GetChannelDescriptorsToUpdate (bool &, bool &, bool &, bool &)=0

virtual Time GetDcdTimeStamp (void) const

virtual bool GetIsInvIrIntrvlAllocated (void) const

virtual bool GetIsIrIntrvlAllocated (void) const

virtual uint8_t GetNrIrOppsAllocated (void) const

virtual Time GetTimeStampIrInterval (void)

virtual Time GetUcdTimeStamp (void) const

virtual std::list< OfdmUlMapIe > GetUplinkAllocations (void) const

virtual void InitOnce (void)=0

virtual void OnSetRequestedBandwidth (ServiceFlowRecord *sfr)=0

virtual void ProcessBandwidthRequest (const BandwidthRequestHeader &bwRequestHdr)=0

virtual void Schedule (void)=0

virtual void ServiceBandwidthRequests (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)=0

virtual bool ServiceBandwidthRequests (ServiceFlow *serviceFlow, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)=0

virtual void ServiceUnsolicitedGrants (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)=0

virtual void SetBs (Ptr< BaseStationNetDevice > bs)

virtual void SetDcdTimeStamp (Time dcdTimeStamp)

virtual void SetIsInvIrIntrvlAllocated (bool isInvIrIntrvlAllocated)

virtual void SetIsIrIntrvlAllocated (bool isIrIntrvlAllocated)

virtual void SetNrIrOppsAllocated (uint8_t nrIrOppsAllocated)

virtual void SetTimeStampIrInterval (Time timeStampIrInterval)

virtual void SetUcdTimeStamp (Time ucdTimeStamp)

virtual void SetupServiceFlow (SSRecord *ssRecord, ServiceFlow *serviceFlow)=0

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()

 SimpleRefCount (const SimpleRefCount &o)

uint32_t GetReferenceCount (void) const

SimpleRefCount & operator= (const SimpleRefCount &o)

void Ref (void) const

void Unref (void) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)


Private Attributes

Ptr< BaseStationNetDevice > m_bs

Time m_dcdTimeStamp

bool m_isInvIrIntrvlAllocated

bool m_isIrIntrvlAllocated

uint8_t m_nrIrOppsAllocated

Time m_timeStampIrInterval

Time m_ucdTimeStamp

std::list< OfdmUlMapIe > m_uplinkAllocations


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)

virtual void DoInitialize (void)

virtual void NotifyNewAggregate (void)

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)


Detailed Description

Virtual class for uplink scheduler.

Config Paths

ns3::UplinkScheduler is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/UplinkScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 42 of file bs-uplink-scheduler.h.

Constructor & Destructor Documentation

ns3::UplinkScheduler::UplinkScheduler ( void  )

Definition at line 41 of file bs-uplink-scheduler.cc.

ns3::UplinkScheduler::UplinkScheduler ( Ptr< BaseStationNetDevice >  bs)

Definition at line 52 of file bs-uplink-scheduler.cc.

ns3::UplinkScheduler::~UplinkScheduler ( void  )
virtual

Definition at line 63 of file bs-uplink-scheduler.cc.

References m_bs, and m_uplinkAllocations.

Member Function Documentation

virtual void ns3::UplinkScheduler::AddUplinkAllocation ( OfdmUlMapIe &  ulMapIe,
const uint32_t &  allocationSize,
uint32_t &  symbolsToAllocation,
uint32_t &  availableSymbols
)
pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

virtual void ns3::UplinkScheduler::AllocateInitialRangingInterval ( uint32_t &  symbolsToAllocation,
uint32_t &  availableSymbols
)
pure virtual

Implemented in ns3::UplinkSchedulerRtps, ns3::UplinkSchedulerMBQoS, and ns3::UplinkSchedulerSimple.

virtual uint32_t ns3::UplinkScheduler::CalculateAllocationStartTime ( void  )
pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

Ptr< BaseStationNetDevice > ns3::UplinkScheduler::GetBs ( void  )
virtual

Definition at line 164 of file bs-uplink-scheduler.cc.

References m_bs.

Referenced by ns3::UplinkSchedulerSimple::AllocateInitialRangingInterval(), ns3::UplinkSchedulerMBQoS::AllocateInitialRangingInterval(), ns3::UplinkSchedulerRtps::AllocateInitialRangingInterval(), ns3::UplinkSchedulerSimple::CalculateAllocationStartTime(), ns3::UplinkSchedulerRtps::CalculateAllocationStartTime(), ns3::UplinkSchedulerMBQoS::CalculateAllocationStartTime(), ns3::UplinkSchedulerMBQoS::CheckDeadline(), ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth(), ns3::UplinkSchedulerMBQoS::CountSymbolsJobs(), ns3::UplinkSchedulerSimple::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerRtps::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerMBQoS::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerMBQoS::ProcessBandwidthRequest(), ns3::UplinkSchedulerSimple::Schedule(), ns3::UplinkSchedulerRtps::Schedule(), ns3::UplinkSchedulerMBQoS::Schedule(), ns3::UplinkSchedulerSimple::ServiceBandwidthRequests(), ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes(), ns3::UplinkSchedulerSimple::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerMBQoS::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerSimple::SetupServiceFlow(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), ns3::UplinkSchedulerRtps::SetupServiceFlow(), ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection(), and ns3::UplinkSchedulerMBQoS::UplinkSchedWindowTimer().

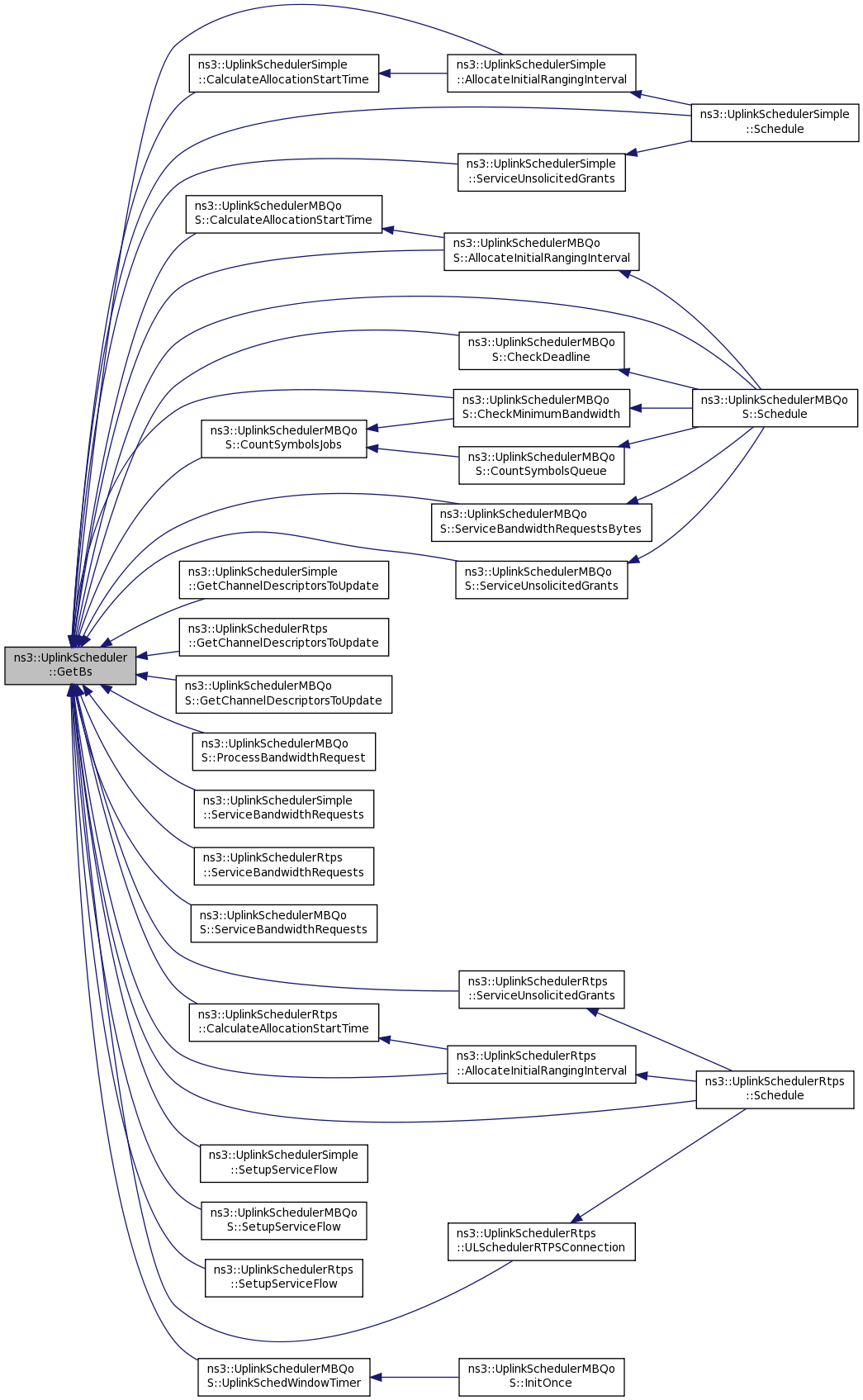

+ Here is the caller graph for this function:

virtual void ns3::UplinkScheduler::GetChannelDescriptorsToUpdate ( bool &  ,
bool &  ,
bool &  ,
bool &
)
pure virtual

Determines if channel descriptors sent in the current frame are required to be updated

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

Time ns3::UplinkScheduler::GetDcdTimeStamp ( void  ) const
virtual

Definition at line 122 of file bs-uplink-scheduler.cc.

References m_dcdTimeStamp.

Referenced by ns3::UplinkSchedulerSimple::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerRtps::GetChannelDescriptorsToUpdate(), and ns3::UplinkSchedulerMBQoS::GetChannelDescriptorsToUpdate().

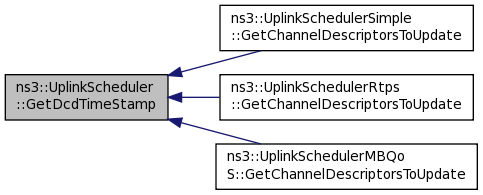

+ Here is the caller graph for this function:

bool ns3::UplinkScheduler::GetIsInvIrIntrvlAllocated ( void  ) const
virtual

Definition at line 109 of file bs-uplink-scheduler.cc.

References m_isInvIrIntrvlAllocated.

bool ns3::UplinkScheduler::GetIsIrIntrvlAllocated ( void  ) const
virtual

Definition at line 96 of file bs-uplink-scheduler.cc.

References m_isIrIntrvlAllocated.

uint8_t ns3::UplinkScheduler::GetNrIrOppsAllocated ( void  ) const
virtual

Definition at line 84 of file bs-uplink-scheduler.cc.

References m_nrIrOppsAllocated.

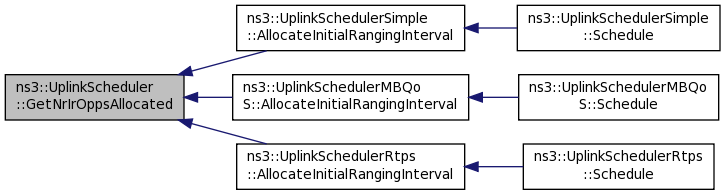

Referenced by ns3::UplinkSchedulerSimple::AllocateInitialRangingInterval(), ns3::UplinkSchedulerMBQoS::AllocateInitialRangingInterval(), and ns3::UplinkSchedulerRtps::AllocateInitialRangingInterval().

+ Here is the caller graph for this function:

Time ns3::UplinkScheduler::GetTimeStampIrInterval ( void  )
virtual

Definition at line 152 of file bs-uplink-scheduler.cc.

References m_timeStampIrInterval.

Referenced by ns3::UplinkSchedulerSimple::AllocateInitialRangingInterval(), ns3::UplinkSchedulerMBQoS::AllocateInitialRangingInterval(), and ns3::UplinkSchedulerRtps::AllocateInitialRangingInterval().

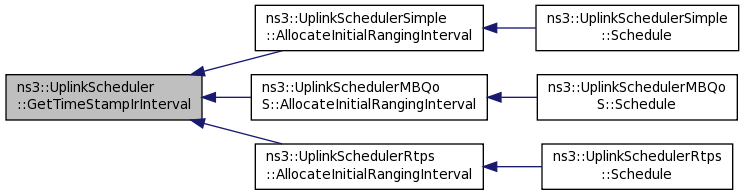

+ Here is the caller graph for this function:

TypeId ns3::UplinkScheduler::GetTypeId ( void  )
static

Definition at line 75 of file bs-uplink-scheduler.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

Time ns3::UplinkScheduler::GetUcdTimeStamp ( void  ) const
virtual

Definition at line 134 of file bs-uplink-scheduler.cc.

References m_ucdTimeStamp.

Referenced by ns3::UplinkSchedulerSimple::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerRtps::GetChannelDescriptorsToUpdate(), and ns3::UplinkSchedulerMBQoS::GetChannelDescriptorsToUpdate().

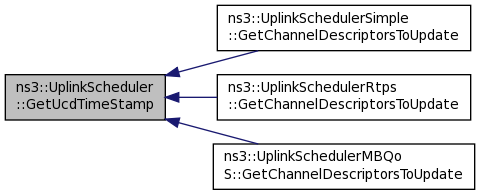

+ Here is the caller graph for this function:

std::list< OfdmUlMapIe > ns3::UplinkScheduler::GetUplinkAllocations ( void  ) const
virtual

Reimplemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

Definition at line 146 of file bs-uplink-scheduler.cc.

References m_uplinkAllocations.

void ns3::UplinkScheduler::InitOnce ( void  )
pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

Definition at line 69 of file bs-uplink-scheduler.cc.

virtual void ns3::UplinkScheduler::OnSetRequestedBandwidth ( ServiceFlowRecord *  sfr)
pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

virtual void ns3::UplinkScheduler::ProcessBandwidthRequest ( const BandwidthRequestHeader &  bwRequestHdr)
pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

virtual void ns3::UplinkScheduler::Schedule ( void  )
pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

virtual void ns3::UplinkScheduler::ServiceBandwidthRequests ( const SSRecord *  ssRecord,
enum ServiceFlow::SchedulingType  schedulingType,
OfdmUlMapIe &  ulMapIe,
const WimaxPhy::ModulationType  modulationType,
uint32_t &  symbolsToAllocation,
uint32_t &  availableSymbols
)
pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

virtual bool ns3::UplinkScheduler::ServiceBandwidthRequests ( ServiceFlow *  serviceFlow,
enum ServiceFlow::SchedulingType  schedulingType,
OfdmUlMapIe &  ulMapIe,
const WimaxPhy::ModulationType  modulationType,
uint32_t &  symbolsToAllocation,
uint32_t &  availableSymbols
)
pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

virtual void ns3::UplinkScheduler::ServiceUnsolicitedGrants ( const SSRecord *  ssRecord,
enum ServiceFlow::SchedulingType  schedulingType,
OfdmUlMapIe &  ulMapIe,
const WimaxPhy::ModulationType  modulationType,
uint32_t &  symbolsToAllocation,
uint32_t &  availableSymbols
)
pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

void ns3::UplinkScheduler::SetBs ( Ptr< BaseStationNetDevice >  bs)
virtual

Definition at line 169 of file bs-uplink-scheduler.cc.

References m_bs.

Referenced by ns3::UplinkSchedulerRtps::UplinkSchedulerRtps(), ns3::UplinkSchedulerSimple::UplinkSchedulerSimple(), ns3::UplinkSchedulerMBQoS::~UplinkSchedulerMBQoS(), ns3::UplinkSchedulerRtps::~UplinkSchedulerRtps(), and ns3::UplinkSchedulerSimple::~UplinkSchedulerSimple().

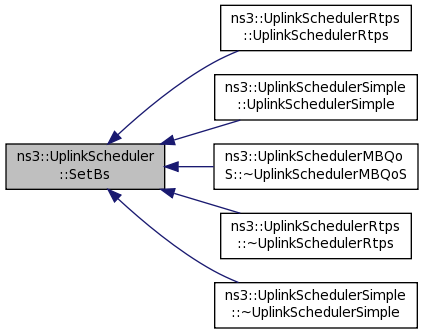

+ Here is the caller graph for this function:

void ns3::UplinkScheduler::SetDcdTimeStamp ( Time  dcdTimeStamp)
virtual

Definition at line 128 of file bs-uplink-scheduler.cc.

References m_dcdTimeStamp.

Referenced by ns3::UplinkSchedulerSimple::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerRtps::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerMBQoS::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerRtps::UplinkSchedulerRtps(), and ns3::UplinkSchedulerSimple::UplinkSchedulerSimple().

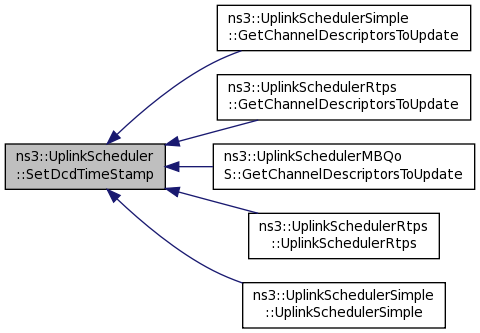

+ Here is the caller graph for this function:

void ns3::UplinkScheduler::SetIsInvIrIntrvlAllocated ( bool  isInvIrIntrvlAllocated)
virtual

Definition at line 116 of file bs-uplink-scheduler.cc.

References m_isInvIrIntrvlAllocated.

Referenced by ns3::UplinkSchedulerSimple::Schedule(), ns3::UplinkSchedulerRtps::Schedule(), ns3::UplinkSchedulerMBQoS::Schedule(), ns3::UplinkSchedulerRtps::UplinkSchedulerRtps(), and ns3::UplinkSchedulerSimple::UplinkSchedulerSimple().

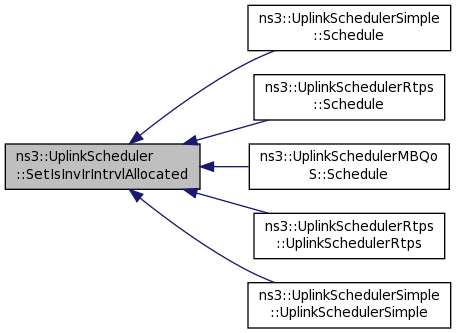

+ Here is the caller graph for this function:

void ns3::UplinkScheduler::SetIsIrIntrvlAllocated ( bool  isIrIntrvlAllocated)
virtual

Definition at line 102 of file bs-uplink-scheduler.cc.

References m_isIrIntrvlAllocated.

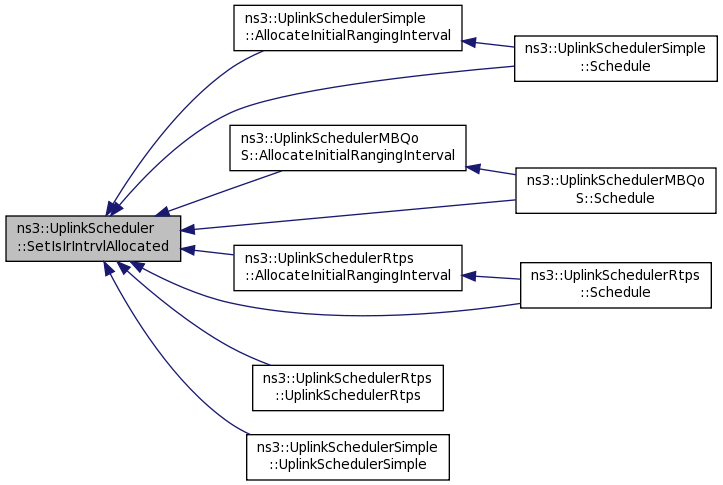

Referenced by ns3::UplinkSchedulerSimple::AllocateInitialRangingInterval(), ns3::UplinkSchedulerMBQoS::AllocateInitialRangingInterval(), ns3::UplinkSchedulerRtps::AllocateInitialRangingInterval(), ns3::UplinkSchedulerSimple::Schedule(), ns3::UplinkSchedulerRtps::Schedule(), ns3::UplinkSchedulerMBQoS::Schedule(), ns3::UplinkSchedulerRtps::UplinkSchedulerRtps(), and ns3::UplinkSchedulerSimple::UplinkSchedulerSimple().

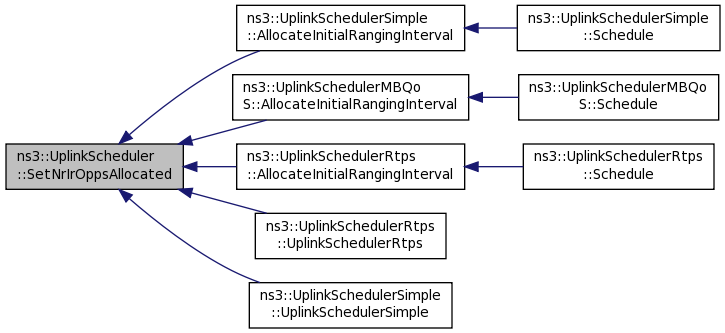

+ Here is the caller graph for this function:

void ns3::UplinkScheduler::SetNrIrOppsAllocated ( uint8_t  nrIrOppsAllocated)
virtual

Definition at line 90 of file bs-uplink-scheduler.cc.

References m_nrIrOppsAllocated.

Referenced by ns3::UplinkSchedulerSimple::AllocateInitialRangingInterval(), ns3::UplinkSchedulerMBQoS::AllocateInitialRangingInterval(), ns3::UplinkSchedulerRtps::AllocateInitialRangingInterval(), ns3::UplinkSchedulerRtps::UplinkSchedulerRtps(), and ns3::UplinkSchedulerSimple::UplinkSchedulerSimple().

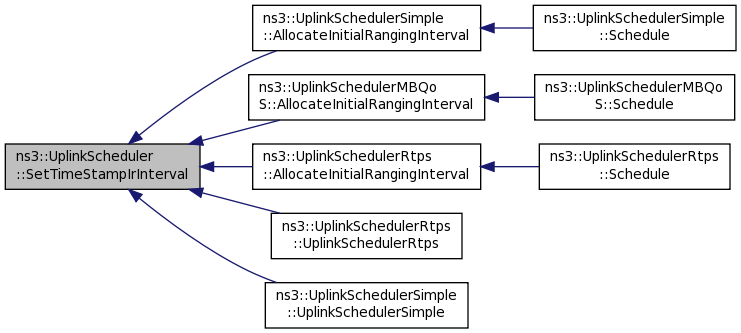

+ Here is the caller graph for this function:

void ns3::UplinkScheduler::SetTimeStampIrInterval ( Time  timeStampIrInterval)
virtual

Definition at line 158 of file bs-uplink-scheduler.cc.

References m_timeStampIrInterval.

Referenced by ns3::UplinkSchedulerSimple::AllocateInitialRangingInterval(), ns3::UplinkSchedulerMBQoS::AllocateInitialRangingInterval(), ns3::UplinkSchedulerRtps::AllocateInitialRangingInterval(), ns3::UplinkSchedulerRtps::UplinkSchedulerRtps(), and ns3::UplinkSchedulerSimple::UplinkSchedulerSimple().

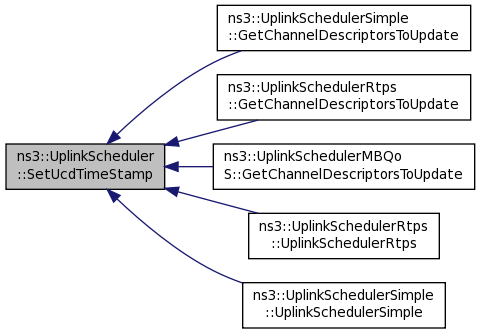

+ Here is the caller graph for this function:

void ns3::UplinkScheduler::SetUcdTimeStamp ( Time  ucdTimeStamp)
virtual

Definition at line 140 of file bs-uplink-scheduler.cc.

References m_ucdTimeStamp.

Referenced by ns3::UplinkSchedulerSimple::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerRtps::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerMBQoS::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerRtps::UplinkSchedulerRtps(), and ns3::UplinkSchedulerSimple::UplinkSchedulerSimple().

+ Here is the caller graph for this function:

virtual void ns3::UplinkScheduler::SetupServiceFlow ( SSRecord *  ssRecord,
ServiceFlow *  serviceFlow
)
pure virtual

Implemented in ns3::UplinkSchedulerRtps, ns3::UplinkSchedulerMBQoS, and ns3::UplinkSchedulerSimple.

Member Data Documentation

Ptr<BaseStationNetDevice> ns3::UplinkScheduler::m_bs
private

Definition at line 111 of file bs-uplink-scheduler.h.

Referenced by GetBs(), SetBs(), and ~UplinkScheduler().

Time ns3::UplinkScheduler::m_dcdTimeStamp
private

Definition at line 117 of file bs-uplink-scheduler.h.

Referenced by GetDcdTimeStamp(), and SetDcdTimeStamp().

bool ns3::UplinkScheduler::m_isInvIrIntrvlAllocated
private

Definition at line 116 of file bs-uplink-scheduler.h.

Referenced by GetIsInvIrIntrvlAllocated(), and SetIsInvIrIntrvlAllocated().

bool ns3::UplinkScheduler::m_isIrIntrvlAllocated
private

Definition at line 115 of file bs-uplink-scheduler.h.

Referenced by GetIsIrIntrvlAllocated(), and SetIsIrIntrvlAllocated().

uint8_t ns3::UplinkScheduler::m_nrIrOppsAllocated
private

Definition at line 114 of file bs-uplink-scheduler.h.

Referenced by GetNrIrOppsAllocated(), and SetNrIrOppsAllocated().

Time ns3::UplinkScheduler::m_timeStampIrInterval
private

Definition at line 113 of file bs-uplink-scheduler.h.

Referenced by GetTimeStampIrInterval(), and SetTimeStampIrInterval().

Time ns3::UplinkScheduler::m_ucdTimeStamp
private

Definition at line 118 of file bs-uplink-scheduler.h.

Referenced by GetUcdTimeStamp(), and SetUcdTimeStamp().

std::list<OfdmUlMapIe> ns3::UplinkScheduler::m_uplinkAllocations
private

Definition at line 112 of file bs-uplink-scheduler.h.

Referenced by GetUplinkAllocations(), and ~UplinkScheduler().

The documentation for this class was generated from the following files:
