#include <bs-uplink-scheduler-simple.h>

Inheritance diagram for ns3::UplinkSchedulerSimple:

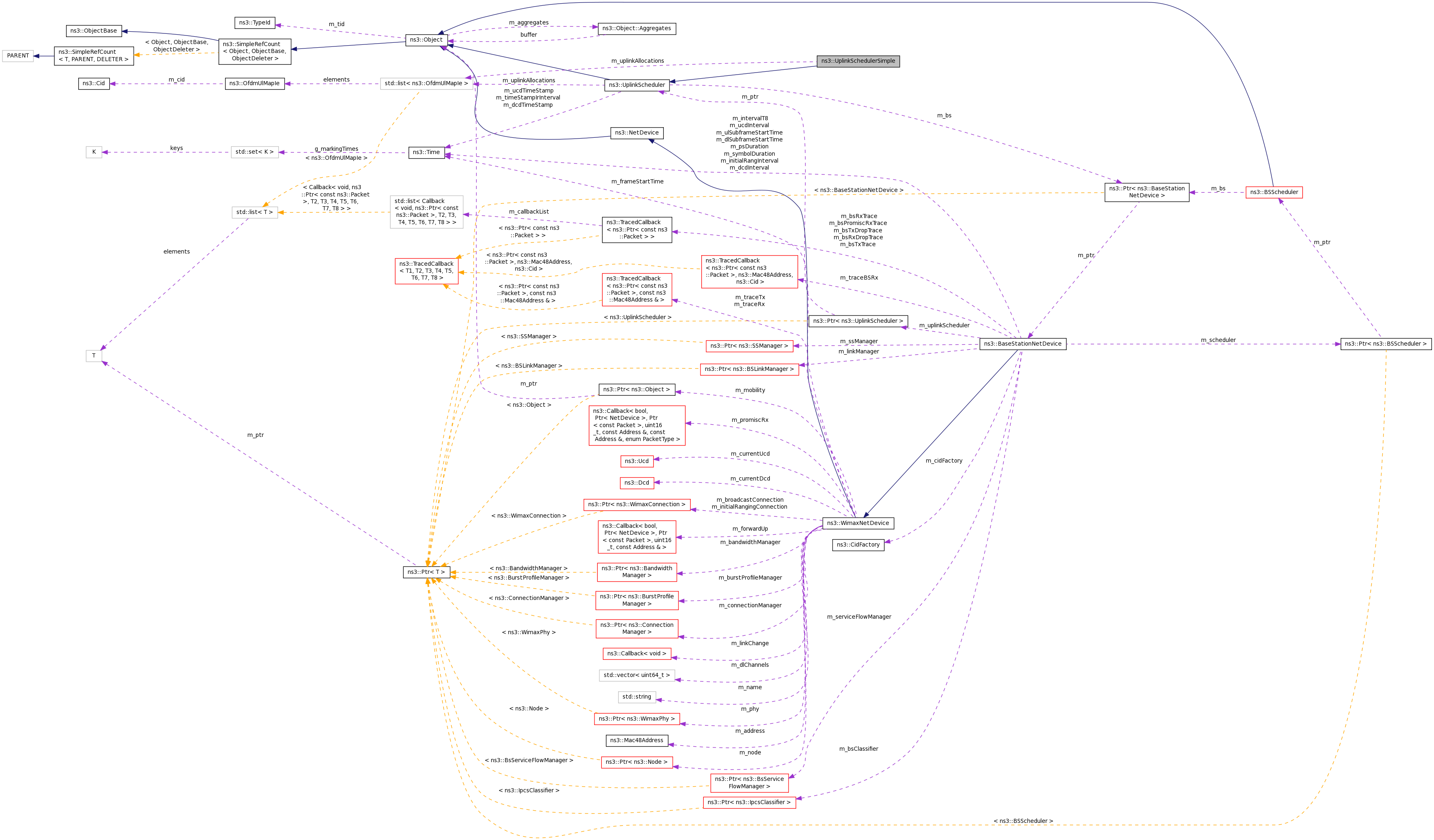

Collaboration diagram for ns3::UplinkSchedulerSimple:

Public Member Functions
	UplinkSchedulerSimple (void)

	UplinkSchedulerSimple (Ptr< BaseStationNetDevice > bs)

	~UplinkSchedulerSimple (void)

void	AddUplinkAllocation (OfdmUlMapIe &ulMapIe, const uint32_t &allocationSize, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)

void	AllocateInitialRangingInterval (uint32_t &symbolsToAllocation, uint32_t &availableSymbols)

uint32_t	CalculateAllocationStartTime (void)

void	GetChannelDescriptorsToUpdate (bool &, bool &, bool &, bool &)
	Determines if channel descriptors sent in the current frame are required to be updated. More...

std::list< OfdmUlMapIe >	GetUplinkAllocations (void) const

void	InitOnce (void)

void	OnSetRequestedBandwidth (ServiceFlowRecord *sfr)

void	ProcessBandwidthRequest (const BandwidthRequestHeader &bwRequestHdr)

void	Schedule (void)

void	ServiceBandwidthRequests (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)

bool	ServiceBandwidthRequests (ServiceFlow *serviceFlow, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)

void	ServiceUnsolicitedGrants (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)

void	SetupServiceFlow (SSRecord ssRecord, ServiceFlow serviceFlow)

Public Member Functions inherited from ns3::UplinkScheduler
	UplinkScheduler (void)

	UplinkScheduler (Ptr< BaseStationNetDevice > bs)

virtual	~UplinkScheduler (void)

virtual Ptr< BaseStationNetDevice >	GetBs (void)

virtual Time	GetDcdTimeStamp (void) const

virtual bool	GetIsInvIrIntrvlAllocated (void) const

virtual bool	GetIsIrIntrvlAllocated (void) const

virtual uint8_t	GetNrIrOppsAllocated (void) const

virtual Time	GetTimeStampIrInterval (void)

virtual Time	GetUcdTimeStamp (void) const

virtual void	SetBs (Ptr< BaseStationNetDevice > bs)

virtual void	SetDcdTimeStamp (Time dcdTimeStamp)

virtual void	SetIsInvIrIntrvlAllocated (bool isInvIrIntrvlAllocated)

virtual void	SetIsIrIntrvlAllocated (bool isIrIntrvlAllocated)

virtual void	SetNrIrOppsAllocated (uint8_t nrIrOppsAllocated)

virtual void	SetTimeStampIrInterval (Time timeStampIrInterval)

virtual void	SetUcdTimeStamp (Time ucdTimeStamp)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::UplinkScheduler
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Attributes
std::list< OfdmUlMapIe >	m_uplinkAllocations

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 40 of file bs-uplink-scheduler-simple.h.

Constructor & Destructor Documentation

ns3::UplinkSchedulerSimple::UplinkSchedulerSimple ( void )

Definition at line 40 of file bs-uplink-scheduler-simple.cc.

References ns3::Simulator::Now(), ns3::UplinkScheduler::SetBs(), ns3::UplinkScheduler::SetDcdTimeStamp(), ns3::UplinkScheduler::SetIsInvIrIntrvlAllocated(), ns3::UplinkScheduler::SetIsIrIntrvlAllocated(), ns3::UplinkScheduler::SetNrIrOppsAllocated(), ns3::UplinkScheduler::SetTimeStampIrInterval(), and ns3::UplinkScheduler::SetUcdTimeStamp().

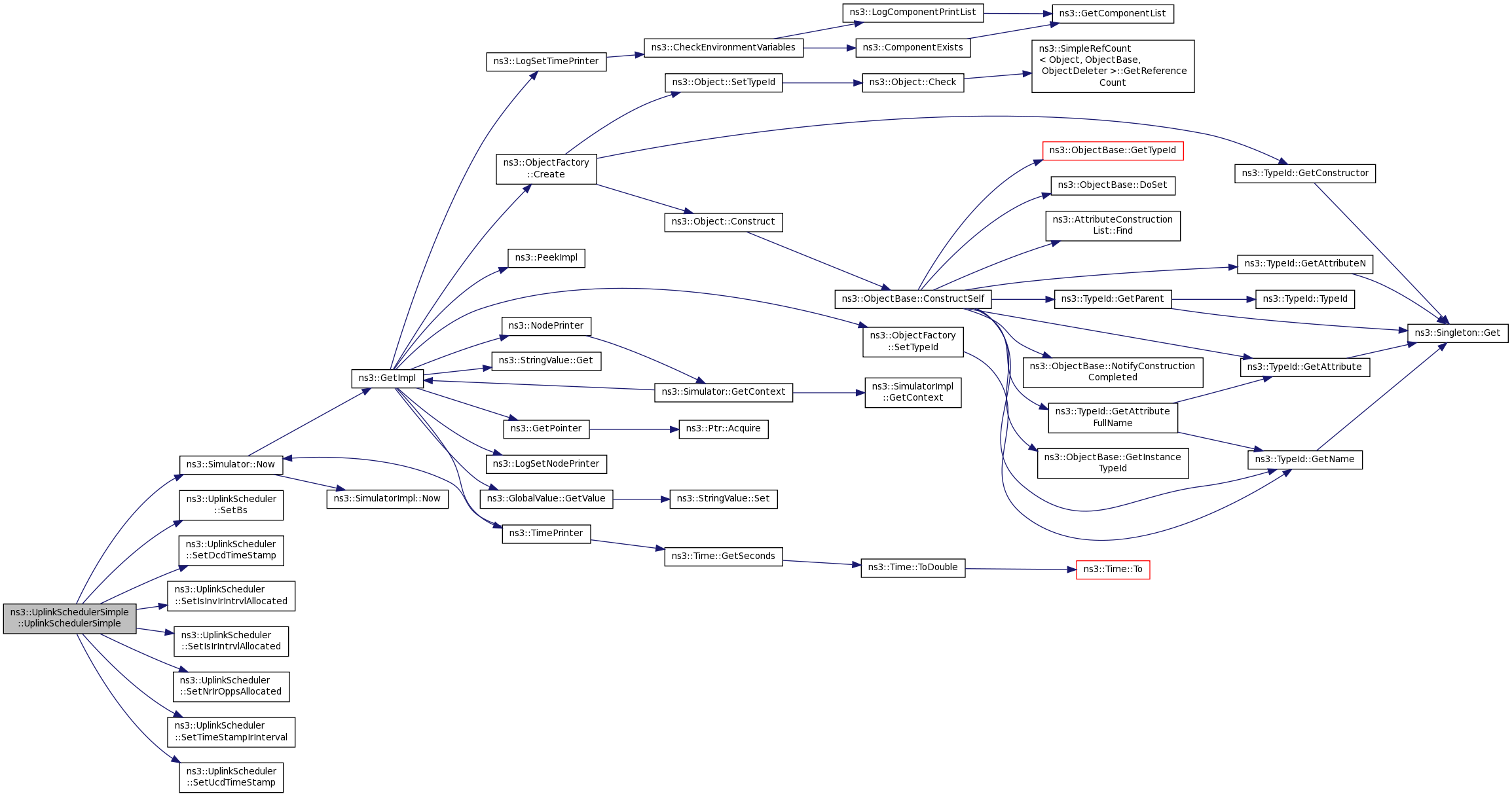

Here is the call graph for this function:

ns3::UplinkSchedulerSimple::UplinkSchedulerSimple ( Ptr< BaseStationNetDevice > bs )

Definition at line 51 of file bs-uplink-scheduler-simple.cc.

References ns3::Simulator::Now(), ns3::UplinkScheduler::SetBs(), ns3::UplinkScheduler::SetDcdTimeStamp(), ns3::UplinkScheduler::SetIsInvIrIntrvlAllocated(), ns3::UplinkScheduler::SetIsIrIntrvlAllocated(), ns3::UplinkScheduler::SetNrIrOppsAllocated(), ns3::UplinkScheduler::SetTimeStampIrInterval(), and ns3::UplinkScheduler::SetUcdTimeStamp().

Here is the call graph for this function:

ns3::UplinkSchedulerSimple::~UplinkSchedulerSimple ( void )

Definition at line 62 of file bs-uplink-scheduler-simple.cc.

References m_uplinkAllocations, and ns3::UplinkScheduler::SetBs().

Here is the call graph for this function:

Member Function Documentation

void ns3::UplinkSchedulerSimple::AddUplinkAllocation	(	OfdmUlMapIe &	ulMapIe,
		const uint32_t &	allocationSize,
		uint32_t &	symbolsToAllocation,
		uint32_t &	availableSymbols
	)

virtual

Implements ns3::UplinkScheduler.

Definition at line 153 of file bs-uplink-scheduler-simple.cc.

References m_uplinkAllocations, ns3::OfdmUlMapIe::SetDuration(), and ns3::OfdmUlMapIe::SetStartTime().

Referenced by AllocateInitialRangingInterval(), Schedule(), ServiceBandwidthRequests(), and ServiceUnsolicitedGrants().

Here is the call graph for this function:

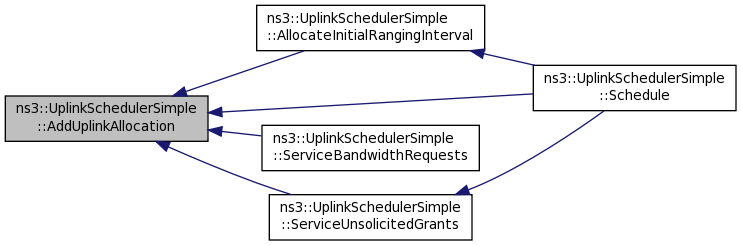

Here is the caller graph for this function:

void ns3::UplinkSchedulerSimple::AllocateInitialRangingInterval	(	uint32_t &	symbolsToAllocation,
		uint32_t &	availableSymbols
	)

virtual

Implements ns3::UplinkScheduler.

Definition at line 474 of file bs-uplink-scheduler-simple.cc.

References AddUplinkAllocation(), CalculateAllocationStartTime(), ns3::UplinkScheduler::GetBs(), ns3::UplinkScheduler::GetNrIrOppsAllocated(), ns3::UplinkScheduler::GetTimeStampIrInterval(), ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::OfdmUlMapIe::SetCid(), ns3::UplinkScheduler::SetIsIrIntrvlAllocated(), ns3::UplinkScheduler::SetNrIrOppsAllocated(), ns3::OfdmUlMapIe::SetStartTime(), ns3::UplinkScheduler::SetTimeStampIrInterval(), ns3::OfdmUlMapIe::SetUiuc(), and ns3::OfdmUlBurstProfile::UIUC_INITIAL_RANGING.

Referenced by Schedule().

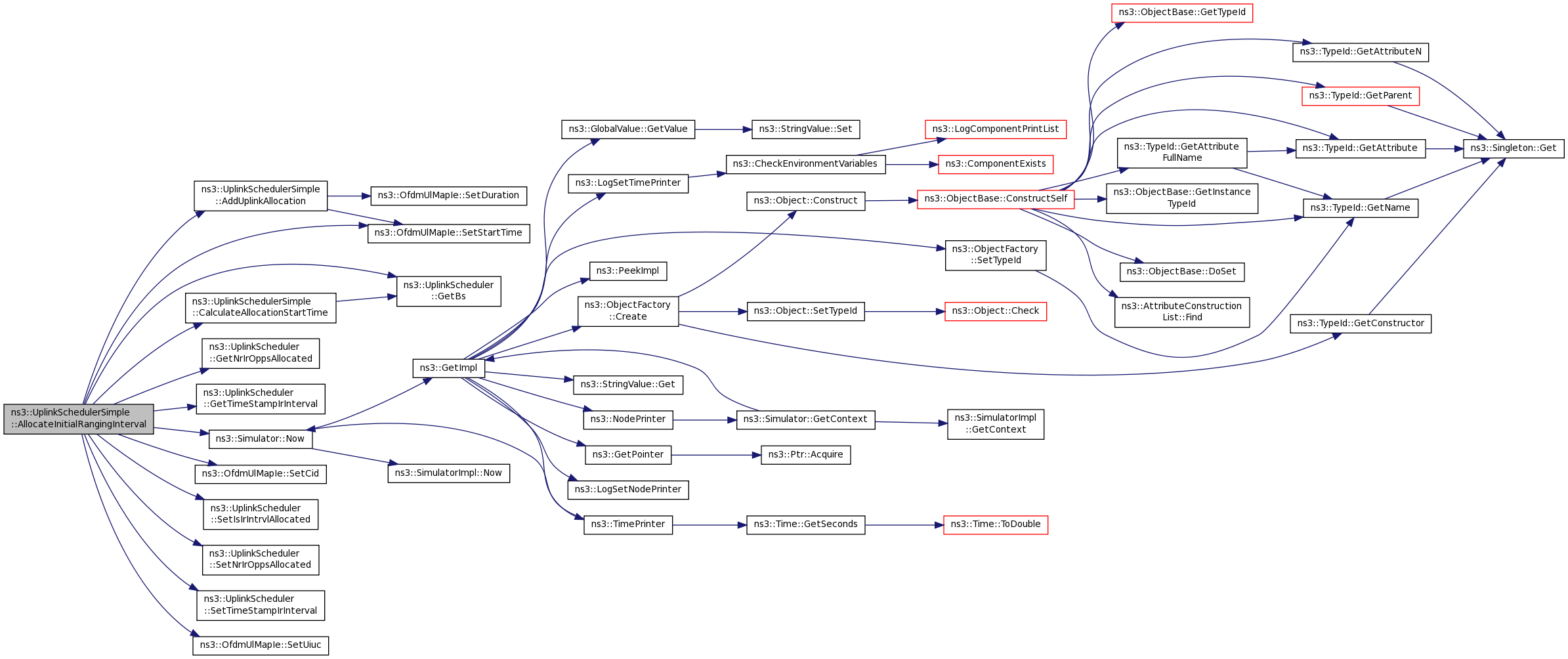

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::UplinkSchedulerSimple::CalculateAllocationStartTime ( void )

virtual

Implements ns3::UplinkScheduler.

Definition at line 147 of file bs-uplink-scheduler-simple.cc.

References ns3::UplinkScheduler::GetBs().

Referenced by AllocateInitialRangingInterval().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UplinkSchedulerSimple::GetChannelDescriptorsToUpdate	(	bool &	updateDcd,
		bool &	updateUcd,
		bool &	sendDcd,
		bool &	sendUcd
	)

virtual

Determines if channel descriptors sent in the current frame are required to be updated.

Implements ns3::UplinkScheduler.

Definition at line 88 of file bs-uplink-scheduler-simple.cc.

References ns3::UplinkScheduler::GetBs(), ns3::UplinkScheduler::GetDcdTimeStamp(), ns3::UplinkScheduler::GetUcdTimeStamp(), ns3::Simulator::Now(), ns3::UplinkScheduler::SetDcdTimeStamp(), and ns3::UplinkScheduler::SetUcdTimeStamp().

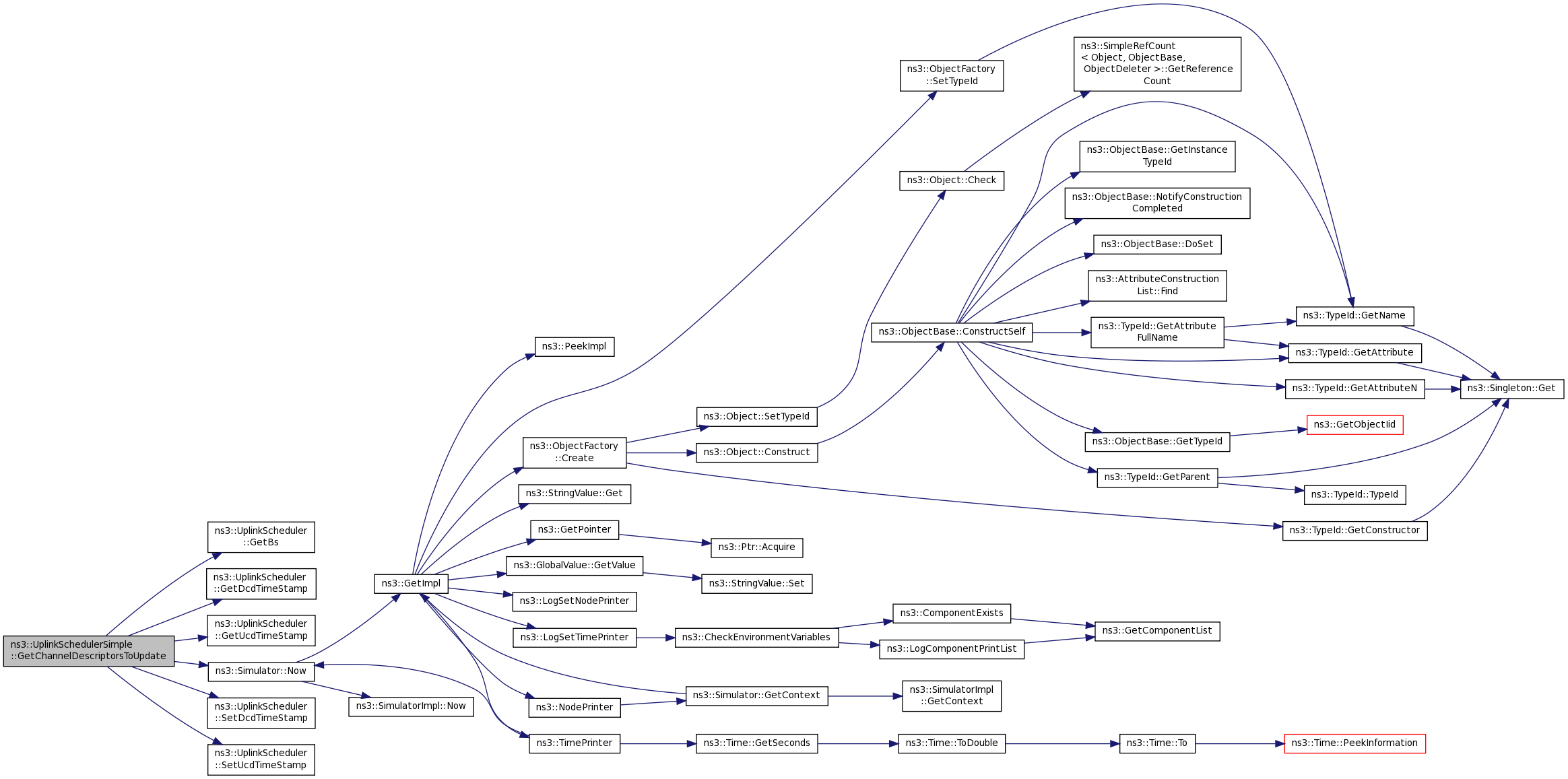

Here is the call graph for this function:

TypeId ns3::UplinkSchedulerSimple::GetTypeId ( void )

static

Definition at line 75 of file bs-uplink-scheduler-simple.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

std::list< OfdmUlMapIe > ns3::UplinkSchedulerSimple::GetUplinkAllocations ( void ) const

virtual

Reimplemented from ns3::UplinkScheduler.

Definition at line 82 of file bs-uplink-scheduler-simple.cc.

References m_uplinkAllocations.

void ns3::UplinkSchedulerSimple::InitOnce ( void )

virtual

Implements ns3::UplinkScheduler.

Definition at line 69 of file bs-uplink-scheduler-simple.cc.

void ns3::UplinkSchedulerSimple::OnSetRequestedBandwidth ( ServiceFlowRecord * sfr )

virtual

Implements ns3::UplinkScheduler.

Definition at line 577 of file bs-uplink-scheduler-simple.cc.

References ns3::ServiceFlowRecord::SetGrantedBandwidth().

Here is the call graph for this function:

void ns3::UplinkSchedulerSimple::ProcessBandwidthRequest ( const BandwidthRequestHeader & bwRequestHdr )

virtual

Implements ns3::UplinkScheduler.

Definition at line 570 of file bs-uplink-scheduler-simple.cc.

void ns3::UplinkSchedulerSimple::Schedule ( void )

virtual

Implements ns3::UplinkScheduler.

Definition at line 166 of file bs-uplink-scheduler-simple.cc.

References AddUplinkAllocation(), AllocateInitialRangingInterval(), ns3::WimaxNetDevice::DIRECTION_UPLINK, ns3::SSRecord::GetAreServiceFlowsAllocated(), ns3::SSRecord::GetBasicCid(), ns3::UplinkScheduler::GetBs(), ns3::SSRecord::GetIsBroadcastSS(), ns3::SSRecord::GetModulationType(), ns3::SSRecord::GetPollForRanging(), ns3::SSRecord::GetRangingStatus(), ns3::Cid::InitialRanging(), m_uplinkAllocations, ns3::WimaxNetDevice::RANGING_STATUS_CONTINUE, ns3::WimaxNetDevice::RANGING_STATUS_SUCCESS, ServiceBandwidthRequests(), ServiceUnsolicitedGrants(), ns3::OfdmUlMapIe::SetCid(), ns3::OfdmUlMapIe::SetDuration(), ns3::UplinkScheduler::SetIsInvIrIntrvlAllocated(), ns3::UplinkScheduler::SetIsIrIntrvlAllocated(), ns3::OfdmUlMapIe::SetStartTime(), ns3::OfdmUlMapIe::SetUiuc(), ns3::ServiceFlow::SF_TYPE_BE, ns3::ServiceFlow::SF_TYPE_NRTPS, ns3::ServiceFlow::SF_TYPE_RTPS, ns3::ServiceFlow::SF_TYPE_UGS, ns3::OfdmUlBurstProfile::UIUC_END_OF_MAP, and ns3::OfdmUlBurstProfile::UIUC_INITIAL_RANGING.

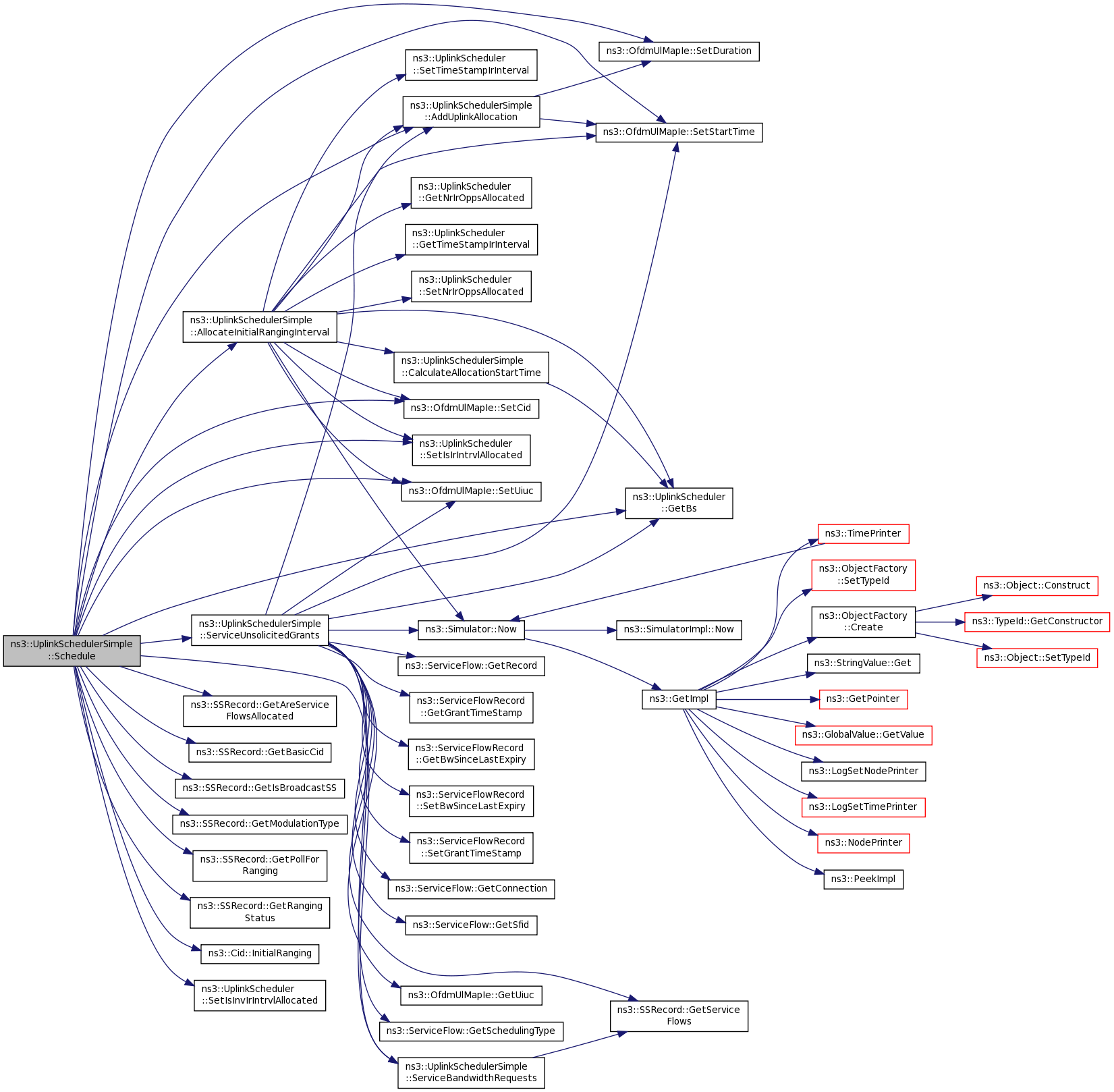

Here is the call graph for this function:

void ns3::UplinkSchedulerSimple::ServiceBandwidthRequests	(	const SSRecord *	ssRecord,
		enum ServiceFlow::SchedulingType	schedulingType,
		OfdmUlMapIe &	ulMapIe,
		const WimaxPhy::ModulationType	modulationType,
		uint32_t &	symbolsToAllocation,
		uint32_t &	availableSymbols
	)

virtual

Implements ns3::UplinkScheduler.

Definition at line 401 of file bs-uplink-scheduler-simple.cc.

References ns3::SSRecord::GetServiceFlows().

Referenced by Schedule(), and ServiceUnsolicitedGrants().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::UplinkSchedulerSimple::ServiceBandwidthRequests	(	ServiceFlow *	serviceFlow,
		enum ServiceFlow::SchedulingType	schedulingType,
		OfdmUlMapIe &	ulMapIe,
		const WimaxPhy::ModulationType	modulationType,
		uint32_t &	symbolsToAllocation,
		uint32_t &	availableSymbols
	)

virtual

Implements ns3::UplinkScheduler.

Definition at line 425 of file bs-uplink-scheduler-simple.cc.

References AddUplinkAllocation(), ns3::UplinkScheduler::GetBs(), ns3::ServiceFlowRecord::GetGrantedBandwidth(), ns3::ServiceFlow::GetRecord(), ns3::ServiceFlowRecord::GetRequestedBandwidth(), ns3::ServiceFlow::GetSduSize(), ns3::ServiceFlowRecord::SetBwSinceLastExpiry(), ns3::ServiceFlow::SF_TYPE_NRTPS, and ns3::ServiceFlowRecord::UpdateGrantedBandwidth().

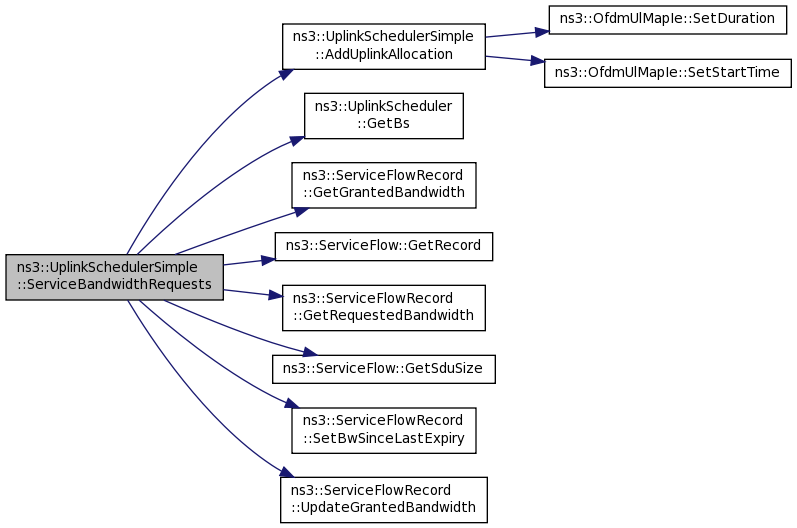

Here is the call graph for this function:

void ns3::UplinkSchedulerSimple::ServiceUnsolicitedGrants	(	const SSRecord *	ssRecord,
		enum ServiceFlow::SchedulingType	schedulingType,
		OfdmUlMapIe &	ulMapIe,
		const WimaxPhy::ModulationType	modulationType,
		uint32_t &	symbolsToAllocation,
		uint32_t &	availableSymbols
	)
