Interface to network animator. More...

#include <animation-interface.h>

Collaboration diagram for ns3::AnimationInterface:

Classes
class	AnimPacketInfo

class	AnimRxInfo

class	AnimXmlElement

struct	Ipv4RoutePathElement

struct	Ipv4RouteTrackElement

struct	LinkPairCompare

struct	LinkProperties

struct	NodeSize

struct	P2pLinkNodeIdPair

struct	Rgb

Public Types
typedef void(*	AnimWriteCallback )(const char *str)
	typedef for WriteCallBack used for listening to AnimationInterface write messages More...

enum	CounterType { UINT32_COUNTER, DOUBLE_COUNTER }
	Counter Types. More...

Public Member Functions

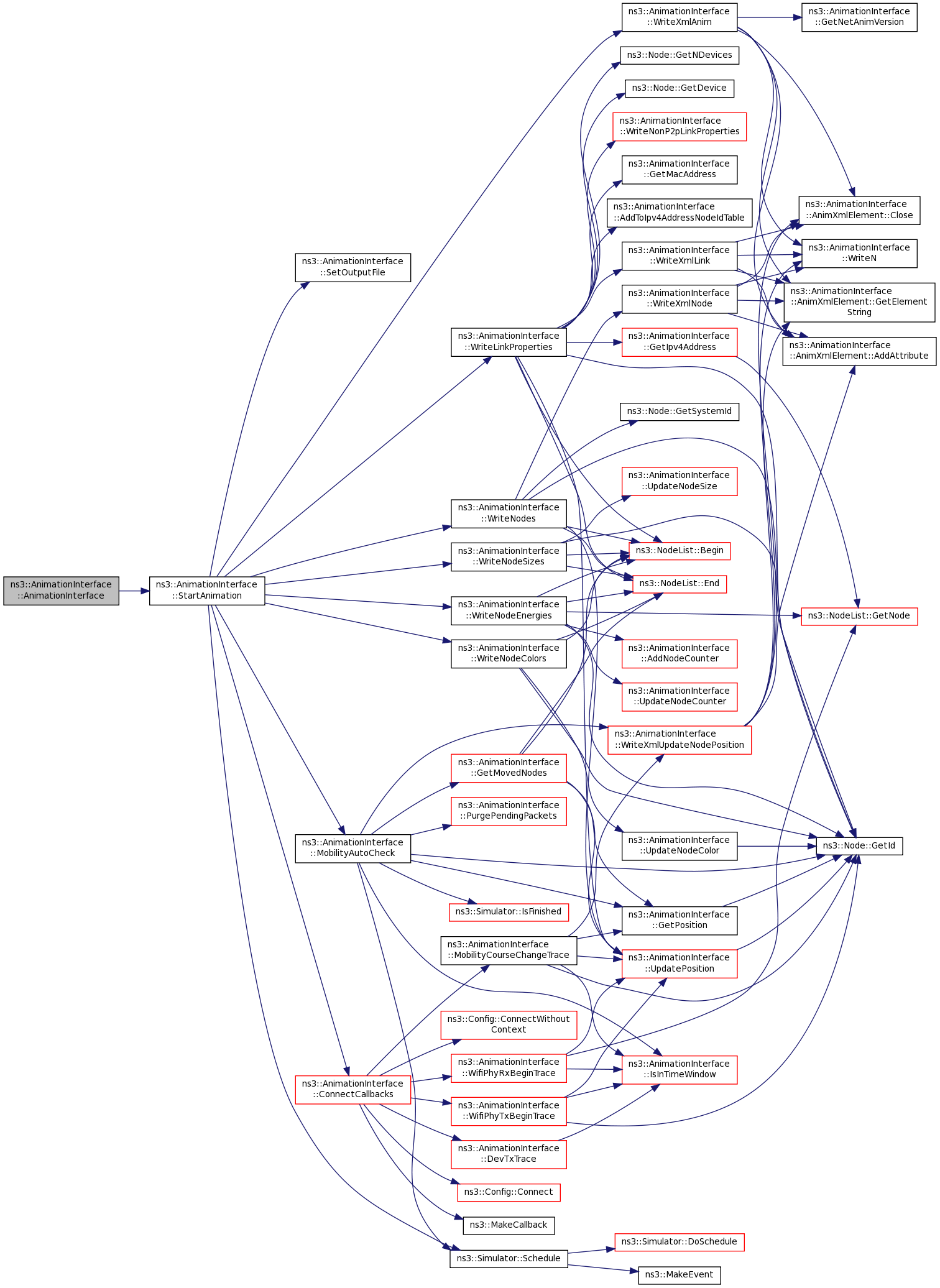

	AnimationInterface (const std::string filename)
	Constructor. More...

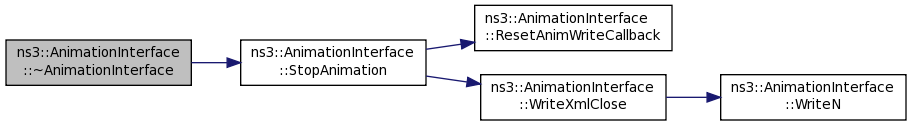

	~AnimationInterface ()
	Destructor for the animator interface. More...

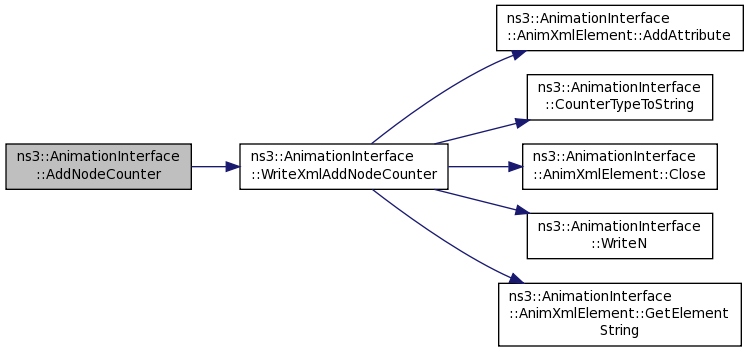

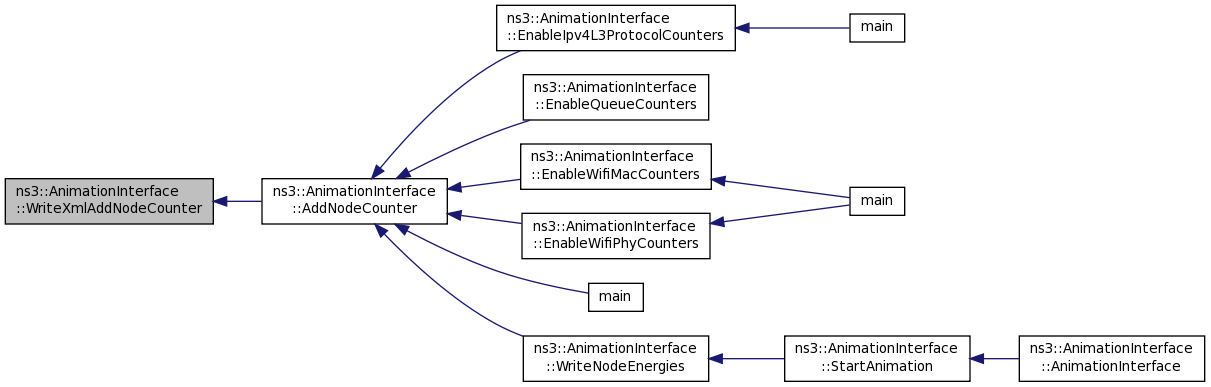

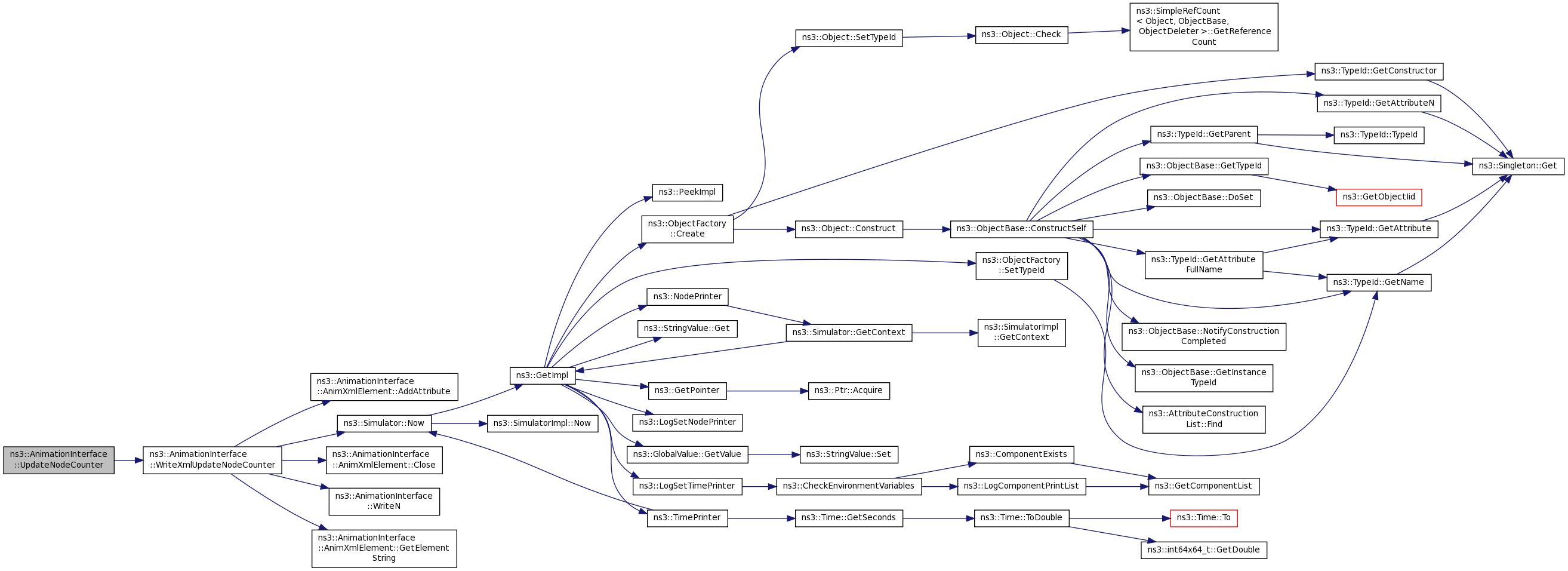

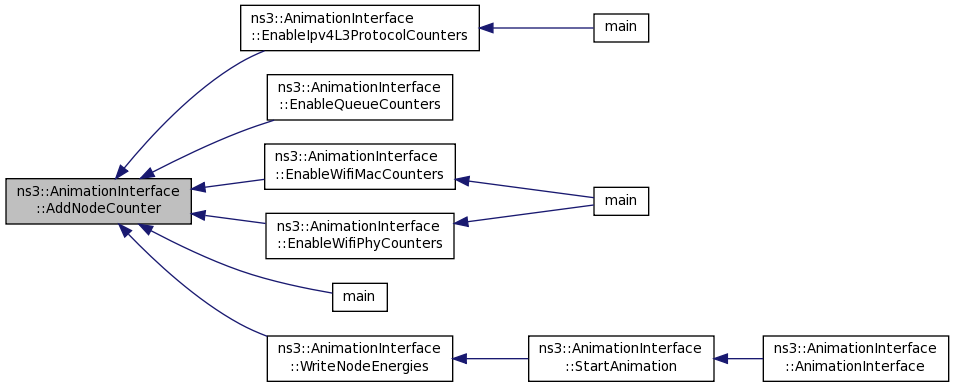

uint32_t	AddNodeCounter (std::string counterName, CounterType counterType)
	Setup a node counter. More...

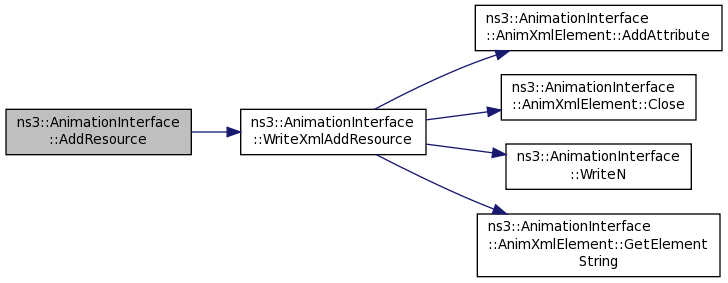

uint32_t	AddResource (std::string resourcePath)
	Add a resource such as the path to an image file. More...

AnimationInterface &	AddSourceDestination (uint32_t fromNodeId, std::string destinationIpv4Address)
	Helper function to print the routing path from a source node to destination IP. More...

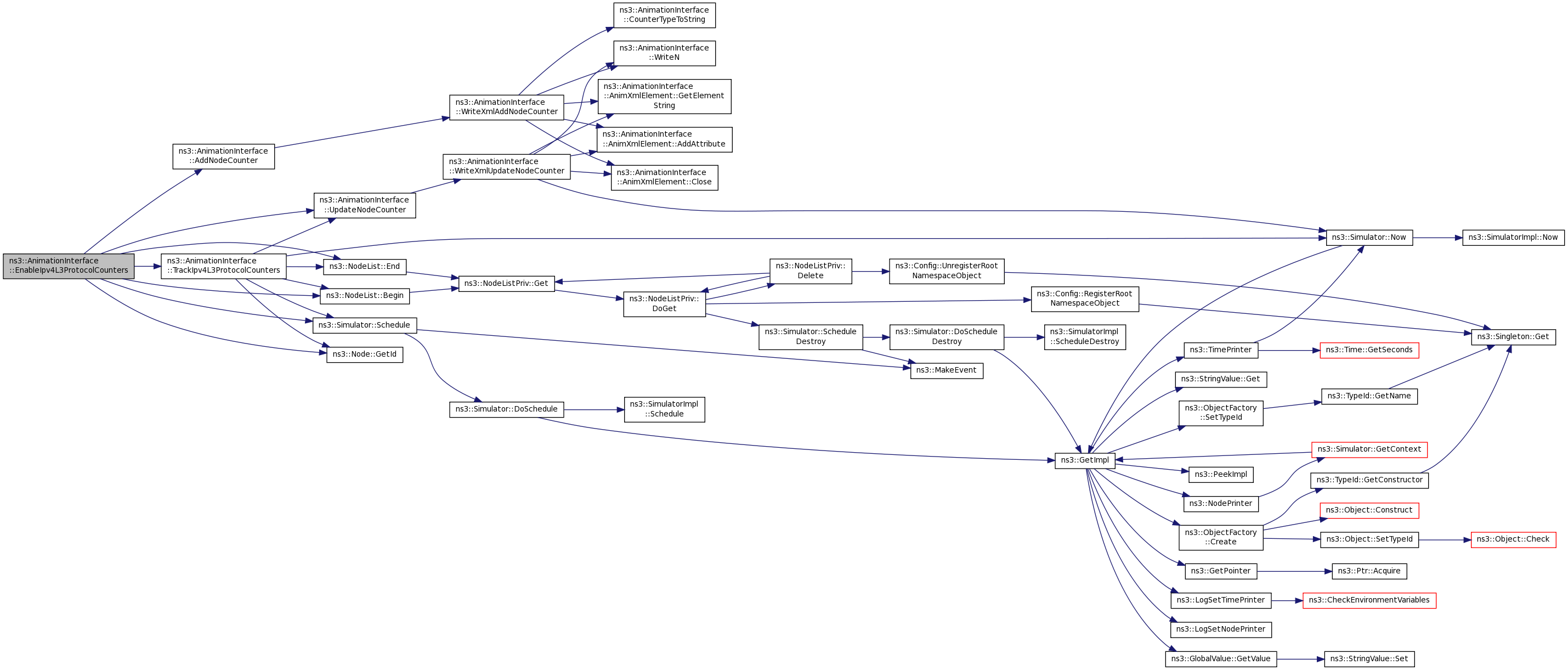

void	EnableIpv4L3ProtocolCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Ipv4 L3 Protocol Counters such as Tx, Rx, Drop. More...

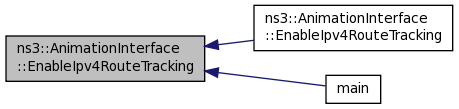

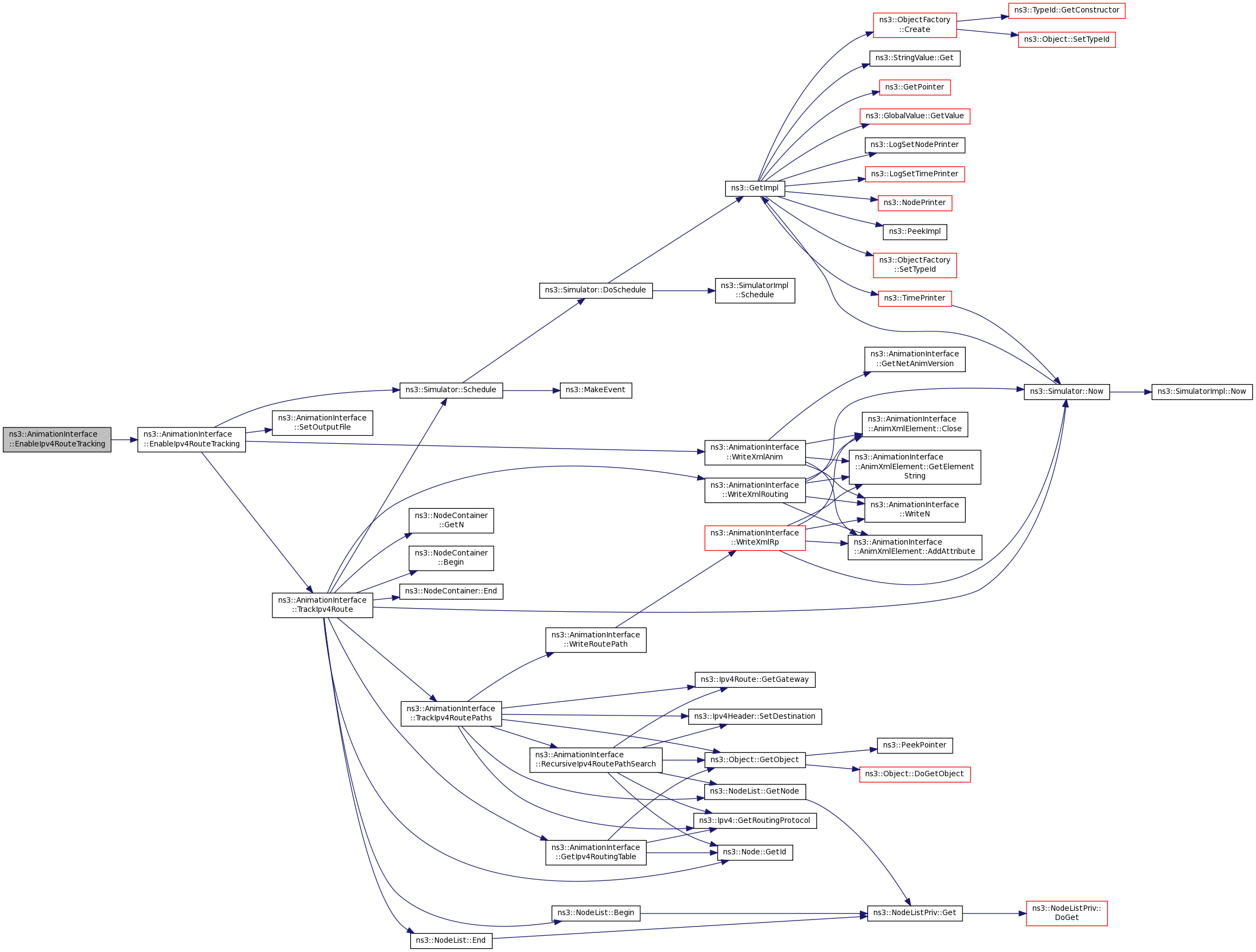

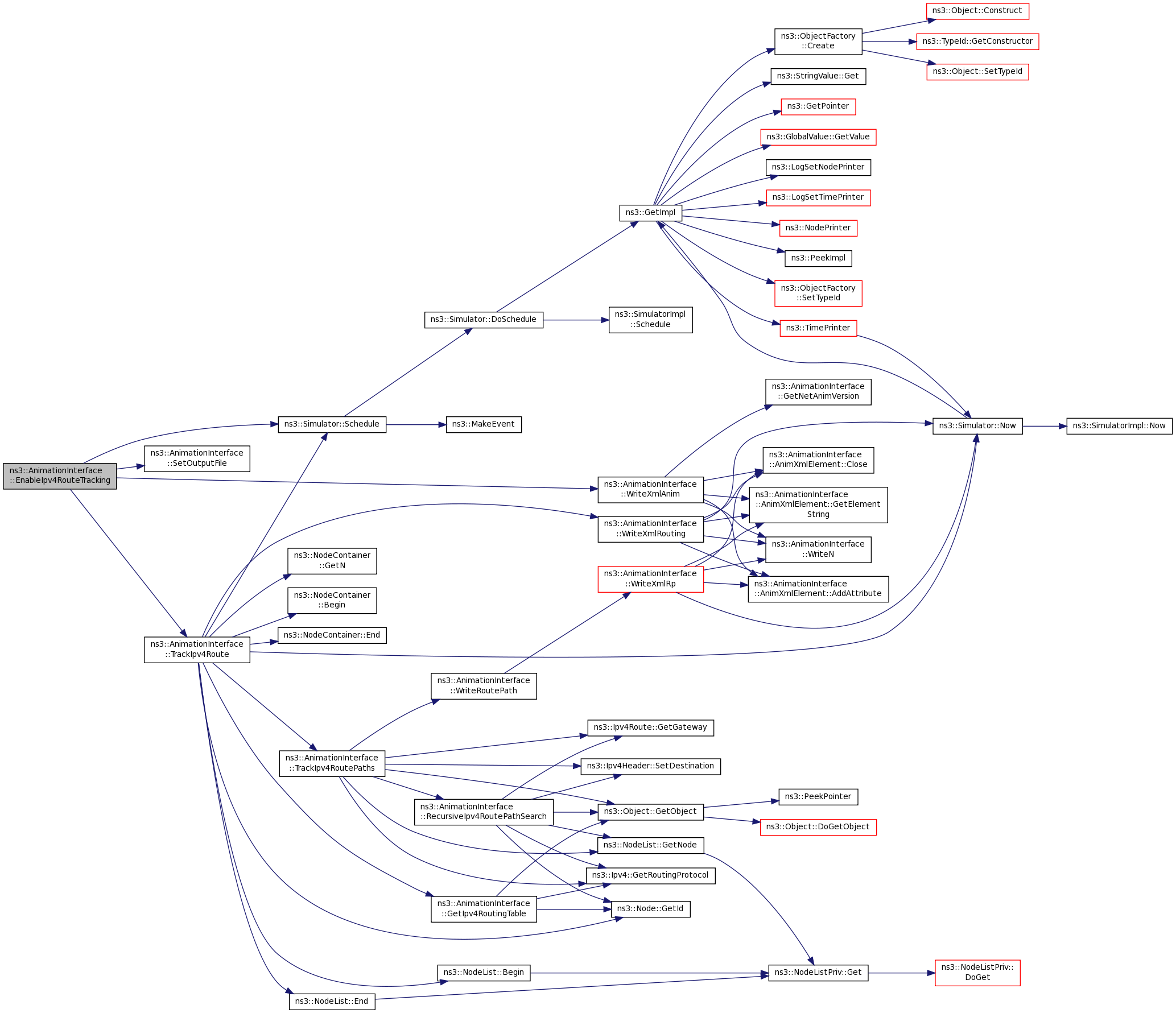

AnimationInterface &	EnableIpv4RouteTracking (std::string fileName, Time startTime, Time stopTime, Time pollInterval=Seconds(5))
	Enable tracking of the Ipv4 routing table for all Nodes. More...

AnimationInterface &	EnableIpv4RouteTracking (std::string fileName, Time startTime, Time stopTime, NodeContainer nc, Time pollInterval=Seconds(5))
	Enable tracking of the Ipv4 routing table for a set of Nodes. More...

void	EnablePacketMetadata (bool enable=true)
	Enable Packet metadata. More...

void	EnableQueueCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Queue Counters such as Enqueue, Dequeue, Queue Drops. More...

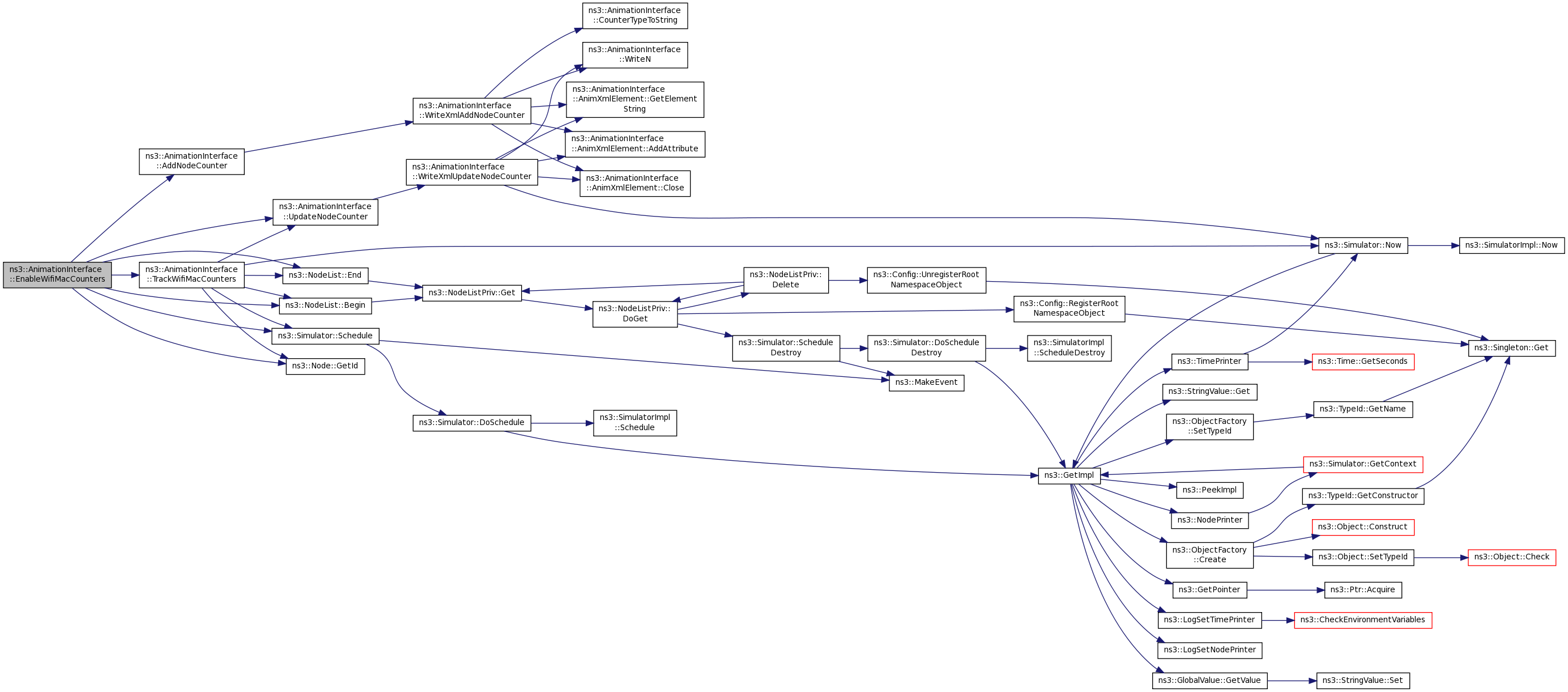

void	EnableWifiMacCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Wifi Mac Counters such as Tx, TxDrop, Rx, RxDrop. More...

void	EnableWifiPhyCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Wifi Phy Counters such as TxDrop, RxDrop. More...

double	GetNodeEnergyFraction (Ptr< const Node > node) const
	Get node's energy fraction (This used only for testing) More...

uint64_t	GetTracePktCount ()
	Get trace file packet count (This used only for testing) More...

bool	IsStarted (void)
	Is AnimationInterface started. More...

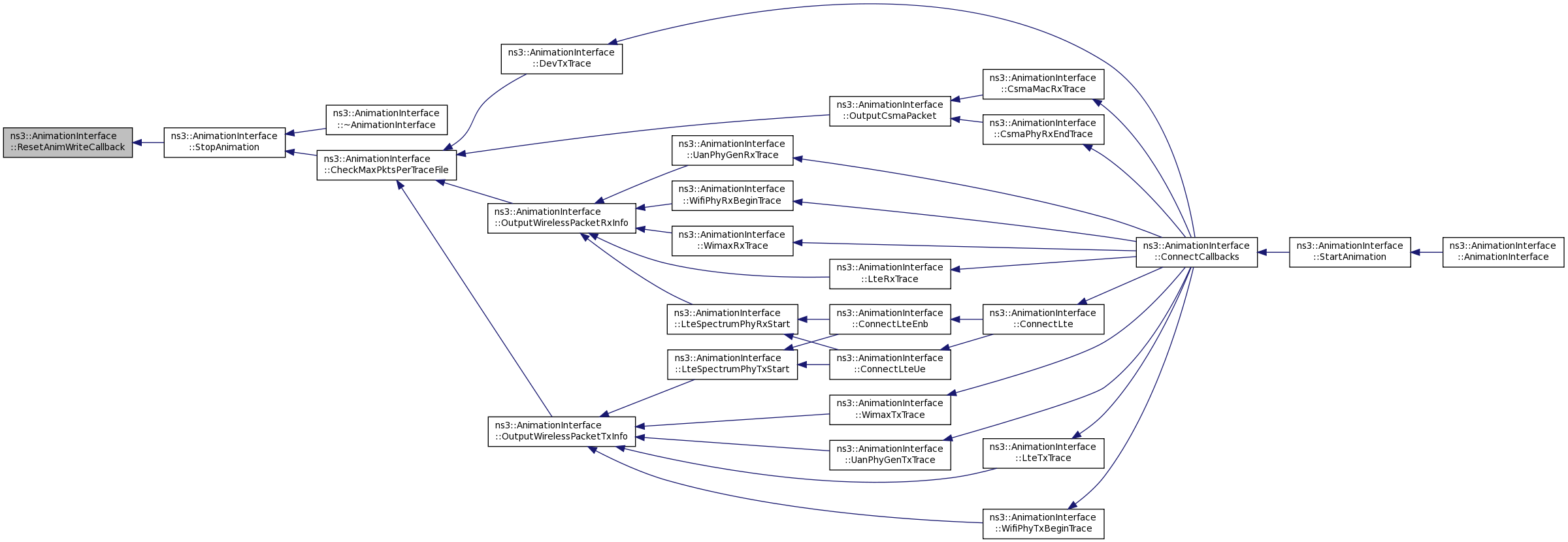

void	ResetAnimWriteCallback ()
	Reset the write callback function. More...

void	SetAnimWriteCallback (AnimWriteCallback cb)
	Set a callback function to listen to AnimationInterface write events. More...

void	SetBackgroundImage (std::string fileName, double x, double y, double scaleX, double scaleY, double opacity)
	Helper function to set the background image. More...

void	SetMaxPktsPerTraceFile (uint64_t maxPktsPerFile)
	Set Max packets per trace file. More...

void	SetMobilityPollInterval (Time t)
	Set mobility poll interval:WARNING: setting a low interval can cause slowness. More...

void	SetStartTime (Time t)
	Specify the time at which capture should start. More...

void	SetStopTime (Time t)
	Specify the time at which capture should stop. More...

void	SkipPacketTracing ()
	Do not trace packets. More...

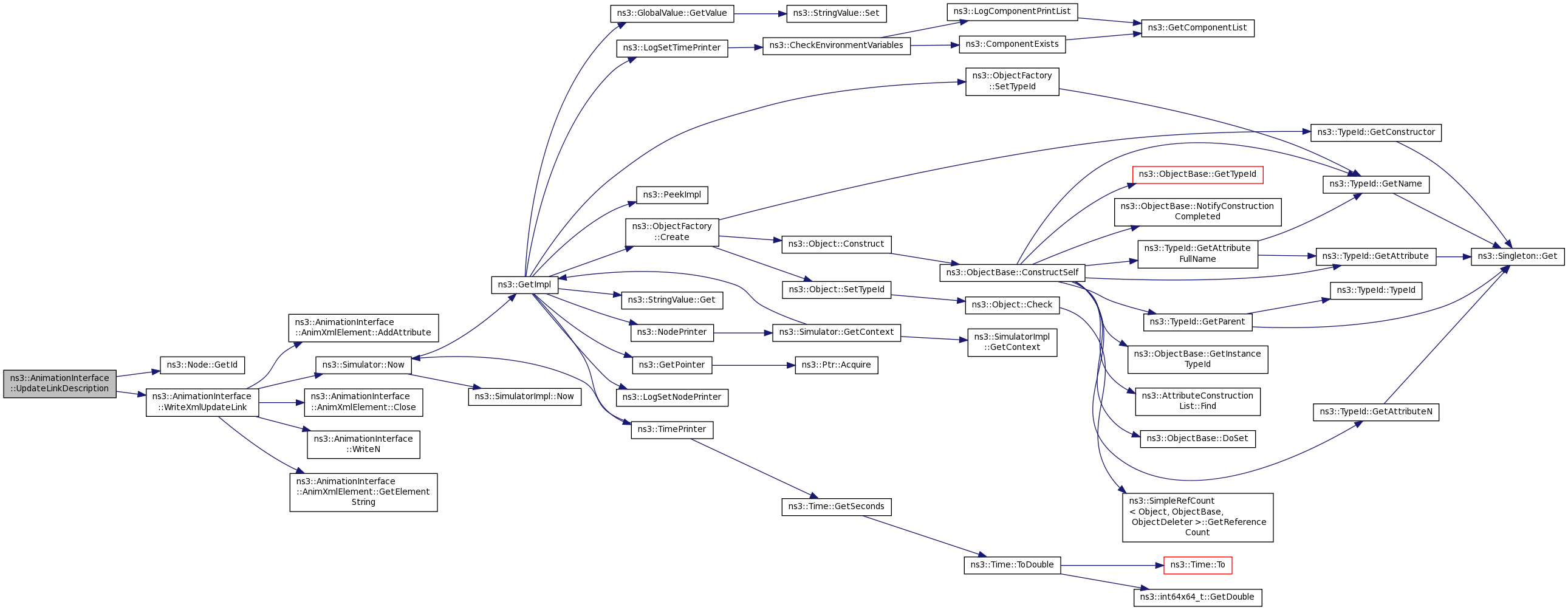

void	UpdateLinkDescription (uint32_t fromNode, uint32_t toNode, std::string linkDescription)
	Helper function to update the description for a link. More...

void	UpdateLinkDescription (Ptr< Node > fromNode, Ptr< Node > toNode, std::string linkDescription)
	Helper function to update the description for a link. More...

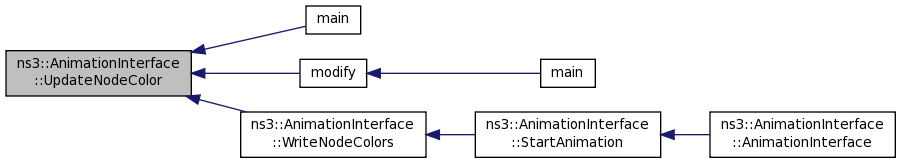

void	UpdateNodeColor (Ptr< Node > n, uint8_t r, uint8_t g, uint8_t b)
	Helper function to update the node color. More...

void	UpdateNodeColor (uint32_t nodeId, uint8_t r, uint8_t g, uint8_t b)
	Helper function to update the node color. More...

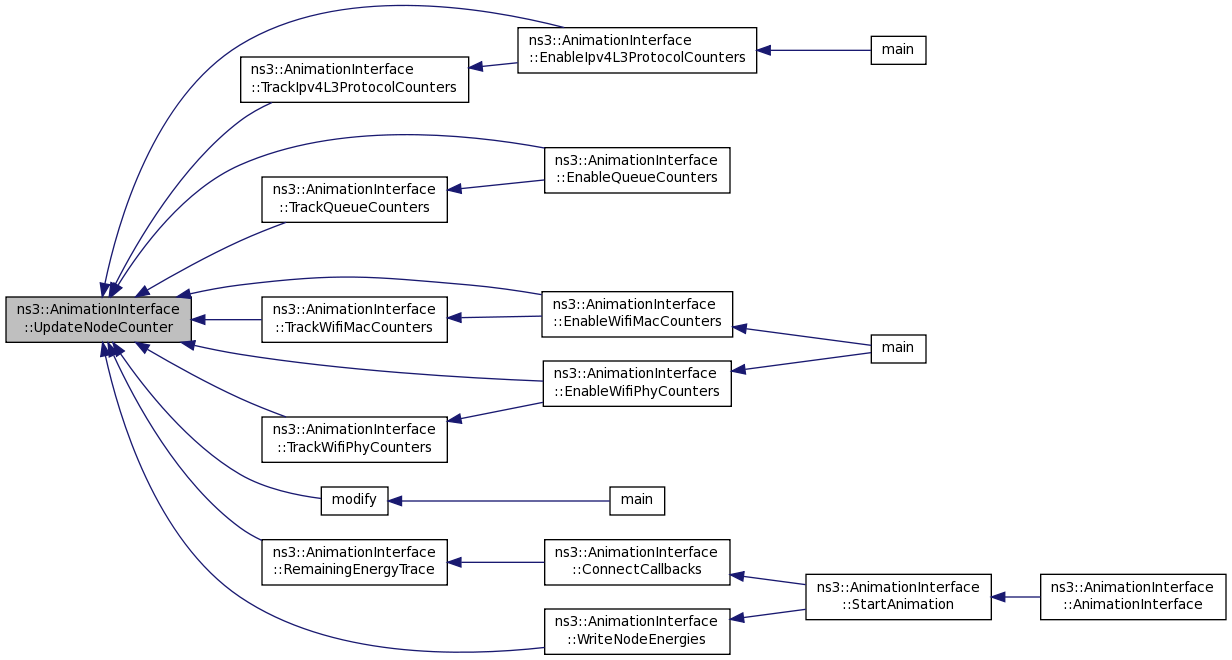

void	UpdateNodeCounter (uint32_t nodeCounterId, uint32_t nodeId, double counter)
	Helper function to update a node's counter referenced by the nodeCounterId. More...

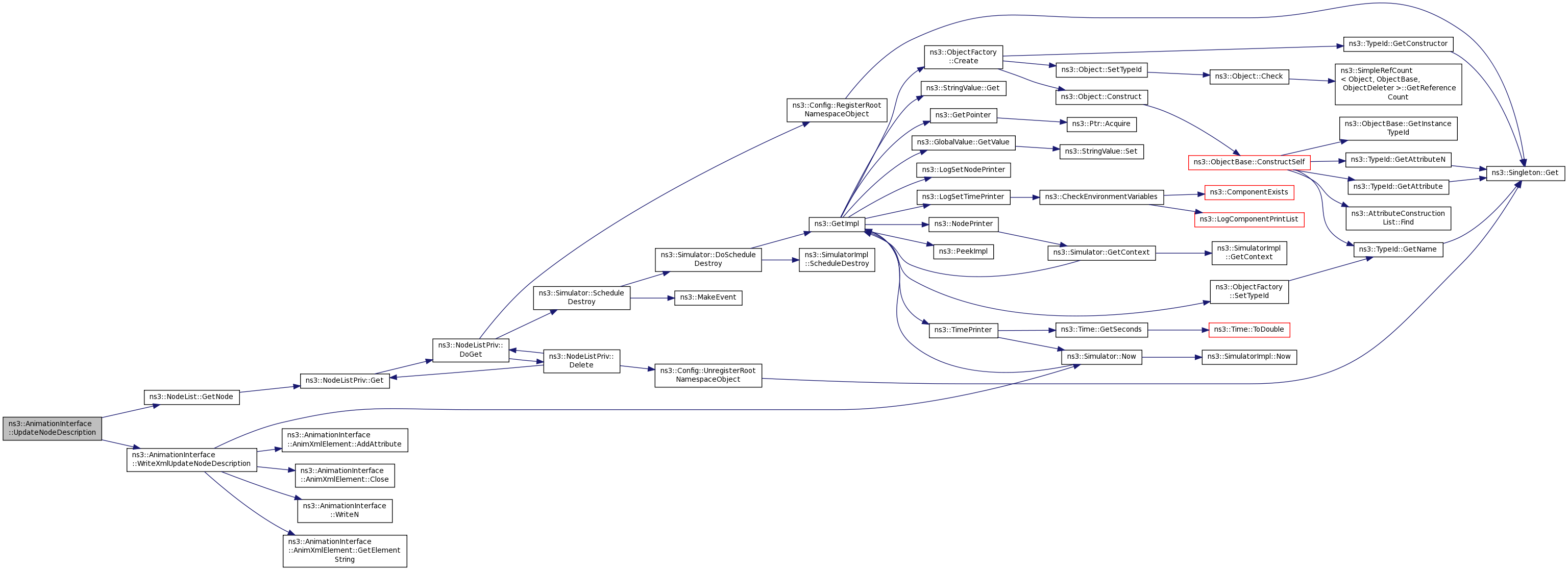

void	UpdateNodeDescription (Ptr< Node > n, std::string descr)
	Helper function to update the description for a given node. More...

void	UpdateNodeDescription (uint32_t nodeId, std::string descr)
	Helper function to update the description for a given node. More...

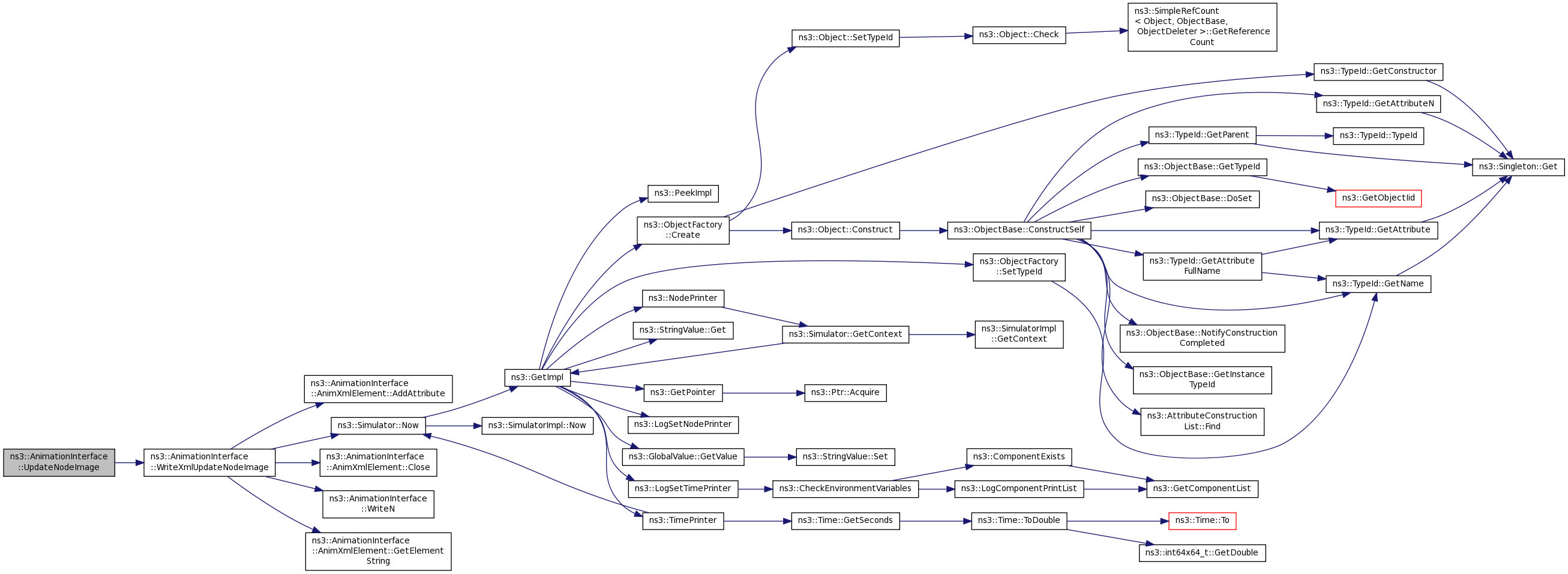

void	UpdateNodeImage (uint32_t nodeId, uint32_t resourceId)
	Helper function to update the image of a node. More...

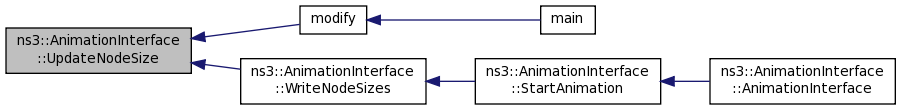

void	UpdateNodeSize (uint32_t nodeId, double width, double height)
	Helper function to update the size of a node. More...

Static Public Member Functions
static bool	IsInitialized (void)
	Check if AnimationInterface is initialized. More...

static void	SetConstantPosition (Ptr< Node > n, double x, double y, double z=0)
	Helper function to set Constant Position for a given node. More...

Private Types
typedef std::map< uint64_t, AnimPacketInfo >	AnimUidPacketInfoMap

typedef std::map< uint32_t, double >	EnergyFractionMap

typedef std::vector < Ipv4RoutePathElement >	Ipv4RoutePathElements

typedef std::map < P2pLinkNodeIdPair, LinkProperties, LinkPairCompare >	LinkPropertiesMap

typedef std::map< uint32_t, Rgb >	NodeColorsMap

typedef std::map< uint32_t, uint64_t >	NodeCounterMap64

typedef std::map< uint32_t, std::string >	NodeDescriptionsMap

enum	ProtocolType { UAN, LTE, WIFI, WIMAX, CSMA }

Private Member Functions

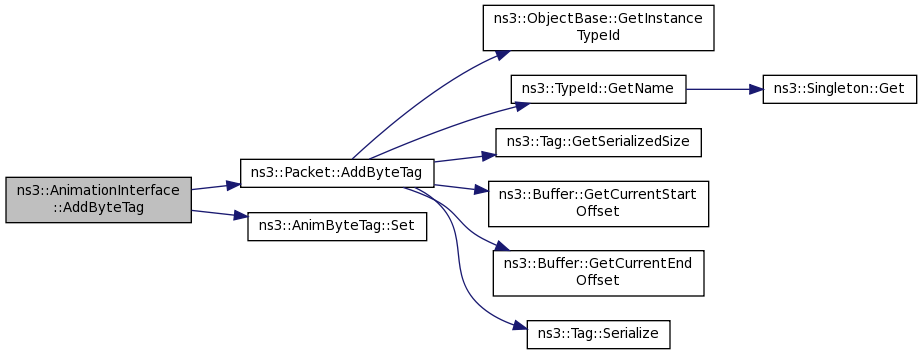

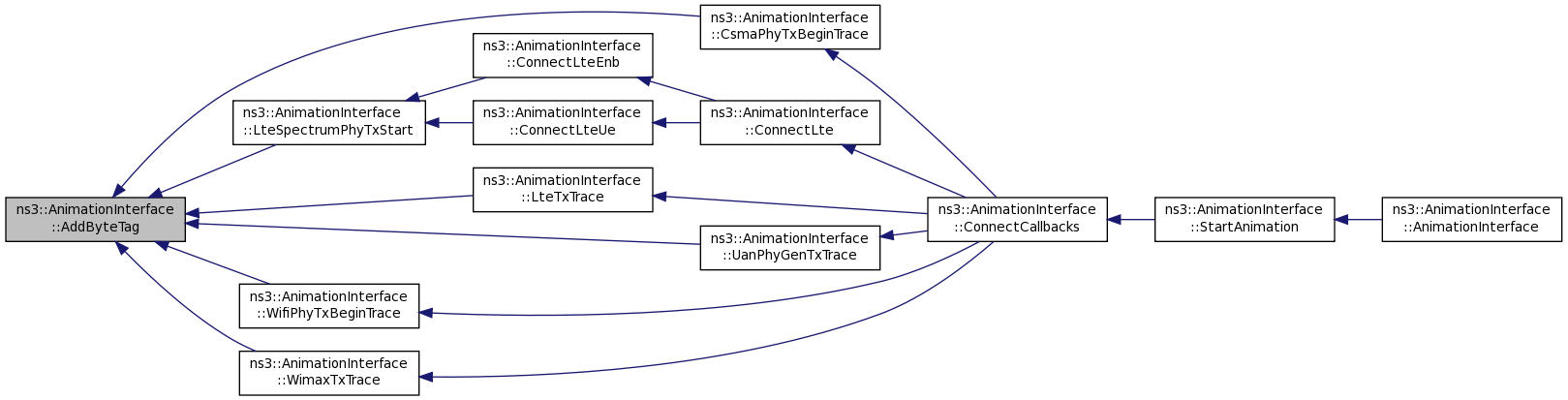

void	AddByteTag (uint64_t animUid, Ptr< const Packet > p)

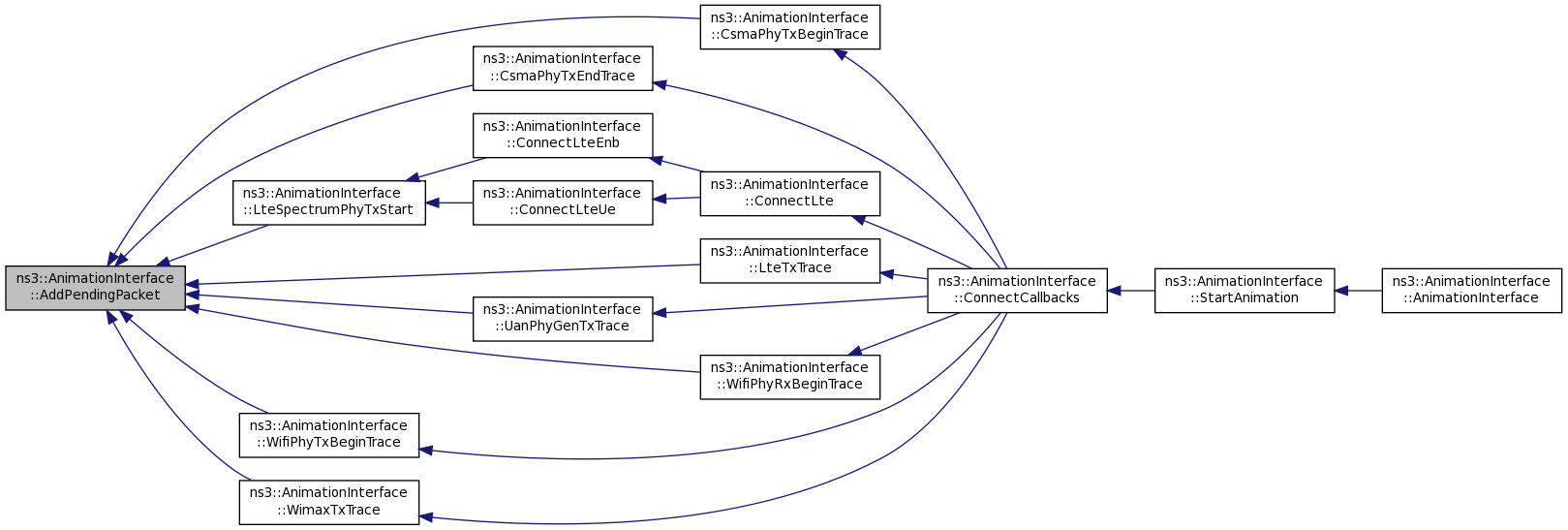

void	AddPendingPacket (ProtocolType protocolType, uint64_t animUid, AnimPacketInfo pktInfo)

void	AddToIpv4AddressNodeIdTable (std::string, uint32_t)

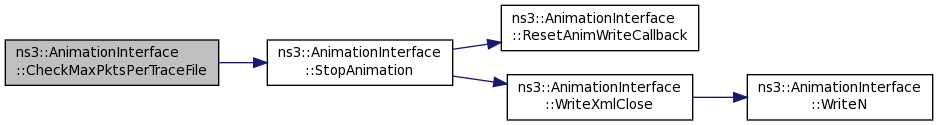

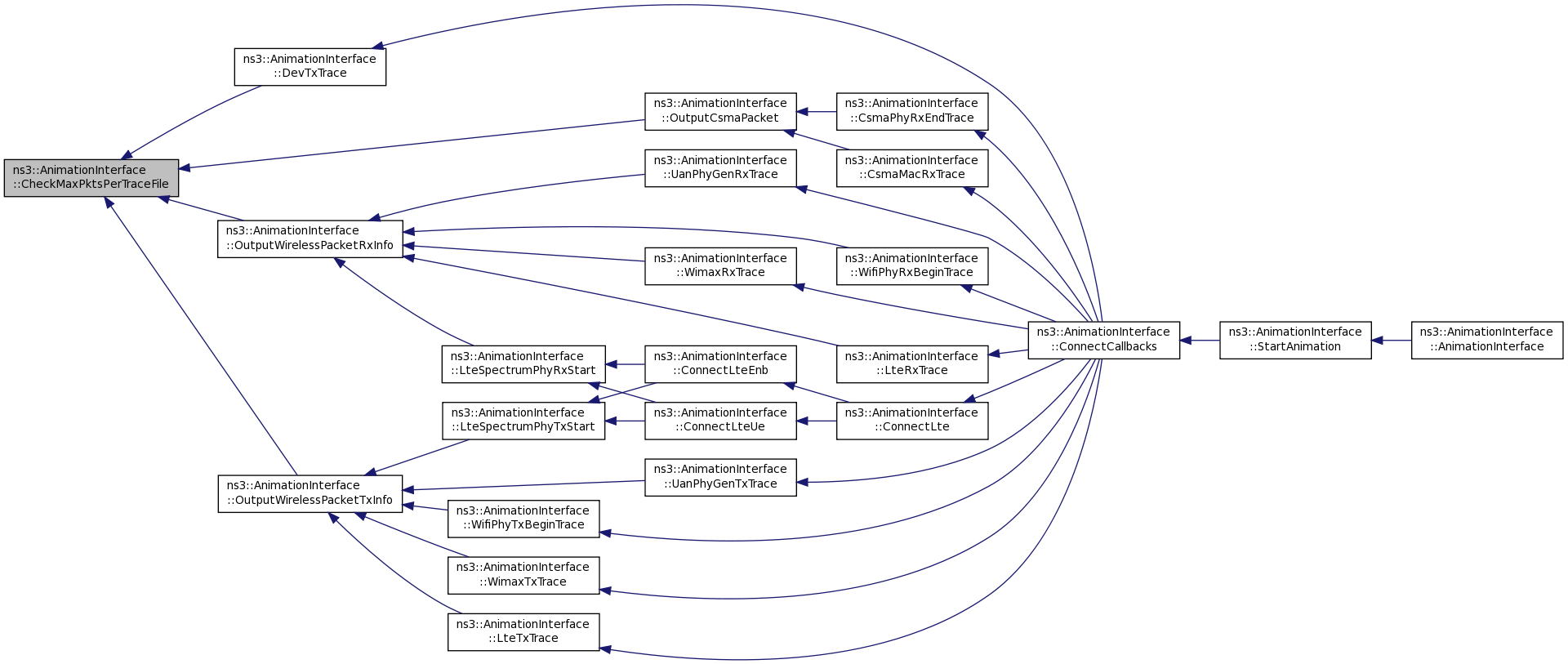

void	CheckMaxPktsPerTraceFile ()

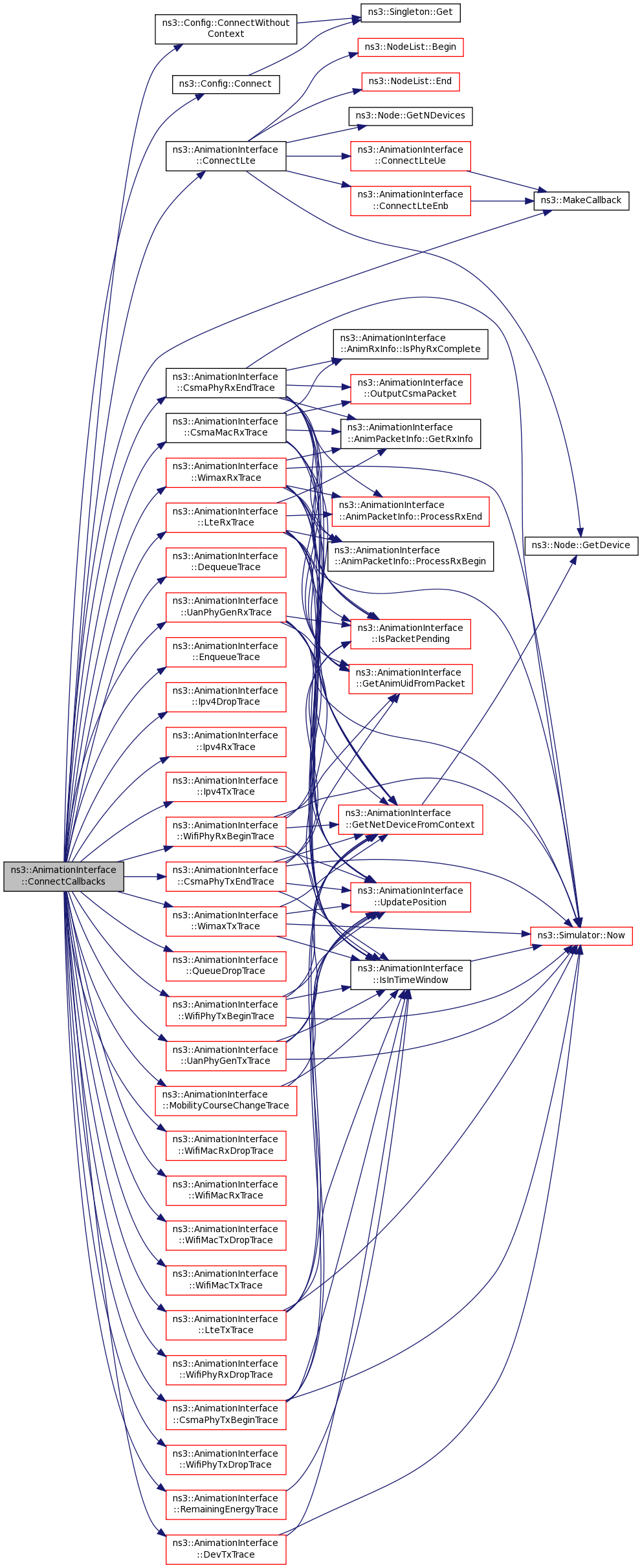

void	ConnectCallbacks ()

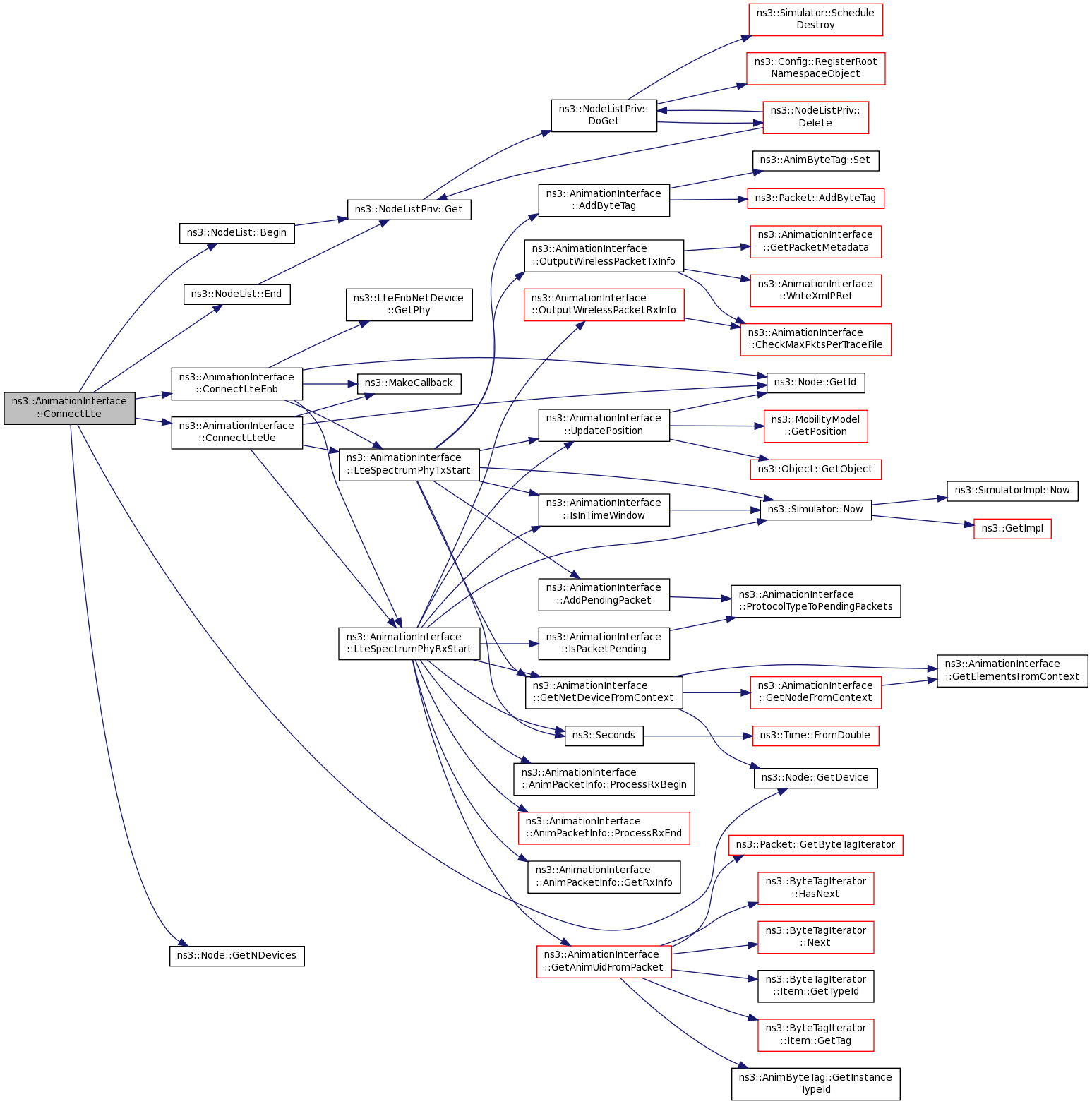

void	ConnectLte ()

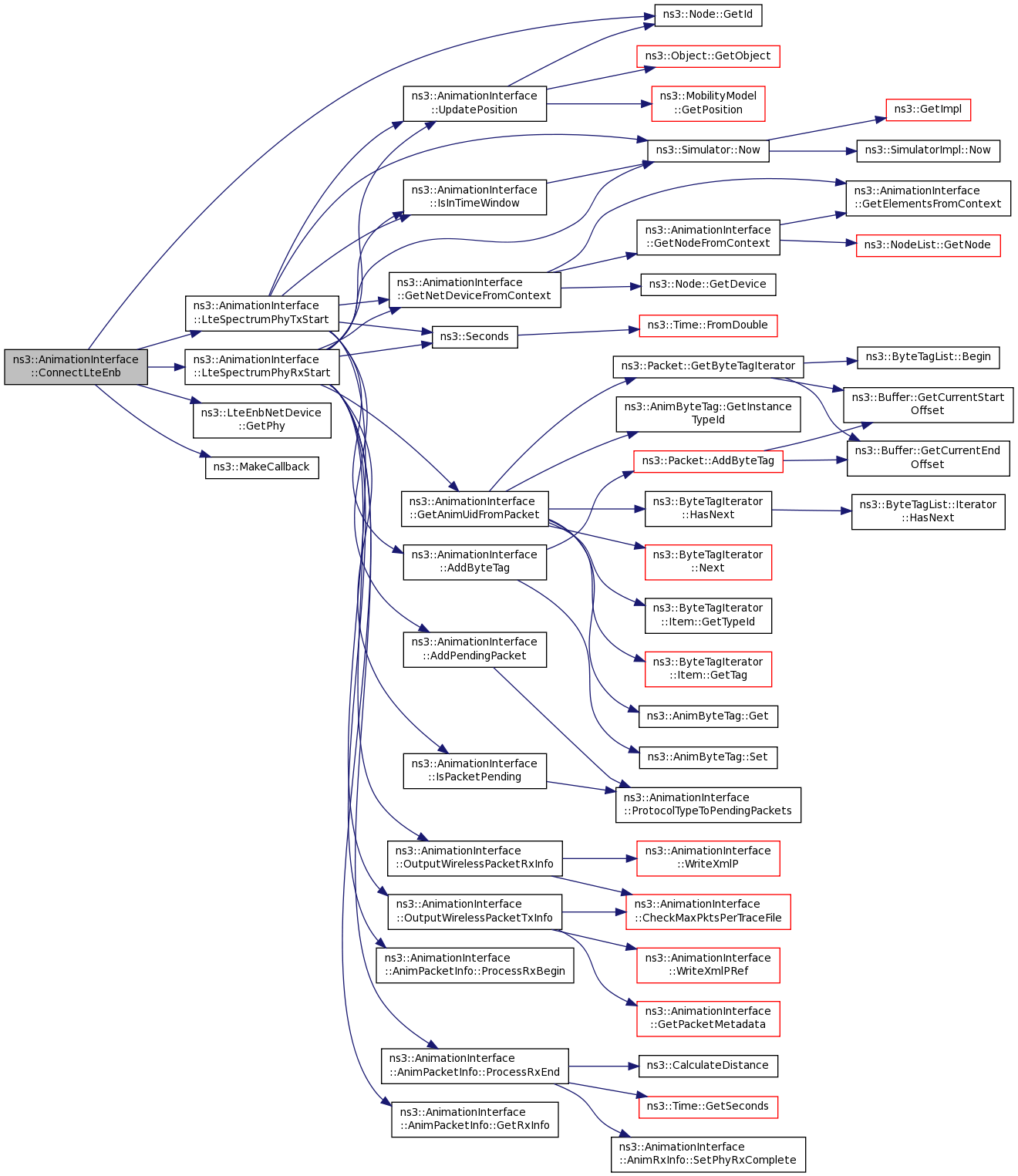

void	ConnectLteEnb (Ptr< Node > n, Ptr< LteEnbNetDevice > nd, uint32_t devIndex)

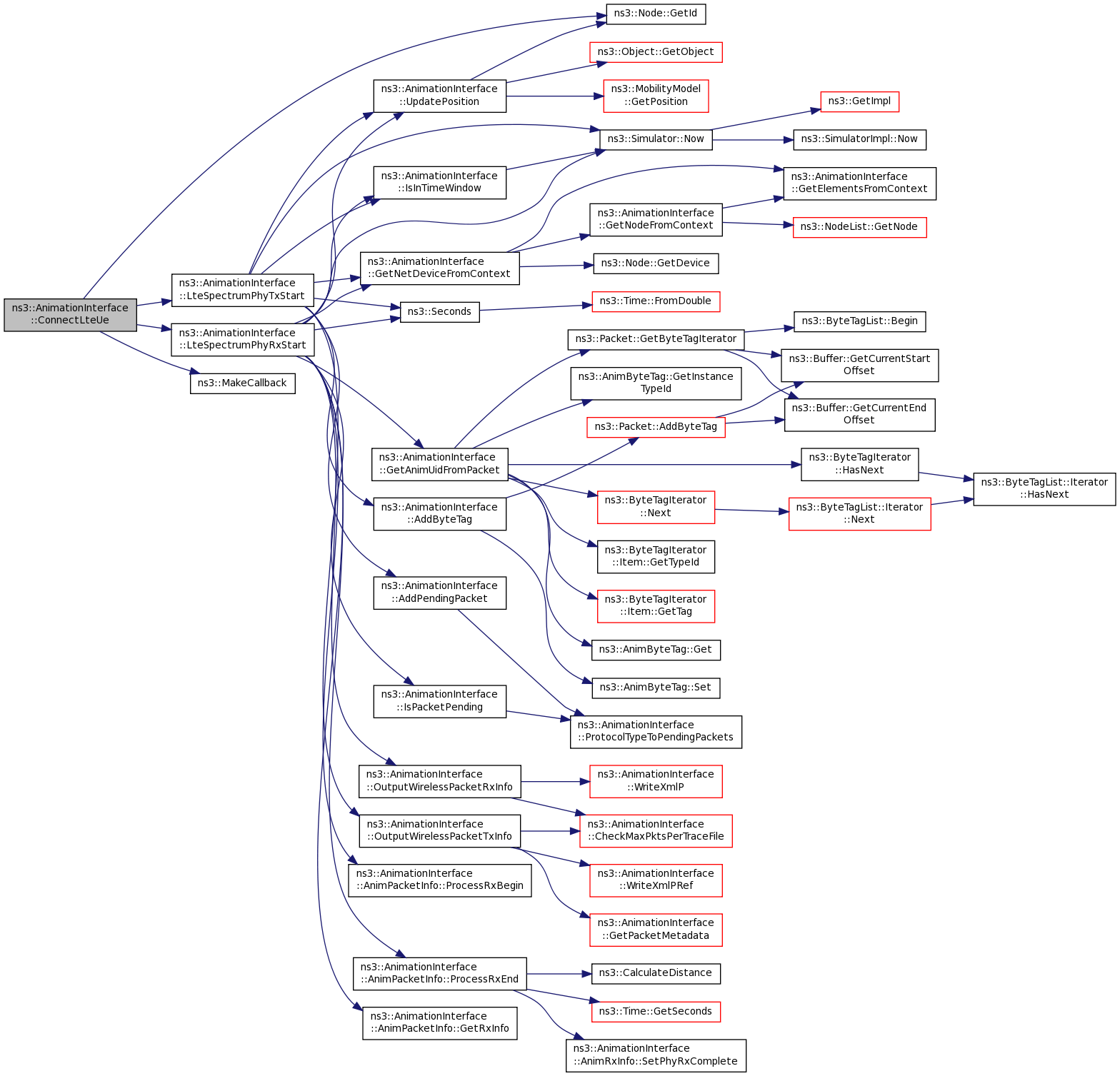

void	ConnectLteUe (Ptr< Node > n, Ptr< LteUeNetDevice > nd, uint32_t devIndex)

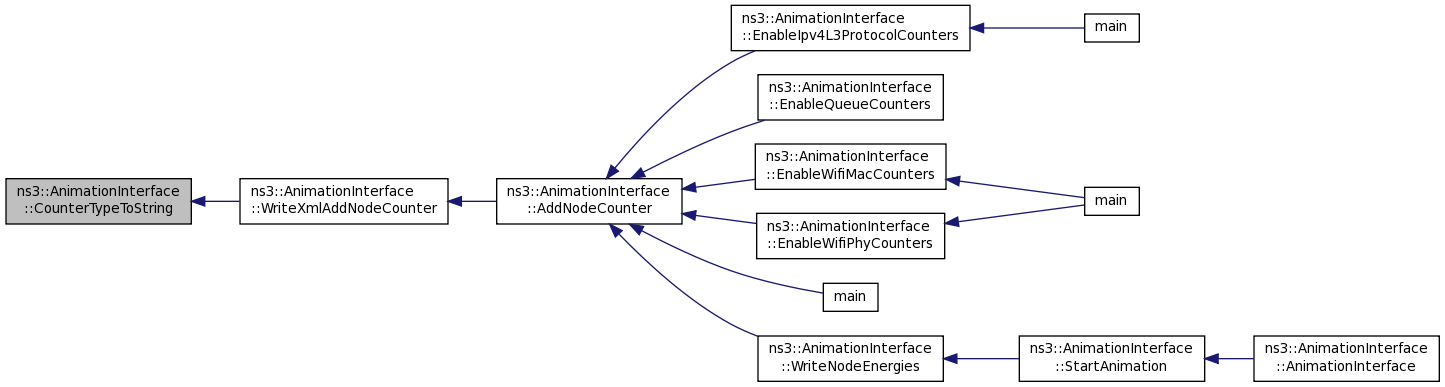

std::string	CounterTypeToString (CounterType counterType)

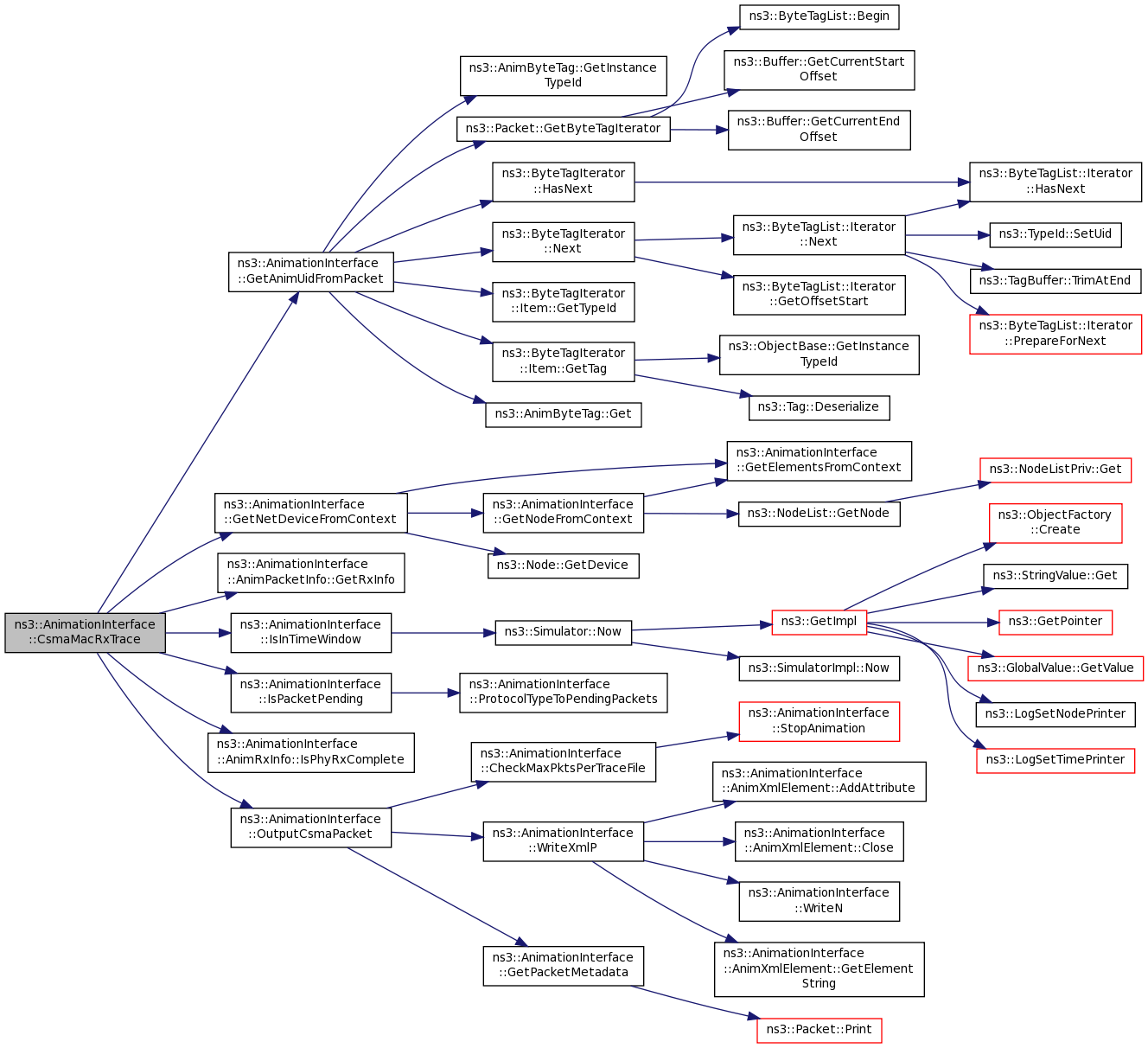

void	CsmaMacRxTrace (std::string context, Ptr< const Packet > p)

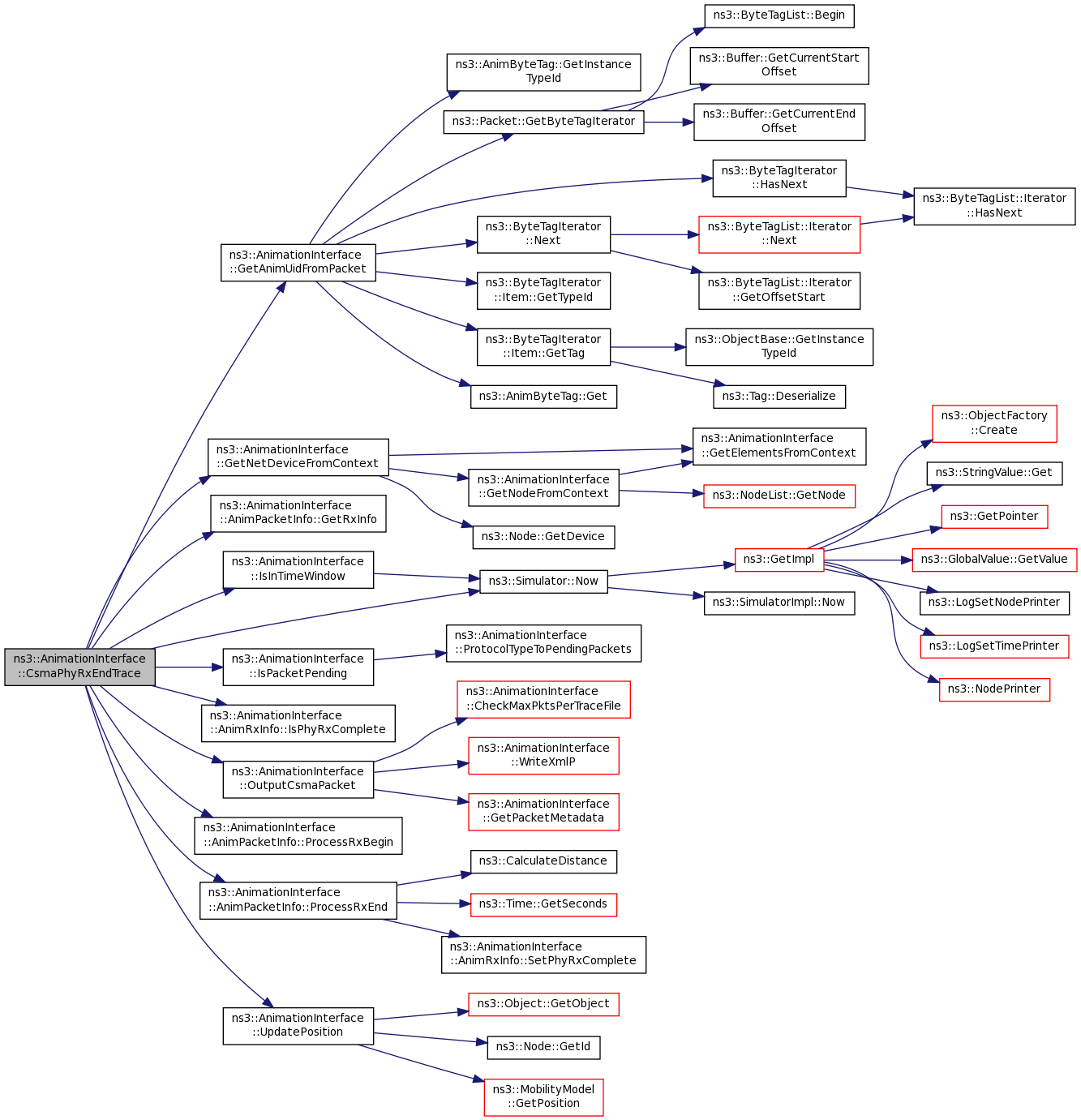

void	CsmaPhyRxEndTrace (std::string context, Ptr< const Packet > p)

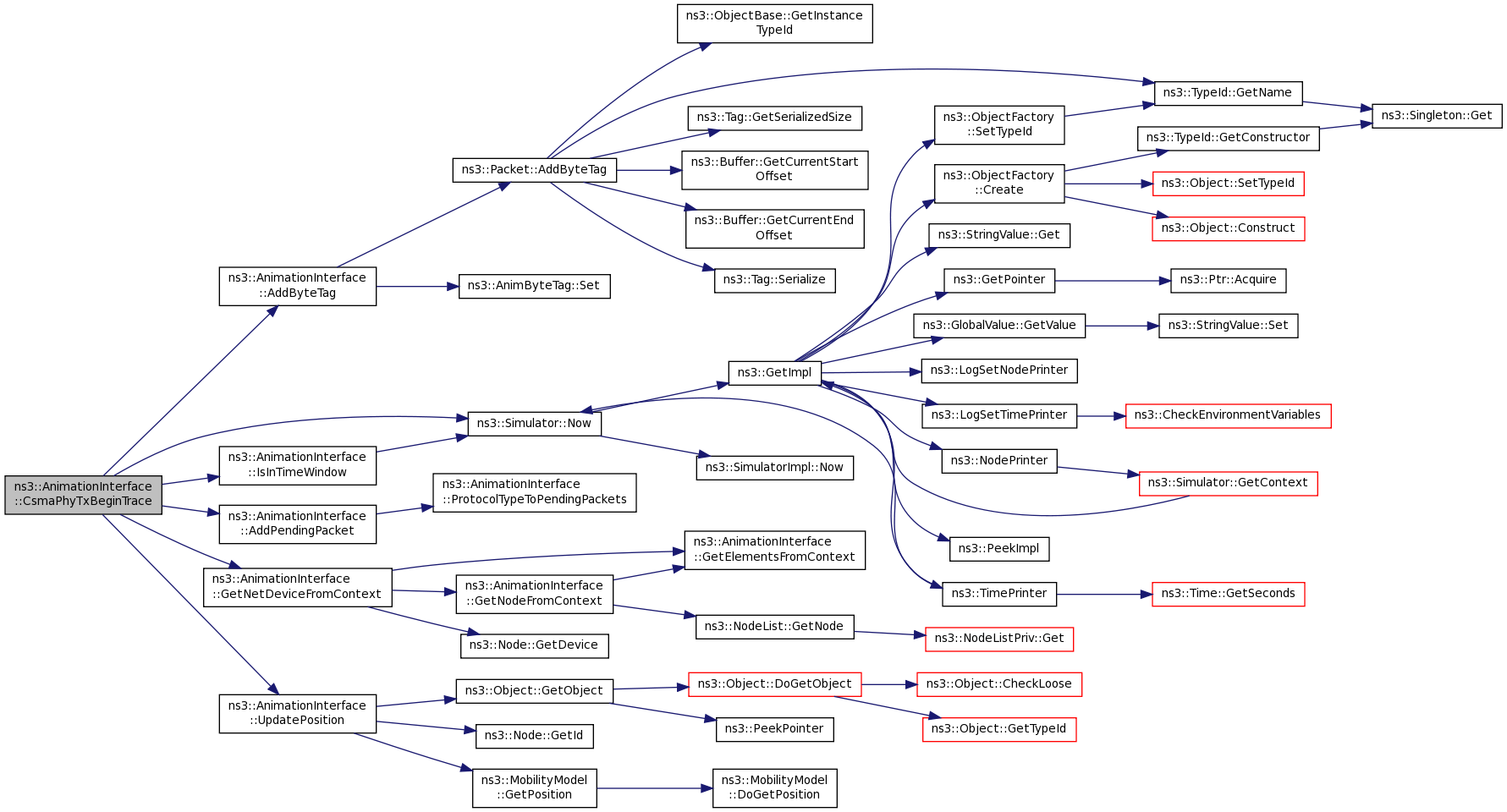

void	CsmaPhyTxBeginTrace (std::string context, Ptr< const Packet > p)

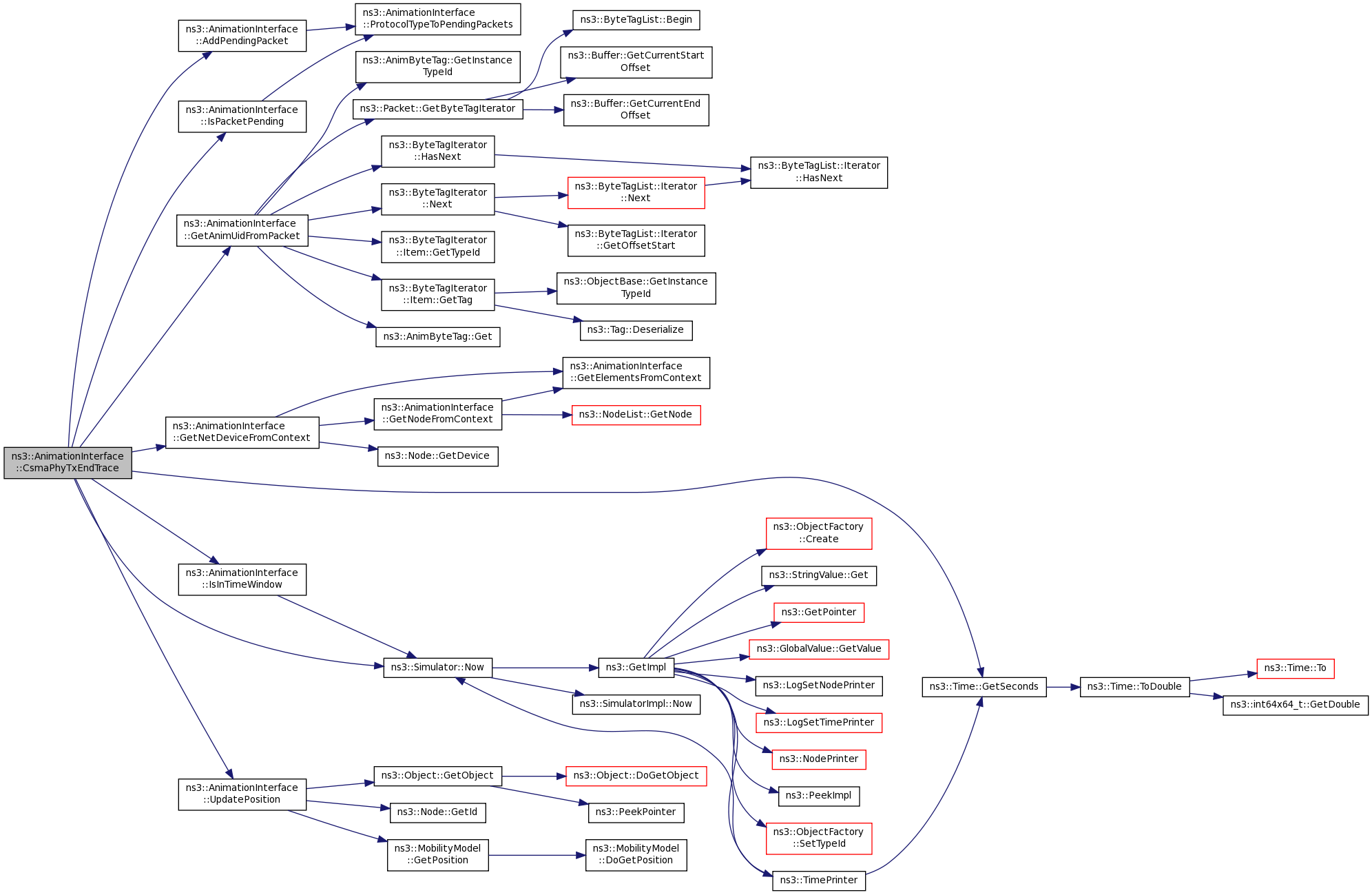

void	CsmaPhyTxEndTrace (std::string context, Ptr< const Packet > p)

void	DequeueTrace (std::string context, Ptr< const Packet >)

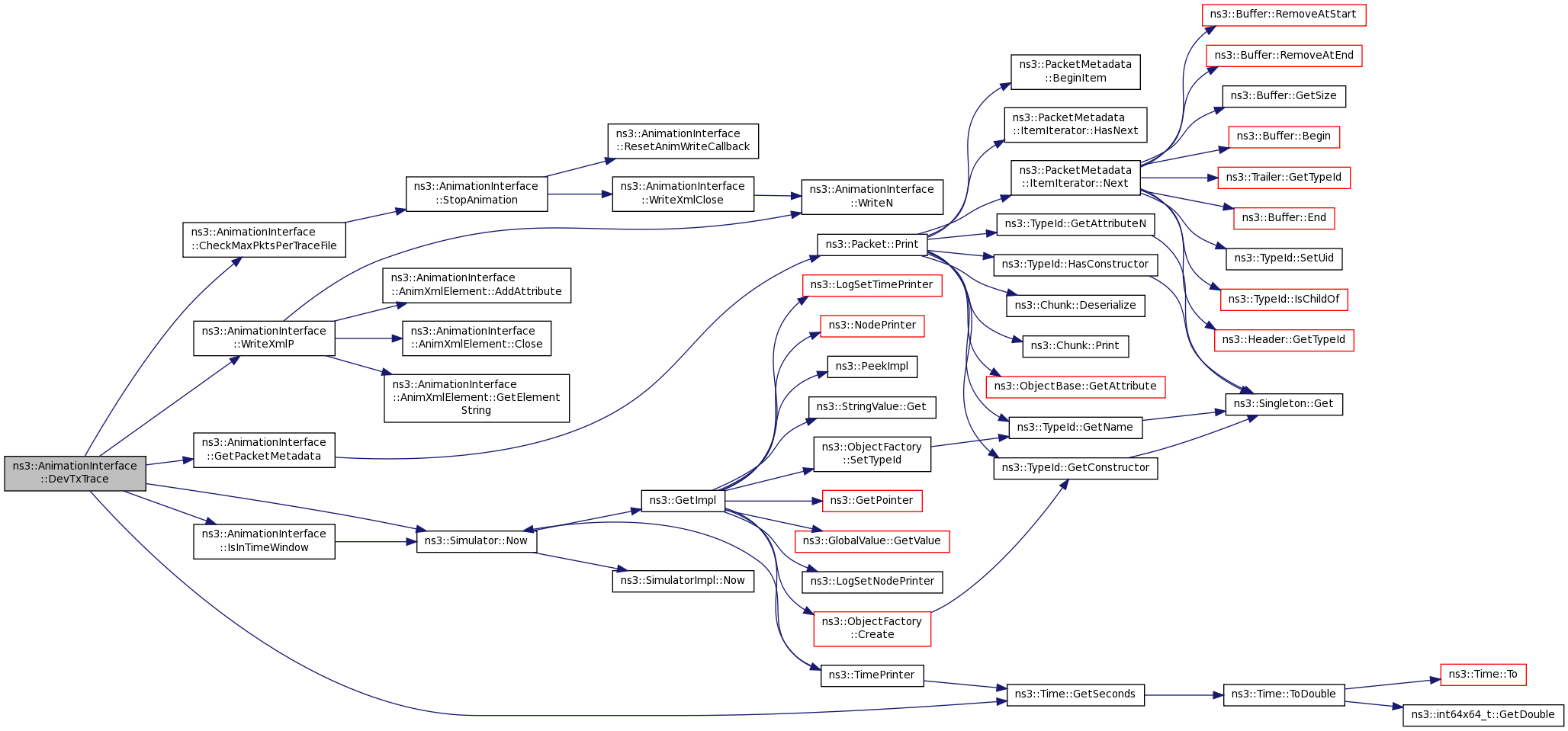

void	DevTxTrace (std::string context, Ptr< const Packet > p, Ptr< NetDevice > tx, Ptr< NetDevice > rx, Time txTime, Time rxTime)

void	EnqueueTrace (std::string context, Ptr< const Packet >)

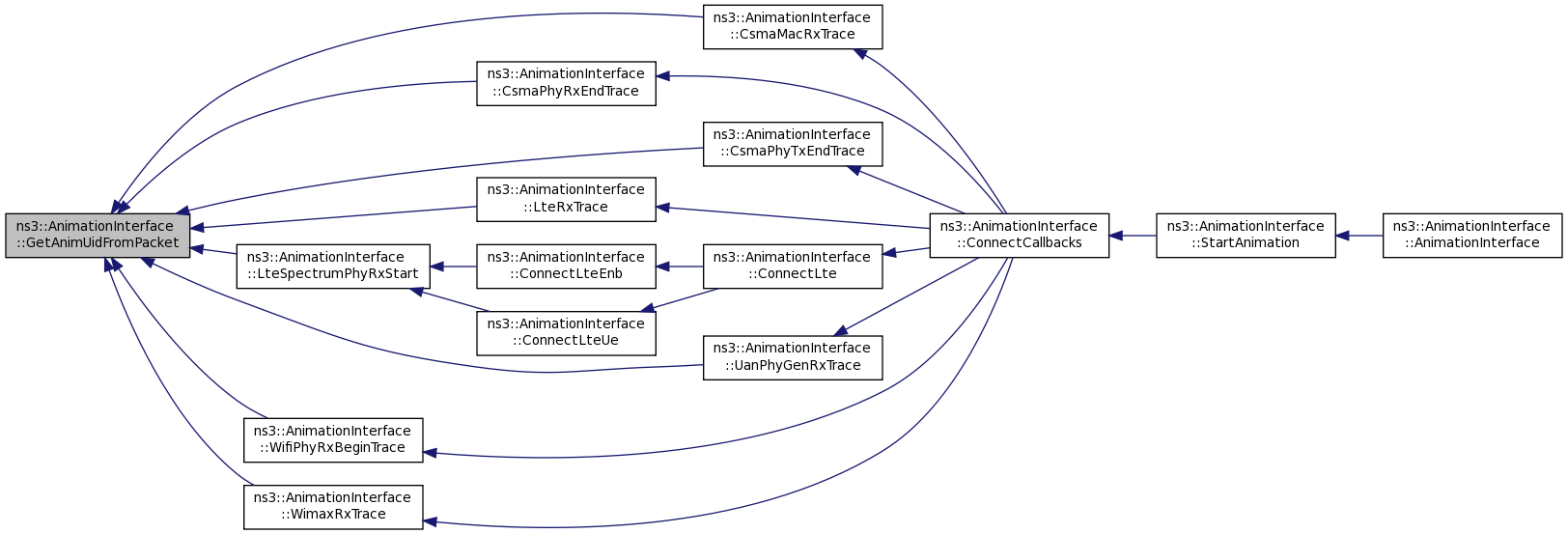

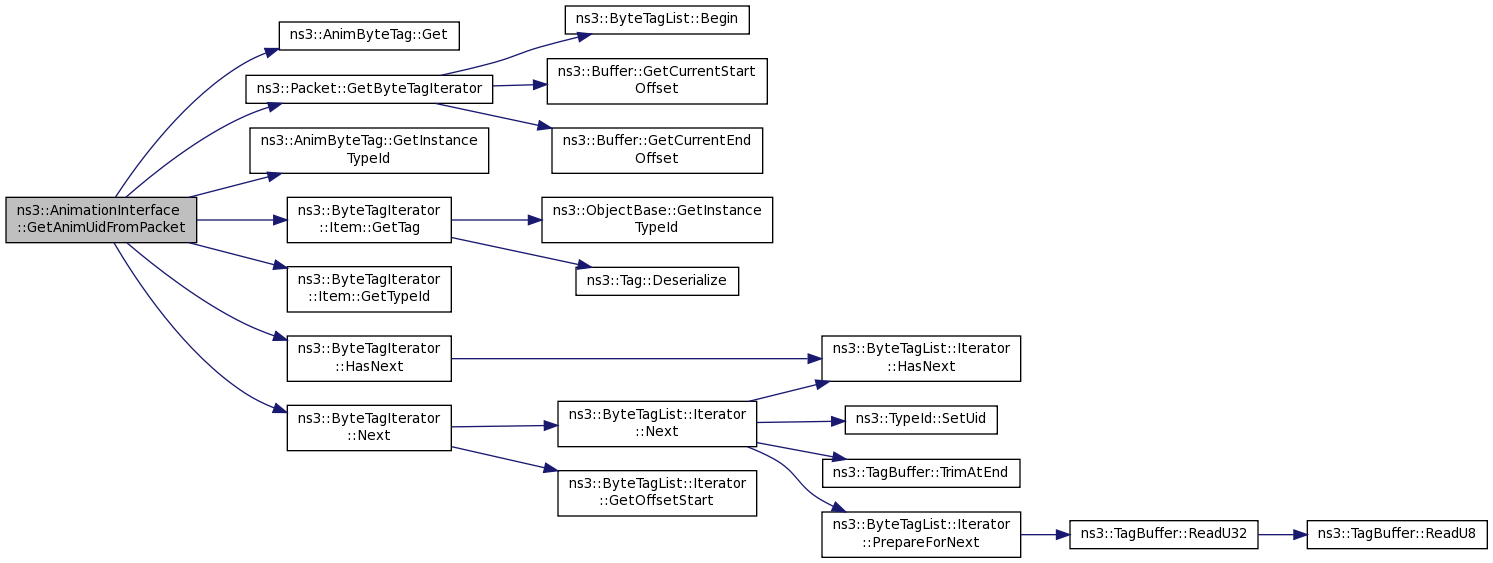

uint64_t	GetAnimUidFromPacket (Ptr< const Packet >)

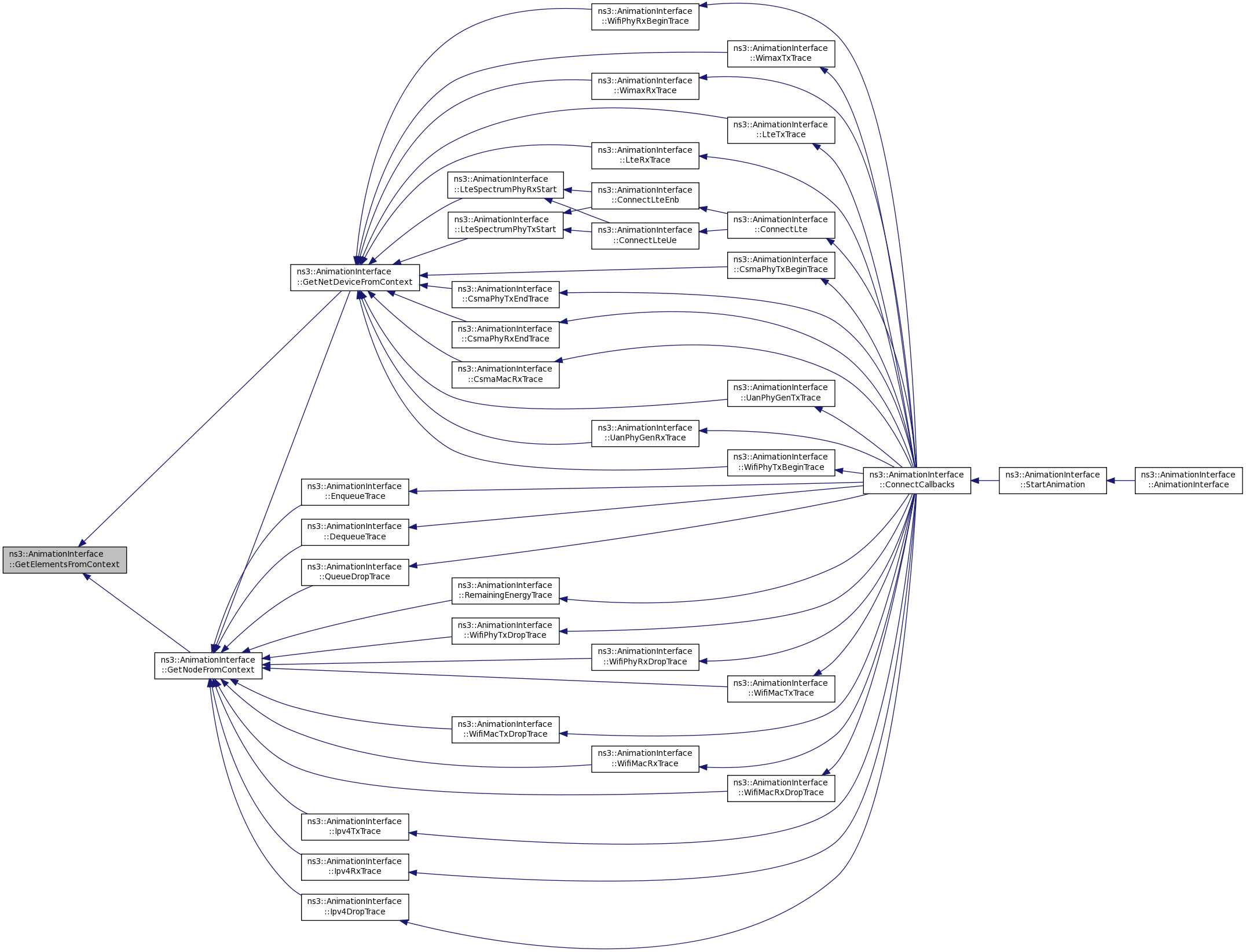

const std::vector< std::string >	GetElementsFromContext (const std::string &context) const

std::string	GetIpv4Address (Ptr< NetDevice > nd)

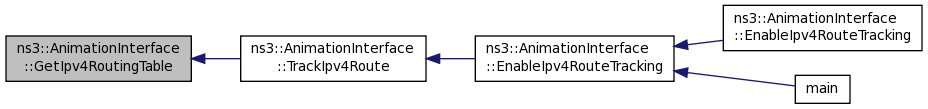

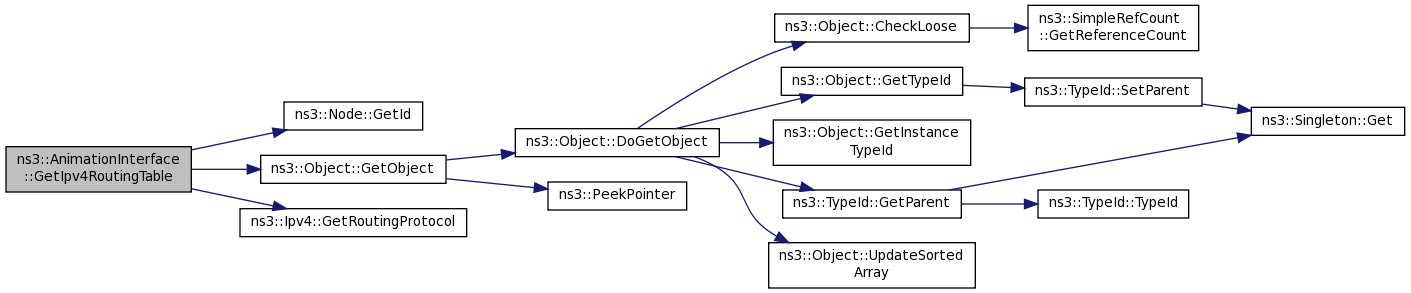

std::string	GetIpv4RoutingTable (Ptr< Node > n)

std::string	GetMacAddress (Ptr< NetDevice > nd)

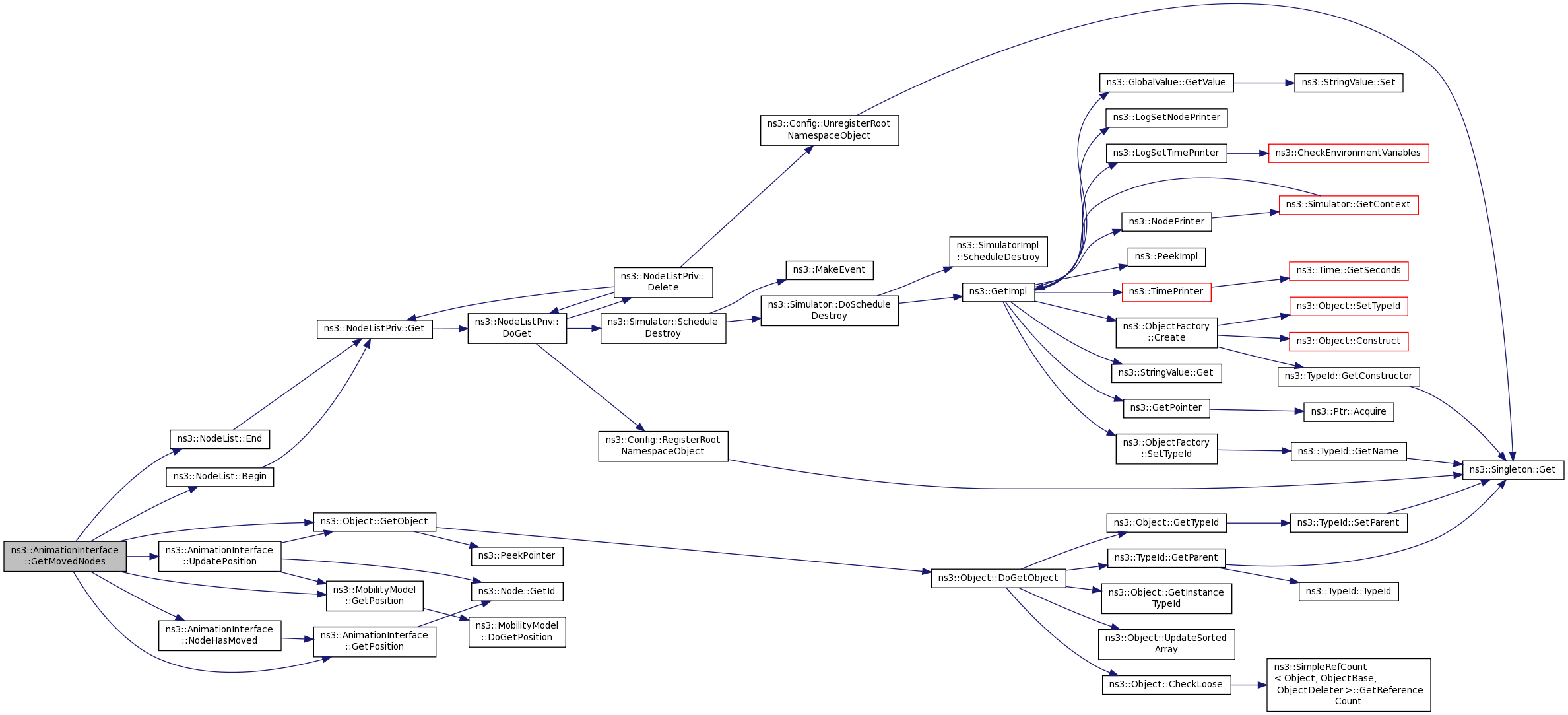

std::vector< Ptr< Node > >	GetMovedNodes ()

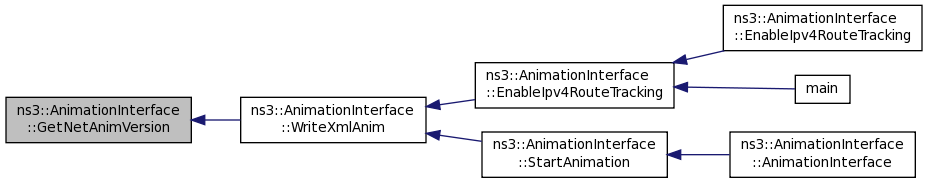

std::string	GetNetAnimVersion ()

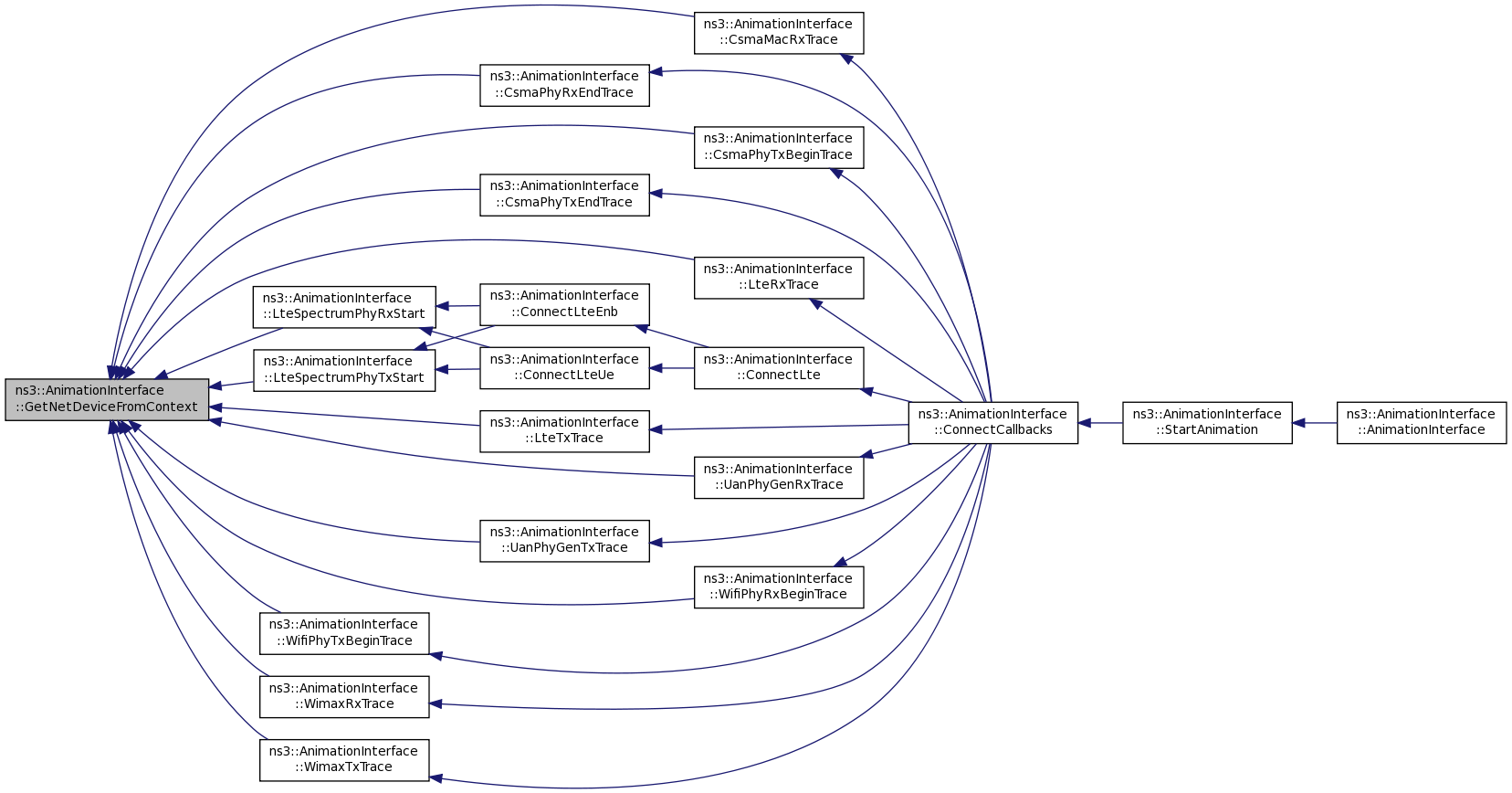

Ptr< NetDevice >	GetNetDeviceFromContext (std::string context)

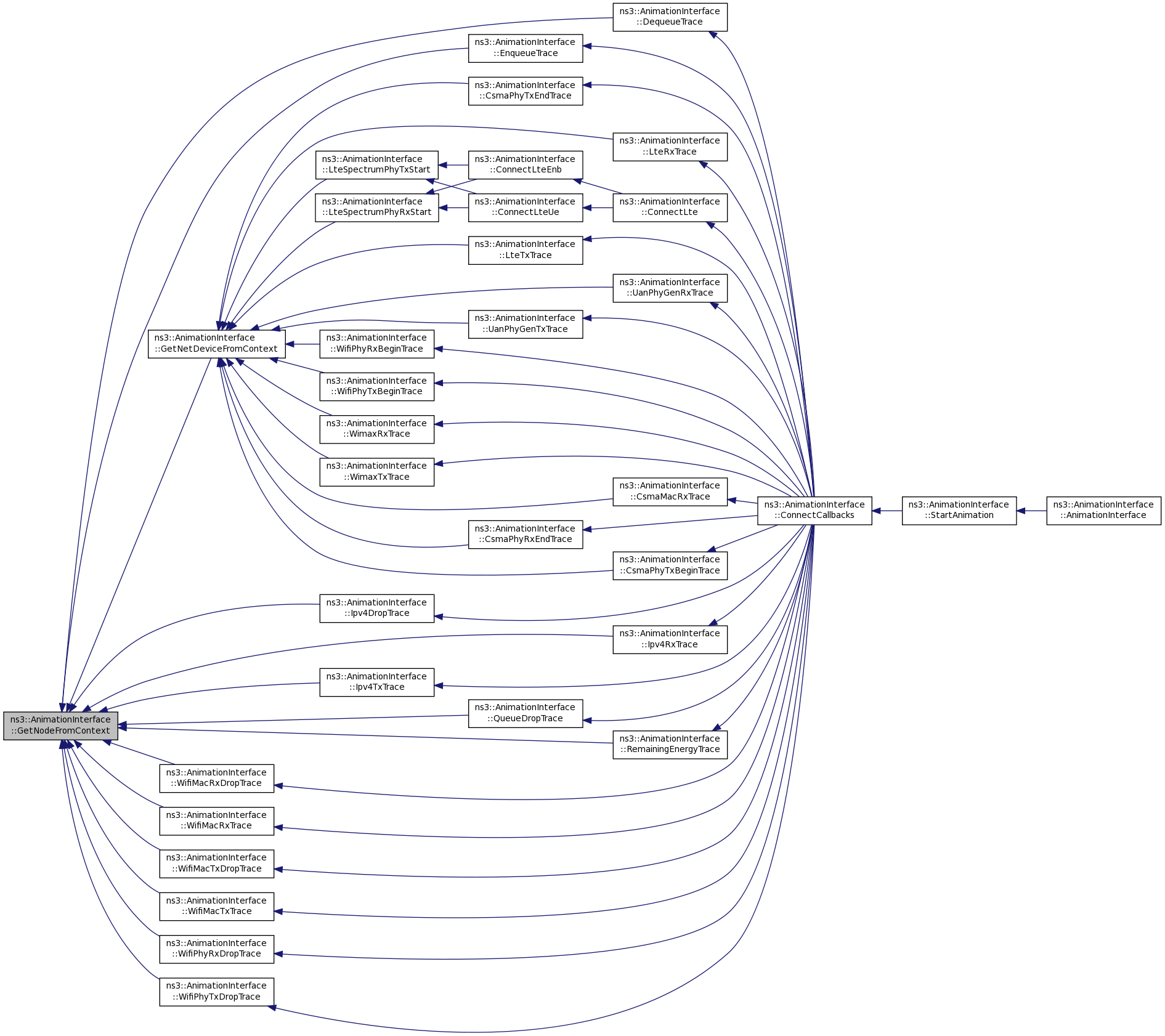

Ptr< Node >	GetNodeFromContext (const std::string &context) const

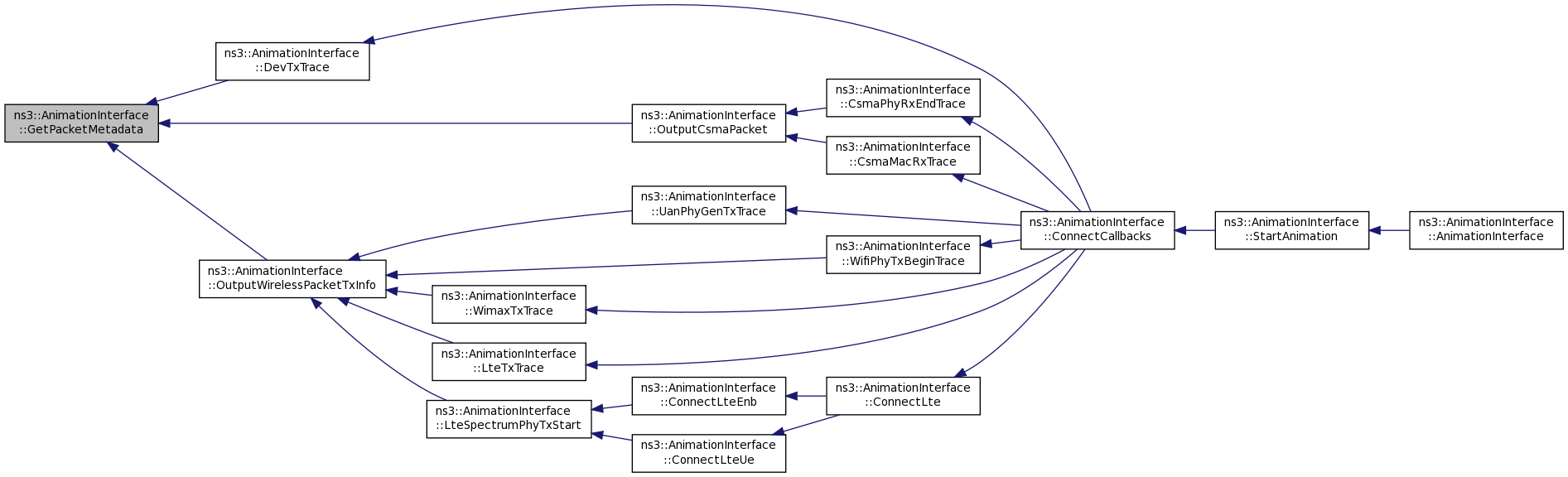

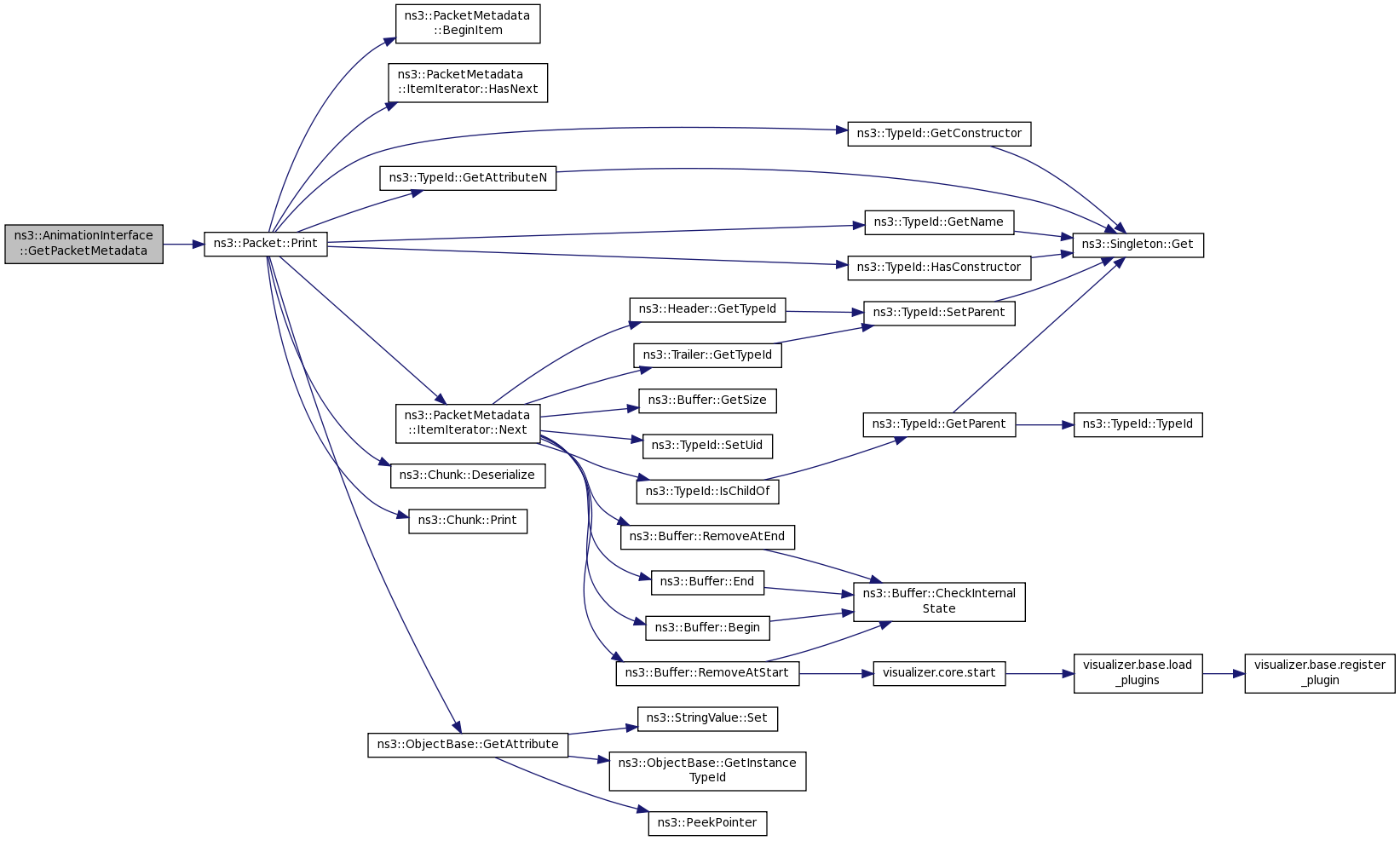

std::string	GetPacketMetadata (Ptr< const Packet > p)

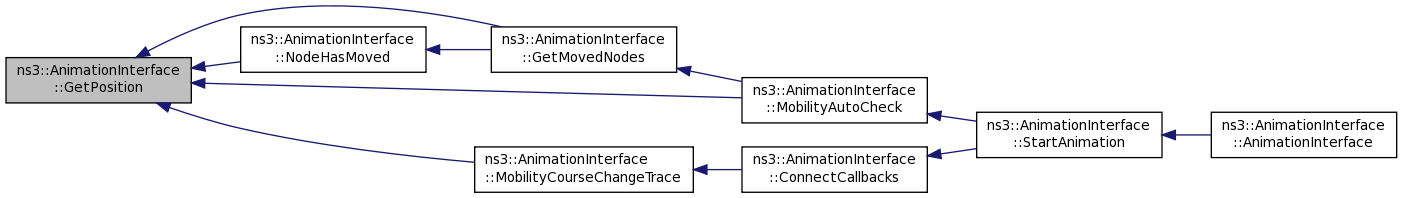

Vector	GetPosition (Ptr< Node > n)

void	Ipv4DropTrace (std::string context, const Ipv4Header &, Ptr< const Packet >, Ipv4L3Protocol::DropReason, Ptr< Ipv4 >, uint32_t)

void	Ipv4RxTrace (std::string context, Ptr< const Packet >, Ptr< Ipv4 >, uint32_t)

void	Ipv4TxTrace (std::string context, Ptr< const Packet >, Ptr< Ipv4 >, uint32_t)

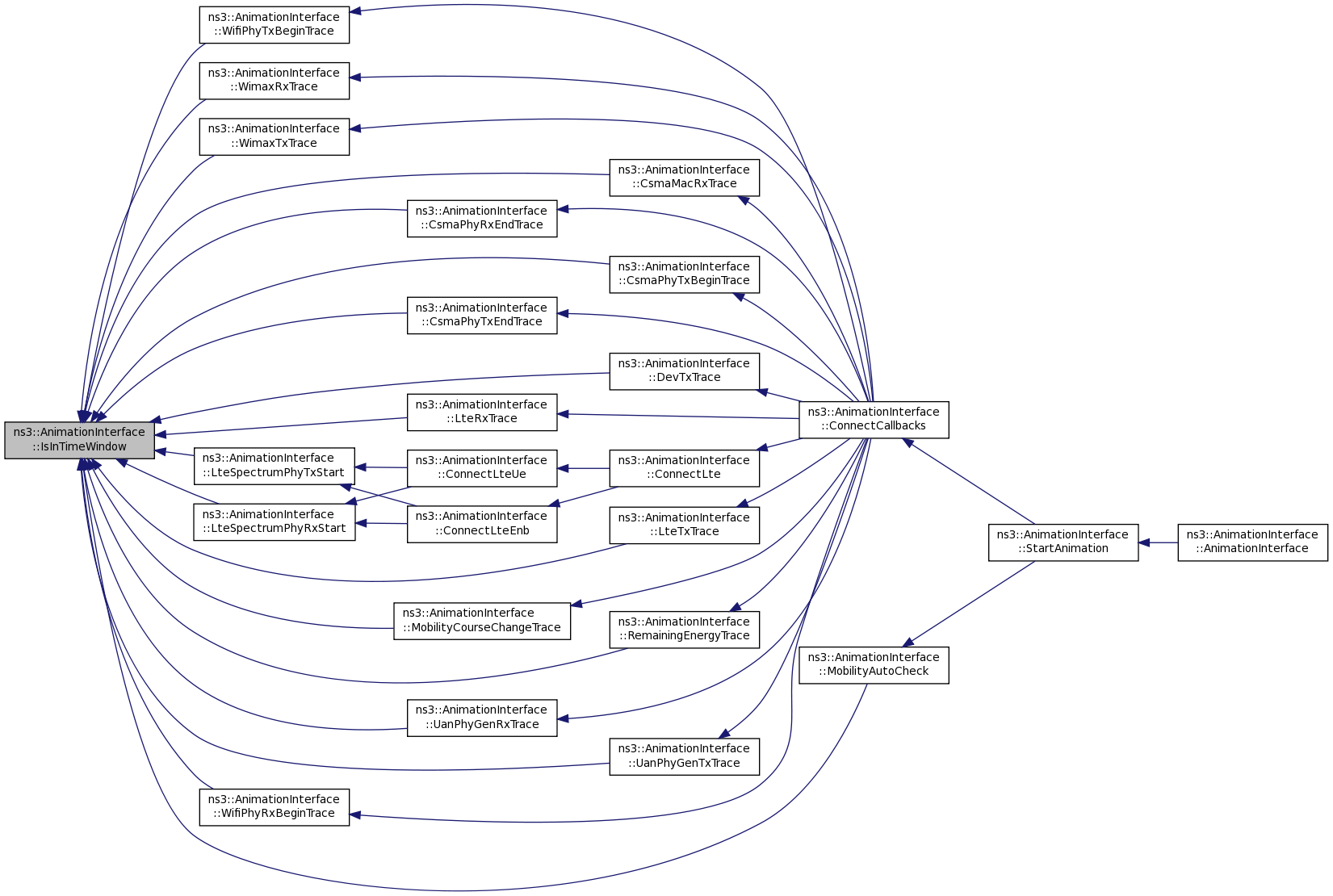

bool	IsInTimeWindow ()

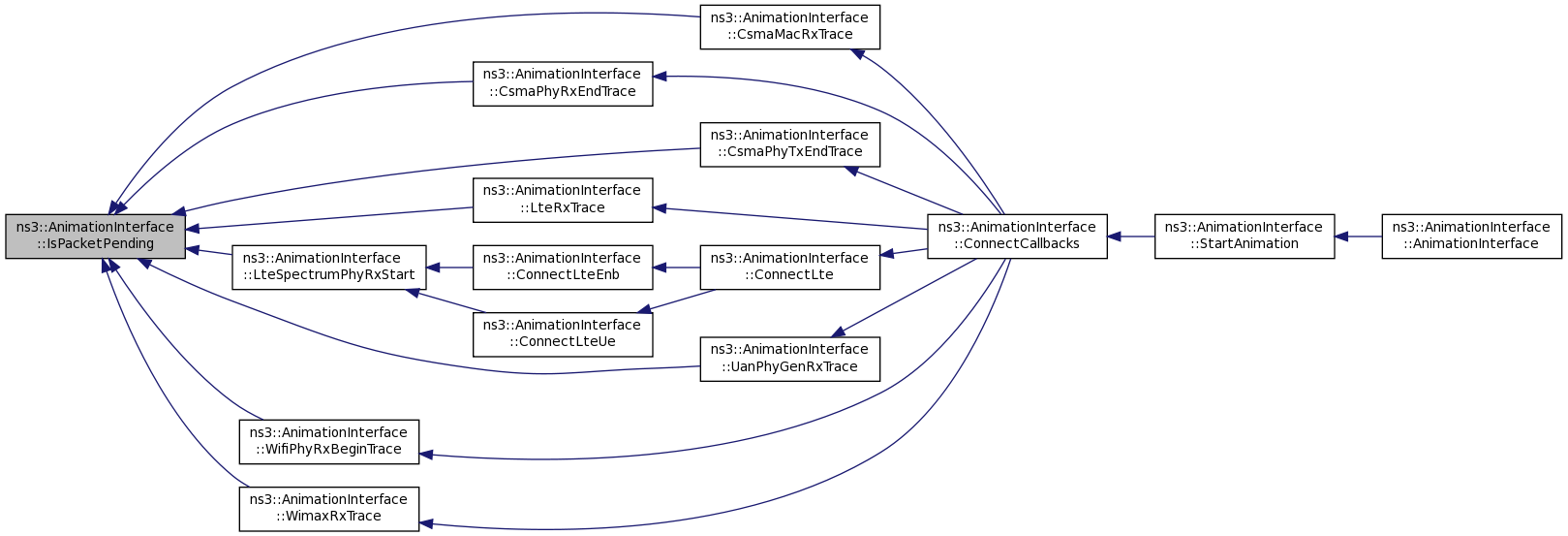

bool	IsPacketPending (uint64_t animUid, ProtocolType protocolType)

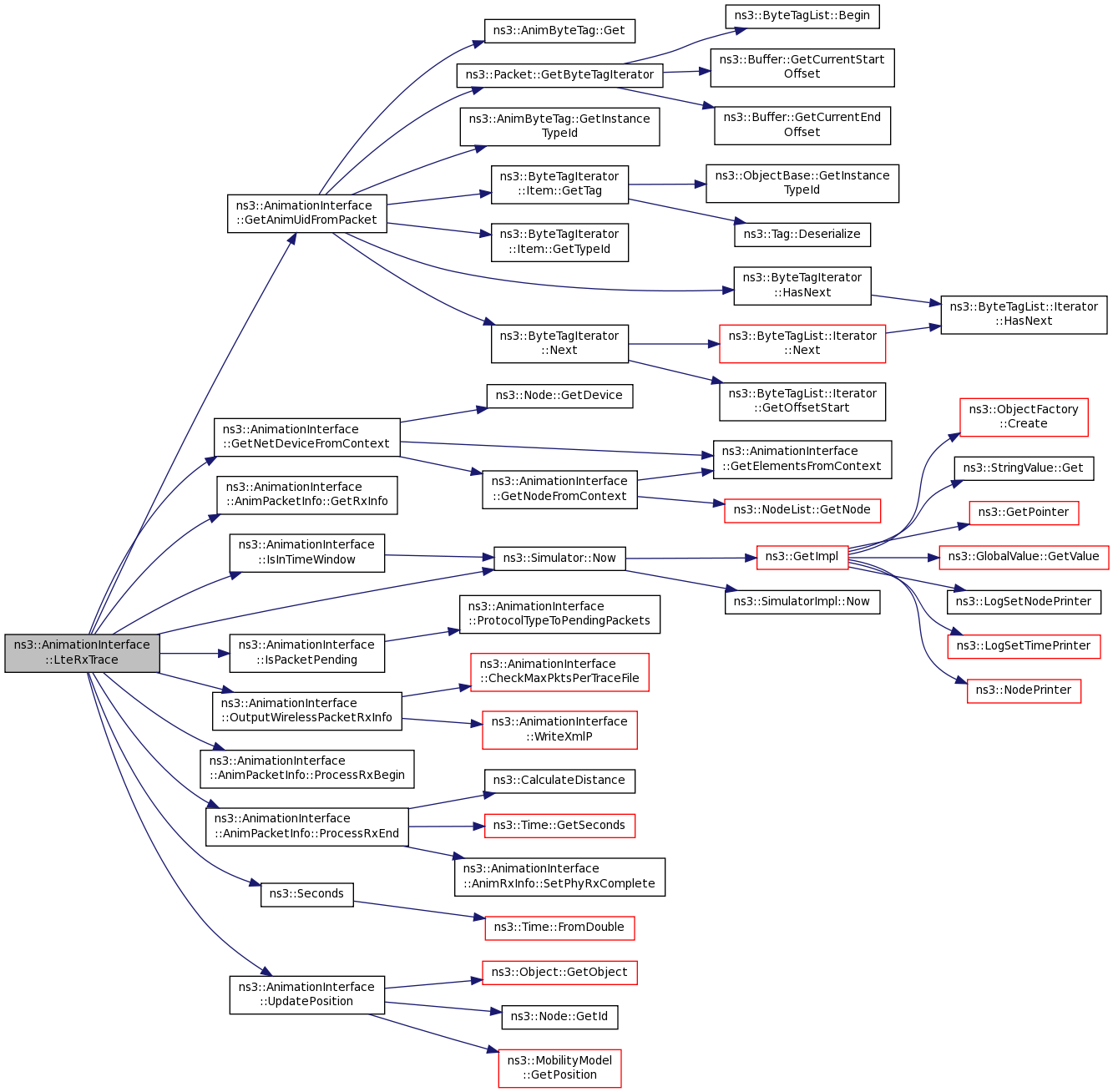

void	LteRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

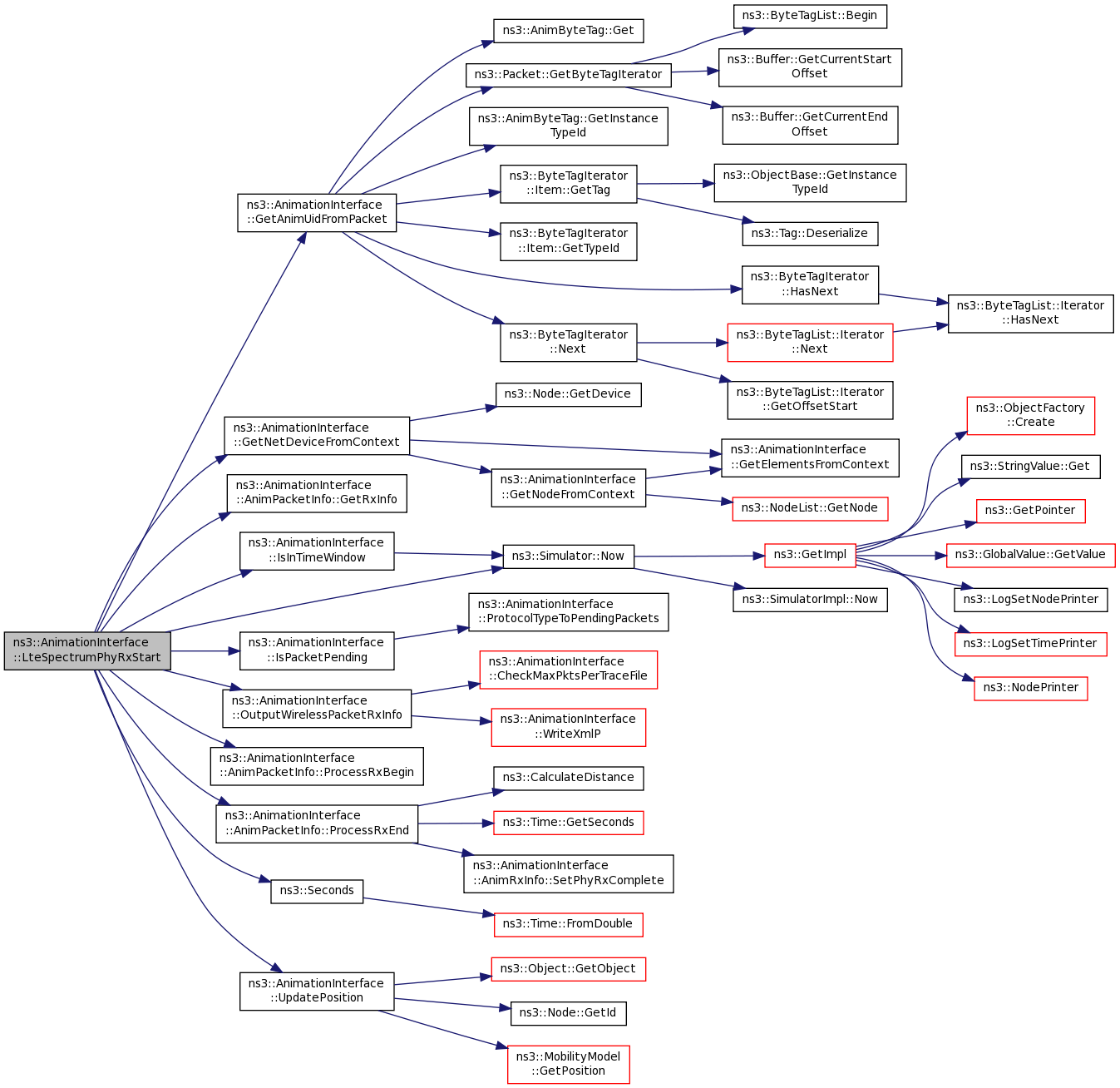

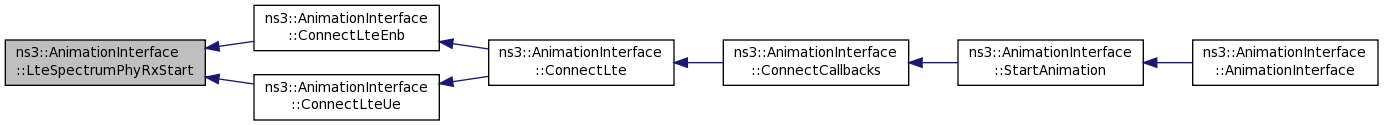

void	LteSpectrumPhyRxStart (std::string context, Ptr< const PacketBurst > pb)

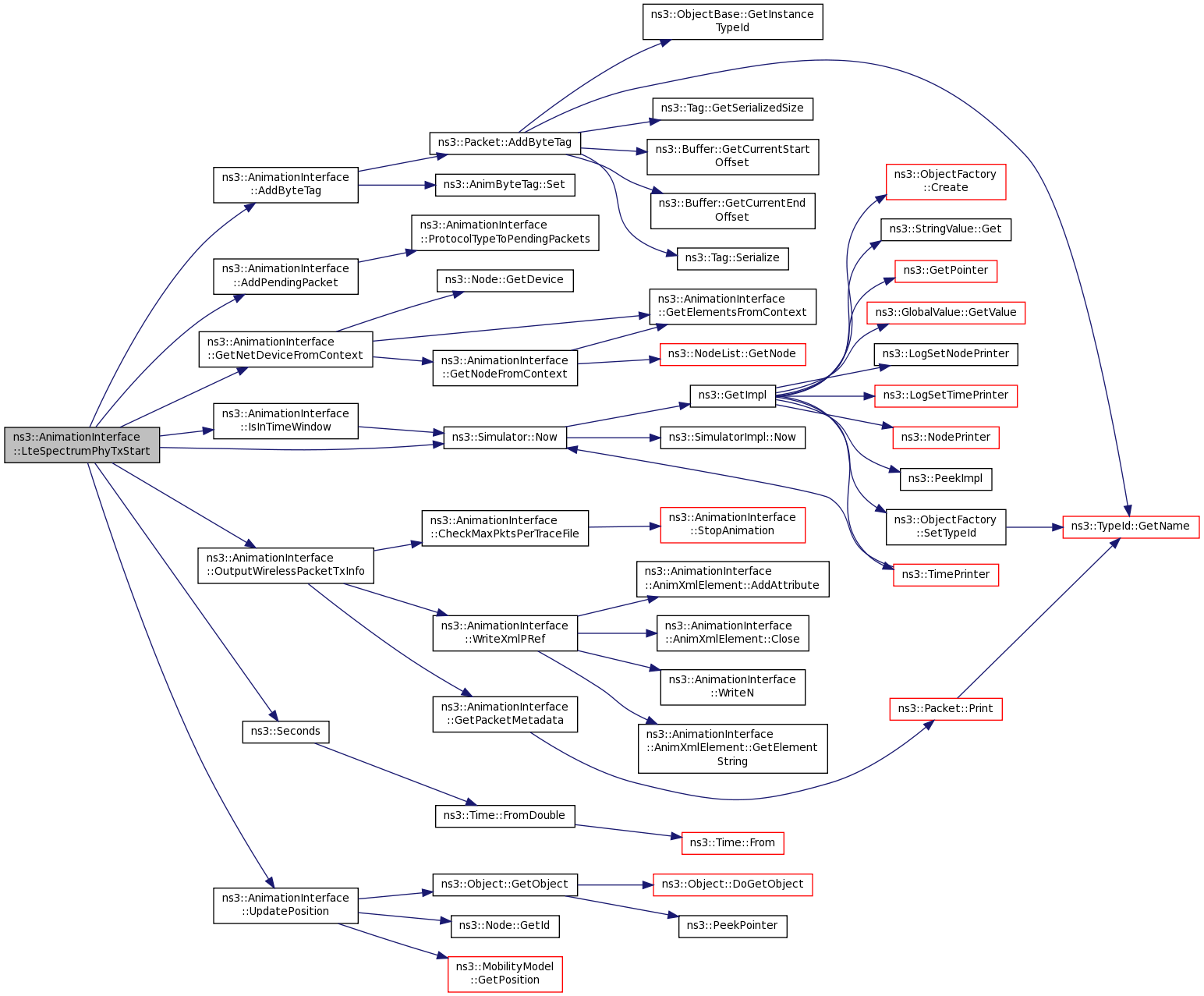

void	LteSpectrumPhyTxStart (std::string context, Ptr< const PacketBurst > pb)

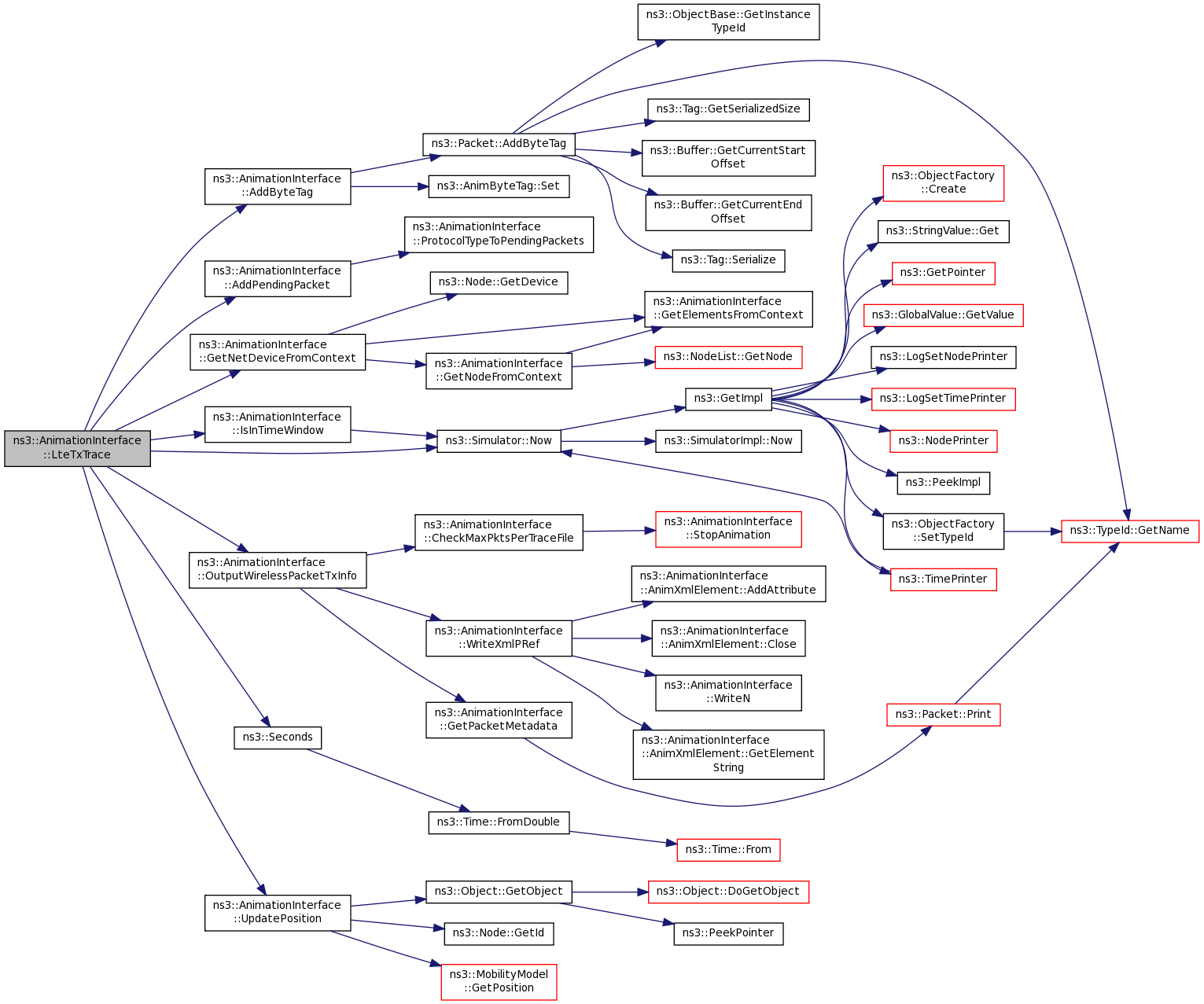

void	LteTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

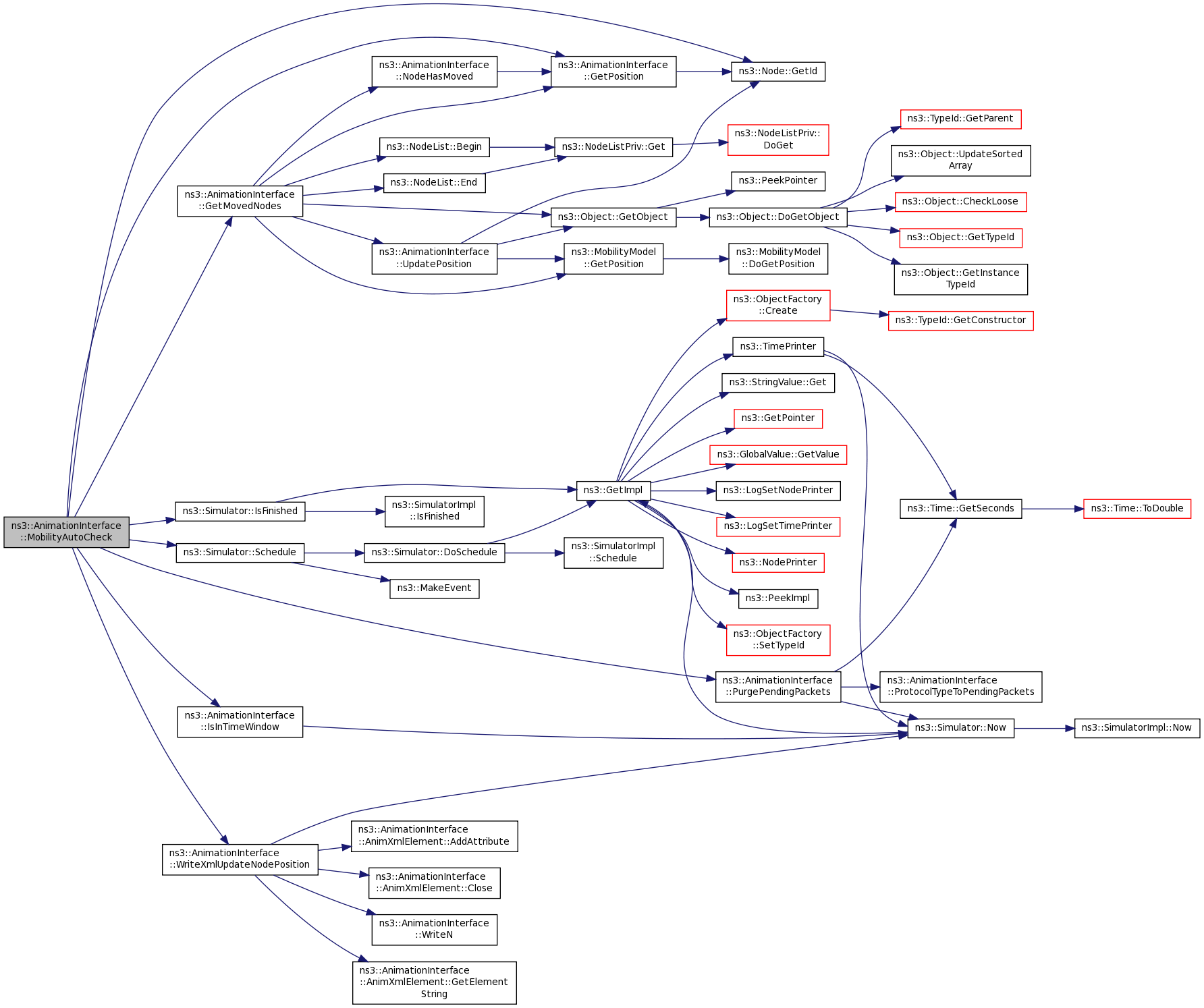

void	MobilityAutoCheck ()

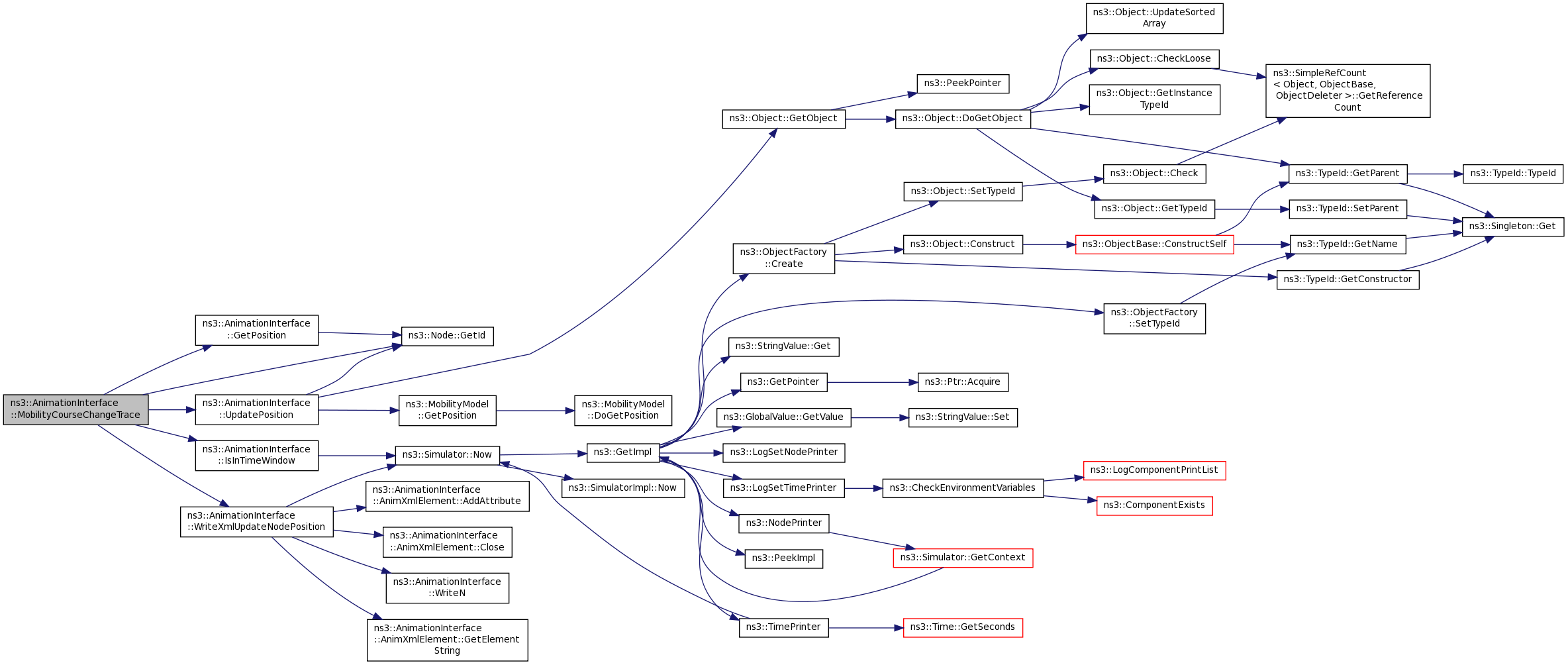

void	MobilityCourseChangeTrace (Ptr< const MobilityModel > mob)

bool	NodeHasMoved (Ptr< Node > n, Vector newLocation)

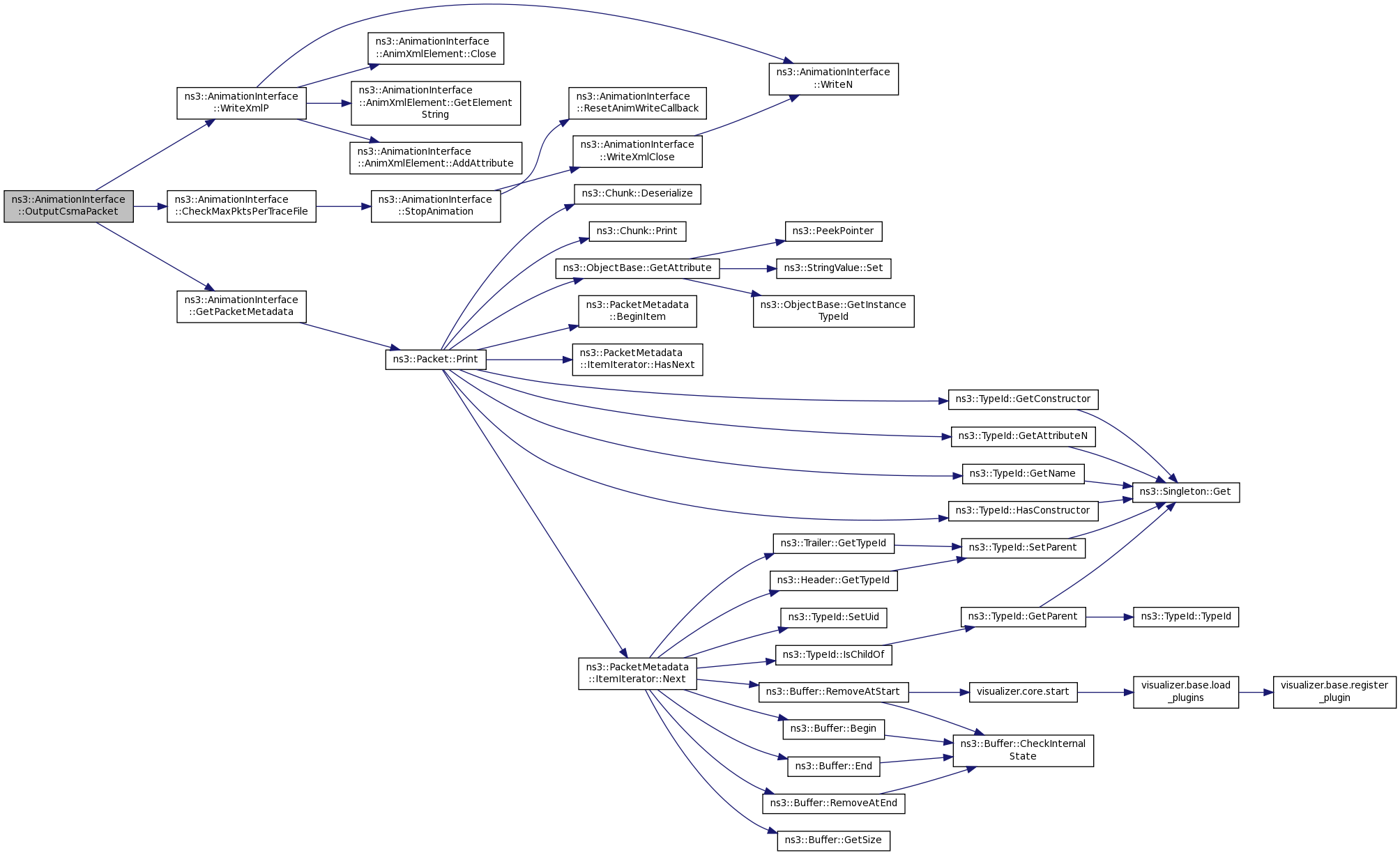

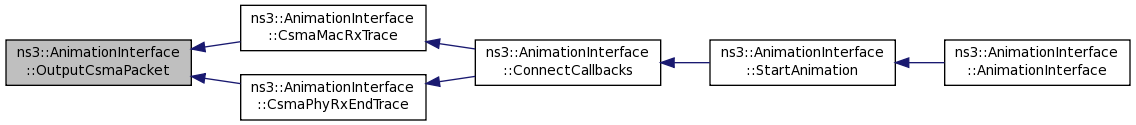

void	OutputCsmaPacket (Ptr< const Packet > p, AnimPacketInfo &pktInfo, AnimRxInfo pktrxInfo)

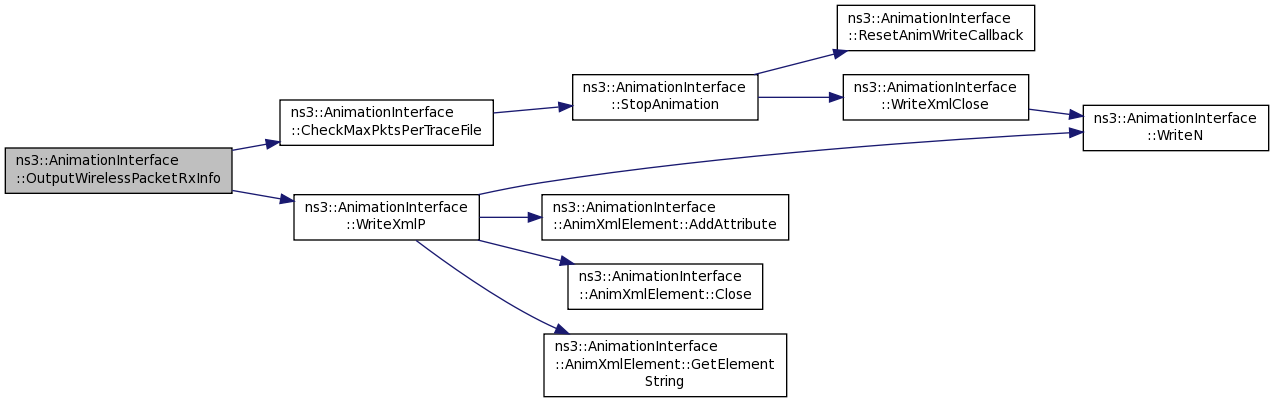

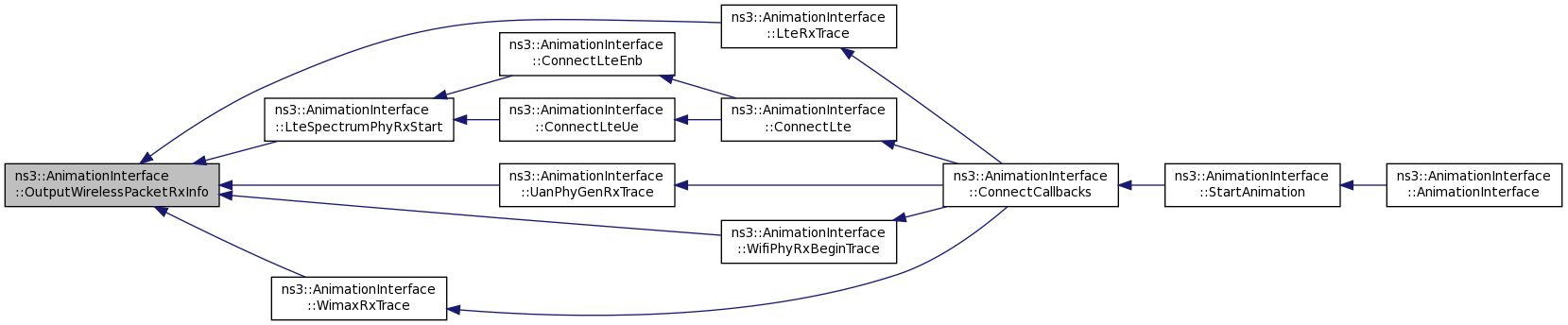

void	OutputWirelessPacketRxInfo (Ptr< const Packet > p, AnimRxInfo pktrxInfo, uint64_t animUid)

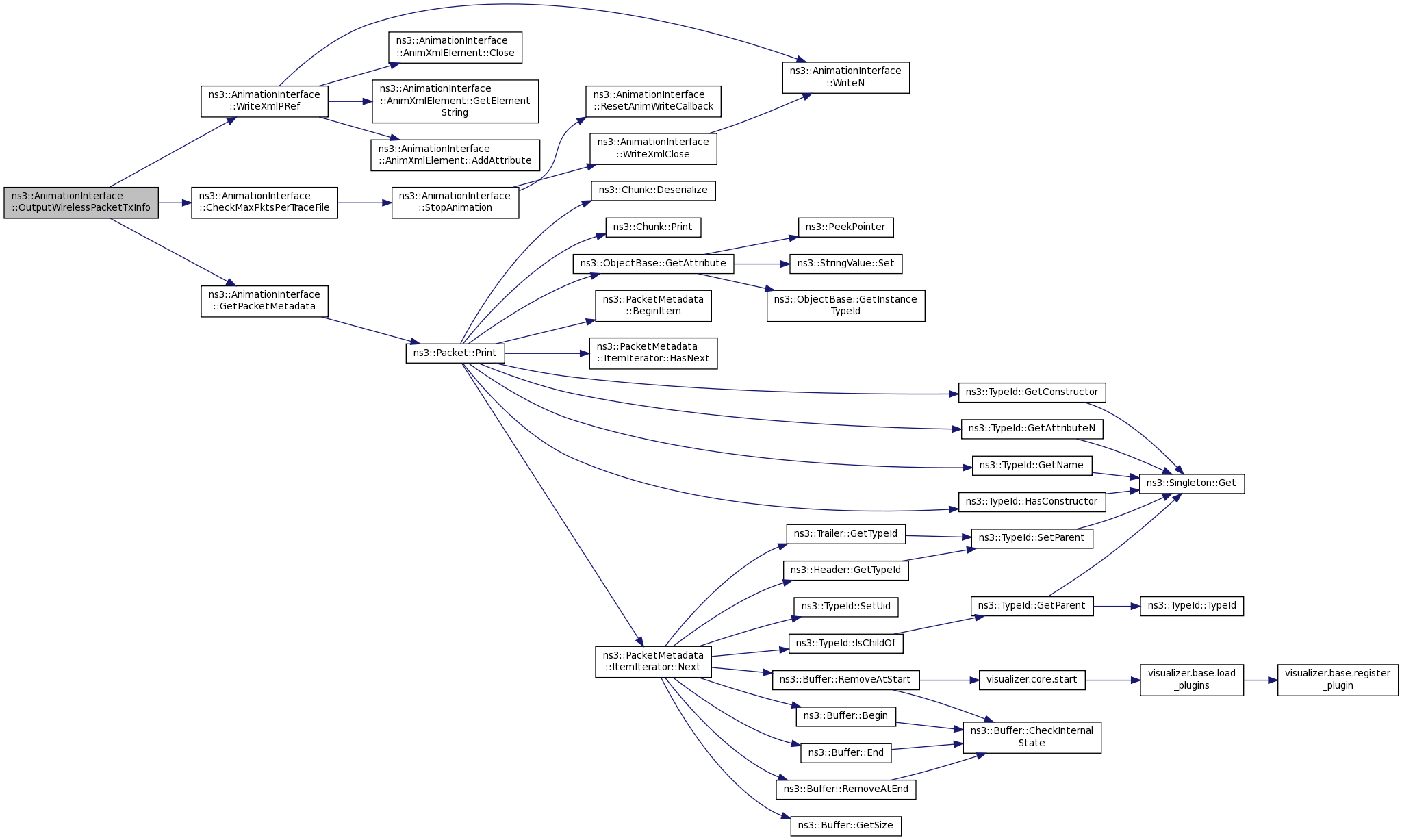

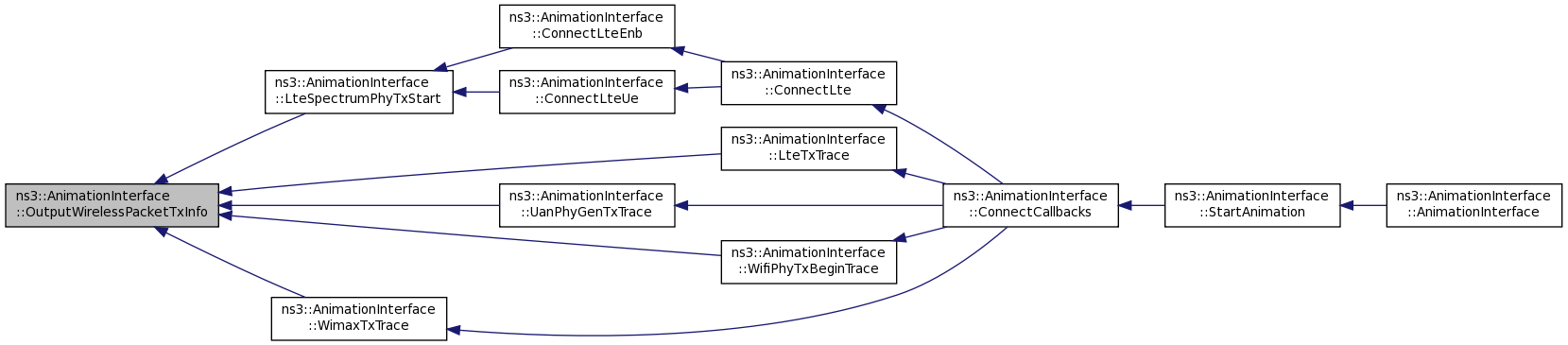

void	OutputWirelessPacketTxInfo (Ptr< const Packet > p, AnimPacketInfo &pktInfo, uint64_t animUid)

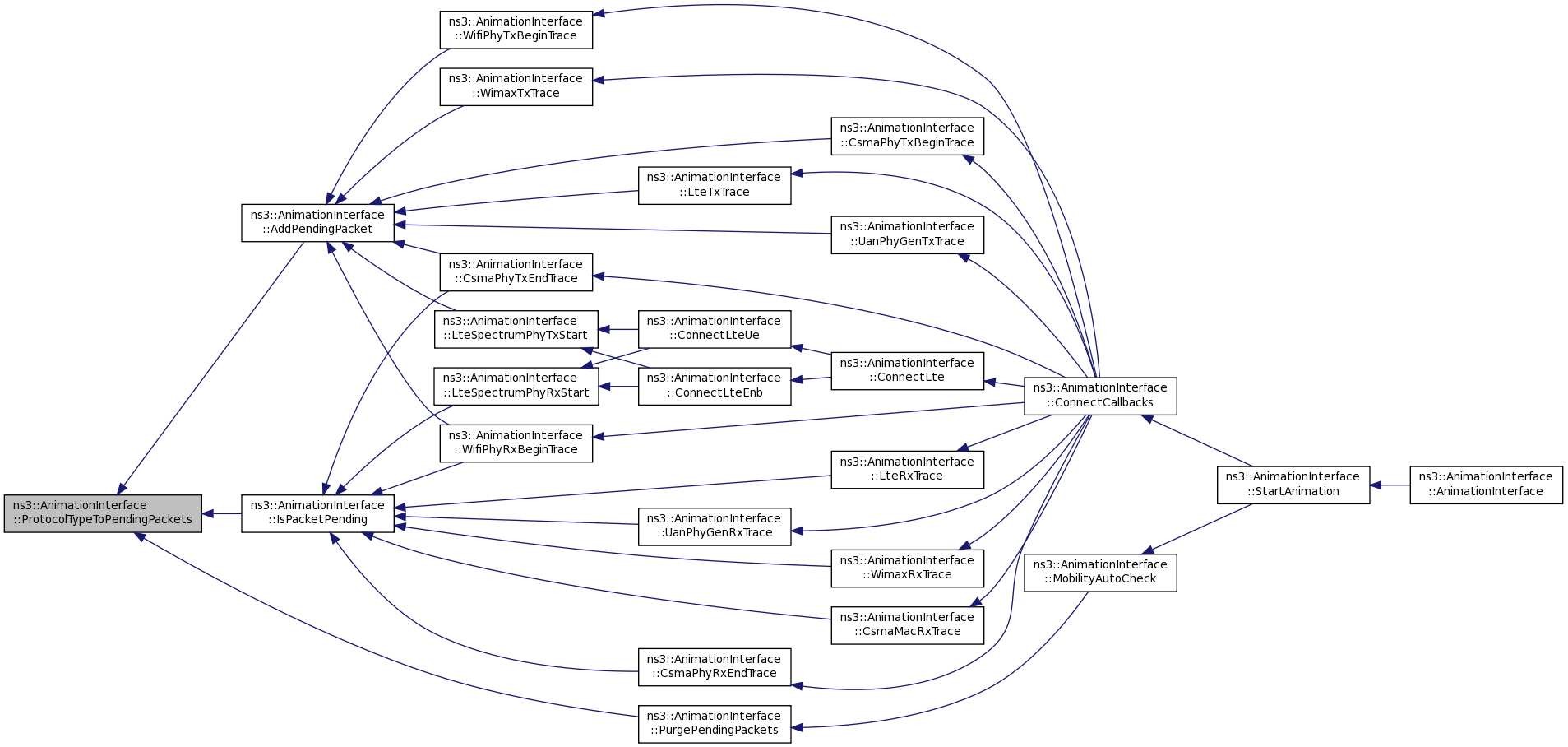

AnimUidPacketInfoMap *	ProtocolTypeToPendingPackets (ProtocolType protocolType)

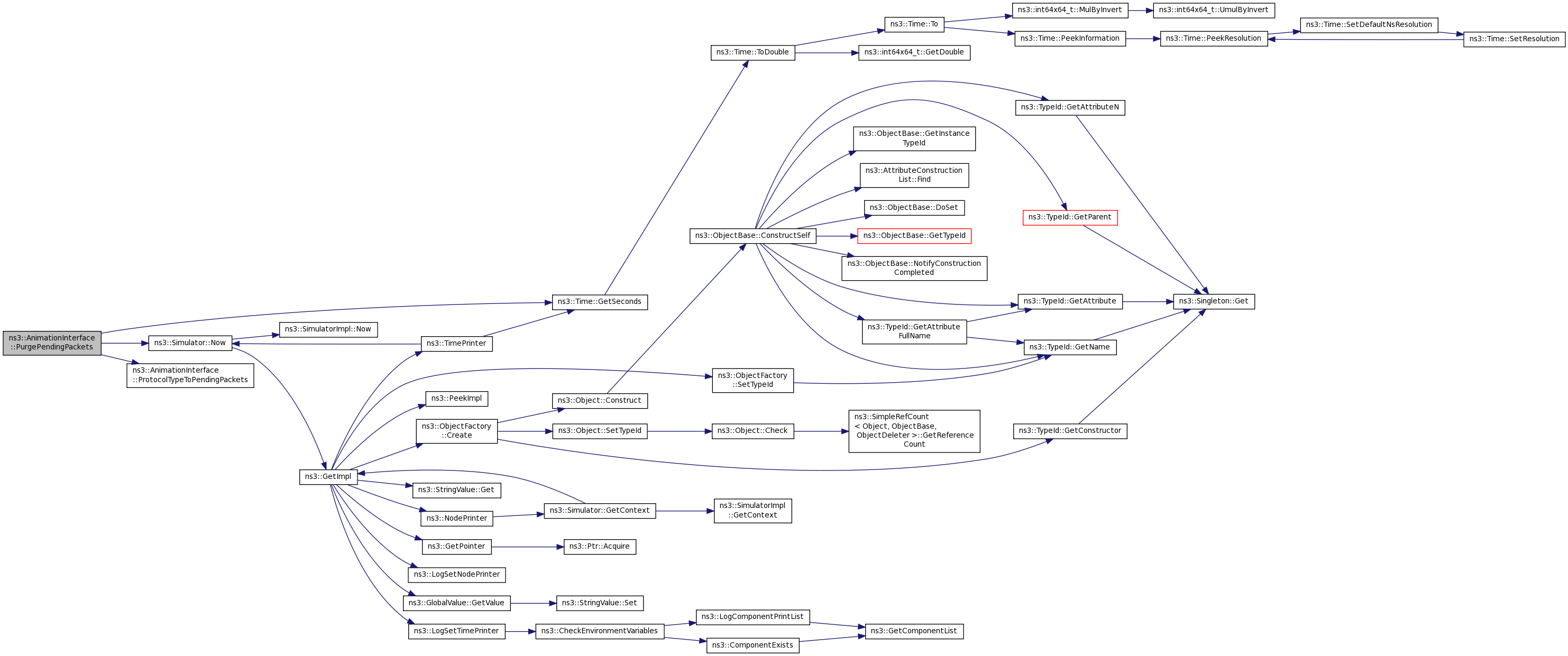

void	PurgePendingPackets (ProtocolType protocolType)

void	QueueDropTrace (std::string context, Ptr< const Packet >)

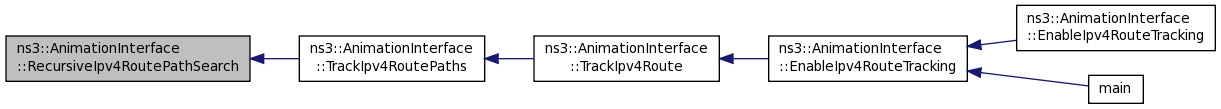

void	RecursiveIpv4RoutePathSearch (std::string fromIpv4, std::string toIpv4, Ipv4RoutePathElements &)

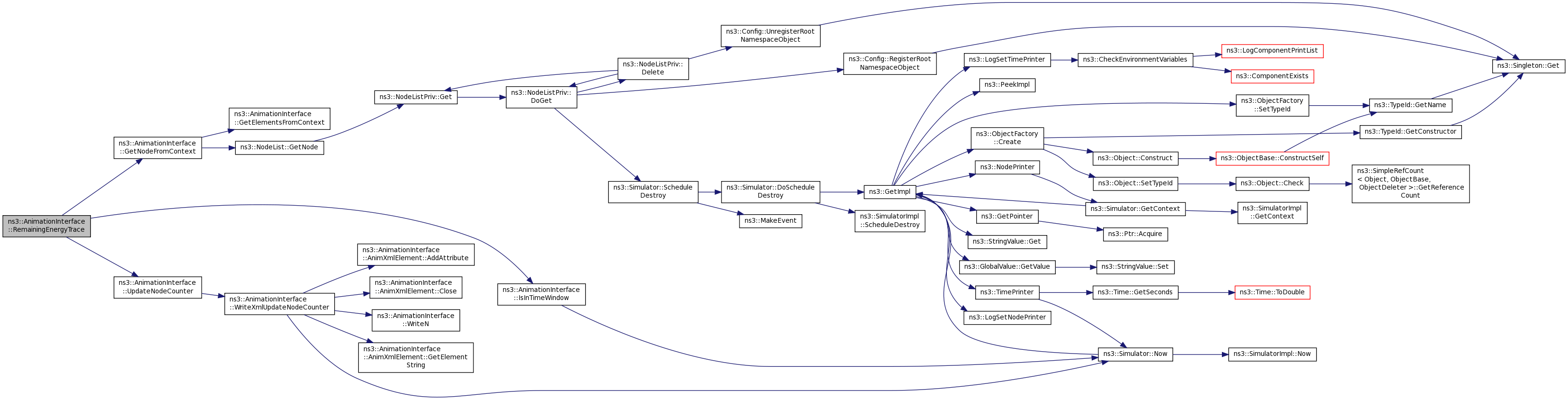

void	RemainingEnergyTrace (std::string context, double previousEnergy, double currentEnergy)

void	SetOutputFile (const std::string &fn, bool routing=false)

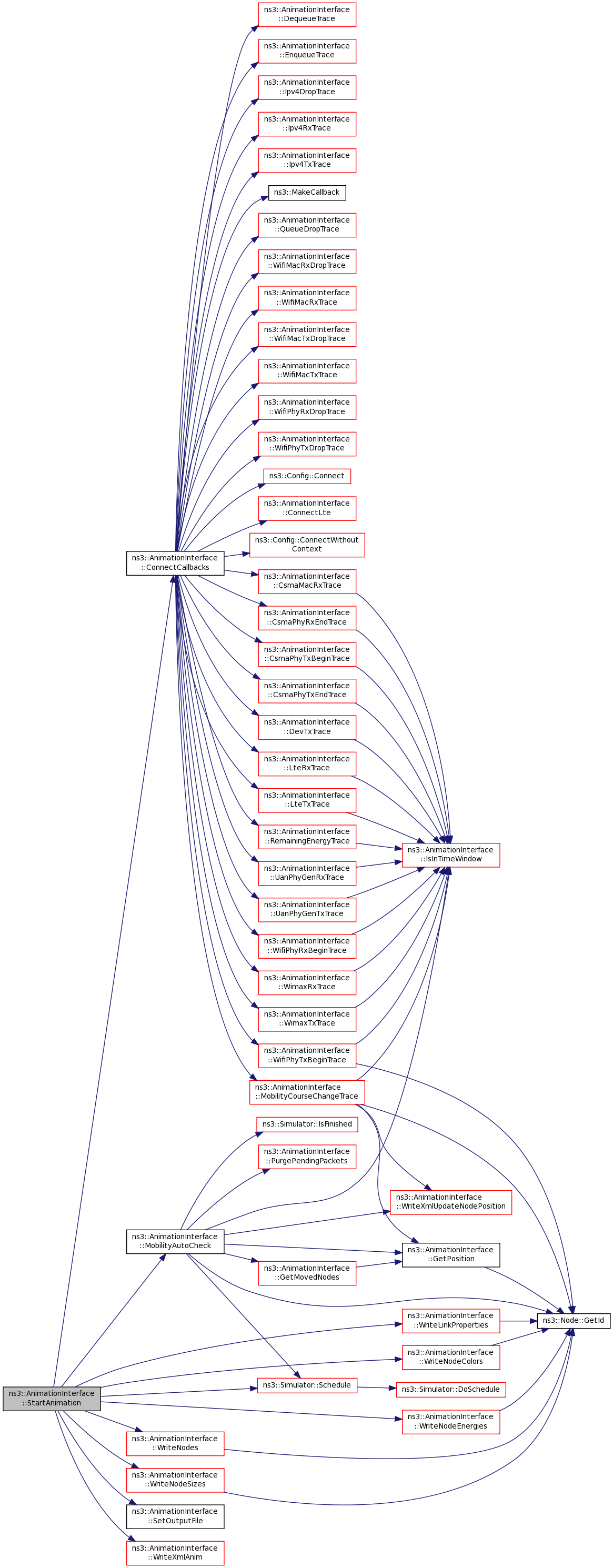

void	StartAnimation (bool restart=false)

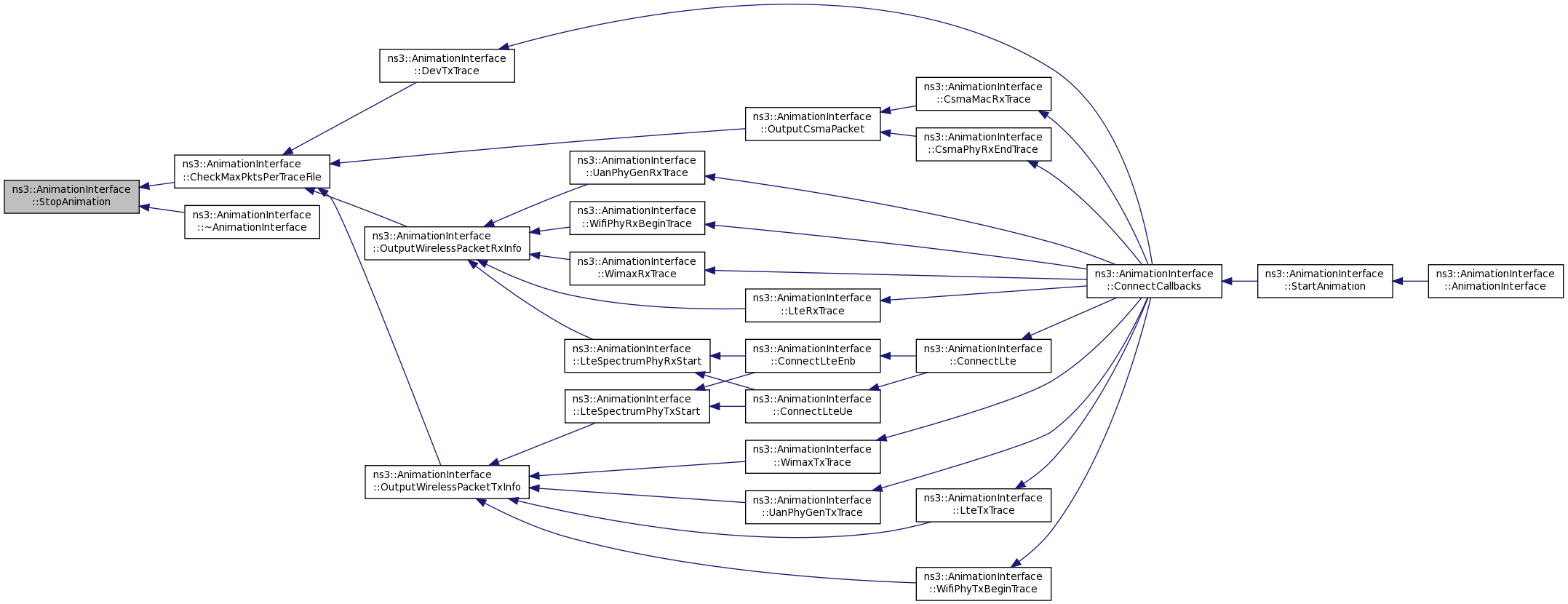

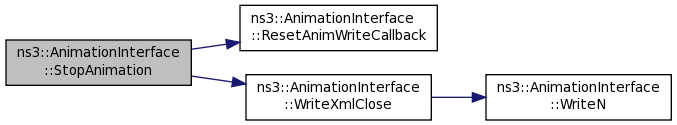

void	StopAnimation (bool onlyAnimation=false)

void	TrackIpv4L3ProtocolCounters ()

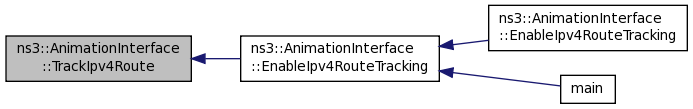

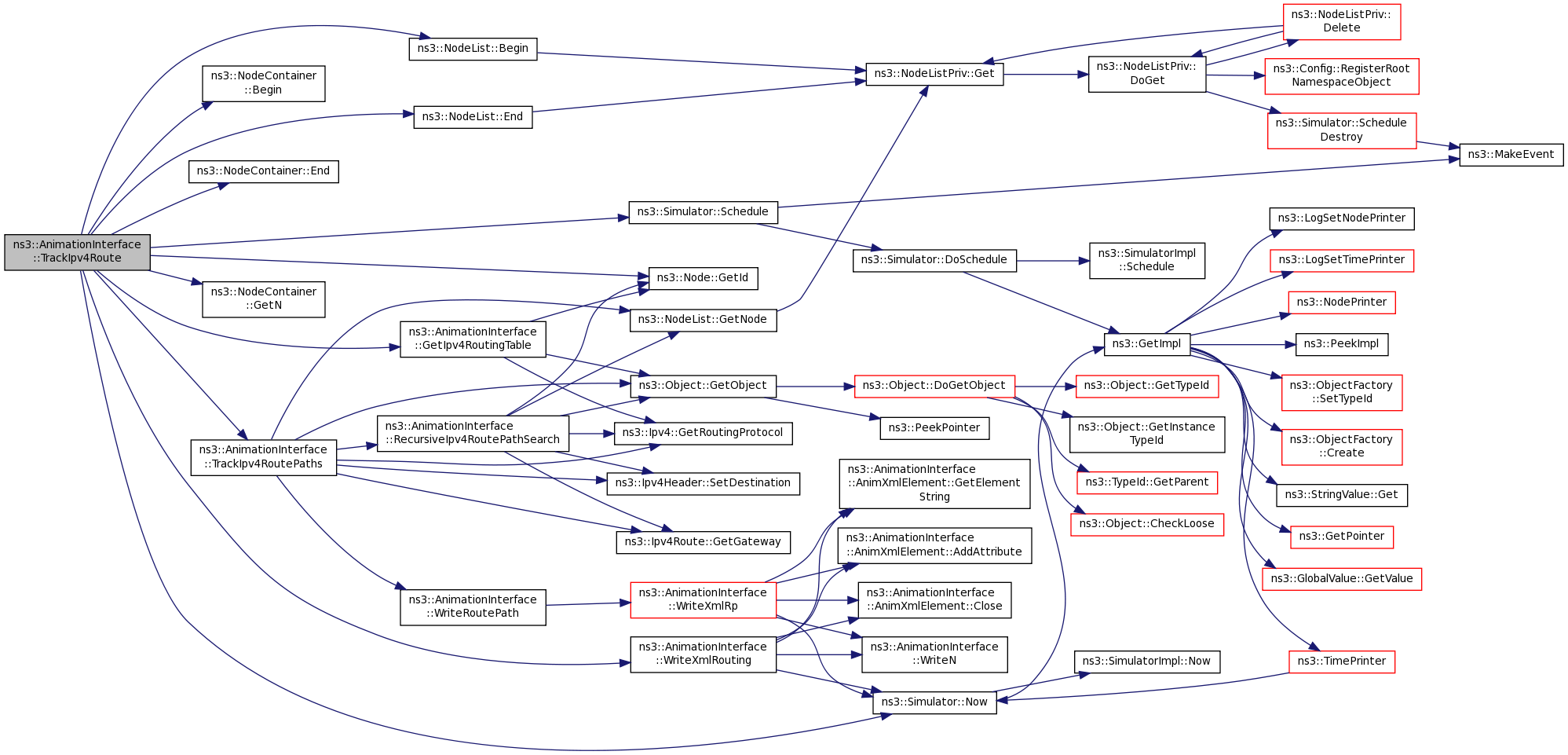

void	TrackIpv4Route ()

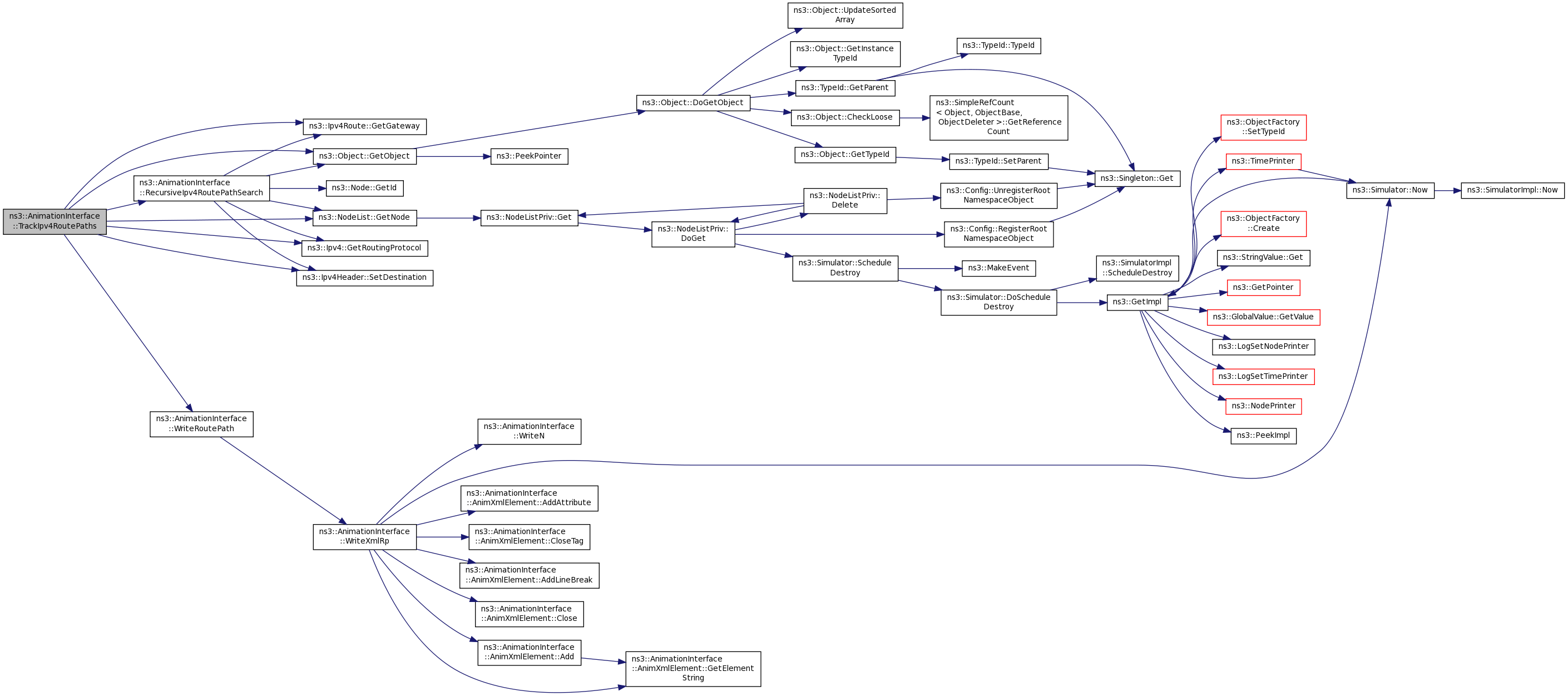

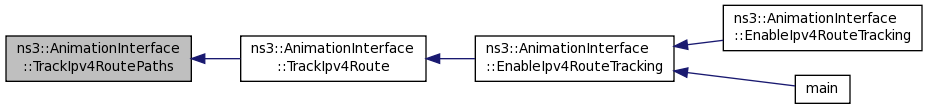

void	TrackIpv4RoutePaths ()

void	TrackQueueCounters ()

void	TrackWifiMacCounters ()

void	TrackWifiPhyCounters ()

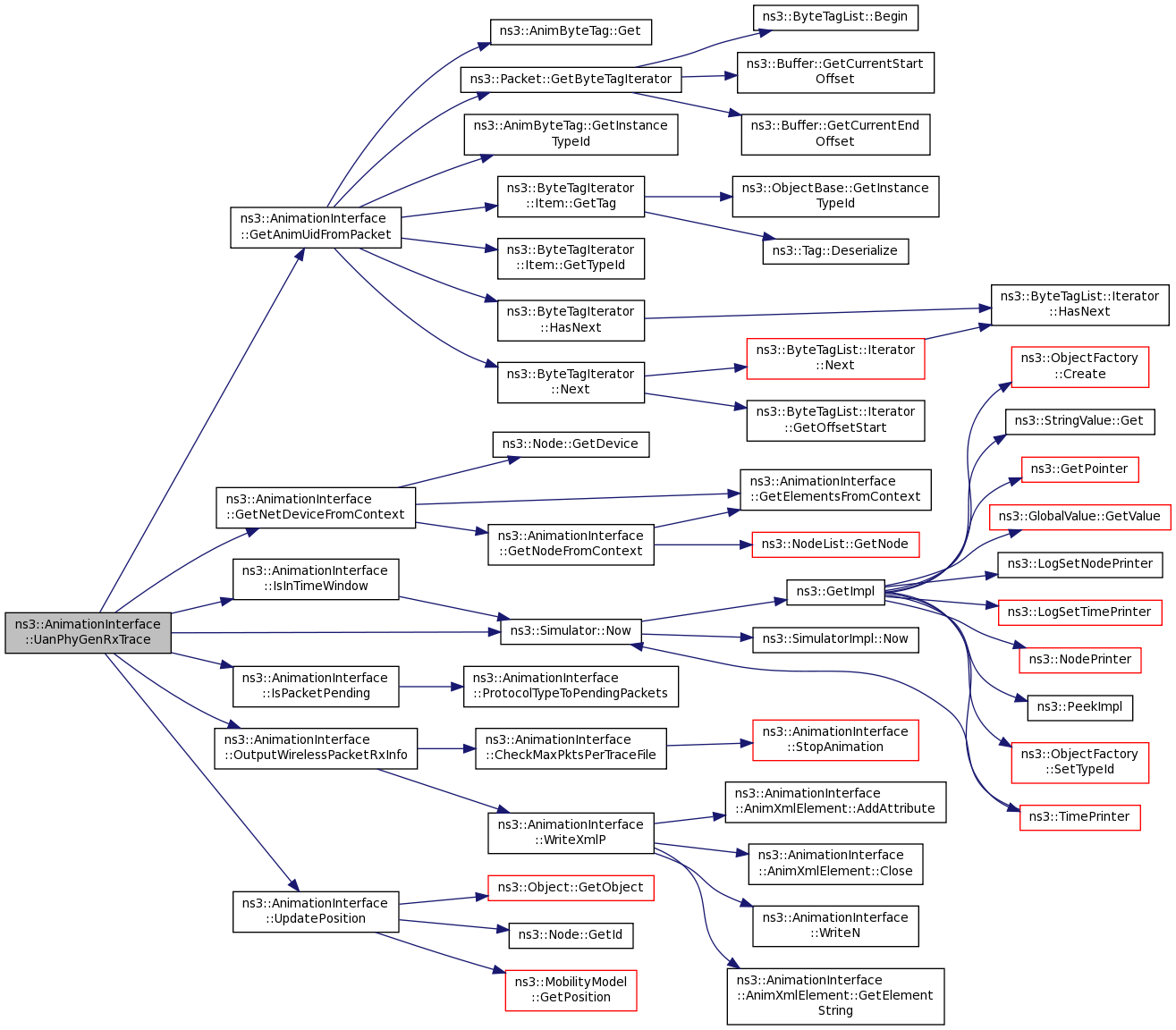

void	UanPhyGenRxTrace (std::string context, Ptr< const Packet >)

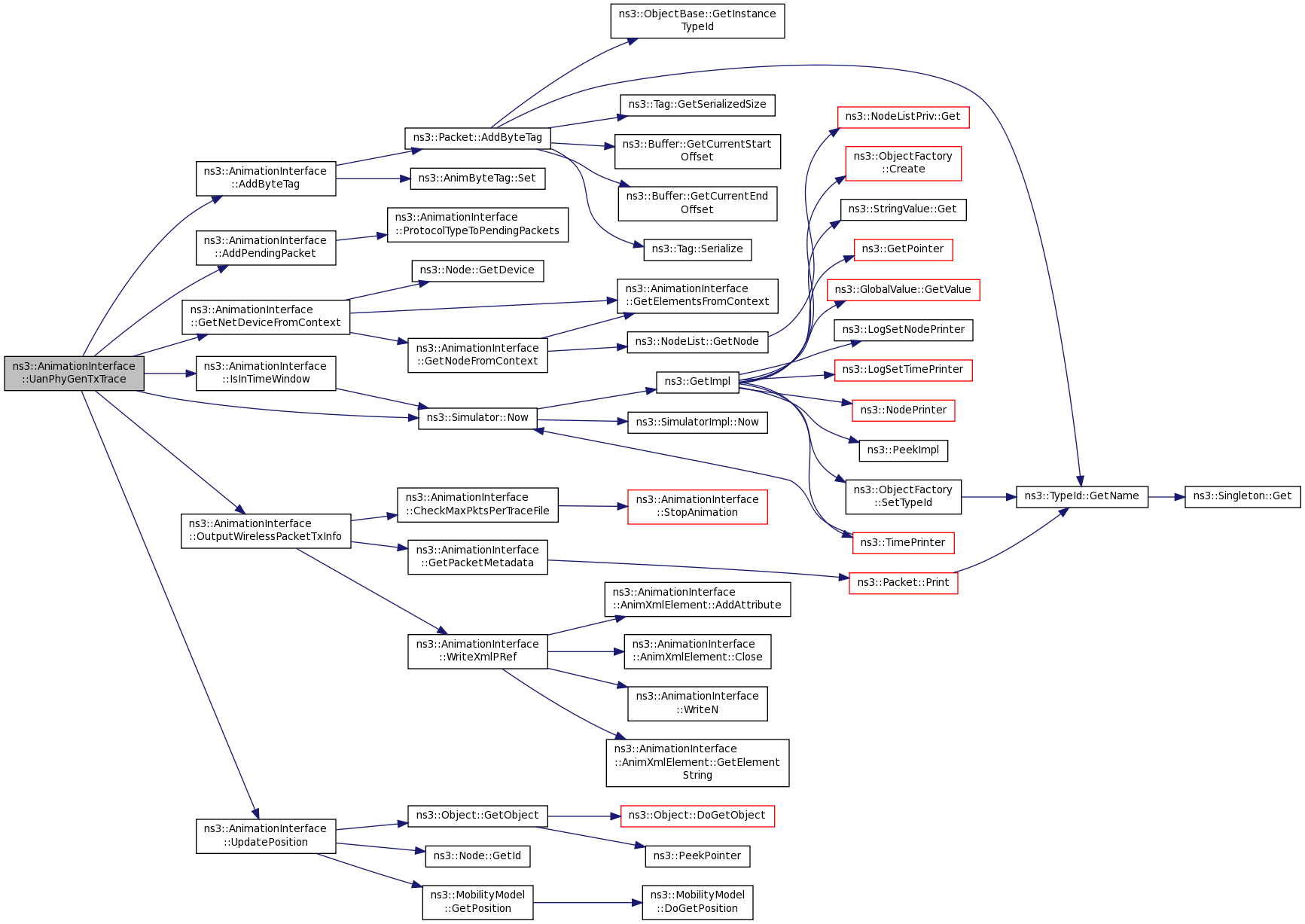

void	UanPhyGenTxTrace (std::string context, Ptr< const Packet >)

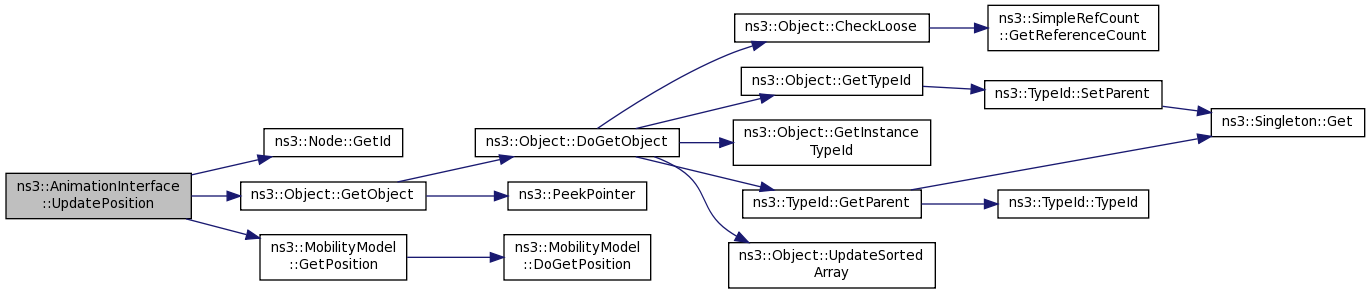

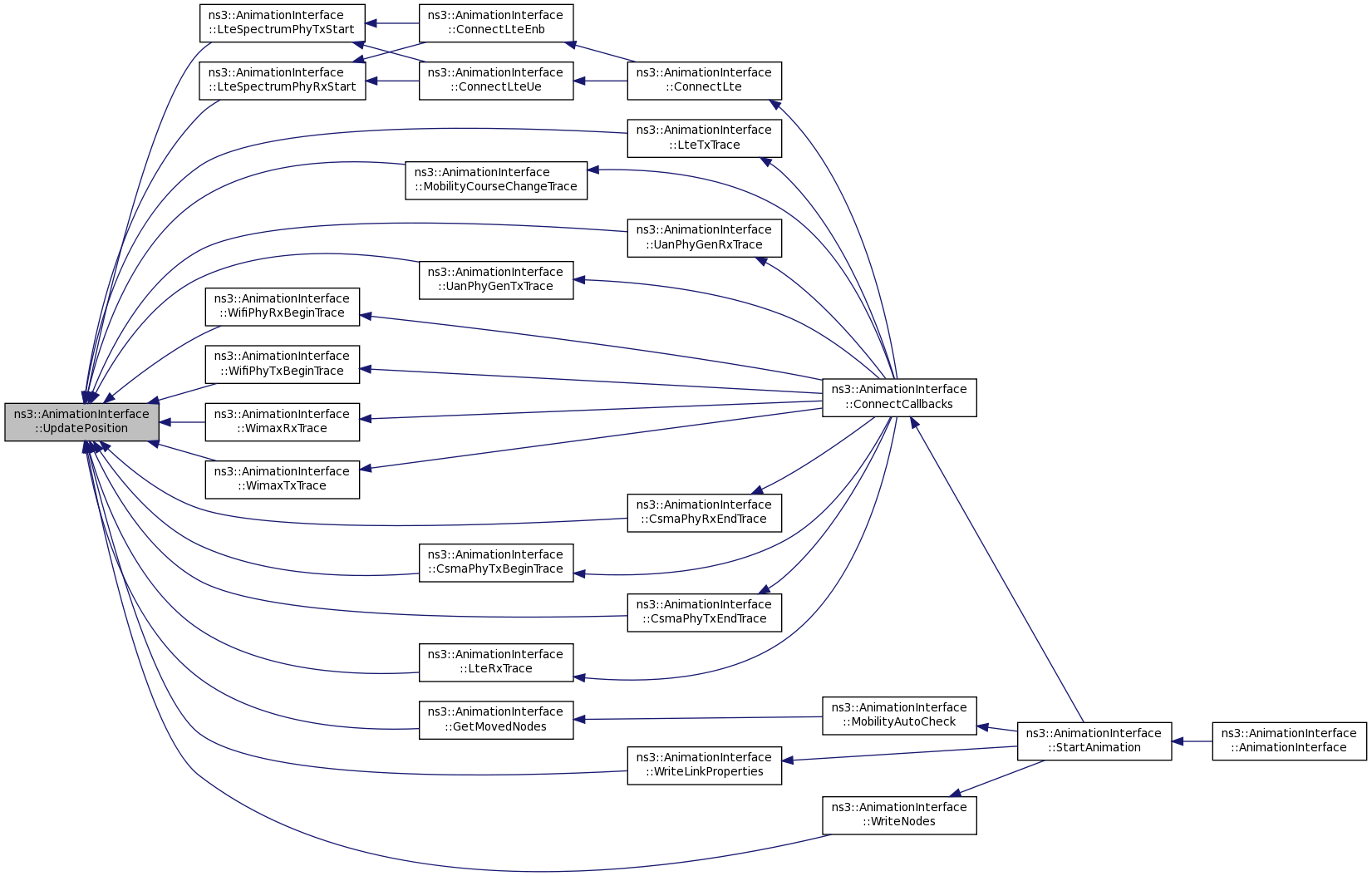

Vector	UpdatePosition (Ptr< Node > n)

Vector	UpdatePosition (Ptr< Node > n, Vector v)

void	WifiMacRxDropTrace (std::string context, Ptr< const Packet >)

void	WifiMacRxTrace (std::string context, Ptr< const Packet >)

void	WifiMacTxDropTrace (std::string context, Ptr< const Packet >)

void	WifiMacTxTrace (std::string context, Ptr< const Packet >)

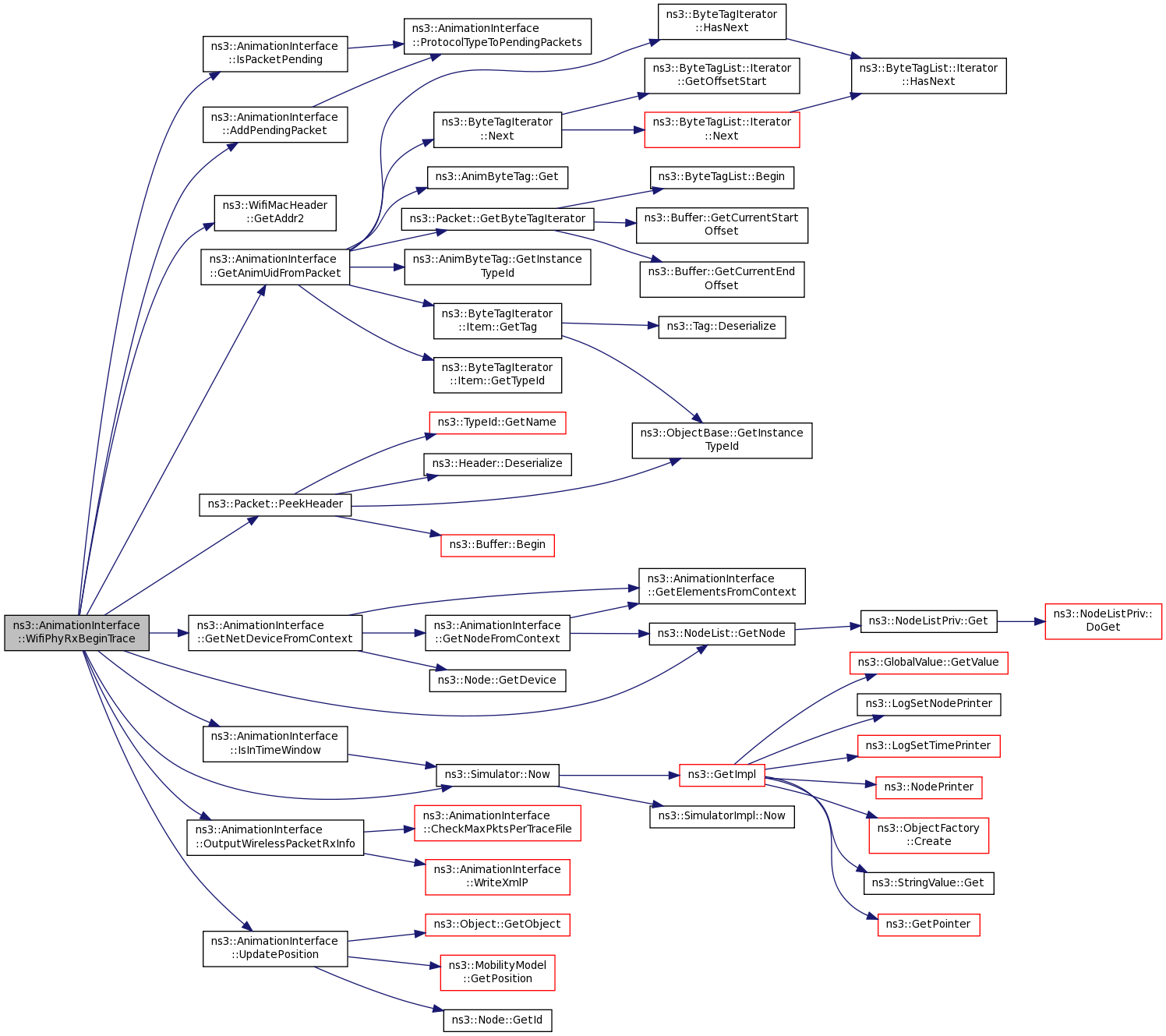

void	WifiPhyRxBeginTrace (std::string context, Ptr< const Packet > p)

void	WifiPhyRxDropTrace (std::string context, Ptr< const Packet >)

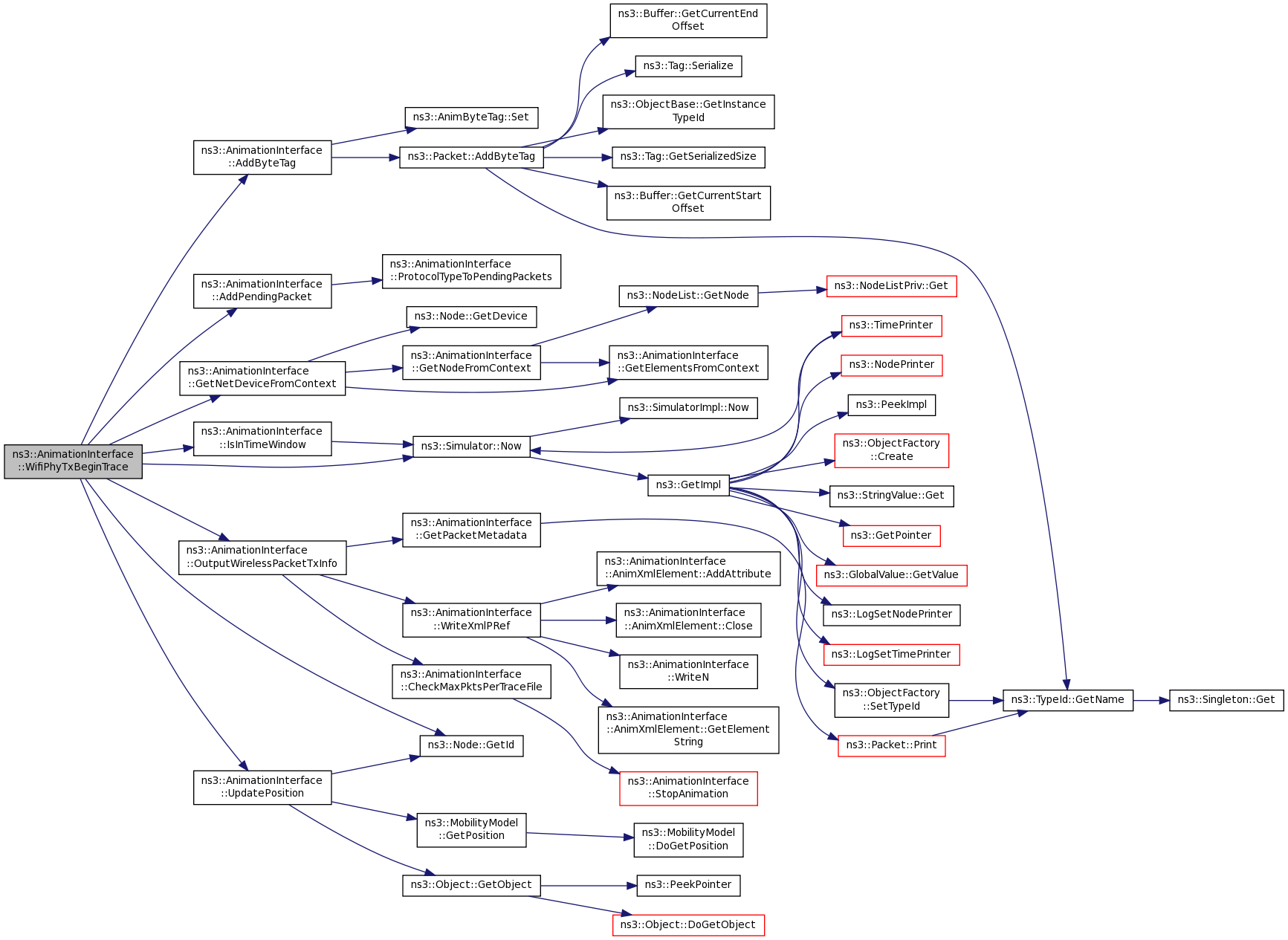

void	WifiPhyTxBeginTrace (std::string context, Ptr< const Packet > p)

void	WifiPhyTxDropTrace (std::string context, Ptr< const Packet >)

void	WimaxRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

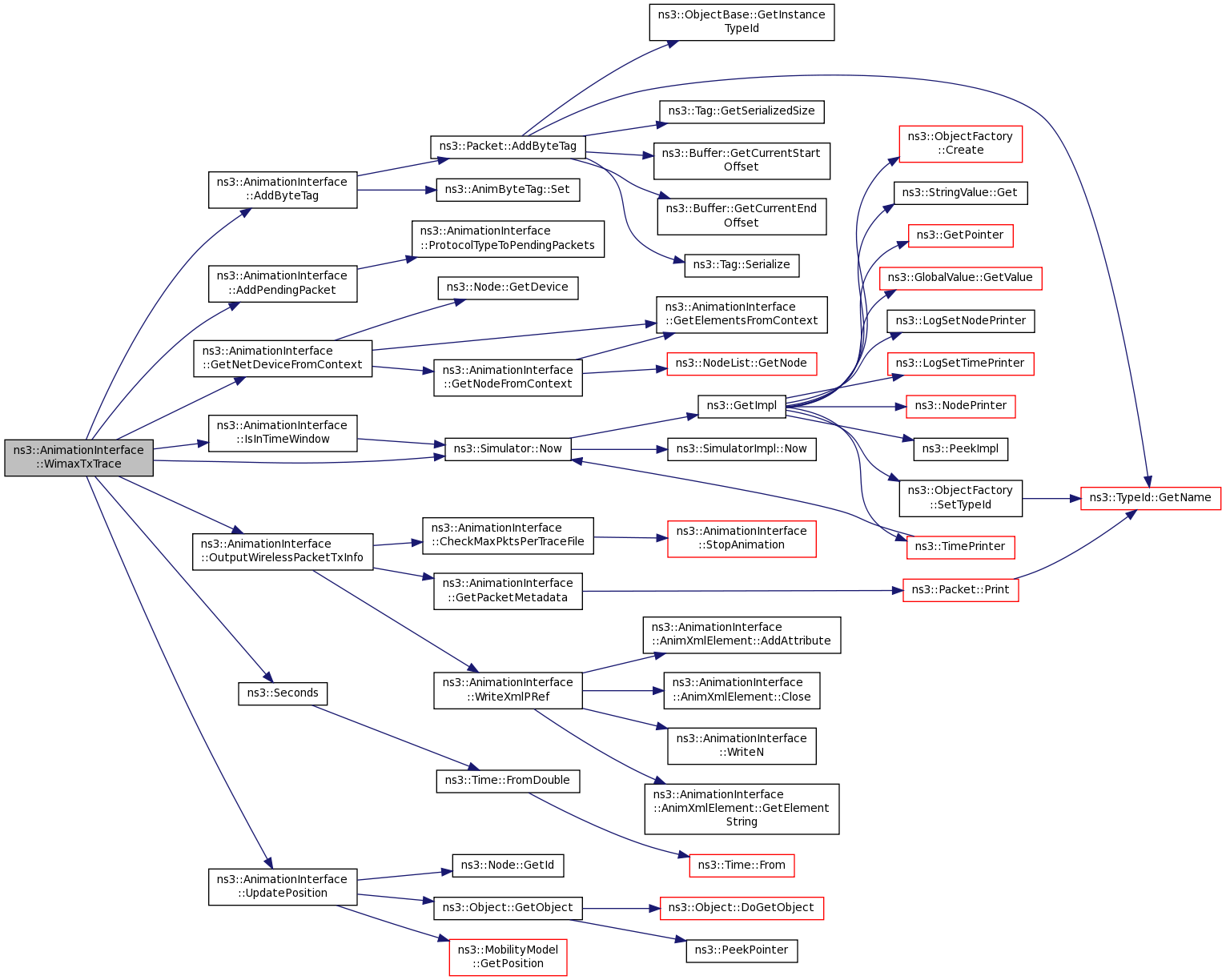

void	WimaxTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

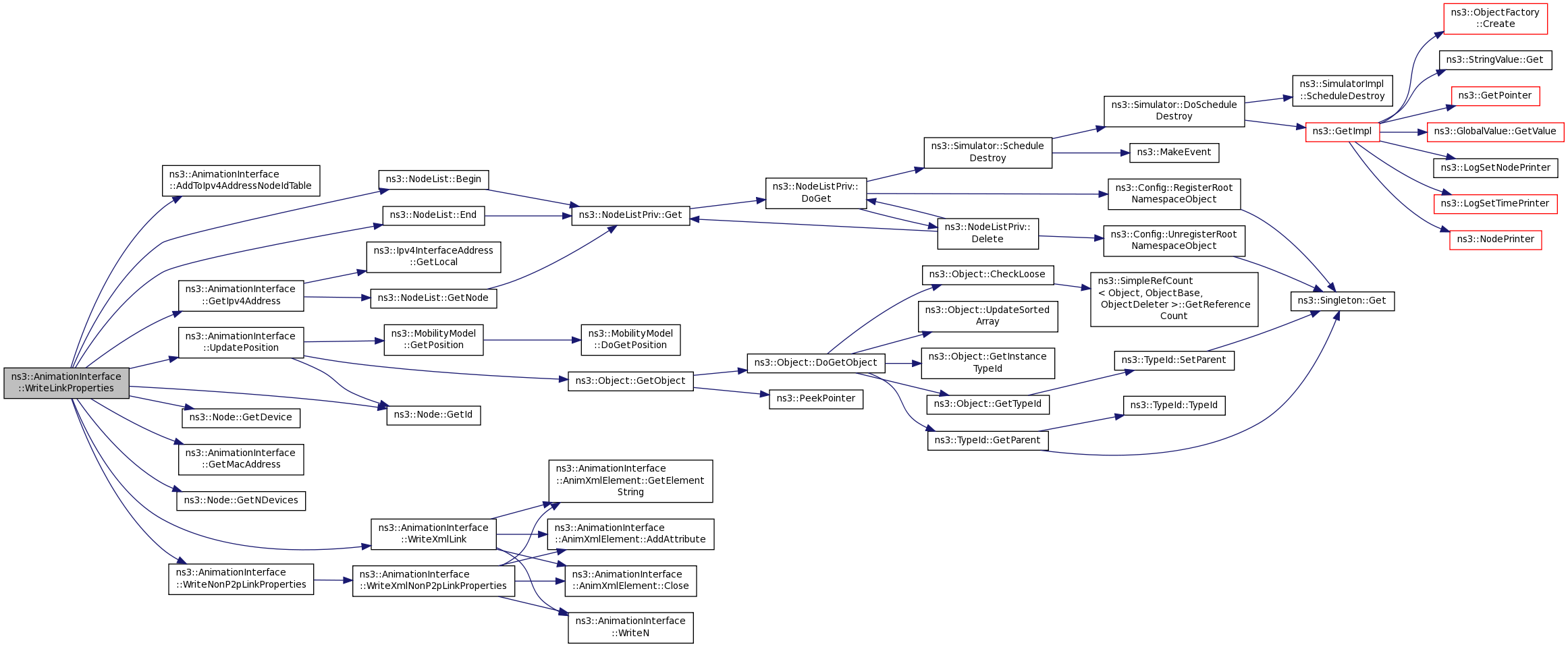

void	WriteLinkProperties ()

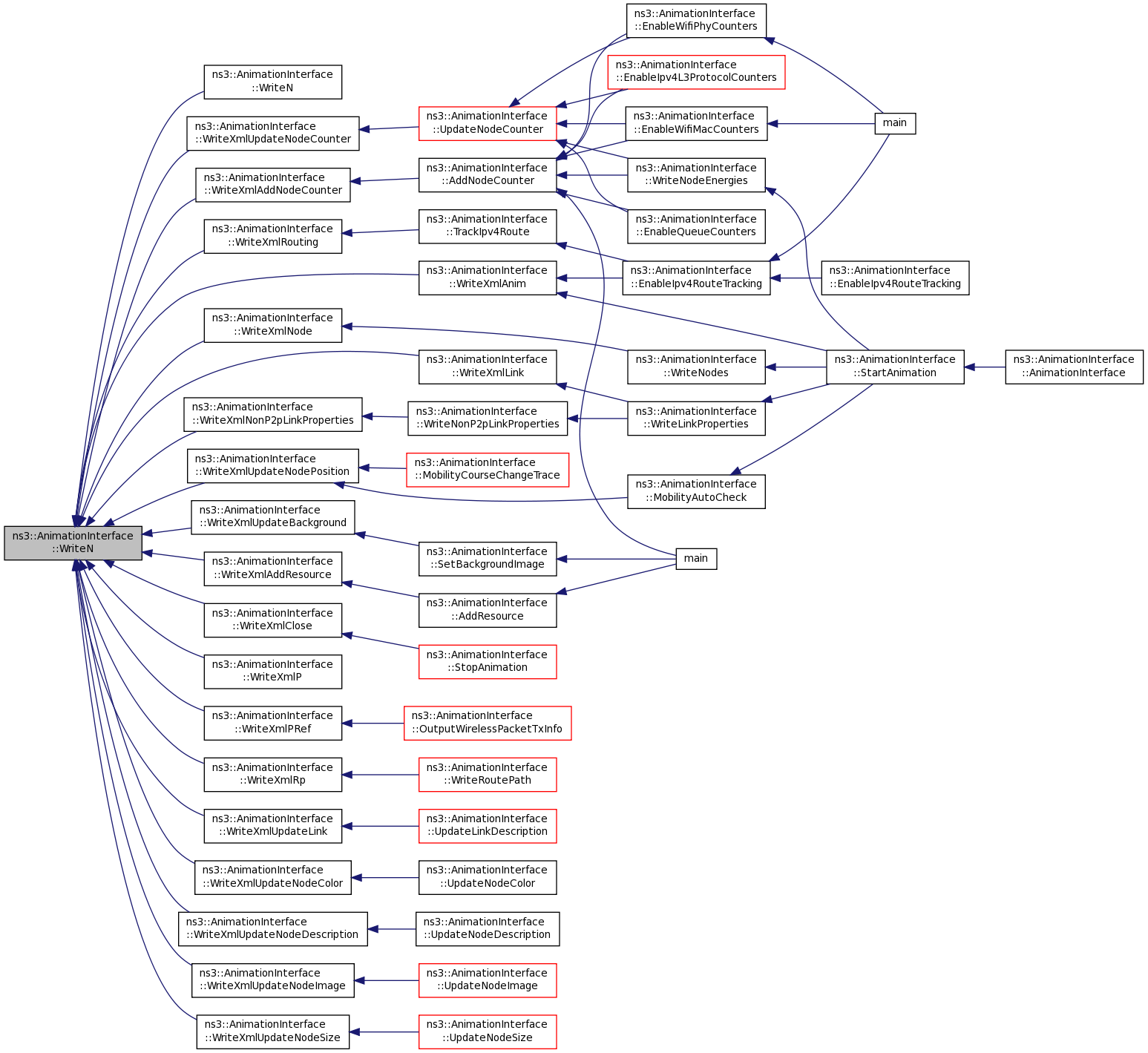

int	WriteN (const char , uint32_t, FILE f)

int	WriteN (const std::string &, FILE *f)

void	WriteNodeColors ()

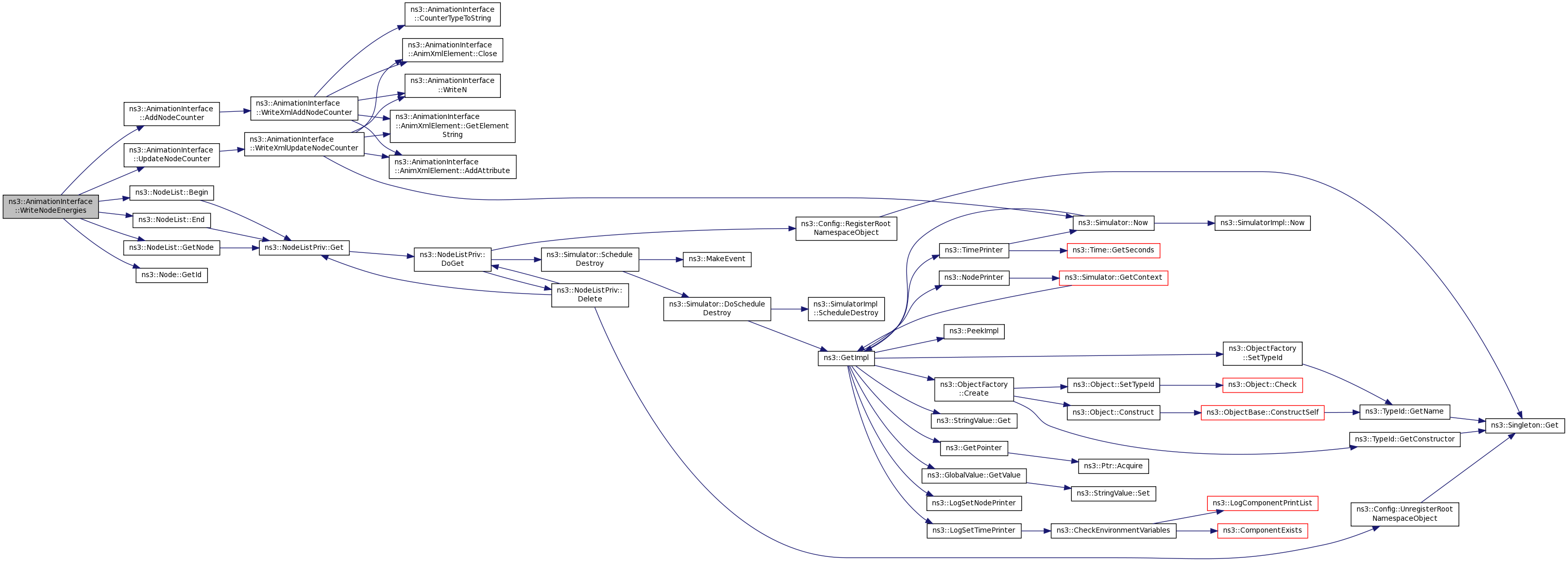

void	WriteNodeEnergies ()

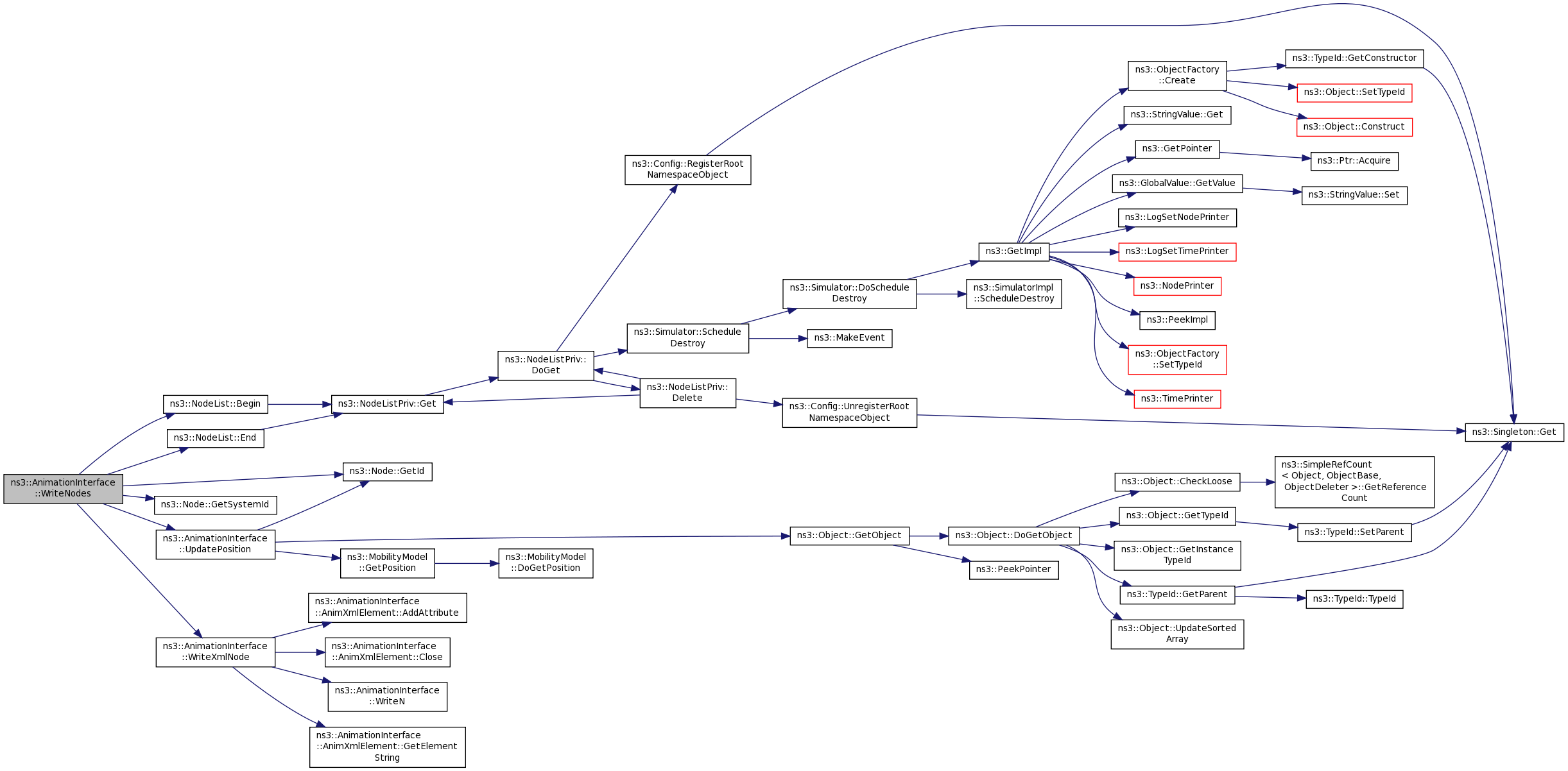

void	WriteNodes ()

void	WriteNodeSizes ()

void	WriteNodeUpdate (uint32_t nodeId)

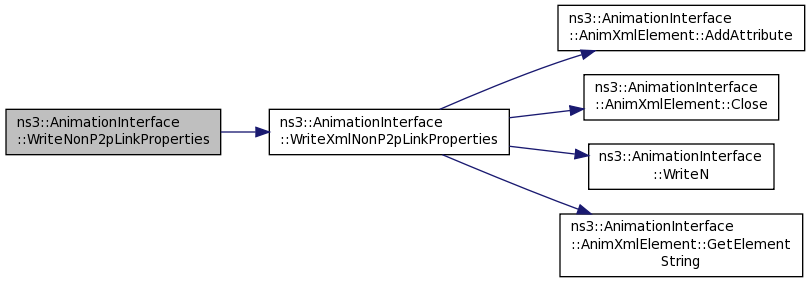

void	WriteNonP2pLinkProperties (uint32_t id, std::string ipv4Address, std::string channelType)

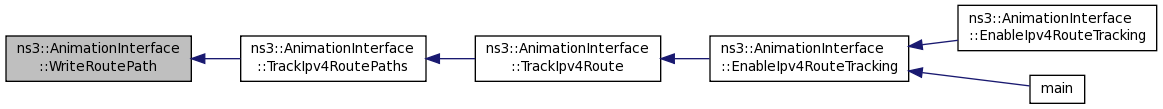

void	WriteRoutePath (uint32_t nodeId, std::string destination, Ipv4RoutePathElements rpElements)

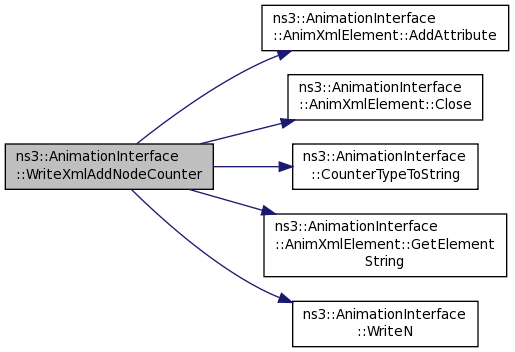

void	WriteXmlAddNodeCounter (uint32_t counterId, std::string counterName, CounterType counterType)

void	WriteXmlAddResource (uint32_t resourceId, std::string resourcePath)

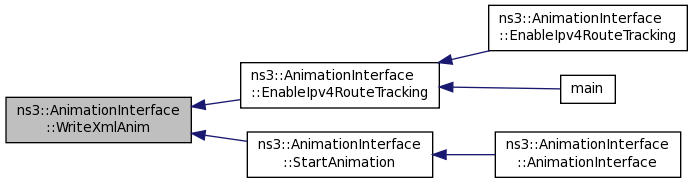

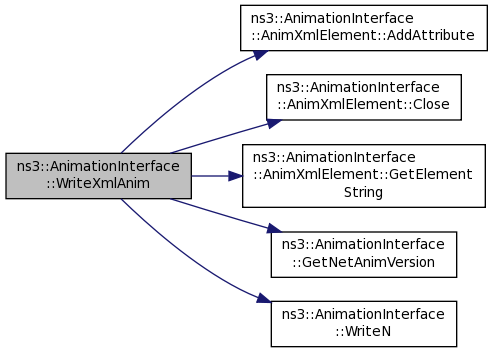

void	WriteXmlAnim (bool routing=false)

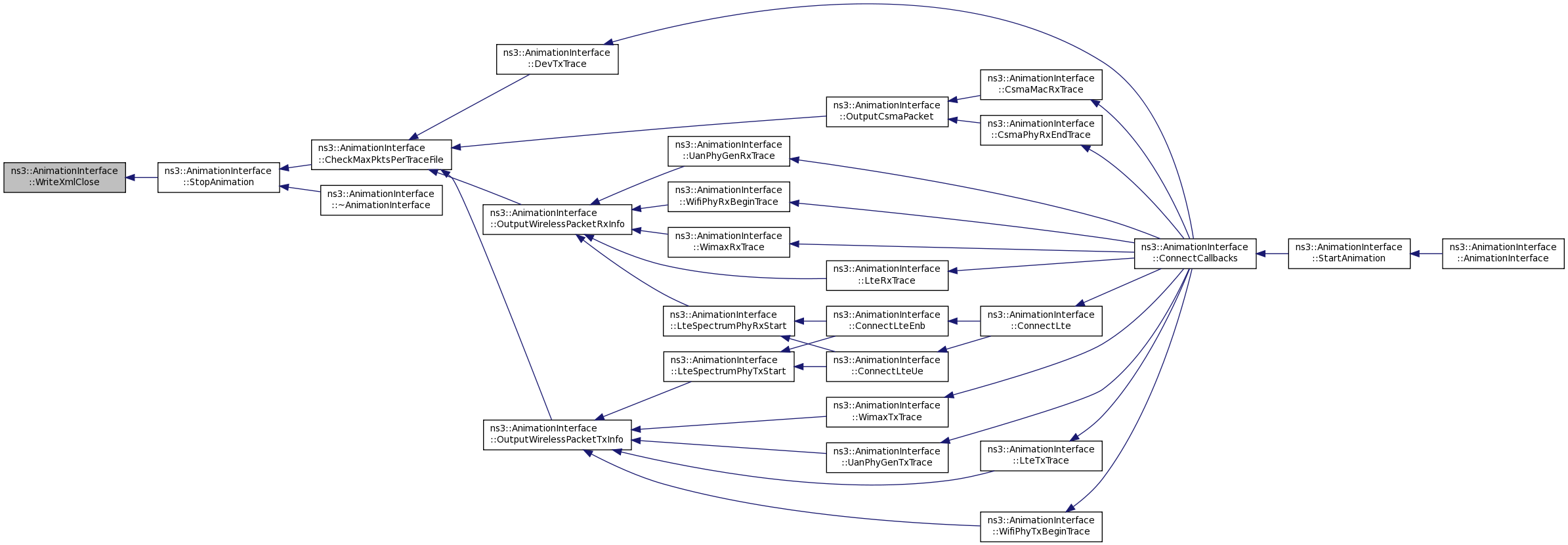

void	WriteXmlClose (std::string name, bool routing=false)

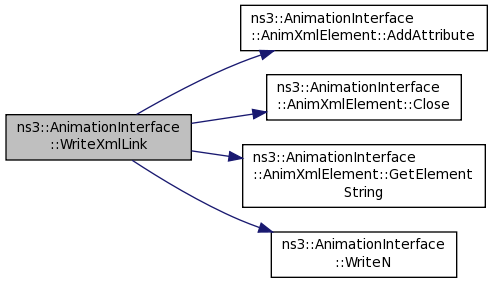

void	WriteXmlLink (uint32_t fromId, uint32_t toLp, uint32_t toId)

void	WriteXmlNode (uint32_t id, uint32_t sysId, double locX, double locY)

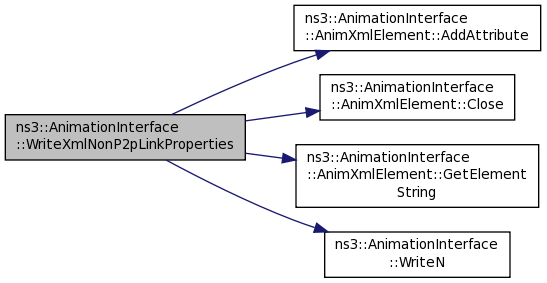

void	WriteXmlNonP2pLinkProperties (uint32_t id, std::string ipv4Address, std::string channelType)

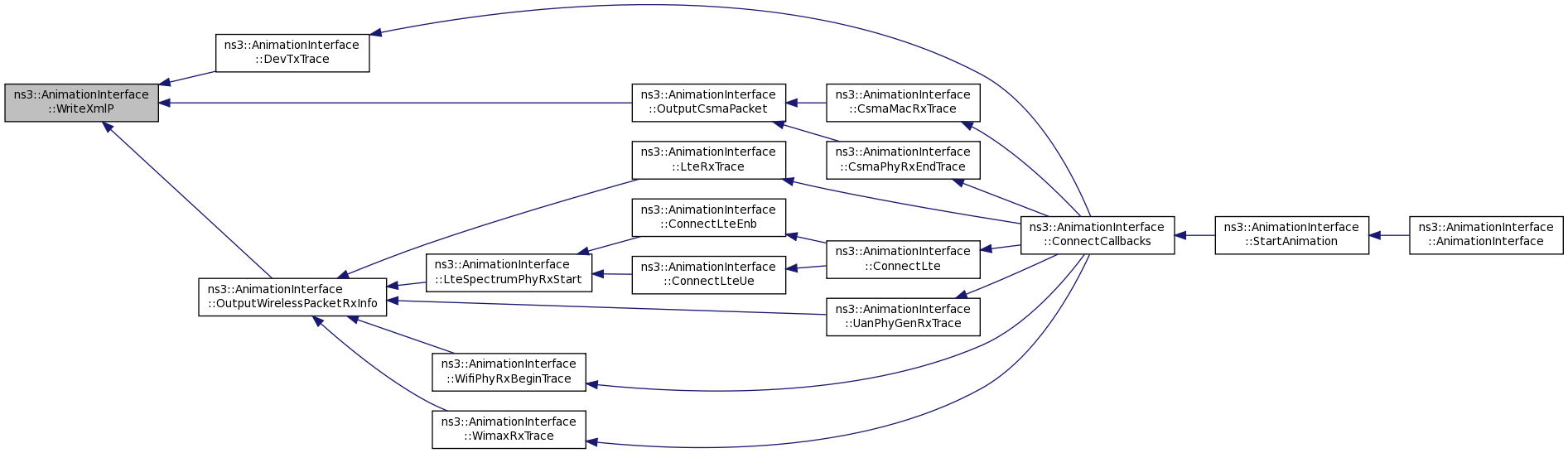

void	WriteXmlP (std::string pktType, uint32_t fId, double fbTx, double lbTx, uint32_t tId, double fbRx, double lbRx, std::string metaInfo="")

void	WriteXmlP (uint64_t animUid, std::string pktType, uint32_t fId, double fbTx, double lbTx)

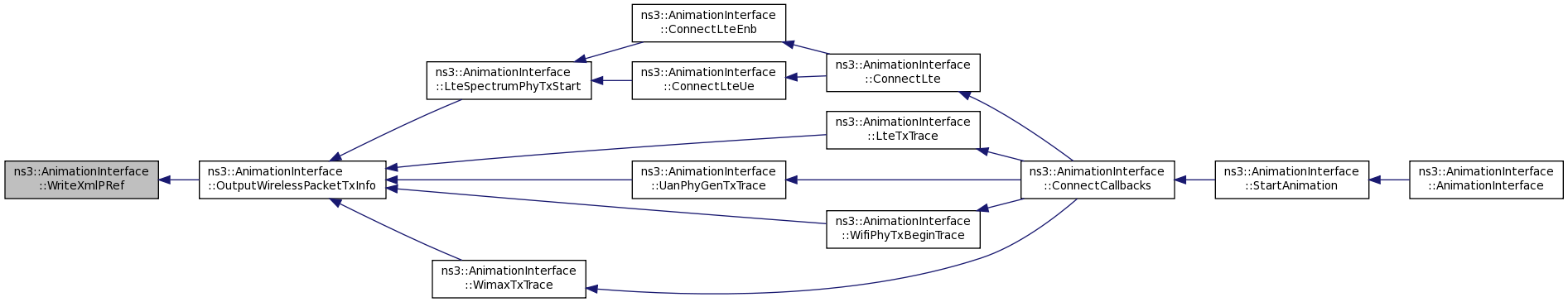

void	WriteXmlPRef (uint64_t animUid, uint32_t fId, double fbTx, double lbTx, std::string metaInfo="")

void	WriteXmlRouting (uint32_t id, std::string routingInfo)

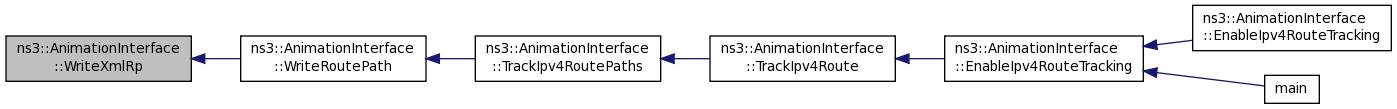

void	WriteXmlRp (uint32_t nodeId, std::string destination, Ipv4RoutePathElements rpElements)

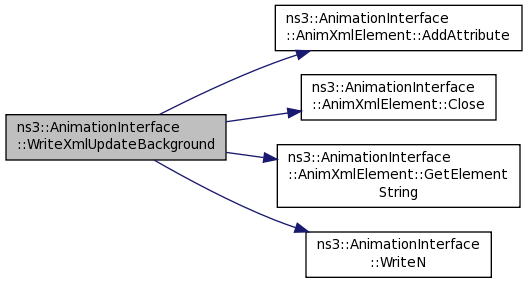

void	WriteXmlUpdateBackground (std::string fileName, double x, double y, double scaleX, double scaleY, double opacity)

void	WriteXmlUpdateLink (uint32_t fromId, uint32_t toId, std::string)

void	WriteXmlUpdateNodeColor (uint32_t nodeId, uint8_t r, uint8_t g, uint8_t b)

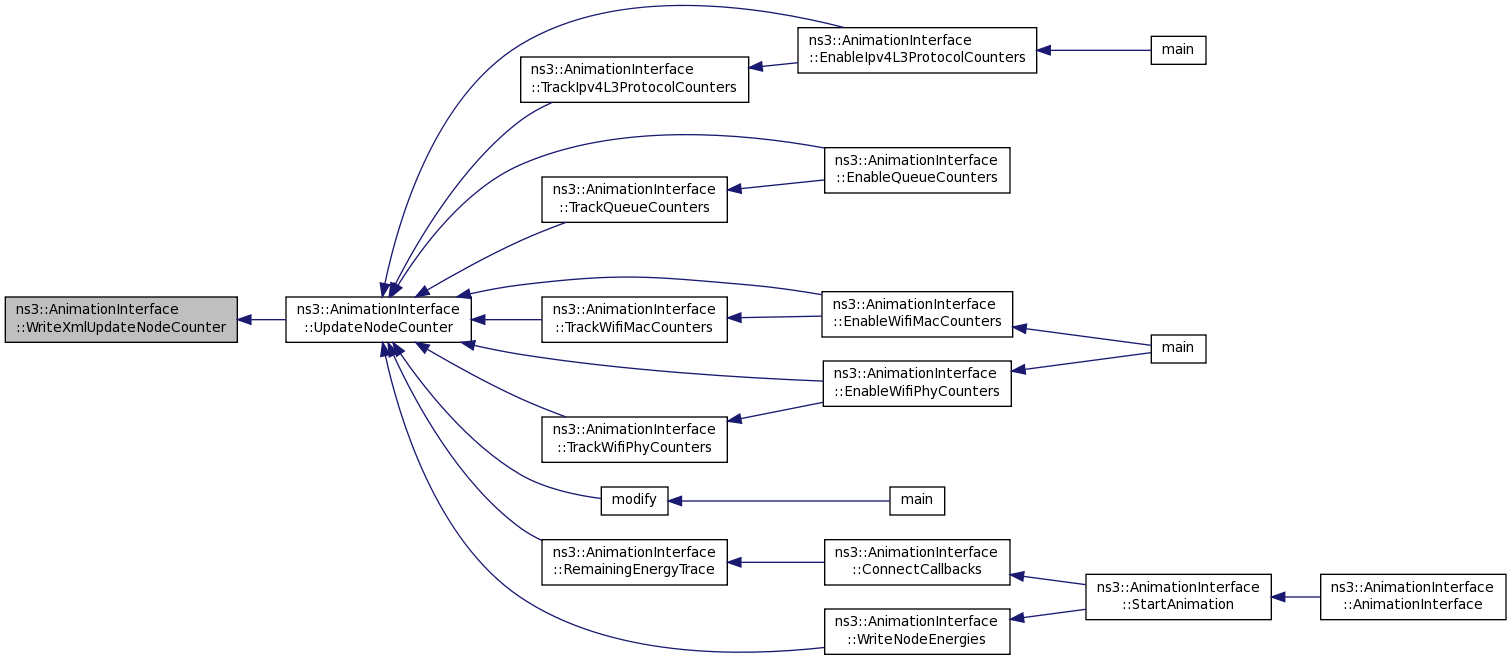

void	WriteXmlUpdateNodeCounter (uint32_t counterId, uint32_t nodeId, double value)

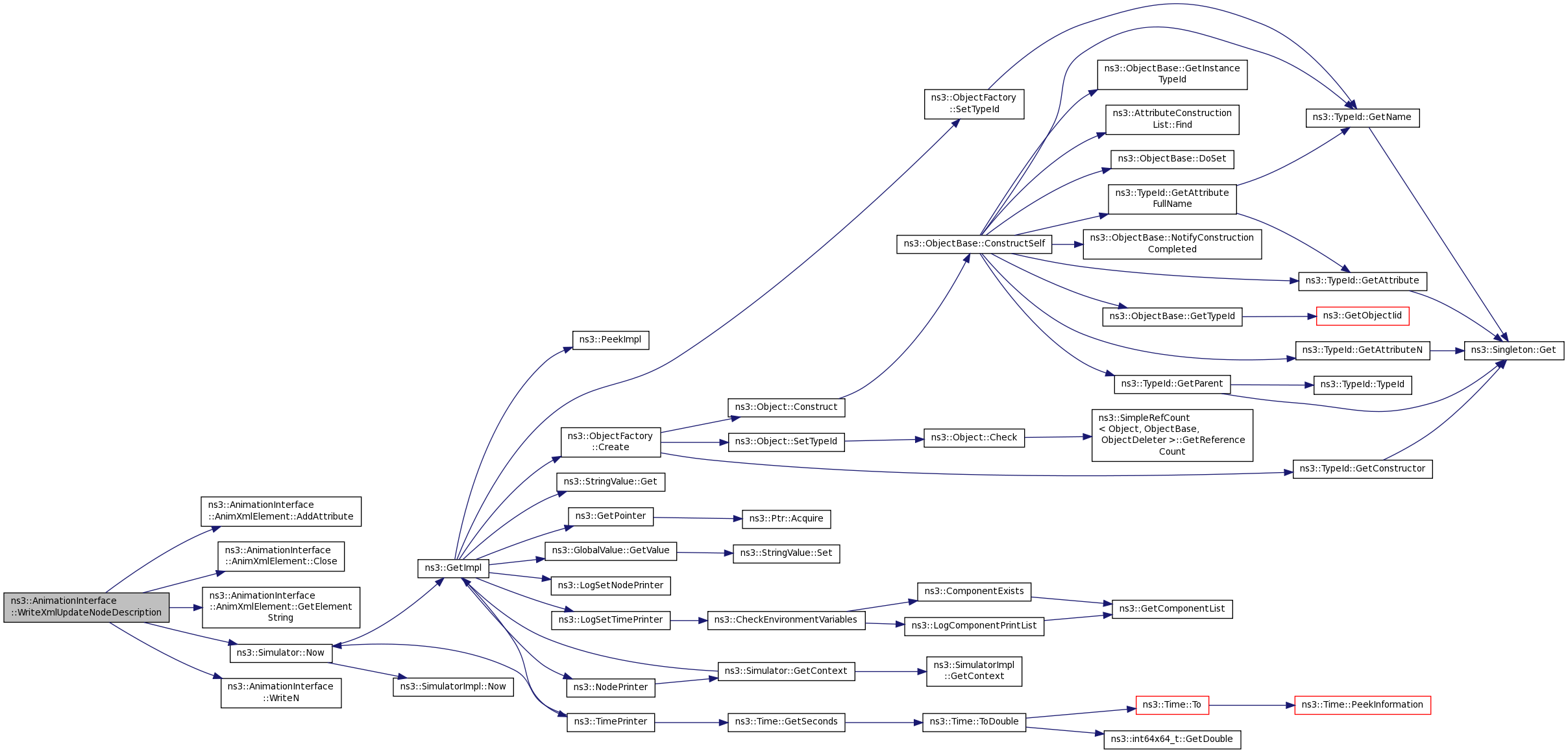

void	WriteXmlUpdateNodeDescription (uint32_t nodeId)

void	WriteXmlUpdateNodeImage (uint32_t nodeId, uint32_t resourceId)

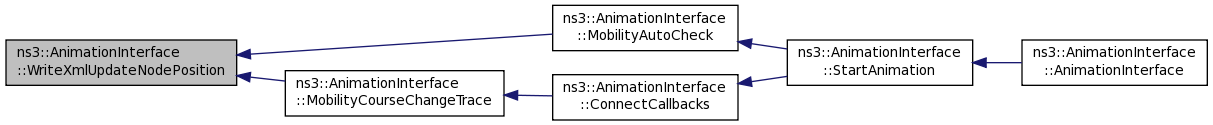

void	WriteXmlUpdateNodePosition (uint32_t nodeId, double x, double y)

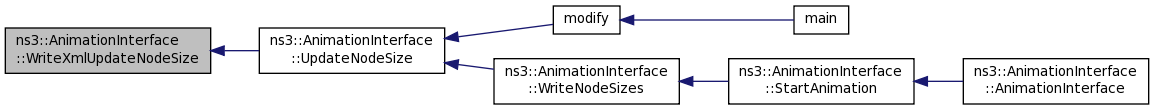

void	WriteXmlUpdateNodeSize (uint32_t nodeId, double width, double height)

Private Attributes
uint64_t	gAnimUid

uint64_t	m_currentPktCount

bool	m_enablePacketMetadata

FILE *	m_f

Time	m_ipv4L3ProtocolCountersPollInterval

Time	m_ipv4L3ProtocolCountersStopTime

uint32_t	m_ipv4L3ProtocolDropCounterId

uint32_t	m_ipv4L3ProtocolRxCounterId

uint32_t	m_ipv4L3ProtocolTxCounterId

std::vector < Ipv4RouteTrackElement >	m_ipv4RouteTrackElements

std::map< std::string, uint32_t >	m_ipv4ToNodeIdMap

LinkPropertiesMap	m_linkProperties

std::map< std::string, uint32_t >	m_macToNodeIdMap

uint64_t	m_maxPktsPerFile

Time	m_mobilityPollInterval

NodeColorsMap	m_nodeColors

std::vector< std::string >	m_nodeCounters

NodeDescriptionsMap	m_nodeDescriptions

EnergyFractionMap	m_nodeEnergyFraction

NodeCounterMap64	m_nodeIpv4Drop

NodeCounterMap64	m_nodeIpv4Rx

NodeCounterMap64	m_nodeIpv4Tx

std::map< uint32_t, Vector >	m_nodeLocation

NodeCounterMap64	m_nodeQueueDequeue

NodeCounterMap64	m_nodeQueueDrop

NodeCounterMap64	m_nodeQueueEnqueue

std::map< uint32_t, NodeSize >	m_nodeSizes

NodeCounterMap64	m_nodeWifiMacRx

NodeCounterMap64	m_nodeWifiMacRxDrop

NodeCounterMap64	m_nodeWifiMacTx

NodeCounterMap64	m_nodeWifiMacTxDrop

NodeCounterMap64	m_nodeWifiPhyRxDrop

NodeCounterMap64	m_nodeWifiPhyTxDrop

std::string	m_originalFileName

std::string	m_outputFileName

AnimUidPacketInfoMap	m_pendingCsmaPackets

AnimUidPacketInfoMap	m_pendingLtePackets

AnimUidPacketInfoMap	m_pendingUanPackets

AnimUidPacketInfoMap	m_pendingWifiPackets

AnimUidPacketInfoMap	m_pendingWimaxPackets

Time	m_queueCountersPollInterval

Time	m_queueCountersStopTime

uint32_t	m_queueDequeueCounterId

uint32_t	m_queueDropCounterId

uint32_t	m_queueEnqueueCounterId

uint32_t	m_remainingEnergyCounterId

std::vector< std::string >	m_resources

FILE *	m_routingF

std::string	m_routingFileName

NodeContainer	m_routingNc

Time	m_routingPollInterval

Time	m_routingStopTime

bool	m_started

Time	m_startTime

Time	m_stopTime

bool	m_trackPackets

Time	m_wifiMacCountersPollInterval

Time	m_wifiMacCountersStopTime

uint32_t	m_wifiMacRxCounterId

uint32_t	m_wifiMacRxDropCounterId

uint32_t	m_wifiMacTxCounterId

uint32_t	m_wifiMacTxDropCounterId

Time	m_wifiPhyCountersPollInterval

Time	m_wifiPhyCountersStopTime

uint32_t	m_wifiPhyRxDropCounterId

uint32_t	m_wifiPhyTxDropCounterId

AnimWriteCallback	m_writeCallback

Static Private Attributes
static Rectangle *	userBoundary

Detailed Description

Interface to network animator.

Provides functions that facilitate communications with an external or internal network animator.

Definition at line 69 of file animation-interface.h.

Member Typedef Documentation

typedef std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::AnimUidPacketInfoMap

private

Definition at line 531 of file animation-interface.h.

typedef void(* ns3::AnimationInterface::AnimWriteCallback)(const char *str)

typedef for WriteCallBack used for listening to AnimationInterface write messages

Definition at line 94 of file animation-interface.h.

typedef std::map<uint32_t, double> ns3::AnimationInterface::EnergyFractionMap

private

Definition at line 532 of file animation-interface.h.

typedef std::vector<Ipv4RoutePathElement> ns3::AnimationInterface::Ipv4RoutePathElements

private

Definition at line 533 of file animation-interface.h.

typedef std::map<P2pLinkNodeIdPair, LinkProperties, LinkPairCompare> ns3::AnimationInterface::LinkPropertiesMap

private

Definition at line 528 of file animation-interface.h.

typedef std::map<uint32_t, Rgb> ns3::AnimationInterface::NodeColorsMap

private

Definition at line 530 of file animation-interface.h.

typedef std::map<uint32_t, uint64_t> ns3::AnimationInterface::NodeCounterMap64

private

Definition at line 537 of file animation-interface.h.

typedef std::map<uint32_t, std::string> ns3::AnimationInterface::NodeDescriptionsMap

private

Definition at line 529 of file animation-interface.h.

Member Enumeration Documentation

enum ns3::AnimationInterface::CounterType

Counter Types.

Enumerator
UINT32_COUNTER
DOUBLE_COUNTER

Definition at line 83 of file animation-interface.h.

enum ns3::AnimationInterface::ProtocolType

private

Enumerator
UAN
LTE
WIFI
WIMAX
CSMA

Definition at line 514 of file animation-interface.h.

Constructor & Destructor Documentation

ns3::AnimationInterface::AnimationInterface ( const std::string filename )

Constructor.

Parameters

filename The Filename for the trace file used by the Animator

Definition at line 65 of file animation-interface.cc.

References ns3::initialized, and StartAnimation().

Here is the call graph for this function:

ns3::AnimationInterface::~AnimationInterface ( )

Destructor for the animator interface.

Definition at line 87 of file animation-interface.cc.

References StopAnimation().

Here is the call graph for this function:

Member Function Documentation

void ns3::AnimationInterface::AddByteTag	(	uint64_t	animUid,
		Ptr< const Packet >	p
	)

private

Definition at line 614 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), and ns3::AnimByteTag::Set().

Referenced by CsmaPhyTxBeginTrace(), LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenTxTrace(), WifiPhyTxBeginTrace(), and WimaxTxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::AnimationInterface::AddNodeCounter	(	std::string	counterName,
		CounterType	counterType
	)

Setup a node counter.

Parameters

counterName	A string to identify the counter
counterType	The type of the counter, such as uint32, double etc

returns The id of the counter to be used as a reference for future

Definition at line 228 of file animation-interface.cc.

References m_nodeCounters, and WriteXmlAddNodeCounter().

Referenced by EnableIpv4L3ProtocolCounters(), EnableQueueCounters(), EnableWifiMacCounters(), EnableWifiPhyCounters(), main(), and WriteNodeEnergies().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingPacket	(	ProtocolType	protocolType,
		uint64_t	animUid,
		AnimPacketInfo	pktInfo
	)

private

Definition at line 1157 of file animation-interface.cc.

References NS_ASSERT, and ProtocolTypeToPendingPackets().

Referenced by CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), and WimaxTxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::AnimationInterface::AddResource ( std::string resourcePath )

Add a resource such as the path to an image file.

Parameters

resourcePath Absolute Path to an image/resource

returns a number identifying the resource

Definition at line 237 of file animation-interface.cc.

References m_resources, and WriteXmlAddResource().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

AnimationInterface & ns3::AnimationInterface::AddSourceDestination	(	uint32_t	fromNodeId,
		std::string	destinationIpv4Address
	)

Helper function to print the routing path from a source node to destination IP.

Parameters

fromNodeId	The source node
destinationIpv4Address	The destination Ipv4 Address

Returns: reference to this AnimationInterface object

Definition at line 202 of file animation-interface.cc.

References m_ipv4RouteTrackElements.

void ns3::AnimationInterface::AddToIpv4AddressNodeIdTable	(	std::string	ipv4Address,
		uint32_t	nodeId
	)

private

Definition at line 1319 of file animation-interface.cc.

References m_ipv4ToNodeIdMap.

Referenced by WriteLinkProperties().

Here is the caller graph for this function:

void ns3::AnimationInterface::CheckMaxPktsPerTraceFile ( )

private

Definition at line 1710 of file animation-interface.cc.

References m_currentPktCount, m_maxPktsPerFile, NS_LOG_UNCOND, and StopAnimation().

Referenced by DevTxTrace(), OutputCsmaPacket(), OutputWirelessPacketRxInfo(), and OutputWirelessPacketTxInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectCallbacks ( )

private

Definition at line 1401 of file animation-interface.cc.

References ns3::Config::Connect(), ConnectLte(), ns3::Config::ConnectWithoutContext(), CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DequeueTrace(), DevTxTrace(), EnqueueTrace(), Ipv4DropTrace(), Ipv4RxTrace(), Ipv4TxTrace(), LteRxTrace(), LteTxTrace(), ns3::MakeCallback(), MobilityCourseChangeTrace(), QueueDropTrace(), RemainingEnergyTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiMacRxDropTrace(), WifiMacRxTrace(), WifiMacTxDropTrace(), WifiMacTxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxDropTrace(), WifiPhyTxBeginTrace(), WifiPhyTxDropTrace(), WimaxRxTrace(), and WimaxTxTrace().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectLte ( )

private

Definition at line 1373 of file animation-interface.cc.

References ns3::NodeList::Begin(), ConnectLteEnb(), ConnectLteUe(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), and NS_ASSERT.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectLteEnb	(	Ptr< Node >	n,
		Ptr< LteEnbNetDevice >	nd,
		uint32_t	devIndex
	)

private

Definition at line 1327 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::LteEnbNetDevice::GetPhy(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), and ns3::MakeCallback().

Referenced by ConnectLte().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectLteUe	(	Ptr< Node >	n,
		Ptr< LteUeNetDevice >	nd,
		uint32_t	devIndex
	)

private

Definition at line 1351 of file animation-interface.cc.

References ns3::Node::GetId(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), and ns3::MakeCallback().

Referenced by ConnectLte().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::CounterTypeToString ( CounterType counterType )

private

Definition at line 1239 of file animation-interface.cc.

References DOUBLE_COUNTER, and UINT32_COUNTER.

Referenced by WriteXmlAddNodeCounter().

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaMacRxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Todo:: NS_ASSERT (CsmaPacketIsPending (AnimUid) == true);

Definition at line 1090 of file animation-interface.cc.

References CSMA, GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::AnimationInterface::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), IsPacketPending(), ns3::AnimationInterface::AnimRxInfo::IsPhyRxComplete(), m_pendingCsmaPackets, m_started, m_trackPackets, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, and OutputCsmaPacket().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyRxEndTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Todo:: NS_ASSERT (CsmaPacketIsPending (AnimUid) == true);

Definition at line 1062 of file animation-interface.cc.

References CSMA, GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::AnimationInterface::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), IsPacketPending(), ns3::AnimationInterface::AnimRxInfo::IsPhyRxComplete(), m_pendingCsmaPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputCsmaPacket(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxBegin(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxEnd(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyTxBeginTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 1021 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), CSMA, gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyTxEndTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Todo:: NS_ASSERT (IsPacketPending (AnimUid) == true);

Definition at line 1038 of file animation-interface.cc.

References AddPendingPacket(), CSMA, GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::Time::GetSeconds(), IsInTimeWindow(), IsPacketPending(), ns3::AnimationInterface::AnimPacketInfo::m_lbTx, m_pendingCsmaPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_INFO, NS_LOG_WARN, and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::DequeueTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 721 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeQueueDequeue.

Referenced by ConnectCallbacks().

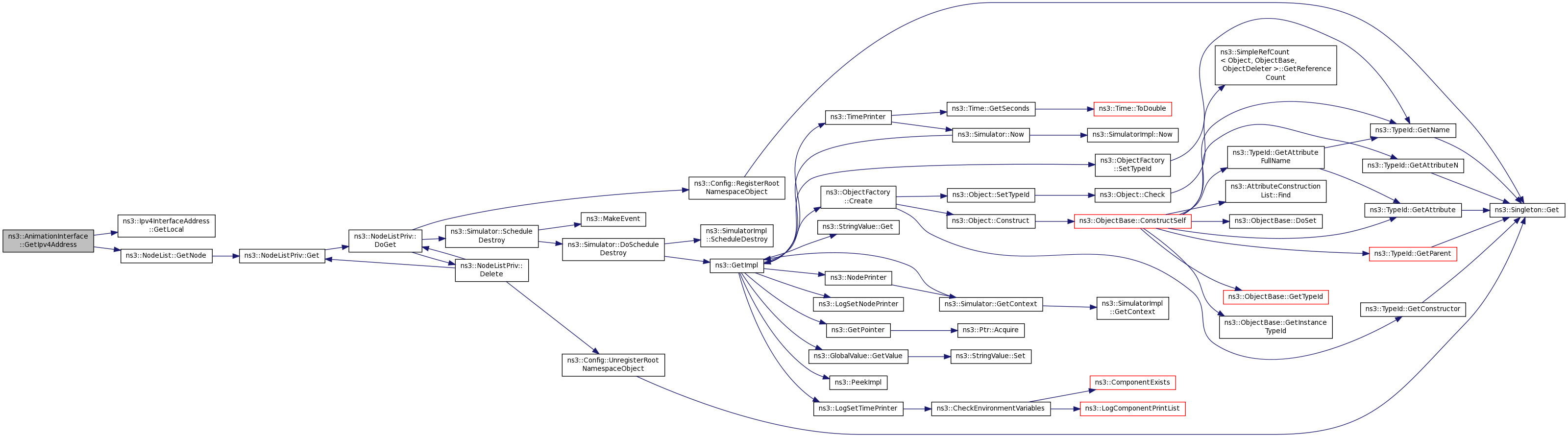

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::DevTxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		Ptr< NetDevice >	tx,
		Ptr< NetDevice >	rx,
		Time	txTime,
		Time	rxTime
	)

private

Definition at line 737 of file animation-interface.cc.

References CheckMaxPktsPerTraceFile(), GetPacketMetadata(), ns3::Time::GetSeconds(), IsInTimeWindow(), m_enablePacketMetadata, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, and WriteXmlP().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::EnableIpv4L3ProtocolCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds (1)`
	)

Enable tracking of Ipv4 L3 Protocol Counters such as Tx, Rx, Drop.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Returns: none

Definition at line 163 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), ns3::Node::GetId(), m_ipv4L3ProtocolCountersPollInterval, m_ipv4L3ProtocolCountersStopTime, m_ipv4L3ProtocolDropCounterId, m_ipv4L3ProtocolRxCounterId, m_ipv4L3ProtocolTxCounterId, m_nodeIpv4Drop, m_nodeIpv4Rx, m_nodeIpv4Tx, ns3::Simulator::Schedule(), stopTime, TrackIpv4L3ProtocolCounters(), and UpdateNodeCounter().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

AnimationInterface & ns3::AnimationInterface::EnableIpv4RouteTracking	(	std::string	fileName,
		Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds (5)`
	)

Enable tracking of the Ipv4 routing table for all Nodes.

Parameters

fileName	Trace file for storing routing table information
startTime	Start time for capture
stopTime	End time for capture
pollInterval	The periodic interval at which routing table information is polled Default: 5s

Returns: reference to this AnimationInterface object

Definition at line 184 of file animation-interface.cc.

References m_routingPollInterval, m_routingStopTime, ns3::Simulator::Schedule(), SetOutputFile(), stopTime, TrackIpv4Route(), and WriteXmlAnim().

Referenced by EnableIpv4RouteTracking(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

AnimationInterface & ns3::AnimationInterface::EnableIpv4RouteTracking	(	std::string	fileName,
		Time	startTime,
		Time	stopTime,
		NodeContainer	nc,
		Time	pollInterval = `Seconds (5)`
	)

Enable tracking of the Ipv4 routing table for a set of Nodes.

Parameters

fileName	Trace file for storing routing table information
startTime	Start time for capture
stopTime	End time for capture
nc	A NodeContainer containing nodes for which Routing table has to be tracked
pollInterval	The periodic interval at which routing table information is polled Default: 5s

Returns: reference to this AnimationInterface object

Definition at line 195 of file animation-interface.cc.

References EnableIpv4RouteTracking(), and m_routingNc.

Here is the call graph for this function:

void ns3::AnimationInterface::EnablePacketMetadata ( bool enable = true )

Enable Packet metadata.

Parameters

enable if true enables writing the packet metadata to the XML trace file if false disables writing the packet metadata

Returns: none

Definition at line 246 of file animation-interface.cc.

References ns3::Packet::EnablePrinting(), and m_enablePacketMetadata.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::EnableQueueCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds (1)`
	)

Enable tracking of Queue Counters such as Enqueue, Dequeue, Queue Drops.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Returns: none

Definition at line 142 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), ns3::Node::GetId(), m_nodeQueueDequeue, m_nodeQueueDrop, m_nodeQueueEnqueue, m_queueCountersPollInterval, m_queueCountersStopTime, m_queueDequeueCounterId, m_queueDropCounterId, m_queueEnqueueCounterId, ns3::Simulator::Schedule(), stopTime, TrackQueueCounters(), and UpdateNodeCounter().

Here is the call graph for this function:

void ns3::AnimationInterface::EnableWifiMacCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds (1)`
	)

Enable tracking of Wifi Mac Counters such as Tx, TxDrop, Rx, RxDrop.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Returns: none

Definition at line 118 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), ns3::Node::GetId(), m_nodeWifiMacRx, m_nodeWifiMacRxDrop, m_nodeWifiMacTx, m_nodeWifiMacTxDrop, m_wifiMacCountersPollInterval, m_wifiMacCountersStopTime, m_wifiMacRxCounterId, m_wifiMacRxDropCounterId, m_wifiMacTxCounterId, m_wifiMacTxDropCounterId, ns3::Simulator::Schedule(), stopTime, TrackWifiMacCounters(), and UpdateNodeCounter().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::EnableWifiPhyCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds (1)`
	)

Enable tracking of Wifi Phy Counters such as TxDrop, RxDrop.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Returns: none

Definition at line 99 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), ns3::Node::GetId(), m_nodeWifiPhyRxDrop, m_nodeWifiPhyTxDrop, m_wifiPhyCountersPollInterval, m_wifiPhyCountersStopTime, m_wifiPhyRxDropCounterId, m_wifiPhyTxDropCounterId, ns3::Simulator::Schedule(), stopTime, TrackWifiPhyCounters(), and UpdateNodeCounter().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::EnqueueTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 713 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeQueueEnqueue.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

uint64_t ns3::AnimationInterface::GetAnimUidFromPacket ( Ptr< const Packet > p )

private

Definition at line 588 of file animation-interface.cc.

References ns3::AnimByteTag::Get(), ns3::Packet::GetByteTagIterator(), ns3::AnimByteTag::GetInstanceTypeId(), ns3::ByteTagIterator::Item::GetTag(), ns3::ByteTagIterator::Item::GetTypeId(), ns3::ByteTagIterator::HasNext(), and ns3::ByteTagIterator::Next().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), UanPhyGenRxTrace(), WifiPhyRxBeginTrace(), and WimaxRxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

const std::vector< std::string > ns3::AnimationInterface::GetElementsFromContext ( const std::string & context ) const

private

Definition at line 546 of file animation-interface.cc.

Referenced by GetNetDeviceFromContext(), and GetNodeFromContext().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetIpv4Address ( Ptr< NetDevice > nd )

private

Definition at line 1533 of file animation-interface.cc.

References ns3::Ipv4InterfaceAddress::GetLocal(), ns3::NodeList::GetNode(), and NS_LOG_WARN.

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetIpv4RoutingTable ( Ptr< Node > n )

private

Definition at line 1906 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::Object::GetObject(), ns3::Ipv4::GetRoutingProtocol(), NS_ASSERT, and NS_LOG_WARN.

Referenced by TrackIpv4Route().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetMacAddress ( Ptr< NetDevice > nd )

private

Definition at line 1524 of file animation-interface.cc.

Referenced by WriteLinkProperties().

Here is the caller graph for this function:

std::vector< Ptr< Node > > ns3::AnimationInterface::GetMovedNodes ( )

private

Definition at line 457 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), GetPosition(), NodeHasMoved(), NS_ASSERT, and UpdatePosition().

Referenced by MobilityAutoCheck().

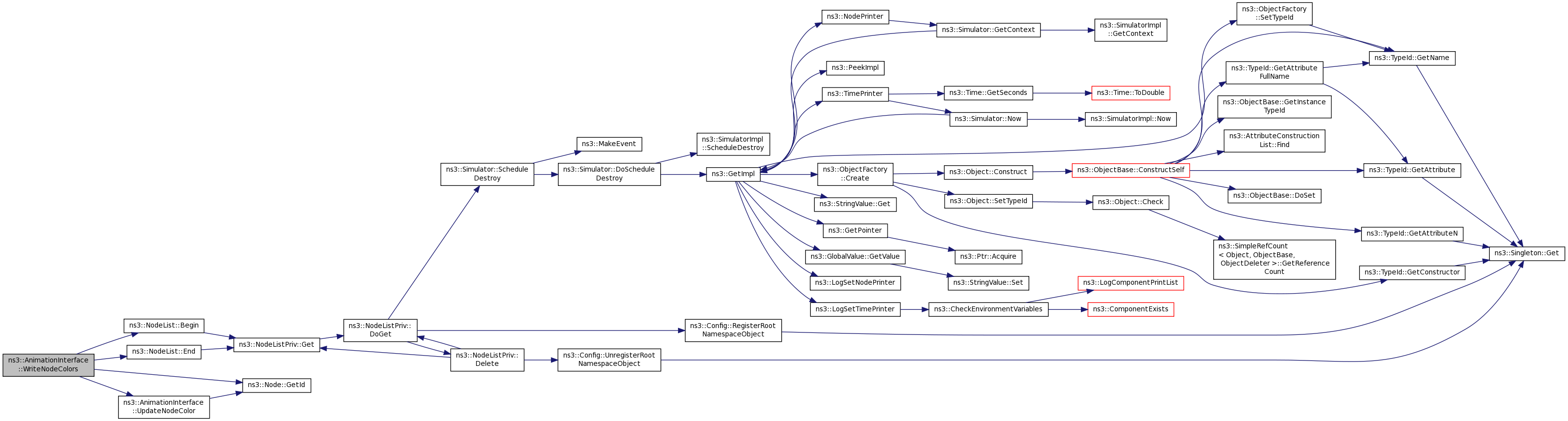

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetNetAnimVersion ( )

private

Definition at line 1723 of file animation-interface.cc.

References NETANIM_VERSION.

Referenced by WriteXmlAnim().

Here is the caller graph for this function:

Ptr< NetDevice > ns3::AnimationInterface::GetNetDeviceFromContext ( std::string context )

private

Definition at line 575 of file animation-interface.cc.

References ns3::Node::GetDevice(), GetElementsFromContext(), and GetNodeFromContext().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), WimaxRxTrace(), and WimaxTxTrace().

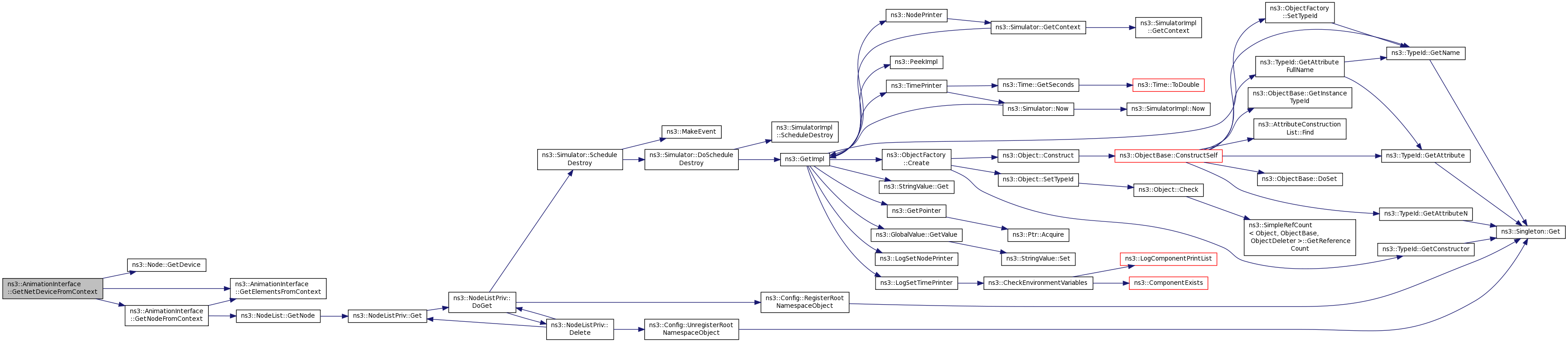

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::AnimationInterface::GetNodeEnergyFraction ( Ptr< const Node > node ) const

Get node's energy fraction (This used only for testing)

returns current node's remaining energy (between [0, 1])

Definition at line 391 of file animation-interface.cc.

References m_nodeEnergyFraction, and NS_ASSERT.

Referenced by AnimationRemainingEnergyTestCase::CheckLogic().

Here is the caller graph for this function:

Ptr< Node > ns3::AnimationInterface::GetNodeFromContext ( const std::string & context ) const

private

Definition at line 562 of file animation-interface.cc.

References GetElementsFromContext(), ns3::NodeList::GetNode(), and NS_ASSERT.

Referenced by DequeueTrace(), EnqueueTrace(), GetNetDeviceFromContext(), Ipv4DropTrace(), Ipv4RxTrace(), Ipv4TxTrace(), QueueDropTrace(), RemainingEnergyTrace(), WifiMacRxDropTrace(), WifiMacRxTrace(), WifiMacTxDropTrace(), WifiMacTxTrace(), WifiPhyRxDropTrace(), and WifiPhyTxDropTrace().

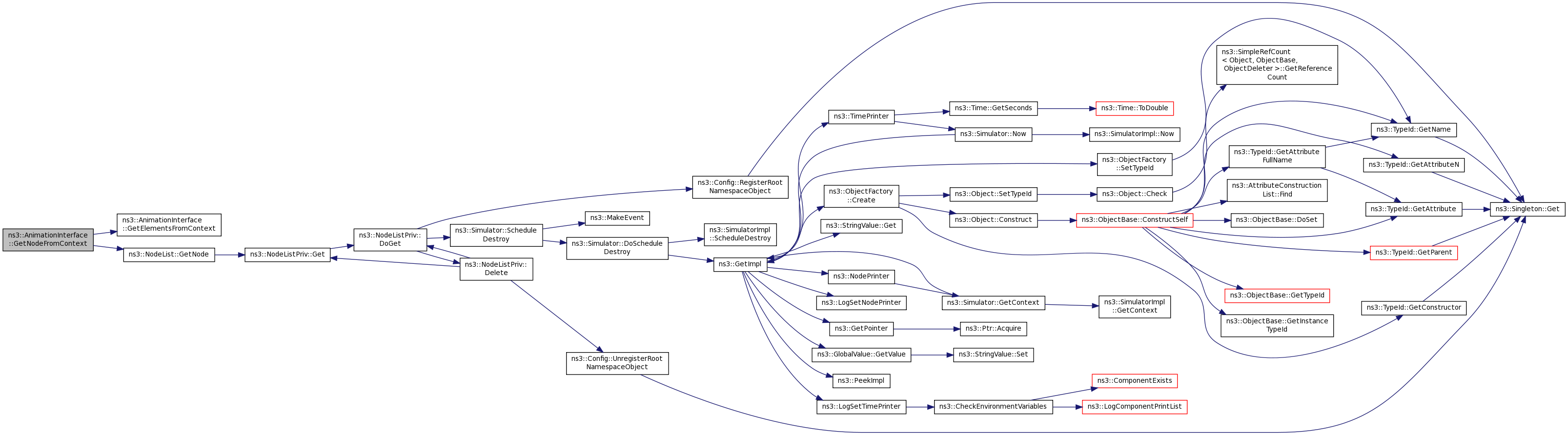

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetPacketMetadata ( Ptr< const Packet > p )

private

Definition at line 1261 of file animation-interface.cc.

References ns3::Packet::Print().

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacketTxInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

Vector ns3::AnimationInterface::GetPosition ( Ptr< Node > n )

private

Definition at line 1513 of file animation-interface.cc.

References ns3::Node::GetId(), m_nodeLocation, and NS_FATAL_ERROR.

Referenced by GetMovedNodes(), MobilityAutoCheck(), MobilityCourseChangeTrace(), and NodeHasMoved().

Here is the call graph for this function:

Here is the caller graph for this function:

uint64_t ns3::AnimationInterface::GetTracePktCount ( )

Get trace file packet count (This used only for testing)

returns Number of packets recorded in the current trace file

Definition at line 1269 of file animation-interface.cc.

References m_currentPktCount.

Referenced by AnimationInterfaceTestCase::CheckLogic().

Here is the caller graph for this function:

void ns3::AnimationInterface::Ipv4DropTrace	(	std::string	context,
		const Ipv4Header &	ipv4Header,
		Ptr< const Packet >	p,
		Ipv4L3Protocol::DropReason	dropReason,
		Ptr< Ipv4 >	ipv4,
		uint32_t
	)

private

Definition at line 701 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeIpv4Drop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::Ipv4RxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		Ptr< Ipv4 >	ipv4,
		uint32_t	interfaceIndex
	)

private

Definition at line 694 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeIpv4Rx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::Ipv4TxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		Ptr< Ipv4 >	ipv4,
		uint32_t	interfaceIndex
	)

private

Definition at line 687 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeIpv4Tx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::AnimationInterface::IsInitialized ( void )

static

Check if AnimationInterface is initialized.

Returns: true if AnimationInterface was already initialized

Definition at line 256 of file animation-interface.cc.

References ns3::initialized.

bool ns3::AnimationInterface::IsInTimeWindow ( )

private

Definition at line 1666 of file animation-interface.cc.

References m_startTime, m_stopTime, and ns3::Simulator::Now().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DevTxTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), MobilityAutoCheck(), MobilityCourseChangeTrace(), RemainingEnergyTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), WimaxRxTrace(), and WimaxTxTrace().

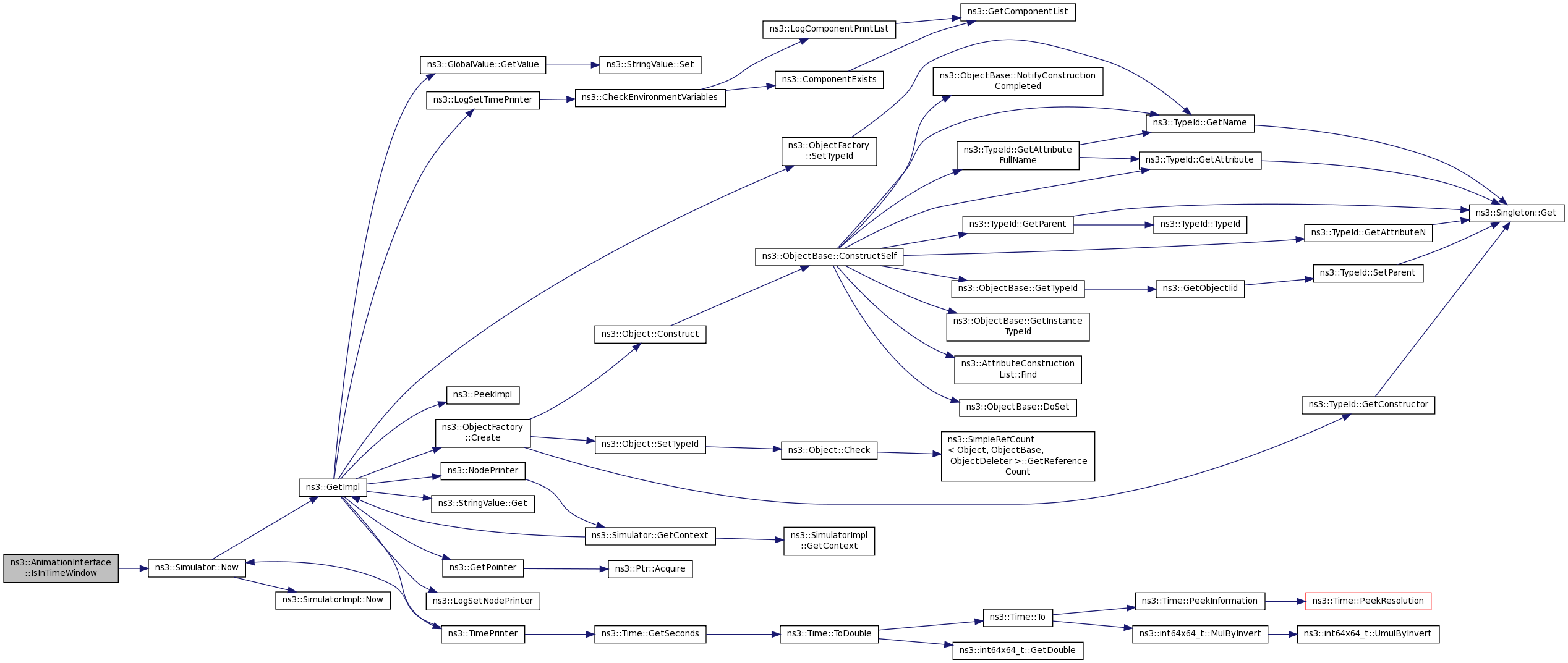

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::AnimationInterface::IsPacketPending	(	uint64_t	animUid,
		AnimationInterface::ProtocolType	protocolType
	)

private

Definition at line 1165 of file animation-interface.cc.

References NS_ASSERT, and ProtocolTypeToPendingPackets().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), UanPhyGenRxTrace(), WifiPhyRxBeginTrace(), and WimaxRxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::AnimationInterface::IsStarted ( void )

Is AnimationInterface started.

Returns: true if AnimationInterface was started

Definition at line 262 of file animation-interface.cc.

References m_started.

void ns3::AnimationInterface::LteRxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		const Mac48Address &	m
	)

private

Todo:: 0.001 is used until Lte implements RxBegin and RxEnd traces

Definition at line 927 of file animation-interface.cc.

References gAnimUid, GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::AnimationInterface::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), IsPacketPending(), LTE, m_pendingLtePackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxBegin(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxEnd(), ns3::Seconds(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::LteSpectrumPhyRxStart	(	std::string	context,
		Ptr< const PacketBurst >	pb
	)

private

Todo:: 0.001 is used until Lte implements RxBegin and RxEnd traces

Definition at line 983 of file animation-interface.cc.

References gAnimUid, GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::AnimationInterface::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), IsPacketPending(), list, LTE, m_pendingLtePackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxBegin(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxEnd(), ns3::Seconds(), and UpdatePosition().

Referenced by ConnectLteEnb(), and ConnectLteUe().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::LteSpectrumPhyTxStart	(	std::string	context,
		Ptr< const PacketBurst >	pb
	)

private

Todo:: 0.0001 is used until Lte implements TxBegin and TxEnd traces

Definition at line 951 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), list, LTE, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketTxInfo(), ns3::Seconds(), and UpdatePosition().

Referenced by ConnectLteEnb(), and ConnectLteUe().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::LteTxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		const Mac48Address &	m
	)

private

Todo:: 0.0001 is used until Lte implements TxBegin and TxEnd traces

Definition at line 908 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), LTE, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, OutputWirelessPacketTxInfo(), ns3::Seconds(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::MobilityAutoCheck ( )

private

Definition at line 434 of file animation-interface.cc.

References CSMA, ns3::Node::GetId(), GetMovedNodes(), GetPosition(), ns3::Simulator::IsFinished(), IsInTimeWindow(), LTE, m_mobilityPollInterval, m_started, NS_ASSERT, PurgePendingPackets(), ns3::Simulator::Schedule(), WIFI, WIMAX, WriteXmlUpdateNodePosition(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by StartAnimation().

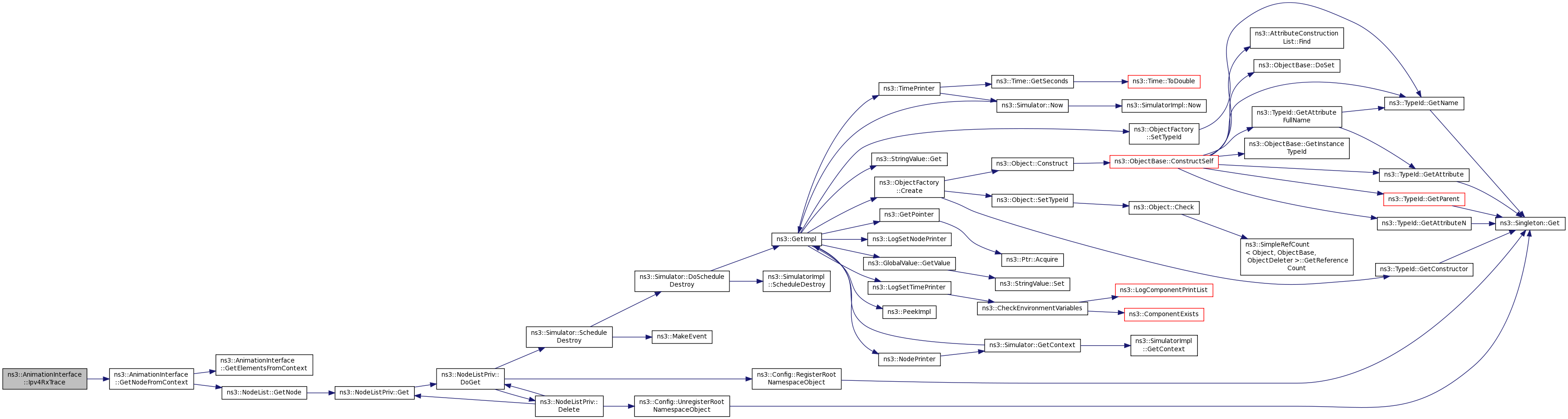

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::MobilityCourseChangeTrace ( Ptr< const MobilityModel > mob )

private

Definition at line 399 of file animation-interface.cc.

References ns3::Node::GetId(), GetPosition(), IsInTimeWindow(), m_started, m_trackPackets, NS_ASSERT, UpdatePosition(), WriteXmlUpdateNodePosition(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::AnimationInterface::NodeHasMoved	(	Ptr< Node >	n,
		Vector	newLocation
	)

private

Definition at line 419 of file animation-interface.cc.

References GetPosition(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by GetMovedNodes().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::OutputCsmaPacket	(	Ptr< const Packet >	p,
		AnimPacketInfo &	pktInfo,
		AnimRxInfo	pktrxInfo
	)

private

Definition at line 1139 of file animation-interface.cc.

References CheckMaxPktsPerTraceFile(), GetPacketMetadata(), m_enablePacketMetadata, ns3::AnimationInterface::AnimRxInfo::m_fbRx, ns3::AnimationInterface::AnimPacketInfo::m_fbTx, ns3::AnimationInterface::AnimRxInfo::m_lbRx, ns3::AnimationInterface::AnimPacketInfo::m_lbTx, ns3::AnimationInterface::AnimRxInfo::m_rxnd, ns3::AnimationInterface::AnimPacketInfo::m_txnd, NS_ASSERT, and WriteXmlP().

Referenced by CsmaMacRxTrace(), and CsmaPhyRxEndTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::OutputWirelessPacketRxInfo	(	Ptr< const Packet >	p,
		AnimRxInfo	pktrxInfo,
		uint64_t	animUid
	)

private

Definition at line 1131 of file animation-interface.cc.

References CheckMaxPktsPerTraceFile(), ns3::AnimationInterface::AnimRxInfo::m_fbRx, ns3::AnimationInterface::AnimRxInfo::m_lbRx, ns3::AnimationInterface::AnimRxInfo::m_rxnd, and WriteXmlP().

Referenced by LteRxTrace(), LteSpectrumPhyRxStart(), UanPhyGenRxTrace(), WifiPhyRxBeginTrace(), and WimaxRxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::OutputWirelessPacketTxInfo	(	Ptr< const Packet >	p,
		AnimPacketInfo &	pktInfo,
		uint64_t	animUid
	)

private

Definition at line 1117 of file animation-interface.cc.

References CheckMaxPktsPerTraceFile(), GetPacketMetadata(), m_enablePacketMetadata, ns3::AnimationInterface::AnimPacketInfo::m_fbTx, ns3::AnimationInterface::AnimPacketInfo::m_firstLastBitDelta, ns3::AnimationInterface::AnimPacketInfo::m_txnd, ns3::AnimationInterface::AnimPacketInfo::m_txNodeId, and WriteXmlPRef().

Referenced by LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenTxTrace(), WifiPhyTxBeginTrace(), and WimaxTxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

AnimationInterface::AnimUidPacketInfoMap * ns3::AnimationInterface::ProtocolTypeToPendingPackets ( AnimationInterface::ProtocolType protocolType )

private

Definition at line 1201 of file animation-interface.cc.

References CSMA, LTE, m_pendingCsmaPackets, m_pendingLtePackets, m_pendingUanPackets, m_pendingWifiPackets, m_pendingWimaxPackets, UAN, WIFI, and WIMAX.

Referenced by AddPendingPacket(), IsPacketPending(), and PurgePendingPackets().

Here is the caller graph for this function:

void ns3::AnimationInterface::PurgePendingPackets ( AnimationInterface::ProtocolType protocolType )

private

Definition at line 1173 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimationInterface::AnimPacketInfo::m_fbTx, ns3::Simulator::Now(), NS_ASSERT, ProtocolTypeToPendingPackets(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::QueueDropTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 729 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeQueueDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::RecursiveIpv4RoutePathSearch	(	std::string	fromIpv4,
		std::string	toIpv4,
		Ipv4RoutePathElements &	rpElements
	)

private

Definition at line 1924 of file animation-interface.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Ipv4Route::GetGateway(), ns3::Node::GetId(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), ns3::Ipv4::GetRoutingProtocol(), m_ipv4ToNodeIdMap, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_INFO, NS_LOG_WARN, and ns3::Ipv4Header::SetDestination().

Referenced by TrackIpv4RoutePaths().

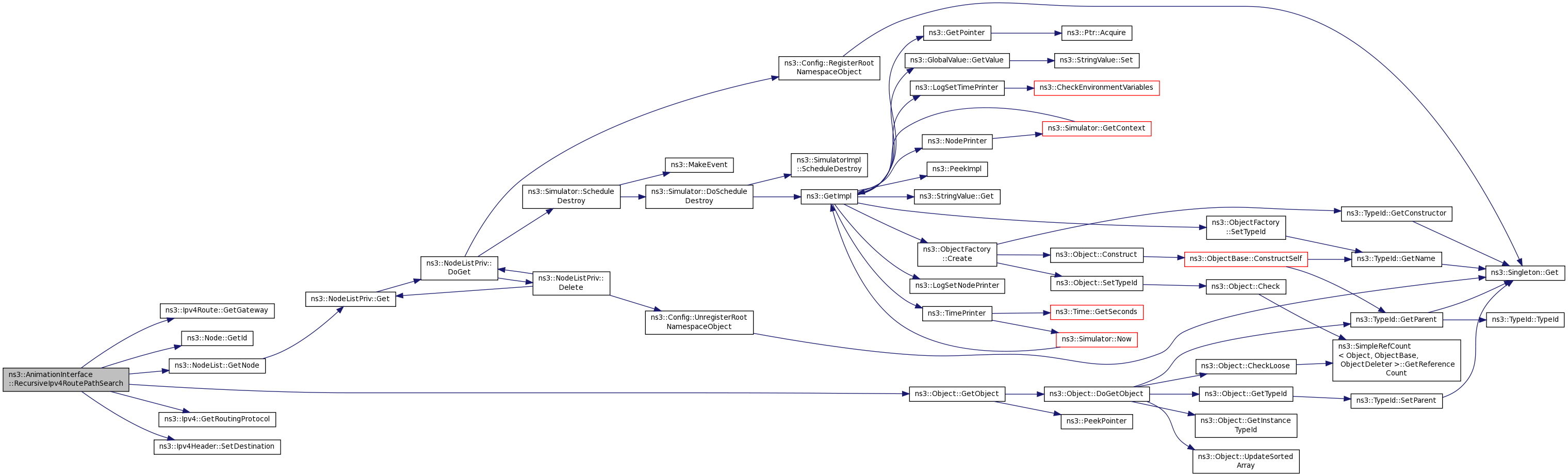

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::RemainingEnergyTrace	(	std::string	context,
		double	previousEnergy,
		double	currentEnergy
	)

private

Definition at line 622 of file animation-interface.cc.

References GetNodeFromContext(), IsInTimeWindow(), m_nodeEnergyFraction, m_remainingEnergyCounterId, m_started, NS_ASSERT, NS_LOG_INFO, and UpdateNodeCounter().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ResetAnimWriteCallback ( )

Reset the write callback function.

Returns: none

Definition at line 274 of file animation-interface.cc.

References m_writeCallback.

Referenced by StopAnimation().

Here is the caller graph for this function:

void ns3::AnimationInterface::SetAnimWriteCallback ( AnimWriteCallback cb )

Set a callback function to listen to AnimationInterface write events.

Parameters

cb	Address of callback function

Returns: none

Definition at line 268 of file animation-interface.cc.

References m_writeCallback.

void ns3::AnimationInterface::SetBackgroundImage	(	std::string	fileName,
		double	x,
		double	y,
		double	scaleX,
		double	scaleY,
		double	opacity
	)

Helper function to set the background image.

Parameters

fileName	File name of the background image
x	X co-ordinate of the image
y	Y co-ordinate of the image
scaleX	X scale of the image
scaleY	Y scale of the image
opacity	Opacity of the background: A value between 0.0 and 1.0. 0.0 is transparent, 1.0 is opaque

Returns: none

Definition at line 324 of file animation-interface.cc.

References NS_FATAL_ERROR, and WriteXmlUpdateBackground().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::SetConstantPosition	(	Ptr< Node >	n,
		double	x,
		double	y,
		double	z = `0`
	)

static

Helper function to set Constant Position for a given node.

Parameters

n	Ptr to the node
x	X co-ordinate of the node
y	Y co-ordinate of the node
z	Z co-ordinate of the node

Returns: none

Definition at line 287 of file animation-interface.cc.

References ns3::Object::AggregateObject(), ns3::Node::GetId(), ns3::Object::GetObject(), NS_ASSERT, and NS_LOG_INFO.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::SetMaxPktsPerTraceFile ( uint64_t maxPktsPerFile )

Set Max packets per trace file.

Parameters

maxPktsPerFile The maximum number of packets per trace file. AnimationInterface will create trace files with the following filenames : filename, filename-1, filename-2..., filename-N where each file contains packet info for 'maxPktsPerFile' number of packets

Returns: none

Definition at line 222 of file animation-interface.cc.

References m_maxPktsPerFile.

void ns3::AnimationInterface::SetMobilityPollInterval ( Time t )

Set mobility poll interval:WARNING: setting a low interval can cause slowness.

Parameters

t	Time interval between fetching mobility/position information Default: 0.25s

Returns: none

Definition at line 280 of file animation-interface.cc.

References m_mobilityPollInterval.

void ns3::AnimationInterface::SetOutputFile	(	const std::string &	fn,
		bool	routing = `false`
	)

private

Definition at line 1676 of file animation-interface.cc.

References m_f, m_outputFileName, m_routingF, m_routingFileName, NS_FATAL_ERROR, and NS_LOG_INFO.

Referenced by EnableIpv4RouteTracking(), and StartAnimation().

Here is the caller graph for this function:

void ns3::AnimationInterface::SetStartTime ( Time t )

Specify the time at which capture should start.

Parameters

t	The time at which AnimationInterface should begin capture of traffic info

Returns: none

Definition at line 210 of file animation-interface.cc.

References m_startTime.

void ns3::AnimationInterface::SetStopTime ( Time t )

Specify the time at which capture should stop.

Parameters

t	The time at which AnimationInterface should stop capture of traffic info

Returns: none

Definition at line 216 of file animation-interface.cc.

References m_stopTime.

void ns3::AnimationInterface::SkipPacketTracing ( )

Do not trace packets.

This helps reduce the trace file size if AnimationInterface is solely used for tracking mobility, routing paths and counters

Returns: none

Definition at line 93 of file animation-interface.cc.

References m_trackPackets.

void ns3::AnimationInterface::StartAnimation ( bool restart = false )

private

Definition at line 1300 of file animation-interface.cc.

References ConnectCallbacks(), m_currentPktCount, m_mobilityPollInterval, m_outputFileName, m_started, MobilityAutoCheck(), ns3::Simulator::Schedule(), SetOutputFile(), WriteLinkProperties(), WriteNodeColors(), WriteNodeEnergies(), WriteNodes(), WriteNodeSizes(), and WriteXmlAnim().

Referenced by AnimationInterface().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::StopAnimation ( bool onlyAnimation = false )

private

Definition at line 1275 of file animation-interface.cc.

References m_f, m_routingF, m_started, NS_LOG_INFO, ResetAnimWriteCallback(), and WriteXmlClose().

Referenced by CheckMaxPktsPerTraceFile(), and ~AnimationInterface().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackIpv4L3ProtocolCounters ( )

private

Definition at line 1860 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_ipv4L3ProtocolCountersPollInterval, m_ipv4L3ProtocolCountersStopTime, m_ipv4L3ProtocolDropCounterId, m_ipv4L3ProtocolRxCounterId, m_ipv4L3ProtocolTxCounterId, m_nodeIpv4Drop, m_nodeIpv4Rx, m_nodeIpv4Tx, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), and UpdateNodeCounter().

Referenced by EnableIpv4L3ProtocolCounters().

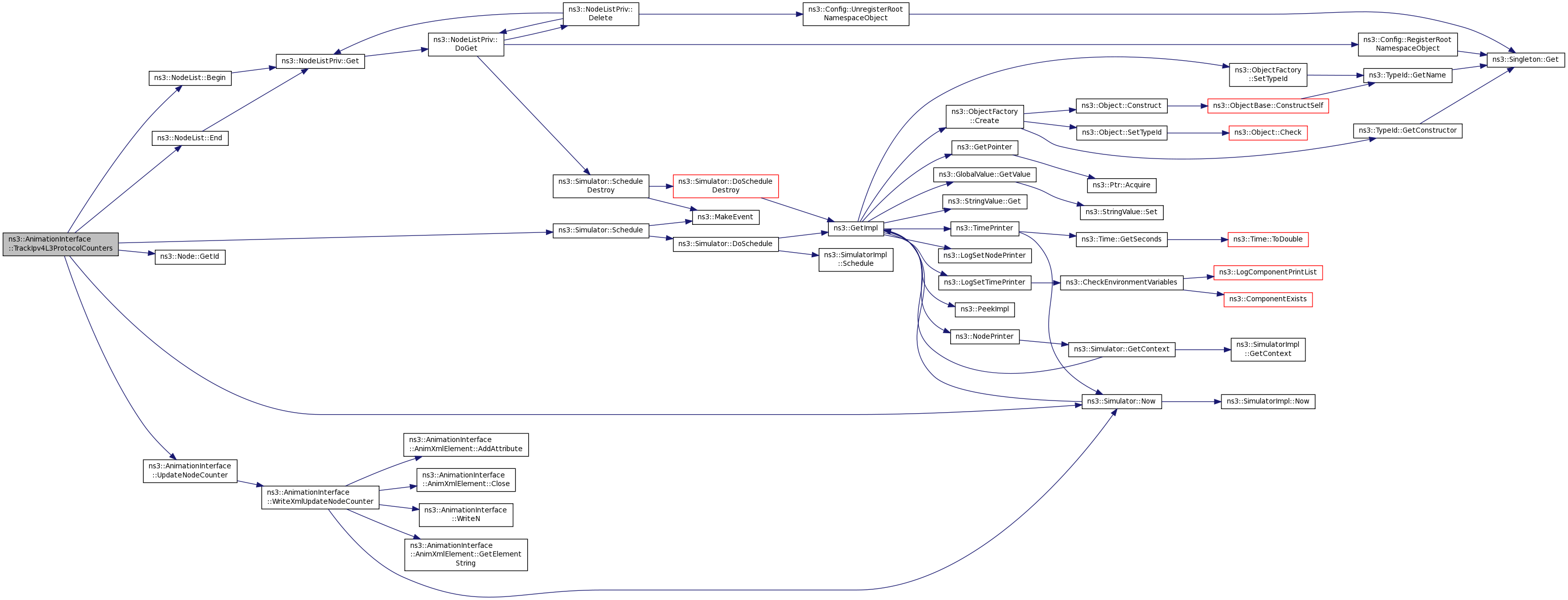

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackIpv4Route ( )

private

Definition at line 1878 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeContainer::Begin(), ns3::NodeList::End(), ns3::NodeContainer::End(), ns3::Node::GetId(), GetIpv4RoutingTable(), ns3::NodeContainer::GetN(), m_routingNc, m_routingPollInterval, m_routingStopTime, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), TrackIpv4RoutePaths(), and WriteXmlRouting().

Referenced by EnableIpv4RouteTracking().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackIpv4RoutePaths ( )

private

Definition at line 1732 of file animation-interface.cc.

References ns3::AnimationInterface::Ipv4RouteTrackElement::destination, ns3::AnimationInterface::Ipv4RouteTrackElement::fromNodeId, ns3::Ipv4Route::GetGateway(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), ns3::Ipv4::GetRoutingProtocol(), m_ipv4RouteTrackElements, m_ipv4ToNodeIdMap, NS_FATAL_ERROR, NS_LOG_INFO, NS_LOG_WARN, RecursiveIpv4RoutePathSearch(), ns3::Ipv4Header::SetDestination(), and WriteRoutePath().

Referenced by TrackIpv4Route().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackQueueCounters ( )

private

Definition at line 1806 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_nodeQueueDequeue, m_nodeQueueDrop, m_nodeQueueEnqueue, m_queueCountersPollInterval, m_queueCountersStopTime, m_queueDequeueCounterId, m_queueDropCounterId, m_queueEnqueueCounterId, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), and UpdateNodeCounter().

Referenced by EnableQueueCounters().

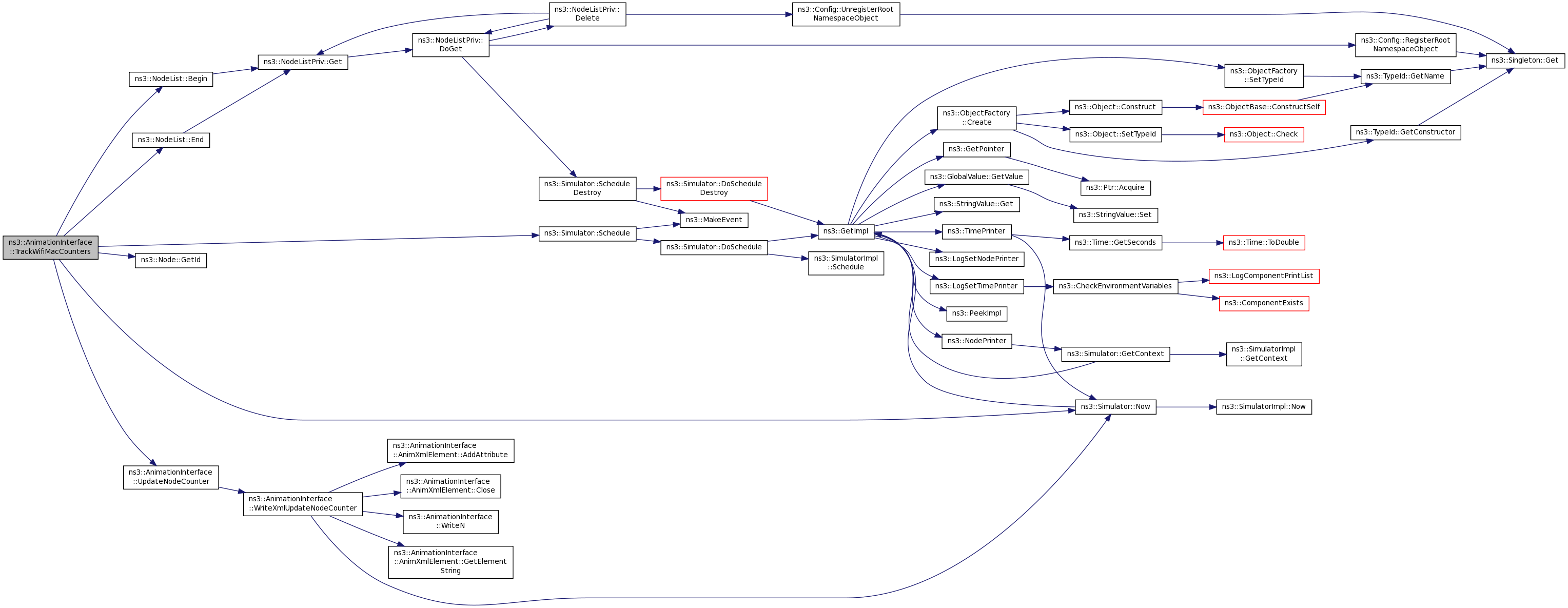

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackWifiMacCounters ( )

private

Definition at line 1824 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_nodeWifiMacRx, m_nodeWifiMacRxDrop, m_nodeWifiMacTx, m_nodeWifiMacTxDrop, m_wifiMacCountersPollInterval, m_wifiMacCountersStopTime, m_wifiMacRxCounterId, m_wifiMacRxDropCounterId, m_wifiMacTxCounterId, m_wifiMacTxDropCounterId, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), and UpdateNodeCounter().

Referenced by EnableWifiMacCounters().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackWifiPhyCounters ( )

private

Definition at line 1843 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_nodeWifiPhyRxDrop, m_nodeWifiPhyTxDrop, m_wifiPhyCountersPollInterval, m_wifiPhyCountersStopTime, m_wifiPhyRxDropCounterId, m_wifiPhyTxDropCounterId, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), and UpdateNodeCounter().

Referenced by EnableWifiPhyCounters().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UanPhyGenRxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 782 of file animation-interface.cc.

References GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsInTimeWindow(), IsPacketPending(), m_pendingUanPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), UAN, and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UanPhyGenTxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 765 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_pendingUanPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, OutputWirelessPacketTxInfo(), UAN, and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateLinkDescription	(	uint32_t	fromNode,
		uint32_t	toNode,
		std::string	linkDescription
	)

Helper function to update the description for a link.

Parameters

fromNode	Node Id of the "from Node" of the p2p link
toNode	Node Id of the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth

Returns: none

Definition at line 358 of file animation-interface.cc.

References WriteXmlUpdateLink().

Referenced by modify().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateLinkDescription	(	Ptr< Node >	fromNode,
		Ptr< Node >	toNode,
		std::string	linkDescription
	)

Helper function to update the description for a link.

Parameters

fromNode	Ptr to the "from Node" of the p2p link
toNode	Ptr to the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth

Returns: none

Definition at line 365 of file animation-interface.cc.

References ns3::Node::GetId(), NS_ASSERT, and WriteXmlUpdateLink().

Here is the call graph for this function:

void ns3::AnimationInterface::UpdateNodeColor	(	Ptr< Node >	n,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Helper function to update the node color.

Parameters

n	Ptr to the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Returns: none

Definition at line 342 of file animation-interface.cc.

References ns3::Node::GetId().

Referenced by main(), modify(), and WriteNodeColors().

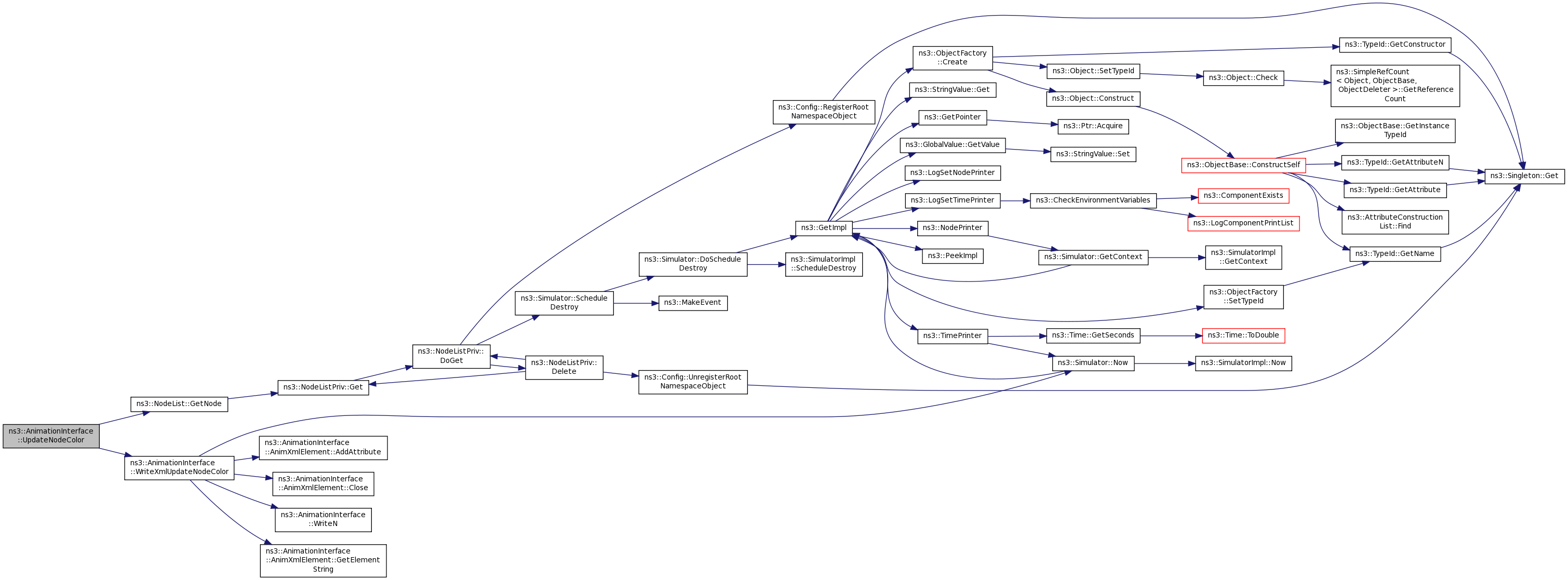

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeColor	(	uint32_t	nodeId,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Helper function to update the node color.

Parameters

nodeId	Id of the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Returns: none

Definition at line 348 of file animation-interface.cc.

References ns3::NodeList::GetNode(), m_nodeColors, NS_ASSERT, NS_LOG_INFO, and WriteXmlUpdateNodeColor().

Here is the call graph for this function:

void ns3::AnimationInterface::UpdateNodeCounter	(	uint32_t	nodeCounterId,
		uint32_t	nodeId,
		double	counter
	)

Helper function to update a node's counter referenced by the nodeCounterId.

Parameters

nodeCounterId	The counter Id obtained from AddNodeCounter
nodeId	Node Id of the node
counter	Current value of the counter

Returns: none

Definition at line 314 of file animation-interface.cc.

References m_nodeCounters, NS_FATAL_ERROR, and WriteXmlUpdateNodeCounter().

Referenced by EnableIpv4L3ProtocolCounters(), EnableQueueCounters(), EnableWifiMacCounters(), EnableWifiPhyCounters(), modify(), RemainingEnergyTrace(), TrackIpv4L3ProtocolCounters(), TrackQueueCounters(), TrackWifiMacCounters(), TrackWifiPhyCounters(), and WriteNodeEnergies().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeDescription	(	Ptr< Node >	n,
		std::string	descr
	)

Helper function to update the description for a given node.

Parameters

n	Ptr to the node
descr	A string to briefly describe the node

Returns: none

Definition at line 374 of file animation-interface.cc.

References ns3::Node::GetId().

Referenced by main(), and modify().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeDescription	(	uint32_t	nodeId,
		std::string	descr
	)

Helper function to update the description for a given node.

Parameters

nodeId	Id of the node
descr	A string to briefly describe the node

Returns: none

Definition at line 380 of file animation-interface.cc.

References ns3::NodeList::GetNode(), m_nodeDescriptions, NS_ASSERT, and WriteXmlUpdateNodeDescription().

Here is the call graph for this function:

void ns3::AnimationInterface::UpdateNodeImage	(	uint32_t	nodeId,
		uint32_t	resourceId
	)

Helper function to update the image of a node.

Parameters

nodeId	Id of the node
resourceId	Id of the image resource that was previously added

Returns: none

Definition at line 303 of file animation-interface.cc.

References m_resources, NS_FATAL_ERROR, NS_LOG_INFO, and WriteXmlUpdateNodeImage().

Referenced by modify().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeSize	(	uint32_t	nodeId,
		double	width,
		double	height
	)

Helper function to update the size of a node.

Parameters

nodeId	Id of the node
width	Width of the node
height	Height of the node

Returns: none

Definition at line 334 of file animation-interface.cc.

References ns3::AnimationInterface::NodeSize::height, m_nodeSizes, s, ns3::AnimationInterface::NodeSize::width, and WriteXmlUpdateNodeSize().

Referenced by modify(), and WriteNodeSizes().

Here is the call graph for this function:

Here is the caller graph for this function:

Vector ns3::AnimationInterface::UpdatePosition ( Ptr< Node > n )

private

Definition at line 1490 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), m_nodeLocation, and NS_LOG_UNCOND.

Referenced by CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), GetMovedNodes(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), MobilityCourseChangeTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), WimaxRxTrace(), WimaxTxTrace(), WriteLinkProperties(), and WriteNodes().

Here is the call graph for this function:

Here is the caller graph for this function:

Vector ns3::AnimationInterface::UpdatePosition	(	Ptr< Node >	n,
		Vector	v
	)

private

Definition at line 1506 of file animation-interface.cc.

References ns3::Node::GetId(), and m_nodeLocation.

Here is the call graph for this function:

void ns3::AnimationInterface::WifiMacRxDropTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 680 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiMacRxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiMacRxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 673 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiMacRx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiMacTxDropTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 666 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiMacTxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiMacTxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 659 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiMacTx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyRxBeginTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Todo:: NS_ASSERT (WifiPacketIsPending (animUid) == true);

Definition at line 828 of file animation-interface.cc.

References AddPendingPacket(), ns3::WifiMacHeader::GetAddr2(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NodeList::GetNode(), IsInTimeWindow(), IsPacketPending(), m_macToNodeIdMap, m_pendingWifiPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), ns3::Packet::PeekHeader(), UpdatePosition(), and WIFI.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyRxDropTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 652 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiPhyRxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyTxBeginTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 804 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), gAnimUid, ns3::Node::GetId(), GetNetDeviceFromContext(), IsInTimeWindow(), m_macToNodeIdMap, m_pendingWifiPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, OutputWirelessPacketTxInfo(), UpdatePosition(), and WIFI.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyTxDropTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 645 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiPhyTxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WimaxRxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		const Mac48Address &	m
	)

private

Todo:: 0.001 is used until Wimax implements RxBegin and RxEnd traces

Definition at line 888 of file animation-interface.cc.

References GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::AnimationInterface::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), IsPacketPending(), m_pendingWimaxPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, OutputWirelessPacketRxInfo(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxBegin(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxEnd(), ns3::Seconds(), UpdatePosition(), and WIMAX.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WimaxTxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		const Mac48Address &	m
	)

private

Todo:: 0.0001 is used until Wimax implements TxBegin and TxEnd traces

Definition at line 869 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, OutputWirelessPacketTxInfo(), ns3::Seconds(), UpdatePosition(), and WIMAX.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteLinkProperties ( )

private

Definition at line 1554 of file animation-interface.cc.

References AddToIpv4AddressNodeIdTable(), ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetId(), GetIpv4Address(), GetMacAddress(), ns3::Node::GetNDevices(), m_linkProperties, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_INFO, UpdatePosition(), WriteNonP2pLinkProperties(), and WriteXmlLink().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::AnimationInterface::WriteN	(	const char *	data,
		uint32_t	count,
		FILE *	f
	)

private

Definition at line 500 of file animation-interface.cc.

References data.

Referenced by WriteN(), WriteXmlAddNodeCounter(), WriteXmlAddResource(), WriteXmlAnim(), WriteXmlClose(), WriteXmlLink(), WriteXmlNode(), WriteXmlNonP2pLinkProperties(), WriteXmlP(), WriteXmlPRef(), WriteXmlRouting(), WriteXmlRp(), WriteXmlUpdateBackground(), WriteXmlUpdateLink(), WriteXmlUpdateNodeColor(), WriteXmlUpdateNodeCounter(), WriteXmlUpdateNodeDescription(), WriteXmlUpdateNodeImage(), WriteXmlUpdateNodePosition(), and WriteXmlUpdateNodeSize().

Here is the caller graph for this function:

int ns3::AnimationInterface::WriteN	(	const std::string &	st,
		FILE *	f
	)

private

Definition at line 488 of file animation-interface.cc.

References m_writeCallback, and WriteN().

Here is the call graph for this function:

void ns3::AnimationInterface::WriteNodeColors ( )

private

Definition at line 1624 of file animation-interface.cc.

References ns3::AnimationInterface::Rgb::b, ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::AnimationInterface::Rgb::g, ns3::Node::GetId(), m_nodeColors, ns3::AnimationInterface::Rgb::r, and UpdateNodeColor().

Referenced by StartAnimation().

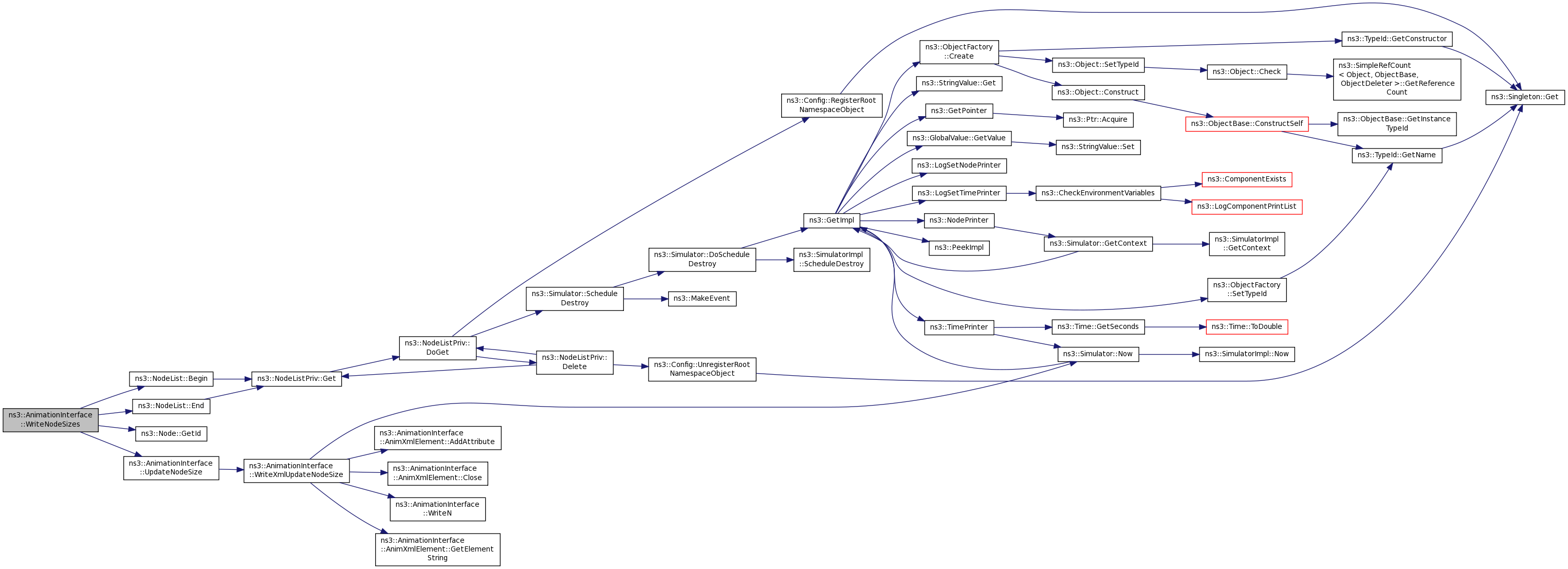

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteNodeEnergies ( )

private

Definition at line 1652 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), ns3::Node::GetId(), ns3::NodeList::GetNode(), m_remainingEnergyCounterId, and UpdateNodeCounter().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteNodes ( )

private

Definition at line 1612 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), ns3::Node::GetSystemId(), NS_LOG_INFO, UpdatePosition(), and WriteXmlNode().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteNodeSizes ( )

private

Definition at line 1639 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_nodeSizes, NS_LOG_INFO, s, and UpdateNodeSize().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteNodeUpdate ( uint32_t nodeId )

private

void ns3::AnimationInterface::WriteNonP2pLinkProperties	(	uint32_t	id,
		std::string	ipv4Address,
		std::string	channelType
	)

private

Definition at line 540 of file animation-interface.cc.

References WriteXmlNonP2pLinkProperties().

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteRoutePath	(	uint32_t	nodeId,
		std::string	destination,
		Ipv4RoutePathElements	rpElements
	)

private

Definition at line 523 of file animation-interface.cc.

References NS_LOG_INFO, and WriteXmlRp().

Referenced by TrackIpv4RoutePaths().

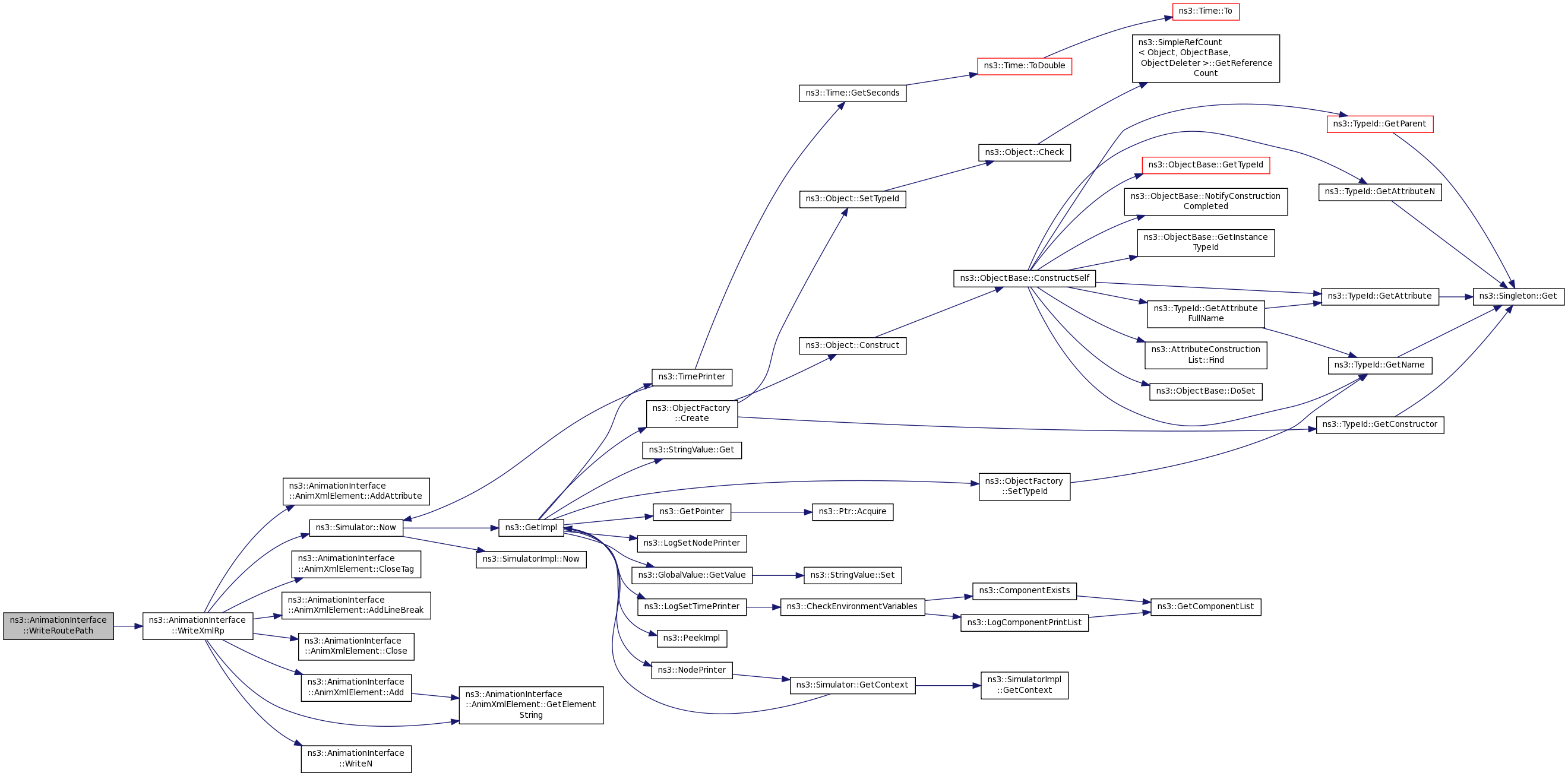

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlAddNodeCounter	(	uint32_t	counterId,
		std::string	counterName,
		CounterType	counterType
	)

private

Definition at line 2212 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), CounterTypeToString(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by AddNodeCounter().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlAddResource	(	uint32_t	resourceId,
		std::string	resourcePath
	)

private

Definition at line 2223 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by AddResource().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlAnim ( bool routing = false )

private

Definition at line 2045 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), GetNetAnimVersion(), m_f, m_routingF, and WriteN().

Referenced by EnableIpv4RouteTracking(), and StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlClose	(	std::string	name,
		bool	routing = `false`
	)

private

Definition at line 2061 of file animation-interface.cc.

References m_f, m_routingF, and WriteN().

Referenced by StopAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlLink	(	uint32_t	fromId,
		uint32_t	toLp,
		uint32_t	toId
	)

private

Definition at line 2099 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::LinkProperties::fromNodeDescription, ns3::AnimationInterface::AnimXmlElement::GetElementString(), ns3::AnimationInterface::LinkProperties::linkDescription, m_f, m_linkProperties, ns3::AnimationInterface::LinkProperties::toNodeDescription, and WriteN().

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlNode	(	uint32_t	id,
		uint32_t	sysId,
		double	locX,
		double	locY
	)

private

Definition at line 2075 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by WriteNodes().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlNonP2pLinkProperties	(	uint32_t	id,
		std::string	ipv4Address,
		std::string	channelType
	)

private

Definition at line 2327 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by WriteNonP2pLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlP	(	std::string	pktType,
		uint32_t	fId,
		double	fbTx,
		double	lbTx,
		uint32_t	tId,
		double	fbRx,
		double	lbRx,
		std::string	metaInfo = `""`
	)

private

Definition at line 2193 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacketRxInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlP	(	uint64_t	animUid,
		std::string	pktType,
		uint32_t	fId,
		double	fbTx,
		double	lbTx
	)

private

Definition at line 2181 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Here is the call graph for this function:

void ns3::AnimationInterface::WriteXmlPRef	(	uint64_t	animUid,
		uint32_t	fId,
		double	fbTx,
		double	lbTx,
		std::string	metaInfo = `""`
	)

private

Definition at line 2165 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by OutputWirelessPacketTxInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlRouting	(	uint32_t	id,
		std::string	routingInfo
	)

private

Definition at line 2129 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_routingF, ns3::Simulator::Now(), and WriteN().

Referenced by TrackIpv4Route().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlRp	(	uint32_t	nodeId,
		std::string	destination,
		Ipv4RoutePathElements	rpElements
	)

private

Definition at line 2140 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::Add(), ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::AddLineBreak(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::CloseTag(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_routingF, ns3::AnimationInterface::Ipv4RoutePathElement::nextHop, ns3::AnimationInterface::Ipv4RoutePathElement::nodeId, ns3::Simulator::Now(), and WriteN().

Referenced by WriteRoutePath().

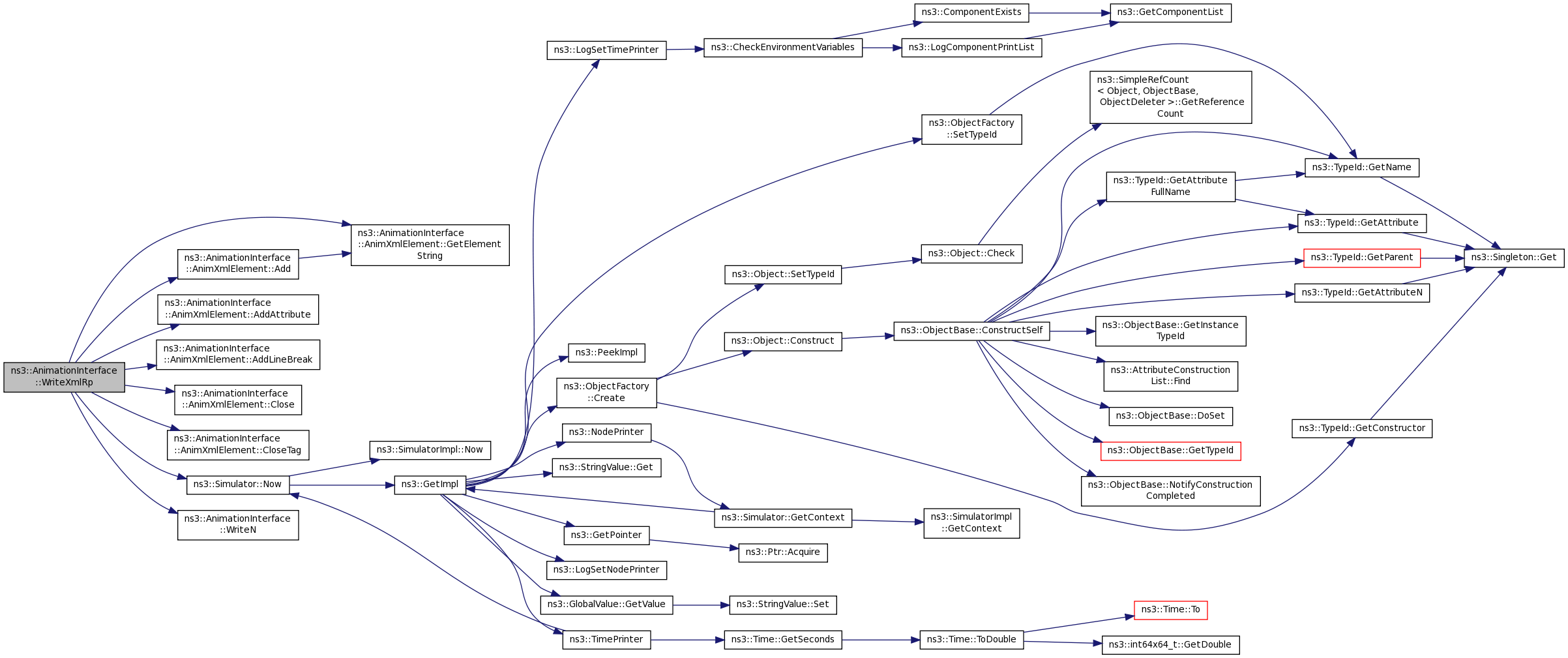

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateBackground	(	std::string	fileName,
		double	x,
		double	y,
		double	scaleX,
		double	scaleY,
		double	opacity
	)

private

Definition at line 2313 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by SetBackgroundImage().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateLink	(	uint32_t	fromId,
		uint32_t	toId,
		std::string	linkDescription
	)

private

Definition at line 2087 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by UpdateLinkDescription().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateNodeColor	(	uint32_t	nodeId,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

private

Definition at line 2271 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by UpdateNodeColor().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateNodeCounter	(	uint32_t	counterId,
		uint32_t	nodeId,
		double	value
	)

private

Definition at line 2301 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by UpdateNodeCounter().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateNodeDescription ( uint32_t nodeId )

private

Definition at line 2285 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, m_nodeDescriptions, ns3::Simulator::Now(), and WriteN().

Referenced by UpdateNodeDescription().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateNodeImage	(	uint32_t	nodeId,
		uint32_t	resourceId
	)

private

Definition at line 2233 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by UpdateNodeImage().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateNodePosition	(	uint32_t	nodeId,
		double	x,
		double	y
	)

private

Definition at line 2258 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by MobilityAutoCheck(), and MobilityCourseChangeTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateNodeSize	(	uint32_t	nodeId,
		double	width,
		double	height
	)

private

Definition at line 2245 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by UpdateNodeSize().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint64_t ns3::AnimationInterface::gAnimUid

private

Definition at line 564 of file animation-interface.h.

Referenced by CsmaPhyTxBeginTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenTxTrace(), WifiPhyTxBeginTrace(), and WimaxTxTrace().

uint64_t ns3::AnimationInterface::m_currentPktCount

private

Definition at line 618 of file animation-interface.h.

Referenced by CheckMaxPktsPerTraceFile(), GetTracePktCount(), and StartAnimation().

bool ns3::AnimationInterface::m_enablePacketMetadata

private

Definition at line 567 of file animation-interface.h.

Referenced by DevTxTrace(), EnablePacketMetadata(), OutputCsmaPacket(), and OutputWirelessPacketTxInfo().

FILE* ns3::AnimationInterface::m_f

private

Time ns3::AnimationInterface::m_ipv4L3ProtocolCountersPollInterval

private

Definition at line 577 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

Time ns3::AnimationInterface::m_ipv4L3ProtocolCountersStopTime

private

Definition at line 576 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

uint32_t ns3::AnimationInterface::m_ipv4L3ProtocolDropCounterId

private

Definition at line 592 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

uint32_t ns3::AnimationInterface::m_ipv4L3ProtocolRxCounterId

private

Definition at line 591 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

uint32_t ns3::AnimationInterface::m_ipv4L3ProtocolTxCounterId

private

Definition at line 590 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

std::vector<Ipv4RouteTrackElement> ns3::AnimationInterface::m_ipv4RouteTrackElements

private

Definition at line 619 of file animation-interface.h.

Referenced by AddSourceDestination(), and TrackIpv4RoutePaths().

std::map<std::string, uint32_t> ns3::AnimationInterface::m_ipv4ToNodeIdMap

private

Definition at line 613 of file animation-interface.h.

Referenced by AddToIpv4AddressNodeIdTable(), RecursiveIpv4RoutePathSearch(), and TrackIpv4RoutePaths().

LinkPropertiesMap ns3::AnimationInterface::m_linkProperties

private

Definition at line 616 of file animation-interface.h.

Referenced by WriteLinkProperties(), and WriteXmlLink().

std::map<std::string, uint32_t> ns3::AnimationInterface::m_macToNodeIdMap

private

Definition at line 612 of file animation-interface.h.

Referenced by WifiPhyRxBeginTrace(), and WifiPhyTxBeginTrace().

uint64_t ns3::AnimationInterface::m_maxPktsPerFile

private

Definition at line 570 of file animation-interface.h.

Referenced by CheckMaxPktsPerTraceFile(), and SetMaxPktsPerTraceFile().

Time ns3::AnimationInterface::m_mobilityPollInterval

private

Definition at line 562 of file animation-interface.h.

Referenced by MobilityAutoCheck(), SetMobilityPollInterval(), and StartAnimation().

NodeColorsMap ns3::AnimationInterface::m_nodeColors

private

Definition at line 614 of file animation-interface.h.

Referenced by UpdateNodeColor(), and WriteNodeColors().

std::vector<std::string> ns3::AnimationInterface::m_nodeCounters

private

Definition at line 622 of file animation-interface.h.

Referenced by AddNodeCounter(), and UpdateNodeCounter().

NodeDescriptionsMap ns3::AnimationInterface::m_nodeDescriptions

private

Definition at line 615 of file animation-interface.h.

Referenced by UpdateNodeDescription(), and WriteXmlUpdateNodeDescription().

EnergyFractionMap ns3::AnimationInterface::m_nodeEnergyFraction

private

Definition at line 617 of file animation-interface.h.

Referenced by GetNodeEnergyFraction(), and RemainingEnergyTrace().

NodeCounterMap64 ns3::AnimationInterface::m_nodeIpv4Drop

private

Definition at line 624 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), Ipv4DropTrace(), and TrackIpv4L3ProtocolCounters().

NodeCounterMap64 ns3::AnimationInterface::m_nodeIpv4Rx

private

Definition at line 626 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), Ipv4RxTrace(), and TrackIpv4L3ProtocolCounters().

NodeCounterMap64 ns3::AnimationInterface::m_nodeIpv4Tx

private

Definition at line 625 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), Ipv4TxTrace(), and TrackIpv4L3ProtocolCounters().

std::map<uint32_t, Vector> ns3::AnimationInterface::m_nodeLocation

private

Definition at line 611 of file animation-interface.h.

Referenced by GetPosition(), and UpdatePosition().

NodeCounterMap64 ns3::AnimationInterface::m_nodeQueueDequeue

private

Definition at line 628 of file animation-interface.h.

Referenced by DequeueTrace(), EnableQueueCounters(), and TrackQueueCounters().

NodeCounterMap64 ns3::AnimationInterface::m_nodeQueueDrop

private

Definition at line 629 of file animation-interface.h.

Referenced by EnableQueueCounters(), QueueDropTrace(), and TrackQueueCounters().

NodeCounterMap64 ns3::AnimationInterface::m_nodeQueueEnqueue

private

Definition at line 627 of file animation-interface.h.

Referenced by EnableQueueCounters(), EnqueueTrace(), and TrackQueueCounters().

std::map<uint32_t, NodeSize> ns3::AnimationInterface::m_nodeSizes

private

Definition at line 620 of file animation-interface.h.

Referenced by UpdateNodeSize(), and WriteNodeSizes().

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiMacRx

private

Definition at line 632 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), TrackWifiMacCounters(), and WifiMacRxTrace().

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiMacRxDrop

private

Definition at line 633 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), TrackWifiMacCounters(), and WifiMacRxDropTrace().

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiMacTx

private

Definition at line 630 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), TrackWifiMacCounters(), and WifiMacTxTrace().

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiMacTxDrop

private

Definition at line 631 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), TrackWifiMacCounters(), and WifiMacTxDropTrace().

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiPhyRxDrop

private

Definition at line 635 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), TrackWifiPhyCounters(), and WifiPhyRxDropTrace().

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiPhyTxDrop

private

Definition at line 634 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), TrackWifiPhyCounters(), and WifiPhyTxDropTrace().

std::string ns3::AnimationInterface::m_originalFileName

private

Definition at line 571 of file animation-interface.h.

std::string ns3::AnimationInterface::m_outputFileName

private

Definition at line 563 of file animation-interface.h.

Referenced by SetOutputFile(), and StartAnimation().

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingCsmaPackets

private

Definition at line 609 of file animation-interface.h.

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), and ProtocolTypeToPendingPackets().

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingLtePackets

private

Definition at line 608 of file animation-interface.h.

Referenced by LteRxTrace(), LteSpectrumPhyRxStart(), and ProtocolTypeToPendingPackets().

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingUanPackets

private

Definition at line 610 of file animation-interface.h.

Referenced by ProtocolTypeToPendingPackets(), UanPhyGenRxTrace(), and UanPhyGenTxTrace().

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingWifiPackets

private

Definition at line 606 of file animation-interface.h.

Referenced by ProtocolTypeToPendingPackets(), WifiPhyRxBeginTrace(), and WifiPhyTxBeginTrace().

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingWimaxPackets

private

Definition at line 607 of file animation-interface.h.

Referenced by ProtocolTypeToPendingPackets(), and WimaxRxTrace().

Time ns3::AnimationInterface::m_queueCountersPollInterval

private

Definition at line 579 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

Time ns3::AnimationInterface::m_queueCountersStopTime

private

Definition at line 578 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

uint32_t ns3::AnimationInterface::m_queueDequeueCounterId

private

Definition at line 595 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

uint32_t ns3::AnimationInterface::m_queueDropCounterId

private

Definition at line 596 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

uint32_t ns3::AnimationInterface::m_queueEnqueueCounterId

private

Definition at line 594 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

uint32_t ns3::AnimationInterface::m_remainingEnergyCounterId

private

Definition at line 588 of file animation-interface.h.

Referenced by RemainingEnergyTrace(), and WriteNodeEnergies().

std::vector<std::string> ns3::AnimationInterface::m_resources

private

Definition at line 621 of file animation-interface.h.

Referenced by AddResource(), and UpdateNodeImage().

FILE* ns3::AnimationInterface::m_routingF

private

Definition at line 561 of file animation-interface.h.

Referenced by SetOutputFile(), StopAnimation(), WriteXmlAnim(), WriteXmlClose(), WriteXmlRouting(), and WriteXmlRp().

std::string ns3::AnimationInterface::m_routingFileName

private

Definition at line 573 of file animation-interface.h.

Referenced by SetOutputFile().

NodeContainer ns3::AnimationInterface::m_routingNc

private

Definition at line 575 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

Time ns3::AnimationInterface::m_routingPollInterval

private

Definition at line 574 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

Time ns3::AnimationInterface::m_routingStopTime

private

Definition at line 572 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

bool ns3::AnimationInterface::m_started

private

Time ns3::AnimationInterface::m_startTime

private

Definition at line 568 of file animation-interface.h.

Referenced by IsInTimeWindow(), and SetStartTime().

Time ns3::AnimationInterface::m_stopTime

private

Definition at line 569 of file animation-interface.h.

Referenced by IsInTimeWindow(), and SetStopTime().

bool ns3::AnimationInterface::m_trackPackets

private

Definition at line 585 of file animation-interface.h.

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DevTxTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), MobilityCourseChangeTrace(), SkipPacketTracing(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), WimaxRxTrace(), and WimaxTxTrace().

Time ns3::AnimationInterface::m_wifiMacCountersPollInterval

private

Definition at line 581 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

Time ns3::AnimationInterface::m_wifiMacCountersStopTime

private

Definition at line 580 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

uint32_t ns3::AnimationInterface::m_wifiMacRxCounterId

private

Definition at line 600 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

uint32_t ns3::AnimationInterface::m_wifiMacRxDropCounterId

private

Definition at line 601 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

uint32_t ns3::AnimationInterface::m_wifiMacTxCounterId

private

Definition at line 598 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

uint32_t ns3::AnimationInterface::m_wifiMacTxDropCounterId

private

Definition at line 599 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

Time ns3::AnimationInterface::m_wifiPhyCountersPollInterval

private

Definition at line 583 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), and TrackWifiPhyCounters().

Time ns3::AnimationInterface::m_wifiPhyCountersStopTime

private

Definition at line 582 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), and TrackWifiPhyCounters().

uint32_t ns3::AnimationInterface::m_wifiPhyRxDropCounterId

private

Definition at line 604 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), and TrackWifiPhyCounters().

uint32_t ns3::AnimationInterface::m_wifiPhyTxDropCounterId

private

Definition at line 603 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), and TrackWifiPhyCounters().

AnimWriteCallback ns3::AnimationInterface::m_writeCallback

private

Definition at line 565 of file animation-interface.h.

Referenced by ResetAnimWriteCallback(), SetAnimWriteCallback(), and WriteN().

Rectangle* ns3::AnimationInterface::userBoundary

staticprivate

Definition at line 584 of file animation-interface.h.

The documentation for this class was generated from the following files:

src/netanim/model/animation-interface.h
src/netanim/model/animation-interface.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
