Configuration helper for the application executed with DCE. More...

#include <dce-application-helper.h>

Inheritance diagram for ns3::DceApplicationHelper:

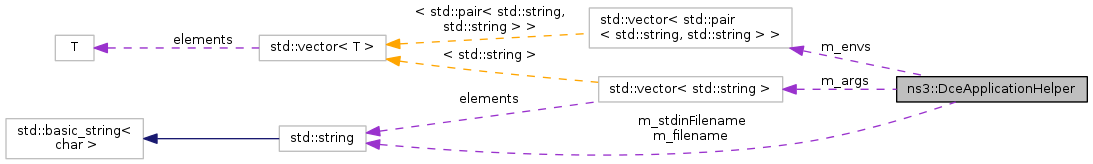

Collaboration diagram for ns3::DceApplicationHelper:

Public Member Functions
	DceApplicationHelper ()
void	AddArgument (std::string arg)
void	AddArguments (std::string a0, std::string a1)
void	AddArguments (std::string a0, std::string a1, std::string a2)
void	AddArguments (std::string a0, std::string a1, std::string a2, std::string a3)
void	AddArguments (std::string a0, std::string a1, std::string a2, std::string a3, std::string a4)
void	AddArguments (std::string a0, std::string a1, std::string a2, std::string a3, std::string a4, std::string a5)
void	AddArguments (std::string a0, std::string a1, std::string a2, std::string a3, std::string a4, std::string a5, std::string a6)
void	AddArguments (std::string a0, std::string a1, std::string a2, std::string a3, std::string a4, std::string a5, std::string a6, std::string a7)
void	AddEnvironment (std::string name, std::string value)
virtual ApplicationContainer	Install (NodeContainer c)
void	ParseArguments (std::string args)
void	ResetArguments (void)
void	ResetEnvironment (void)
void	SetBinary (std::string filename)
void	SetEgid (uid_t i)
void	SetEuid (uid_t i)
void	SetFinishedCallback (Callback< void, uint16_t, int > cb)
void	SetGid (uid_t i)
void	SetStackSize (uint32_t stackSize)
void	SetStdinFile (std::string filename)
void	SetUid (uid_t i)

Private Attributes
std::vector< std::string >	m_args
uid_t	m_egid
std::vector< std::pair < std::string, std::string > >	m_envs
uid_t	m_euid
std::string	m_filename
Callback< void, uint16_t, int >	m_finishedCallback
uid_t	m_gid
bool	m_isBinary
uint32_t	m_stackSize
std::string	m_stdinFilename
uid_t	m_uid

Detailed Description

Configuration helper for the application executed with DCE.

Definition at line 16 of file dce-application-helper.h.

Constructor & Destructor Documentation

ns3::DceApplicationHelper::DceApplicationHelper ( )

Construct a DceApplicationHelper

Definition at line 10 of file dce-application-helper.cc.

Member Function Documentation

void ns3::DceApplicationHelper::AddArgument ( std::string arg )

Parameters

arg	add an argument for the main executable

Definition at line 34 of file dce-application-helper.cc.

References m_args.

Referenced by AddArguments(), and ParseArguments().

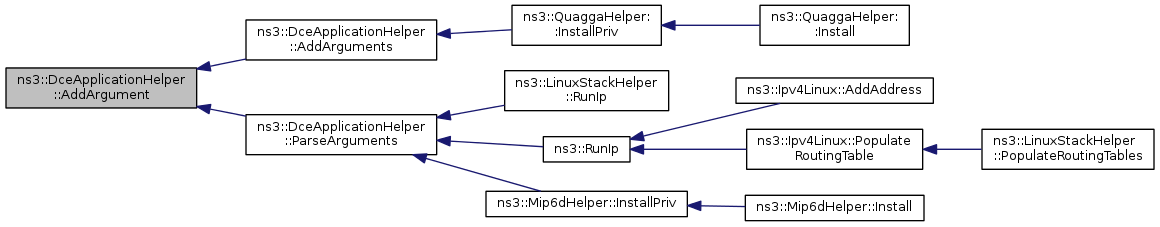

Here is the caller graph for this function:

void ns3::DceApplicationHelper::AddArguments	(	std::string	a0,
		std::string	a1
	)

Definition at line 39 of file dce-application-helper.cc.

References AddArgument().

Referenced by ns3::QuaggaHelper::InstallPriv().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DceApplicationHelper::AddArguments	(	std::string	a0,
		std::string	a1,
		std::string	a2
	)

Definition at line 45 of file dce-application-helper.cc.

References AddArgument().

Here is the call graph for this function:

void ns3::DceApplicationHelper::AddArguments	(	std::string	a0,
		std::string	a1,
		std::string	a2,
		std::string	a3
	)

Definition at line 52 of file dce-application-helper.cc.

References AddArgument().

Here is the call graph for this function:

void ns3::DceApplicationHelper::AddArguments	(	std::string	a0,
		std::string	a1,
		std::string	a2,
		std::string	a3,
		std::string	a4
	)

Definition at line 60 of file dce-application-helper.cc.

References AddArgument().

Here is the call graph for this function:

void ns3::DceApplicationHelper::AddArguments	(	std::string	a0,
		std::string	a1,
		std::string	a2,
		std::string	a3,
		std::string	a4,
		std::string	a5
	)

Definition at line 70 of file dce-application-helper.cc.

References AddArgument().

Here is the call graph for this function:

void ns3::DceApplicationHelper::AddArguments	(	std::string	a0,
		std::string	a1,
		std::string	a2,
		std::string	a3,
		std::string	a4,
		std::string	a5,
		std::string	a6
	)

Definition at line 81 of file dce-application-helper.cc.

References AddArgument().

Here is the call graph for this function:

void ns3::DceApplicationHelper::AddArguments	(	std::string	a0,
		std::string	a1,
		std::string	a2,
		std::string	a3,
		std::string	a4,
		std::string	a5,
		std::string	a6,
		std::string	a7
	)

Definition at line 93 of file dce-application-helper.cc.

References AddArgument().

Here is the call graph for this function:

void ns3::DceApplicationHelper::AddEnvironment	(	std::string	name,
		std::string	value
	)

Add environmental variable for this appilcation.

Parameters

name	the variable name to the environment. e.g., "HOME"
value	the variable value to the environment. e.g., "/home/furbani"

Definition at line 124 of file dce-application-helper.cc.

References m_envs.

ApplicationContainer ns3::DceApplicationHelper::Install ( NodeContainer c )

virtual

Install the configured application into node.

Parameters

c	NodeContainer that run this application.

Reimplemented in ns3::CcnClientHelper.

Definition at line 135 of file dce-application-helper.cc.

References m_args, m_envs, m_euid, m_filename, m_finishedCallback, m_stackSize, m_stdinFilename, and m_uid.

Referenced by ns3::Mip6dHelper::InstallPriv(), ns3::QuaggaHelper::InstallPriv(), ns3::RunIp(), and ns3::LinuxStackHelper::RunIp().

Here is the caller graph for this function:

void ns3::DceApplicationHelper::ParseArguments ( std::string args )

Parameters

args	add a string of arguments for the main executable. can specify with space-separated arguments, e.g., "-d -f test.conf".

Definition at line 105 of file dce-application-helper.cc.

References AddArgument().

Referenced by ns3::Mip6dHelper::InstallPriv(), ns3::RunIp(), and ns3::LinuxStackHelper::RunIp().

Here is the call graph for this function:

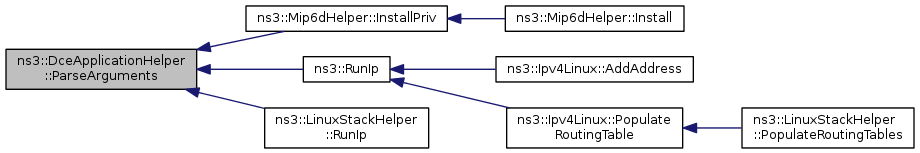

Here is the caller graph for this function:

void ns3::DceApplicationHelper::ResetArguments ( void )

Reset arguments for the main binary for this application.

Definition at line 119 of file dce-application-helper.cc.

References m_args.

Referenced by ns3::Mip6dHelper::InstallPriv(), ns3::QuaggaHelper::InstallPriv(), ns3::RunIp(), and ns3::LinuxStackHelper::RunIp().

Here is the caller graph for this function:

void ns3::DceApplicationHelper::ResetEnvironment ( void )

Reset environmental variables for the main binary for this application.

Definition at line 129 of file dce-application-helper.cc.

References m_envs.

void ns3::DceApplicationHelper::SetBinary ( std::string filename )

Parameters

filename the name of executable file to run

Definition at line 19 of file dce-application-helper.cc.

References m_filename.

Referenced by ns3::Mip6dHelper::InstallPriv(), ns3::QuaggaHelper::InstallPriv(), ns3::RunIp(), and ns3::LinuxStackHelper::RunIp().

Here is the caller graph for this function:

void ns3::DceApplicationHelper::SetEgid ( uid_t i )

Configure effective group ID of this process.

Parameters

i	the value of egid.

Definition at line 180 of file dce-application-helper.cc.

References m_egid.

void ns3::DceApplicationHelper::SetEuid ( uid_t i )

Configure effective user ID of this process.

Parameters

i	the value of euid.

Definition at line 170 of file dce-application-helper.cc.

References m_euid.

void ns3::DceApplicationHelper::SetFinishedCallback ( Callback< void, uint16_t, int > cb )

Register callback function invoked at the end of application.

Parameters

cb	callback function to be called.

Definition at line 160 of file dce-application-helper.cc.

References m_finishedCallback.

void ns3::DceApplicationHelper::SetGid ( uid_t i )

Configure group ID of this process.

Parameters

i	the value of gid.

Definition at line 175 of file dce-application-helper.cc.

References m_gid.

void ns3::DceApplicationHelper::SetStackSize ( uint32_t stackSize )

Parameters

stackSize stack size for this application.

Definition at line 24 of file dce-application-helper.cc.

References m_stackSize.

Referenced by ns3::Mip6dHelper::InstallPriv(), ns3::QuaggaHelper::InstallPriv(), ns3::RunIp(), and ns3::LinuxStackHelper::RunIp().

Here is the caller graph for this function:

void ns3::DceApplicationHelper::SetStdinFile ( std::string filename )

Parameters

filename specify the filename to use as a stdin

Definition at line 29 of file dce-application-helper.cc.

References m_stdinFilename.

void ns3::DceApplicationHelper::SetUid ( uid_t i )

Configure 'uid' of the process.

Parameters

i	the value of uid.

Definition at line 165 of file dce-application-helper.cc.

References m_uid.

Member Data Documentation

std::vector<std::string> ns3::DceApplicationHelper::m_args

private

Definition at line 118 of file dce-application-helper.h.

Referenced by AddArgument(), Install(), and ResetArguments().

uid_t ns3::DceApplicationHelper::m_egid

private

Definition at line 125 of file dce-application-helper.h.

Referenced by SetEgid().

std::vector<std::pair<std::string,std::string> > ns3::DceApplicationHelper::m_envs

private

Definition at line 119 of file dce-application-helper.h.

Referenced by AddEnvironment(), Install(), and ResetEnvironment().

uid_t ns3::DceApplicationHelper::m_euid

private

Definition at line 123 of file dce-application-helper.h.

Referenced by Install(), and SetEuid().

std::string ns3::DceApplicationHelper::m_filename

private

Definition at line 116 of file dce-application-helper.h.

Referenced by Install(), and SetBinary().

Callback<void,uint16_t,int> ns3::DceApplicationHelper::m_finishedCallback

private

Definition at line 121 of file dce-application-helper.h.

Referenced by Install(), and SetFinishedCallback().

uid_t ns3::DceApplicationHelper::m_gid

private

Definition at line 124 of file dce-application-helper.h.

Referenced by SetGid().

bool ns3::DceApplicationHelper::m_isBinary

private

Definition at line 115 of file dce-application-helper.h.

uint32_t ns3::DceApplicationHelper::m_stackSize

private

Definition at line 117 of file dce-application-helper.h.

Referenced by Install(), and SetStackSize().

std::string ns3::DceApplicationHelper::m_stdinFilename

private

Definition at line 120 of file dce-application-helper.h.

Referenced by Install(), and SetStdinFile().

uid_t ns3::DceApplicationHelper::m_uid

private

Definition at line 122 of file dce-application-helper.h.

Referenced by Install(), and SetUid().

The documentation for this class was generated from the following files:

helper/dce-application-helper.h
helper/dce-application-helper.cc
