ns3::FiberManager Class Reference

#include <fiber-manager.h>

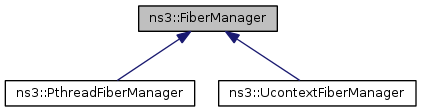

Inheritance diagram for ns3::FiberManager:

Public Member Functions
virtual	~FiberManager ()
virtual struct Fiber *	Clone (struct Fiber *fiber)
virtual struct Fiber *	Create (void(*callback)(void *), void *context, uint32_t stackSize)=0
virtual struct Fiber *	CreateFromCaller (void)=0
virtual void	Delete (struct Fiber *fiber)=0
virtual uint32_t	GetStackSize (struct Fiber *fiber) const =0
virtual void	SetSwitchNotification (void(*fn)(void))=0
virtual void	SwitchTo (struct Fiber *from, const struct Fiber *to)=0

Detailed Description

Definition at line 11 of file fiber-manager.h.

Constructor & Destructor Documentation

ns3::FiberManager::~FiberManager ( )

virtual

Definition at line 5 of file fiber-manager.cc.

Member Function Documentation

virtual struct Fiber* ns3::FiberManager::Clone ( struct Fiber *  fiber )

inlinereadvirtual

Reimplemented in ns3::PthreadFiberManager.

Definition at line 16 of file fiber-manager.h.

Referenced by ns3::TaskManager::Clone().

Here is the caller graph for this function:

virtual struct Fiber* ns3::FiberManager::Create ( void(*)(void *)  callback, void *  context, uint32_t  stackSize  )

readpure virtual

Parameters

callback	function to use as main loop for the newly-created fiber
stackSize	size of the stack to allocate for this fiber.

Returns

a newly-created fiber context.

Implemented in ns3::PthreadFiberManager, and ns3::UcontextFiberManager.

Referenced by ns3::TaskManager::Start().

Here is the caller graph for this function:

virtual struct Fiber* ns3::FiberManager::CreateFromCaller ( void  )

readpure virtual

Returns

an empty context

Create a fiber context which can be used as a from argument to the SwitchTo method This method is usually used to create a context which references the main 'normal' thread. i.e., the thread initially managed by the underlying kernel which runs on the kernel-managed stack.

Implemented in ns3::PthreadFiberManager, and ns3::UcontextFiberManager.

Referenced by ns3::TaskManager::SetFiberManagerType().

Here is the caller graph for this function:

virtual void ns3::FiberManager::Delete ( struct Fiber *  fiber )

pure virtual

Parameters

context

to delete

Release any ressource associated to this context. Obviously, this method must be called from another context than the one which is being deleted.

Implemented in ns3::PthreadFiberManager, and ns3::UcontextFiberManager.

Referenced by ns3::TaskManager::GarbageCollectDeadTasks(), ns3::TaskManager::Stop(), and ns3::TaskManager::~TaskManager().

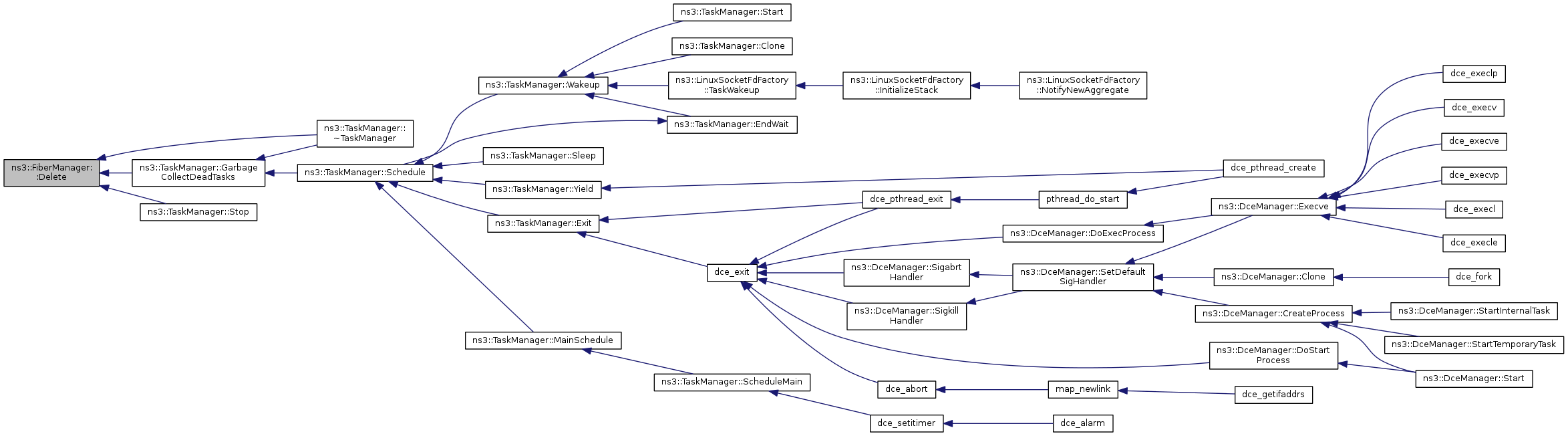

Here is the caller graph for this function:

virtual uint32_t ns3::FiberManager::GetStackSize ( struct Fiber *  fiber ) const

pure virtual

Returns

size of stack allocated in fiber.

Implemented in ns3::PthreadFiberManager, and ns3::UcontextFiberManager.

Referenced by ns3::TaskManager::GetStackSize().

Here is the caller graph for this function:

virtual void ns3::FiberManager::SetSwitchNotification ( void(*)(void)  fn )

pure virtual

Parameters

fn	a function which will be invoked whenever SwitchTo is invoked, just before it returns to the destination fiber.

Implemented in ns3::PthreadFiberManager, and ns3::UcontextFiberManager.

Referenced by ns3::TaskManager::SetFiberManagerType(), and ns3::TaskManager::SetSwitchNotify().

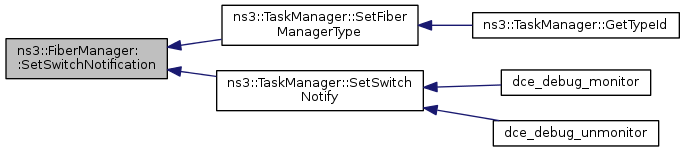

Here is the caller graph for this function:

virtual void ns3::FiberManager::SwitchTo ( struct Fiber *  from, const struct Fiber *  to  )

pure virtual

Parameters

from	from context
to	to context

This function saves the caller's context into the from context and restores the current context from the to context. The first time this function is called, it is usually called with a from set to a context obtained through CreateFromCaller and with a to set to a context obtained through Create.

Implemented in ns3::PthreadFiberManager, and ns3::UcontextFiberManager.

Referenced by ns3::TaskManager::ExecOnMain(), and ns3::TaskManager::Schedule().

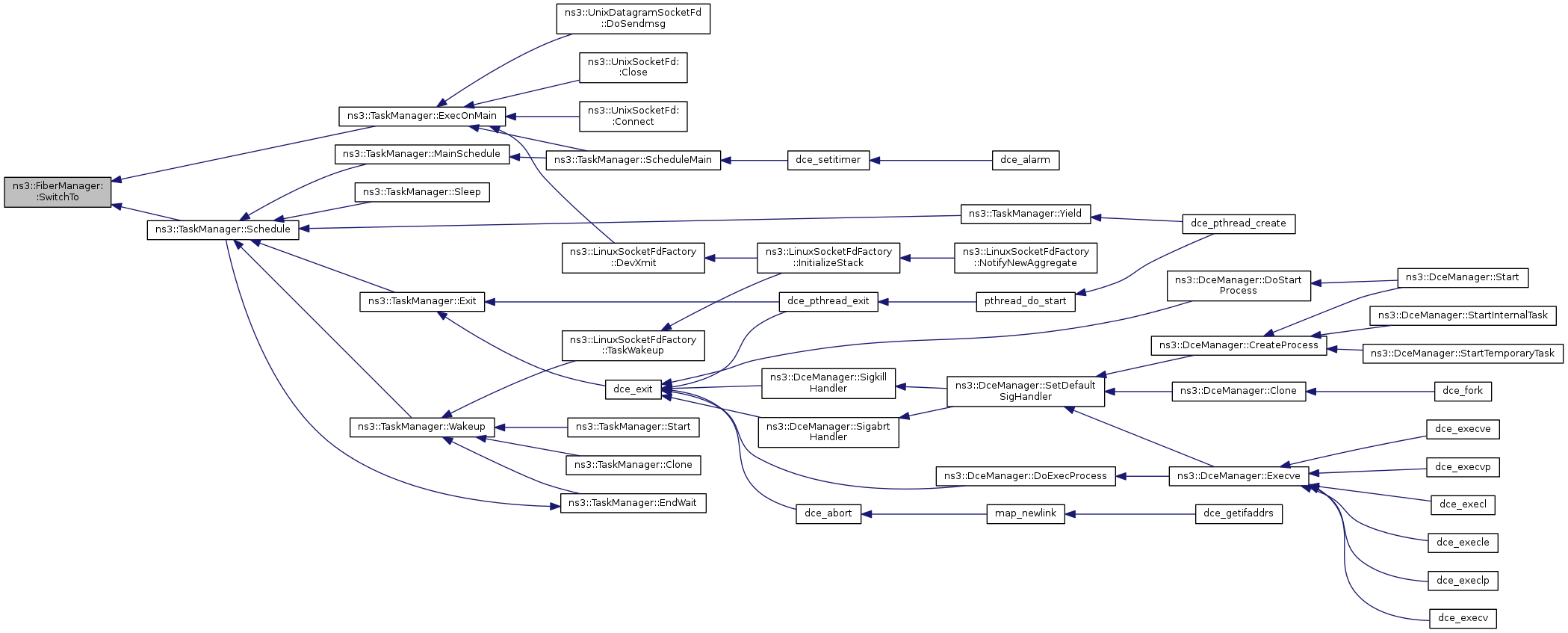

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• model/fiber-manager.h
• model/fiber-manager.cc
