create a quagga routing daemon as an application and associate it to a node More...

#include <quagga-helper.h>

Public Member Functions
	QuaggaHelper ()
void	BgpAddNeighbor (Ptr< Node > node, std::string neighbor, uint32_t asn)
	Configure the neighbor of BGP peer to exchange the route information to the bgp daemon (via neighbor remote-as command).
void	EnableBgp (NodeContainer nodes)
	Enable the bgpd daemon to the nodes.
void	EnableHomeAgentFlag (Ptr< Node > node, const char *ifname)
	Configure HomeAgent Information Option (RFC 3775) in Router Advertisement to the zebra daemon (via ipv6 nd home-agent-config-flag).
void	EnableOspf (NodeContainer nodes, const char *network)
	Enable the ospfd daemon to the nodes.
void	EnableOspf6 (NodeContainer nodes, const char *ifname)
	Enable the ospf6d daemon (OSPFv3) to the nodes.
void	EnableOspf6Debug (NodeContainer nodes)
	Configure the debug option to the ospf6d daemon (via debug ospf6d xxx).
void	EnableOspfDebug (NodeContainer nodes)
	Configure the debug option to the ospfd daemon (via debug ospf xxx).
void	EnableRadvd (Ptr< Node > node, const char ifname, const char prefix)
	Enable Router Advertisement configuration to the zebra daemon (via no ipv6 nd suppress-ra xxx).
void	EnableRip (NodeContainer nodes, const char *ifname)
	Enable the ripd daemon (RIP v1/v2, RFC2453) to the nodes.
void	EnableRipDebug (NodeContainer nodes)
	Configure the debug option to the ripd daemon (via debug rip xxx).
void	EnableRipng (NodeContainer nodes, const char *ifname)
	Enable the ripngd daemon (RIPng, RFC2080) to the nodes.
void	EnableRipngDebug (NodeContainer nodes)
	Configure the debug option to the ripngd daemon (via debug ripng xxx).
void	EnableZebraDebug (NodeContainer nodes)
	Configure the debug option to the zebra daemon (via debug zebra xxx).
uint32_t	GetAsn (Ptr< Node > node)
	Get the Autonomous System number (AS number) of the nodes.
ApplicationContainer	Install (NodeContainer nodes)
ApplicationContainer	Install (Ptr< Node > node)
ApplicationContainer	Install (std::string nodeName)
void	SetAttribute (std::string name, const AttributeValue &value)
	Configure ping applications attribute.
void	UseManualZebraConfig (NodeContainer nodes)
	Indicate the config file to edit by manually (locate zebra.conf at files-X/usr/local/etc/zebra.conf).

Private Member Functions
void	GenerateConfigBgp (Ptr< Node > node)
void	GenerateConfigOspf (Ptr< Node > node)
void	GenerateConfigOspf6 (Ptr< Node > node)
void	GenerateConfigRip (Ptr< Node > node)
void	GenerateConfigRipng (Ptr< Node > node)
void	GenerateConfigZebra (Ptr< Node > node)
ApplicationContainer	InstallPriv (Ptr< Node > node)

Detailed Description

create a quagga routing daemon as an application and associate it to a node

This class creates one or multiple instances of ns3::Quagga and associates it/them to one/multiple node(s).

Definition at line 34 of file quagga-helper.h.

Constructor & Destructor Documentation

ns3::QuaggaHelper::QuaggaHelper ( )

Create a QuaggaHelper which is used to make life easier for people wanting to use quagga Applications.

Definition at line 591 of file quagga-helper.cc.

Member Function Documentation

void ns3::QuaggaHelper::BgpAddNeighbor	(	Ptr< Node >	node,
		std::string	neighbor,
		uint32_t	asn
	)

Configure the neighbor of BGP peer to exchange the route information to the bgp daemon (via neighbor remote-as command).

Parameters

neighbor	The string of the experssion of a remote neighbor (IPv4/v6 address).
asn	The AS number of the remote neighbor.

Definition at line 730 of file quagga-helper.cc.

References ns3::BgpConfig::SetAsn().

Here is the call graph for this function:

void ns3::QuaggaHelper::EnableBgp ( NodeContainer nodes )

Enable the bgpd daemon to the nodes.

Parameters

nodes The node(s) to enable BGP (quagga bgpd).

Definition at line 702 of file quagga-helper.cc.

References ns3::BgpConfig::SetAsn().

Here is the call graph for this function:

void ns3::QuaggaHelper::EnableHomeAgentFlag	(	Ptr< Node >	node,
		const char *	ifname
	)

Configure HomeAgent Information Option (RFC 3775) in Router Advertisement to the zebra daemon (via ipv6 nd home-agent-config-flag).

Parameters

ifname The string of the interface name to enable this option.

Definition at line 669 of file quagga-helper.cc.

void ns3::QuaggaHelper::EnableOspf	(	NodeContainer	nodes,
		const char *	network
	)

Enable the ospfd daemon to the nodes.

Parameters

nodes	The node(s) to enable OSPFv2 (quagga ospfd).
network	The network to enable ospf protocol.

Definition at line 602 of file quagga-helper.cc.

void ns3::QuaggaHelper::EnableOspf6	(	NodeContainer	nodes,
		const char *	ifname
	)

Enable the ospf6d daemon (OSPFv3) to the nodes.

Parameters

nodes	The node(s) to enable OSPFv3 (quagga ospf6d).
ifname	The interface to enable OSPFv3.

Definition at line 745 of file quagga-helper.cc.

void ns3::QuaggaHelper::EnableOspf6Debug ( NodeContainer nodes )

Configure the debug option to the ospf6d daemon (via debug ospf6d xxx).

Parameters

nodes The node(s) to configure the options.

Definition at line 764 of file quagga-helper.cc.

void ns3::QuaggaHelper::EnableOspfDebug ( NodeContainer nodes )

Configure the debug option to the ospfd daemon (via debug ospf xxx).

Parameters

nodes The node(s) to configure the options.

Definition at line 619 of file quagga-helper.cc.

void ns3::QuaggaHelper::EnableRadvd	(	Ptr< Node >	node,
		const char *	ifname,
		const char *	prefix
	)

Enable Router Advertisement configuration to the zebra daemon (via no ipv6 nd suppress-ra xxx).

Parameters

node	The node to configure the options.
ifname	The string of the interface name to enable this option.
prefix	The string of the network prefix to advertise.

Definition at line 652 of file quagga-helper.cc.

void ns3::QuaggaHelper::EnableRip	(	NodeContainer	nodes,
		const char *	ifname
	)

Enable the ripd daemon (RIP v1/v2, RFC2453) to the nodes.

Parameters

nodes	The node(s) to enable RIP (quagga ripd).
ifname	The interface to enable RIP.

Definition at line 781 of file quagga-helper.cc.

void ns3::QuaggaHelper::EnableRipDebug ( NodeContainer nodes )

Configure the debug option to the ripd daemon (via debug rip xxx).

Parameters

nodes The node(s) to configure the options.

Definition at line 799 of file quagga-helper.cc.

void ns3::QuaggaHelper::EnableRipng	(	NodeContainer	nodes,
		const char *	ifname
	)

Enable the ripngd daemon (RIPng, RFC2080) to the nodes.

Parameters

nodes	The node(s) to enable RIPng (quagga ripngd).
ifname	The interface to enable RIPng.

Definition at line 816 of file quagga-helper.cc.

void ns3::QuaggaHelper::EnableRipngDebug ( NodeContainer nodes )

Configure the debug option to the ripngd daemon (via debug ripng xxx).

Parameters

nodes The node(s) to configure the options.

Definition at line 834 of file quagga-helper.cc.

void ns3::QuaggaHelper::EnableZebraDebug ( NodeContainer nodes )

Configure the debug option to the zebra daemon (via debug zebra xxx).

Parameters

nodes The node(s) to configure the options.

Definition at line 636 of file quagga-helper.cc.

void ns3::QuaggaHelper::GenerateConfigBgp ( Ptr< Node > node )

private

Definition at line 942 of file quagga-helper.cc.

References ns3::BgpConfig::SetFilename().

Referenced by InstallPriv().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::QuaggaHelper::GenerateConfigOspf ( Ptr< Node > node )

private

Definition at line 912 of file quagga-helper.cc.

References ns3::OspfConfig::m_routerId.

Referenced by InstallPriv().

Here is the caller graph for this function:

void ns3::QuaggaHelper::GenerateConfigOspf6 ( Ptr< Node > node )

private

Definition at line 969 of file quagga-helper.cc.

References ns3::Ospf6Config::SetFilename().

Referenced by InstallPriv().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::QuaggaHelper::GenerateConfigRip ( Ptr< Node > node )

private

Definition at line 994 of file quagga-helper.cc.

References ns3::RipConfig::SetFilename().

Referenced by InstallPriv().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::QuaggaHelper::GenerateConfigRipng ( Ptr< Node > node )

private

Definition at line 1022 of file quagga-helper.cc.

References ns3::RipngConfig::SetFilename().

Referenced by InstallPriv().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::QuaggaHelper::GenerateConfigZebra ( Ptr< Node > node )

private

Definition at line 850 of file quagga-helper.cc.

References ns3::QuaggaConfig::SetFilename().

Referenced by InstallPriv().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::QuaggaHelper::GetAsn ( Ptr< Node > node )

Get the Autonomous System number (AS number) of the nodes.

Parameters

node	The node to obtain ASN.

Definition at line 719 of file quagga-helper.cc.

References ns3::BgpConfig::GetAsn().

Here is the call graph for this function:

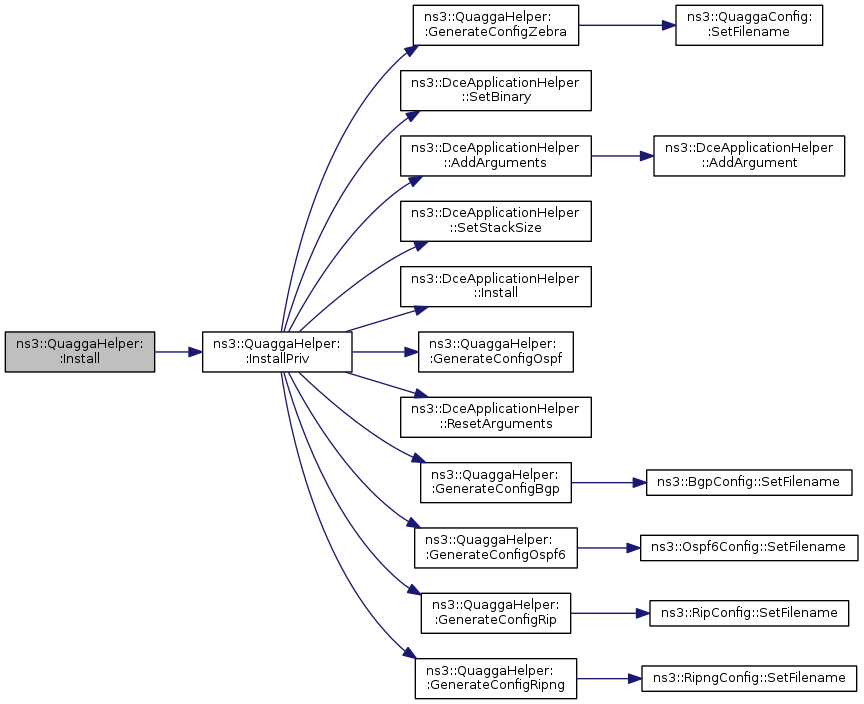

ApplicationContainer ns3::QuaggaHelper::Install ( NodeContainer nodes )

Install a quagga application on each Node in the provided NodeContainer.

Parameters

nodes The NodeContainer containing all of the nodes to get a quagga application via ProcessManager.

Returns: A list of quagga applications, one for each input node

Definition at line 1063 of file quagga-helper.cc.

References InstallPriv().

Here is the call graph for this function:

ApplicationContainer ns3::QuaggaHelper::Install ( Ptr< Node > node )

Install a quagga application on the provided Node. The Node is specified directly by a Ptr<Node>

Parameters

node	The node to install the QuaggaApplication on.

Returns: An ApplicationContainer holding the quagga application created.

Definition at line 1050 of file quagga-helper.cc.

References InstallPriv().

Here is the call graph for this function:

ApplicationContainer ns3::QuaggaHelper::Install ( std::string nodeName )

Install a quagga application on the provided Node. The Node is specified by a string that must have previosly been associated with a Node using the Object Name Service.

Parameters

nodeName The node to install the ProcessApplication on.
