ns3::EnbNetDevice Class Reference

#include <enb-net-device.h>

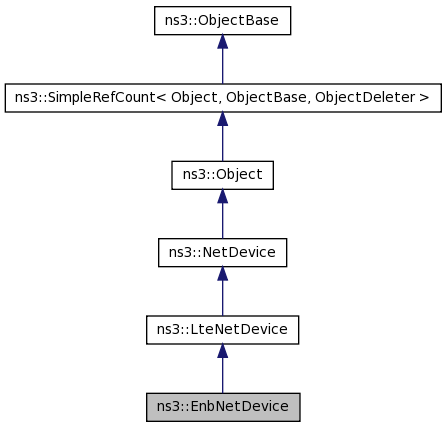

Inheritance diagram for ns3::EnbNetDevice:

[legend]

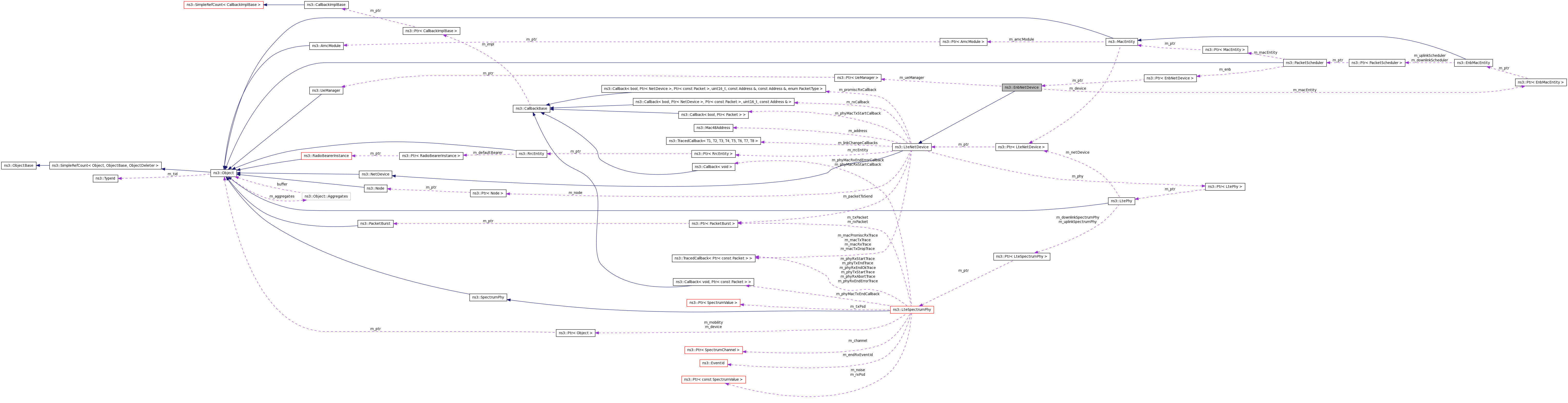

Collaboration diagram for ns3::EnbNetDevice:

[legend]

List of all members.

Public Member Functions
	EnbNetDevice (Ptr< Node > node, Ptr< LtePhy > phy)
	Create eNB net device.
virtual void	DoDispose (void)
void	InitEnbNetDevice (void)
	Initialize all parameters of this device.
void	Start (void)
	Starts the run of this device.
void	Stop (void)
	Stops the run of this device.
void	SetUeManager (Ptr< UeManager > m)
	Set the UE manager.
Ptr< UeManager >	GetUeManager (void)
	Get the UE manager.
void	SetMacEntity (Ptr< EnbMacEntity > m)
	Set the MAC entity.
Ptr< EnbMacEntity >	GetMacEntity (void)
	Get the MAC entity.
void	StartTransmission (void)
	Start packet transmission. This functipon will called at the end of downlink scheduling to start the transmission of the burst of packet created by the packet-scheduler.
bool	SendPacket (Ptr< PacketBurst > p)
	Send a pachet burst to the physical layer.
void	SendIdealPdcchMessage (void)
	Send the PDCCH ideal mesages under an ideal control channel.
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::EnbNetDevice.

---

Detailed Description

The eNodeB device implementation

---

Constructor & Destructor Documentation

ns3::EnbNetDevice::EnbNetDevice	(	Ptr< Node >	node,
		Ptr< LtePhy >	phy
	)

Create eNB net device.

Parameters:

	node	the network node
	phy	the physical object attache dto it

---

Member Function Documentation

virtual void ns3::EnbNetDevice::DoDispose

(

void

)

[virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LteNetDevice.

Ptr<EnbMacEntity> ns3::EnbNetDevice::GetMacEntity

(

void

)

Get the MAC entity.

Returns:

the pointer to the MAC entity

static TypeId ns3::EnbNetDevice::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::EnbNetDevice.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::LteNetDevice/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::EnbNetDevice
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::LteNetDevice/$ns3::EnbNetDevice

No Attributes defined for this type.
Attributes defined in parent class ns3::LteNetDevice:

• Mtu: The MAC-level Maximum Transmission Unit
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:1500
  • Initial value: 1500
  • Flags: construct write read
• Phy: The PHY layer attached to this device.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::LtePhy >
  • Initial value: 0
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::LteNetDevice.

Ptr<UeManager> ns3::EnbNetDevice::GetUeManager

(

void

)

Get the UE manager.

Returns:

the pointer to the UE manager

bool ns3::EnbNetDevice::SendPacket

(

Ptr< PacketBurst >

p

)

[virtual]

Send a pachet burst to the physical layer.

Parameters:

p

the packet burst

Returns:

Implements ns3::LteNetDevice.

void ns3::EnbNetDevice::SetMacEntity

(

Ptr< EnbMacEntity >

m

)

Set the MAC entity.

Parameters:

m

the MAC entity

void ns3::EnbNetDevice::SetUeManager

(

Ptr< UeManager >

m

)

Set the UE manager.

Parameters:

m

the UE manager

---

The documentation for this class was generated from the following files:

• src/devices/lte/model/enb-net-device.h
• doc/introspected-doxygen.h
