ns3::Ipv6Extension Class Reference
IPv6 Extension base If you want to implement a new IPv6 extension, all you have to do is implement a subclass of this class and add it to an Ipv6ExtensionDemux. More...
#include <ipv6-extension.h>

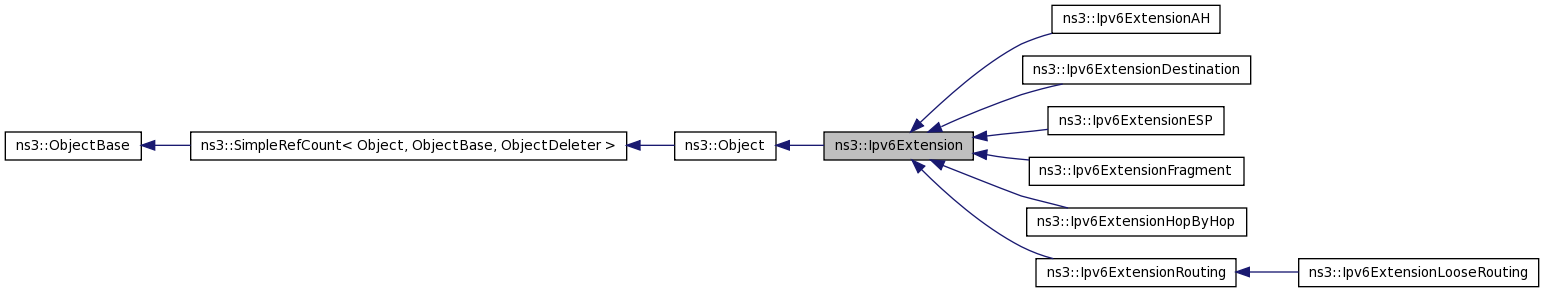

Inheritance diagram for ns3::Ipv6Extension:

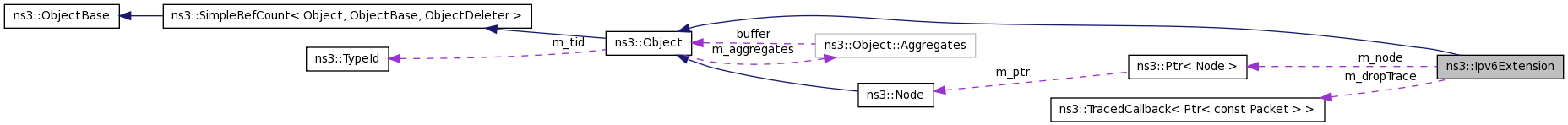

Collaboration diagram for ns3::Ipv6Extension:
Public Member Functions | |
| virtual | ~Ipv6Extension () |
| Destructor. | |
| void | SetNode (Ptr< Node > node) |
| Set the node. | |
| Ptr< Node > | GetNode () const |
| Get the node. | |
| virtual uint8_t | GetExtensionNumber () const =0 |
| Get the extension number. | |
| virtual uint8_t | Process (Ptr< Packet > &packet, uint8_t offset, Ipv6Header const &ipv6Header, Ipv6Address dst, uint8_t *nextHeader, bool &isDropped)=0 |
| Process method Called from Ipv6L3Protocol::Receive. | |
| virtual uint8_t | ProcessOptions (Ptr< Packet > &packet, uint8_t offset, uint8_t length, Ipv6Header const &ipv6Header, Ipv6Address dst, uint8_t *nextHeader, bool &isDropped) |
| Process options Called by implementing classes to process the options. | |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Get the type identificator. | |
Protected Attributes | |
|
TracedCallback< Ptr< const Packet > > | m_dropTrace |
| Drop trace callback. | |
Detailed Description
IPv6 Extension base If you want to implement a new IPv6 extension, all you have to do is implement a subclass of this class and add it to an Ipv6ExtensionDemux.
Member Function Documentation
| virtual uint8_t ns3::Ipv6Extension::GetExtensionNumber | ( | ) | const [pure virtual] |
Get the extension number.
- Returns:
- extension number
Implemented in ns3::Ipv6ExtensionHopByHop, ns3::Ipv6ExtensionDestination, ns3::Ipv6ExtensionFragment, ns3::Ipv6ExtensionRouting, ns3::Ipv6ExtensionESP, and ns3::Ipv6ExtensionAH.
| static TypeId ns3::Ipv6Extension::GetTypeId | ( | void | ) | [static] |
Get the type identificator.
This method returns the TypeId associated to ns3::Ipv6Extension.
- Returns:
- type identificator
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6ExtensionDemux/Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6Extension
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6ExtensionDemux/Extensions/[i]
Attributes defined for this type:
-
ExtensionNumber: The IPv6 extension number.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read
TraceSources defined for this type:
- Drop: Drop ipv6 packet
Reimplemented from ns3::Object.
Reimplemented in ns3::Ipv6ExtensionHopByHop, ns3::Ipv6ExtensionDestination, ns3::Ipv6ExtensionFragment, ns3::Ipv6ExtensionRouting, ns3::Ipv6ExtensionLooseRouting, ns3::Ipv6ExtensionESP, and ns3::Ipv6ExtensionAH.
| virtual uint8_t ns3::Ipv6Extension::Process | ( | Ptr< Packet > & | packet, | |
| uint8_t | offset, | |||
| Ipv6Header const & | ipv6Header, | |||
| Ipv6Address | dst, | |||
| uint8_t * | nextHeader, | |||
| bool & | isDropped | |||
| ) | [pure virtual] |
Process method Called from Ipv6L3Protocol::Receive.
- Parameters:
-
packet the packet offset the offset of the extension to process ipv6Header the IPv6 header of packet received dst destination address of the packet received (i.e. us) nextHeader the next header isDropped if the packet must be dropped
- Returns:
- the size processed
Implemented in ns3::Ipv6ExtensionHopByHop, ns3::Ipv6ExtensionDestination, ns3::Ipv6ExtensionFragment, ns3::Ipv6ExtensionRouting, ns3::Ipv6ExtensionLooseRouting, ns3::Ipv6ExtensionESP, and ns3::Ipv6ExtensionAH.
| virtual uint8_t ns3::Ipv6Extension::ProcessOptions | ( | Ptr< Packet > & | packet, | |
| uint8_t | offset, | |||
| uint8_t | length, | |||
| Ipv6Header const & | ipv6Header, | |||
| Ipv6Address | dst, | |||
| uint8_t * | nextHeader, | |||
| bool & | isDropped | |||
| ) | [virtual] |
Process options Called by implementing classes to process the options.
- Parameters:
-
packet the packet offset the offset of the first option to process length the total length of all options (as specified in the extension header) ipv6Header the IPv6 header of packet received dst destination address of the packet received (i.e. us) nextHeader the next header isDropped if the packet must be dropped
- Returns:
- the size processed
Set the node.
- Parameters:
-
node the node to set
The documentation for this class was generated from the following files:
- src/internet-stack/ipv6-extension.h
- doc/introspected-doxygen.h
