ns3::Ipv6ExtensionDemux Class Reference

Demultiplexes IPv6 extensions. More...

#include <ipv6-extension-demux.h>

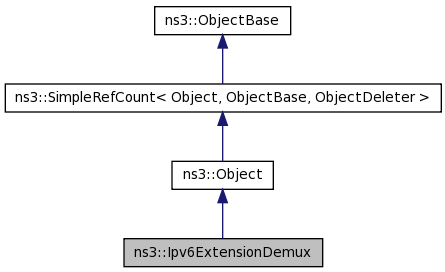

Inheritance diagram for ns3::Ipv6ExtensionDemux:

[legend]

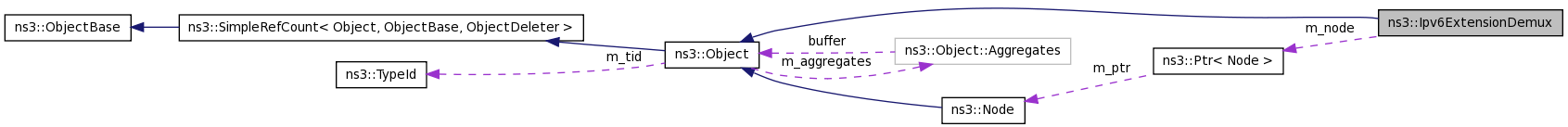

Collaboration diagram for ns3::Ipv6ExtensionDemux:

[legend]

List of all members.

Public Member Functions
	Ipv6ExtensionDemux ()
	Constructor.
virtual	~Ipv6ExtensionDemux ()
	Destructor.
void	SetNode (Ptr< Node > node)
	Set the node.
void	Insert (Ptr< Ipv6Extension > extension)
	Insert a new IPv6 Extension.
Ptr< Ipv6Extension >	GetExtension (uint8_t extensionNumber)
	Get the extension corresponding to extensionNumber.
void	Remove (Ptr< Ipv6Extension > extension)
	Remove an extension from this demux.
Static Public Member Functions
static TypeId	GetTypeId (void)
	The interface ID.
Protected Member Functions
virtual void	DoDispose ()
	Dispose object.

---

Detailed Description

Demultiplexes IPv6 extensions.

---

Member Function Documentation

Ptr<Ipv6Extension> ns3::Ipv6ExtensionDemux::GetExtension

(

uint8_t

extensionNumber

)

Get the extension corresponding to extensionNumber.

Parameters:

extensionNumber

extension number of the extension to retrieve

Returns:

a matching IPv6 extension

static TypeId ns3::Ipv6ExtensionDemux::GetTypeId

(

void

)

[static]

The interface ID.

This method returns the TypeId associated to ns3::Ipv6ExtensionDemux.

Returns:

type ID

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6ExtensionDemux
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6ExtensionDemux

Attributes defined for this type:

• Extensions: The set of IPv6 extensions registered with this demux.
  • Set with class: ns3::ObjectVectorValue
  • Underlying type: ns3::Ptr< ns3::Ipv6Extension >
  • Flags: read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

void ns3::Ipv6ExtensionDemux::Insert

(

Ptr< Ipv6Extension >

extension

)

Insert a new IPv6 Extension.

Parameters:

extension

the extension to insert

void ns3::Ipv6ExtensionDemux::Remove

(

Ptr< Ipv6Extension >

extension

)

Remove an extension from this demux.

Parameters:

extension

pointer on the extension to remove

void ns3::Ipv6ExtensionDemux::SetNode

(

Ptr< Node >

node

)

Set the node.

Parameters:

node

the node to set

---

The documentation for this class was generated from the following files:

• src/internet-stack/ipv6-extension-demux.h
• doc/introspected-doxygen.h
