ns3::PbbMessage Class Reference

A message within a PbbPacket packet. More...

#include <packetbb.h>

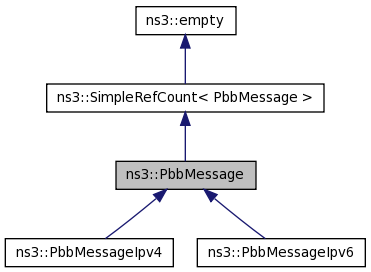

Inheritance diagram for ns3::PbbMessage:

[legend]

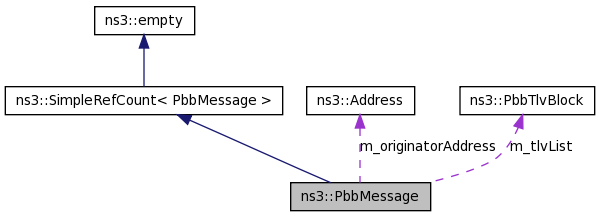

Collaboration diagram for ns3::PbbMessage:

[legend]

List of all members.

Public Types
typedef std::list< Ptr< PbbTlv > >::iterator	TlvIterator
typedef std::list< Ptr< PbbTlv > >::const_iterator	ConstTlvIterator
typedef std::list< Ptr < PbbAddressBlock > >::iterator	AddressBlockIterator
typedef std::list< Ptr < PbbAddressBlock > >::const_iterator	ConstAddressBlockIterator
Public Member Functions
void	SetType (uint8_t type)
	Sets the type for this message.
uint8_t	GetType (void) const
void	SetOriginatorAddress (Address address)
	Sets the address for the node that created this packet.
Address	GetOriginatorAddress (void) const
bool	HasOriginatorAddress (void) const
	Tests whether or not this message has an originator address.
void	SetHopLimit (uint8_t hoplimit)
	Sets the maximum number of hops this message should travel.
uint8_t	GetHopLimit (void) const
bool	HasHopLimit (void) const
	Tests whether or not this message has a hop limit.
void	SetHopCount (uint8_t hopcount)
	Sets the current number of hops this message has traveled.
uint8_t	GetHopCount (void) const
bool	HasHopCount (void) const
	Tests whether or not this message has a hop count.
void	SetSequenceNumber (uint16_t seqnum)
	Sets the sequence number of this message.
uint16_t	GetSequenceNumber (void) const
bool	HasSequenceNumber (void) const
	Tests whether or not this message has a sequence number.
TlvIterator	TlvBegin ()
ConstTlvIterator	TlvBegin () const
TlvIterator	TlvEnd ()
ConstTlvIterator	TlvEnd () const
int	TlvSize (void) const
bool	TlvEmpty (void) const
Ptr< PbbTlv >	TlvFront (void)
const Ptr< PbbTlv >	TlvFront (void) const
Ptr< PbbTlv >	TlvBack (void)
const Ptr< PbbTlv >	TlvBack (void) const
void	TlvPushFront (Ptr< PbbTlv > tlv)
	Prepends a message TLV to the front of this message.
void	TlvPopFront (void)
	Removes a message TLV from the front of this message.
void	TlvPushBack (Ptr< PbbTlv > tlv)
	Appends a message TLV to the back of this message.
void	TlvPopBack (void)
	Removes a message TLV from the back of this message.
TlvIterator	TlvErase (TlvIterator position)
	Removes the message TLV at the specified position.
TlvIterator	TlvErase (TlvIterator first, TlvIterator last)
	Removes all message TLVs from [first, last) (includes first, not includes last).
void	TlvClear (void)
	Removes all message TLVs from this block.
AddressBlockIterator	AddressBlockBegin ()
ConstAddressBlockIterator	AddressBlockBegin () const
AddressBlockIterator	AddressBlockEnd ()
ConstAddressBlockIterator	AddressBlockEnd () const
int	AddressBlockSize (void) const
bool	AddressBlockEmpty (void) const
Ptr< PbbAddressBlock >	AddressBlockFront (void)
const Ptr< PbbAddressBlock >	AddressBlockFront (void) const
Ptr< PbbAddressBlock >	AddressBlockBack (void)
const Ptr< PbbAddressBlock >	AddressBlockBack (void) const
void	AddressBlockPushFront (Ptr< PbbAddressBlock > block)
	Prepends an address block to the front of this message.
void	AddressBlockPopFront (void)
	Removes an address block from the front of this message.
void	AddressBlockPushBack (Ptr< PbbAddressBlock > block)
	Appends an address block to the front of this message.
void	AddressBlockPopBack (void)
	Removes an address block from the back of this message.
AddressBlockIterator	AddressBlockErase (AddressBlockIterator position)
	Removes the address block at the specified position.
AddressBlockIterator	AddressBlockErase (AddressBlockIterator first, AddressBlockIterator last)
	Removes all address blocks from [first, last) (includes first, not includes last).
void	AddressBlockClear (void)
	Removes all address blocks from this message.
uint32_t	GetSerializedSize (void) const
void	Serialize (Buffer::Iterator &start) const
	Serializes this message into the specified buffer.
void	Deserialize (Buffer::Iterator &start)
	Deserializes a message from the specified buffer.
void	Print (std::ostream &os) const
	Pretty-prints the contents of this message.
void	Print (std::ostream &os, int level) const
	Pretty-prints the contents of this message, with specified indentation.
bool	operator== (const PbbMessage &other) const
bool	operator!= (const PbbMessage &other) const
Static Public Member Functions
static Ptr< PbbMessage >	DeserializeMessage (Buffer::Iterator &start)
	Deserializes a message, returning the correct object depending on whether it is an IPv4 message or an IPv6 message.
Protected Member Functions
virtual PbbAddressLength	GetAddressLength (void) const =0
virtual void	SerializeOriginatorAddress (Buffer::Iterator &start) const =0
virtual Address	DeserializeOriginatorAddress (Buffer::Iterator &start) const =0
virtual void	PrintOriginatorAddress (std::ostream &os) const =0
virtual Ptr< PbbAddressBlock >	AddressBlockDeserialize (Buffer::Iterator &start) const =0

---

Detailed Description

A message within a PbbPacket packet.

There may be any number of messages in one packet packet. This is a pure virtual base class, when creating a message, you should instantiate either PbbMessageIpv4 or PbbMessageIpv6.

---

Member Function Documentation

const Ptr<PbbAddressBlock> ns3::PbbMessage::AddressBlockBack

(

void

)

const

Returns:

a const smart pointer to the last address block in this message.

Ptr<PbbAddressBlock> ns3::PbbMessage::AddressBlockBack

(

void

)

Returns:

a smart pointer to the last address block in this message.

ConstAddressBlockIterator ns3::PbbMessage::AddressBlockBegin

(

)

const

Returns:

a const iterator to the first address block in this message.

AddressBlockIterator ns3::PbbMessage::AddressBlockBegin

(

)

Returns:

an iterator to the first address block in this message.

bool ns3::PbbMessage::AddressBlockEmpty

(

void

)

const

Returns:

true if there are no address blocks in this message, false otherwise.

ConstAddressBlockIterator ns3::PbbMessage::AddressBlockEnd

(

)

const

Returns:

a const iterator to the past-the-end address block element in this message.

AddressBlockIterator ns3::PbbMessage::AddressBlockEnd

(

)

Returns:

an iterator to the past-the-end address block element in this message.

AddressBlockIterator ns3::PbbMessage::AddressBlockErase	(	AddressBlockIterator	first,
		AddressBlockIterator	last
	)

Removes all address blocks from [first, last) (includes first, not includes last).

Parameters:

	first	an Iterator pointing to the first address block to erase (inclusive).
	last	an Iterator pointing to the element past the last address block to erase.

Returns:

an iterator pointing to the next address block in the message.

AddressBlockIterator ns3::PbbMessage::AddressBlockErase

(

AddressBlockIterator

position

)

Removes the address block at the specified position.

Parameters:

position

an Iterator pointing to the address block to erase.

Returns:

an iterator pointing to the next address block in the message.

const Ptr<PbbAddressBlock> ns3::PbbMessage::AddressBlockFront

(

void

)

const

Returns:

a const smart pointer to the first address block in this message.

Ptr<PbbAddressBlock> ns3::PbbMessage::AddressBlockFront

(

void

)

Returns:

a smart pointer to the first address block in this message.

void ns3::PbbMessage::AddressBlockPushBack

(

Ptr< PbbAddressBlock >

block

)

Appends an address block to the front of this message.

Parameters:

block

a smart pointer to the address block to append.

void ns3::PbbMessage::AddressBlockPushFront

(

Ptr< PbbAddressBlock >

block

)

Prepends an address block to the front of this message.

Parameters:

block

a smart pointer to the address block to prepend.

int ns3::PbbMessage::AddressBlockSize

(

void

)

const

Returns:

the number of address blocks in this message.

void ns3::PbbMessage::Deserialize

(

Buffer::Iterator &

start

)

Deserializes a message from the specified buffer.

Parameters:

start

a reference to the point in a buffer to begin deserializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

static Ptr<PbbMessage> ns3::PbbMessage::DeserializeMessage

(

Buffer::Iterator &

start

)

[static]

Deserializes a message, returning the correct object depending on whether it is an IPv4 message or an IPv6 message.

Parameters:

start

a reference to the point in a buffer to begin deserializing.

Returns:

A pointer to the deserialized message, or 0 on error.

Users should not need to call this. Blocks will be deserialized by their containing packet.

uint8_t ns3::PbbMessage::GetHopCount

(

void

)

const

Returns:

the current number of hops this message has traveled.

Calling this while HasHopCount is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

uint8_t ns3::PbbMessage::GetHopLimit

(

void

)

const

Returns:

the maximum number of hops this message should travel.

Calling this while HasHopLimit is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Address ns3::PbbMessage::GetOriginatorAddress

(

void

)

const

Returns:

the address of the node that created this packet.

Calling this while HasOriginatorAddress is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

uint16_t ns3::PbbMessage::GetSequenceNumber

(

void

)

const

Returns:

the sequence number of this message.

Calling this while HasSequenceNumber is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

uint32_t ns3::PbbMessage::GetSerializedSize

(

void

)

const

Returns:

The size (in bytes) needed to serialize this message.

uint8_t ns3::PbbMessage::GetType

(

void

)

const

Returns:

the type assigned to this packet

bool ns3::PbbMessage::HasHopCount

(

void

)

const

Tests whether or not this message has a hop count.

Returns:

true if this message has a hop limit, false otherwise.

bool ns3::PbbMessage::HasHopLimit

(

void

)

const

Tests whether or not this message has a hop limit.

Returns:

true if this message has a hop limit, false otherwise.

If this is set, messages should not hop further than this limit.

bool ns3::PbbMessage::HasOriginatorAddress

(

void

)

const

Tests whether or not this message has an originator address.

Returns:

true if this message has an originator address, false otherwise.

bool ns3::PbbMessage::HasSequenceNumber

(

void

)

const

Tests whether or not this message has a sequence number.

Returns:

true if this message has a sequence number, false otherwise.

void ns3::PbbMessage::Print	(	std::ostream &	os,
		int	level
	)			const

Pretty-prints the contents of this message, with specified indentation.

Parameters:

	os	a stream object to print to.
	level	level of indentation.

This probably never needs to be called by users. This is used when recursively printing sub-objects.

void ns3::PbbMessage::Print

(

std::ostream &

os

)

const

Pretty-prints the contents of this message.

Parameters:

os

a stream object to print to.

void ns3::PbbMessage::Serialize

(

Buffer::Iterator &

start

)

const

Serializes this message into the specified buffer.

Parameters:

start

a reference to the point in a buffer to begin serializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

void ns3::PbbMessage::SetHopCount

(

uint8_t

hopcount

)

Sets the current number of hops this message has traveled.

Parameters:

hopcount

the current number of hops

void ns3::PbbMessage::SetHopLimit

(

uint8_t

hoplimit

)

Sets the maximum number of hops this message should travel.

Parameters:

hoplimit

the limit to set

void ns3::PbbMessage::SetOriginatorAddress

(

Address

address

)

Sets the address for the node that created this packet.

Parameters:

address

the originator address.

void ns3::PbbMessage::SetSequenceNumber

(

uint16_t

seqnum

)

Sets the sequence number of this message.

Parameters:

seqnum

the sequence number to set.

void ns3::PbbMessage::SetType

(

uint8_t

type

)

Sets the type for this message.

Parameters:

type

the type to set.

const Ptr<PbbTlv> ns3::PbbMessage::TlvBack

(

void

)

const

Returns:

a const smart pointer to the last message TLV in this message.

Ptr<PbbTlv> ns3::PbbMessage::TlvBack

(

void

)

Returns:

a smart pointer to the last message TLV in this message.

ConstTlvIterator ns3::PbbMessage::TlvBegin

(

)

const

Returns:

a const iterator to the first message TLV in this message.

TlvIterator ns3::PbbMessage::TlvBegin

(

)

Returns:

an iterator to the first message TLV in this message.

bool ns3::PbbMessage::TlvEmpty

(

void

)

const

Returns:

true if there are no message TLVs in this message, false otherwise.

ConstTlvIterator ns3::PbbMessage::TlvEnd

(

)

const

Returns:

a const iterator to the past-the-end message TLV element in this message.

TlvIterator ns3::PbbMessage::TlvEnd

(

)

Returns:

an iterator to the past-the-end message TLV element in this message.

TlvIterator ns3::PbbMessage::TlvErase	(	TlvIterator	first,
		TlvIterator	last
	)

Removes all message TLVs from [first, last) (includes first, not includes last).

Parameters:

	first	an Iterator pointing to the first message TLV to erase (inclusive).
	last	an Iterator pointing to the element past the last message TLV to erase.

Returns:

an iterator pointing to the next message TLV in the message.

TlvIterator ns3::PbbMessage::TlvErase

(

TlvIterator

position

)

Removes the message TLV at the specified position.

Parameters:

position

an Iterator pointing to the message TLV to erase.

Returns:

an iterator pointing to the next TLV in the block.

const Ptr<PbbTlv> ns3::PbbMessage::TlvFront

(

void

)

const

Returns:

a const smart pointer to the first message TLV in this message.

Ptr<PbbTlv> ns3::PbbMessage::TlvFront

(

void

)

Returns:

a smart pointer to the first message TLV in this message.

void ns3::PbbMessage::TlvPushBack

(

Ptr< PbbTlv >

tlv

)

Appends a message TLV to the back of this message.

Parameters:

tlv

a smart pointer to the message TLV to append.

void ns3::PbbMessage::TlvPushFront

(

Ptr< PbbTlv >

tlv

)

Prepends a message TLV to the front of this message.

Parameters:

tlv

a smart pointer to the message TLV to prepend.

int ns3::PbbMessage::TlvSize

(

void

)

const

Returns:

the number of message TLVs in this message.

---

The documentation for this class was generated from the following file:

• src/node/packetbb.h
