ns3::PbbPacket Class Reference

Main PacketBB Packet object. More...

#include <packetbb.h>

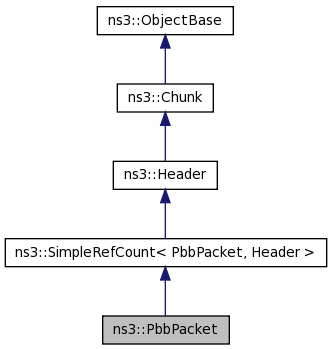

Inheritance diagram for ns3::PbbPacket:

[legend]

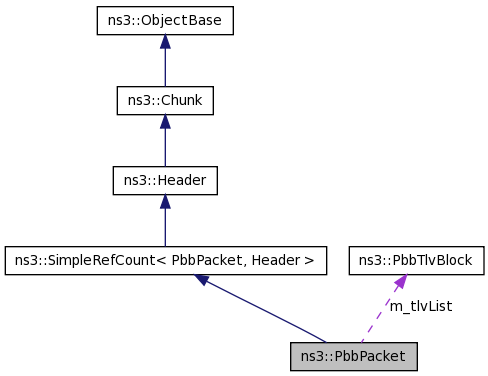

Collaboration diagram for ns3::PbbPacket:

[legend]

List of all members.

Public Types
typedef std::list< Ptr< PbbTlv > >::iterator	TlvIterator
typedef std::list< Ptr< PbbTlv > >::const_iterator	ConstTlvIterator
typedef std::list< Ptr < PbbMessage > >::iterator	MessageIterator
typedef std::list< Ptr < PbbMessage > >::const_iterator	ConstMessageIterator
Public Member Functions
uint8_t	GetVersion (void) const
void	SetSequenceNumber (uint16_t number)
	Sets the sequence number of this packet.
uint16_t	GetSequenceNumber (void) const
bool	HasSequenceNumber (void) const
	Tests whether or not this packet has a sequence number.
TlvIterator	TlvBegin (void)
ConstTlvIterator	TlvBegin (void) const
TlvIterator	TlvEnd (void)
ConstTlvIterator	TlvEnd (void) const
int	TlvSize (void) const
bool	TlvEmpty (void) const
Ptr< PbbTlv >	TlvFront (void)
const Ptr< PbbTlv >	TlvFront (void) const
Ptr< PbbTlv >	TlvBack (void)
const Ptr< PbbTlv >	TlvBack (void) const
void	TlvPushFront (Ptr< PbbTlv > tlv)
	Prepends a packet TLV to the front of this packet.
void	TlvPopFront (void)
	Removes a packet TLV from the front of this packet.
void	TlvPushBack (Ptr< PbbTlv > tlv)
	Appends a packet TLV to the back of this packet.
void	TlvPopBack (void)
	Removes a packet TLV from the back of this block.
TlvIterator	Erase (TlvIterator position)
	Removes the packet TLV at the specified position.
TlvIterator	Erase (TlvIterator first, TlvIterator last)
	Removes all packet TLVs from [first, last) (includes first, not includes last).
void	TlvClear (void)
	Removes all packet TLVs from this packet.
MessageIterator	MessageBegin (void)
ConstMessageIterator	MessageBegin (void) const
MessageIterator	MessageEnd (void)
ConstMessageIterator	MessageEnd (void) const
int	MessageSize (void) const
bool	MessageEmpty (void) const
Ptr< PbbMessage >	MessageFront (void)
const Ptr< PbbMessage >	MessageFront (void) const
Ptr< PbbMessage >	MessageBack (void)
const Ptr< PbbMessage >	MessageBack (void) const
void	MessagePushFront (Ptr< PbbMessage > message)
	Prepends a message to the front of this packet.
void	MessagePopFront (void)
	Removes a message from the front of this packet.
void	MessagePushBack (Ptr< PbbMessage > message)
	Appends a message to the back of this packet.
void	MessagePopBack (void)
	Removes a message from the back of this packet.
MessageIterator	Erase (MessageIterator position)
	Removes the message at the specified position.
MessageIterator	Erase (MessageIterator first, MessageIterator last)
	Removes all messages from [first, last) (includes first, not includes last).
void	MessageClear (void)
	Removes all messages from this packet.
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
virtual void	Serialize (Buffer::Iterator start) const
	Serializes this packet into the specified buffer.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserializes a packet from the specified buffer.
virtual void	Print (std::ostream &os) const
	Pretty-prints the contents of this block.
bool	operator== (const PbbPacket &other) const
bool	operator!= (const PbbPacket &other) const
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::PbbPacket.

---

Detailed Description

Main PacketBB Packet object.

A PacketBB packet is made up of zero or more packet TLVs (PbbTlv), and zero or more messages (PbbMessage).

See: http://tools.ietf.org/html/rfc5444 for details.

---

Member Function Documentation

virtual uint32_t ns3::PbbPacket::Deserialize

(

Buffer::Iterator

start

)

[virtual]

Deserializes a packet from the specified buffer.

Parameters:

start

start offset

Returns:

the number of bytes deserialized

If this returns a number smaller than the total number of bytes in the buffer, there was an error.

Implements ns3::Header.

MessageIterator ns3::PbbPacket::Erase	(	MessageIterator	first,
		MessageIterator	last
	)

Removes all messages from [first, last) (includes first, not includes last).

Parameters:

	first	an Iterator pointing to the first message to erase (inclusive).
	last	an Iterator pointing to the element past the last message to erase.

Returns:

an iterator pointing to the next message in the block.

MessageIterator ns3::PbbPacket::Erase

(

MessageIterator

position

)

Removes the message at the specified position.

Parameters:

position

an Iterator pointing to the message to erase.

Returns:

an iterator pointing to the next message in the packet.

TlvIterator ns3::PbbPacket::Erase	(	TlvIterator	first,
		TlvIterator	last
	)

Removes all packet TLVs from [first, last) (includes first, not includes last).

Parameters:

	first	an Iterator pointing to the first packet TLV to erase (inclusive).
	last	an Iterator pointing to the element past the last packet TLV to erase.

Returns:

an iterator pointing to the next packet TLV in the block.

TlvIterator ns3::PbbPacket::Erase

(

TlvIterator

position

)

Removes the packet TLV at the specified position.

Parameters:

position

an Iterator pointing to the packet TLV to erase.

Returns:

an iterator pointing to the next packet TLV in the block.

virtual TypeId ns3::PbbPacket::GetInstanceTypeId

(

void

)

const [virtual]

Returns:

the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

uint16_t ns3::PbbPacket::GetSequenceNumber

(

void

)

const

Returns:

the sequence number of this packet.

Calling this while HasSequenceNumber is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

virtual uint32_t ns3::PbbPacket::GetSerializedSize

(

void

)

const [virtual]

Returns:

The size (in bytes) needed to serialize this packet.

Implements ns3::Header.

static TypeId ns3::PbbPacket::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::PbbPacket.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

uint8_t ns3::PbbPacket::GetVersion

(

void

)

const

Returns:

the version of PacketBB that constructed this packet.

This will always return 0 for packets constructed using this API.

bool ns3::PbbPacket::HasSequenceNumber

(

void

)

const

Tests whether or not this packet has a sequence number.

Returns:

true if this packet has a sequence number, false otherwise.

This should be called before calling GetSequenceNumber to make sure there actually is one.

const Ptr<PbbMessage> ns3::PbbPacket::MessageBack

(

void

)

const

Returns:

a const smart pointer to the last message in this packet.

Ptr<PbbMessage> ns3::PbbPacket::MessageBack

(

void

)

Returns:

a smart pointer to the last message in this packet.

ConstMessageIterator ns3::PbbPacket::MessageBegin

(

void

)

const

Returns:

a const iterator to the first message in this packet.

MessageIterator ns3::PbbPacket::MessageBegin

(

void

)

Returns:

an iterator to the first message in this packet.

bool ns3::PbbPacket::MessageEmpty

(

void

)

const

Returns:

true if there are no messages in this packet, false otherwise.

ConstMessageIterator ns3::PbbPacket::MessageEnd

(

void

)

const

Returns:

a const iterator to the past-the-end element in this message block.

MessageIterator ns3::PbbPacket::MessageEnd

(

void

)

Returns:

an iterator to the past-the-end element in this message block.

const Ptr<PbbMessage> ns3::PbbPacket::MessageFront

(

void

)

const

Returns:

a const smart pointer to the first message in this packet.

Ptr<PbbMessage> ns3::PbbPacket::MessageFront

(

void

)

Returns:

a smart pointer to the first message in this packet.

void ns3::PbbPacket::MessagePushBack

(

Ptr< PbbMessage >

message

)

Appends a message to the back of this packet.

Parameters:

message

a smart pointer to the message to append.

void ns3::PbbPacket::MessagePushFront

(

Ptr< PbbMessage >

message

)

Prepends a message to the front of this packet.

Parameters:

message

a smart pointer to the message to prepend.

int ns3::PbbPacket::MessageSize

(

void

)

const

Returns:

the number of messages in this packet.

virtual void ns3::PbbPacket::Print

(

std::ostream &

os

)

const [virtual]

Pretty-prints the contents of this block.

Parameters:

os

a stream object to print to.

Implements ns3::Header.

virtual void ns3::PbbPacket::Serialize

(

Buffer::Iterator

start

)

const [virtual]

Serializes this packet into the specified buffer.

Parameters:

start

a reference to the point in a buffer to begin serializing.

Implements ns3::Header.

void ns3::PbbPacket::SetSequenceNumber

(

uint16_t

number

)

Sets the sequence number of this packet.

Parameters:

number

the sequence number.

const Ptr<PbbTlv> ns3::PbbPacket::TlvBack

(

void

)

const

Returns:

a const smart pointer to the last packet TLV in this packet.

Ptr<PbbTlv> ns3::PbbPacket::TlvBack

(

void

)

Returns:

a smart pointer to the last packet TLV in this packet.

ConstTlvIterator ns3::PbbPacket::TlvBegin

(

void

)

const

Returns:

a const iterator to the first Packet TLV in this packet.

TlvIterator ns3::PbbPacket::TlvBegin

(

void

)

Returns:

an iterator to the first Packet TLV in this packet.

bool ns3::PbbPacket::TlvEmpty

(

void

)

const

Returns:

true if there are no packet TLVs in this packet, false otherwise.

ConstTlvIterator ns3::PbbPacket::TlvEnd

(

void

)

const

Returns:

a const iterator to the past-the-end element in this packet TLV block.

TlvIterator ns3::PbbPacket::TlvEnd

(

void

)

Returns:

an iterator to the past-the-end element in this packet TLV block.

const Ptr<PbbTlv> ns3::PbbPacket::TlvFront

(

void

)

const

Returns:

a const smart pointer to the first packet TLV in this packet.

Ptr<PbbTlv> ns3::PbbPacket::TlvFront

(

void

)

Returns:

a smart pointer to the first packet TLV in this packet.

void ns3::PbbPacket::TlvPushBack

(

Ptr< PbbTlv >

tlv

)

Appends a packet TLV to the back of this packet.

Parameters:

tlv

a smart pointer to the packet TLV to append.

void ns3::PbbPacket::TlvPushFront

(

Ptr< PbbTlv >

tlv

)

Prepends a packet TLV to the front of this packet.

Parameters:

tlv

a smart pointer to the packet TLV to prepend.

int ns3::PbbPacket::TlvSize

(

void

)

const

Returns:

the number of packet TLVs in this packet.

---

The documentation for this class was generated from the following files:

• src/node/packetbb.h
• doc/introspected-doxygen.h
