ns3::RadioBearerInstance Class Reference

#include <radio-bearer-instance.h>

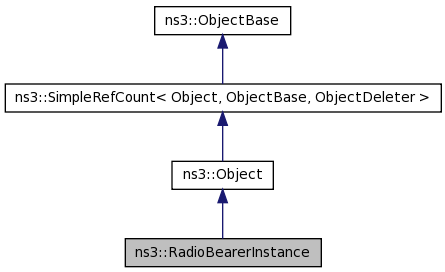

Inheritance diagram for ns3::RadioBearerInstance:

[legend]

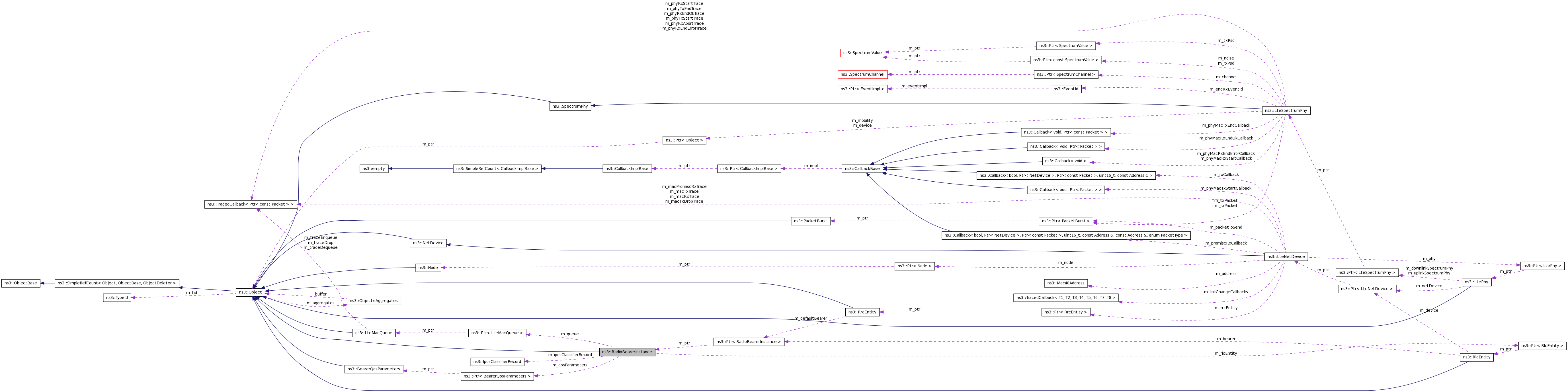

Collaboration diagram for ns3::RadioBearerInstance:

[legend]

List of all members.

Public Types
enum	BearerDirection { DIRECTION_TYPE_UL, DIRECTION_TYPE_DL }
enum	BearerType { BEARER_TYPE_SRB1, BEARER_TYPE_SRB2, BEARER_TYPE_DRB }
Public Member Functions
void	SetBearerDirection (BearerDirection direction)
	Set direction of the bearer.
BearerDirection	GetBearerDirection (void) const
	Get direction of the bearer.
void	SetBearerType (BearerType type)
	Set the type of bearer.
BearerType	GetBearerType (void) const
	Get the type of bearer.
Ptr< LteMacQueue >	GetQueue (void) const
bool	Enqueue (Ptr< Packet > packet)
	enqueue a packet in the queue of the bearer
Ptr< Packet >	Dequeue (void)
	dequeue a packet from the queue of the bearer
Ptr< Packet >	Dequeue (uint32_t availableByte)
	dequeue a packet from the queue of the bearer
bool	HasPackets (void) const
void	SetQosParameters (Ptr< BearerQosParameters > qosParameters)
	Set a list of QoS parameters of the Bearer.
Ptr< BearerQosParameters >	GetQosParameters (void)
	Get a list of QoS parameters of the Bearer.
void	SetRlcEntity (Ptr< RlcEntity > rlc)
	Set the RLC entity of this bearer.
Ptr< RlcEntity >	GetRlcEntity (void)
	Get the RLC entity if this bearer.
void	SetIpcsClassifierRecord (IpcsClassifierRecord *c)
	Set the ip classifier record.
IpcsClassifierRecord *	GetIpcsClassifierRecord (void)
	Get the ip classifier record.
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::RadioBearerInstance.

---

Detailed Description

This class implements the LTE radio bearer in which a data flow between UE and eNB will be mapped.

---

Member Enumeration Documentation

enum ns3::RadioBearerInstance::BearerDirection

The direction of the bearer

enum ns3::RadioBearerInstance::BearerType

The bearer type

---

Member Function Documentation

Ptr<Packet> ns3::RadioBearerInstance::Dequeue

(

uint32_t

availableByte

)

dequeue a packet from the queue of the bearer

Parameters:

availableByte

number of bytes can be dequeued

bool ns3::RadioBearerInstance::Enqueue

(

Ptr< Packet >

packet

)

enqueue a packet in the queue of the bearer

Parameters:

packet

the packet to be enqueued

BearerDirection ns3::RadioBearerInstance::GetBearerDirection

(

void

)

const

Get direction of the bearer.

Returns:

the direction of the bearer

BearerType ns3::RadioBearerInstance::GetBearerType

(

void

)

const

Get the type of bearer.

Returns:

the type the bearer

IpcsClassifierRecord* ns3::RadioBearerInstance::GetIpcsClassifierRecord

(

void

)

Get the ip classifier record.

Returns:

the pointer to the ip classifier record

Ptr<BearerQosParameters> ns3::RadioBearerInstance::GetQosParameters

(

void

)

Get a list of QoS parameters of the Bearer.

Returns:

the pointer to the list of QoS parameters

Ptr<LteMacQueue> ns3::RadioBearerInstance::GetQueue

(

void

)

const

Returns:

the queue of the bearer

Ptr<RlcEntity> ns3::RadioBearerInstance::GetRlcEntity

(

void

)

Get the RLC entity if this bearer.

Returns:

the pointer to the RLC entity

static TypeId ns3::RadioBearerInstance::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::RadioBearerInstance.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::RadioBearerInstance
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::RadioBearerInstance

Attributes defined for this type:

• TxQueue: Transmit queue
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::LteMacQueue >
  • Flags: read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

bool ns3::RadioBearerInstance::HasPackets

(

void

)

const

Returns:

true if the bearer has at least one packet in its queue, false otherwise

void ns3::RadioBearerInstance::SetBearerDirection

(

BearerDirection

direction

)

Set direction of the bearer.

Parameters:

direction

the direction of the bearer

void ns3::RadioBearerInstance::SetBearerType

(

BearerType

type

)

Set the type of bearer.

Parameters:

type

the QoS type

void ns3::RadioBearerInstance::SetIpcsClassifierRecord

(

IpcsClassifierRecord *

c

)

Set the ip classifier record.

Parameters:

c

the pointer to the ip classifier record

void ns3::RadioBearerInstance::SetQosParameters

(

Ptr< BearerQosParameters >

qosParameters

)

Set a list of QoS parameters of the Bearer.

Parameters:

qosParameters

the list of QoS parameters

void ns3::RadioBearerInstance::SetRlcEntity

(

Ptr< RlcEntity >

rlc

)

Set the RLC entity of this bearer.

Parameters:

rlc

the RLC entity

---

The documentation for this class was generated from the following files:

• src/devices/lte/model/radio-bearer-instance.h
• doc/introspected-doxygen.h
