ns3::Ipv6 Class Reference

Access to the IPv6 forwarding table, interfaces, and configuration. More...

#include <ipv6.h>

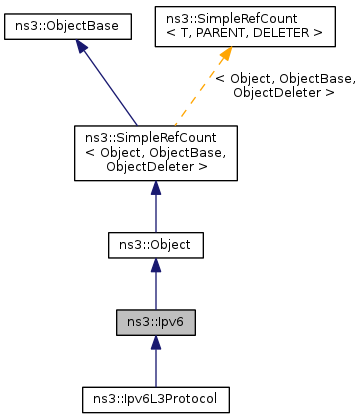

Inheritance diagram for ns3::Ipv6:

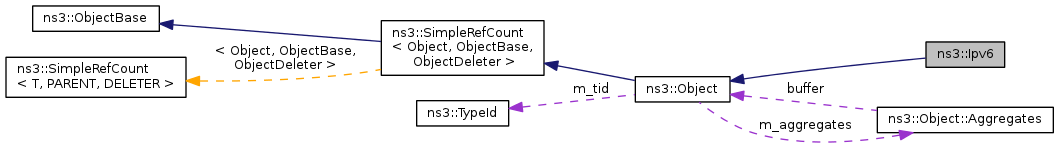

Collaboration diagram for ns3::Ipv6:

Public Member Functions
	Ipv6 ()
	Constructor.
virtual	~Ipv6 ()
	Destructor.
virtual bool	AddAddress (uint32_t interface, Ipv6InterfaceAddress address)=0
	Add an address on the specified IPv6 interface.
virtual uint32_t	AddInterface (Ptr< NetDevice > device)=0
	Add a NetDevice interface.
virtual Ipv6InterfaceAddress	GetAddress (uint32_t interface, uint32_t addressIndex) const =0
	Get IPv6 address on specified IPv6 interface.
virtual int32_t	GetInterfaceForAddress (Ipv6Address address) const =0
	Return the interface number of the interface that has been assigned the specified IP address.
virtual int32_t	GetInterfaceForDevice (Ptr< const NetDevice > device) const =0
	Get the interface index of the specified NetDevice.
virtual int32_t	GetInterfaceForPrefix (Ipv6Address address, Ipv6Prefix mask) const =0
	Return the interface number of first interface found that has an IPv6 address within the prefix specified by the input address and mask parameters.
virtual uint16_t	GetMetric (uint32_t interface) const =0
	Get metric for the specified IPv6 interface.
virtual uint16_t	GetMtu (uint32_t interface) const =0
	Get MTU for the specified IPv6 interface.
virtual uint32_t	GetNAddresses (uint32_t interface) const =0
	Get number of addresses on specified IPv6 interface.
virtual Ptr< NetDevice >	GetNetDevice (uint32_t interface)=0
	Get the NetDevice of the specified interface number.
virtual uint32_t	GetNInterfaces (void) const =0
	Get number of interfaces.
virtual Ptr< Ipv6RoutingProtocol >	GetRoutingProtocol (void) const =0
	Get the routing protocol to be used by this IPv6 stack.
virtual bool	IsForwarding (uint32_t interface) const =0
	If the specified IPv6 interface has forwarding enabled.
virtual bool	IsUp (uint32_t interface) const =0
	If the specified interface index is in "up" state.
virtual void	RegisterExtensions ()=0
	Register the IPv6 Extensions.
virtual void	RegisterOptions ()=0
	Register the IPv6 Options.
virtual bool	RemoveAddress (uint32_t interface, uint32_t addressIndex)=0
	Remove an address on specified IPv6 interface.
virtual void	SetDown (uint32_t interface)=0
	Set the interface into the "down" state.
virtual void	SetForwarding (uint32_t interface, bool val)=0
	Set forwarding on specified IPv6 interface.
virtual void	SetMetric (uint32_t interface, uint16_t metric)=0
	Set metric on specified Ipv6 interface.
virtual void	SetRoutingProtocol (Ptr< Ipv6RoutingProtocol > routingProtocol)=0
	Register a new routing protocol to be used by this IPv6 stack.
virtual void	SetUp (uint32_t interface)=0
	Set the interface into the "up" state.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::Ipv6.

Static Public Attributes
static const uint32_t	IF_ANY = 0xffffffff
	Any interface magic number.

Private Member Functions
virtual bool	GetIpForward (void) const =0
	Get IPv6 forwarding state.
virtual void	SetIpForward (bool forward)=0
	Set IPv6 forwarding state.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Access to the IPv6 forwarding table, interfaces, and configuration.

This class defines the API to manipulate the following aspects of the IPv6 implementation:

1. set/get an Ipv6RoutingProtocol
2. register a NetDevice for use by the IPv6 layer (basically, to create IPv6-related state such as addressing and neighbor cache that is associated with a NetDevice)
3. manipulate the status of the NetDevice from the IPv6 perspective, such as marking it as Up or Down,
4. adding, deleting, and getting addresses associated to the IPv6 interfaces.
5. exporting IPv6 configuration attributes

Each NetDevice has conceptually a single IPv6 interface associated with it (the corresponding structure in the Linux IPv6 implementation is struct in_device). Each interface may have one or more IPv6 addresses associated with it. Each IPv6 address may have different subnet mask, scope, etc., so all of this per-address information is stored in an Ipv6InterfaceAddress class (the corresponding structure in Linux is struct in6_ifaddr)

IPv6 attributes such as whether IP forwarding is enabled and disabled are also stored in this class

TO DO: Add API to allow access to the IPv6 neighbor table

See Also

Ipv6RoutingProtocol

Ipv6InterfaceAddress

Definition at line 79 of file ipv6.h.

Constructor & Destructor Documentation

ns3::Ipv6::Ipv6

(

)

Constructor.

Definition at line 54 of file ipv6.cc.

ns3::Ipv6::~Ipv6 ( )

virtual

Destructor.

Definition at line 58 of file ipv6.cc.

Member Function Documentation

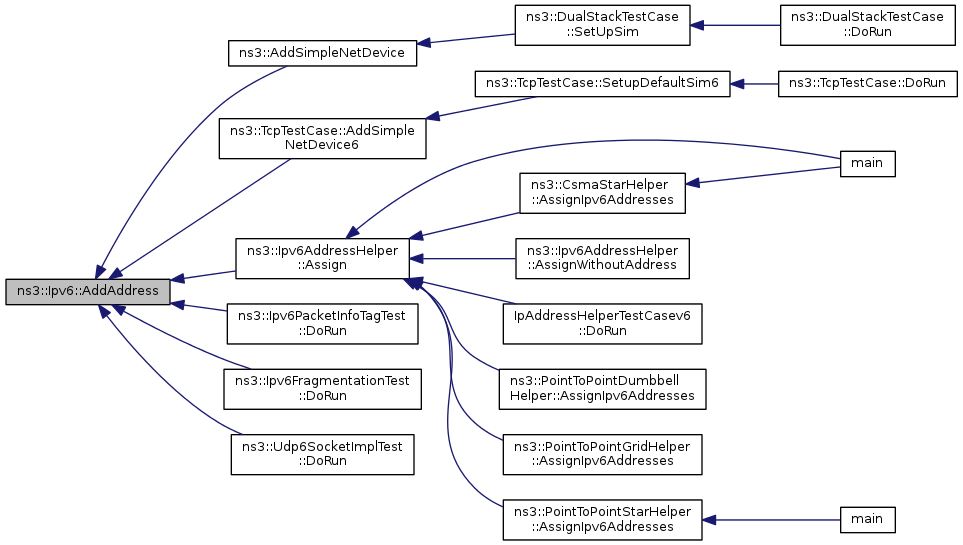

virtual bool ns3::Ipv6::AddAddress ( uint32_t  interface, Ipv6InterfaceAddress  address  )

pure virtual

Add an address on the specified IPv6 interface.

Parameters

interface	Interface number of an IPv6 interface
address	Ipv6InterfaceAddress address to associate with the underlying IPv6 interface

Returns

true if the operation succeeded

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::AddSimpleNetDevice(), ns3::TcpTestCase::AddSimpleNetDevice6(), ns3::Ipv6AddressHelper::Assign(), ns3::Ipv6PacketInfoTagTest::DoRun(), ns3::Ipv6FragmentationTest::DoRun(), and ns3::Udp6SocketImplTest::DoRun().

Here is the caller graph for this function:

virtual uint32_t ns3::Ipv6::AddInterface ( Ptr< NetDevice >  device )

pure virtual

Add a NetDevice interface.

Once a device has been added, it can never be removed: if you want to disable it, you can invoke Ipv6::SetDown which will make sure that it is never used during packet forwarding.

Parameters

device

device to add to the list of IPv6 interfaces which can be used as output interfaces during packet forwarding.

Returns

the index of the IPv6 interface added.

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::AddSimpleNetDevice(), ns3::TcpTestCase::AddSimpleNetDevice6(), ns3::Ipv6AddressHelper::Assign(), ns3::Ipv6PacketInfoTagTest::DoRun(), ns3::Ipv6FragmentationTest::DoRun(), and ns3::Udp6SocketImplTest::DoRun().

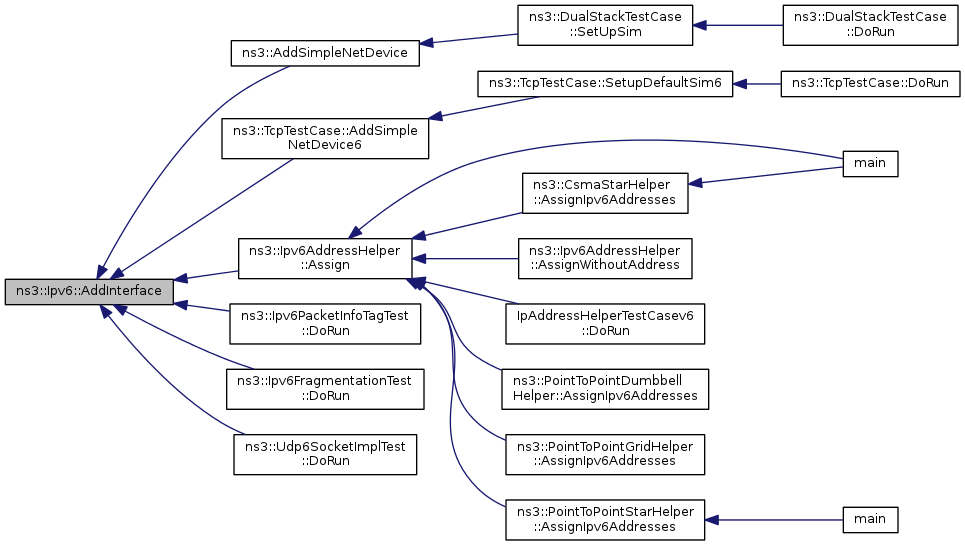

Here is the caller graph for this function:

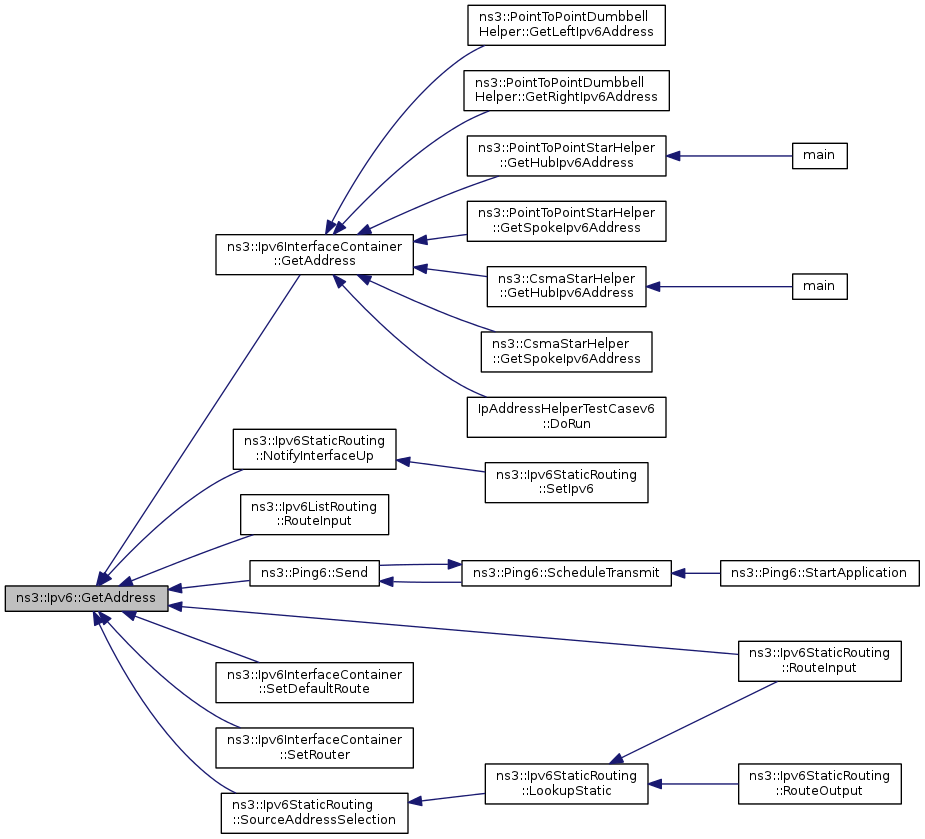

virtual Ipv6InterfaceAddress ns3::Ipv6::GetAddress ( uint32_t  interface, uint32_t  addressIndex  ) const

pure virtual

Get IPv6 address on specified IPv6 interface.

Because addresses can be removed, the addressIndex is not guaranteed to be static across calls to this method.

Parameters

interface	Interface number of an IPv6 interface
addressIndex	index of Ipv6InterfaceAddress

Returns

the Ipv6InterfaceAddress associated to the interface and addressIndex

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::Ipv6InterfaceContainer::GetAddress(), ns3::Ipv6StaticRouting::NotifyInterfaceUp(), ns3::Ipv6ListRouting::RouteInput(), ns3::Ipv6StaticRouting::RouteInput(), ns3::Ping6::Send(), ns3::Ipv6InterfaceContainer::SetDefaultRoute(), ns3::Ipv6InterfaceContainer::SetRouter(), and ns3::Ipv6StaticRouting::SourceAddressSelection().

Here is the caller graph for this function:

virtual int32_t ns3::Ipv6::GetInterfaceForAddress ( Ipv6Address  address ) const

pure virtual

Return the interface number of the interface that has been assigned the specified IP address.

Parameters

address

The IP address being searched for

Returns

The interface number of the IPv6 interface with the given address or -1 if not found.

Each IP interface has one or more IP addresses associated with it. This method searches the list of interfaces for one that holds a particular address. This call takes an IP address as a parameter and returns the interface number of the first interface that has been assigned that address, or -1 if not found. There must be an exact match.

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::Icmpv6L4Protocol::HandleRedirection().

Here is the caller graph for this function:

virtual int32_t ns3::Ipv6::GetInterfaceForDevice ( Ptr< const NetDevice >  device ) const

pure virtual

Get the interface index of the specified NetDevice.

Parameters

device

The NetDevice for an Ipv6Interface

Returns

The interface number of an IPv6 interface or -1 if not found.

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::Ipv6StaticRoutingHelper::AddMulticastRoute(), ns3::Ipv6AddressHelper::Assign(), ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::Ipv6StaticRouting::LookupStatic(), ns3::Icmpv6L4Protocol::Receive(), ns3::Ipv6ListRouting::RouteInput(), and ns3::Ipv6StaticRouting::RouteInput().

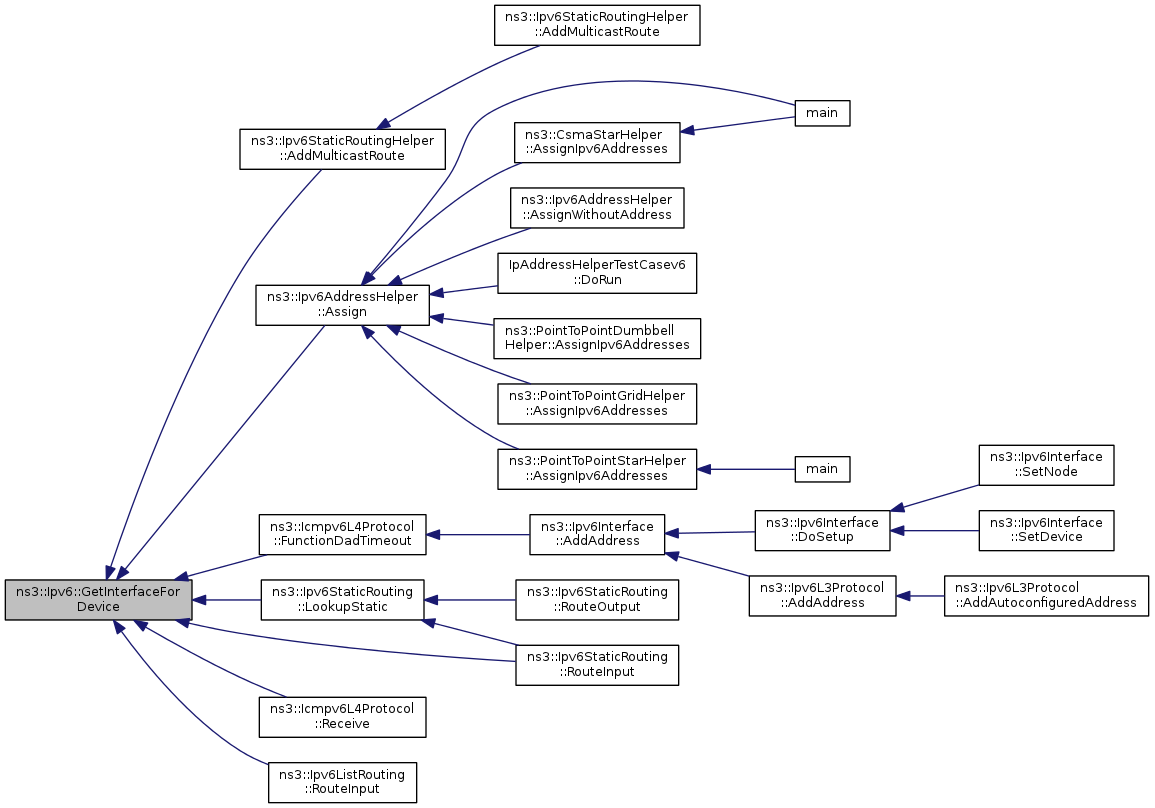

Here is the caller graph for this function:

virtual int32_t ns3::Ipv6::GetInterfaceForPrefix ( Ipv6Address  address, Ipv6Prefix  mask  ) const

pure virtual

Return the interface number of first interface found that has an IPv6 address within the prefix specified by the input address and mask parameters.

Parameters

address	The IP address assigned to the interface of interest.
mask	The IP prefix to use in the mask

Returns

The interface number of the IPv6 interface with the given address or -1 if not found.

Each IP interface has one or more IP addresses associated with it. This method searches the list of interfaces for the first one found that holds an address that is included within the prefix formed by the input address and mask parameters. The value -1 is returned if no match is found.

Implemented in ns3::Ipv6L3Protocol.

virtual bool ns3::Ipv6::GetIpForward ( void  ) const

privatepure virtual

Get IPv6 forwarding state.

Returns

forwarding state (enabled or not)

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual uint16_t ns3::Ipv6::GetMetric ( uint32_t  interface ) const

pure virtual

Get metric for the specified IPv6 interface.

Parameters

interface

The interface number of an IPv6 interface

Returns

routing metric (cost) associated to the underlying IPv6 interface

Implemented in ns3::Ipv6L3Protocol.

virtual uint16_t ns3::Ipv6::GetMtu ( uint32_t  interface ) const

pure virtual

Get MTU for the specified IPv6 interface.

Parameters

interface

Interface number of IPv6 interface

Returns

the Maximum Transmission Unit (in bytes) associated to the underlying IPv6 interface

Implemented in ns3::Ipv6L3Protocol.

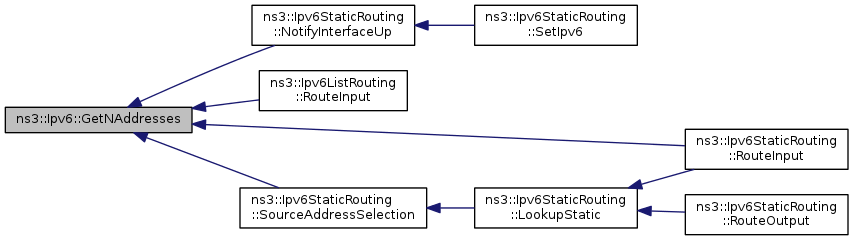

virtual uint32_t ns3::Ipv6::GetNAddresses ( uint32_t  interface ) const

pure virtual

Get number of addresses on specified IPv6 interface.

Parameters

interface

Interface number of an IPv6 interface

Returns

the number of Ipv6InterfaceAddress entries for the interface.

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::Ipv6StaticRouting::NotifyInterfaceUp(), ns3::Ipv6ListRouting::RouteInput(), ns3::Ipv6StaticRouting::RouteInput(), and ns3::Ipv6StaticRouting::SourceAddressSelection().

Here is the caller graph for this function:

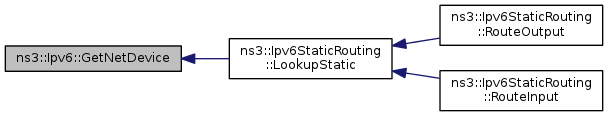

virtual Ptr<NetDevice> ns3::Ipv6::GetNetDevice ( uint32_t  interface )

pure virtual

Get the NetDevice of the specified interface number.

Parameters

interface

The interface number of an IPv6 interface.

Returns

The NetDevice associated with the IPv6 interface number.

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::Ipv6StaticRouting::LookupStatic().

Here is the caller graph for this function:

virtual uint32_t ns3::Ipv6::GetNInterfaces ( void  ) const

pure virtual

Get number of interfaces.

Returns

the number of interfaces added by the user.

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl(), ns3::PcapHelperForIpv6::EnablePcapIpv6(), ns3::Ipv6ListRouting::RouteInput(), ns3::Ipv6StaticRouting::RouteInput(), and ns3::Ipv6StaticRouting::SetIpv6().

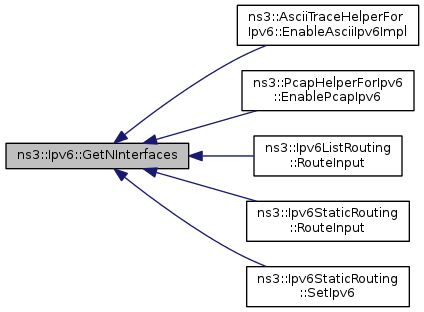

Here is the caller graph for this function:

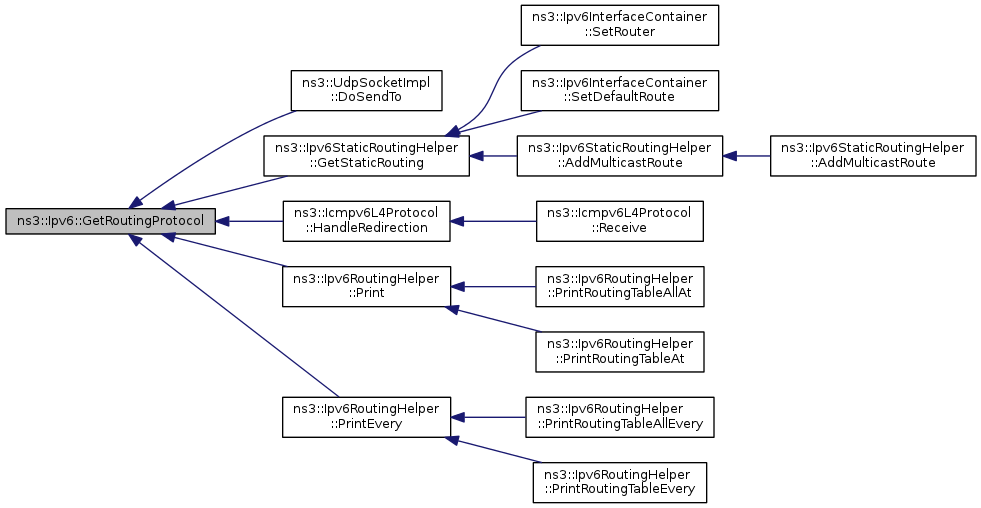

virtual Ptr<Ipv6RoutingProtocol> ns3::Ipv6::GetRoutingProtocol ( void  ) const

pure virtual

Get the routing protocol to be used by this IPv6 stack.

Returns

smart pointer to Ipv6RoutingProtocol object, or null pointer if none

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::UdpSocketImpl::DoSendTo(), ns3::Ipv6StaticRoutingHelper::GetStaticRouting(), ns3::Icmpv6L4Protocol::HandleRedirection(), ns3::Ipv6RoutingHelper::Print(), and ns3::Ipv6RoutingHelper::PrintEvery().

Here is the caller graph for this function:

TypeId ns3::Ipv6::GetTypeId ( void  )

static

This method returns the TypeId associated to ns3::Ipv6.

Attributes defined for this type:

• IpForward: Globally enable or disable IP forwarding for all current and future IPv6 devices.
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::Ipv6L3Protocol.

Definition at line 34 of file ipv6.cc.

References GetIpForward(), ns3::UdpSocket::GetMtuDiscover(), SetIpForward(), ns3::UdpSocket::SetMtuDiscover(), and ns3::TypeId::SetParent().

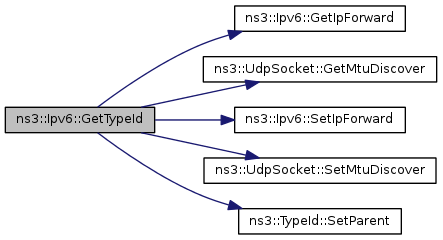

Here is the call graph for this function:

virtual bool ns3::Ipv6::IsForwarding ( uint32_t  interface ) const

pure virtual

If the specified IPv6 interface has forwarding enabled.

Parameters

interface

Interface number of IPv6 interface

Returns

true if IPv6 forwarding enabled for input datagrams on this device

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::Icmpv6L4Protocol::Receive(), ns3::Ipv6ListRouting::RouteInput(), and ns3::Ipv6StaticRouting::RouteInput().

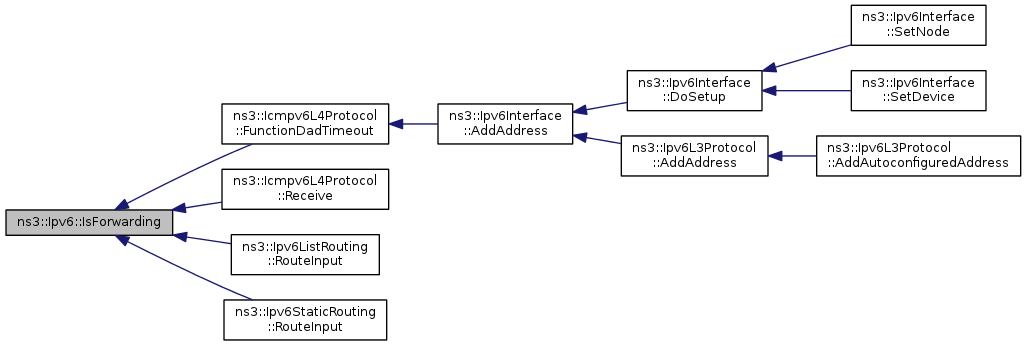

Here is the caller graph for this function:

virtual bool ns3::Ipv6::IsUp ( uint32_t  interface ) const

pure virtual

If the specified interface index is in "up" state.

Parameters

interface

Interface number of IPv6 interface

Returns

true if the underlying interface is in the "up" state, false otherwise.

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::Ipv6StaticRouting::NotifyAddAddress(), ns3::Ipv6StaticRouting::NotifyRemoveAddress(), and ns3::Ipv6StaticRouting::SetIpv6().

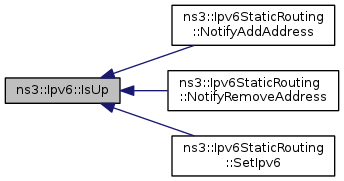

Here is the caller graph for this function:

virtual void ns3::Ipv6::RegisterExtensions ( )

pure virtual

Register the IPv6 Extensions.

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::InternetStackHelper::Install().

Here is the caller graph for this function:

virtual void ns3::Ipv6::RegisterOptions ( )

pure virtual

Register the IPv6 Options.

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::InternetStackHelper::Install().

Here is the caller graph for this function:

virtual bool ns3::Ipv6::RemoveAddress ( uint32_t  interface, uint32_t  addressIndex  )

pure virtual

Remove an address on specified IPv6 interface.

Remove the address at addressIndex on named interface. The addressIndex for all higher indices will decrement by one after this method is called; so, for example, to remove 5 addresses from an interface i, one could call RemoveAddress (i, 0); 5 times.

Parameters

interface	Interface number of an IPv6 interface
addressIndex	index of Ipv6InterfaceAddress to remove

Returns

true if the operation succeeded

Implemented in ns3::Ipv6L3Protocol.

virtual void ns3::Ipv6::SetDown ( uint32_t  interface )

pure virtual

Set the interface into the "down" state.

In this state, it is ignored during IPv6 forwarding.

Parameters

interface

Interface number of IPv6 interface

Implemented in ns3::Ipv6L3Protocol.

virtual void ns3::Ipv6::SetForwarding ( uint32_t  interface, bool  val  )

pure virtual

Set forwarding on specified IPv6 interface.

Parameters

interface	Interface number of IPv6 interface
val	Value to set the forwarding flag

If set to true, IPv6 forwarding is enabled for input datagrams on this device

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::Ipv6InterfaceContainer::SetRouter().

Here is the caller graph for this function:

virtual void ns3::Ipv6::SetIpForward ( bool  forward )

privatepure virtual

Set IPv6 forwarding state.

Parameters

forward

IPv6 forwarding enabled or not

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual void ns3::Ipv6::SetMetric ( uint32_t  interface, uint16_t  metric  )

pure virtual

Set metric on specified Ipv6 interface.

Parameters

interface	The interface number of an IPv6 interface
metric	routing metric (cost) associated to the underlying IPv6 interface

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::Ipv6AddressHelper::Assign(), and ns3::Ipv6PacketInfoTagTest::DoRun().

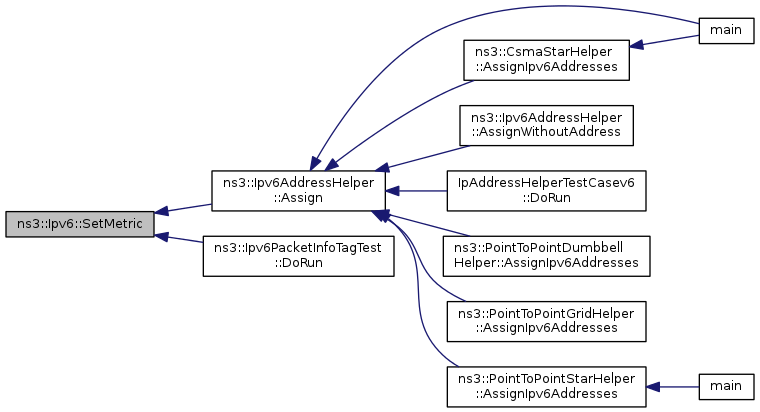

Here is the caller graph for this function:

virtual void ns3::Ipv6::SetRoutingProtocol ( Ptr< Ipv6RoutingProtocol >  routingProtocol )

pure virtual

Register a new routing protocol to be used by this IPv6 stack.

This call will replace any routing protocol that has been previously registered. If you want to add multiple routing protocols, you must add them to a Ipv6ListRoutingProtocol directly.

Parameters

routingProtocol

smart pointer to Ipv6RoutingProtocol object

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::InternetStackHelper::Install().

Here is the caller graph for this function:

virtual void ns3::Ipv6::SetUp ( uint32_t  interface )

pure virtual

Set the interface into the "up" state.

In this state, it is considered valid during IPv6 forwarding.

Parameters

interface

Interface number of IPv6 interface

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::AddSimpleNetDevice(), ns3::TcpTestCase::AddSimpleNetDevice6(), ns3::Ipv6AddressHelper::Assign(), ns3::Ipv6PacketInfoTagTest::DoRun(), ns3::Ipv6FragmentationTest::DoRun(), and ns3::Udp6SocketImplTest::DoRun().

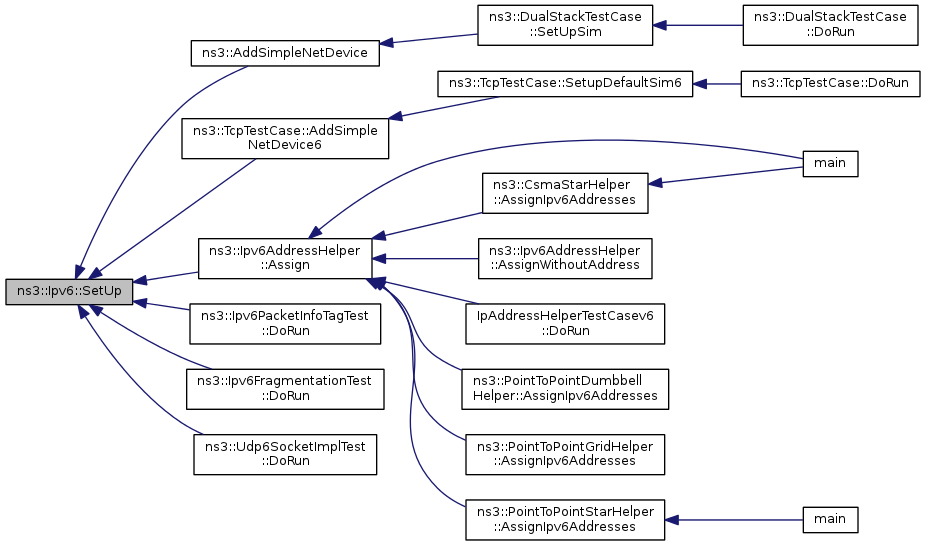

Here is the caller graph for this function:

Member Data Documentation

const uint32_t ns3::Ipv6::IF_ANY = 0xffffffff

static

Any interface magic number.

Definition at line 299 of file ipv6.h.

Referenced by ns3::Ipv6StaticRouting::LookupStatic().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6.h
• doc/introspected-doxygen.h
• src/internet/model/ipv6.cc
