#include <simple-ofdm-wimax-phy.h>

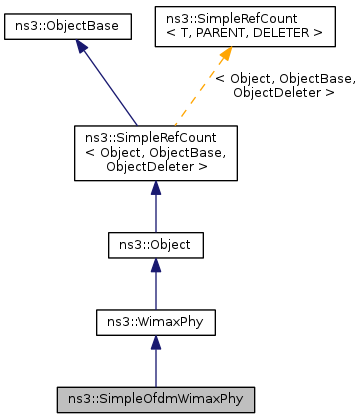

Inheritance diagram for ns3::SimpleOfdmWimaxPhy:

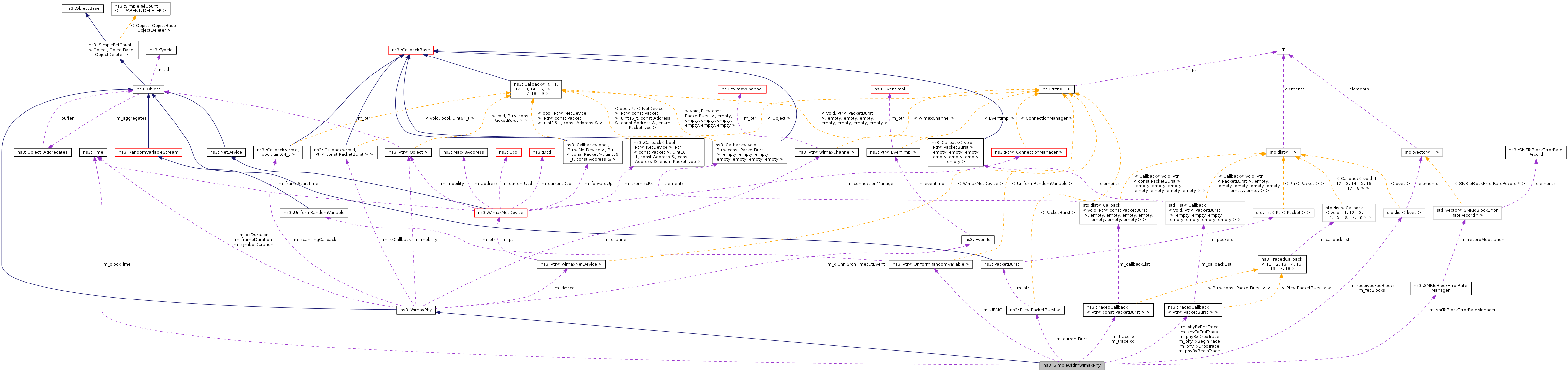

Collaboration diagram for ns3::SimpleOfdmWimaxPhy:

Public Types
enum	FrameDurationCode { FRAME_DURATION_2_POINT_5_MS, FRAME_DURATION_4_MS, FRAME_DURATION_5_MS, FRAME_DURATION_8_MS, FRAME_DURATION_10_MS, FRAME_DURATION_12_POINT_5_MS, FRAME_DURATION_20_MS }
Public Types inherited from ns3::WimaxPhy
enum	ModulationType { MODULATION_TYPE_BPSK_12, MODULATION_TYPE_QPSK_12, MODULATION_TYPE_QPSK_34, MODULATION_TYPE_QAM16_12, MODULATION_TYPE_QAM16_34, MODULATION_TYPE_QAM64_23, MODULATION_TYPE_QAM64_34 }
enum	PhyState { PHY_STATE_IDLE, PHY_STATE_SCANNING, PHY_STATE_TX, PHY_STATE_RX }
enum	PhyType { SimpleWimaxPhy, simpleOfdmWimaxPhy }

Public Member Functions
	SimpleOfdmWimaxPhy (void)
	SimpleOfdmWimaxPhy (char *tracesPath)
	~SimpleOfdmWimaxPhy (void)
void	ActivateLoss (bool loss)
	if called with true it will enable the loss model
int64_t	AssignStreams (int64_t stream)
void	DoAttach (Ptr< WimaxChannel > channel)
uint32_t	GetBandwidth (void) const
double	GetNoiseFigure (void) const
WimaxPhy::PhyType	GetPhyType (void) const
	returns the type this physical layer
double	GetTxPower (void) const
void	NotifyRxBegin (Ptr< PacketBurst > burst)
void	NotifyRxDrop (Ptr< PacketBurst > burst)
void	NotifyRxEnd (Ptr< PacketBurst > burst)
void	NotifyTxBegin (Ptr< PacketBurst > burst)
void	NotifyTxDrop (Ptr< PacketBurst > burst)
void	NotifyTxEnd (Ptr< PacketBurst > burst)
void	Send (Ptr< PacketBurst > burst, WimaxPhy::ModulationType modulationType, uint8_t direction)
	Sends a burst on the channel.
void	Send (SendParams *params)
	Sends a burst on the channel.
void	SetBandwidth (uint32_t BW)
	Set the bandwidth.
void	SetNoiseFigure (double nf)
	set the noise figure of the device
void	SetReceiveCallback (Callback< void, Ptr< PacketBurst >, Ptr< WimaxConnection > > callback)
	set the callback function to call when a burst is received
void	SetSNRToBlockErrorRateTracesPath (char *tracesPath)
	Set the path of the repository containing the traces.
void	SetTxPower (double txPower)
	set the transmission power
void	StartReceive (uint32_t burstSize, bool isFirstBlock, uint64_t frequency, WimaxPhy::ModulationType modulationType, uint8_t direction, double rxPower, Ptr< PacketBurst > burst)
	start the reception of a fec block
Public Member Functions inherited from ns3::WimaxPhy
	WimaxPhy (void)
virtual	~WimaxPhy (void)
void	Attach (Ptr< WimaxChannel > channel)
virtual void	DoDispose (void)
Ptr< WimaxChannel >	GetChannel (void) const
uint32_t	GetChannelBandwidth (void) const
EventId	GetChnlSrchTimeoutEvent (void) const
uint32_t	GetDataRate (ModulationType modulationType) const
Ptr< NetDevice >	GetDevice (void) const
Time	GetFrameDuration (void) const
Time	GetFrameDuration (uint8_t frameDurationCode) const
uint8_t	GetFrameDurationCode (void) const
Time	GetFrameDurationSec (void) const
uint32_t	GetFrequency (void) const
double	GetGValue (void) const
virtual Ptr< Object >	GetMobility (void)
uint16_t	GetNfft (void) const
uint64_t	GetNrBytes (uint32_t symbols, ModulationType modulationType) const
uint8_t	GetNrCarriers (void) const
uint64_t	GetNrSymbols (uint32_t size, ModulationType modulationType) const
Time	GetPsDuration (void) const
uint16_t	GetPsPerFrame (void) const
uint16_t	GetPsPerSymbol (void) const
Callback< void, Ptr< const PacketBurst > >	GetReceiveCallback (void) const
uint16_t	GetRtg (void) const
uint64_t	GetRxFrequency (void) const
double	GetSamplingFactor (void) const
double	GetSamplingFrequency (void) const
uint64_t	GetScanningFrequency (void) const
PhyState	GetState (void) const
Time	GetSymbolDuration (void) const
uint32_t	GetSymbolsPerFrame (void) const
Time	GetTransmissionTime (uint32_t size, ModulationType modulationType) const
uint16_t	GetTtg (void) const
uint64_t	GetTxFrequency (void) const
bool	IsDuplex (void) const
void	SetChannelBandwidth (uint32_t channelBandwidth)
	Set the channel bandwidth.
void	SetDataRates (void)
	calculates the data rate of each modulation and save them for future use
void	SetDevice (Ptr< WimaxNetDevice > device)
	Set the device in which this physical layer is installed.
void	SetDuplex (uint64_t rxFrequency, uint64_t txFrequency)
	configure the physical layer in duplex mode
void	SetFrameDuration (Time frameDuration)
	Set the frame duration.
void	SetFrequency (uint32_t frequency)
	set the frequency on which the device should lock
virtual void	SetMobility (Ptr< Object > mobility)
	set the mobility model of the device
void	SetNrCarriers (uint8_t nrCarriers)
	Set the number of carriers in the physical frame.
void	SetPhyParameters (void)
	computes the Physical parameters and store them
void	SetPsDuration (Time psDuration)
	set the physical slot duration in seconds
void	SetPsPerFrame (uint16_t psPerFrame)
	set the number of physical slot per frame
void	SetPsPerSymbol (uint16_t psPerSymbol)
	set the number of physical slots per symbol
void	SetReceiveCallback (Callback< void, Ptr< const PacketBurst > > callback)
	set the callback function to call when a burst is received
void	SetScanningCallback (void) const
	calls the scanning call back function
void	SetSimplex (uint64_t frequency)
	configure the physical layer in simplex mode
void	SetState (PhyState state)
	set the state of the device
void	SetSymbolDuration (Time symbolDuration)
	set the OFMD symbol duration in second
void	SetSymbolsPerFrame (uint32_t symbolsPerFrame)
	set the number of symbols per frame
void	StartScanning (uint64_t frequency, Time timeout, Callback< void, bool, uint64_t > callback)
	scan the frequency frequency for maximum timeout seconds and calls callback if the frequency could be used
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::SimpleOfdmWimaxPhy.

Private Member Functions
uint32_t	CalculateDataRate (WimaxPhy::ModulationType modulationType) const
Ptr< PacketBurst >	ConvertBitsToBurst (bvec buffer)
bvec	ConvertBurstToBits (Ptr< const PacketBurst > burst)
void	CreateFecBlocks (const bvec &buffer, WimaxPhy::ModulationType modulationType)
void	DoDispose (void)
uint32_t	DoGetDataRate (WimaxPhy::ModulationType modulationType) const
Time	DoGetFrameDuration (uint8_t frameDurationCode) const
uint8_t	DoGetFrameDurationCode (void) const
double	DoGetGValue (void) const
uint16_t	DoGetNfft (void) const
uint64_t	DoGetNrBytes (uint32_t symbols, WimaxPhy::ModulationType modulationType) const
uint64_t	DoGetNrSymbols (uint32_t size, WimaxPhy::ModulationType modulationType) const
uint16_t	DoGetRtg (void) const
double	DoGetSamplingFactor (void) const
double	DoGetSamplingFrequency (void) const
Time	DoGetTransmissionTime (uint32_t size, WimaxPhy::ModulationType modulationType) const
uint16_t	DoGetTtg (void) const
void	DoSetDataRates (void)
void	DoSetGValue (double)
void	DoSetNfft (uint16_t)
void	DoSetPhyParameters (void)
void	EndReceive (Ptr< const PacketBurst > burst)
void	EndReceiveFecBlock (uint32_t burstSize, WimaxPhy::ModulationType modulationType, uint8_t direction, uint8_t drop, Ptr< PacketBurst > burst)
void	EndSend (void)
void	EndSendFecBlock (WimaxPhy::ModulationType modulationType, uint8_t direction)
Time	GetBlockTransmissionTime (WimaxPhy::ModulationType modulationType) const
uint32_t	GetCodedFecBlockSize (WimaxPhy::ModulationType modulationType) const
uint32_t	GetFecBlockSize (WimaxPhy::ModulationType type) const
void	GetModulationFecParams (WimaxPhy::ModulationType modulationType, uint8_t &bitsPerSymbol, double &fecCode) const
uint16_t	GetNrBlocks (uint32_t burstSize, WimaxPhy::ModulationType modulationType) const
double	GetRxGain (void) const
std::string	GetTraceFilePath (void) const
double	GetTxGain (void) const
void	InitSimpleOfdmWimaxPhy (void)
bvec	RecreateBuffer ()
void	SetBlockParameters (uint32_t burstSize, WimaxPhy::ModulationType modulationType)
void	SetRxGain (double rxgain)
void	SetTraceFilePath (std::string path)
void	SetTxGain (double txgain)
void	StartSendDummyFecBlock (bool isFirstBlock, WimaxPhy::ModulationType modulationType, uint8_t direction)

Private Attributes
double	m_bandWidth
uint16_t	m_blockSize
Time	m_blockTime
Ptr< PacketBurst >	m_currentBurst
uint32_t	m_currentBurstSize
uint32_t	m_dataRateBpsk12
uint32_t	m_dataRateQam16_12
uint32_t	m_dataRateQam16_34
uint32_t	m_dataRateQam64_23
uint32_t	m_dataRateQam64_34
uint32_t	m_dataRateQpsk12
uint32_t	m_dataRateQpsk34
std::list< bvec > *	m_fecBlocks
uint16_t	m_fecBlockSize
double	m_g
uint16_t	m_nbErroneousBlock
uint16_t	m_nfft
double	m_noiseFigure
uint16_t	m_nrBlocks
uint32_t	m_nrFecBlocksSent
uint16_t	m_nrRecivedFecBlocks
uint16_t	m_nrRemainingBlocksToSend
uint32_t	m_paddingBits
TracedCallback< Ptr < PacketBurst > >	m_phyRxBeginTrace
TracedCallback< Ptr < PacketBurst > >	m_phyRxDropTrace
TracedCallback< Ptr < PacketBurst > >	m_phyRxEndTrace
TracedCallback< Ptr < PacketBurst > >	m_phyTxBeginTrace
TracedCallback< Ptr < PacketBurst > >	m_phyTxDropTrace
TracedCallback< Ptr < PacketBurst > >	m_phyTxEndTrace
std::list< bvec > *	m_receivedFecBlocks
double	m_rxGain
SNRToBlockErrorRateManager *	m_snrToBlockErrorRateManager
TracedCallback< Ptr< const PacketBurst > >	m_traceRx
TracedCallback< Ptr< const PacketBurst > >	m_traceTx
double	m_txGain
double	m_txPower
Ptr< UniformRandomVariable >	m_URNG
	Provides uniform random variables.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Definition at line 46 of file simple-ofdm-wimax-phy.h.

Member Enumeration Documentation

enum ns3::SimpleOfdmWimaxPhy::FrameDurationCode

Enumerator:

FRAME_DURATION_2_POINT_5_MS
FRAME_DURATION_4_MS
FRAME_DURATION_5_MS
FRAME_DURATION_8_MS
FRAME_DURATION_10_MS
FRAME_DURATION_12_POINT_5_MS
FRAME_DURATION_20_MS

Definition at line 49 of file simple-ofdm-wimax-phy.h.

Constructor & Destructor Documentation

ns3::SimpleOfdmWimaxPhy::SimpleOfdmWimaxPhy ( void )

Definition at line 154 of file simple-ofdm-wimax-phy.cc.

References InitSimpleOfdmWimaxPhy(), ns3::SNRToBlockErrorRateManager::LoadTraces(), m_snrToBlockErrorRateManager, m_URNG, and ns3::SNRToBlockErrorRateManager::SetTraceFilePath().

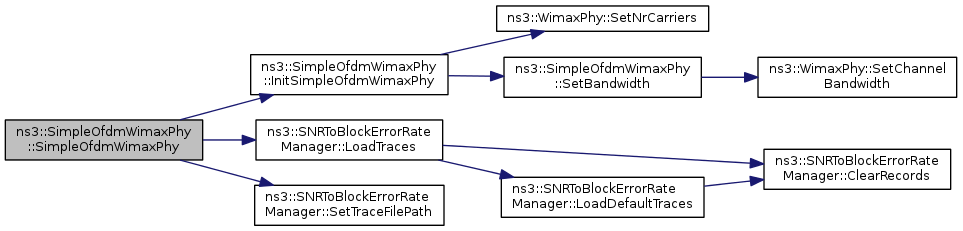

Here is the call graph for this function:

ns3::SimpleOfdmWimaxPhy::SimpleOfdmWimaxPhy ( char * tracesPath )

Definition at line 163 of file simple-ofdm-wimax-phy.cc.

References InitSimpleOfdmWimaxPhy(), ns3::SNRToBlockErrorRateManager::LoadTraces(), m_snrToBlockErrorRateManager, and ns3::SNRToBlockErrorRateManager::SetTraceFilePath().

Here is the call graph for this function:

ns3::SimpleOfdmWimaxPhy::~SimpleOfdmWimaxPhy ( void )

Definition at line 170 of file simple-ofdm-wimax-phy.cc.

Member Function Documentation

void ns3::SimpleOfdmWimaxPhy::ActivateLoss ( bool loss )

if called with true it will enable the loss model

Parameters

loss	set to true to enable the loss model

Definition at line 176 of file simple-ofdm-wimax-phy.cc.

References ns3::SNRToBlockErrorRateManager::ActivateLoss(), and m_snrToBlockErrorRateManager.

Referenced by ns3::WimaxHelper::CreatePhy(), and ns3::WimaxHelper::CreatePhyWithoutChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

int64_t ns3::SimpleOfdmWimaxPhy::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::WimaxPhy.

Definition at line 1095 of file simple-ofdm-wimax-phy.cc.

References m_URNG, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Referenced by ns3::SimpleOfdmWimaxChannel::AssignStreams().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::SimpleOfdmWimaxPhy::CalculateDataRate ( WimaxPhy::ModulationType modulationType ) const

private

Definition at line 651 of file simple-ofdm-wimax-phy.cc.

References GetModulationFecParams(), ns3::WimaxPhy::GetNrCarriers(), ns3::Time::GetSeconds(), and ns3::WimaxPhy::GetSymbolDuration().

Referenced by DoSetDataRates().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< PacketBurst > ns3::SimpleOfdmWimaxPhy::ConvertBitsToBurst ( bvec buffer )

private

Definition at line 510 of file simple-ofdm-wimax-phy.cc.

References ns3::PacketBurst::AddPacket().

Here is the call graph for this function:

bvec ns3::SimpleOfdmWimaxPhy::ConvertBurstToBits ( Ptr< const PacketBurst > burst )

private

Definition at line 470 of file simple-ofdm-wimax-phy.cc.

References ns3::Packet::CopyData(), ns3::Packet::GetSize(), and list.

Here is the call graph for this function:

void ns3::SimpleOfdmWimaxPhy::CreateFecBlocks	(	const bvec &	buffer,
		WimaxPhy::ModulationType	modulationType
	)

private

Definition at line 562 of file simple-ofdm-wimax-phy.cc.

References m_blockSize, m_fecBlocks, m_nrBlocks, and m_paddingBits.

void ns3::SimpleOfdmWimaxPhy::DoAttach ( Ptr< WimaxChannel > channel )

virtual

Attach the physical layer to a channel.

Parameters

channel the channel to which the physical layer will be attached

Implements ns3::WimaxPhy.

Definition at line 234 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxChannel::Attach(), and ns3::WimaxPhy::GetChannel().

Here is the call graph for this function:

void ns3::SimpleOfdmWimaxPhy::DoDispose ( void )

private

Definition at line 223 of file simple-ofdm-wimax-phy.cc.

References m_fecBlocks, m_receivedFecBlocks, and m_snrToBlockErrorRateManager.

uint32_t ns3::SimpleOfdmWimaxPhy::DoGetDataRate ( WimaxPhy::ModulationType modulationType ) const

private

Definition at line 664 of file simple-ofdm-wimax-phy.cc.

References m_dataRateBpsk12, m_dataRateQam16_12, m_dataRateQam16_34, m_dataRateQam64_23, m_dataRateQam64_34, m_dataRateQpsk12, m_dataRateQpsk34, ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_34, ns3::WimaxPhy::MODULATION_TYPE_QAM64_23, ns3::WimaxPhy::MODULATION_TYPE_QAM64_34, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QPSK_34, and NS_FATAL_ERROR.

Referenced by DoGetNrBytes(), DoGetNrSymbols(), and GetBlockTransmissionTime().

Here is the caller graph for this function:

Time ns3::SimpleOfdmWimaxPhy::DoGetFrameDuration ( uint8_t frameDurationCode ) const

private

Definition at line 870 of file simple-ofdm-wimax-phy.cc.

References FRAME_DURATION_10_MS, FRAME_DURATION_12_POINT_5_MS, FRAME_DURATION_20_MS, FRAME_DURATION_2_POINT_5_MS, FRAME_DURATION_4_MS, FRAME_DURATION_5_MS, FRAME_DURATION_8_MS, NS_FATAL_ERROR, and ns3::Seconds().

Here is the call graph for this function:

uint8_t ns3::SimpleOfdmWimaxPhy::DoGetFrameDurationCode ( void ) const

private

Definition at line 818 of file simple-ofdm-wimax-phy.cc.

References FRAME_DURATION_10_MS, FRAME_DURATION_12_POINT_5_MS, FRAME_DURATION_20_MS, FRAME_DURATION_2_POINT_5_MS, FRAME_DURATION_4_MS, FRAME_DURATION_5_MS, FRAME_DURATION_8_MS, ns3::WimaxPhy::GetFrameDuration(), ns3::Time::GetSeconds(), and NS_FATAL_ERROR.

Here is the call graph for this function:

double ns3::SimpleOfdmWimaxPhy::DoGetGValue ( void ) const

private

Definition at line 1007 of file simple-ofdm-wimax-phy.cc.

References m_g.

Referenced by DoSetPhyParameters(), and GetTypeId().

Here is the caller graph for this function:

uint16_t ns3::SimpleOfdmWimaxPhy::DoGetNfft ( void ) const

private

Definition at line 956 of file simple-ofdm-wimax-phy.cc.

References m_nfft.

Referenced by DoSetPhyParameters(), and GetTypeId().

Here is the caller graph for this function:

uint64_t ns3::SimpleOfdmWimaxPhy::DoGetNrBytes	(	uint32_t	symbols,
		WimaxPhy::ModulationType	modulationType
	)		const

private

Definition at line 718 of file simple-ofdm-wimax-phy.cc.

References DoGetDataRate(), ns3::Time::GetSeconds(), ns3::WimaxPhy::GetSymbolDuration(), and ns3::Seconds().

Here is the call graph for this function:

uint64_t ns3::SimpleOfdmWimaxPhy::DoGetNrSymbols	(	uint32_t	size,
		WimaxPhy::ModulationType	modulationType
	)		const

private

Definition at line 710 of file simple-ofdm-wimax-phy.cc.

References DoGetDataRate(), GetFecBlockSize(), GetNrBlocks(), ns3::Time::GetSeconds(), ns3::WimaxPhy::GetSymbolDuration(), and ns3::Seconds().

Referenced by DoGetTransmissionTime().

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::SimpleOfdmWimaxPhy::DoGetRtg ( void ) const

private

Definition at line 811 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::GetPsPerSymbol().

Here is the call graph for this function:

double ns3::SimpleOfdmWimaxPhy::DoGetSamplingFactor ( void ) const

private

Definition at line 963 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::GetChannelBandwidth(), NS_FATAL_ERROR, and NS_LOG_DEBUG.

Referenced by DoGetSamplingFrequency().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::SimpleOfdmWimaxPhy::DoGetSamplingFrequency ( void ) const

private

Definition at line 999 of file simple-ofdm-wimax-phy.cc.

References DoGetSamplingFactor(), and ns3::WimaxPhy::GetChannelBandwidth().

Referenced by DoSetPhyParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::SimpleOfdmWimaxPhy::DoGetTransmissionTime	(	uint32_t	size,
		WimaxPhy::ModulationType	modulationType
	)		const

private

Definition at line 701 of file simple-ofdm-wimax-phy.cc.

References DoGetNrSymbols(), ns3::WimaxPhy::GetSymbolDuration(), ns3::NanoSeconds(), and ns3::Seconds().

Here is the call graph for this function:

uint16_t ns3::SimpleOfdmWimaxPhy::DoGetTtg ( void ) const

private

Definition at line 804 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::GetPsPerSymbol().

Here is the call graph for this function:

void ns3::SimpleOfdmWimaxPhy::DoSetDataRates ( void )

private

Definition at line 601 of file simple-ofdm-wimax-phy.cc.

References CalculateDataRate(), m_dataRateBpsk12, m_dataRateQam16_12, m_dataRateQam16_34, m_dataRateQam64_23, m_dataRateQam64_34, m_dataRateQpsk12, m_dataRateQpsk34, ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_34, ns3::WimaxPhy::MODULATION_TYPE_QAM64_23, ns3::WimaxPhy::MODULATION_TYPE_QAM64_34, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, and ns3::WimaxPhy::MODULATION_TYPE_QPSK_34.

Here is the call graph for this function:

void ns3::SimpleOfdmWimaxPhy::DoSetGValue ( double g )

private

Definition at line 1014 of file simple-ofdm-wimax-phy.cc.

References m_g.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::DoSetNfft ( uint16_t nfft )

private

Definition at line 949 of file simple-ofdm-wimax-phy.cc.

References m_nfft.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters ( void )

private

Definition at line 921 of file simple-ofdm-wimax-phy.cc.

References DoGetGValue(), DoGetNfft(), DoGetSamplingFrequency(), ns3::WimaxPhy::GetFrameDuration(), ns3::Time::GetSeconds(), ns3::Seconds(), ns3::WimaxPhy::SetPsDuration(), ns3::WimaxPhy::SetPsPerFrame(), ns3::WimaxPhy::SetPsPerSymbol(), ns3::WimaxPhy::SetSymbolDuration(), and ns3::WimaxPhy::SetSymbolsPerFrame().

Here is the call graph for this function:

void ns3::SimpleOfdmWimaxPhy::EndReceive ( Ptr< const PacketBurst > burst )

private

Definition at line 462 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::GetReceiveCallback(), and m_traceRx.

Referenced by EndReceiveFecBlock().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::EndReceiveFecBlock	(	uint32_t	burstSize,
		WimaxPhy::ModulationType	modulationType,
		uint8_t	direction,
		uint8_t	drop,
		Ptr< PacketBurst >	burst
	)

private

Definition at line 428 of file simple-ofdm-wimax-phy.cc.

References EndReceive(), m_blockSize, m_nbErroneousBlock, m_nrRecivedFecBlocks, m_paddingBits, NotifyRxDrop(), NotifyRxEnd(), ns3::WimaxPhy::PHY_STATE_IDLE, ns3::Simulator::Schedule(), ns3::Seconds(), and ns3::WimaxPhy::SetState().

Referenced by StartReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::EndSend ( void )

private

Definition at line 331 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::PHY_STATE_IDLE, and ns3::WimaxPhy::SetState().

Here is the call graph for this function:

void ns3::SimpleOfdmWimaxPhy::EndSendFecBlock	(	WimaxPhy::ModulationType	modulationType,
		uint8_t	direction
	)

private

Definition at line 312 of file simple-ofdm-wimax-phy.cc.

References m_blockSize, m_currentBurst, m_currentBurstSize, m_nrFecBlocksSent, m_nrRemainingBlocksToSend, m_paddingBits, NotifyTxEnd(), NS_ASSERT_MSG, ns3::WimaxPhy::PHY_STATE_IDLE, ns3::WimaxPhy::SetState(), and StartSendDummyFecBlock().

Referenced by StartSendDummyFecBlock().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::SimpleOfdmWimaxPhy::GetBandwidth ( void ) const

Returns: the bandwidth

Definition at line 189 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::GetChannelBandwidth().

Referenced by StartReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::SimpleOfdmWimaxPhy::GetBlockTransmissionTime ( WimaxPhy::ModulationType modulationType ) const

private

Definition at line 695 of file simple-ofdm-wimax-phy.cc.

References DoGetDataRate(), GetFecBlockSize(), and ns3::Seconds().

Referenced by StartReceive(), and StartSendDummyFecBlock().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::SimpleOfdmWimaxPhy::GetCodedFecBlockSize ( WimaxPhy::ModulationType modulationType ) const

private

Definition at line 760 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_34, ns3::WimaxPhy::MODULATION_TYPE_QAM64_23, ns3::WimaxPhy::MODULATION_TYPE_QAM64_34, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QPSK_34, and NS_FATAL_ERROR.

uint32_t ns3::SimpleOfdmWimaxPhy::GetFecBlockSize ( WimaxPhy::ModulationType type ) const

private

Definition at line 725 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_34, ns3::WimaxPhy::MODULATION_TYPE_QAM64_23, ns3::WimaxPhy::MODULATION_TYPE_QAM64_34, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QPSK_34, and NS_FATAL_ERROR.

Referenced by DoGetNrSymbols(), GetBlockTransmissionTime(), GetNrBlocks(), and SetBlockParameters().

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::GetModulationFecParams	(	WimaxPhy::ModulationType	modulationType,
		uint8_t &	bitsPerSymbol,
		double &	fecCode
	)		const

private

Definition at line 613 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_34, ns3::WimaxPhy::MODULATION_TYPE_QAM64_23, ns3::WimaxPhy::MODULATION_TYPE_QAM64_34, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, and ns3::WimaxPhy::MODULATION_TYPE_QPSK_34.

Referenced by CalculateDataRate().

Here is the caller graph for this function:

double ns3::SimpleOfdmWimaxPhy::GetNoiseFigure ( void ) const

Returns: the noise figure

Definition at line 212 of file simple-ofdm-wimax-phy.cc.

References m_noiseFigure.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint16_t ns3::SimpleOfdmWimaxPhy::GetNrBlocks	(	uint32_t	burstSize,
		WimaxPhy::ModulationType	modulationType
	)		const

private

Definition at line 906 of file simple-ofdm-wimax-phy.cc.

References GetFecBlockSize().

Referenced by DoGetNrSymbols(), and SetBlockParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

WimaxPhy::PhyType ns3::SimpleOfdmWimaxPhy::GetPhyType ( void ) const

virtual

returns the type this physical layer

Returns: always WimaxPhy::simpleOfdmWimaxPhy;

Implements ns3::WimaxPhy.

Definition at line 250 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::simpleOfdmWimaxPhy.

double ns3::SimpleOfdmWimaxPhy::GetRxGain ( void ) const

private

Definition at line 1039 of file simple-ofdm-wimax-phy.cc.

References m_rxGain.

Referenced by GetTypeId().

Here is the caller graph for this function:

std::string ns3::SimpleOfdmWimaxPhy::GetTraceFilePath ( void ) const

private

Definition at line 1045 of file simple-ofdm-wimax-phy.cc.

References ns3::SNRToBlockErrorRateManager::GetTraceFilePath(), and m_snrToBlockErrorRateManager.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::SimpleOfdmWimaxPhy::GetTxGain ( void ) const

private

Definition at line 1033 of file simple-ofdm-wimax-phy.cc.

References m_txGain.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::SimpleOfdmWimaxPhy::GetTxPower ( void ) const

Returns: the transmission power

Definition at line 201 of file simple-ofdm-wimax-phy.cc.

References m_txPower.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::SimpleOfdmWimaxPhy::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::SimpleOfdmWimaxPhy.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/$ns3::SimpleOfdmWimaxPhy

Attributes defined for this type:

NoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5
- Flags: construct write read
TxPower: Transmission power (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 30
- Flags: construct write read
G: This is the ratio of CP time to useful time.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.25
- Flags: construct write read
TxGain: Transmission gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
RxGain: Reception gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
Nfft: FFT size
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 256:1024
- Initial value: 256
- Flags: construct write read
TraceFilePath: Path to the directory containing SNR to block error rate files
- Set with class: StringValue
- Underlying type: std::string
- Initial value:
- Flags: construct write read

Attributes defined in parent class ns3::WimaxPhy:

Channel: Wimax channel
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxChannel >
- Initial value: 0
- Flags: construct write read
FrameDuration: The frame duration in seconds.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +10000000.0ns
- Flags: construct write read
Frequency: The central frequency in KHz.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 1000000:11000000
- Initial value: 5000000
- Flags: construct write read
Bandwidth: The channel bandwidth in Hz.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 5000000:30000000
- Initial value: 10000000
- Flags: construct write read

TraceSources defined for this type:

Rx: Receive trace
Tx: Transmit trace
PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception

Reimplemented from ns3::WimaxPhy.

Definition at line 42 of file simple-ofdm-wimax-phy.cc.

References DoGetGValue(), DoGetNfft(), DoSetGValue(), DoSetNfft(), GetNoiseFigure(), GetRxGain(), GetTraceFilePath(), GetTxGain(), GetTxPower(), m_phyRxBeginTrace, m_phyRxDropTrace, m_phyRxEndTrace, m_phyTxBeginTrace, m_phyTxDropTrace, m_phyTxEndTrace, m_traceRx, m_traceTx, ns3::MakeTraceSourceAccessor(), SetNoiseFigure(), ns3::TypeId::SetParent(), SetRxGain(), SetTraceFilePath(), SetTxGain(), and SetTxPower().

Here is the call graph for this function:

void ns3::SimpleOfdmWimaxPhy::InitSimpleOfdmWimaxPhy ( void )

private

Definition at line 122 of file simple-ofdm-wimax-phy.cc.

References m_blockSize, m_currentBurstSize, m_dataRateBpsk12, m_dataRateQam16_12, m_dataRateQam16_34, m_dataRateQam64_23, m_dataRateQam64_34, m_dataRateQpsk12, m_dataRateQpsk34, m_fecBlocks, m_fecBlockSize, m_g, m_nbErroneousBlock, m_nfft, m_noiseFigure, m_nrBlocks, m_nrFecBlocksSent, m_nrRecivedFecBlocks, m_paddingBits, m_receivedFecBlocks, m_rxGain, m_snrToBlockErrorRateManager, m_txGain, m_txPower, SetBandwidth(), and ns3::WimaxPhy::SetNrCarriers().

Referenced by SimpleOfdmWimaxPhy().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::NotifyRxBegin ( Ptr< PacketBurst > burst )

Public method used to fire a PhyRxBegin trace. Implemented for encapsulation purposes.

Definition at line 1077 of file simple-ofdm-wimax-phy.cc.

References m_phyRxBeginTrace.

Referenced by StartReceive().

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::NotifyRxDrop ( Ptr< PacketBurst > burst )

Public method used to fire a PhyRxDrop trace. Implemented for encapsulation purposes.

Definition at line 1089 of file simple-ofdm-wimax-phy.cc.

References m_phyRxDropTrace.

Referenced by EndReceiveFecBlock().

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::NotifyRxEnd ( Ptr< PacketBurst > burst )

Public method used to fire a PhyRxEnd trace. Implemented for encapsulation purposes.

Definition at line 1083 of file simple-ofdm-wimax-phy.cc.

References m_phyRxEndTrace.

Referenced by EndReceiveFecBlock().

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::NotifyTxBegin ( Ptr< PacketBurst > burst )

Public method used to fire a PhyTxBegin trace. Implemented for encapsulation purposes.

Definition at line 1059 of file simple-ofdm-wimax-phy.cc.

References m_phyTxBeginTrace.

Referenced by Send().

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::NotifyTxDrop ( Ptr< PacketBurst > burst )

Public method used to fire a PhyTxDrop trace. Implemented for encapsulation purposes.

Definition at line 1071 of file simple-ofdm-wimax-phy.cc.

References m_phyTxDropTrace.

void ns3::SimpleOfdmWimaxPhy::NotifyTxEnd ( Ptr< PacketBurst > burst )

Public method used to fire a PhyTxEnd trace. Implemented for encapsulation purposes.

Definition at line 1065 of file simple-ofdm-wimax-phy.cc.

References m_phyTxEndTrace.

Referenced by EndSendFecBlock().

Here is the caller graph for this function:

bvec ns3::SimpleOfdmWimaxPhy::RecreateBuffer ( )

private

Definition at line 584 of file simple-ofdm-wimax-phy.cc.

References m_blockSize, m_nrBlocks, and m_receivedFecBlocks.

void ns3::SimpleOfdmWimaxPhy::Send	(	Ptr< PacketBurst >	burst,
		WimaxPhy::ModulationType	modulationType,
		uint8_t	direction
	)

Sends a burst on the channel.

Parameters

burst	the burst to send
modulationType	the modulation that will be used to send this burst
direction	set to uplink or downlink

Definition at line 256 of file simple-ofdm-wimax-phy.cc.

References ns3::PacketBurst::GetSize(), ns3::WimaxPhy::GetState(), m_currentBurst, m_currentBurstSize, m_nrFecBlocksSent, m_traceTx, NotifyTxBegin(), ns3::WimaxPhy::PHY_STATE_TX, SetBlockParameters(), and StartSendDummyFecBlock().

Referenced by Send().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::Send ( SendParams * params )

virtual

Sends a burst on the channel.

See Also: SendParams

Implements ns3::WimaxPhy.

Definition at line 240 of file simple-ofdm-wimax-phy.cc.

References ns3::OfdmSendParams::GetBurst(), ns3::OfdmSendParams::GetDirection(), ns3::OfdmSendParams::GetModulationType(), and Send().

Here is the call graph for this function:

void ns3::SimpleOfdmWimaxPhy::SetBandwidth ( uint32_t BW )

Set the bandwidth.

Parameters

BW	the bandwidth

Definition at line 195 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::SetChannelBandwidth().

Referenced by InitSimpleOfdmWimaxPhy().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::SetBlockParameters	(	uint32_t	burstSize,
		WimaxPhy::ModulationType	modulationType
	)

private

Definition at line 794 of file simple-ofdm-wimax-phy.cc.

References GetFecBlockSize(), GetNrBlocks(), m_blockSize, m_nrBlocks, m_nrRemainingBlocksToSend, m_paddingBits, and NS_ASSERT_MSG.

Referenced by Send(), and StartReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::SetNoiseFigure ( double nf )

set the noise figure of the device

Parameters

nf	the noise figure

Definition at line 217 of file simple-ofdm-wimax-phy.cc.

References m_noiseFigure.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::SetReceiveCallback ( Callback< void, Ptr< PacketBurst >, Ptr< WimaxConnection > > callback )

set the callback function to call when a burst is received

void ns3::SimpleOfdmWimaxPhy::SetRxGain ( double rxgain )

private

Definition at line 1027 of file simple-ofdm-wimax-phy.cc.

References m_rxGain.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::SetSNRToBlockErrorRateTracesPath ( char * tracesPath )

Set the path of the repository containing the traces.

Parameters

tracesPath the path to the repository. see snr-to-block-error-rate-manager.h for more details.

Definition at line 182 of file simple-ofdm-wimax-phy.cc.

References m_snrToBlockErrorRateManager, ns3::SNRToBlockErrorRateManager::ReLoadTraces(), and ns3::SNRToBlockErrorRateManager::SetTraceFilePath().

Referenced by ns3::WimaxHelper::CreatePhy(), and ns3::WimaxHelper::CreatePhyWithoutChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::SetTraceFilePath ( std::string path )

private

Definition at line 1051 of file simple-ofdm-wimax-phy.cc.

References ns3::SNRToBlockErrorRateManager::LoadTraces(), m_snrToBlockErrorRateManager, and ns3::SNRToBlockErrorRateManager::SetTraceFilePath().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::SetTxGain ( double txgain )

private

Definition at line 1021 of file simple-ofdm-wimax-phy.cc.

References m_txGain.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::SetTxPower ( double txPower )

set the transmission power

Parameters

txPower the transmission power

Definition at line 206 of file simple-ofdm-wimax-phy.cc.

References m_txPower.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::StartReceive	(	uint32_t	burstSize,
		bool	isFirstBlock,
		uint64_t	frequency,
		WimaxPhy::ModulationType	modulationType,
		uint8_t	direction,
		double	rxPower,
		Ptr< PacketBurst >	burst
	)

start the reception of a fec block

Parameters

burstSize	the burst size
isFirstBlock	true if this block is the first one, false otherwise
frequency	the frequency in wich the fec block is being received
modulationType	the modulation used to transmit this fec Block
direction	set to uplink and downlink
rxPower	the received power.
burst	the burst to be sent

Definition at line 337 of file simple-ofdm-wimax-phy.cc.

References ns3::Simulator::Cancel(), EndReceiveFecBlock(), GetBandwidth(), GetBlockTransmissionTime(), ns3::WimaxPhy::GetChnlSrchTimeoutEvent(), ns3::SNRToBlockErrorRateRecord::GetI1(), ns3::SNRToBlockErrorRateRecord::GetI2(), ns3::WimaxPhy::GetRxFrequency(), ns3::WimaxPhy::GetScanningFrequency(), ns3::SNRToBlockErrorRateManager::GetSNRToBlockErrorRateRecord(), ns3::WimaxPhy::GetState(), ns3::UniformRandomVariable::GetValue(), ns3::WimaxPhy::IsDuplex(), m_blockTime, m_noiseFigure, m_nrRecivedFecBlocks, m_receivedFecBlocks, m_snrToBlockErrorRateManager, m_URNG, NotifyRxBegin(), NS_LOG_INFO, ns3::WimaxPhy::PHY_STATE_IDLE, ns3::WimaxPhy::PHY_STATE_RX, ns3::WimaxPhy::PHY_STATE_SCANNING, ns3::WimaxPhy::PHY_STATE_TX, ns3::Simulator::Schedule(), SetBlockParameters(), ns3::WimaxPhy::SetScanningCallback(), ns3::WimaxPhy::SetSimplex(), and ns3::WimaxPhy::SetState().

Referenced by ns3::SimpleOfdmWimaxChannel::EndSendDummyBlock().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxPhy::StartSendDummyFecBlock	(	bool	isFirstBlock,
		WimaxPhy::ModulationType	modulationType,
		uint8_t	direction
	)

private

Definition at line 274 of file simple-ofdm-wimax-phy.cc.

References EndSendFecBlock(), GetBlockTransmissionTime(), ns3::WimaxPhy::GetChannel(), ns3::WimaxPhy::GetTxFrequency(), m_blockTime, m_currentBurst, m_currentBurstSize, m_nrRemainingBlocksToSend, m_txPower, ns3::PeekPointer(), ns3::WimaxPhy::PHY_STATE_TX, ns3::Simulator::Schedule(), ns3::SimpleOfdmWimaxChannel::Send(), and ns3::WimaxPhy::SetState().

Referenced by EndSendFecBlock(), and Send().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

double ns3::SimpleOfdmWimaxPhy::m_bandWidth

private

Definition at line 266 of file simple-ofdm-wimax-phy.h.

uint16_t ns3::SimpleOfdmWimaxPhy::m_blockSize

private

Definition at line 260 of file simple-ofdm-wimax-phy.h.

Referenced by CreateFecBlocks(), EndReceiveFecBlock(), EndSendFecBlock(), InitSimpleOfdmWimaxPhy(), RecreateBuffer(), and SetBlockParameters().

Time ns3::SimpleOfdmWimaxPhy::m_blockTime

private

Definition at line 247 of file simple-ofdm-wimax-phy.h.

Referenced by StartReceive(), and StartSendDummyFecBlock().

Ptr<PacketBurst> ns3::SimpleOfdmWimaxPhy::m_currentBurst

private

Definition at line 259 of file simple-ofdm-wimax-phy.h.

Referenced by EndSendFecBlock(), Send(), and StartSendDummyFecBlock().

uint32_t ns3::SimpleOfdmWimaxPhy::m_currentBurstSize

private

Definition at line 242 of file simple-ofdm-wimax-phy.h.

Referenced by EndSendFecBlock(), InitSimpleOfdmWimaxPhy(), Send(), and StartSendDummyFecBlock().

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateBpsk12

private

Definition at line 253 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateQam16_12

private

Definition at line 253 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateQam16_34

private

Definition at line 253 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateQam64_23

private

Definition at line 253 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateQam64_34

private

Definition at line 253 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateQpsk12

private

Definition at line 253 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateQpsk34

private

Definition at line 253 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

std::list<bvec>* ns3::SimpleOfdmWimaxPhy::m_fecBlocks

private

Definition at line 246 of file simple-ofdm-wimax-phy.h.

Referenced by CreateFecBlocks(), DoDispose(), and InitSimpleOfdmWimaxPhy().

uint16_t ns3::SimpleOfdmWimaxPhy::m_fecBlockSize

private

Definition at line 241 of file simple-ofdm-wimax-phy.h.

Referenced by InitSimpleOfdmWimaxPhy().

double ns3::SimpleOfdmWimaxPhy::m_g

private

Definition at line 265 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetGValue(), DoSetGValue(), and InitSimpleOfdmWimaxPhy().

uint16_t ns3::SimpleOfdmWimaxPhy::m_nbErroneousBlock

private

Definition at line 262 of file simple-ofdm-wimax-phy.h.

Referenced by EndReceiveFecBlock(), and InitSimpleOfdmWimaxPhy().

uint16_t ns3::SimpleOfdmWimaxPhy::m_nfft

private

Definition at line 264 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetNfft(), DoSetNfft(), and InitSimpleOfdmWimaxPhy().

double ns3::SimpleOfdmWimaxPhy::m_noiseFigure

private

Definition at line 268 of file simple-ofdm-wimax-phy.h.

Referenced by GetNoiseFigure(), InitSimpleOfdmWimaxPhy(), SetNoiseFigure(), and StartReceive().

uint16_t ns3::SimpleOfdmWimaxPhy::m_nrBlocks

private

Definition at line 257 of file simple-ofdm-wimax-phy.h.

Referenced by CreateFecBlocks(), InitSimpleOfdmWimaxPhy(), RecreateBuffer(), and SetBlockParameters().

uint32_t ns3::SimpleOfdmWimaxPhy::m_nrFecBlocksSent

private

Definition at line 245 of file simple-ofdm-wimax-phy.h.

Referenced by EndSendFecBlock(), InitSimpleOfdmWimaxPhy(), and Send().

uint16_t ns3::SimpleOfdmWimaxPhy::m_nrRecivedFecBlocks

private

Definition at line 263 of file simple-ofdm-wimax-phy.h.

Referenced by EndReceiveFecBlock(), InitSimpleOfdmWimaxPhy(), and StartReceive().

uint16_t ns3::SimpleOfdmWimaxPhy::m_nrRemainingBlocksToSend

private

Definition at line 258 of file simple-ofdm-wimax-phy.h.

Referenced by EndSendFecBlock(), SetBlockParameters(), and StartSendDummyFecBlock().

uint32_t ns3::SimpleOfdmWimaxPhy::m_paddingBits

private

Definition at line 261 of file simple-ofdm-wimax-phy.h.

Referenced by CreateFecBlocks(), EndReceiveFecBlock(), EndSendFecBlock(), InitSimpleOfdmWimaxPhy(), and SetBlockParameters().

TracedCallback<Ptr<PacketBurst > > ns3::SimpleOfdmWimaxPhy::m_phyRxBeginTrace

private

The trace source fired when a packet begins the reception process from the medium.

See Also: class CallBackTraceSource

Definition at line 301 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and NotifyRxBegin().

TracedCallback<Ptr<PacketBurst > > ns3::SimpleOfdmWimaxPhy::m_phyRxDropTrace

private

The trace source fired when the phy layer drops a packet it has received.

See Also: class CallBackTraceSource

Definition at line 316 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and NotifyRxDrop().

TracedCallback<Ptr<PacketBurst > > ns3::SimpleOfdmWimaxPhy::m_phyRxEndTrace

private

The trace source fired when a packet ends the reception process from the medium.

See Also: class CallBackTraceSource

Definition at line 309 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and NotifyRxEnd().

TracedCallback<Ptr<PacketBurst > > ns3::SimpleOfdmWimaxPhy::m_phyTxBeginTrace

private

The trace source fired when a packet begins the transmission process on the medium.

See Also: class CallBackTraceSource

Definition at line 277 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and NotifyTxBegin().

TracedCallback<Ptr<PacketBurst > > ns3::SimpleOfdmWimaxPhy::m_phyTxDropTrace

private

The trace source fired when the phy layer drops a packet as it tries to transmit it.

See Also: class CallBackTraceSource

Definition at line 293 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and NotifyTxDrop().

TracedCallback<Ptr<PacketBurst > > ns3::SimpleOfdmWimaxPhy::m_phyTxEndTrace

private

The trace source fired when a packet ends the transmission process on the medium.

See Also: class CallBackTraceSource

Definition at line 285 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and NotifyTxEnd().

std::list<bvec>* ns3::SimpleOfdmWimaxPhy::m_receivedFecBlocks

private

Definition at line 244 of file simple-ofdm-wimax-phy.h.

Referenced by DoDispose(), InitSimpleOfdmWimaxPhy(), RecreateBuffer(), and StartReceive().

double ns3::SimpleOfdmWimaxPhy::m_rxGain

private

Definition at line 270 of file simple-ofdm-wimax-phy.h.

Referenced by GetRxGain(), InitSimpleOfdmWimaxPhy(), and SetRxGain().

SNRToBlockErrorRateManager* ns3::SimpleOfdmWimaxPhy::m_snrToBlockErrorRateManager

private

Definition at line 318 of file simple-ofdm-wimax-phy.h.

Referenced by ActivateLoss(), DoDispose(), GetTraceFilePath(), InitSimpleOfdmWimaxPhy(), SetSNRToBlockErrorRateTracesPath(), SetTraceFilePath(), SimpleOfdmWimaxPhy(), and StartReceive().

TracedCallback<Ptr<const PacketBurst> > ns3::SimpleOfdmWimaxPhy::m_traceRx

private

Definition at line 249 of file simple-ofdm-wimax-phy.h.

Referenced by EndReceive(), and GetTypeId().

TracedCallback<Ptr<const PacketBurst> > ns3::SimpleOfdmWimaxPhy::m_traceTx

private

Definition at line 250 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and Send().

double ns3::SimpleOfdmWimaxPhy::m_txGain

private

Definition at line 269 of file simple-ofdm-wimax-phy.h.

Referenced by GetTxGain(), InitSimpleOfdmWimaxPhy(), and SetTxGain().

double ns3::SimpleOfdmWimaxPhy::m_txPower

private

Definition at line 267 of file simple-ofdm-wimax-phy.h.

Referenced by GetTxPower(), InitSimpleOfdmWimaxPhy(), SetTxPower(), and StartSendDummyFecBlock().

Ptr<UniformRandomVariable> ns3::SimpleOfdmWimaxPhy::m_URNG

private

Provides uniform random variables.

Definition at line 321 of file simple-ofdm-wimax-phy.h.

Referenced by AssignStreams(), SimpleOfdmWimaxPhy(), and StartReceive().

The documentation for this class was generated from the following files:

src/wimax/model/simple-ofdm-wimax-phy.h
doc/introspected-doxygen.h
src/wimax/model/simple-ofdm-wimax-phy.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
