ns3::UdpSocketFactory Class Reference

API to create UDP socket instances. More...

#include <udp-socket-factory.h>

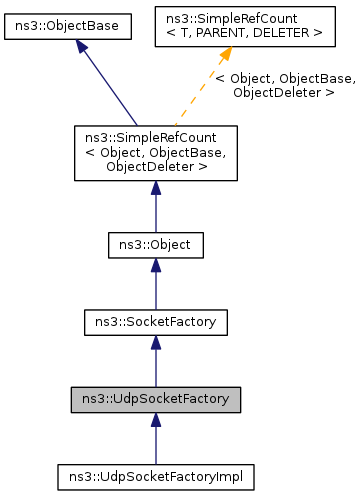

Inheritance diagram for ns3::UdpSocketFactory:

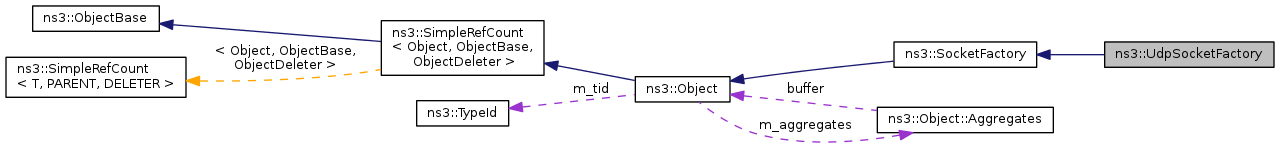

Collaboration diagram for ns3::UdpSocketFactory:

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UdpSocketFactory.

Additional Inherited Members
Public Member Functions inherited from ns3::SocketFactory
	SocketFactory ()
virtual Ptr< Socket >	CreateSocket (void)=0
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

API to create UDP socket instances.

This abstract class defines the API for UDP socket factory. All UDP implementations must provide an implementation of CreateSocket below.

See Also

UdpSocketFactoryImpl

Definition at line 40 of file udp-socket-factory.h.

Member Function Documentation

TypeId ns3::UdpSocketFactory::GetTypeId ( void  )

static

This method returns the TypeId associated to ns3::UdpSocketFactory.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/$ns3::UdpSocketFactory

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::SocketFactory.

Definition at line 27 of file udp-socket-factory.cc.

References ns3::TypeId::SetParent().

Referenced by ns3::Ipv6PacketInfoTagTest::DoRun(), ns3::Ipv4PacketInfoTagTest::DoRun(), ns3::olsr::RoutingProtocol::DoStart(), ns3::aodv::RoutingProtocol::NotifyAddAddress(), ns3::dsdv::RoutingProtocol::NotifyAddAddress(), ns3::aodv::RoutingProtocol::NotifyInterfaceUp(), ns3::dsdv::RoutingProtocol::NotifyInterfaceUp(), ns3::aodv::RoutingProtocol::NotifyRemoveAddress(), and ns3::dsdv::RoutingProtocol::NotifyRemoveAddress().

Here is the call graph for this function:

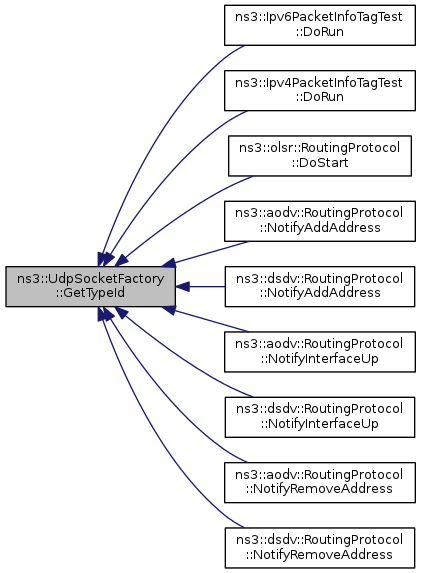

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/internet/model/udp-socket-factory.h
• doc/introspected-doxygen.h
• src/internet/model/udp-socket-factory.cc
