ns3::UdpSocketFactoryImpl Class Reference

Object to create UDP socket instances. More...

#include <udp-socket-factory-impl.h>

Inheritance diagram for ns3::UdpSocketFactoryImpl:

Collaboration diagram for ns3::UdpSocketFactoryImpl:

Public Member Functions
	UdpSocketFactoryImpl ()
virtual	~UdpSocketFactoryImpl ()
virtual Ptr< Socket >	CreateSocket (void)
	Implements a method to create a Udp-based socket and return a base class smart pointer to the socket.
void	SetUdp (Ptr< UdpL4Protocol > udp)

Protected Member Functions
virtual void	DoDispose (void)

Private Attributes
Ptr< UdpL4Protocol >	m_udp

Additional Inherited Members
Static Public Member Functions inherited from ns3::UdpSocketFactory
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UdpSocketFactory.

Detailed Description

Object to create UDP socket instances.

This class implements the API for creating UDP sockets. It is a socket factory (deriving from class SocketFactory).

Definition at line 54 of file udp-socket-factory-impl.h.

Constructor & Destructor Documentation

ns3::UdpSocketFactoryImpl::UdpSocketFactoryImpl

(

)

Definition at line 27 of file udp-socket-factory-impl.cc.

ns3::UdpSocketFactoryImpl::~UdpSocketFactoryImpl ( )

virtual

Definition at line 31 of file udp-socket-factory-impl.cc.

References m_udp, and NS_ASSERT.

Member Function Documentation

Ptr< Socket > ns3::UdpSocketFactoryImpl::CreateSocket ( void  )

virtual

Implements a method to create a Udp-based socket and return a base class smart pointer to the socket.

Returns

smart pointer to Socket

Implements ns3::SocketFactory.

Definition at line 43 of file udp-socket-factory-impl.cc.

References ns3::UdpL4Protocol::CreateSocket(), and m_udp.

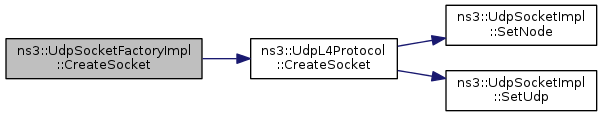

Here is the call graph for this function:

void ns3::UdpSocketFactoryImpl::DoDispose ( void  )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 49 of file udp-socket-factory-impl.cc.

References m_udp.

void ns3::UdpSocketFactoryImpl::SetUdp

(

Ptr< UdpL4Protocol >

udp

)

Definition at line 37 of file udp-socket-factory-impl.cc.

References m_udp.

Member Data Documentation

Ptr<UdpL4Protocol> ns3::UdpSocketFactoryImpl::m_udp

private

Definition at line 74 of file udp-socket-factory-impl.h.

Referenced by CreateSocket(), DoDispose(), SetUdp(), and ~UdpSocketFactoryImpl().

---

The documentation for this class was generated from the following files:

• src/internet/model/udp-socket-factory-impl.h
• src/internet/model/udp-socket-factory-impl.cc
