#include <wifi-mac-queue.h>

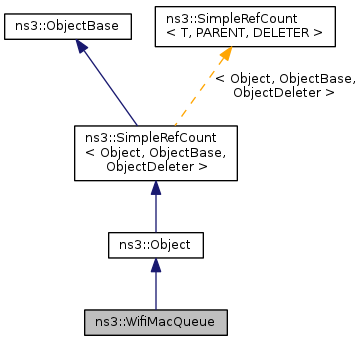

Inheritance diagram for ns3::WifiMacQueue:

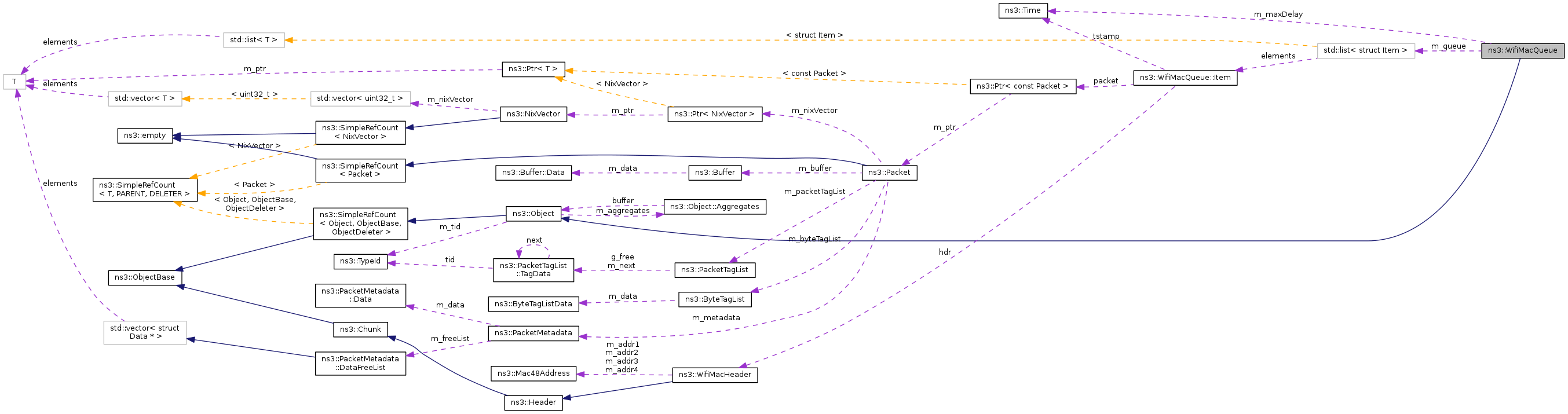

Collaboration diagram for ns3::WifiMacQueue:

Classes
struct	Item

Public Member Functions
	WifiMacQueue ()
	~WifiMacQueue ()
Ptr< const Packet >	Dequeue (WifiMacHeader *hdr)
Ptr< const Packet >	DequeueByTidAndAddress (WifiMacHeader *hdr, uint8_t tid, WifiMacHeader::AddressType type, Mac48Address addr)
Ptr< const Packet >	DequeueFirstAvailable (WifiMacHeader hdr, Time &tStamp, const QosBlockedDestinations blockedPackets)
void	Enqueue (Ptr< const Packet > packet, const WifiMacHeader &hdr)
void	Flush (void)
Time	GetMaxDelay (void) const
uint32_t	GetMaxSize (void) const
uint32_t	GetNPacketsByTidAndAddress (uint8_t tid, WifiMacHeader::AddressType type, Mac48Address addr)
uint32_t	GetSize (void)
bool	IsEmpty (void)
Ptr< const Packet >	Peek (WifiMacHeader *hdr)
Ptr< const Packet >	PeekByTidAndAddress (WifiMacHeader *hdr, uint8_t tid, WifiMacHeader::AddressType type, Mac48Address addr)
Ptr< const Packet >	PeekFirstAvailable (WifiMacHeader hdr, Time &tStamp, const QosBlockedDestinations blockedPackets)
void	PushFront (Ptr< const Packet > packet, const WifiMacHeader &hdr)
bool	Remove (Ptr< const Packet > packet)
void	SetMaxDelay (Time delay)
void	SetMaxSize (uint32_t maxSize)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::WifiMacQueue.

Private Types
typedef std::list< struct Item >	PacketQueue
typedef std::list< struct Item > ::iterator	PacketQueueI
typedef std::list< struct Item > ::reverse_iterator	PacketQueueRI

Private Member Functions
void	Cleanup (void)
Mac48Address	GetAddressForPacket (enum WifiMacHeader::AddressType type, PacketQueueI)

Private Attributes
Time	m_maxDelay
uint32_t	m_maxSize
WifiMacParameters *	m_parameters
PacketQueue	m_queue
uint32_t	m_size

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

This queue implements the timeout procedure described in IEEE Std. 802.11-2007, section 9.9.1.6, paragraph 6.

When a packet is received by the MAC, to be sent to the PHY, it is queued in the internal queue after being tagged by the current time.

When a packet is dequeued, the queue checks its timestamp to verify whether or not it should be dropped. If dot11EDCATableMSDULifetime has elapsed, it is dropped. Otherwise, it is returned to the caller.

Definition at line 52 of file wifi-mac-queue.h.

Member Typedef Documentation

typedef std::list<struct Item> ns3::WifiMacQueue::PacketQueue

private

Definition at line 124 of file wifi-mac-queue.h.

typedef std::list<struct Item>::iterator ns3::WifiMacQueue::PacketQueueI

private

Definition at line 128 of file wifi-mac-queue.h.

typedef std::list<struct Item>::reverse_iterator ns3::WifiMacQueue::PacketQueueRI

private

Definition at line 127 of file wifi-mac-queue.h.

Constructor & Destructor Documentation

ns3::WifiMacQueue::WifiMacQueue ( )

Definition at line 62 of file wifi-mac-queue.cc.

ns3::WifiMacQueue::~WifiMacQueue ( )

Definition at line 67 of file wifi-mac-queue.cc.

References Flush().

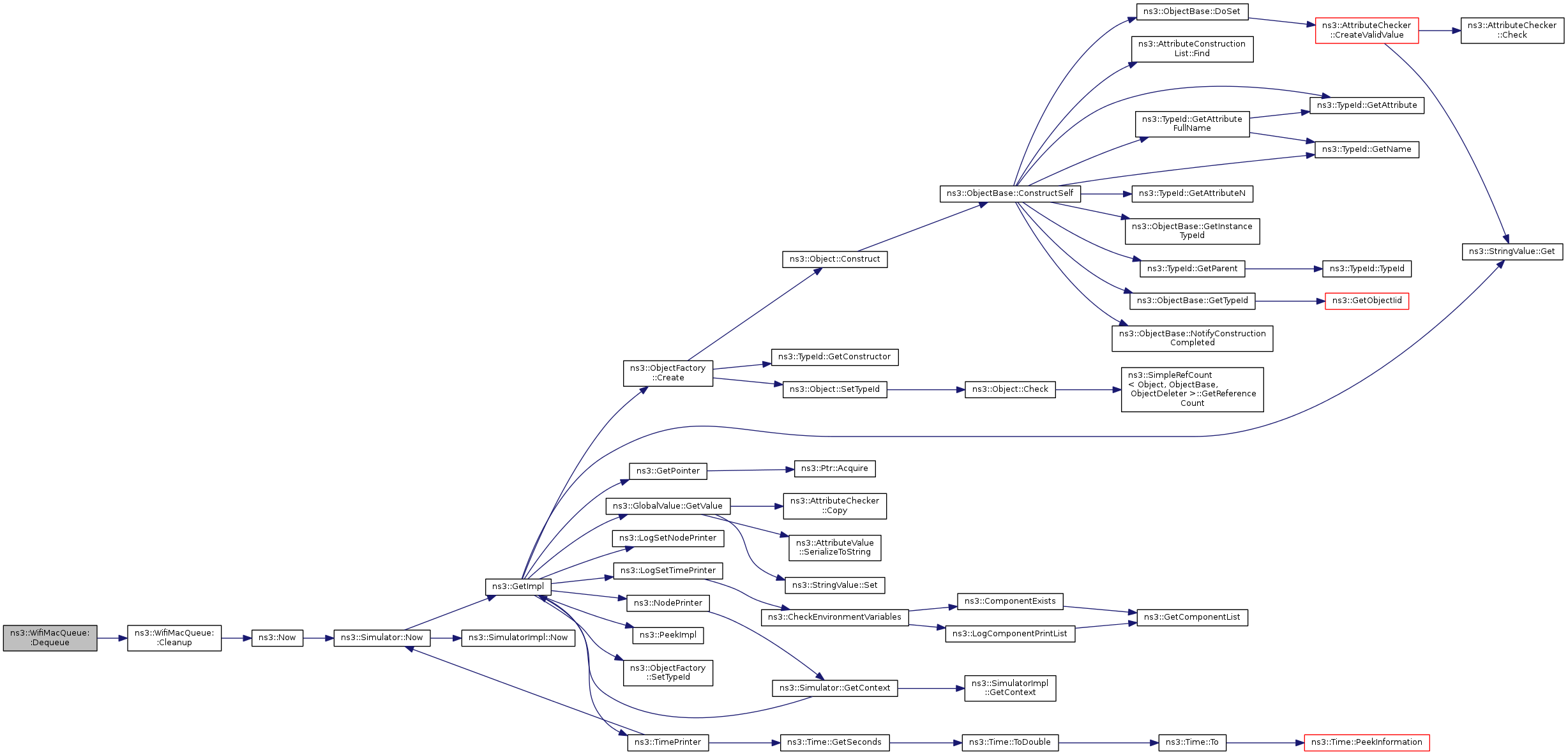

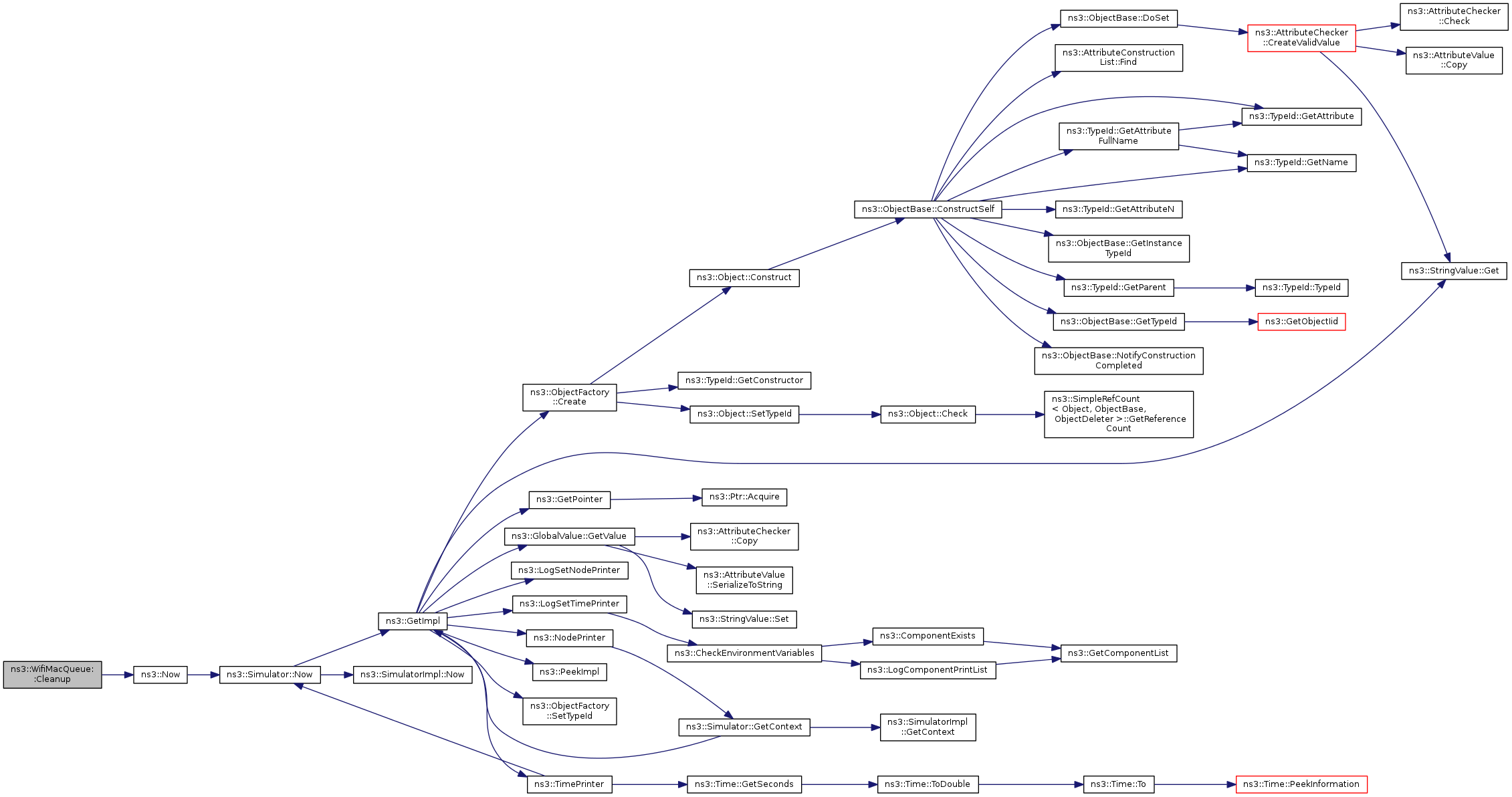

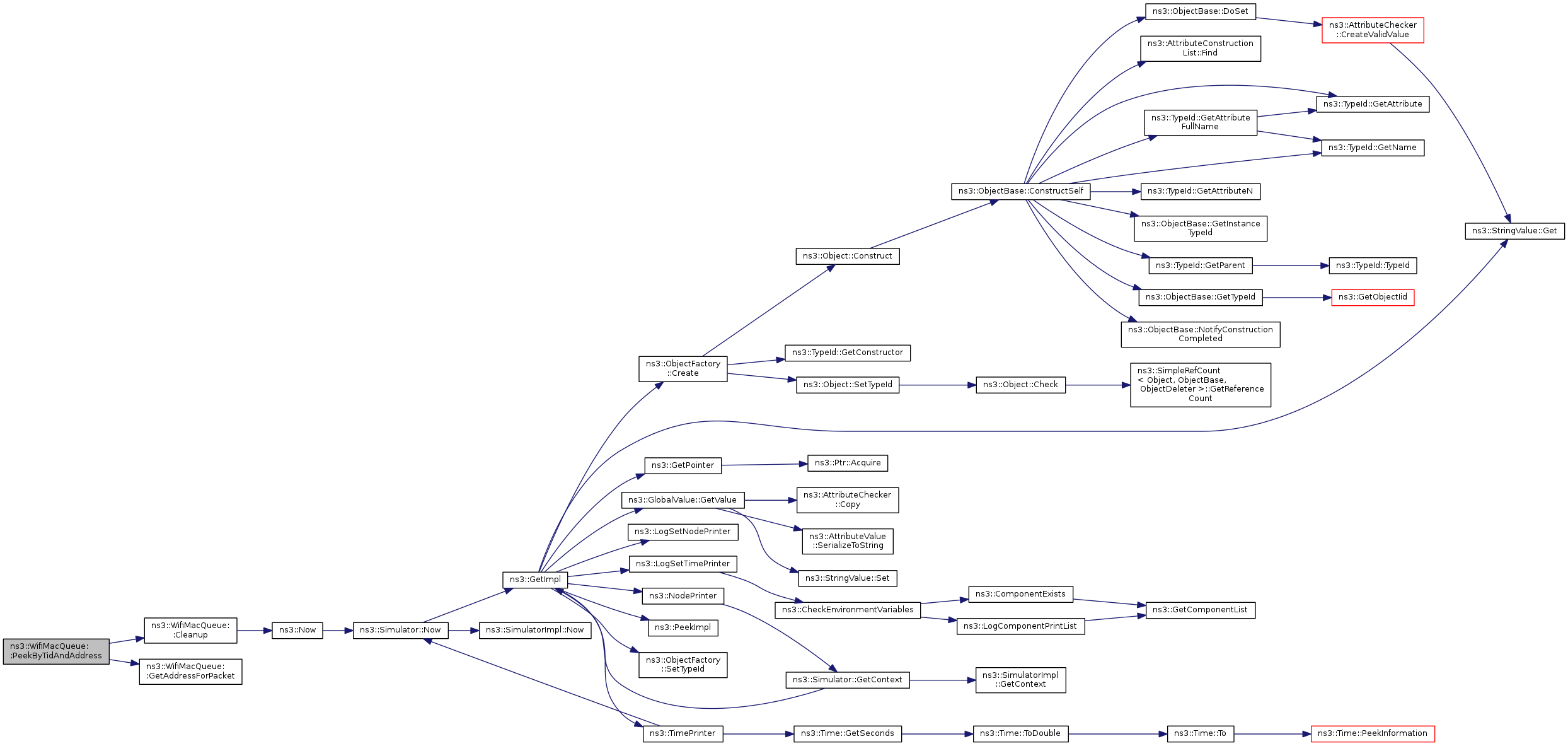

Here is the call graph for this function:

Member Function Documentation

void ns3::WifiMacQueue::Cleanup ( void )

private

Definition at line 110 of file wifi-mac-queue.cc.

References m_maxDelay, m_queue, m_size, and ns3::Now().

Referenced by Dequeue(), DequeueByTidAndAddress(), DequeueFirstAvailable(), Enqueue(), GetNPacketsByTidAndAddress(), IsEmpty(), Peek(), PeekByTidAndAddress(), PeekFirstAvailable(), and PushFront().

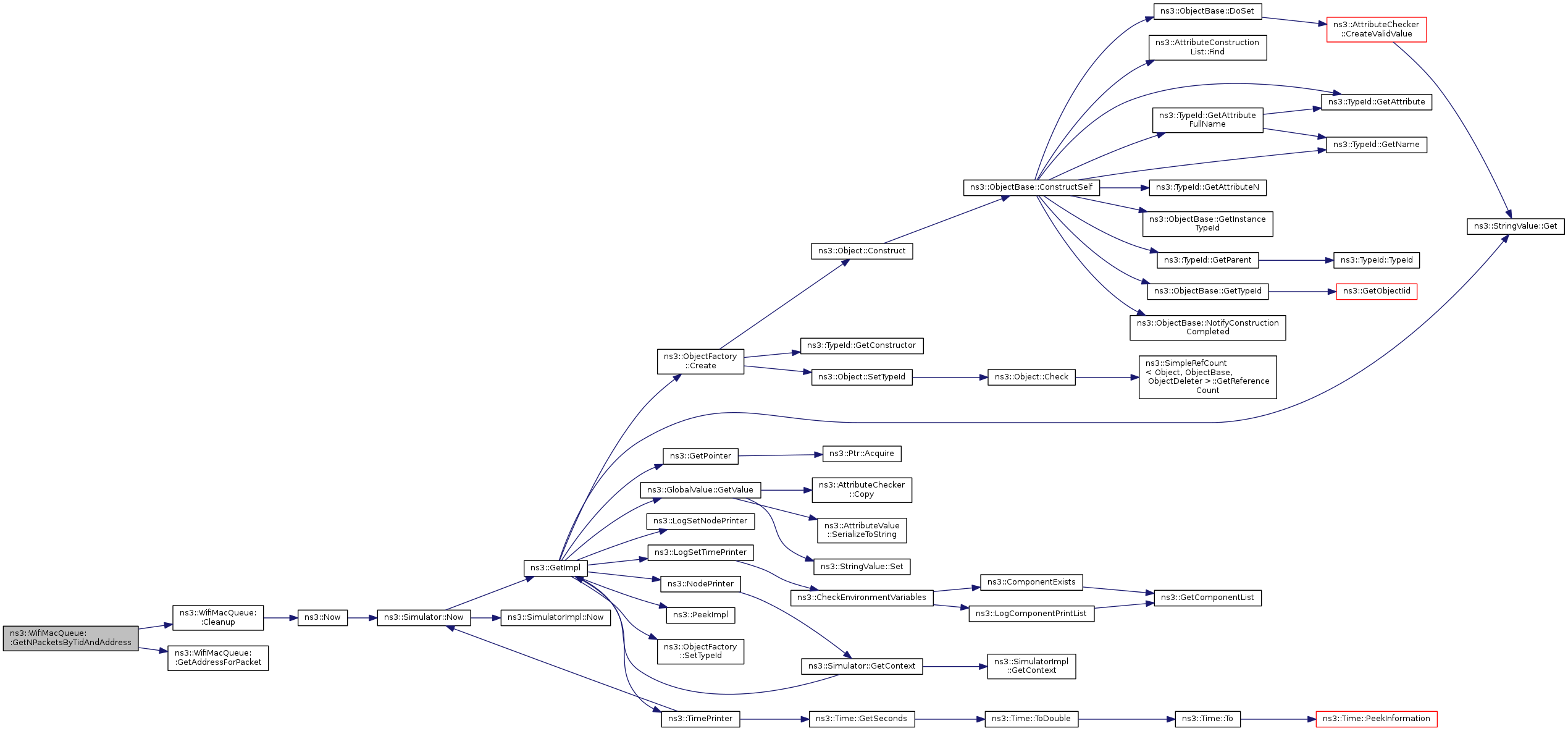

Here is the call graph for this function:

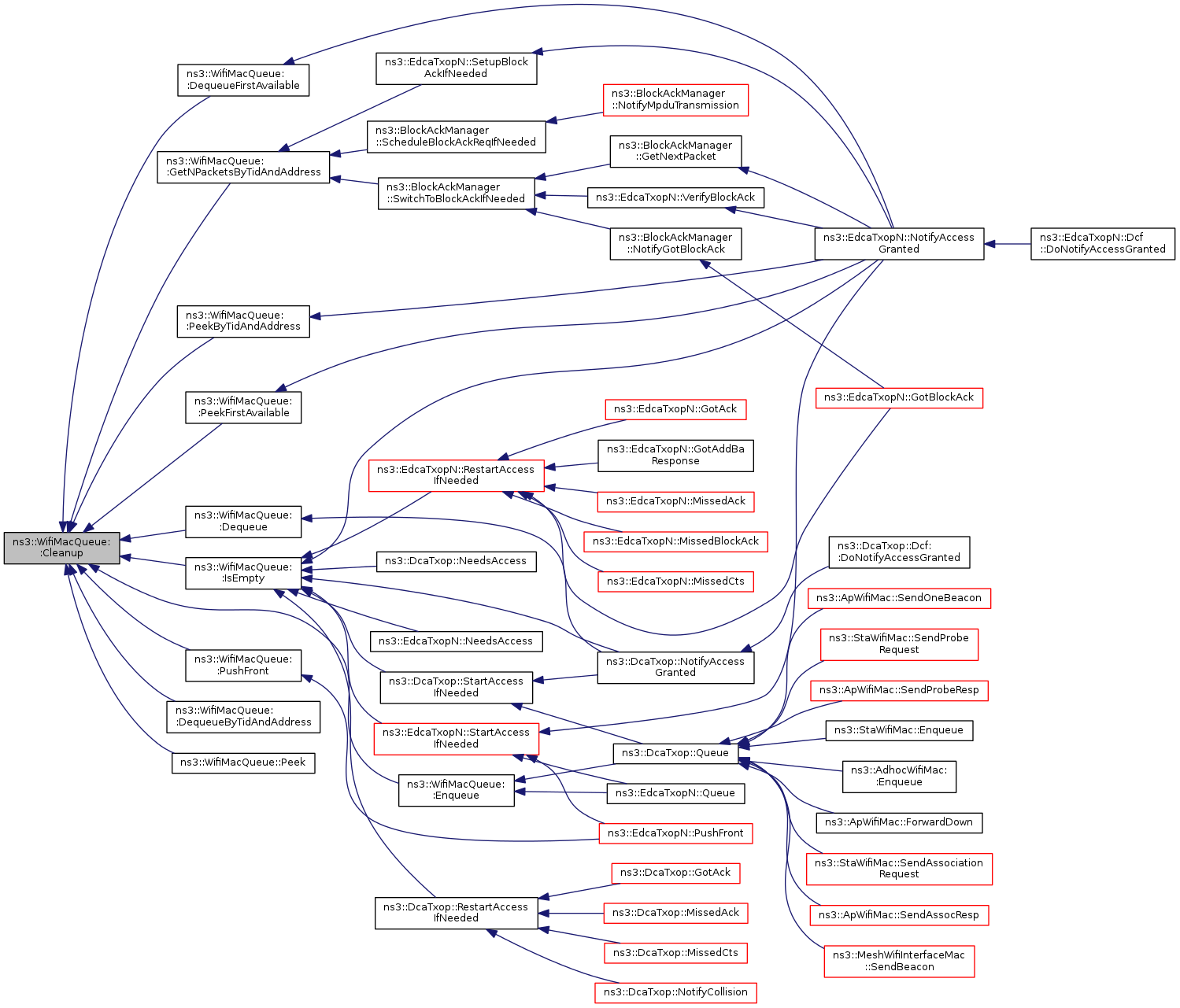

Here is the caller graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::Dequeue ( WifiMacHeader * hdr )

Definition at line 135 of file wifi-mac-queue.cc.

References Cleanup(), ns3::WifiMacQueue::Item::hdr, m_queue, m_size, and ns3::WifiMacQueue::Item::packet.

Referenced by ns3::DcaTxop::NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::DequeueByTidAndAddress	(	WifiMacHeader *	hdr,
		uint8_t	tid,
		WifiMacHeader::AddressType	type,
		Mac48Address	addr
	)

Searchs and returns, if is present in this queue, first packet having address indicated by type equals to addr, and tid equals to tid. This method removes the packet from this queue. Is typically used by ns3::EdcaTxopN in order to perform correct MSDU aggregation (A-MSDU).

Definition at line 163 of file wifi-mac-queue.cc.

References Cleanup(), GetAddressForPacket(), m_queue, m_size, and NS_ASSERT.

Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::DequeueFirstAvailable	(	WifiMacHeader *	hdr,
		Time &	tStamp,
		const QosBlockedDestinations *	blockedPackets
	)

Returns first available packet for transmission. A packet could be no available if it's a QoS packet with a tid and an address1 fields equal to tid and addr respectively that index a pending agreement in the BlockAckManager object. So that packet must not be transmitted until reception of an ADDBA response frame from station addressed by addr. This method removes the packet from queue.

Definition at line 308 of file wifi-mac-queue.cc.

References Cleanup(), ns3::QosBlockedDestinations::IsBlocked(), m_queue, and m_size.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted().

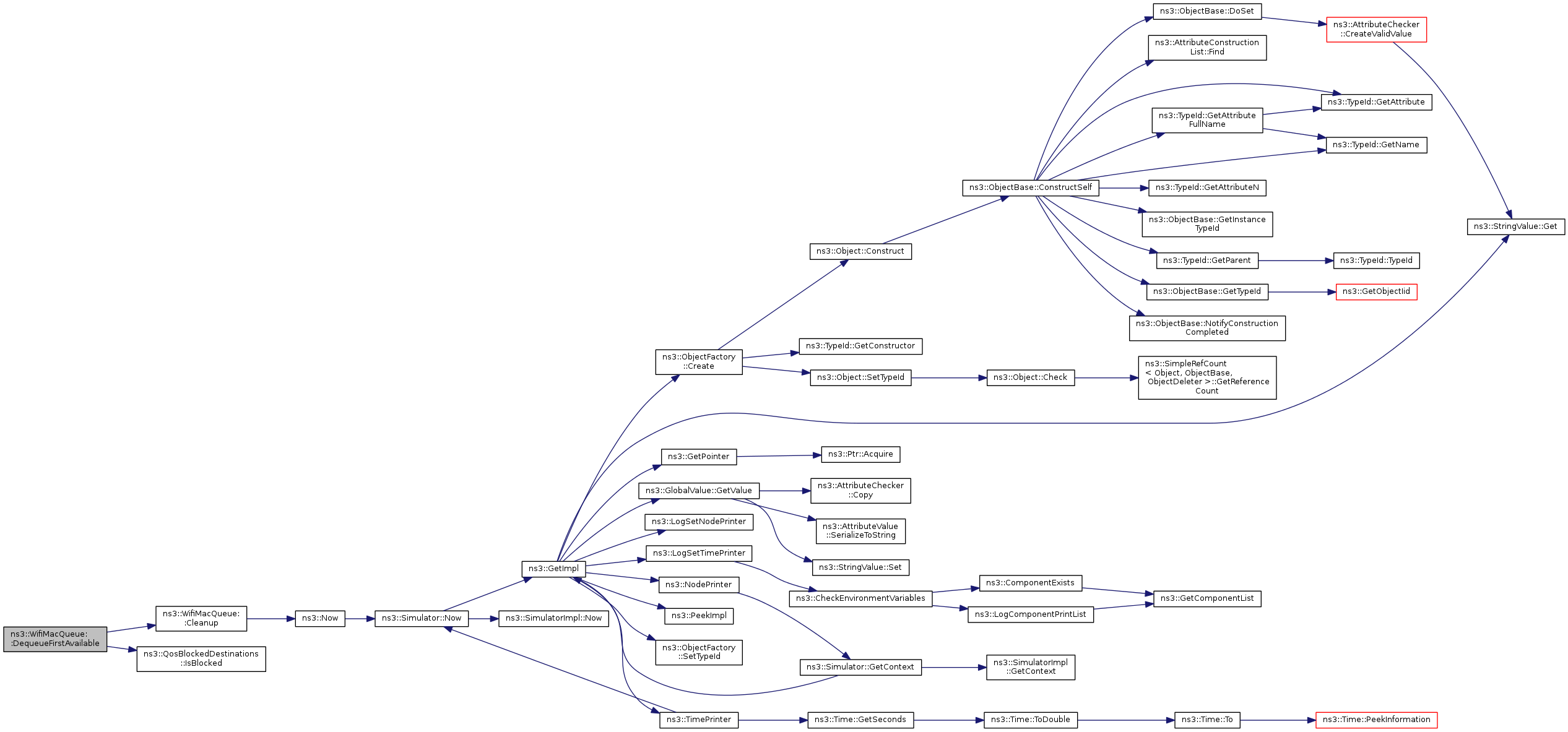

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiMacQueue::Enqueue	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Definition at line 97 of file wifi-mac-queue.cc.

References Cleanup(), m_maxSize, m_queue, m_size, and ns3::Now().

Referenced by ns3::DcaTxop::Queue(), and ns3::EdcaTxopN::Queue().

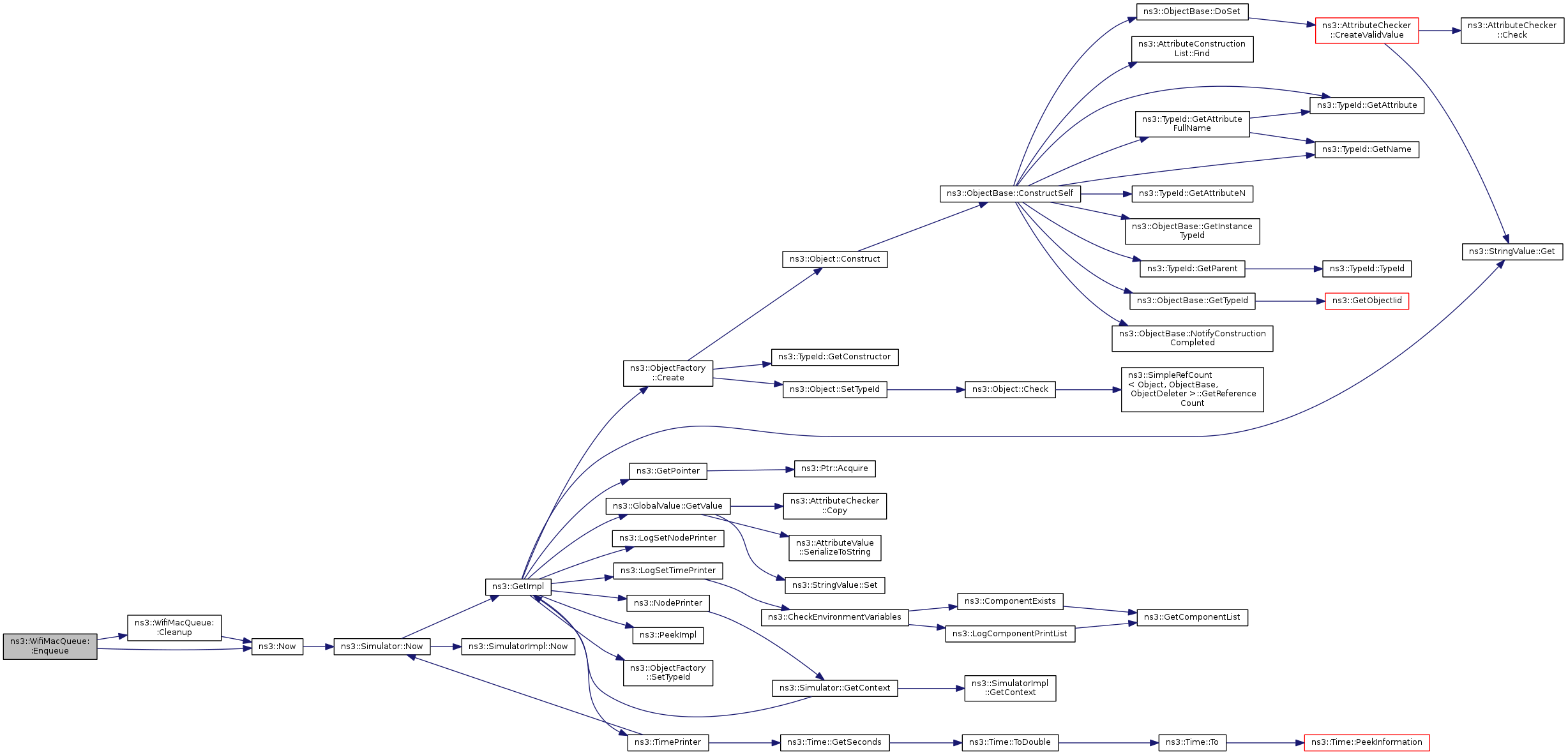

Here is the call graph for this function:

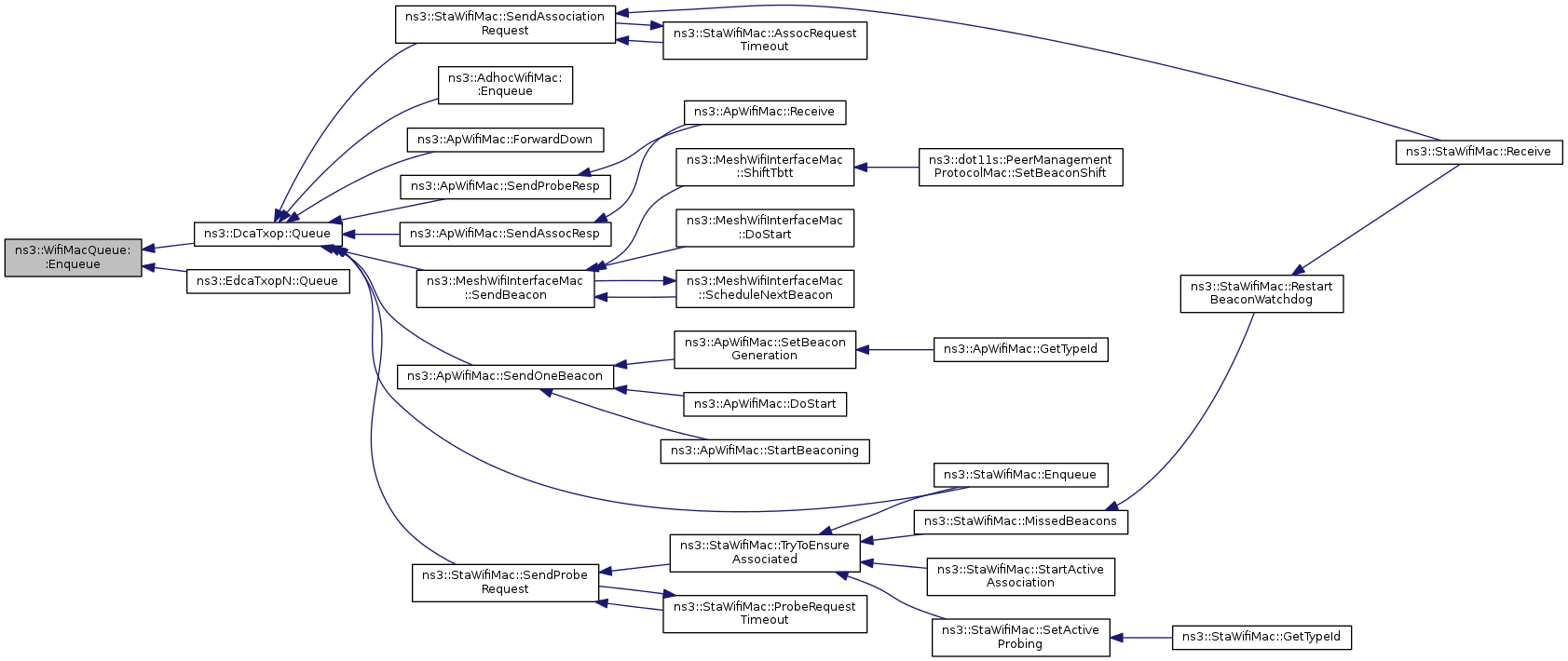

Here is the caller graph for this function:

void ns3::WifiMacQueue::Flush ( void )

Definition at line 230 of file wifi-mac-queue.cc.

References m_queue, and m_size.

Referenced by ns3::EdcaTxopN::NotifyChannelSwitching(), ns3::DcaTxop::NotifyChannelSwitching(), and ~WifiMacQueue().

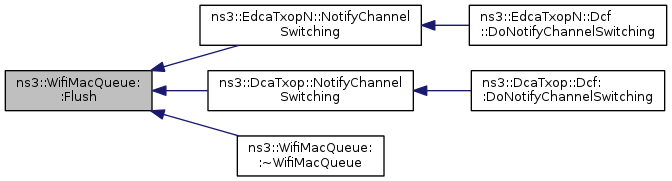

Here is the caller graph for this function:

Mac48Address ns3::WifiMacQueue::GetAddressForPacket	(	enum WifiMacHeader::AddressType	type,
		PacketQueueI	it
	)

private

Definition at line 237 of file wifi-mac-queue.cc.

References ns3::WifiMacHeader::ADDR1, ns3::WifiMacHeader::ADDR2, and ns3::WifiMacHeader::ADDR3.

Referenced by DequeueByTidAndAddress(), GetNPacketsByTidAndAddress(), and PeekByTidAndAddress().

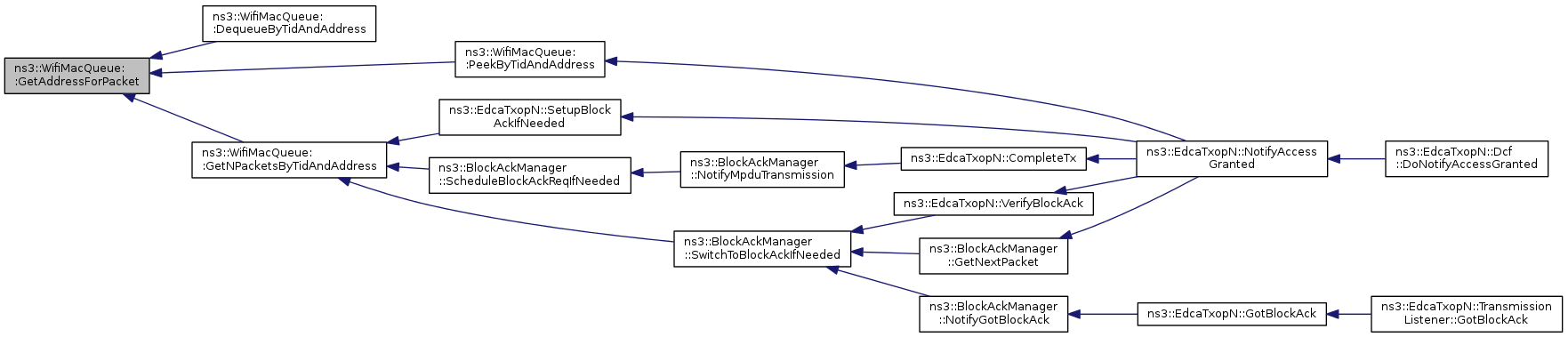

Here is the caller graph for this function:

Time ns3::WifiMacQueue::GetMaxDelay ( void ) const

Definition at line 91 of file wifi-mac-queue.cc.

References m_maxDelay.

Referenced by ns3::EdcaTxopN::EdcaTxopN().

Here is the caller graph for this function:

uint32_t ns3::WifiMacQueue::GetMaxSize ( void ) const

Definition at line 85 of file wifi-mac-queue.cc.

References m_maxSize.

uint32_t ns3::WifiMacQueue::GetNPacketsByTidAndAddress	(	uint8_t	tid,
		WifiMacHeader::AddressType	type,
		Mac48Address	addr
	)

Returns number of QoS packets having tid equals to tid and address specified by type equals to addr.

Definition at line 284 of file wifi-mac-queue.cc.

References Cleanup(), GetAddressForPacket(), m_queue, and NS_ASSERT.

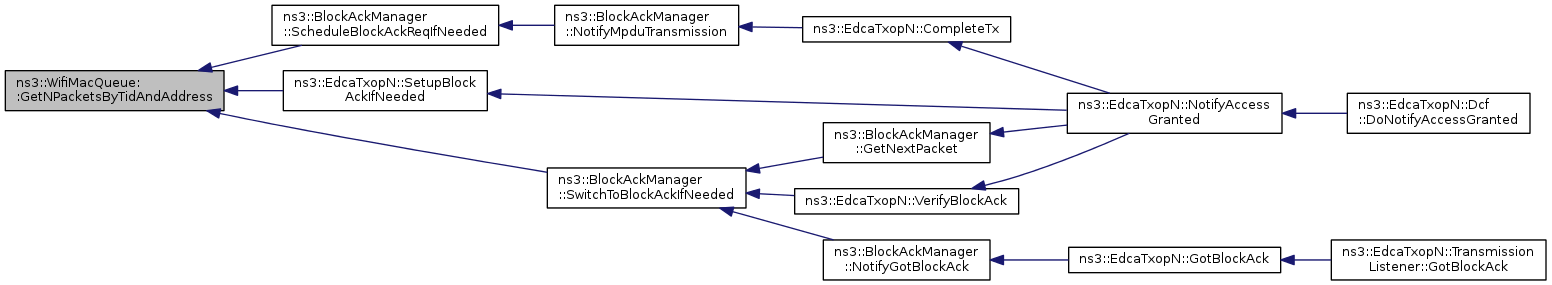

Referenced by ns3::BlockAckManager::ScheduleBlockAckReqIfNeeded(), ns3::EdcaTxopN::SetupBlockAckIfNeeded(), and ns3::BlockAckManager::SwitchToBlockAckIfNeeded().

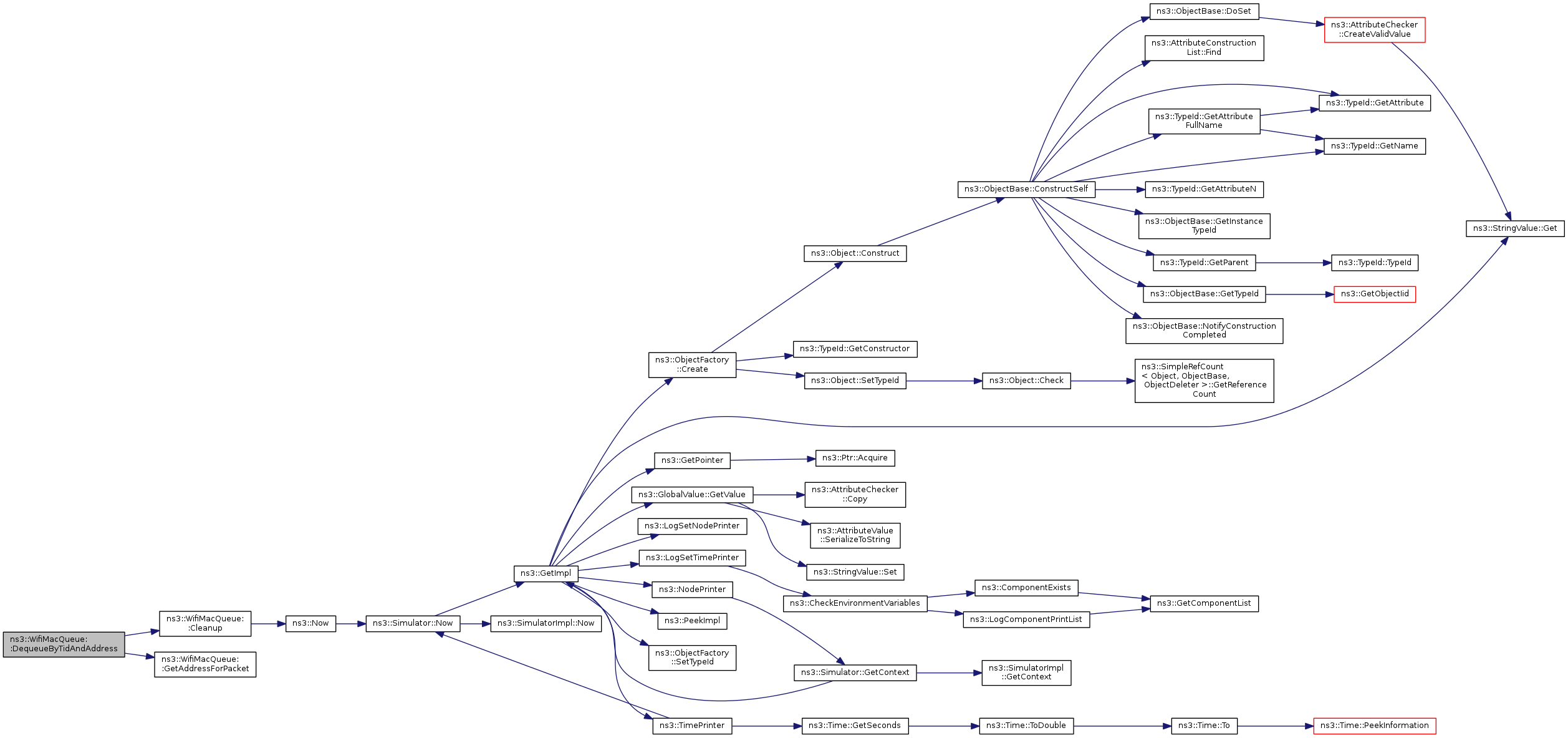

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::WifiMacQueue::GetSize ( void )

Definition at line 224 of file wifi-mac-queue.cc.

References m_size.

TypeId ns3::WifiMacQueue::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::WifiMacQueue.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BE_EdcaTxopN/Queue
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BK_EdcaTxopN/Queue
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/DcaTxop/Queue
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VI_EdcaTxopN/Queue
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VO_EdcaTxopN/Queue

Attributes defined for this type:

MaxPacketNumber: If a packet arrives when there are already this number of packets, it is dropped.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 400
- Flags: construct write read
MaxDelay: If a packet stays longer than this delay in the queue, it is dropped.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +10000000000.0ns
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 45 of file wifi-mac-queue.cc.

References m_maxDelay, m_maxSize, ns3::Seconds(), and ns3::TypeId::SetParent().

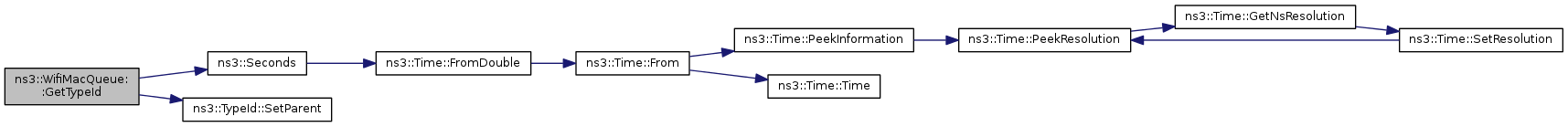

Here is the call graph for this function:

bool ns3::WifiMacQueue::IsEmpty ( void )

Definition at line 217 of file wifi-mac-queue.cc.

References Cleanup(), and m_queue.

Referenced by ns3::EdcaTxopN::NeedsAccess(), ns3::DcaTxop::NeedsAccess(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::EdcaTxopN::RestartAccessIfNeeded(), ns3::DcaTxop::RestartAccessIfNeeded(), ns3::EdcaTxopN::StartAccessIfNeeded(), and ns3::DcaTxop::StartAccessIfNeeded().

Here is the call graph for this function:

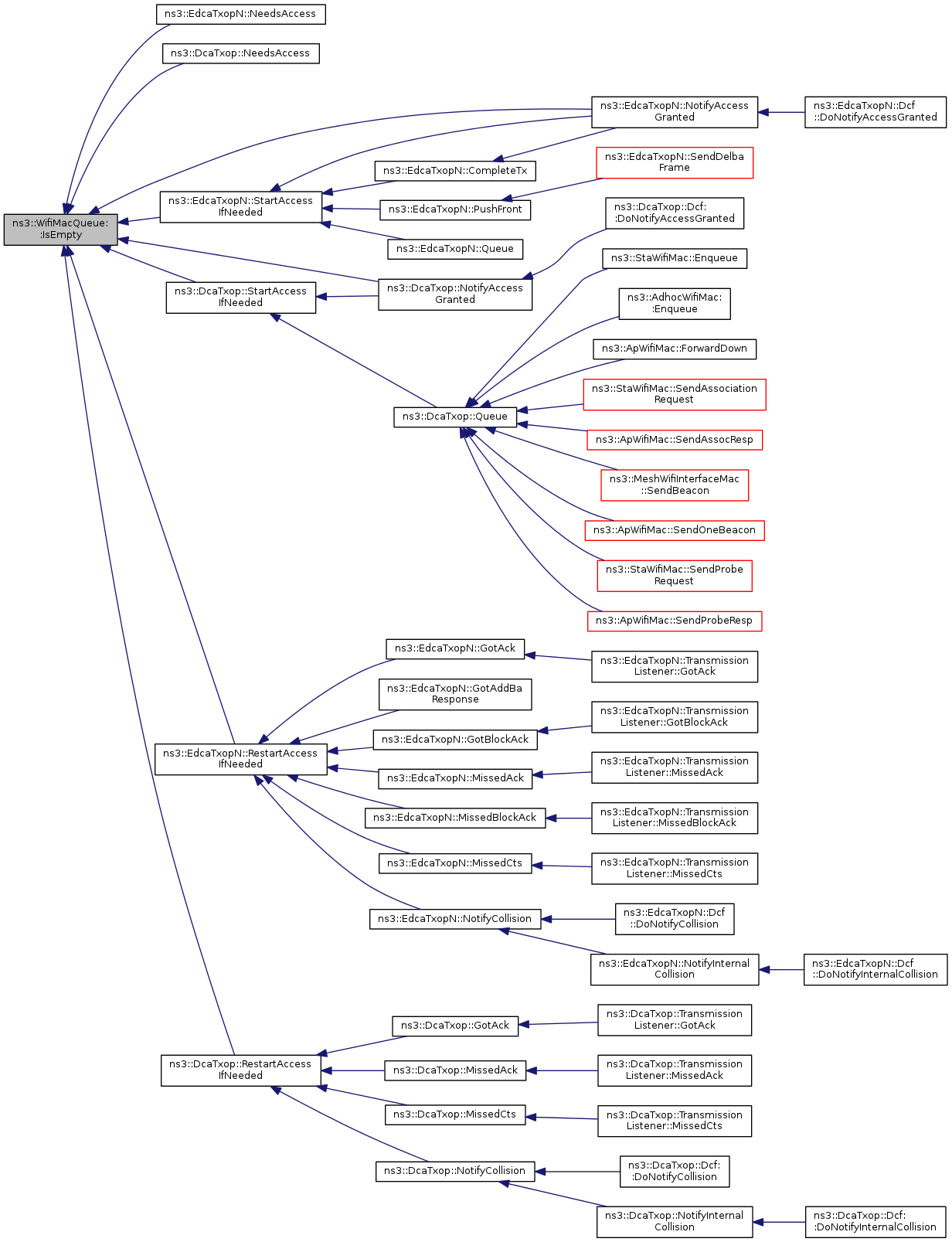

Here is the caller graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::Peek ( WifiMacHeader * hdr )

Definition at line 150 of file wifi-mac-queue.cc.

References Cleanup(), ns3::WifiMacQueue::Item::hdr, m_queue, and ns3::WifiMacQueue::Item::packet.

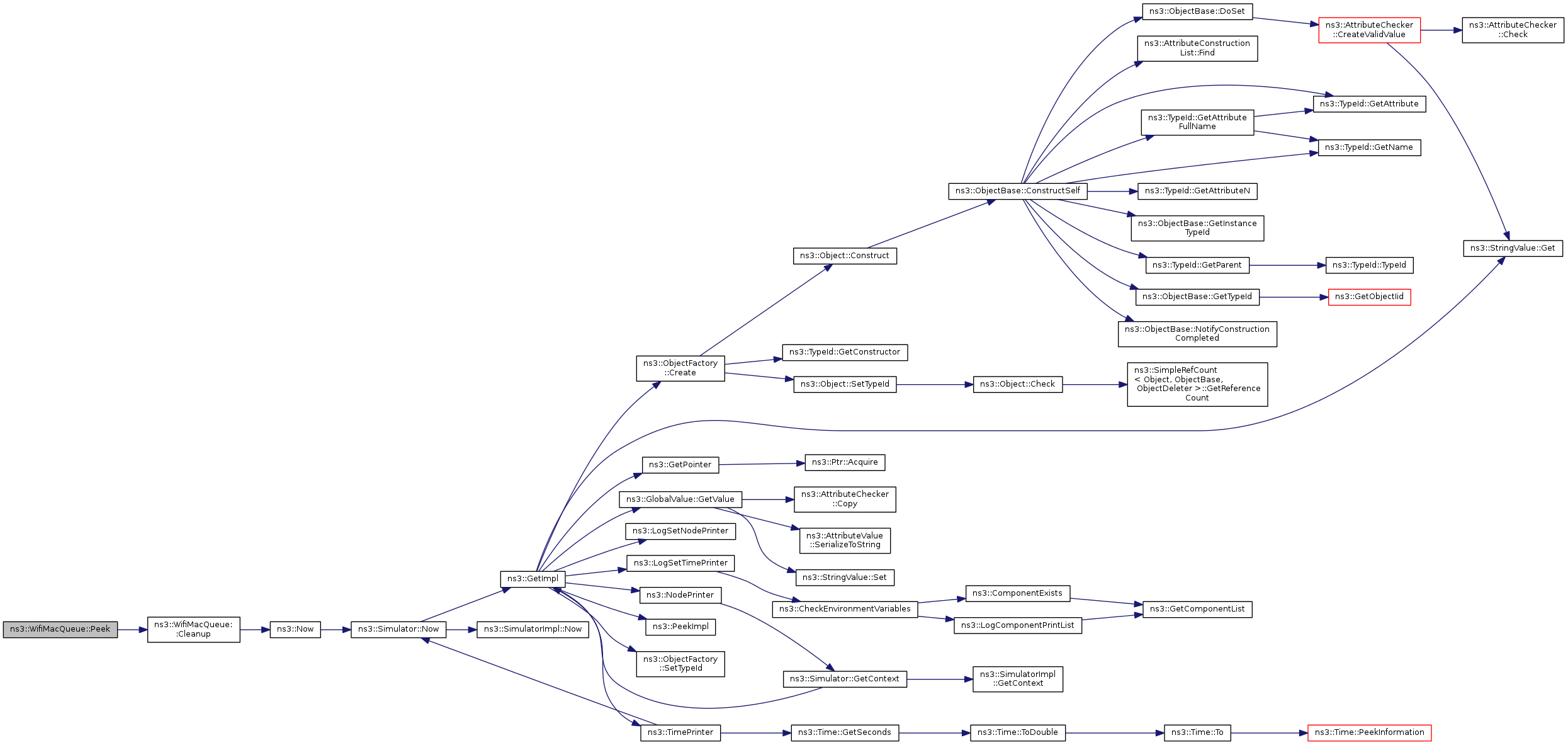

Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::PeekByTidAndAddress	(	WifiMacHeader *	hdr,
		uint8_t	tid,
		WifiMacHeader::AddressType	type,
		Mac48Address	addr
	)

Searchs and returns, if is present in this queue, first packet having address indicated by type equals to addr, and tid equals to tid. This method doesn't remove the packet from this queue. Is typically used by ns3::EdcaTxopN in order to perform correct MSDU aggregation (A-MSDU).

Definition at line 192 of file wifi-mac-queue.cc.

References Cleanup(), GetAddressForPacket(), m_queue, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::PeekFirstAvailable	(	WifiMacHeader *	hdr,
		Time &	tStamp,
		const QosBlockedDestinations *	blockedPackets
	)

Returns first available packet for transmission. The packet isn't removed from queue.

Definition at line 330 of file wifi-mac-queue.cc.

References Cleanup(), ns3::QosBlockedDestinations::IsBlocked(), and m_queue.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiMacQueue::PushFront	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Definition at line 271 of file wifi-mac-queue.cc.

References Cleanup(), m_maxSize, m_queue, m_size, and ns3::Now().

Referenced by ns3::EdcaTxopN::PushFront().

Here is the call graph for this function:

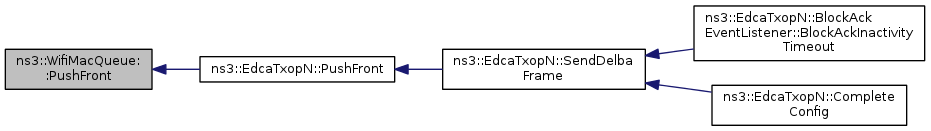

Here is the caller graph for this function:

bool ns3::WifiMacQueue::Remove ( Ptr< const Packet > packet )

If exists, removes packet from queue and returns true. Otherwise it takes no effects and return false. Deletion of the packet is performed in linear time (O(n)).

Definition at line 255 of file wifi-mac-queue.cc.

References m_queue, and m_size.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted().

Here is the caller graph for this function:
