The IPv4 representation of a network interface. More...

#include <ipv4-interface.h>

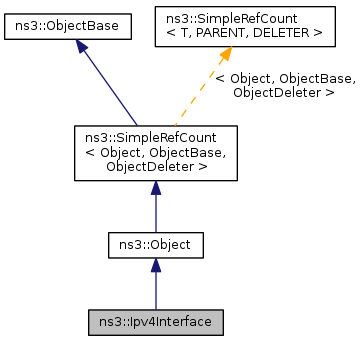

Inheritance diagram for ns3::Ipv4Interface:

Collaboration diagram for ns3::Ipv4Interface:

Public Member Functions
	Ipv4Interface ()
virtual	~Ipv4Interface ()
bool	AddAddress (Ipv4InterfaceAddress address)
Ipv4InterfaceAddress	GetAddress (uint32_t index) const
Ptr< ArpCache >	GetArpCache () const
Ptr< NetDevice >	GetDevice (void) const
uint16_t	GetMetric (void) const
uint32_t	GetNAddresses (void) const
bool	IsDown (void) const
bool	IsForwarding (void) const
bool	IsUp (void) const
Ipv4InterfaceAddress	RemoveAddress (uint32_t index)
void	Send (Ptr< Packet > p, Ipv4Address dest)
void	SetArpCache (Ptr< ArpCache >)
void	SetDevice (Ptr< NetDevice > device)
void	SetDown (void)
void	SetForwarding (bool val)
void	SetMetric (uint16_t metric)
void	SetNode (Ptr< Node > node)
void	SetUp (void)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::Ipv4Interface.

Protected Member Functions
virtual void	DoDispose (void)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Private Types
typedef std::list < Ipv4InterfaceAddress >	Ipv4InterfaceAddressList
typedef std::list < Ipv4InterfaceAddress > ::const_iterator	Ipv4InterfaceAddressListCI
typedef std::list < Ipv4InterfaceAddress > ::iterator	Ipv4InterfaceAddressListI

Private Member Functions
void	DoSetup (void)

Private Attributes
Ptr< ArpCache >	m_cache
Ptr< NetDevice >	m_device
bool	m_forwarding
Ipv4InterfaceAddressList	m_ifaddrs
bool	m_ifup
uint16_t	m_metric
Ptr< Node >	m_node

Detailed Description

The IPv4 representation of a network interface.

This class roughly corresponds to the struct in_device of Linux; the main purpose is to provide address-family specific information (addresses) about an interface.

By default, Ipv4 interface are created in the "down" state no IP addresses. Before becoming useable, the user must add an address of some type and invoke Setup on them.

Definition at line 49 of file ipv4-interface.h.

Member Typedef Documentation

typedef std::list<Ipv4InterfaceAddress> ns3::Ipv4Interface::Ipv4InterfaceAddressList

private

Definition at line 159 of file ipv4-interface.h.

typedef std::list<Ipv4InterfaceAddress>::const_iterator ns3::Ipv4Interface::Ipv4InterfaceAddressListCI

private

Definition at line 160 of file ipv4-interface.h.

typedef std::list<Ipv4InterfaceAddress>::iterator ns3::Ipv4Interface::Ipv4InterfaceAddressListI

private

Definition at line 161 of file ipv4-interface.h.

Constructor & Destructor Documentation

ns3::Ipv4Interface::Ipv4Interface ( )

By default, Ipv4 interface are created in the "down" state with no IP addresses. Before becoming useable, the user must invoke SetUp on them once an Ipv4 address and mask have been set.

Definition at line 60 of file ipv4-interface.cc.

References NS_LOG_FUNCTION.

ns3::Ipv4Interface::~Ipv4Interface ( )

virtual

Definition at line 71 of file ipv4-interface.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

bool ns3::Ipv4Interface::AddAddress ( Ipv4InterfaceAddress address )

Parameters

address The Ipv4InterfaceAddress to add to the interface

Returns: true if succeeded

Definition at line 289 of file ipv4-interface.cc.

References m_ifaddrs, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv4L3Protocol::AddAddress().

Here is the caller graph for this function:

void ns3::Ipv4Interface::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 77 of file ipv4-interface.cc.

References m_device, m_node, and NS_LOG_FUNCTION_NOARGS.

void ns3::Ipv4Interface::DoSetup ( void )

private

Definition at line 100 of file ipv4-interface.cc.

References ns3::Object::GetObject(), m_cache, m_device, m_node, and ns3::NetDevice::NeedsArp().

Referenced by SetDevice(), and SetNode().

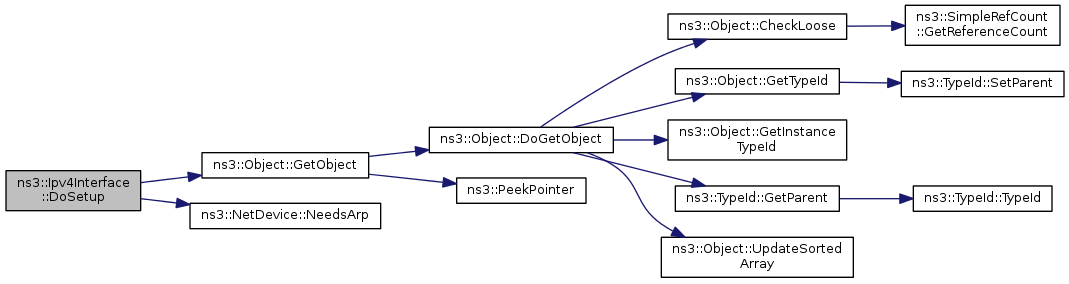

Here is the call graph for this function:

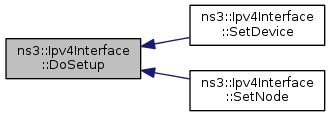

Here is the caller graph for this function:

Ipv4InterfaceAddress ns3::Ipv4Interface::GetAddress ( uint32_t index ) const

Parameters

index Index of Ipv4InterfaceAddress to return

Returns: The Ipv4InterfaceAddress address whose index is i

Definition at line 297 of file ipv4-interface.cc.

References m_ifaddrs, NS_ASSERT, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv4L3Protocol::GetAddress(), and ns3::Ipv4EndPointDemux::Lookup().

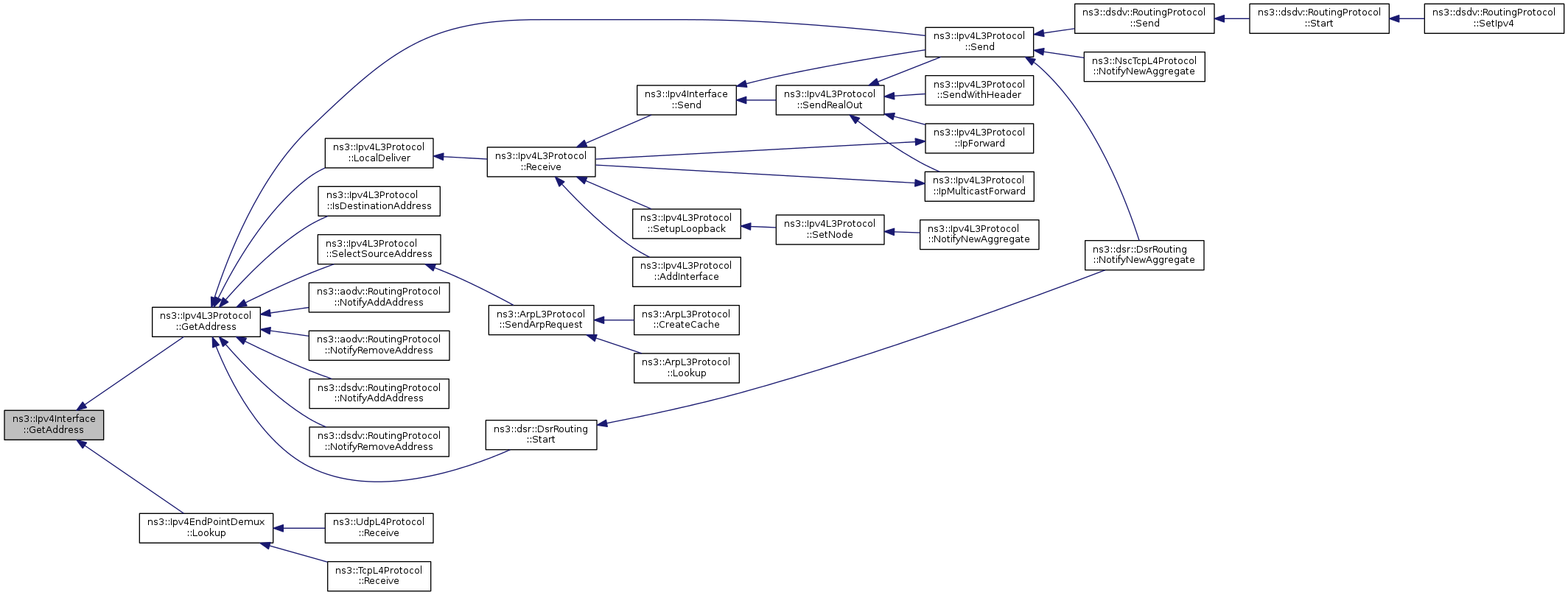

Here is the caller graph for this function:

Ptr< ArpCache > ns3::Ipv4Interface::GetArpCache ( ) const

Returns: ARP cache used by this interface

Definition at line 141 of file ipv4-interface.cc.

References m_cache.

Referenced by ns3::dsr::DsrRouting::DoDispose(), GetTypeId(), and ns3::dsr::DsrRouting::Start().

Here is the caller graph for this function:

Ptr< NetDevice > ns3::Ipv4Interface::GetDevice ( void ) const

Returns: the underlying NetDevice. This method cannot return zero.

Definition at line 115 of file ipv4-interface.cc.

References m_device.

Referenced by ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::UdpSocketImpl::ForwardUp(), ns3::Ipv4L3Protocol::GetMtu(), ns3::Ipv4L3Protocol::GetNetDevice(), ns3::Ipv4EndPointDemux::Lookup(), ns3::Ipv4L3Protocol::Receive(), ns3::Ipv4L3Protocol::Send(), and ns3::Ipv4L3Protocol::SendRealOut().

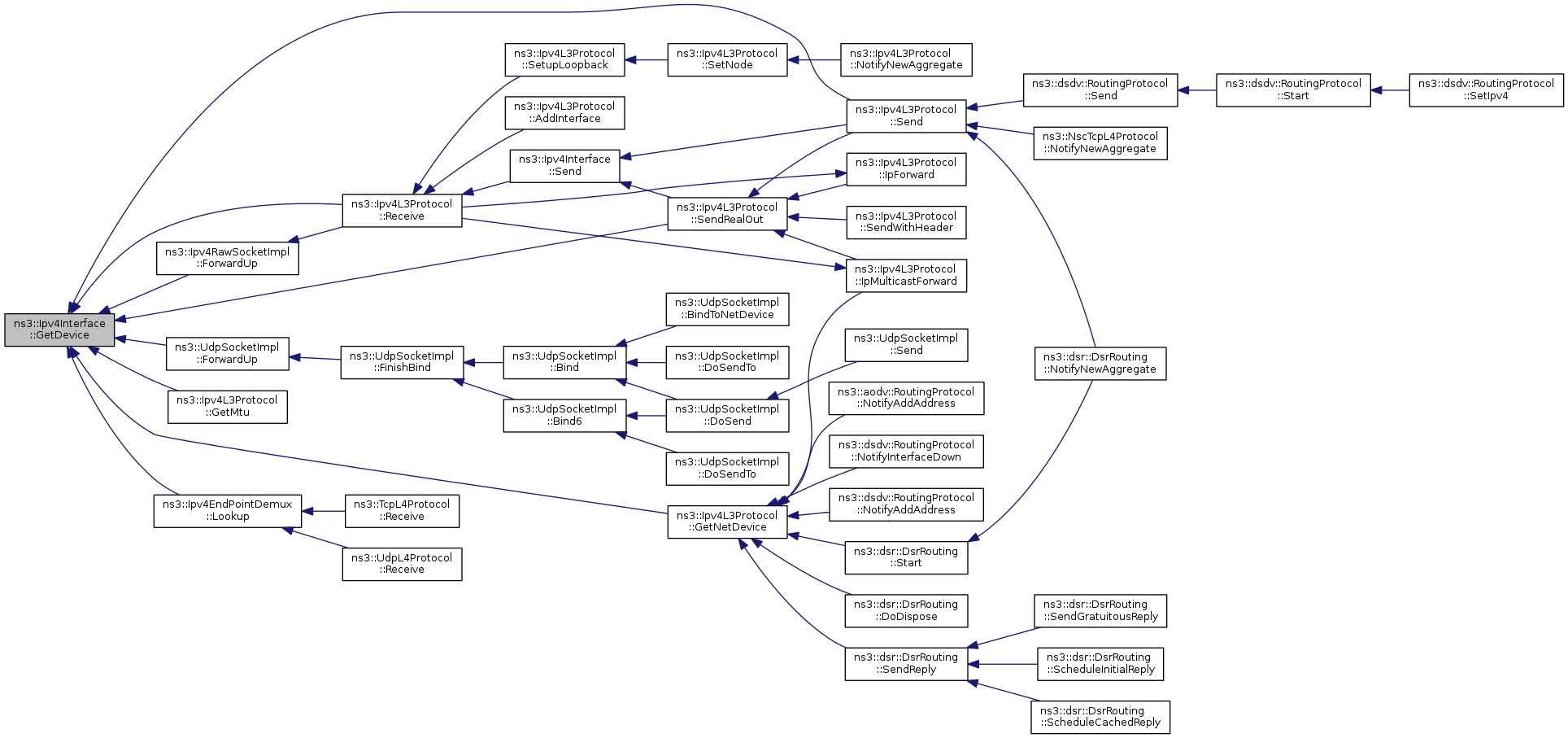

Here is the caller graph for this function:

uint16_t ns3::Ipv4Interface::GetMetric ( void ) const

Returns: configured routing metric (cost) of this interface

Note: This is synonymous to the Metric value that ifconfig prints out. It is used by ns-3 global routing, but other routing daemons may choose to ignore it.

Definition at line 128 of file ipv4-interface.cc.

References m_metric, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv4L3Protocol::GetMetric().

Here is the caller graph for this function:

uint32_t ns3::Ipv4Interface::GetNAddresses ( void ) const

Returns: the number of Ipv4InterfaceAddresss stored on this interface

Definition at line 282 of file ipv4-interface.cc.

References m_ifaddrs, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv4L3Protocol::GetNAddresses(), and ns3::Ipv4EndPointDemux::Lookup().

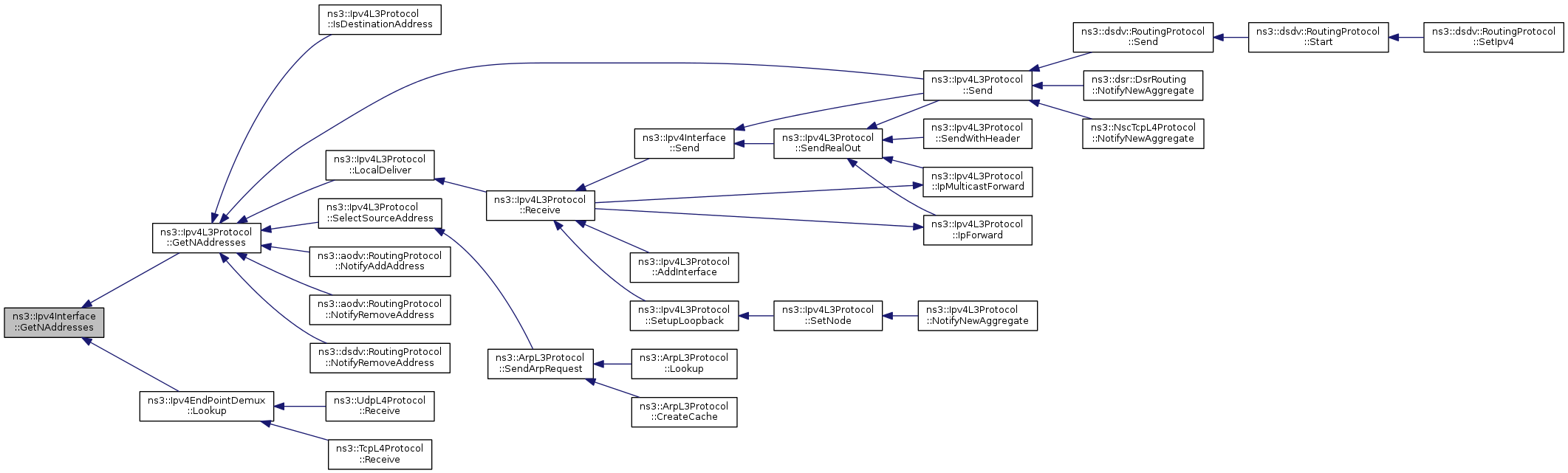

Here is the caller graph for this function:

TypeId ns3::Ipv4Interface::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::Ipv4Interface.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::Ipv4L3Protocol/InterfaceList/[i]

Attributes defined for this type:

ArpCache: The arp cache for this ipv4 interface
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ArpCache >
- Initial value: 0
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 40 of file ipv4-interface.cc.

References GetArpCache(), SetArpCache(), and ns3::TypeId::SetParent().

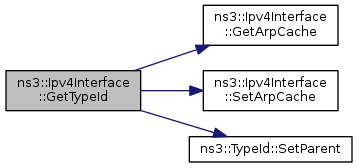

Here is the call graph for this function:

bool ns3::Ipv4Interface::IsDown ( void ) const

Returns: true if this interface is disabled, false otherwise.

Definition at line 159 of file ipv4-interface.cc.

References m_ifup, and NS_LOG_FUNCTION_NOARGS.

bool ns3::Ipv4Interface::IsForwarding ( void ) const

Returns: true if this interface is enabled for IP forwarding of input datagrams

Definition at line 180 of file ipv4-interface.cc.

References m_forwarding, and NS_LOG_FUNCTION_NOARGS.

bool ns3::Ipv4Interface::IsUp ( void ) const

These are IP interface states and may be distinct from NetDevice states, such as found in real implementations (where the device may be down but IP interface state is still up).

Returns: true if this interface is enabled, false otherwise.

These are IP interface states and may be distinct from NetDevice states, such as found in real implementations (where the device may be down but IP interface state is still up).

Definition at line 152 of file ipv4-interface.cc.

References m_ifup, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv4L3Protocol::IsUp(), ns3::Ipv4L3Protocol::Receive(), Send(), and ns3::Ipv4L3Protocol::SendRealOut().

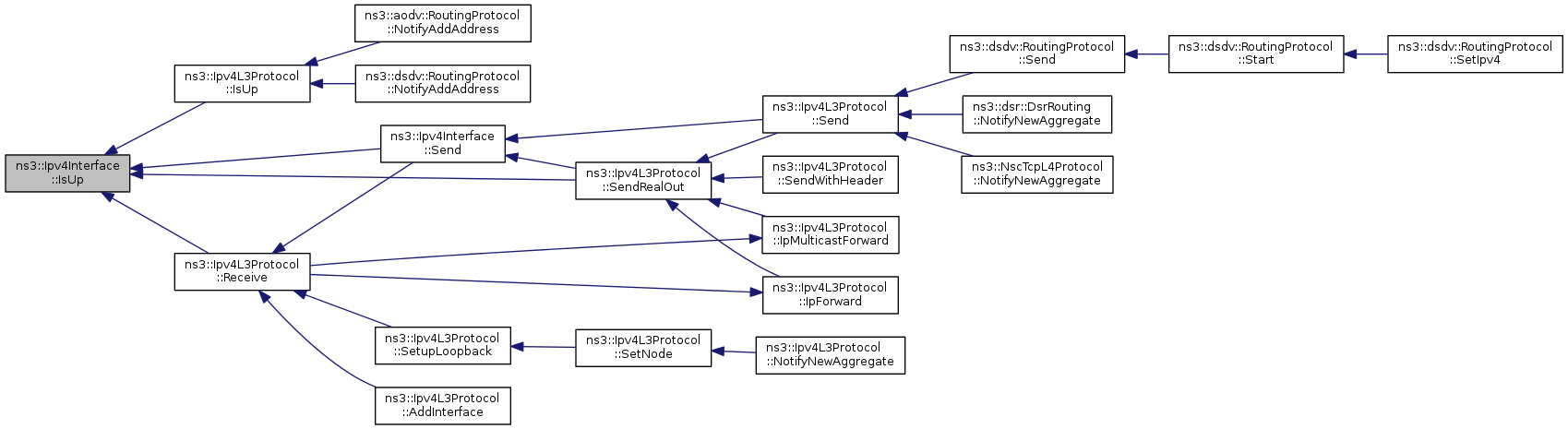

Here is the caller graph for this function:

Ipv4InterfaceAddress ns3::Ipv4Interface::RemoveAddress ( uint32_t index )

Parameters

index Index of Ipv4InterfaceAddress to remove

Returns: The Ipv4InterfaceAddress address whose index is index

Definition at line 318 of file ipv4-interface.cc.

References m_ifaddrs, NS_ASSERT_MSG, and NS_LOG_FUNCTION_NOARGS.

void ns3::Ipv4Interface::Send	(	Ptr< Packet >	p,
		Ipv4Address	dest
	)

Parameters

p	packet to send
dest	next hop address of packet.

This method will eventually call the private SendTo method which must be implemented by subclasses.

Definition at line 194 of file ipv4-interface.cc.

References ns3::NetDevice::GetBroadcast(), ns3::NetDevice::GetMulticast(), ns3::Object::GetObject(), ns3::Ipv4Address::IsBroadcast(), ns3::Ipv4Address::IsMulticast(), ns3::NetDevice::IsMulticast(), ns3::Ipv4Address::IsSubnetDirectedBroadcast(), IsUp(), m_cache, m_device, m_ifaddrs, m_node, ns3::NetDevice::NeedsArp(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::NetDevice::PACKET_HOST, ns3::Ipv4L3Protocol::PROT_NUMBER, ns3::Ipv4L3Protocol::Receive(), and ns3::NetDevice::Send().

Referenced by ns3::Ipv4L3Protocol::Send(), and ns3::Ipv4L3Protocol::SendRealOut().

Here is the call graph for this function:

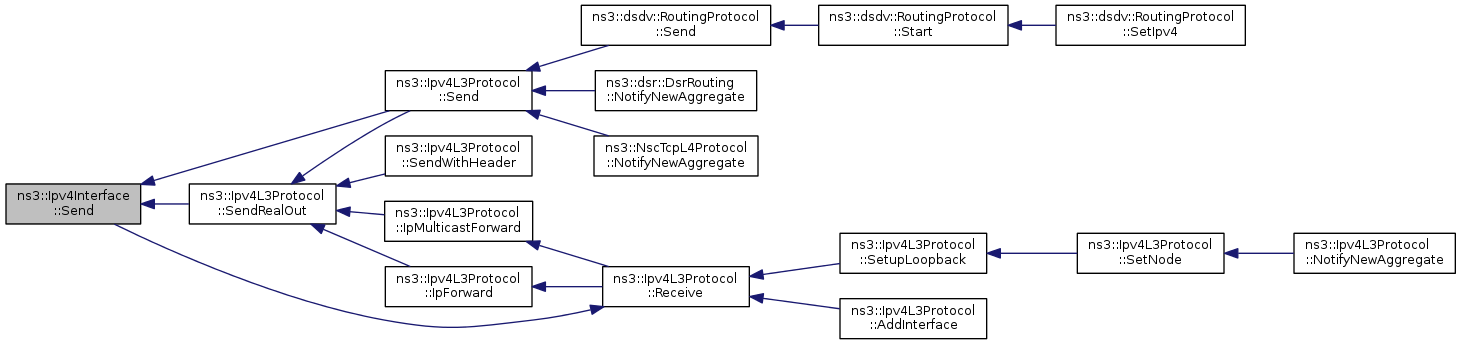

Here is the caller graph for this function:

void ns3::Ipv4Interface::SetArpCache ( Ptr< ArpCache > a )

Definition at line 135 of file ipv4-interface.cc.

References m_cache.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::Ipv4Interface::SetDevice ( Ptr< NetDevice > device )

Definition at line 93 of file ipv4-interface.cc.

References DoSetup(), and m_device.

Here is the call graph for this function:

void ns3::Ipv4Interface::SetDown ( void )

Disable this interface

Definition at line 173 of file ipv4-interface.cc.

References m_ifup, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv4L3Protocol::SetDown().

Here is the caller graph for this function:

void ns3::Ipv4Interface::SetForwarding ( bool val )

Parameters

val	Whether to enable or disable IP forwarding for input datagrams

Definition at line 187 of file ipv4-interface.cc.

References m_forwarding, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv4L3Protocol::SetForwarding().

Here is the caller graph for this function:

void ns3::Ipv4Interface::SetMetric ( uint16_t metric )

Parameters

metric configured routing metric (cost) of this interface

Note: This is synonymous to the Metric value that ifconfig prints out. It is used by ns-3 global routing, but other routing daemons choose to ignore it.

Definition at line 121 of file ipv4-interface.cc.

References m_metric, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3Protocol::SetMetric().

Here is the caller graph for this function:
