IPv6 Option Padn. More...
#include <ipv6-option.h>

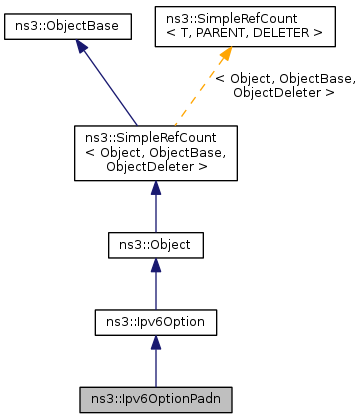

Inheritance diagram for ns3::Ipv6OptionPadn: Collaboration diagram for ns3::Ipv6OptionPadn:Public Member Functions | |
| Ipv6OptionPadn () | |
| Constructor. | |
| ~Ipv6OptionPadn () | |
| Destructor. | |
| virtual uint8_t | GetOptionNumber () const |
| Get the option number. | |
| virtual uint8_t | Process (Ptr< Packet > packet, uint8_t offset, Ipv6Header const &ipv6Header, bool &isDropped) |
| Process method. | |
| Public Member Functions inherited from ns3::Ipv6Option | |
| virtual | ~Ipv6Option () |
| Destructor. | |
| void | SetNode (Ptr< Node > node) |
| Set the node. | |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| virtual | ~Object () |
| void | AggregateObject (Ptr< Object > other) |
| void | Dispose (void) |
| AggregateIterator | GetAggregateIterator (void) const |
| virtual TypeId | GetInstanceTypeId (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| void | Start (void) |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| SimpleRefCount (const SimpleRefCount &o) | |
| uint32_t | GetReferenceCount (void) const |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| void | Ref (void) const |
| void | Unref (void) const |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Get the type identificator. | |
Static Public Attributes | |
| static const uint8_t | OPT_NUMBER = 60 |
| PadN option number. | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| virtual void | DoDispose (void) |
| virtual void | DoStart (void) |
| virtual void | NotifyNewAggregate (void) |
IPv6 Option Padn.
Definition at line 141 of file ipv6-option.h.
| ns3::Ipv6OptionPadn::Ipv6OptionPadn | ( | ) |
| ns3::Ipv6OptionPadn::~Ipv6OptionPadn | ( | ) |
|
virtual |
Get the option number.
Implements ns3::Ipv6Option.
Definition at line 123 of file ipv6-option.cc.
References NS_LOG_FUNCTION_NOARGS, and OPT_NUMBER.
|
static |
Get the type identificator.
This method returns the TypeId associated to ns3::Ipv6OptionPadn.
No Attributes defined for this type.
Attributes defined in parent class ns3::Ipv6Option:
No TraceSources defined for this type.
Reimplemented from ns3::Ipv6Option.
Definition at line 104 of file ipv6-option.cc.
References ns3::TypeId::SetParent().
Here is the call graph for this function:
|
virtual |
Process method.
Called from Ipv6L3Protocol::Receive.
| packet | the packet |
| offset | the offset of the extension to process |
| ipv6Header | the IPv6 header of packet received |
| isDropped | if the packet must be dropped |
Implements ns3::Ipv6Option.
Definition at line 130 of file ipv6-option.cc.
References ns3::Packet::Copy(), ns3::Ipv6OptionPadnHeader::GetSerializedSize(), NS_LOG_FUNCTION, ns3::Packet::RemoveAtStart(), and ns3::Packet::RemoveHeader().

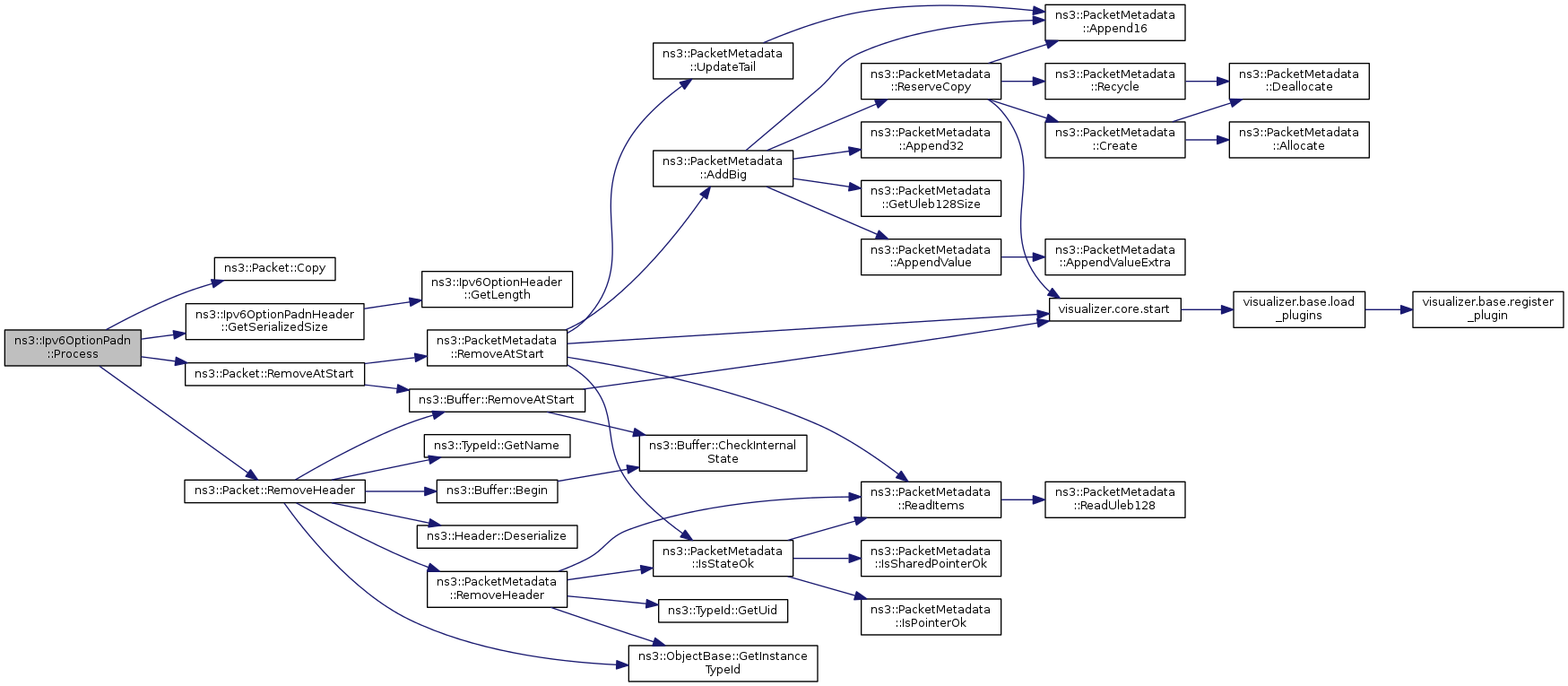

Here is the call graph for this function:
|
static |
