Static routing protocol for IP version 6 stack. More...

#include <ipv6-static-routing.h>

Inheritance diagram for ns3::Ipv6StaticRouting:

Collaboration diagram for ns3::Ipv6StaticRouting:

Public Member Functions
	Ipv6StaticRouting ()
	Constructor.
virtual	~Ipv6StaticRouting ()
	Destructor.
void	AddHostRouteTo (Ipv6Address dest, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address("::"), uint32_t metric=0)
	Add route to host.
void	AddHostRouteTo (Ipv6Address dest, uint32_t interface, uint32_t metric=0)
	Add route to host.
void	AddMulticastRoute (Ipv6Address origin, Ipv6Address group, uint32_t inputInterface, std::vector< uint32_t > outputInterfaces)
	Add a multicast route for a given multicast source and group.
void	AddNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface, uint32_t metric=0)
	Add route to network.
void	AddNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse, uint32_t metric=0)
	Add route to network.
void	AddNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, uint32_t interface, uint32_t metric=0)
	Add route to network.
Ipv6RoutingTableEntry	GetDefaultRoute ()
	Get the default route.
uint32_t	GetMetric (uint32_t index) const
	Get a metric for route from the static unicast routing table.
Ipv6MulticastRoutingTableEntry	GetMulticastRoute (uint32_t i) const
	Get the specified multicast route.
uint32_t	GetNMulticastRoutes () const
	Get the number of entries in the multicast routing table.

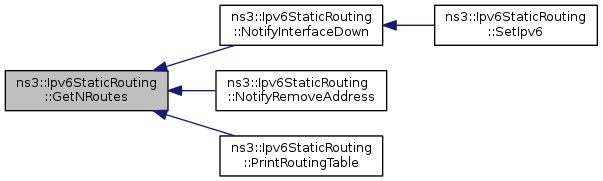

uint32_t	GetNRoutes () const
	Get the number or entries in the routing table.

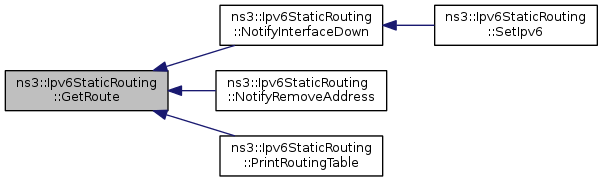

Ipv6RoutingTableEntry	GetRoute (uint32_t i) const
	Get a specified route.

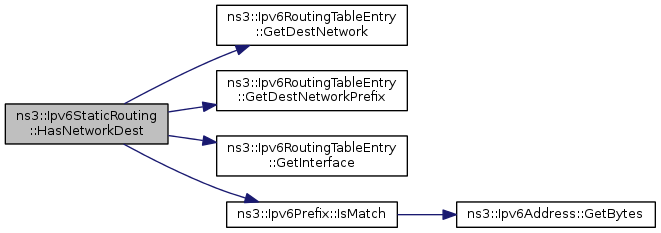

bool	HasNetworkDest (Ipv6Address dest, uint32_t interfaceIndex)
	If the destination is already present in network destination list.
virtual void	NotifyAddAddress (uint32_t interface, Ipv6InterfaceAddress address)
	Notify when specified interface add an address.

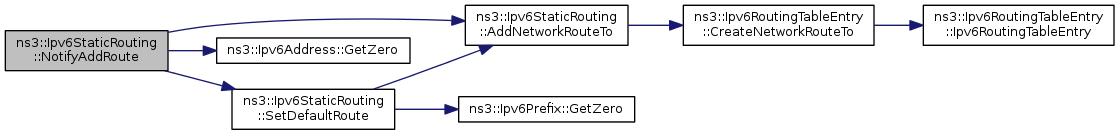

virtual void	NotifyAddRoute (Ipv6Address dst, Ipv6Prefix mask, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address::GetZero())
	Notify a new route.

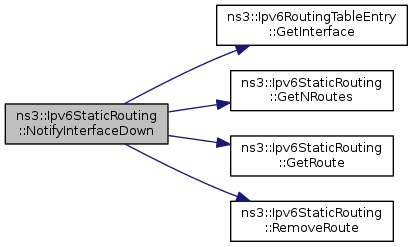

virtual void	NotifyInterfaceDown (uint32_t interface)
	Notify when specified interface goes DOWN.

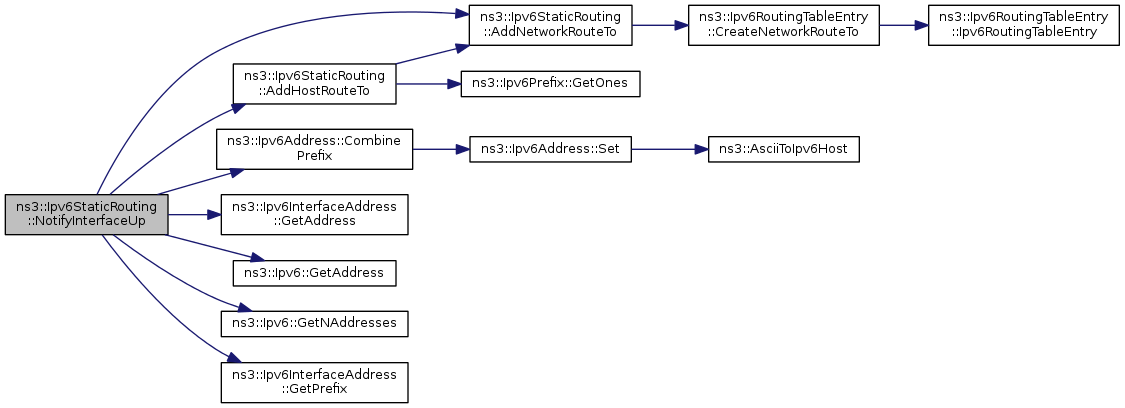

virtual void	NotifyInterfaceUp (uint32_t interface)
	Notify when specified interface goes UP.

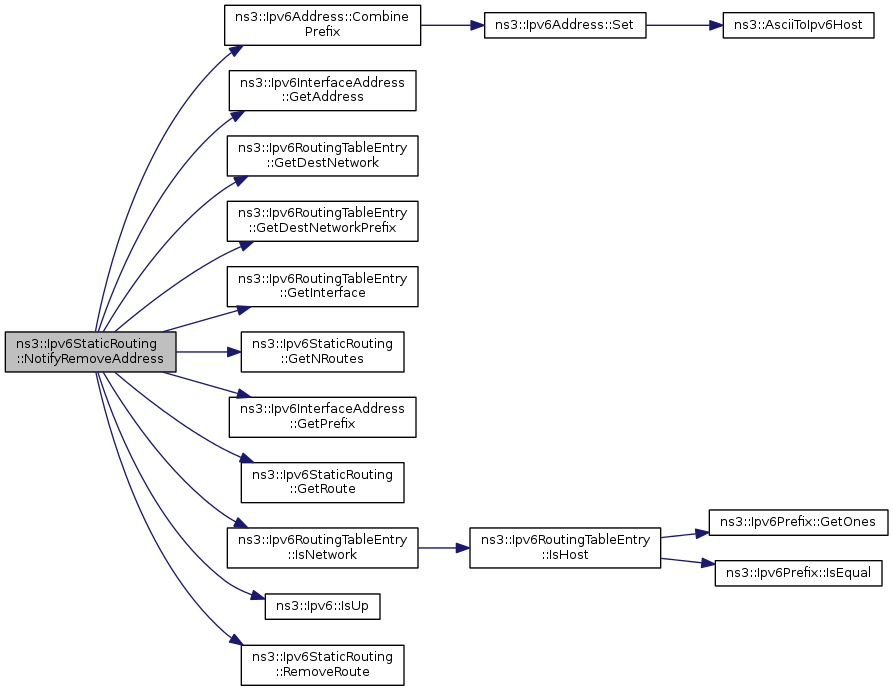

virtual void	NotifyRemoveAddress (uint32_t interface, Ipv6InterfaceAddress address)
	Notify when specified interface add an address.

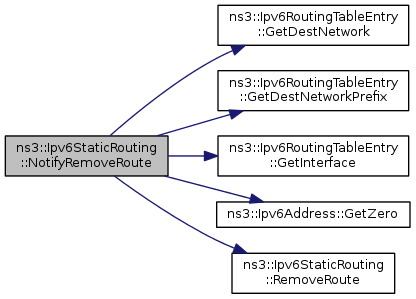

virtual void	NotifyRemoveRoute (Ipv6Address dst, Ipv6Prefix mask, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address::GetZero())
	Notify route removing.

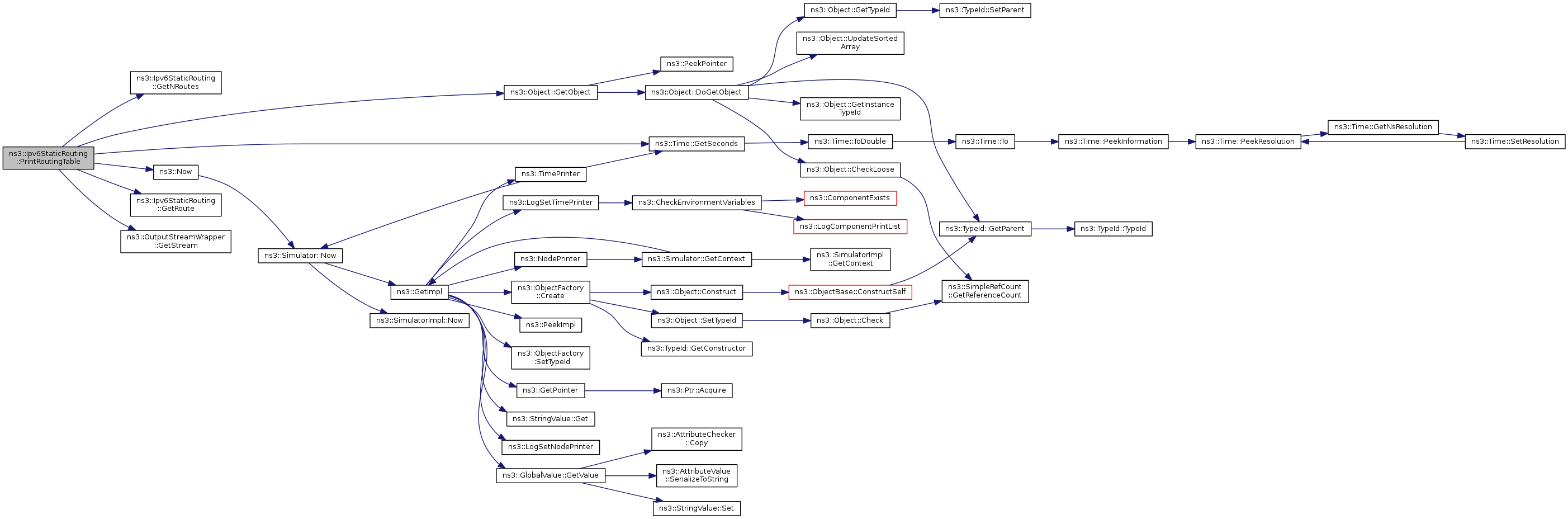

virtual void	PrintRoutingTable (Ptr< OutputStreamWrapper > stream) const
	Print the Routing Table entries.

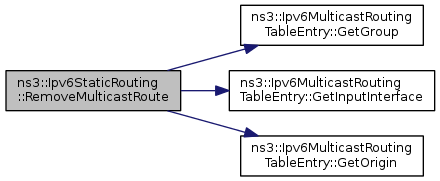

bool	RemoveMulticastRoute (Ipv6Address origin, Ipv6Address group, uint32_t inputInterface)
	Remove a static multicast route.
void	RemoveMulticastRoute (uint32_t i)
	Remove a multicast route.
void	RemoveRoute (uint32_t i)
	Remove a route from the routing table.

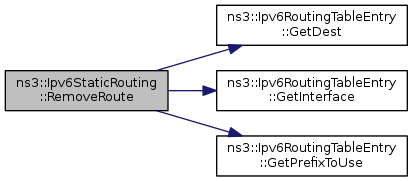

void	RemoveRoute (Ipv6Address network, Ipv6Prefix prefix, uint32_t ifIndex, Ipv6Address prefixToUse)
	Remove a route from the routing table.
virtual bool	RouteInput (Ptr< const Packet > p, const Ipv6Header &header, Ptr< const NetDevice > idev, UnicastForwardCallback ucb, MulticastForwardCallback mcb, LocalDeliverCallback lcb, ErrorCallback ecb)
	Route an input packet (to be forwarded or locally delivered)

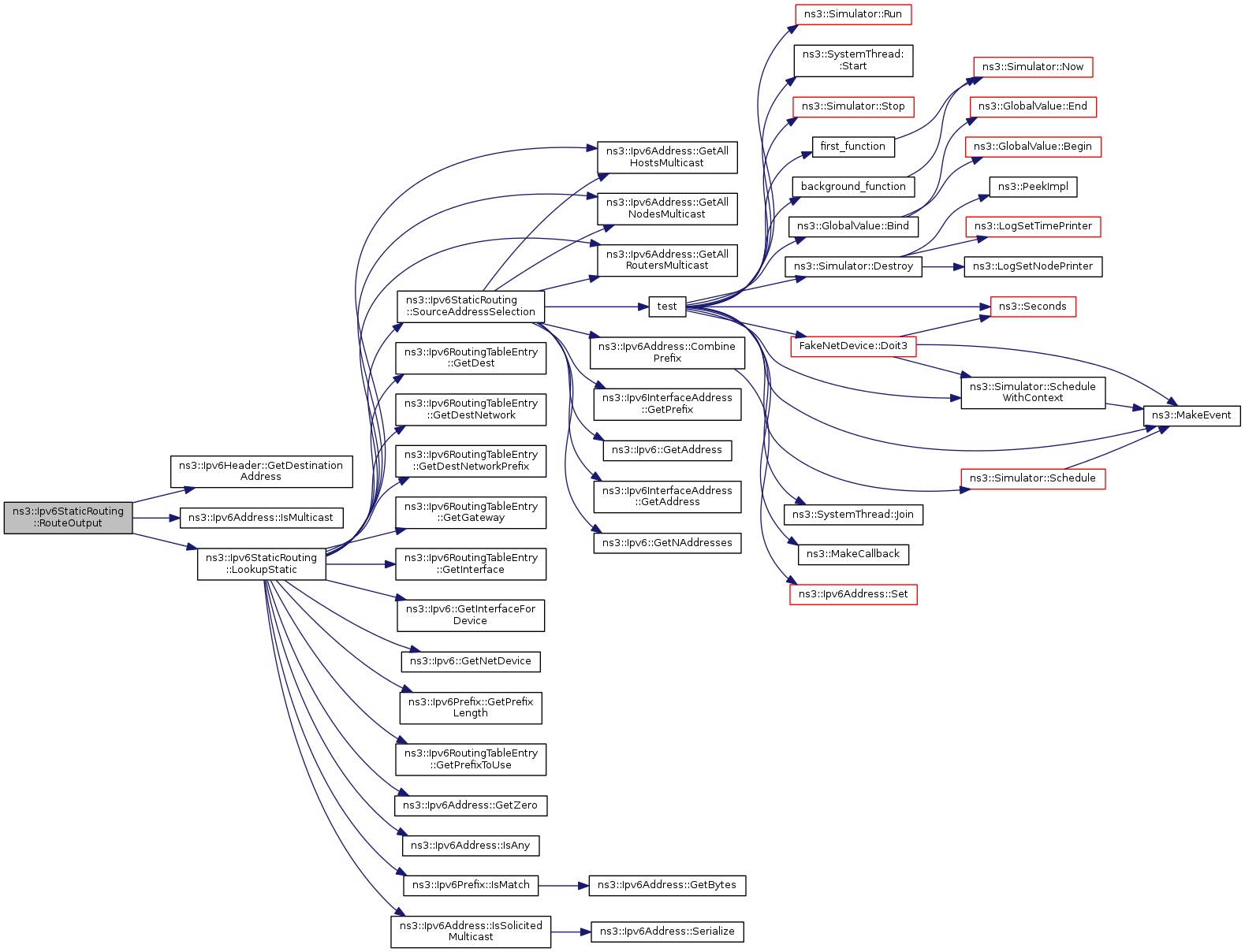

virtual Ptr< Ipv6Route >	RouteOutput (Ptr< Packet > p, const Ipv6Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr)
	Query routing cache for an existing route, for an outbound packet.
void	SetDefaultMulticastRoute (uint32_t outputInterface)
	Set the default multicast route.
void	SetDefaultRoute (Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address("::"), uint32_t metric=0)
	Set the default route.

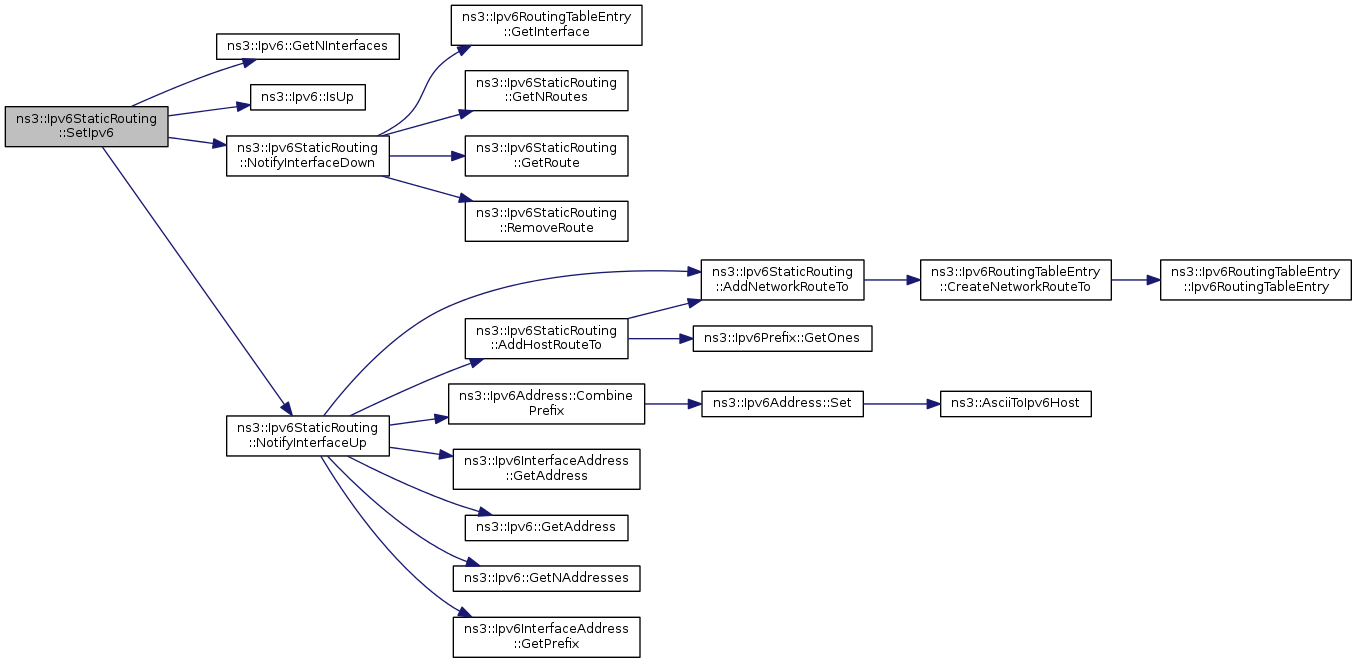

virtual void	SetIpv6 (Ptr< Ipv6 > ipv6)
	Typically, invoked directly or indirectly from ns3::Ipv6::SetRoutingProtocol.

Static Public Member Functions
static TypeId	GetTypeId ()
	The interface Id associated with this class.

Protected Member Functions
virtual void	DoDispose ()
	Dispose this object.

Private Types
typedef std::list < Ipv6MulticastRoutingTableEntry * >	MulticastRoutes
typedef std::list < Ipv6MulticastRoutingTableEntry * > ::const_iterator	MulticastRoutesCI
typedef std::list < Ipv6MulticastRoutingTableEntry * > ::iterator	MulticastRoutesI
typedef std::list< std::pair < Ipv6RoutingTableEntry *, uint32_t > >	NetworkRoutes
typedef std::list< std::pair < Ipv6RoutingTableEntry *, uint32_t > >::const_iterator	NetworkRoutesCI
typedef std::list< std::pair < Ipv6RoutingTableEntry *, uint32_t > >::iterator	NetworkRoutesI

Private Member Functions

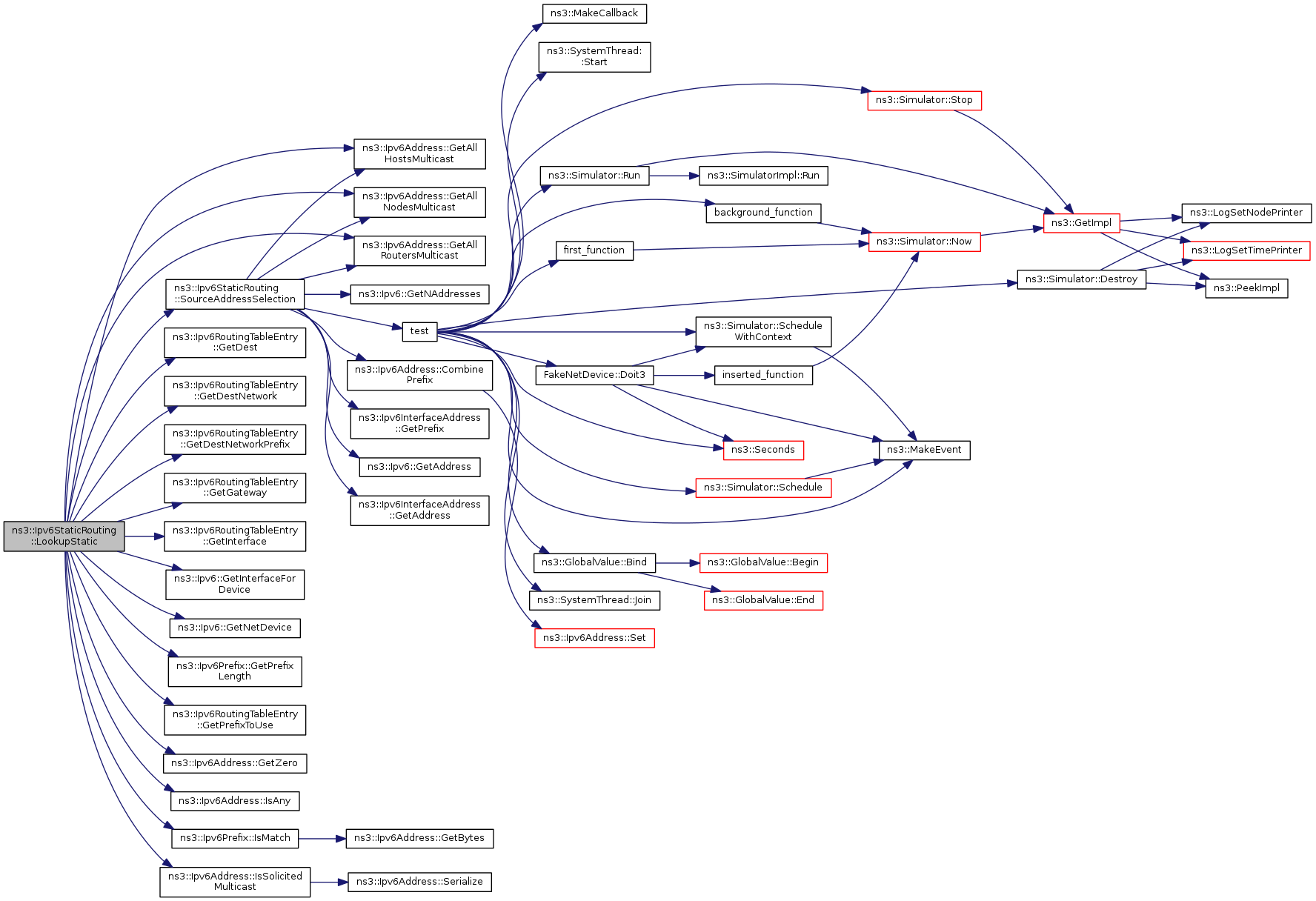

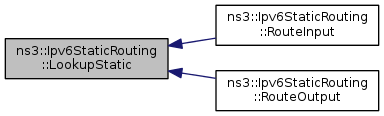

Ptr< Ipv6Route >	LookupStatic (Ipv6Address dest, Ptr< NetDevice >=0)
	Lookup in the forwarding table for destination.

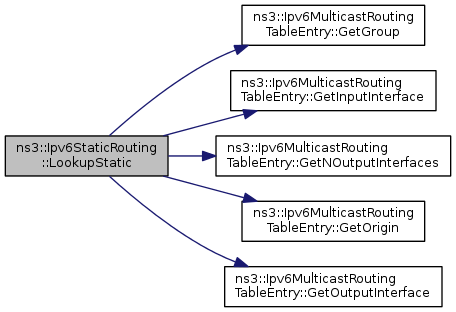

Ptr< Ipv6MulticastRoute >	LookupStatic (Ipv6Address origin, Ipv6Address group, uint32_t ifIndex)
	Lookup in the multicast forwarding table for destination.
Ipv6Address	SourceAddressSelection (uint32_t interface, Ipv6Address dest)
	Choose the source address to use with destination address.

Private Attributes
Ptr< Ipv6 >	m_ipv6
	Ipv6 reference.
MulticastRoutes	m_multicastRoutes
	the forwarding table for multicast.
NetworkRoutes	m_networkRoutes
	the forwarding table for network.

Additional Inherited Members
Public Types inherited from ns3::Ipv6RoutingProtocol
typedef Callback< void, Ptr < const Packet >, const Ipv6Header &, Socket::SocketErrno >	ErrorCallback
typedef Callback< void, Ptr < const Packet >, const Ipv6Header &, uint32_t >	LocalDeliverCallback
typedef Callback< void, Ptr < Ipv6MulticastRoute >, Ptr < const Packet >, const Ipv6Header & >	MulticastForwardCallback
typedef Callback< void, Ptr < Ipv6Route >, Ptr< const Packet >, const Ipv6Header & >	UnicastForwardCallback

Detailed Description

Static routing protocol for IP version 6 stack.

See Also: Ipv6RoutingProtocol; Ipv6ListRouting

Definition at line 55 of file ipv6-static-routing.h.

Member Typedef Documentation

typedef std::list<Ipv6MulticastRoutingTableEntry *> ns3::Ipv6StaticRouting::MulticastRoutes

private

Definition at line 257 of file ipv6-static-routing.h.

typedef std::list<Ipv6MulticastRoutingTableEntry *>::const_iterator ns3::Ipv6StaticRouting::MulticastRoutesCI

private

Definition at line 258 of file ipv6-static-routing.h.

typedef std::list<Ipv6MulticastRoutingTableEntry *>::iterator ns3::Ipv6StaticRouting::MulticastRoutesI

private

Definition at line 259 of file ipv6-static-routing.h.

typedef std::list<std::pair <Ipv6RoutingTableEntry *, uint32_t> > ns3::Ipv6StaticRouting::NetworkRoutes

private

Definition at line 253 of file ipv6-static-routing.h.

typedef std::list<std::pair <Ipv6RoutingTableEntry *, uint32_t> >::const_iterator ns3::Ipv6StaticRouting::NetworkRoutesCI

private

Definition at line 254 of file ipv6-static-routing.h.

typedef std::list<std::pair <Ipv6RoutingTableEntry *, uint32_t> >::iterator ns3::Ipv6StaticRouting::NetworkRoutesI

private

Definition at line 255 of file ipv6-static-routing.h.

Constructor & Destructor Documentation

ns3::Ipv6StaticRouting::Ipv6StaticRouting ( )

Constructor.

Definition at line 46 of file ipv6-static-routing.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::Ipv6StaticRouting::~Ipv6StaticRouting ( )

virtual

Destructor.

Definition at line 52 of file ipv6-static-routing.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

void ns3::Ipv6StaticRouting::AddHostRouteTo	(	Ipv6Address	dest,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = `Ipv6Address ("::")`,
		uint32_t	metric = `0`
	)

Add route to host.

Parameters

dest	destination address
nextHop	next hop address to route the packet
interface	interface index
prefixToUse	prefix that should be used for source address for this destination
metric	metric of route in case of multiple routes to same destination

Definition at line 97 of file ipv6-static-routing.cc.

References AddNetworkRouteTo(), ns3::Ipv6Prefix::GetOnes(), and NS_LOG_FUNCTION.

Referenced by NotifyInterfaceUp().

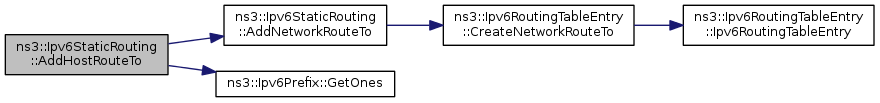

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6StaticRouting::AddHostRouteTo	(	Ipv6Address	dest,
		uint32_t	interface,
		uint32_t	metric = `0`
	)

Add route to host.

Parameters

dest	destination address.
interface	interface index
metric	metric of route in case of multiple routes to same destination

Definition at line 103 of file ipv6-static-routing.cc.

References AddNetworkRouteTo(), ns3::Ipv6Prefix::GetOnes(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Ipv6StaticRouting::AddMulticastRoute	(	Ipv6Address	origin,
		Ipv6Address	group,
		uint32_t	inputInterface,
		std::vector< uint32_t >	outputInterfaces
	)

Add a multicast route for a given multicast source and group.

Parameters

origin	IPv6 address of the source
group	the multicast group address.
inputInterface	the interface index
outputInterfaces	the list of output interface indices over which the packet should be sent (excluding the inputInterface).

Definition at line 139 of file ipv6-static-routing.cc.

References ns3::Ipv6MulticastRoutingTableEntry::CreateMulticastRoute(), m_multicastRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Ipv6StaticRouting::AddNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		Ipv6Address	nextHop,
		uint32_t	interface,
		uint32_t	metric = `0`
	)

Add route to network.

Parameters

network	network address
networkPrefix	network prefix*
nextHop	next hop address to route the packet
interface	interface index
metric	metric of route in case of multiple routes to same destination

Definition at line 109 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo(), m_networkRoutes, and NS_LOG_FUNCTION.

Referenced by AddHostRouteTo(), NotifyAddAddress(), NotifyAddRoute(), NotifyInterfaceUp(), and SetDefaultRoute().

Here is the call graph for this function:

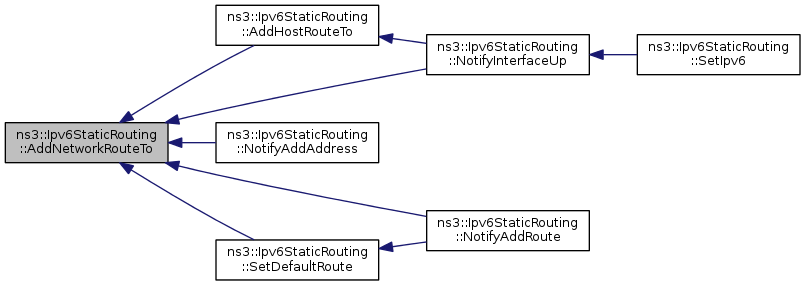

Here is the caller graph for this function:

void ns3::Ipv6StaticRouting::AddNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse,
		uint32_t	metric = `0`
	)

Add route to network.

Parameters

network	network address
networkPrefix	network prefix*
nextHop	next hop address to route the packet
interface	interface index
prefixToUse	prefix that should be used for source address for this destination
metric	metric of route in case of multiple routes to same destination

Definition at line 117 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo(), m_networkRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Ipv6StaticRouting::AddNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		uint32_t	interface,
		uint32_t	metric = `0`
	)

Add route to network.

Parameters

network	network address
networkPrefix	network prefix
interface	interface index
metric	metric of route in case of multiple routes to same destination

Definition at line 125 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo(), m_networkRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Ipv6StaticRouting::DoDispose ( void )

protectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 326 of file ipv6-static-routing.cc.

References m_ipv6, m_multicastRoutes, m_networkRoutes, and NS_LOG_FUNCTION_NOARGS.

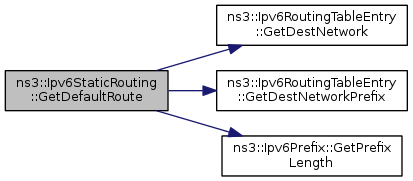

Ipv6RoutingTableEntry ns3::Ipv6StaticRouting::GetDefaultRoute ( void )

Get the default route.

If multiple default routes exist, the one with lowest metric is returned.

Returns: default Ipv6Route

Definition at line 400 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::GetDestNetwork(), ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix(), ns3::Ipv6Prefix::GetPrefixLength(), m_networkRoutes, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

uint32_t ns3::Ipv6StaticRouting::GetMetric ( uint32_t index ) const

Get a metric for route from the static unicast routing table.

Parameters

index The index (into the routing table) of the route to retrieve.

Returns: If route is set, the metric is returned. If not, an infinity metric (0xffffffff) is returned

Definition at line 456 of file ipv6-static-routing.cc.

References m_networkRoutes, NS_ASSERT, and NS_LOG_FUNCTION_NOARGS.

Ipv6MulticastRoutingTableEntry ns3::Ipv6StaticRouting::GetMulticastRoute ( uint32_t i ) const

Get the specified multicast route.

Parameters

i index

Returns: the route whose index is i

Definition at line 163 of file ipv6-static-routing.cc.

References m_multicastRoutes, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

uint32_t ns3::Ipv6StaticRouting::GetNMulticastRoutes ( void ) const

Get the number of entries in the multicast routing table.

Returns: number of entries

Definition at line 157 of file ipv6-static-routing.cc.

References m_multicastRoutes, and NS_LOG_FUNCTION_NOARGS.

uint32_t ns3::Ipv6StaticRouting::GetNRoutes ( void ) const

Get the number or entries in the routing table.

Returns: number of entries

Definition at line 395 of file ipv6-static-routing.cc.

References m_networkRoutes.

Referenced by NotifyInterfaceDown(), NotifyRemoveAddress(), and PrintRoutingTable().

Here is the caller graph for this function:

Ipv6RoutingTableEntry ns3::Ipv6StaticRouting::GetRoute ( uint32_t i ) const

Get a specified route.

Parameters

i index

Returns: the route whose index is i

Definition at line 438 of file ipv6-static-routing.cc.

References m_networkRoutes, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by NotifyInterfaceDown(), NotifyRemoveAddress(), and PrintRoutingTable().

Here is the caller graph for this function:

TypeId ns3::Ipv6StaticRouting::GetTypeId ( void )

static

The interface Id associated with this class.

This method returns the TypeId associated to ns3::Ipv6StaticRouting.

Returns: type identifier

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Ipv6RoutingProtocol.

Definition at line 37 of file ipv6-static-routing.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::Ipv6StaticRouting::HasNetworkDest	(	Ipv6Address	dest,
		uint32_t	interfaceIndex
	)

If the destination is already present in network destination list.

Parameters

dest	destination address
interfaceIndex	interface index

Returns: true if dest is already in list, false otherwise

Definition at line 218 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::GetDestNetwork(), ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix(), ns3::Ipv6RoutingTableEntry::GetInterface(), ns3::Ipv6Prefix::IsMatch(), m_networkRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< Ipv6Route > ns3::Ipv6StaticRouting::LookupStatic	(	Ipv6Address	dest,
		Ptr< NetDevice >	interface = `0`
	)

private

Lookup in the forwarding table for destination.

Parameters

dest	destination address
interface	output interface if any (put 0 otherwise)

Returns: Ipv6Route to route the packet to reach dest address

Definition at line 239 of file ipv6-static-routing.cc.

References ns3::Ipv6Address::GetAllHostsMulticast(), ns3::Ipv6Address::GetAllNodesMulticast(), ns3::Ipv6Address::GetAllRoutersMulticast(), ns3::Ipv6RoutingTableEntry::GetDest(), ns3::Ipv6RoutingTableEntry::GetDestNetwork(), ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix(), ns3::Ipv6RoutingTableEntry::GetGateway(), ns3::Ipv6RoutingTableEntry::GetInterface(), ns3::Ipv6::GetInterfaceForDevice(), ns3::Ipv6::GetNetDevice(), ns3::Ipv6Prefix::GetPrefixLength(), ns3::Ipv6RoutingTableEntry::GetPrefixToUse(), ns3::Ipv6Address::GetZero(), ns3::Ipv6Address::IsAny(), ns3::Ipv6Prefix::IsMatch(), ns3::Ipv6Address::IsSolicitedMulticast(), m_ipv6, m_networkRoutes, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and SourceAddressSelection().

Referenced by RouteInput(), and RouteOutput().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Ipv6MulticastRoute > ns3::Ipv6StaticRouting::LookupStatic	(	Ipv6Address	origin,
		Ipv6Address	group,
		uint32_t	ifIndex
	)

private

Lookup in the multicast forwarding table for destination.

Parameters

origin	source address
group	group multicast address
ifIndex	interface index

Returns: Ipv6MulticastRoute to route the packet to reach dest address

Definition at line 346 of file ipv6-static-routing.cc.

References ns3::Ipv6MulticastRoutingTableEntry::GetGroup(), ns3::Ipv6MulticastRoutingTableEntry::GetInputInterface(), ns3::Ipv6MulticastRoutingTableEntry::GetNOutputInterfaces(), ns3::Ipv6MulticastRoutingTableEntry::GetOrigin(), ns3::Ipv6MulticastRoutingTableEntry::GetOutputInterface(), ns3::Ipv6::IF_ANY, m_multicastRoutes, ns3::Ipv6MulticastRoute::MAX_TTL, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

void ns3::Ipv6StaticRouting::NotifyAddAddress	(	uint32_t	interface,
		Ipv6InterfaceAddress	address
	)

virtual

Notify when specified interface add an address.

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Implements ns3::Ipv6RoutingProtocol.

Definition at line 663 of file ipv6-static-routing.cc.

References AddNetworkRouteTo(), ns3::Ipv6Address::CombinePrefix(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6InterfaceAddress::GetPrefix(), ns3::Ipv6::IsUp(), and m_ipv6.

Here is the call graph for this function:

void ns3::Ipv6StaticRouting::NotifyAddRoute	(	Ipv6Address	dst,
		Ipv6Prefix	mask,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = `Ipv6Address::GetZero()`
	)

virtual

Notify a new route.

Typically this is used to add another route from IPv6 stack (i.e. ICMPv6 redirect case, ...).

Parameters

dst	destination address
mask	destination mask
nextHop	nextHop for this destination
interface	output interface
prefixToUse	prefix to use as source with this route

Implements ns3::Ipv6RoutingProtocol.

Definition at line 705 of file ipv6-static-routing.cc.

References AddNetworkRouteTo(), ns3::Ipv6Address::GetZero(), NS_LOG_INFO, and SetDefaultRoute().

Here is the call graph for this function:

void ns3::Ipv6StaticRouting::NotifyInterfaceDown ( uint32_t interface )

virtual

Notify when specified interface goes DOWN.

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Parameters

interface the index of the interface we are being notified about

Implements ns3::Ipv6RoutingProtocol.

Definition at line 641 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::GetInterface(), GetNRoutes(), GetRoute(), NS_LOG_FUNCTION, and RemoveRoute().

Referenced by SetIpv6().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6StaticRouting::NotifyInterfaceUp ( uint32_t interface )

virtual

Notify when specified interface goes UP.

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Parameters

interface the index of the interface we are being notified about

Implements ns3::Ipv6RoutingProtocol.

Definition at line 620 of file ipv6-static-routing.cc.

References AddHostRouteTo(), AddNetworkRouteTo(), ns3::Ipv6Address::CombinePrefix(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6::GetAddress(), ns3::Ipv6::GetNAddresses(), ns3::Ipv6InterfaceAddress::GetPrefix(), and m_ipv6.

Referenced by SetIpv6().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6StaticRouting::NotifyRemoveAddress	(	uint32_t	interface,
		Ipv6InterfaceAddress	address
	)

virtual

Notify when specified interface add an address.

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Implements ns3::Ipv6RoutingProtocol.

Definition at line 679 of file ipv6-static-routing.cc.

References ns3::Ipv6Address::CombinePrefix(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6RoutingTableEntry::GetDestNetwork(), ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix(), ns3::Ipv6RoutingTableEntry::GetInterface(), GetNRoutes(), ns3::Ipv6InterfaceAddress::GetPrefix(), GetRoute(), ns3::Ipv6RoutingTableEntry::IsNetwork(), ns3::Ipv6::IsUp(), m_ipv6, and RemoveRoute().

Here is the call graph for this function:

void ns3::Ipv6StaticRouting::NotifyRemoveRoute	(	Ipv6Address	dst,
		Ipv6Prefix	mask,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = `Ipv6Address::GetZero()`
	)

virtual

Notify route removing.

Parameters

dst	destination address
mask	destination mask
nextHop	nextHop for this destination
interface	output interface
prefixToUse	prefix to use as source with this route

Implements ns3::Ipv6RoutingProtocol.

Definition at line 726 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::GetDestNetwork(), ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix(), ns3::Ipv6RoutingTableEntry::GetInterface(), ns3::Ipv6Address::GetZero(), m_networkRoutes, NS_LOG_FUNCTION, and RemoveRoute().

Here is the call graph for this function:

void ns3::Ipv6StaticRouting::PrintRoutingTable ( Ptr< OutputStreamWrapper > stream ) const

virtual

Print the Routing Table entries.

Parameters

stream the ostream the Routing table is printed to

Implements ns3::Ipv6RoutingProtocol.

Definition at line 79 of file ipv6-static-routing.cc.

References GetNRoutes(), ns3::Object::GetObject(), GetRoute(), ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), m_ipv6, ns3::Now(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::Ipv6StaticRouting::RemoveMulticastRoute	(	Ipv6Address	origin,
		Ipv6Address	group,
		uint32_t	inputInterface
	)

Remove a static multicast route.

Parameters

origin	IPv6 address of the source
group	the multicast group address.
inputInterface	the input interface index

Definition at line 183 of file ipv6-static-routing.cc.

References ns3::Ipv6MulticastRoutingTableEntry::GetGroup(), ns3::Ipv6MulticastRoutingTableEntry::GetInputInterface(), ns3::Ipv6MulticastRoutingTableEntry::GetOrigin(), m_multicastRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Ipv6StaticRouting::RemoveMulticastRoute ( uint32_t i )

Remove a multicast route.

Parameters

i	index of route to remove

Definition at line 201 of file ipv6-static-routing.cc.

References m_multicastRoutes, and NS_LOG_FUNCTION.

void ns3::Ipv6StaticRouting::RemoveRoute ( uint32_t i )

Remove a route from the routing table.

Parameters

i index

Definition at line 474 of file ipv6-static-routing.cc.

References m_networkRoutes, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by NotifyInterfaceDown(), NotifyRemoveAddress(), and NotifyRemoveRoute().

Here is the caller graph for this function:

void ns3::Ipv6StaticRouting::RemoveRoute	(	Ipv6Address	network,
		Ipv6Prefix	prefix,
		uint32_t	ifIndex,
		Ipv6Address	prefixToUse
	)

Remove a route from the routing table.

Parameters

network	IPv6 network
prefix	IPv6 prefix
ifIndex	interface index
prefixToUse	IPv6 prefix to use with this route (multihoming)

Definition at line 492 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::GetDest(), ns3::Ipv6RoutingTableEntry::GetInterface(), ns3::Ipv6RoutingTableEntry::GetPrefixToUse(), m_networkRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::Ipv6StaticRouting::RouteInput	(	Ptr< const Packet >	p,
		const Ipv6Header &	header,
		Ptr< const NetDevice >	idev,
		UnicastForwardCallback	ucb,
		MulticastForwardCallback	mcb,
		LocalDeliverCallback	lcb,
		ErrorCallback	ecb
	)

virtual

Route an input packet (to be forwarded or locally delivered)

This lookup is used in the forwarding process. The packet is handed over to the Ipv6RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input (). There are four valid outcomes, and a matching callbacks to handle each.

Parameters

p	received packet
header	input parameter used to form a search key for a route
idev	Pointer to ingress network device
ucb	Callback for the case in which the packet is to be forwarded as unicast
mcb	Callback for the case in which the packet is to be forwarded as multicast
lcb	Callback for the case in which the packet is to be locally delivered
ecb	Callback to call if there is an error in forwarding

Returns: true if the Ipv6RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Implements ns3::Ipv6RoutingProtocol.

Definition at line 538 of file ipv6-static-routing.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6::GetAddress(), ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6::GetInterfaceForDevice(), ns3::Ipv6::GetNAddresses(), ns3::Ipv6::GetNInterfaces(), ns3::Ipv6Header::GetSourceAddress(), ns3::Ipv6Address::IsEqual(), ns3::Ipv6::IsForwarding(), ns3::Ipv6Address::IsMulticast(), LookupStatic(), m_ipv6, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

Ptr< Ipv6Route > ns3::Ipv6StaticRouting::RouteOutput	(	Ptr< Packet >	p,
		const Ipv6Header &	header,
		Ptr< NetDevice >	oif,
		Socket::SocketErrno &	sockerr
	)

virtual

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output ()

Parameters

p	packet to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
header	input parameter (used to form key to search for the route)
oif	Output interface device. May be zero, or may be bound via socket options to a particular output interface.
sockerr	Output parameter; socket errno

Returns: a code that indicates what happened in the lookup

Implements ns3::Ipv6RoutingProtocol.

Definition at line 509 of file ipv6-static-routing.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Socket::ERROR_NOTERROR, ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Address::IsMulticast(), LookupStatic(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

void ns3::Ipv6StaticRouting::SetDefaultMulticastRoute ( uint32_t outputInterface )

Set the default multicast route.

Parameters

outputInterface default output interface

Definition at line 147 of file ipv6-static-routing.cc.

References ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo(), m_networkRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Ipv6StaticRouting::SetDefaultRoute	(	Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = `Ipv6Address ("::")`,
		uint32_t	metric = `0`
	)

Set the default route.

Parameters

nextHop	next hop address to route the packet
interface	interface index
prefixToUse	prefix to use (i.e for multihoming)
metric	metric of route in case of multiple routes to same destination

Definition at line 133 of file ipv6-static-routing.cc.

References AddNetworkRouteTo(), ns3::Ipv6Prefix::GetZero(), and NS_LOG_FUNCTION.

Referenced by NotifyAddRoute().

Here is the call graph for this function:
