ns3::LteEnbPhySapUser Class Reference

#include <lte-enb-phy-sap.h>

Inheritance diagram for ns3::LteEnbPhySapUser:

Public Member Functions
virtual	~LteEnbPhySapUser ()
virtual void	ReceiveIdealControlMessage (Ptr< IdealControlMessage > msg)=0
	Receive SendIdealControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.
virtual void	ReceivePhyPdu (Ptr< Packet > p)=0
virtual void	SubframeIndication (uint32_t frameNo, uint32_t subframeNo)=0
	Trigger the start from a new frame (input from Phy layer)
virtual void	UlCqiReport (UlCqi_s ulcqi)=0
	Returns to MAC level the UL-CQI evaluated.

Detailed Description

Service Access Point (SAP) offered by the eNB-PHY to the eNB-MAC

This is the MAC SAP User, i.e., the part of the SAP that contains the MAC methods called by the PHY

Definition at line 92 of file lte-enb-phy-sap.h.

Constructor & Destructor Documentation

ns3::LteEnbPhySapUser::~LteEnbPhySapUser ( )

virtual

Definition at line 33 of file lte-enb-phy-sap.cc.

Member Function Documentation

virtual void ns3::LteEnbPhySapUser::ReceiveIdealControlMessage ( Ptr< IdealControlMessage >  msg )

pure virtual

Receive SendIdealControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.

Parameters

msg	the Ideal Control Message to receive

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::ReceiveIdealControlMessage().

Here is the caller graph for this function:

virtual void ns3::LteEnbPhySapUser::ReceivePhyPdu ( Ptr< Packet >  p )

pure virtual

Called by the Phy to notify the MAC of the reception of a new PHY-PDU

Parameters

p

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::PhyPduReceived().

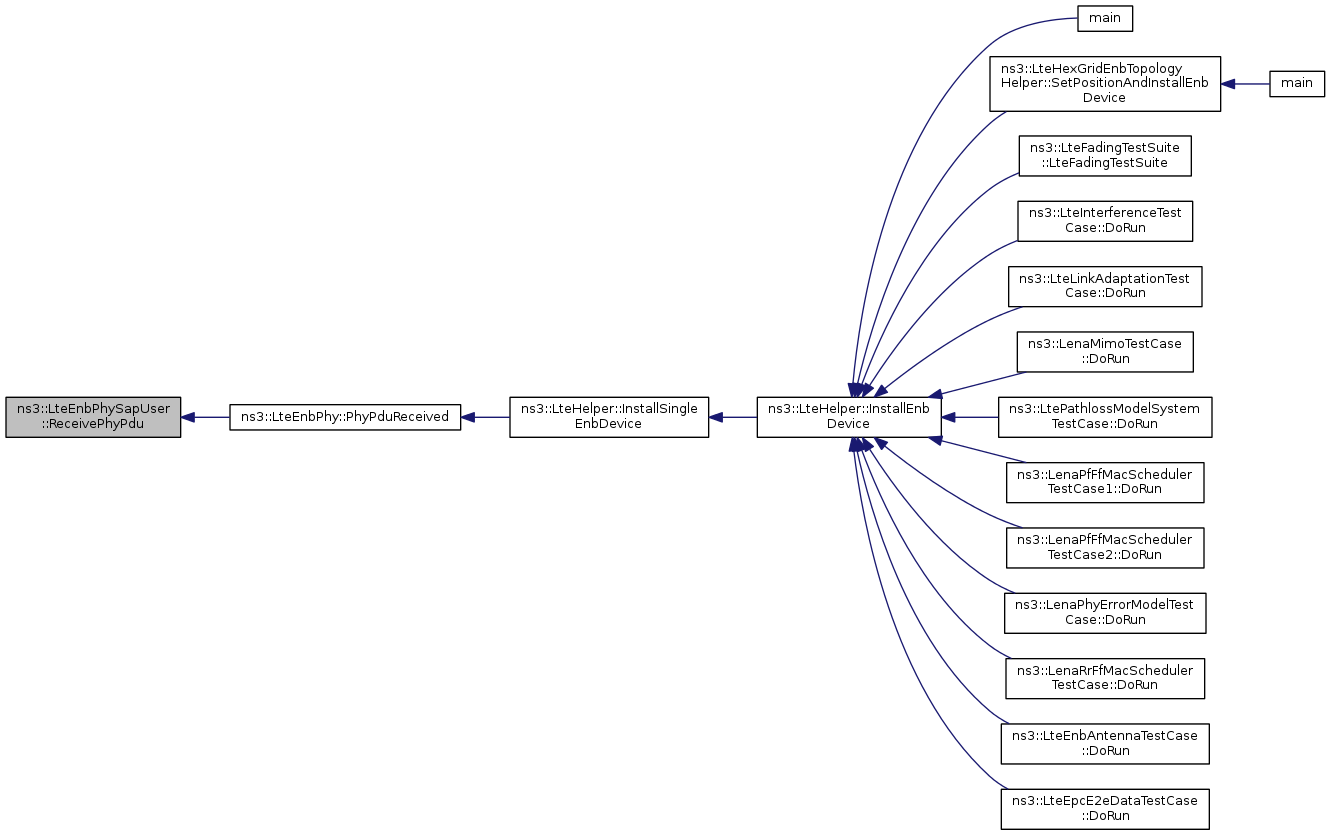

Here is the caller graph for this function:

virtual void ns3::LteEnbPhySapUser::SubframeIndication ( uint32_t  frameNo, uint32_t  subframeNo  )

pure virtual

Trigger the start from a new frame (input from Phy layer)

Parameters

frameNo	frame number
subframeNo	subframe number

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::StartSubFrame().

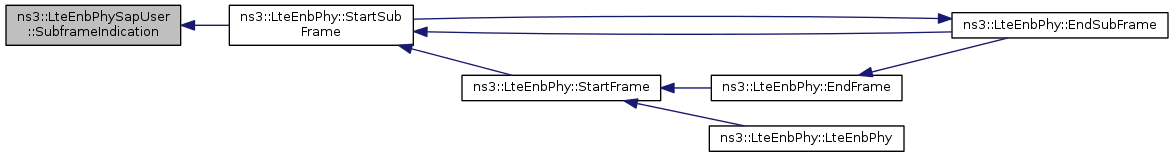

Here is the caller graph for this function:

virtual void ns3::LteEnbPhySapUser::UlCqiReport ( UlCqi_s  ulcqi )

pure virtual

Returns to MAC level the UL-CQI evaluated.

Parameters

ulcqi

the UL-CQI (see FF MAC API 4.3.29)

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::GenerateCqiReport().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-enb-phy-sap.h
• src/lte/model/lte-enb-phy-sap.cc
