#include <lte-enb-rrc.h>

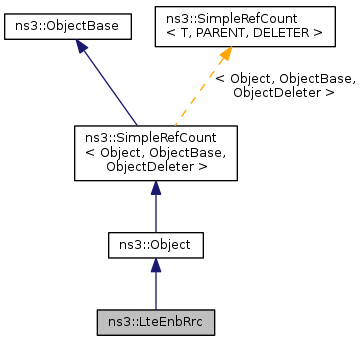

Inheritance diagram for ns3::LteEnbRrc:

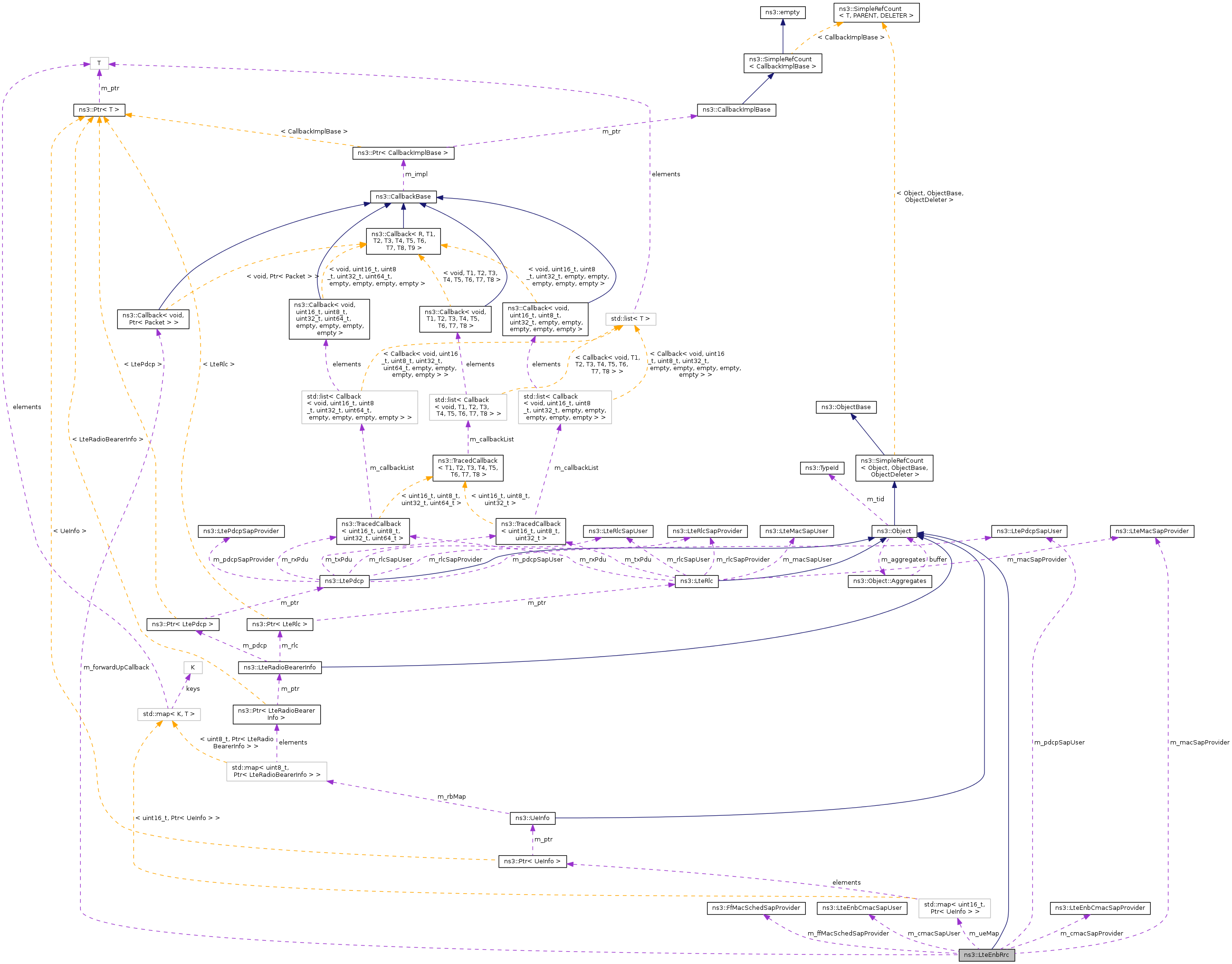

Collaboration diagram for ns3::LteEnbRrc:

Public Member Functions
	LteEnbRrc ()
virtual	~LteEnbRrc ()
uint16_t	AddUe (uint64_t imsi)
void	ConfigureCell (uint8_t ulBandwidth, uint8_t dlBandwidth)
virtual void	DoDispose (void)
uint16_t	GetLastAllocatedRnti () const
LteEnbCmacSapUser *	GetLteEnbCmacSapUser ()
std::map< uint16_t, Ptr< UeInfo > >	GetUeMap (void) const
void	ReleaseRadioBearer (uint16_t rnti, uint8_t lcId)
void	RemoveUe (uint16_t rnti)
bool	Send (Ptr< Packet > p)
void	SetFfMacSchedSapProvider (FfMacSchedSapProvider *s)
void	SetForwardUpCallback (Callback< void, Ptr< Packet > > cb)
void	SetLastAllocatedRnti (uint16_t lastAllocatedRnti)
void	SetLteEnbCmacSapProvider (LteEnbCmacSapProvider *s)
void	SetLteMacSapProvider (LteMacSapProvider *s)
void	SetUeMap (std::map< uint16_t, Ptr< UeInfo > > ueMap)
uint8_t	SetupRadioBearer (uint16_t rnti, EpsBearer bearer, TypeId rlcTypeId)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LteEnbRrc.

Private Member Functions
uint16_t	CreateUeInfo (uint64_t imsi)
void	DoNotifyLcConfigResult (uint16_t rnti, uint8_t lcid, bool success)
void	DoReceiveRrcPdu (LtePdcpSapUser::ReceiveRrcPduParameters params)
void	DoRrcConfigurationUpdateInd (LteUeConfig_t params)
LtePdcpSapProvider *	GetLtePdcpSapProvider (uint16_t rnti, uint8_t lcid)
Ptr< UeInfo >	GetUeInfo (uint16_t rnti)
void	RemoveUeInfo (uint16_t rnti)

Private Attributes
LteEnbCmacSapProvider *	m_cmacSapProvider
LteEnbCmacSapUser *	m_cmacSapUser
bool	m_configured
uint8_t	m_defaultTransmissionMode
FfMacSchedSapProvider *	m_ffMacSchedSapProvider
Callback< void, Ptr< Packet > >	m_forwardUpCallback
uint16_t	m_lastAllocatedRnti
LteMacSapProvider *	m_macSapProvider
LtePdcpSapUser *	m_pdcpSapUser
std::map< uint16_t, Ptr< UeInfo > >	m_ueMap

Friends
class	EnbRrcMemberLteEnbCmacSapUser
class	LtePdcpSpecificLtePdcpSapUser< LteEnbRrc >

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Definition at line 94 of file lte-enb-rrc.h.

Constructor & Destructor Documentation

ns3::LteEnbRrc::LteEnbRrc ( )

create an RRC instance for use within an eNB

Definition at line 211 of file lte-enb-rrc.cc.

References EnbRrcMemberLteEnbCmacSapUser, m_cmacSapUser, m_pdcpSapUser, and NS_LOG_FUNCTION.

ns3::LteEnbRrc::~LteEnbRrc ( )

virtual

Destructor

Definition at line 224 of file lte-enb-rrc.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint16_t ns3::LteEnbRrc::AddUe ( uint64_t imsi )

Add a new UE to the cell

Parameters

imsi	IMSI of the attaching UE

Returns: the C-RNTI of the newly added UE

Definition at line 330 of file lte-enb-rrc.cc.

References ns3::LteEnbCmacSapProvider::AddUe(), CreateUeInfo(), m_cmacSapProvider, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::Attach().

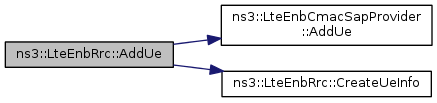

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbRrc::ConfigureCell	(	uint8_t	ulBandwidth,
		uint8_t	dlBandwidth
	)

configure cell-specific parameters

Parameters

ulBandwidth	the uplink bandwdith in number of RB
dlBandwidth	the downlink bandwidth in number of RB

Definition at line 321 of file lte-enb-rrc.cc.

References ns3::LteEnbCmacSapProvider::ConfigureMac(), m_cmacSapProvider, m_configured, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::LteEnbNetDevice::UpdateConfig().

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::LteEnbRrc::CreateUeInfo ( uint64_t imsi )

private

Definition at line 466 of file lte-enb-rrc.cc.

References m_lastAllocatedRnti, m_ueMap, and NS_LOG_FUNCTION.

Referenced by AddUe().

Here is the caller graph for this function:

void ns3::LteEnbRrc::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 231 of file lte-enb-rrc.cc.

References m_cmacSapUser, m_pdcpSapUser, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::DoNotifyLcConfigResult	(	uint16_t	rnti,
		uint8_t	lcid,
		bool	success
	)

private

Definition at line 452 of file lte-enb-rrc.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::EnbRrcMemberLteEnbCmacSapUser::NotifyLcConfigResult().

Here is the caller graph for this function:

void ns3::LteEnbRrc::DoReceiveRrcPdu ( LtePdcpSapUser::ReceiveRrcPduParameters params )

private

Definition at line 438 of file lte-enb-rrc.cc.

References ns3::Packet::AddPacketTag(), ns3::LtePdcpSapUser::ReceiveRrcPduParameters::lcid, m_forwardUpCallback, NS_LOG_FUNCTION, ns3::LtePdcpSapUser::ReceiveRrcPduParameters::rnti, ns3::LtePdcpSapUser::ReceiveRrcPduParameters::rrcPdu, ns3::LteRadioBearerTag::SetLcid(), and ns3::LteRadioBearerTag::SetRnti().

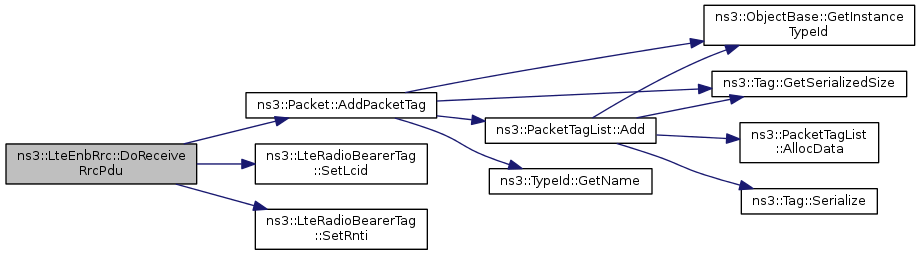

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRrcConfigurationUpdateInd ( LteUeConfig_t params )

private

Definition at line 505 of file lte-enb-rrc.cc.

References ns3::NodeList::Begin(), ns3::LteUeRrc::DoRrcConfigurationUpdateInd(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), ns3::Object::GetObject(), ns3::LteUeRrc::GetRnti(), m_cmacSapProvider, ns3::LteUeConfig_t::m_rnti, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_rnti, ns3::LteUeConfig_t::m_transmissionMode, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_transmissionMode, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::LteEnbCmacSapProvider::RrcUpdateConfigurationReq().

Referenced by ns3::EnbRrcMemberLteEnbCmacSapUser::RrcConfigurationUpdateInd(), and SetupRadioBearer().

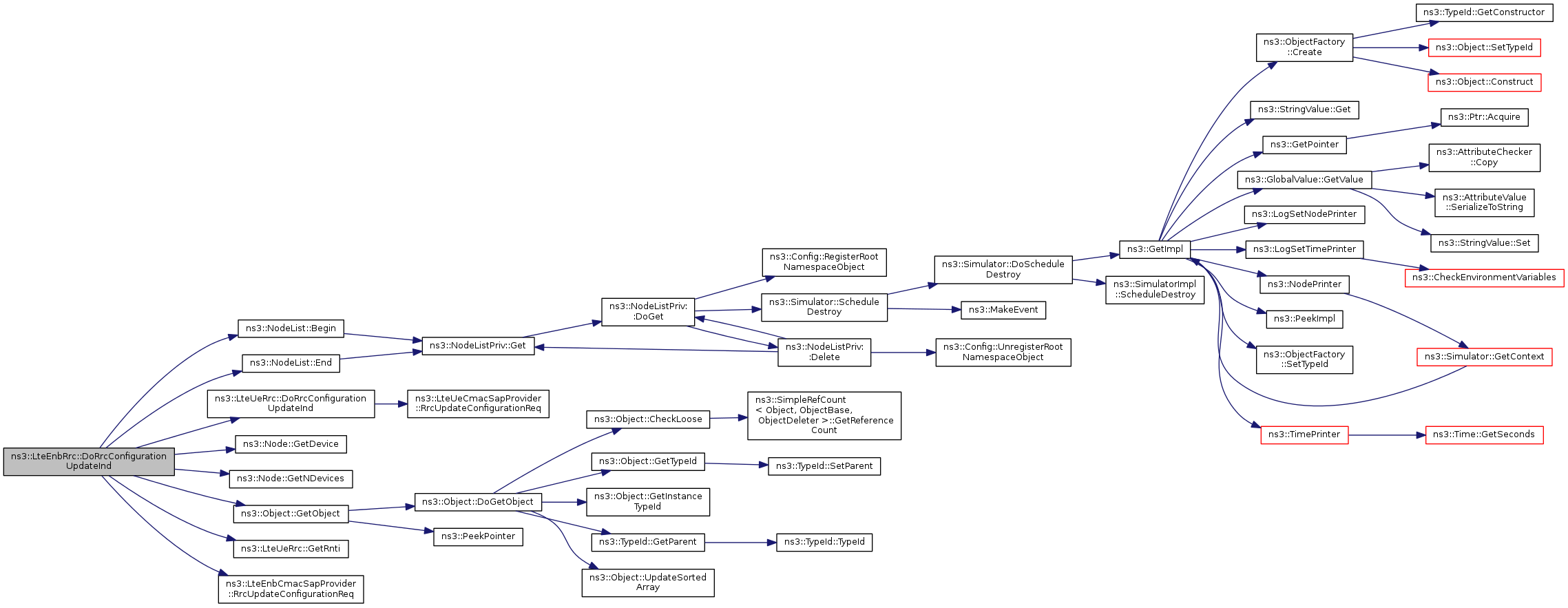

Here is the call graph for this function:

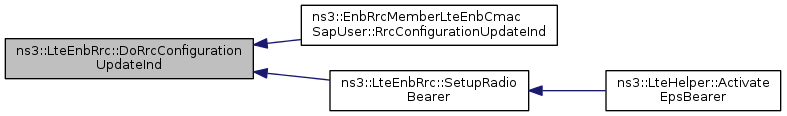

Here is the caller graph for this function:

uint16_t ns3::LteEnbRrc::GetLastAllocatedRnti ( ) const

Definition at line 260 of file lte-enb-rrc.cc.

References m_lastAllocatedRnti, and NS_LOG_FUNCTION.

LteEnbCmacSapUser * ns3::LteEnbRrc::GetLteEnbCmacSapUser ( )

Get the CMAC SAP offered by this RRC

Returns: s the CMAC SAP User interface offered to the MAC by this RRC

Definition at line 293 of file lte-enb-rrc.cc.

References m_cmacSapUser, and NS_LOG_FUNCTION.

LtePdcpSapProvider * ns3::LteEnbRrc::GetLtePdcpSapProvider	(	uint16_t	rnti,
		uint8_t	lcid
	)

private

Definition at line 315 of file lte-enb-rrc.cc.

References ns3::LtePdcp::GetLtePdcpSapProvider(), ns3::UeInfo::GetRadioBearer(), GetUeInfo(), and ns3::LteRadioBearerInfo::m_pdcp.

Referenced by Send().

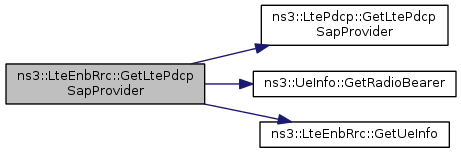

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::LteEnbRrc::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LteEnbRrc.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc

Attributes defined for this type:

UeMap: List of UE Info by C-RNTI.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::UeInfo >
- Flags: read
DefaultTransmissionMode: The default UEs' transmission mode (0: SISO)
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 239 of file lte-enb-rrc.cc.

References m_defaultTransmissionMode, m_ueMap, ns3::MakeObjectMapAccessor(), NS_LOG_FUNCTION, and ns3::TypeId::SetParent().

Here is the call graph for this function:

Ptr< UeInfo > ns3::LteEnbRrc::GetUeInfo ( uint16_t rnti )

private

Definition at line 485 of file lte-enb-rrc.cc.

References m_ueMap, NS_ABORT_IF, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetLtePdcpSapProvider(), ReleaseRadioBearer(), and SetupRadioBearer().

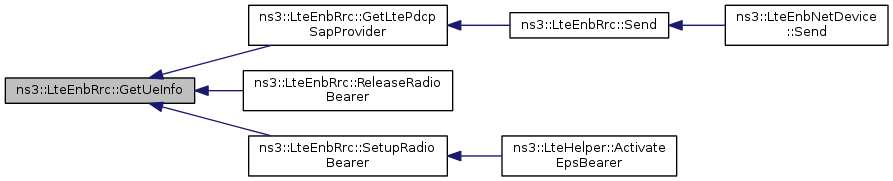

Here is the caller graph for this function:

std::map< uint16_t, Ptr< UeInfo > > ns3::LteEnbRrc::GetUeMap ( void ) const

Definition at line 265 of file lte-enb-rrc.cc.

References m_ueMap.

void ns3::LteEnbRrc::ReleaseRadioBearer	(	uint16_t	rnti,
		uint8_t	lcId
	)

Release the given radio bearer

Parameters

rnti	the C-RNTI of the user owning the bearer
lcId	the logical channel id of the bearer to be released

Definition at line 402 of file lte-enb-rrc.cc.

References GetUeInfo(), NS_LOG_FUNCTION, and ns3::UeInfo::RemoveRadioBearer().

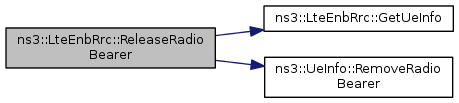

Here is the call graph for this function:

void ns3::LteEnbRrc::RemoveUe ( uint16_t rnti )

remove a UE from the cell

Parameters

rnti	the C-RNTI identiftying the user

Definition at line 341 of file lte-enb-rrc.cc.

References NS_FATAL_ERROR, NS_LOG_FUNCTION, and RemoveUeInfo().

Here is the call graph for this function:

void ns3::LteEnbRrc::RemoveUeInfo ( uint16_t rnti )

private

Definition at line 495 of file lte-enb-rrc.cc.

References m_ueMap, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by RemoveUe().

Here is the caller graph for this function:

bool ns3::LteEnbRrc::Send ( Ptr< Packet > p )

Enqueue an IP packet on the proper bearer for downlink transmission

Parameters

p	the packet

Returns: true if successful, false if an error occurred

Definition at line 412 of file lte-enb-rrc.cc.

References ns3::LteRadioBearerTag::GetLcid(), GetLtePdcpSapProvider(), ns3::LteRadioBearerTag::GetRnti(), ns3::LtePdcpSapProvider::TransmitRrcPduParameters::lcid, NS_ASSERT, NS_LOG_FUNCTION, ns3::Packet::RemovePacketTag(), ns3::LtePdcpSapProvider::TransmitRrcPduParameters::rnti, ns3::LtePdcpSapProvider::TransmitRrcPduParameters::rrcPdu, and ns3::LtePdcpSapProvider::TransmitRrcPdu().

Referenced by ns3::LteEnbNetDevice::Send().

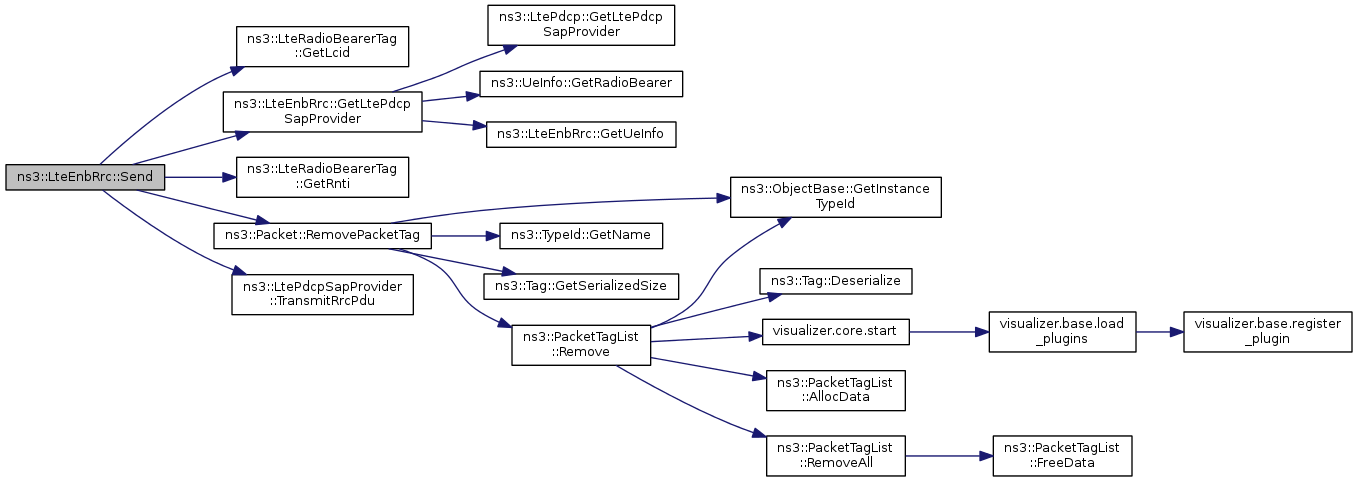

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbRrc::SetFfMacSchedSapProvider ( FfMacSchedSapProvider * s )

set the FF MAC SCHED SAP provider. The eNB RRC does not use this directly, but it needs to provide it to newly created RLC instances.

Parameters

s	the FF MAC SCHED SAP provider that will be used by all newly created RLC instances

Definition at line 300 of file lte-enb-rrc.cc.

References m_ffMacSchedSapProvider, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::SetForwardUpCallback ( Callback< void, Ptr< Packet > > cb )

set the callback used to forward data packets up the stack

Parameters

void
cb

Definition at line 431 of file lte-enb-rrc.cc.

References m_forwardUpCallback.

void ns3::LteEnbRrc::SetLastAllocatedRnti ( uint16_t lastAllocatedRnti )

Definition at line 277 of file lte-enb-rrc.cc.

References m_lastAllocatedRnti, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::SetLteEnbCmacSapProvider ( LteEnbCmacSapProvider * s )

set the CMAC SAP this RRC should interact with

Parameters

s	the CMAC SAP Provider to be used by this RRC

Definition at line 286 of file lte-enb-rrc.cc.

References m_cmacSapProvider, and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

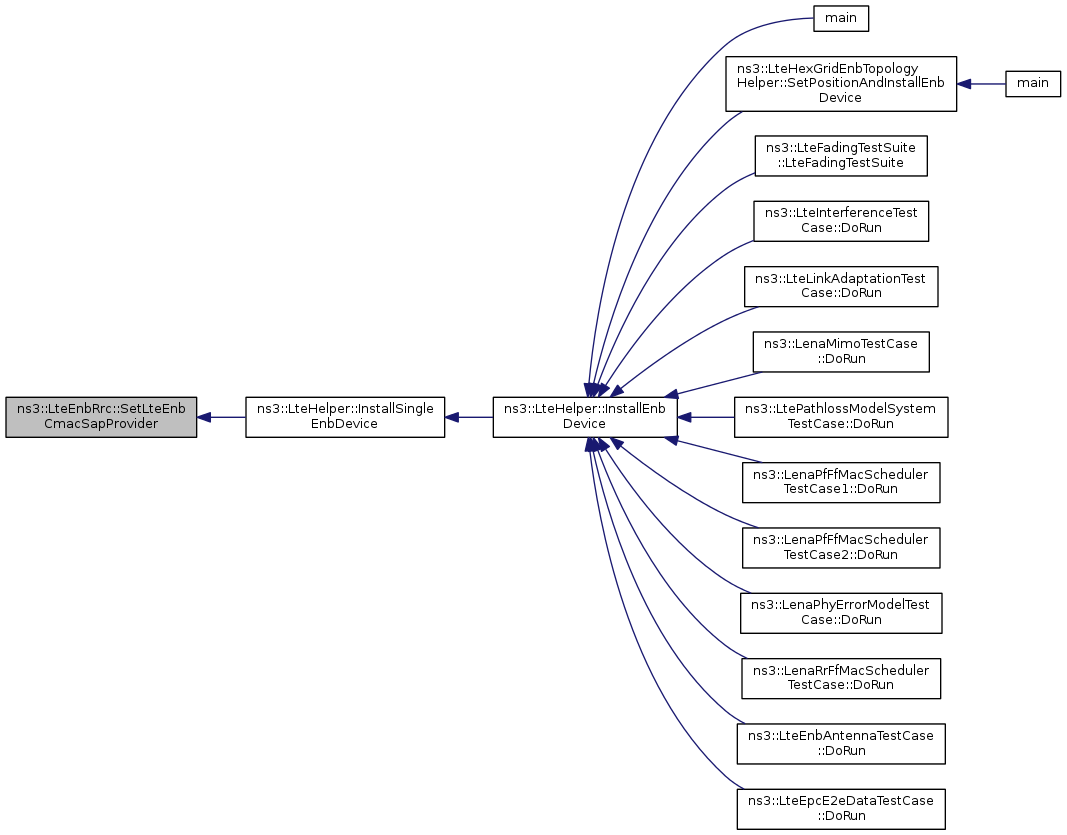

Here is the caller graph for this function:

void ns3::LteEnbRrc::SetLteMacSapProvider ( LteMacSapProvider * s )

set the MAC SAP provider. The eNB RRC does not use this directly, but it needs to provide it to newly created RLC instances.

Parameters

s	the MAC SAP provider that will be used by all newly created RLC instances

Definition at line 308 of file lte-enb-rrc.cc.

References m_macSapProvider, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::SetUeMap ( std::map< uint16_t, Ptr< UeInfo > > ueMap )

Definition at line 270 of file lte-enb-rrc.cc.

References m_ueMap.

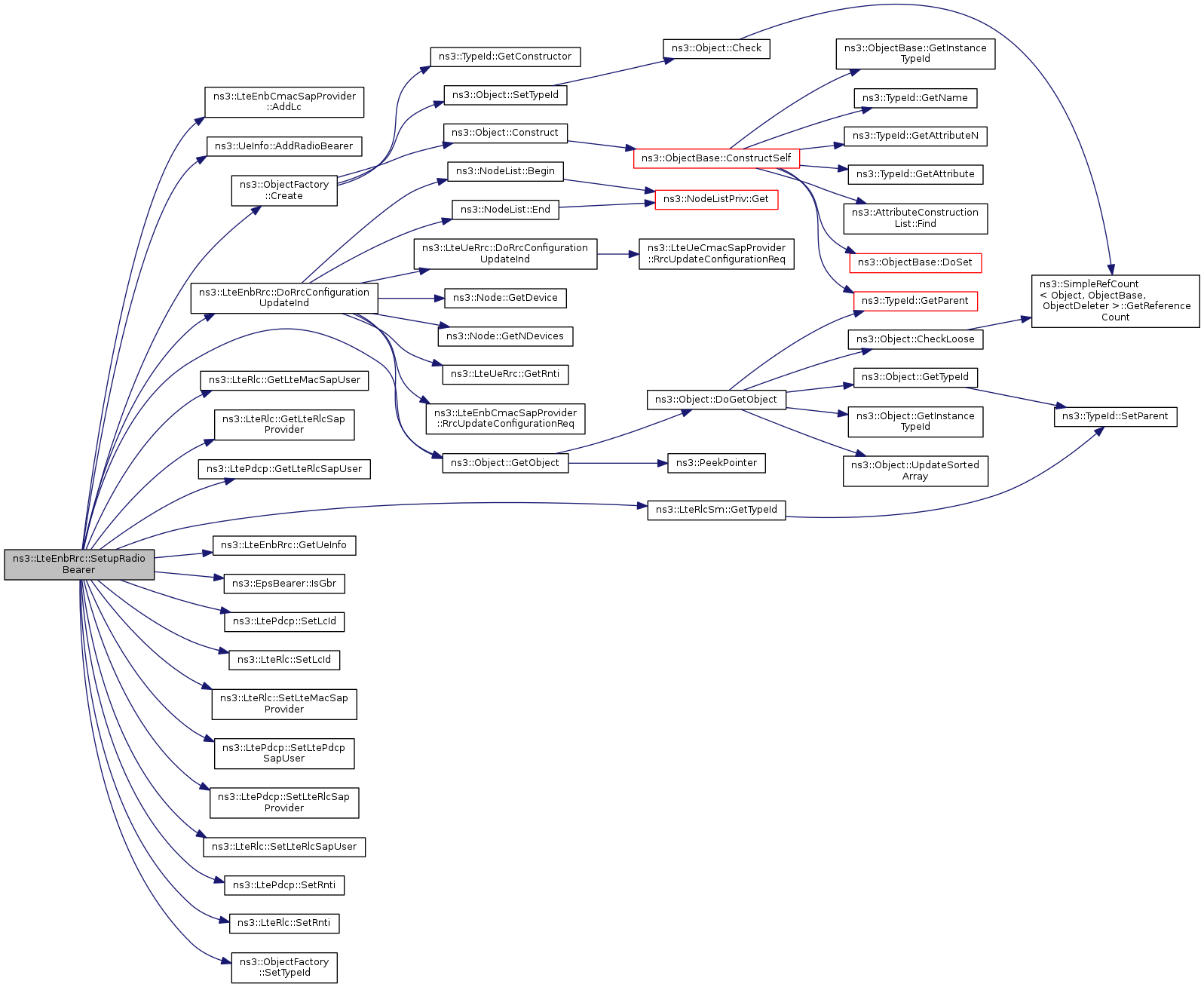

uint8_t ns3::LteEnbRrc::SetupRadioBearer	(	uint16_t	rnti,
		EpsBearer	bearer,
		TypeId	rlcTypeId
	)

Setup a new radio bearer for the given user

Parameters

rnti	the RNTI of the user
bearer	the characteristics of the bearer to be activated
rlcTypeId	the TypeId identifying the type of RLC to be used for this bearer.
