#include <lte-enb-rrc.h>

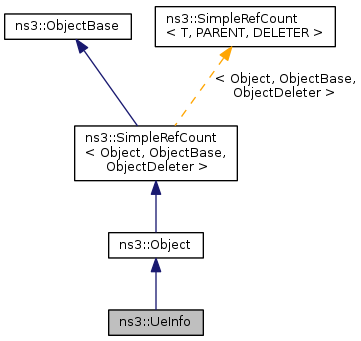

Inheritance diagram for ns3::UeInfo:

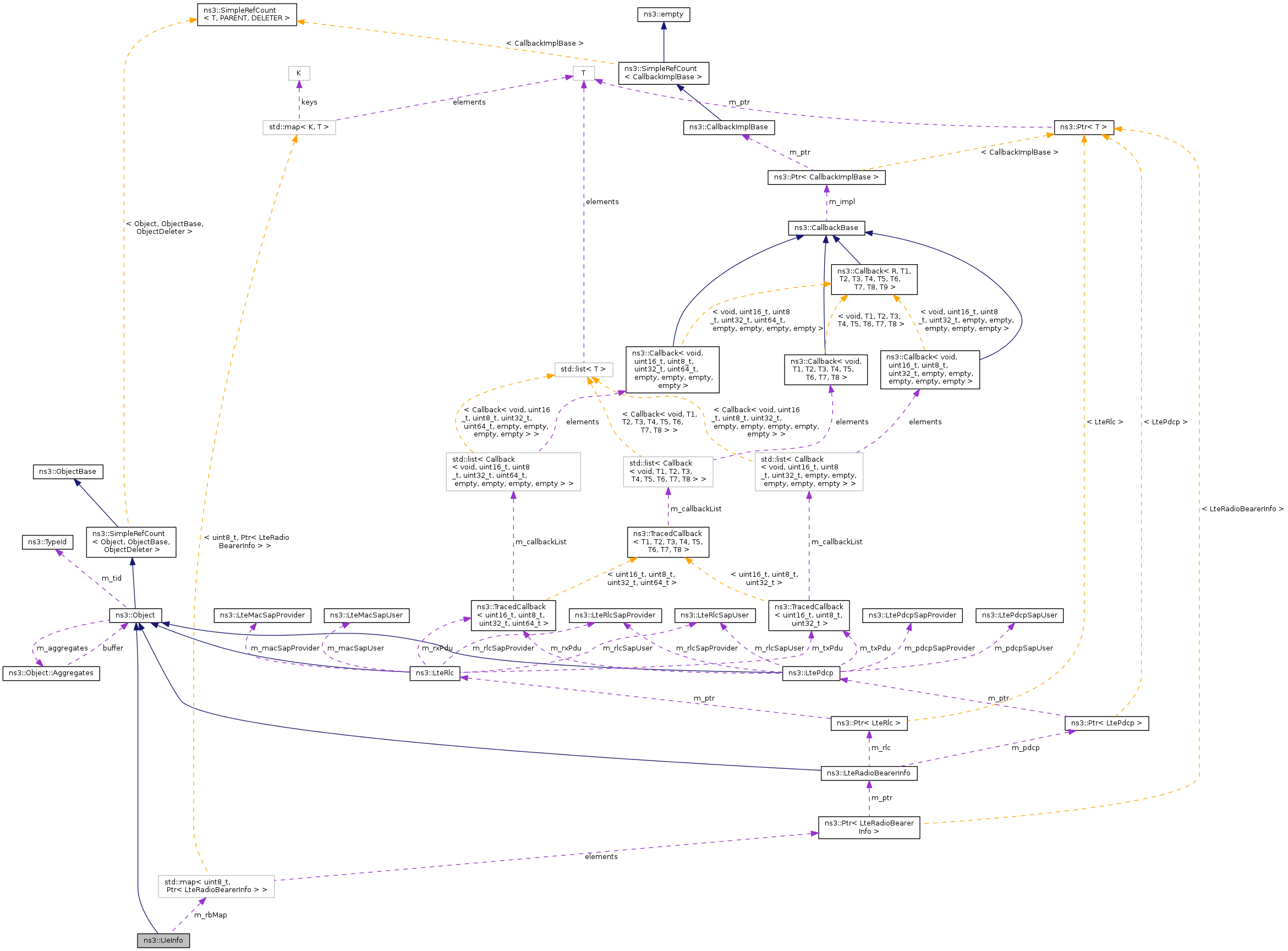

Collaboration diagram for ns3::UeInfo:

Public Member Functions
	UeInfo (void)
	UeInfo (uint64_t imsi)
virtual	~UeInfo (void)
uint8_t	AddRadioBearer (Ptr< LteRadioBearerInfo > radioBearerInfo)
uint64_t	GetImsi (void)
Ptr< LteRadioBearerInfo >	GetRadioBearer (uint8_t lcid)
void	RemoveRadioBearer (uint8_t lcid)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UeInfo.

Private Attributes
uint64_t	m_imsi
uint8_t	m_lastAllocatedId
std::map< uint8_t, Ptr < LteRadioBearerInfo > >	m_rbMap

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Manages all the radio bearer information possessed by the ENB RRC for a single UE

Definition at line 46 of file lte-enb-rrc.h.

Constructor & Destructor Documentation

ns3::UeInfo::UeInfo ( void )

Definition at line 123 of file lte-enb-rrc.cc.

References m_imsi.

ns3::UeInfo::UeInfo ( uint64_t imsi )

Definition at line 129 of file lte-enb-rrc.cc.

References m_imsi.

ns3::UeInfo::~UeInfo ( void )

virtual

Definition at line 137 of file lte-enb-rrc.cc.

Member Function Documentation

uint8_t ns3::UeInfo::AddRadioBearer ( Ptr< LteRadioBearerInfo > radioBearerInfo )

Parameters

radioBearerInfo

Returns: the allocated logical channel id; 0 is returned if it is not possible to allocate a channel id (e.g., id space exausted).

Definition at line 162 of file lte-enb-rrc.cc.

References m_lastAllocatedId, m_rbMap, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by ns3::LteEnbRrc::SetupRadioBearer().

Here is the caller graph for this function:

uint64_t ns3::UeInfo::GetImsi ( void )

Definition at line 156 of file lte-enb-rrc.cc.

References m_imsi.

Referenced by ns3::FindImsiFromEnbRlcPath().

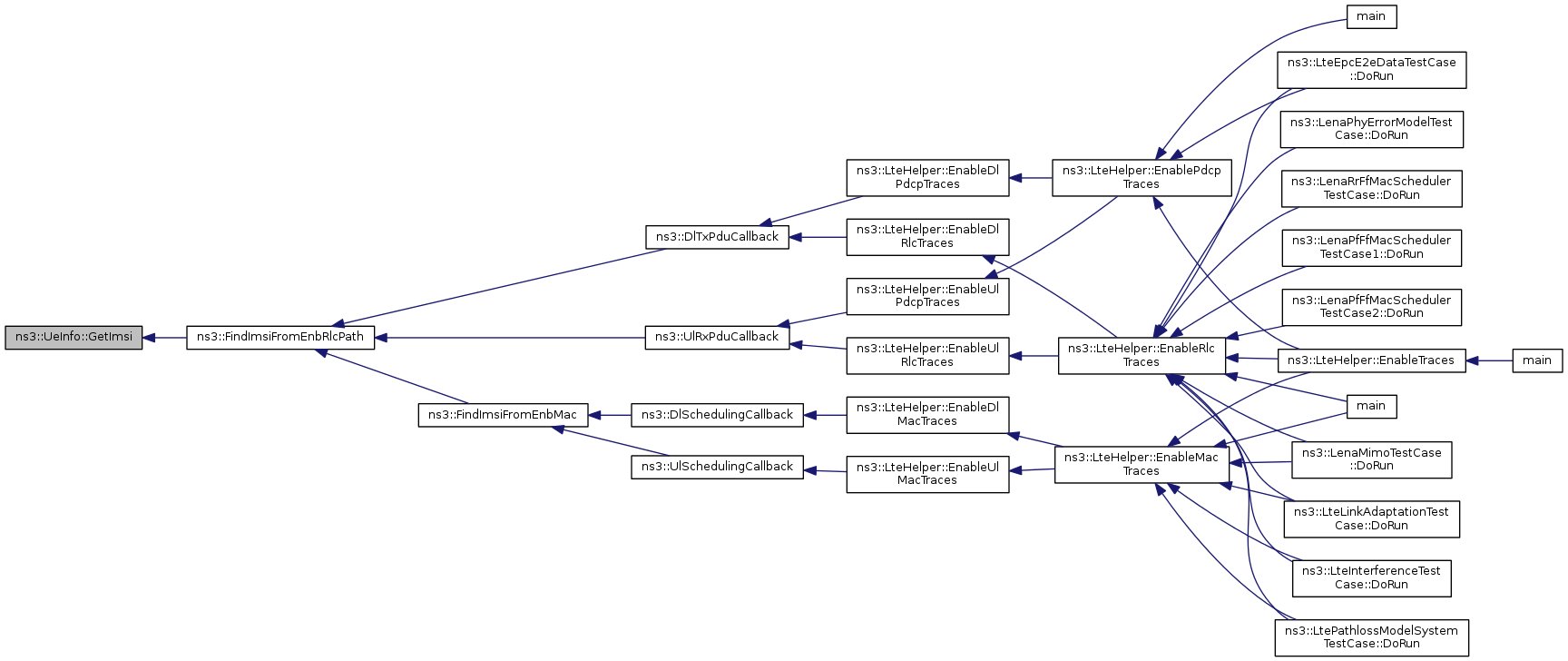

Here is the caller graph for this function:

Ptr< LteRadioBearerInfo > ns3::UeInfo::GetRadioBearer ( uint8_t lcid )

Parameters

uint8_t the logical channel id

Returns: the LteRadioBearerInfo of the selected radio bearer

Definition at line 182 of file lte-enb-rrc.cc.

References m_rbMap, NS_ABORT_IF, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::LteEnbRrc::GetLtePdcpSapProvider().

Here is the caller graph for this function:

TypeId ns3::UeInfo::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::UeInfo.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]

Attributes defined for this type:

RadioBearerMap: List of UE RadioBearerInfo by LCID.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::LteRadioBearerInfo >
- Flags: read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 142 of file lte-enb-rrc.cc.

References m_rbMap, ns3::MakeObjectMapAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:
