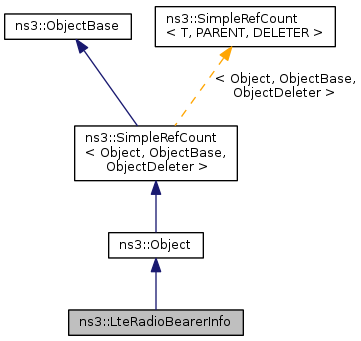

Inheritance diagram for ns3::LteRadioBearerInfo:

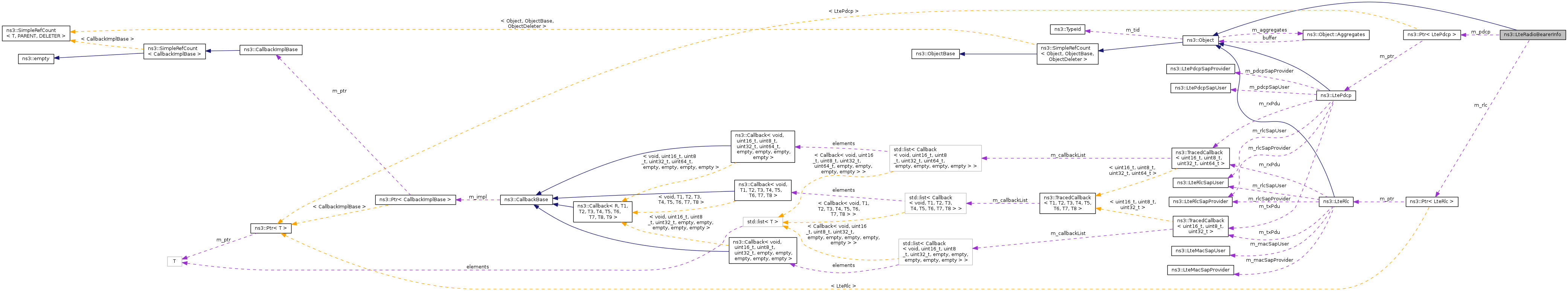

Collaboration diagram for ns3::LteRadioBearerInfo:

Public Member Functions
	LteRadioBearerInfo (void)
virtual	~LteRadioBearerInfo (void)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LteRadioBearerInfo.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

store information on active radio bearer instance

Definition at line 34 of file lte-radio-bearer-info.h.

Constructor & Destructor Documentation

ns3::LteRadioBearerInfo::LteRadioBearerInfo ( void )

Definition at line 34 of file lte-radio-bearer-info.cc.

ns3::LteRadioBearerInfo::~LteRadioBearerInfo ( void )

virtual

Definition at line 38 of file lte-radio-bearer-info.cc.

TypeId ns3::LteRadioBearerInfo::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LteRadioBearerInfo.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/RadioBearerMap/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/RadioBearerMap/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/RadioBearerMap/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/RadioBearerMap/[i]

Attributes defined for this type:

LteRlc: RLC instance of the radio bearer.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteRlc >
- Initial value: 0
- Flags: construct write read
LtePdcp: PDCP instance of the radio bearer.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LtePdcp >
- Initial value: 0
- Flags: construct write read
