ns3::SimpleDeviceEnergyModel Class Reference

#include <simple-device-energy-model.h>

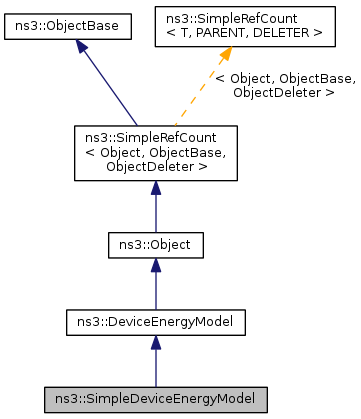

Inheritance diagram for ns3::SimpleDeviceEnergyModel:

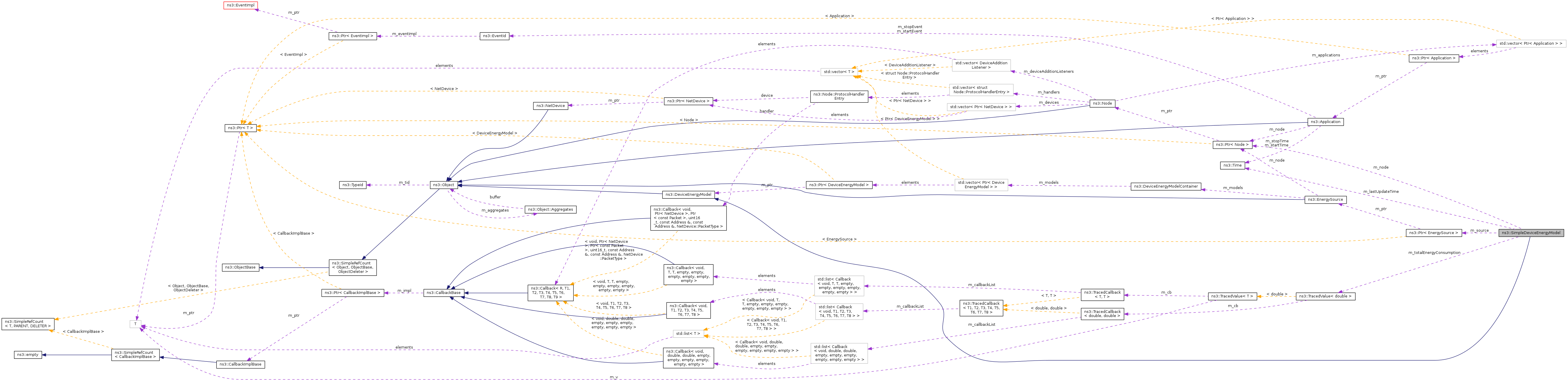

Collaboration diagram for ns3::SimpleDeviceEnergyModel:

Public Member Functions
	SimpleDeviceEnergyModel ()
virtual	~SimpleDeviceEnergyModel ()
virtual void	ChangeState (int newState)
virtual Ptr< Node >	GetNode (void) const
	Gets pointer to node.
virtual double	GetTotalEnergyConsumption (void) const
virtual void	HandleEnergyDepletion (void)
	Handles energy depletion.
void	SetCurrentA (double current)
virtual void	SetEnergySource (Ptr< EnergySource > source)
	Sets pointer to EnergySouce installed on node.
virtual void	SetNode (Ptr< Node > node)
	Sets pointer to node.
Public Member Functions inherited from ns3::DeviceEnergyModel
	DeviceEnergyModel ()
virtual	~DeviceEnergyModel ()
double	GetCurrentA (void) const
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::SimpleDeviceEnergyModel.

Private Member Functions
void	DoDispose (void)
virtual double	DoGetCurrentA (void) const

Private Attributes
double	m_actualCurrentA
Time	m_lastUpdateTime
Ptr< Node >	m_node
Ptr< EnergySource >	m_source
TracedValue< double >	m_totalEnergyConsumption

Additional Inherited Members
Public Types inherited from ns3::DeviceEnergyModel
typedef Callback< void, int >	ChangeStateCallback
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

A simple device energy model where current drain can be set by the user.

It is supposed to be used as a testing model for energy sources.

Definition at line 25 of file simple-device-energy-model.h.

Constructor & Destructor Documentation

ns3::SimpleDeviceEnergyModel::SimpleDeviceEnergyModel

(

)

Definition at line 24 of file simple-device-energy-model.cc.

References m_actualCurrentA, m_lastUpdateTime, m_source, and ns3::Seconds().

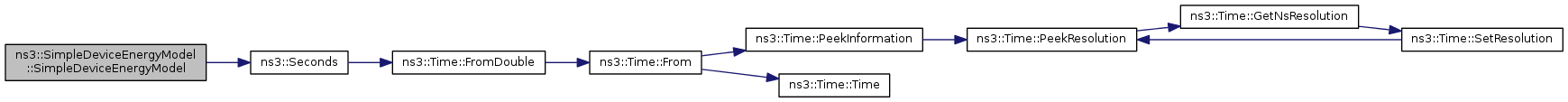

Here is the call graph for this function:

ns3::SimpleDeviceEnergyModel::~SimpleDeviceEnergyModel ( )

virtual

Definition at line 31 of file simple-device-energy-model.cc.

Member Function Documentation

virtual void ns3::SimpleDeviceEnergyModel::ChangeState ( int  newState )

inlinevirtual

Parameters

newState

New state the device is in.

Not implemented

Implements ns3::DeviceEnergyModel.

Definition at line 71 of file simple-device-energy-model.h.

void ns3::SimpleDeviceEnergyModel::DoDispose ( void  )

private

Definition at line 81 of file simple-device-energy-model.cc.

References m_source.

double ns3::SimpleDeviceEnergyModel::DoGetCurrentA ( void  ) const

privatevirtual

Returns

Current draw of device, at current state.

Implements DeviceEnergyModel::GetCurrentA.

Definition at line 87 of file simple-device-energy-model.cc.

References m_actualCurrentA.

Ptr< Node > ns3::SimpleDeviceEnergyModel::GetNode ( void  ) const

virtual

Gets pointer to node.

Returns

Pointer to node.

Implements DeviceEnergyModel::GetNode.

Definition at line 50 of file simple-device-energy-model.cc.

References m_node.

double ns3::SimpleDeviceEnergyModel::GetTotalEnergyConsumption ( void  ) const

virtual

Returns

Total energy consumption of the vehicle.

Implements DeviceEnergyModel::GetTotalEnergyConsumption.

Implements ns3::DeviceEnergyModel.

Definition at line 56 of file simple-device-energy-model.cc.

References m_totalEnergyConsumption.

TypeId ns3::SimpleDeviceEnergyModel::GetTypeId ( void  )

static

This method returns the TypeId associated to ns3::SimpleDeviceEnergyModel.

No Attributes defined for this type.
TraceSources defined for this type:

• TotalEnergyConsumption: Total energy consumption of the radio device.

Reimplemented from ns3::DeviceEnergyModel.

Definition at line 12 of file simple-device-energy-model.cc.

References m_totalEnergyConsumption, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

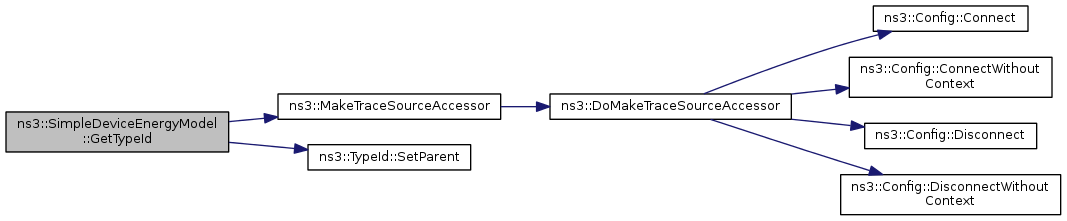

Here is the call graph for this function:

virtual void ns3::SimpleDeviceEnergyModel::HandleEnergyDepletion ( void  )

inlinevirtual

Handles energy depletion.

Not implemented

Implements ns3::DeviceEnergyModel.

Definition at line 80 of file simple-device-energy-model.h.

void ns3::SimpleDeviceEnergyModel::SetCurrentA

(

double

current

)

Parameters

current

the current draw of device.

Set the actual current draw of the device.

Definition at line 62 of file simple-device-energy-model.cc.

References ns3::Time::GetSeconds(), ns3::EnergySource::GetSupplyVoltage(), m_actualCurrentA, m_lastUpdateTime, m_source, m_totalEnergyConsumption, ns3::Now(), and ns3::EnergySource::UpdateEnergySource().

Referenced by main().

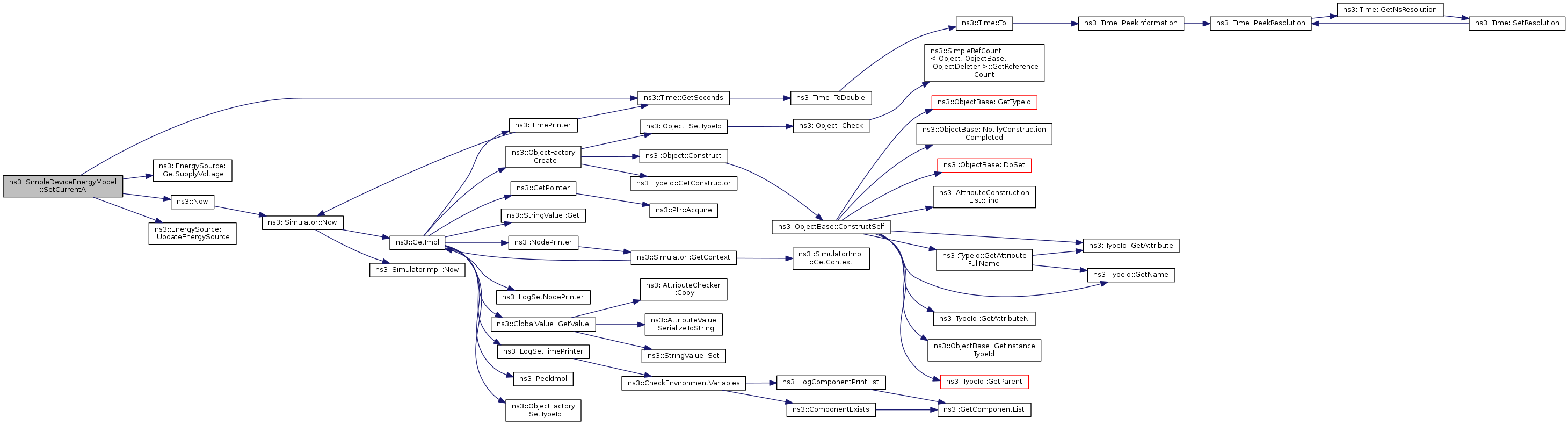

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SimpleDeviceEnergyModel::SetEnergySource ( Ptr< EnergySource >  source )

virtual

Sets pointer to EnergySouce installed on node.

Parameters

source

Pointer to EnergySource installed on node.

Implements DeviceEnergyModel::SetEnergySource.

Implements ns3::DeviceEnergyModel.

Definition at line 36 of file simple-device-energy-model.cc.

References m_source, and NS_ASSERT.

void ns3::SimpleDeviceEnergyModel::SetNode ( Ptr< Node >  node )

virtual

Sets pointer to node.

Parameters

node	Pointer to node.

Implements DeviceEnergyModel::SetNode.

Definition at line 43 of file simple-device-energy-model.cc.

References m_node, and NS_ASSERT.

Member Data Documentation

double ns3::SimpleDeviceEnergyModel::m_actualCurrentA

private

Definition at line 101 of file simple-device-energy-model.h.

Referenced by DoGetCurrentA(), SetCurrentA(), and SimpleDeviceEnergyModel().

Time ns3::SimpleDeviceEnergyModel::m_lastUpdateTime

private

Definition at line 100 of file simple-device-energy-model.h.

Referenced by SetCurrentA(), and SimpleDeviceEnergyModel().

Ptr<Node> ns3::SimpleDeviceEnergyModel::m_node

private

Definition at line 103 of file simple-device-energy-model.h.

Referenced by GetNode(), and SetNode().

Ptr<EnergySource> ns3::SimpleDeviceEnergyModel::m_source

private

Definition at line 102 of file simple-device-energy-model.h.

Referenced by DoDispose(), SetCurrentA(), SetEnergySource(), and SimpleDeviceEnergyModel().

TracedValue<double> ns3::SimpleDeviceEnergyModel::m_totalEnergyConsumption

private

Definition at line 104 of file simple-device-energy-model.h.

Referenced by GetTotalEnergyConsumption(), GetTypeId(), and SetCurrentA().

---

The documentation for this class was generated from the following files:

• src/energy/model/simple-device-energy-model.h
• doc/introspected-doxygen.h
• src/energy/model/simple-device-energy-model.cc
