SpectrumChannel implementation which handles a single spectrum model. More...

#include <single-model-spectrum-channel.h>

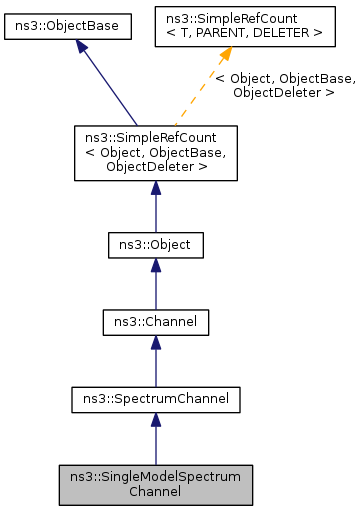

Inheritance diagram for ns3::SingleModelSpectrumChannel:

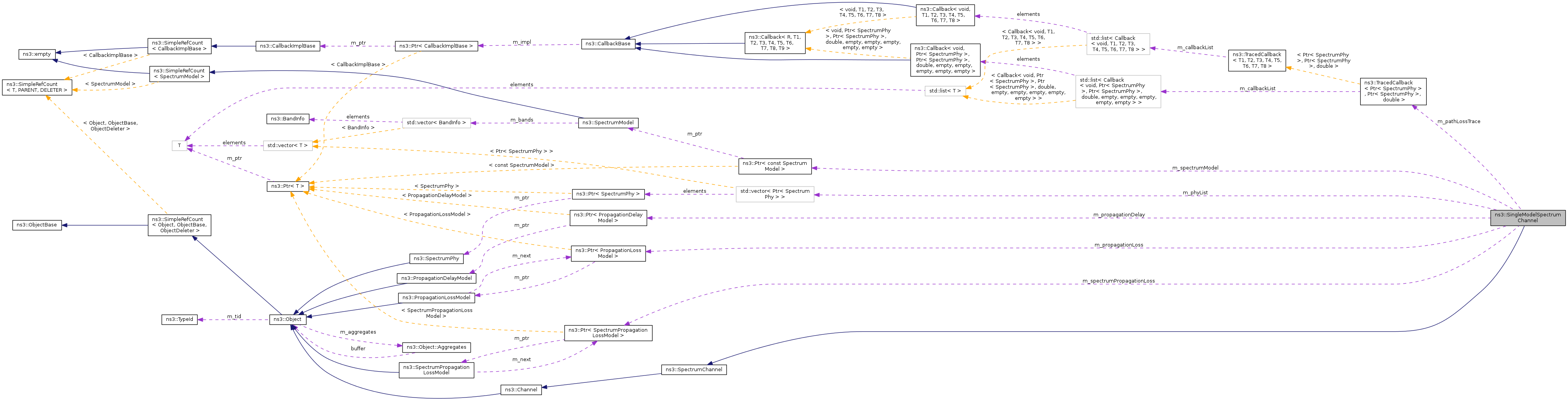

Collaboration diagram for ns3::SingleModelSpectrumChannel:

Public Types
typedef std::vector< Ptr < SpectrumPhy > >	PhyList

Public Member Functions
	SingleModelSpectrumChannel ()
virtual void	AddPropagationLossModel (Ptr< PropagationLossModel > loss)
virtual void	AddRx (Ptr< SpectrumPhy > phy)
	add a SpectrumPhy to a channel, so it can receive packets
virtual void	AddSpectrumPropagationLossModel (Ptr< SpectrumPropagationLossModel > loss)
virtual Ptr< NetDevice >	GetDevice (uint32_t i) const
virtual uint32_t	GetNDevices (void) const
virtual Ptr < SpectrumPropagationLossModel >	GetSpectrumPropagationLossModel (void)
virtual void	SetPropagationDelayModel (Ptr< PropagationDelayModel > delay)
virtual void	StartTx (Ptr< SpectrumSignalParameters > params)
Public Member Functions inherited from ns3::SpectrumChannel
virtual	~SpectrumChannel ()
Public Member Functions inherited from ns3::Channel
	Channel ()
virtual	~Channel ()
uint32_t	GetId (void) const
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::SingleModelSpectrumChannel.

Private Member Functions
virtual void	DoDispose ()
void	StartRx (Ptr< SpectrumSignalParameters > params, Ptr< SpectrumPhy > receiver)

Private Attributes
double	m_maxLossDb
TracedCallback< Ptr < SpectrumPhy >, Ptr < SpectrumPhy >, double >	m_pathLossTrace
PhyList	m_phyList
Ptr< PropagationDelayModel >	m_propagationDelay
Ptr< PropagationLossModel >	m_propagationLoss
Ptr< const SpectrumModel >	m_spectrumModel
Ptr< SpectrumPropagationLossModel >	m_spectrumPropagationLoss

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

SpectrumChannel implementation which handles a single spectrum model.

All SpectrumPhy layers attached to this SpectrumChannel

Definition at line 40 of file single-model-spectrum-channel.h.

Member Typedef Documentation

typedef std::vector<Ptr<SpectrumPhy> > ns3::SingleModelSpectrumChannel::PhyList

Definition at line 62 of file single-model-spectrum-channel.h.

Constructor & Destructor Documentation

ns3::SingleModelSpectrumChannel::SingleModelSpectrumChannel ( )

Definition at line 49 of file single-model-spectrum-channel.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::SingleModelSpectrumChannel::AddPropagationLossModel ( Ptr< PropagationLossModel > loss )

virtual

set the single-frequency propagation loss model to be used

Warning: only models that do not depend on the TX power should be used.

Parameters

loss	a pointer to the propagation loss model to be used.

Implements ns3::SpectrumChannel.

Definition at line 234 of file single-model-spectrum-channel.cc.

References m_propagationLoss, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::SingleModelSpectrumChannel::AddRx ( Ptr< SpectrumPhy > phy )

virtual

add a SpectrumPhy to a channel, so it can receive packets

This method is used to attach a SpectrumPhy instance to a SpectrumChannel instance, so that the SpectrumPhy can receive packets sent on that channel. Note that a SpectrumPhy that only transmits (without receiveing ever) does not need to be added to the channel.

This method is to be implemented by all classes inheriting from SpectrumChannel.

Parameters

phy	the SpectrumPhy instance to be added to the channel as a receiver.

Implements ns3::SpectrumChannel.

Definition at line 101 of file single-model-spectrum-channel.cc.

References m_phyList, and NS_LOG_FUNCTION.

void ns3::SingleModelSpectrumChannel::AddSpectrumPropagationLossModel ( Ptr< SpectrumPropagationLossModel > loss )

virtual

set the frequency-dependent propagation loss model to be used

Parameters

loss	a pointer to the propagation loss model to be used.

Implements ns3::SpectrumChannel.

Definition at line 243 of file single-model-spectrum-channel.cc.

References m_spectrumPropagationLoss, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::SingleModelSpectrumChannel::DoDispose ( void )

privatevirtual

Definition at line 55 of file single-model-spectrum-channel.cc.

References m_phyList, m_propagationDelay, m_propagationLoss, m_spectrumModel, m_spectrumPropagationLoss, and NS_LOG_FUNCTION.

Ptr< NetDevice > ns3::SingleModelSpectrumChannel::GetDevice ( uint32_t i ) const

virtual

Parameters

i	index of NetDevice to retrieve

Returns: one of the NetDevices connected to this channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 226 of file single-model-spectrum-channel.cc.

References m_phyList, and NS_LOG_FUNCTION.

uint32_t ns3::SingleModelSpectrumChannel::GetNDevices ( void ) const

virtual

Returns: the number of NetDevices connected to this Channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 218 of file single-model-spectrum-channel.cc.

References m_phyList, and NS_LOG_FUNCTION.

Ptr< SpectrumPropagationLossModel > ns3::SingleModelSpectrumChannel::GetSpectrumPropagationLossModel ( void )

virtual

Definition at line 260 of file single-model-spectrum-channel.cc.

References m_spectrumPropagationLoss, and NS_LOG_FUNCTION.

TypeId ns3::SingleModelSpectrumChannel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::SingleModelSpectrumChannel.

Attributes defined for this type:

MaxLossDb: If a single-frequency PropagationLossModel is used, this value represents the maximum loss in dB for which transmissions will be passed to the receiving PHY. Signals for which the PropagationLossModel returns a loss bigger than this value will not be propagated to the receiver. This parameter is to be used to reduce the computational load by not propagating signals that are far beyond the interference range. Note that the default value corresponds to considering all signals for reception. Tune this value with care.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1e+09
- Flags: construct write read

Attributes defined in parent class ns3::Channel:

Id: The id (unique integer) of this Channel.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Flags: read

TraceSources defined for this type:

PathLoss: This trace is fired whenever a new path loss value is calculated. The first and second parameters to the trace are pointers respectively to the TX and RX SpectrumPhy instances, whereas the third parameters is the loss value in dB. Note that the loss value reported by this trace is the single-frequency loss value obtained by evaluating only the TX and RX AntennaModels and the PropagationLossModel. In particular, note that SpectrumPropagationLossModel (even if present) is never used to evaluate the loss value reported in this trace.

Reimplemented from ns3::SpectrumChannel.

Definition at line 67 of file single-model-spectrum-channel.cc.

References m_maxLossDb, m_pathLossTrace, ns3::MakeTraceSourceAccessor(), NS_LOG_FUNCTION_NOARGS, and ns3::TypeId::SetParent().

Referenced by ns3::LteHelper::LteHelper().

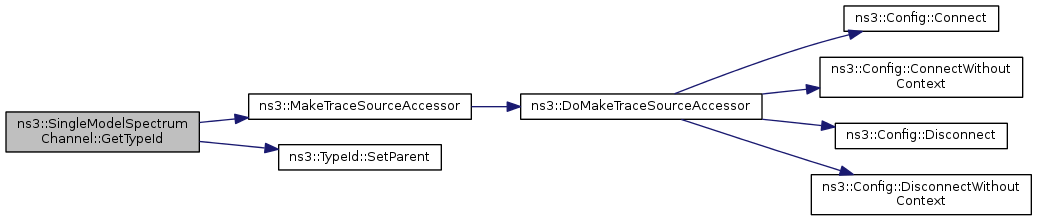

Here is the call graph for this function:
