#include <spectrum-channel.h>

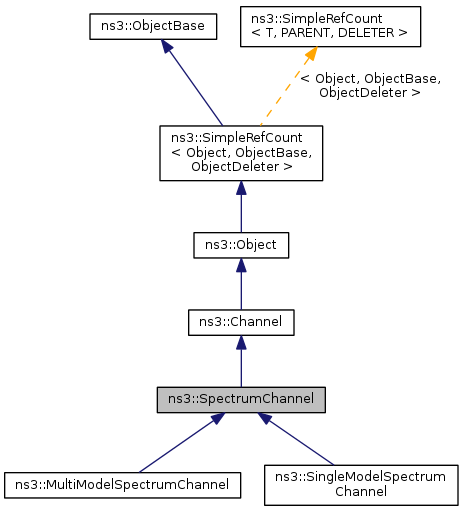

Inheritance diagram for ns3::SpectrumChannel:

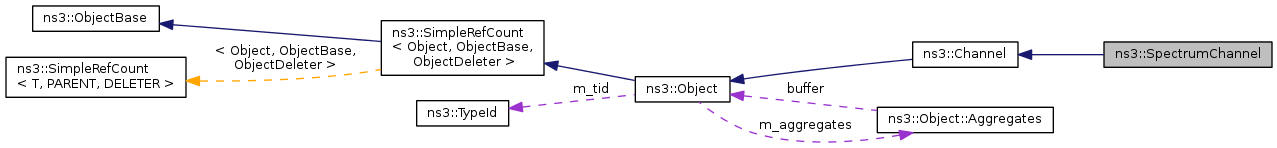

Collaboration diagram for ns3::SpectrumChannel:

Public Member Functions
virtual	~SpectrumChannel ()
virtual void	AddPropagationLossModel (Ptr< PropagationLossModel > loss)=0
virtual void	AddRx (Ptr< SpectrumPhy > phy)=0
	add a SpectrumPhy to a channel, so it can receive packets
virtual void	AddSpectrumPropagationLossModel (Ptr< SpectrumPropagationLossModel > loss)=0
virtual void	SetPropagationDelayModel (Ptr< PropagationDelayModel > delay)=0
virtual void	StartTx (Ptr< SpectrumSignalParameters > params)=0
Public Member Functions inherited from ns3::Channel
	Channel ()
virtual	~Channel ()
virtual Ptr< NetDevice >	GetDevice (uint32_t i) const =0
uint32_t	GetId (void) const
virtual uint32_t	GetNDevices (void) const =0
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::SpectrumChannel.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Defines the interface for spectrum-aware channel implementations

Definition at line 46 of file spectrum-channel.h.

Constructor & Destructor Documentation

ns3::SpectrumChannel::~SpectrumChannel ( )

virtual

Definition at line 38 of file spectrum-channel.cc.

Member Function Documentation

virtual void ns3::SpectrumChannel::AddPropagationLossModel ( Ptr< PropagationLossModel > loss )

pure virtual

set the single-frequency propagation loss model to be used

Warning: only models that do not depend on the TX power should be used.

Parameters

loss	a pointer to the propagation loss model to be used.

Implemented in ns3::MultiModelSpectrumChannel, and ns3::SingleModelSpectrumChannel.

Referenced by ns3::SpectrumChannelHelper::Create(), and ns3::LteHelper::DoStart().

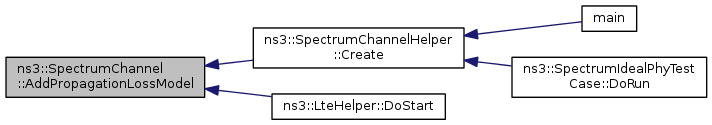

Here is the caller graph for this function:

virtual void ns3::SpectrumChannel::AddRx ( Ptr< SpectrumPhy > phy )

pure virtual

add a SpectrumPhy to a channel, so it can receive packets

This method is used to attach a SpectrumPhy instance to a SpectrumChannel instance, so that the SpectrumPhy can receive packets sent on that channel. Note that a SpectrumPhy that only transmits (without receiveing ever) does not need to be added to the channel.

This method is to be implemented by all classes inheriting from SpectrumChannel.

Parameters
