ns3::UeMemberLteUePhySapProvider Class Reference

Inheritance diagram for ns3::UeMemberLteUePhySapProvider:

Collaboration diagram for ns3::UeMemberLteUePhySapProvider:

Public Member Functions
	UeMemberLteUePhySapProvider (LteUePhy *phy)
virtual void	SendIdealControlMessage (Ptr< IdealControlMessage > msg)
	Send SendIdealControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.
virtual void	SendMacPdu (Ptr< Packet > p)
	Send the MAC PDU to the channel.
virtual void	SetBandwidth (uint8_t ulBandwidth, uint8_t dlBandwidth)
virtual void	SetTransmissionMode (uint8_t txMode)
Public Member Functions inherited from ns3::LteUePhySapProvider
virtual	~LteUePhySapProvider ()

Private Attributes
LteUePhy *	m_phy

Detailed Description

Definition at line 50 of file lte-ue-phy.cc.

Constructor & Destructor Documentation

ns3::UeMemberLteUePhySapProvider::UeMemberLteUePhySapProvider

(

LteUePhy *

phy

)

Definition at line 65 of file lte-ue-phy.cc.

Member Function Documentation

void ns3::UeMemberLteUePhySapProvider::SendIdealControlMessage ( Ptr< IdealControlMessage >  msg )

virtual

Send SendIdealControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.

Parameters

msg	the Ideal Control Message to send

Implements ns3::LteUePhySapProvider.

Definition at line 84 of file lte-ue-phy.cc.

References ns3::LteUePhy::DoSendIdealControlMessage(), and m_phy.

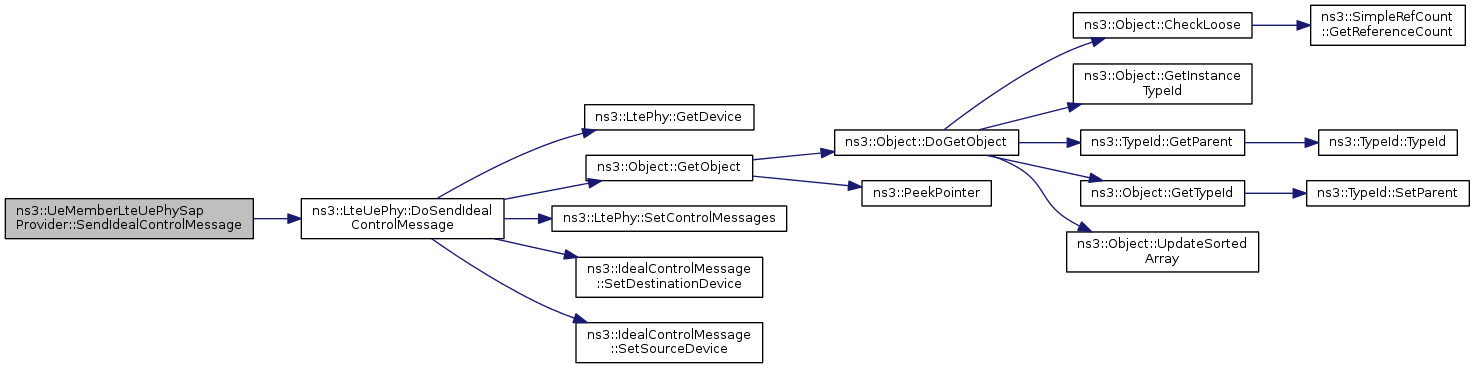

Here is the call graph for this function:

void ns3::UeMemberLteUePhySapProvider::SendMacPdu ( Ptr< Packet >  p )

virtual

Send the MAC PDU to the channel.

Parameters

p	the MAC PDU to send

Returns

true if

Implements ns3::LteUePhySapProvider.

Definition at line 72 of file lte-ue-phy.cc.

References ns3::LteUePhy::DoSendMacPdu(), and m_phy.

Here is the call graph for this function:

void ns3::UeMemberLteUePhySapProvider::SetBandwidth ( uint8_t  ulBandwidth, uint8_t  dlBandwidth  )

virtual

Parameters

ulBandwidth	the UL bandwidth in RB
dlBandwidth	the DL bandwidth in RB

Implements ns3::LteUePhySapProvider.

Definition at line 78 of file lte-ue-phy.cc.

References ns3::LtePhy::DoSetBandwidth(), and m_phy.

Here is the call graph for this function:

void ns3::UeMemberLteUePhySapProvider::SetTransmissionMode ( uint8_t  txMode )

virtual

Parameters

txMode

the transmissionMode of the user

Implements ns3::LteUePhySapProvider.

Definition at line 90 of file lte-ue-phy.cc.

References ns3::LteUePhy::DoSetTransmissionMode(), and m_phy.

Here is the call graph for this function:

Member Data Documentation

LteUePhy* ns3::UeMemberLteUePhySapProvider::m_phy

private

Definition at line 62 of file lte-ue-phy.cc.

Referenced by SendIdealControlMessage(), SendMacPdu(), SetBandwidth(), and SetTransmissionMode().

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-ue-phy.cc
