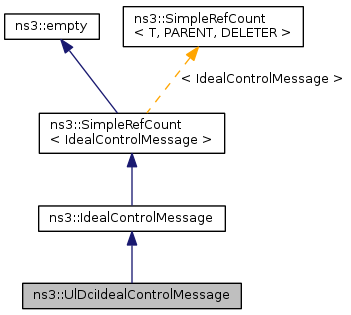

Inheritance diagram for ns3::UlDciIdealControlMessage:

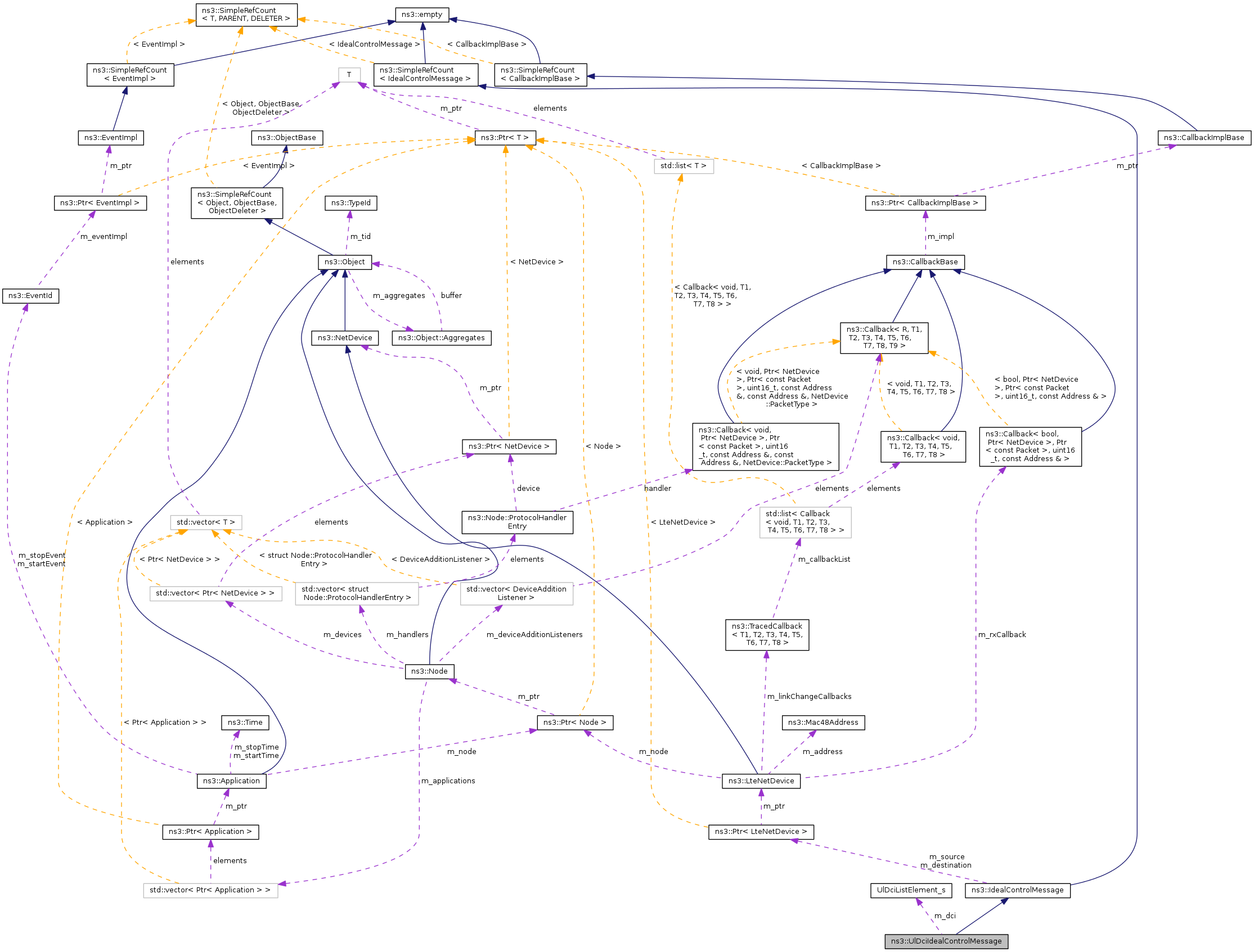

Collaboration diagram for ns3::UlDciIdealControlMessage:

Public Member Functions
	UlDciIdealControlMessage (void)
virtual	~UlDciIdealControlMessage (void)
UlDciListElement_s	GetDci (void)
	Get dic informations.
void	SetDci (UlDciListElement_s dci)
	add a DCI into the message
Public Member Functions inherited from ns3::IdealControlMessage
	IdealControlMessage (void)
virtual	~IdealControlMessage (void)
Ptr< LteNetDevice >	GetDestinationDevice (void)
	Get the destination device of the message.
MessageType	GetMessageType (void)
	Get the type of the message.
Ptr< LteNetDevice >	GetSourceDevice (void)
	Get the source device of the message.
void	SetDestinationDevice (Ptr< LteNetDevice > dst)
	Set the destination device of the message.
void	SetMessageType (MessageType type)
	Set the type of the message.
void	SetSourceDevice (Ptr< LteNetDevice > src)
	Set the source device of the message.
Public Member Functions inherited from ns3::SimpleRefCount< IdealControlMessage >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
UlDciListElement_s	m_dci

Additional Inherited Members
Public Types inherited from ns3::IdealControlMessage
enum	MessageType { CQI_FEEDBACKS, ALLOCATION_MAP, DL_DCI, UL_DCI, DL_CQI, UL_CQI, BSR }
Static Public Member Functions inherited from ns3::SimpleRefCount< IdealControlMessage >
static void	Cleanup (void)

Detailed Description

The Uplink Data Control Indicator messages defines the RB allocation for the users in the uplink

Definition at line 162 of file ideal-control-messages.h.

Constructor & Destructor Documentation

ns3::UlDciIdealControlMessage::UlDciIdealControlMessage ( void )

Definition at line 122 of file ideal-control-messages.cc.

Here is the call graph for this function:

ns3::UlDciIdealControlMessage::~UlDciIdealControlMessage ( void )

virtual

Definition at line 128 of file ideal-control-messages.cc.

UlDciListElement_s ns3::UlDciIdealControlMessage::GetDci ( void )

Get dic informations.

Definition at line 142 of file ideal-control-messages.cc.

References m_dci.

void ns3::UlDciIdealControlMessage::SetDci ( UlDciListElement_s dci )

add a DCI into the message

Parameters

dci the dci

Definition at line 134 of file ideal-control-messages.cc.

References m_dci.

UlDciListElement_s ns3::UlDciIdealControlMessage::m_dci

private

Definition at line 182 of file ideal-control-messages.h.

Referenced by GetDci(), and SetDci().

The documentation for this class was generated from the following files:
