handle packet fragmentation and retransmissions.This class implements the packet fragmentation and retransmission policy. It uses the ns3::MacLow and ns3::DcfManager helper classes to respectively send packets and decide when to send them. Packets are stored in a ns3::WifiMacQueue until they can be sent. More...

#include <dca-txop.h>

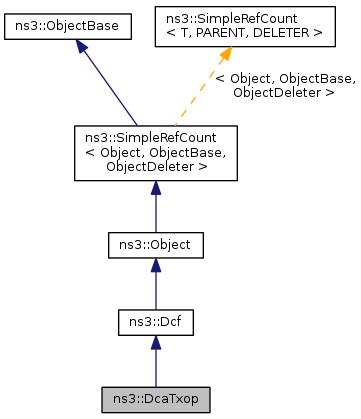

Inheritance diagram for ns3::DcaTxop:

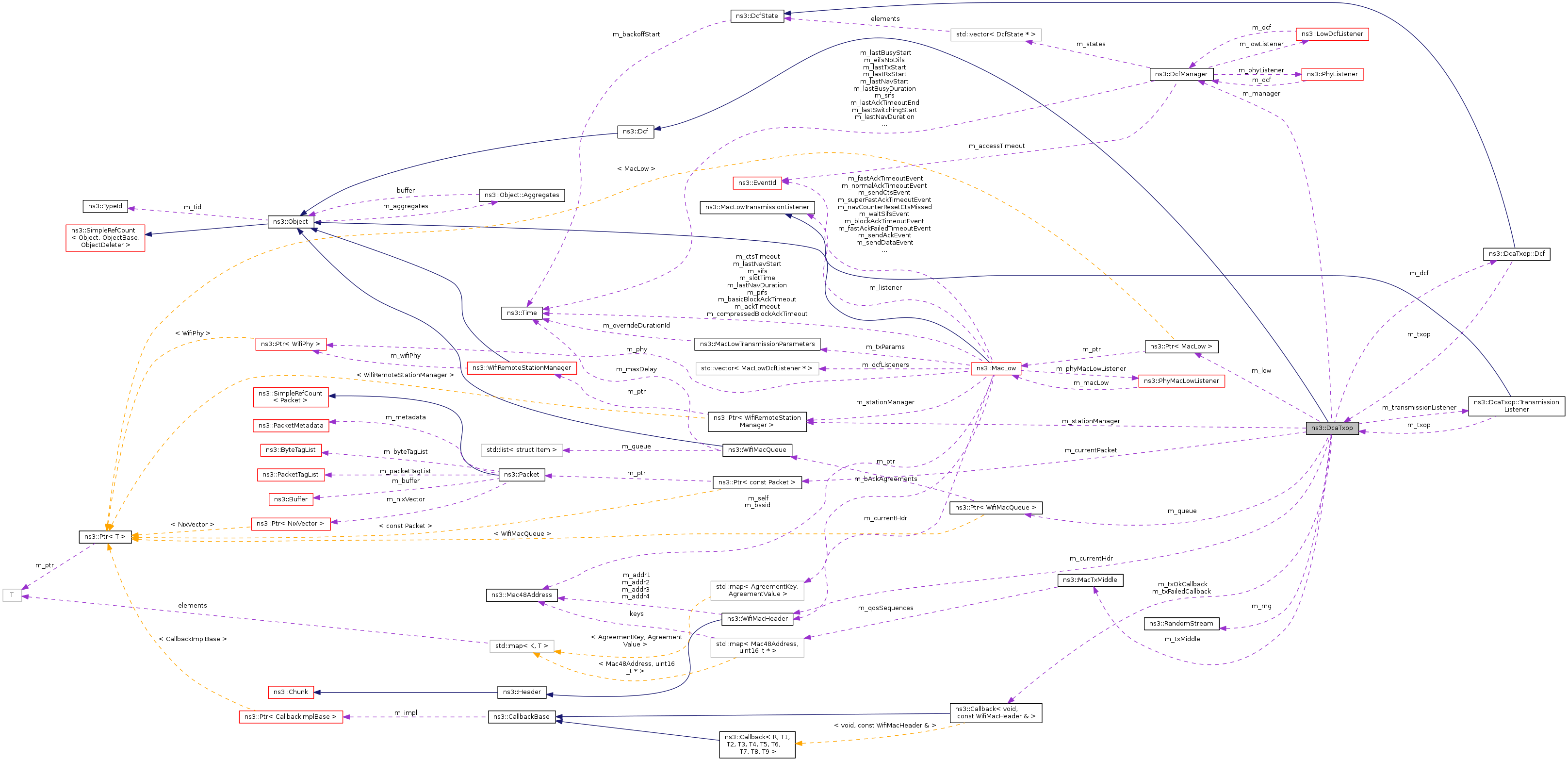

Collaboration diagram for ns3::DcaTxop:

Classes
class	Dcf
class	TransmissionListener

Public Types
typedef Callback< void, const WifiMacHeader & >	TxFailed
typedef Callback< void, const WifiMacHeader & >	TxOk

Public Member Functions
	DcaTxop ()
	~DcaTxop ()
int64_t	AssignStreams (int64_t stream)
virtual uint32_t	GetAifsn (void) const
virtual uint32_t	GetMaxCw (void) const
virtual uint32_t	GetMinCw (void) const
Ptr< WifiMacQueue >	GetQueue () const

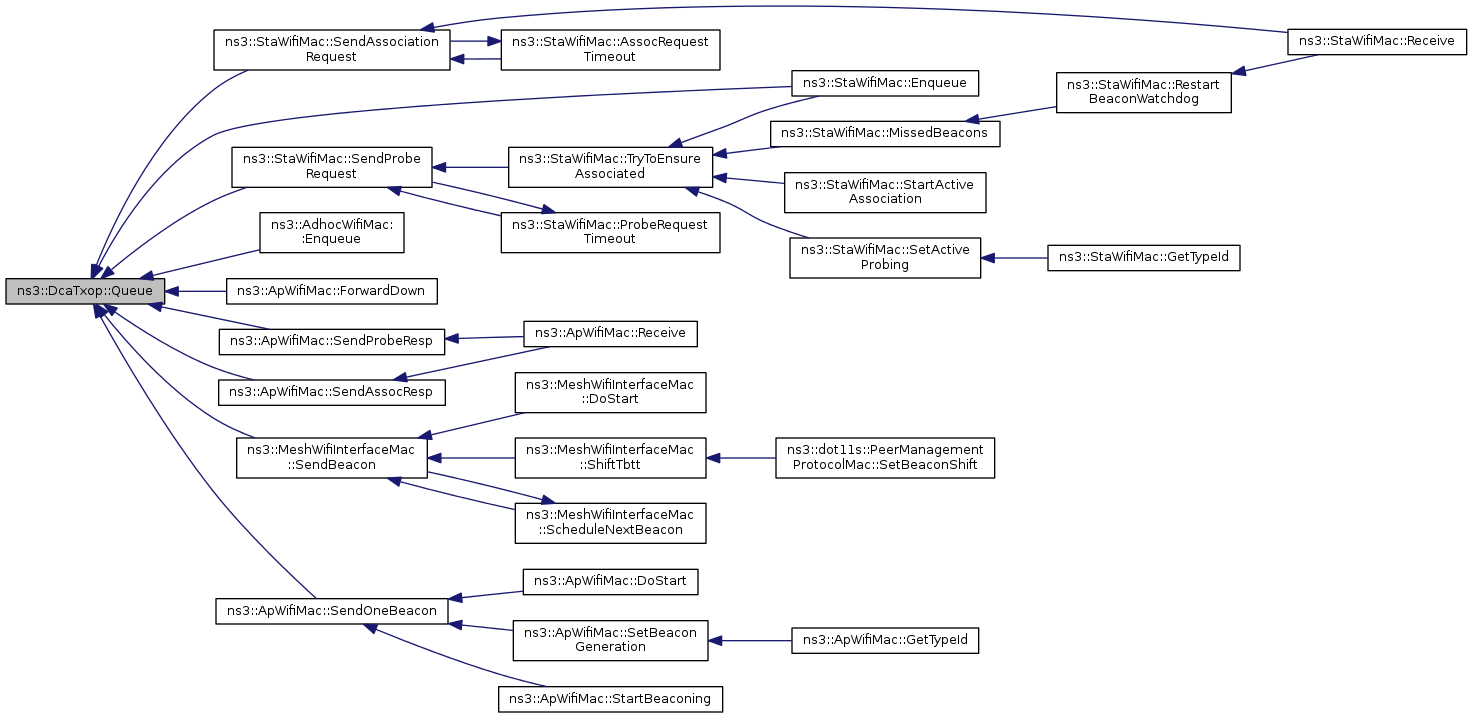

void	Queue (Ptr< const Packet > packet, const WifiMacHeader &hdr)
virtual void	SetAifsn (uint32_t aifsn)
void	SetLow (Ptr< MacLow > low)
void	SetManager (DcfManager *manager)
virtual void	SetMaxCw (uint32_t maxCw)
virtual void	SetMinCw (uint32_t minCw)
void	SetTxFailedCallback (TxFailed callback)
void	SetTxOkCallback (TxOk callback)
void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > remoteManager)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
	DcaTxop (const DcaTxop &o)
void	Cancel (void)
virtual void	DoDispose (void)
void	DoStart ()
void	EndTxNoAck (void)
uint32_t	GetFragmentOffset (void)
Ptr< Packet >	GetFragmentPacket (WifiMacHeader *hdr)
uint32_t	GetFragmentSize (void)
uint32_t	GetNextFragmentSize (void)
void	GotAck (double snr, WifiMode txMode)
void	GotCts (double snr, WifiMode txMode)
bool	IsLastFragment (void)
Ptr< MacLow >	Low (void)
void	MissedAck (void)
void	MissedCts (void)
bool	NeedDataRetransmission (void)
bool	NeedFragmentation (void)
bool	NeedRts (Ptr< const Packet > packet, const WifiMacHeader *header)

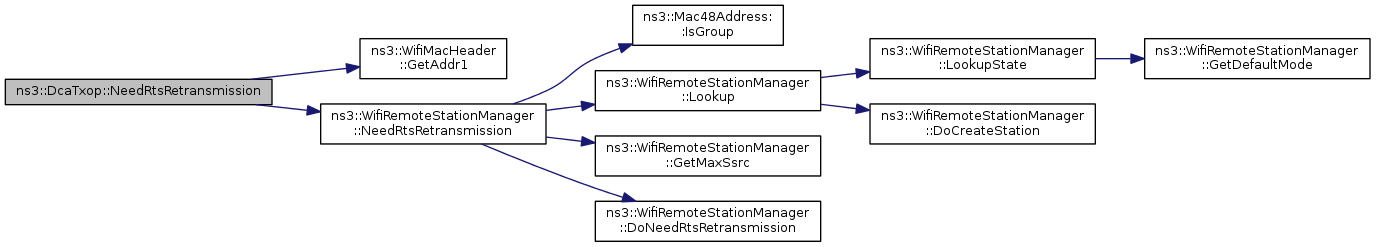

bool	NeedRtsRetransmission (void)
bool	NeedsAccess (void) const
void	NextFragment (void)
void	NotifyAccessGranted (void)
void	NotifyChannelSwitching (void)
void	NotifyCollision (void)
void	NotifyInternalCollision (void)
DcaTxop &	operator= (const DcaTxop &)
void	RestartAccessIfNeeded (void)
void	StartAccessIfNeeded (void)
void	StartNext (void)

Private Attributes
bool	m_accessOngoing
WifiMacHeader	m_currentHdr
Ptr< const Packet >	m_currentPacket
Dcf *	m_dcf
uint8_t	m_fragmentNumber
Ptr< MacLow >	m_low
DcfManager *	m_manager
Ptr< WifiMacQueue >	m_queue
RandomStream *	m_rng
Ptr< WifiRemoteStationManager >	m_stationManager
TransmissionListener *	m_transmissionListener
TxFailed	m_txFailedCallback
MacTxMiddle *	m_txMiddle
TxOk	m_txOkCallback

Friends
class	Dcf
class	TransmissionListener

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

handle packet fragmentation and retransmissions.

This class implements the packet fragmentation and retransmission policy. It uses the ns3::MacLow and ns3::DcfManager helper classes to respectively send packets and decide when to send them. Packets are stored in a ns3::WifiMacQueue until they can be sent.

The policy currently implemented uses a simple fragmentation threshold: any packet bigger than this threshold is fragmented in fragments whose size is smaller than the threshold.

The retransmission policy is also very simple: every packet is retransmitted until it is either successfully transmitted or it has been retransmitted up until the ssrc or slrc thresholds.

The rts/cts policy is similar to the fragmentation policy: when a packet is bigger than a threshold, the rts/cts protocol is used.

Config Paths

ns3::DcaTxop is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/DcaTxop

Attributes

Queue: The WifiMacQueue object
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiMacQueue >
- Flags: read

Attributes defined in parent class ns3::Dcf

MinCw: The minimum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 15
- Flags: construct write read
MaxCw: The maximum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1023
- Flags: construct write read
Aifsn: The AIFSN: the default value conforms to simple DCA.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 67 of file dca-txop.h.

Member Typedef Documentation

typedef Callback<void, const WifiMacHeader&> ns3::DcaTxop::TxFailed

Definition at line 73 of file dca-txop.h.

typedef Callback<void, const WifiMacHeader&> ns3::DcaTxop::TxOk

Definition at line 72 of file dca-txop.h.

Constructor & Destructor Documentation

ns3::DcaTxop::DcaTxop ( )

Definition at line 131 of file dca-txop.cc.

References Dcf, m_dcf, m_queue, m_rng, m_transmissionListener, m_txMiddle, NS_LOG_FUNCTION, and TransmissionListener.

ns3::DcaTxop::~DcaTxop ( )

Definition at line 143 of file dca-txop.cc.

References NS_LOG_FUNCTION.

ns3::DcaTxop::DcaTxop ( const DcaTxop & o )

private

Member Function Documentation

int64_t ns3::DcaTxop::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 250 of file dca-txop.cc.

References ns3::RandomStream::AssignStreams(), m_rng, and NS_LOG_FUNCTION.

Referenced by ns3::WifiHelper::AssignStreams().

Here is the call graph for this function:

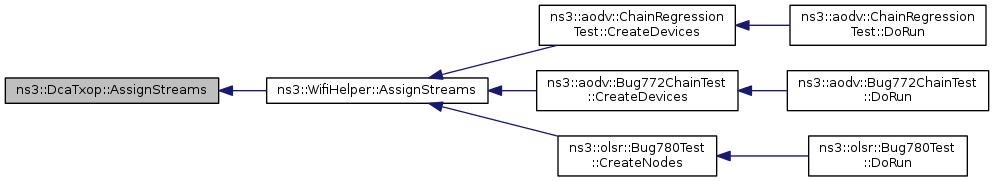

Here is the caller graph for this function:

void ns3::DcaTxop::Cancel ( void )

private

This happens in only one case: in an AP, you have two DcaTxop:

one is used exclusively for beacons and has a high priority.
the other is used for everything else and has a normal priority.

If the normal queue tries to send a unicast data frame, but if the tx fails (ack timeout), it starts a backoff. If the beacon queue gets a tx oportunity during this backoff, it will trigger a call to this Cancel function.

Since we are already doing a backoff, we will get access to the medium when we can, we have nothing to do here. We just ignore the cancel event and wait until we are given again a tx oportunity.

Note that this is really non-trivial because each of these frames is assigned a sequence number from the same sequence counter (because this is a non-802.11e device) so, the scheme described here fails to ensure in-order delivery of frames at the receiving side. This, however, does not matter in this case because we assume that the receiving side does not update its <seq,ad> tupple for packets whose destination address is a broadcast address.

Definition at line 593 of file dca-txop.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::DcaTxop::TransmissionListener::Cancel().

Here is the caller graph for this function:

void ns3::DcaTxop::DoDispose ( void )

privatevirtual

Definition at line 149 of file dca-txop.cc.

References m_dcf, m_low, m_queue, m_rng, m_stationManager, m_transmissionListener, m_txMiddle, and NS_LOG_FUNCTION.

void ns3::DcaTxop::DoStart ( void )

private

Definition at line 296 of file dca-txop.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, ns3::DcfState::ResetCw(), and ns3::DcfState::StartBackoffNow().

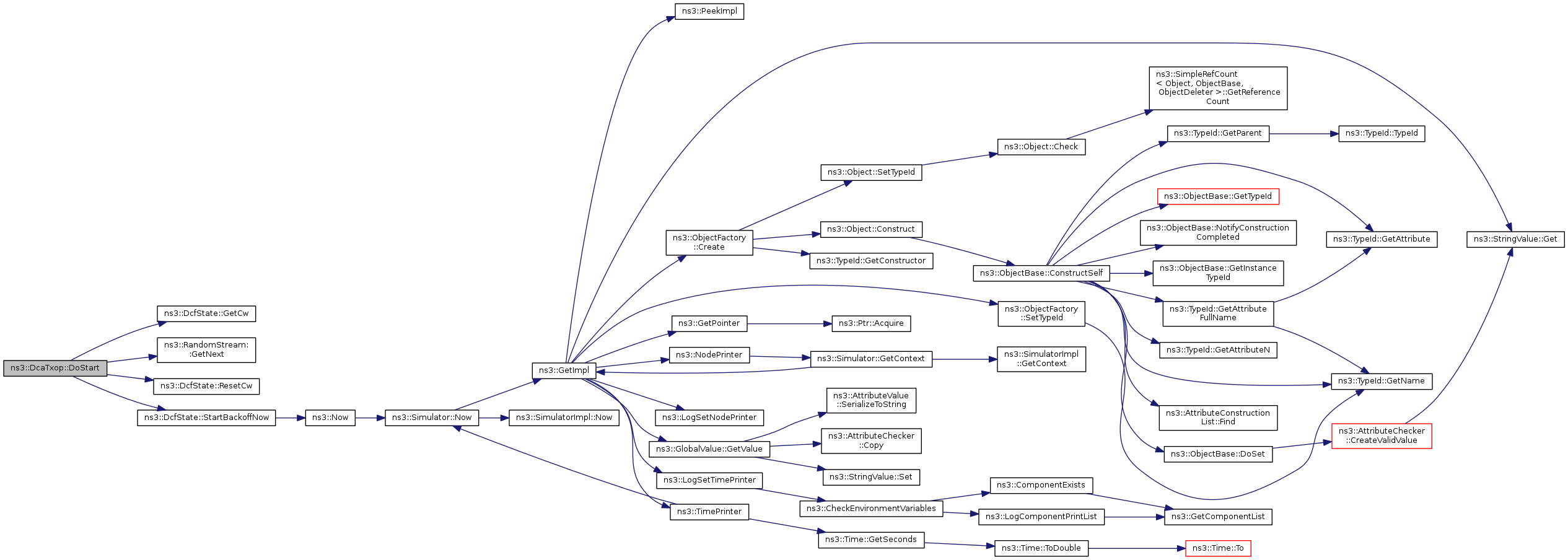

Here is the call graph for this function:

void ns3::DcaTxop::EndTxNoAck ( void )

private

Definition at line 625 of file dca-txop.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_currentPacket, m_dcf, m_rng, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), StartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::DcaTxop::TransmissionListener::EndTxNoAck().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::DcaTxop::GetAifsn ( void ) const

virtual

Implements ns3::Dcf.

Definition at line 232 of file dca-txop.cc.

References ns3::DcfState::GetAifsn(), and m_dcf.

Here is the call graph for this function:

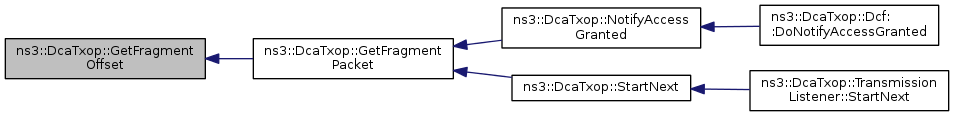

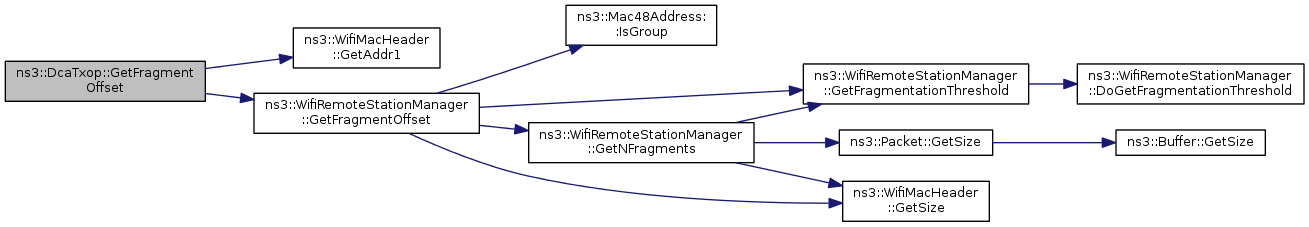

uint32_t ns3::DcaTxop::GetFragmentOffset ( void )

private

Definition at line 349 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentOffset(), m_currentHdr, m_currentPacket, m_fragmentNumber, and m_stationManager.

Referenced by GetFragmentPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

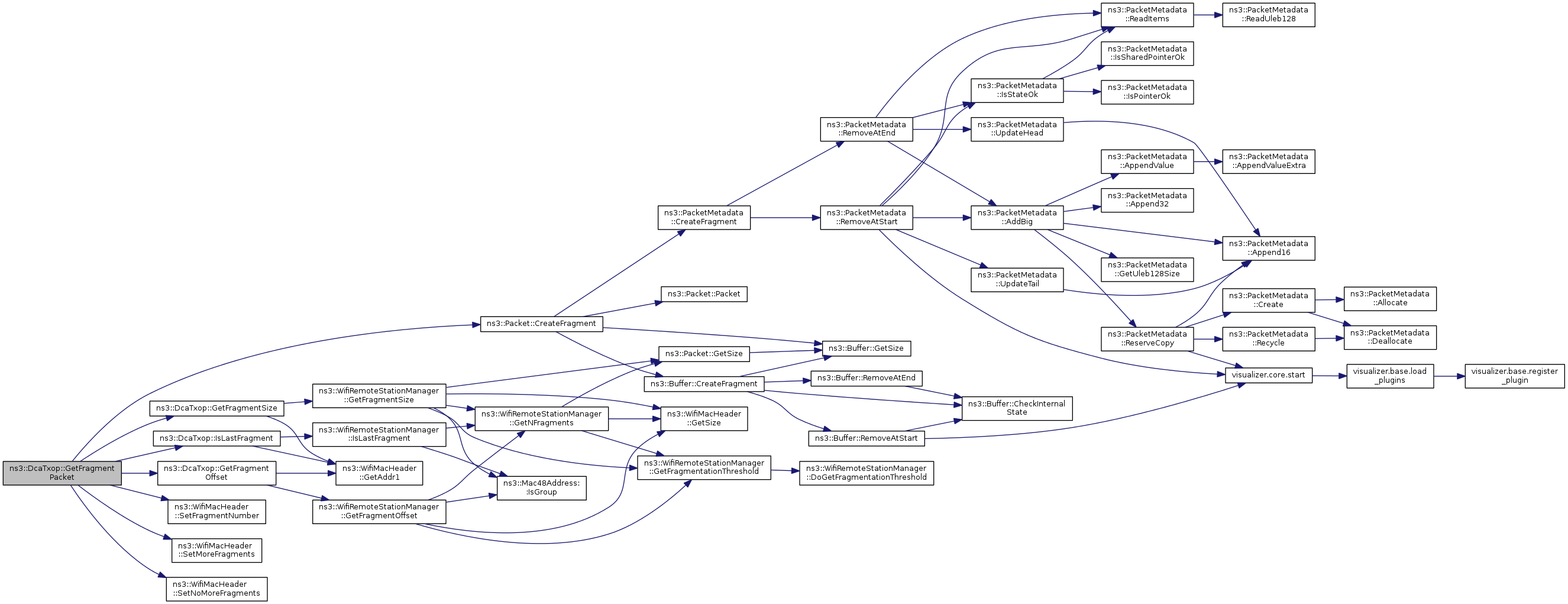

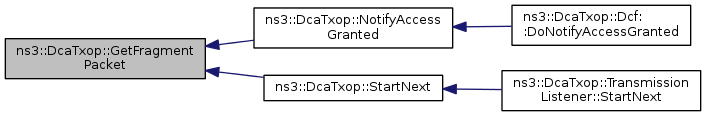

Ptr< Packet > ns3::DcaTxop::GetFragmentPacket ( WifiMacHeader * hdr )

private

Definition at line 356 of file dca-txop.cc.

References ns3::Packet::CreateFragment(), GetFragmentOffset(), GetFragmentSize(), IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetMoreFragments(), and ns3::WifiMacHeader::SetNoMoreFragments().

Referenced by NotifyAccessGranted(), and StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::DcaTxop::GetFragmentSize ( void )

private

Definition at line 329 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentSize(), m_currentHdr, m_currentPacket, m_fragmentNumber, and m_stationManager.

Referenced by GetFragmentPacket().

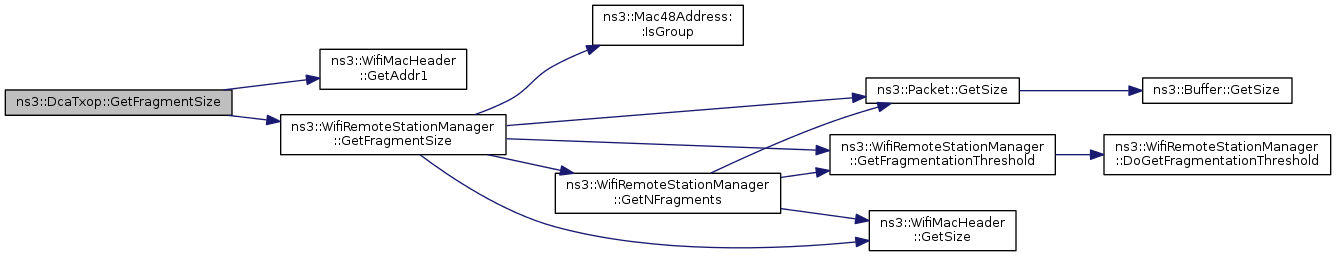

Here is the call graph for this function:

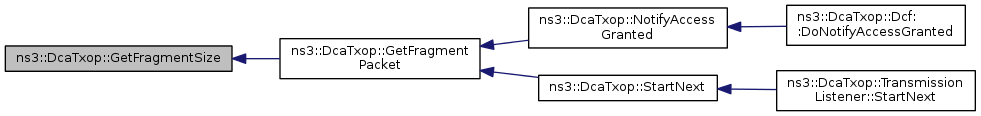

Here is the caller graph for this function:

uint32_t ns3::DcaTxop::GetMaxCw ( void ) const

virtual

Implements ns3::Dcf.

Definition at line 227 of file dca-txop.cc.

References ns3::DcfState::GetCwMax(), and m_dcf.

Here is the call graph for this function:

uint32_t ns3::DcaTxop::GetMinCw ( void ) const

virtual

Implements ns3::Dcf.

Definition at line 222 of file dca-txop.cc.

References ns3::DcfState::GetCwMin(), and m_dcf.

Here is the call graph for this function:

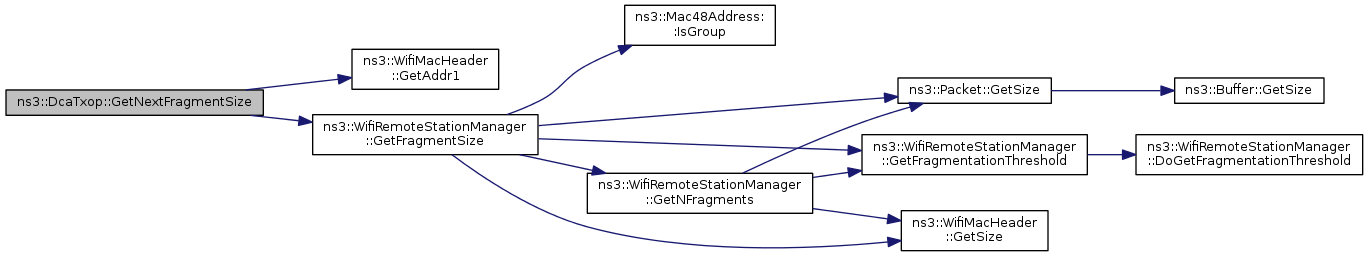

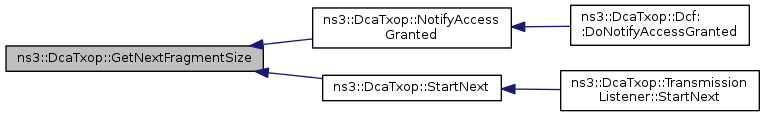

uint32_t ns3::DcaTxop::GetNextFragmentSize ( void )

private

Definition at line 342 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentSize(), m_currentHdr, m_currentPacket, m_fragmentNumber, and m_stationManager.

Referenced by NotifyAccessGranted(), and StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< WifiMacQueue > ns3::DcaTxop::GetQueue ( void ) const

Definition at line 197 of file dca-txop.cc.

References m_queue, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

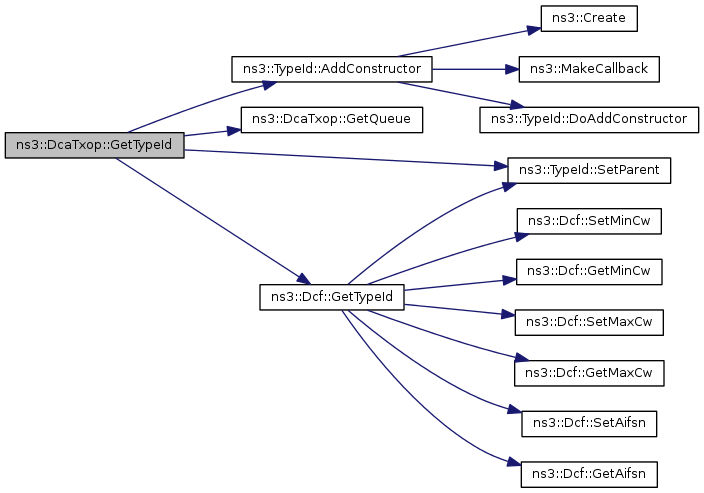

TypeId ns3::DcaTxop::GetTypeId ( void )

static

Reimplemented from ns3::Dcf.

Definition at line 118 of file dca-txop.cc.

References ns3::TypeId::AddConstructor(), GetQueue(), ns3::Dcf::GetTypeId(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

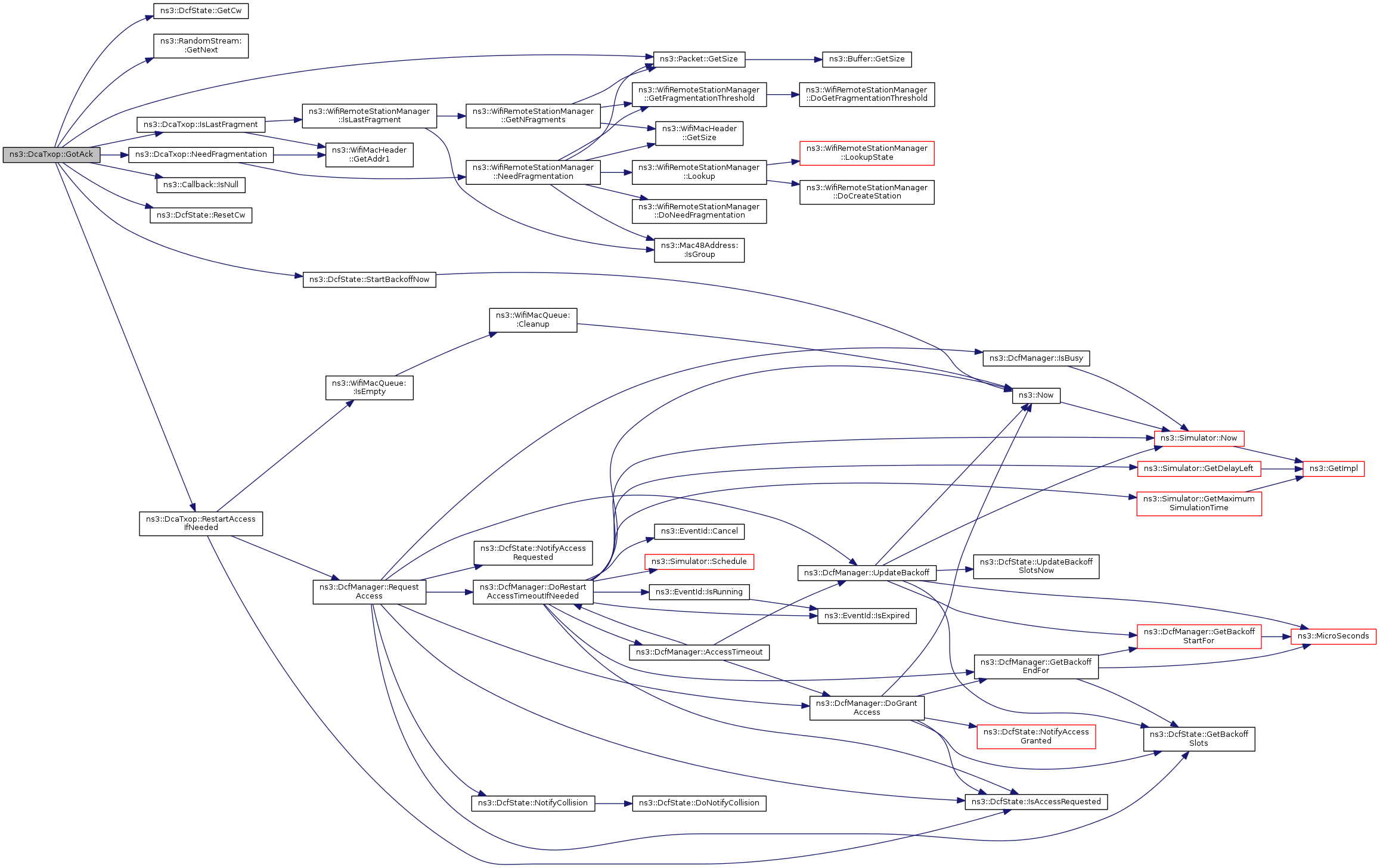

void ns3::DcaTxop::GotAck	(	double	snr,
		WifiMode	txMode
	)

private

Definition at line 517 of file dca-txop.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Packet::GetSize(), IsLastFragment(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_txOkCallback, NeedFragmentation(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::DcaTxop::TransmissionListener::GotAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::GotCts	(	double	snr,
		WifiMode	txMode
	)

private

Definition at line 487 of file dca-txop.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::DcaTxop::TransmissionListener::GotCts().

Here is the caller graph for this function:

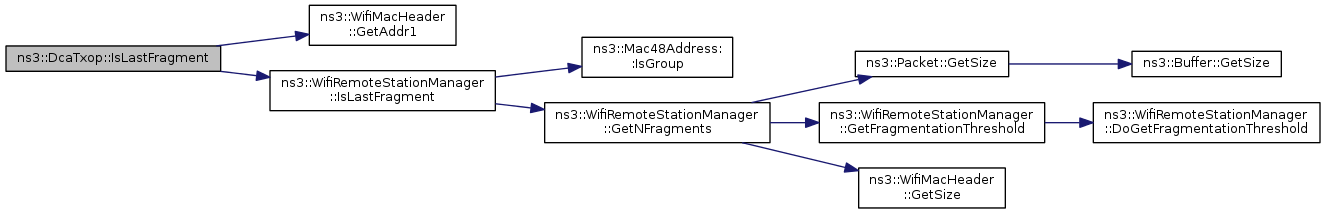

bool ns3::DcaTxop::IsLastFragment ( void )

private

Definition at line 335 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, and m_stationManager.

Referenced by GetFragmentPacket(), GotAck(), NotifyAccessGranted(), and StartNext().

Here is the call graph for this function:

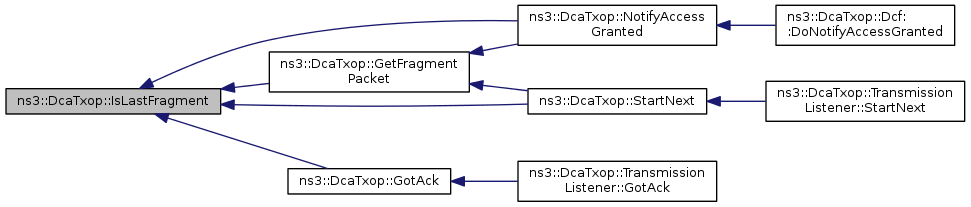

Here is the caller graph for this function:

Ptr< MacLow > ns3::DcaTxop::Low ( void )

private

Definition at line 283 of file dca-txop.cc.

References m_low.

Referenced by NotifyAccessGranted(), and StartNext().

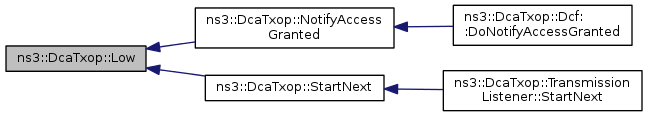

Here is the caller graph for this function:

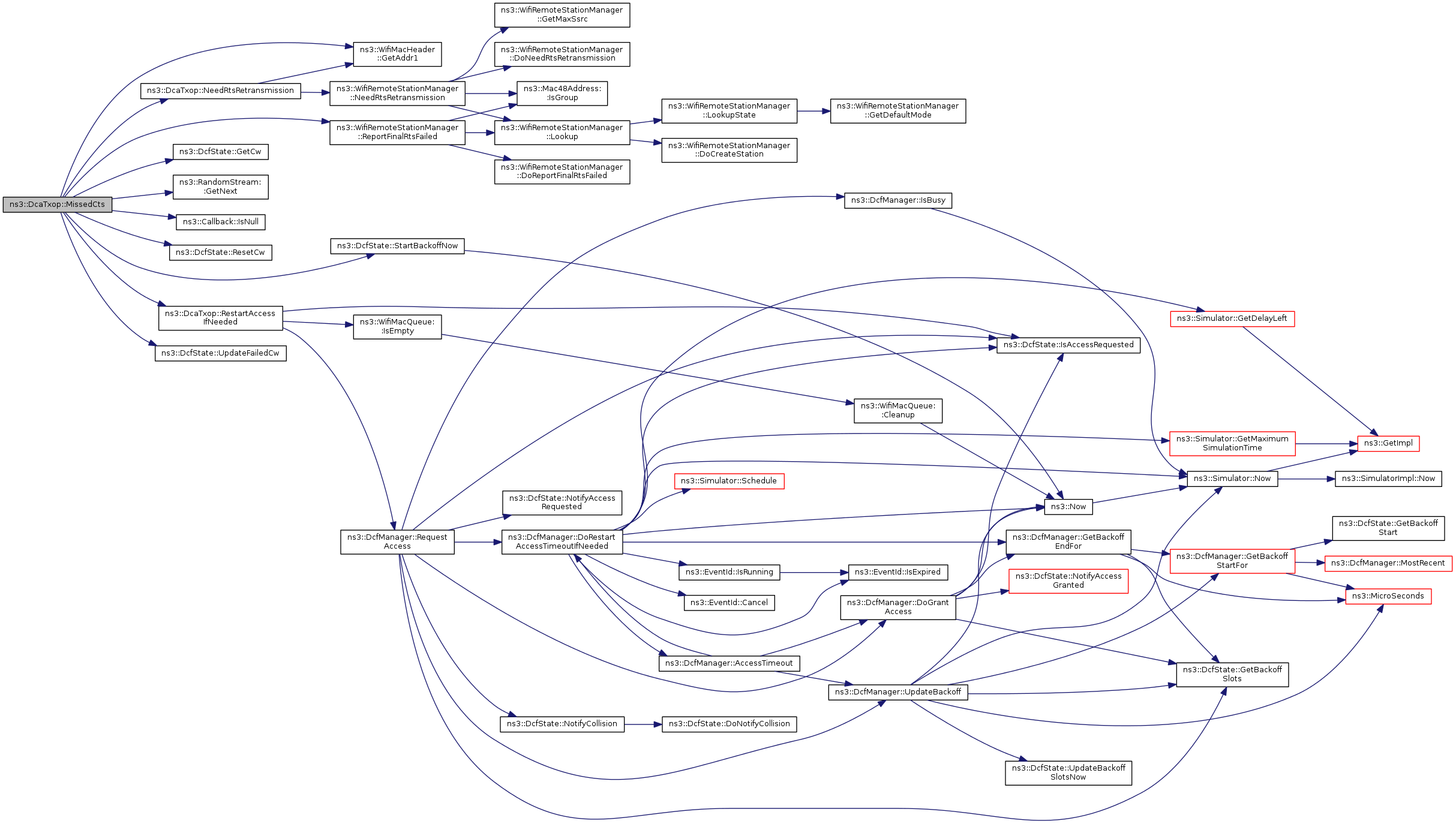

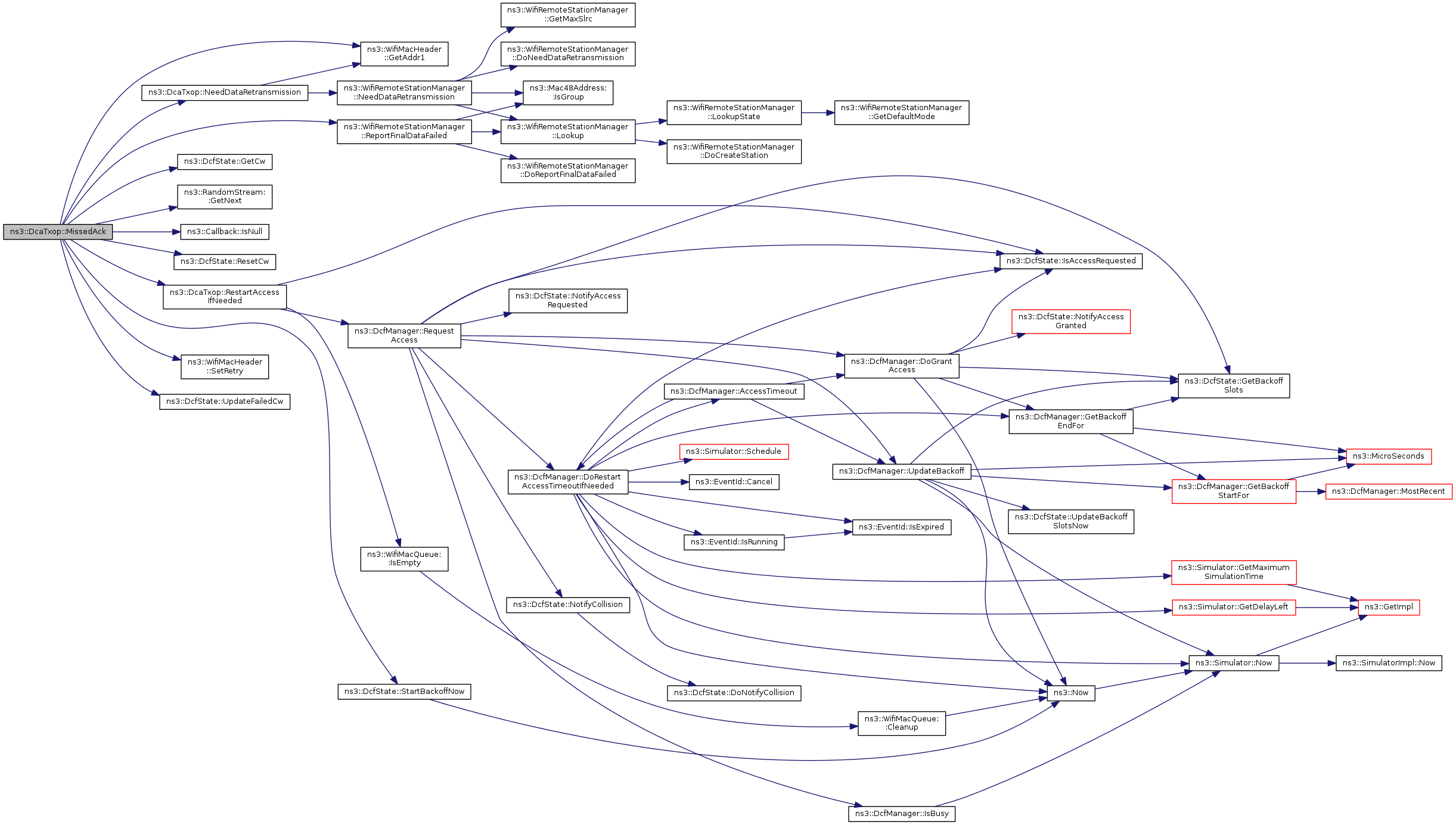

void ns3::DcaTxop::MissedAck ( void )

private

Definition at line 543 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_stationManager, m_txFailedCallback, NeedDataRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::ReportFinalDataFailed(), ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::WifiMacHeader::SetRetry(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::DcaTxop::TransmissionListener::MissedAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::MissedCts ( void )

private

Definition at line 493 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_stationManager, m_txFailedCallback, NeedRtsRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::ReportFinalRtsFailed(), ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::DcaTxop::TransmissionListener::MissedCts().

Here is the call graph for this function:

Here is the caller graph for this function:

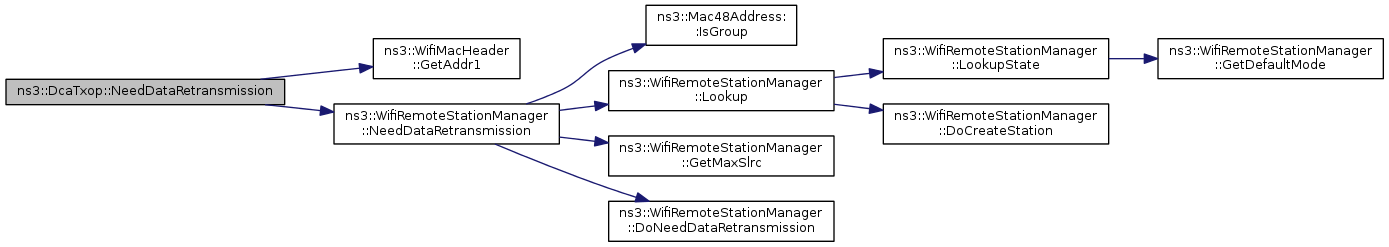

bool ns3::DcaTxop::NeedDataRetransmission ( void )

private

Definition at line 310 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and ns3::WifiRemoteStationManager::NeedDataRetransmission().

Referenced by MissedAck().

Here is the call graph for this function:

Here is the caller graph for this function:

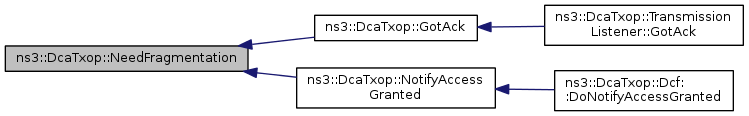

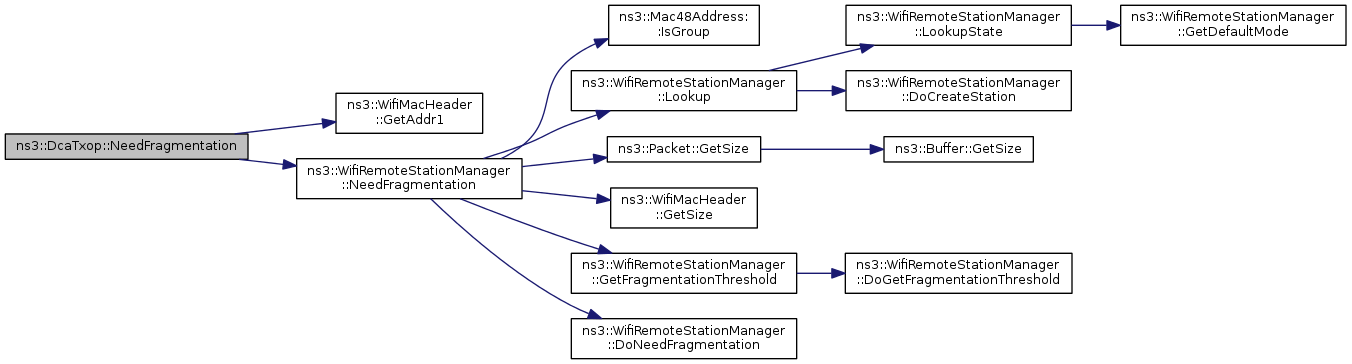

bool ns3::DcaTxop::NeedFragmentation ( void )

private

Definition at line 316 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and ns3::WifiRemoteStationManager::NeedFragmentation().

Referenced by GotAck(), and NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

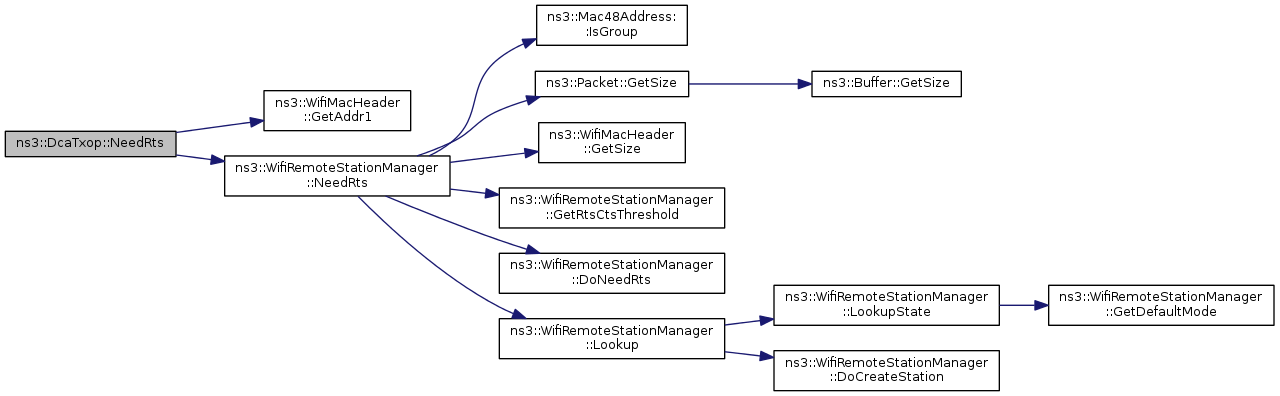

bool ns3::DcaTxop::NeedRts	(	Ptr< const Packet >	packet,
		const WifiMacHeader *	header
	)

private

Definition at line 289 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_stationManager, and ns3::WifiRemoteStationManager::NeedRts().

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::DcaTxop::NeedRtsRetransmission ( void )

private

Definition at line 303 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and ns3::WifiRemoteStationManager::NeedRtsRetransmission().

Referenced by MissedCts().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::DcaTxop::NeedsAccess ( void ) const

private

Definition at line 376 of file dca-txop.cc.

References ns3::WifiMacQueue::IsEmpty(), m_currentPacket, and m_queue.

Here is the call graph for this function:

void ns3::DcaTxop::NextFragment ( void )

private

Definition at line 323 of file dca-txop.cc.

References m_fragmentNumber.

Referenced by StartNext().

Here is the caller graph for this function:

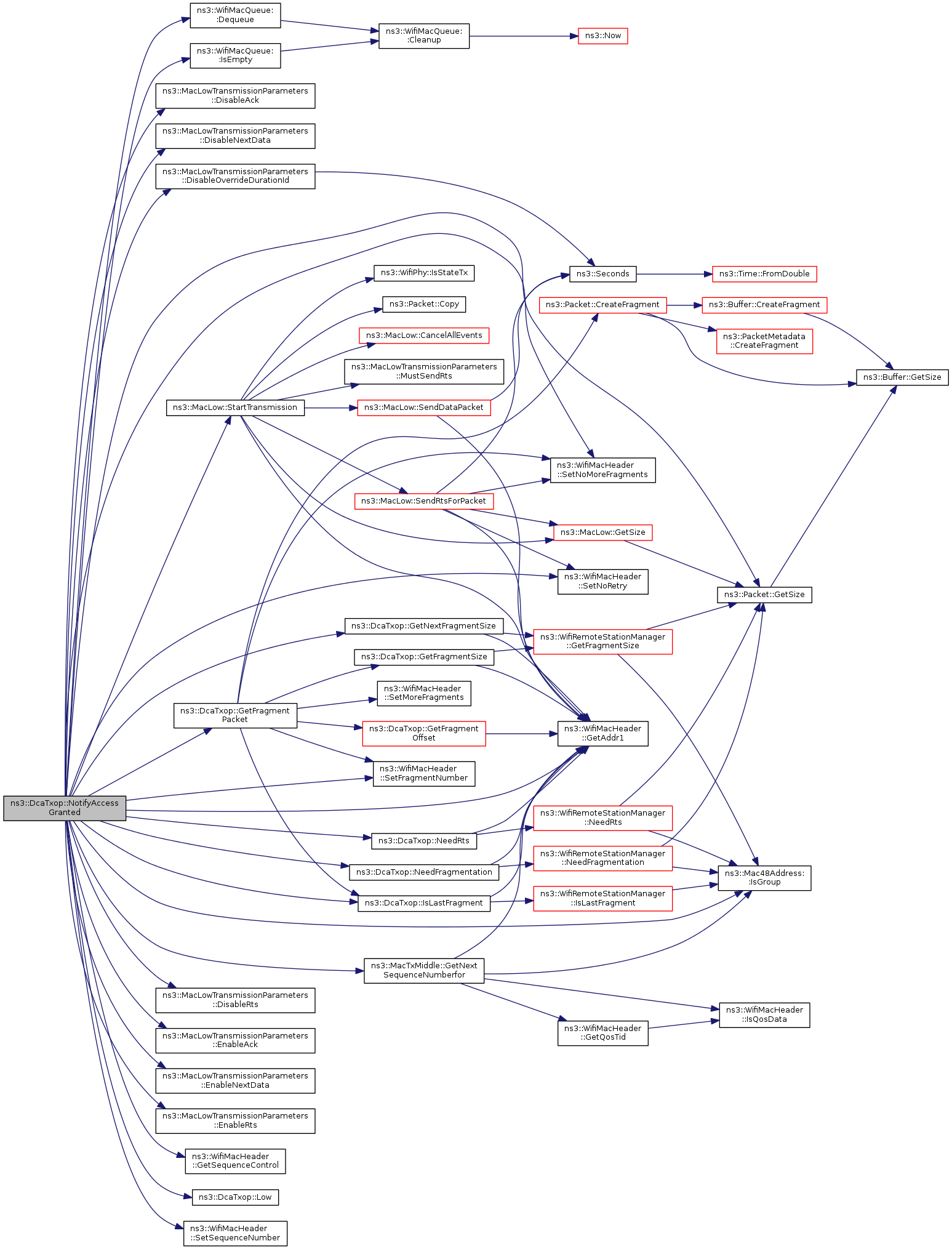

void ns3::DcaTxop::NotifyAccessGranted ( void )

private

Definition at line 381 of file dca-txop.cc.

References ns3::WifiMacQueue::Dequeue(), ns3::MacLowTransmissionParameters::DisableAck(), ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), ns3::MacLowTransmissionParameters::EnableRts(), ns3::WifiMacHeader::GetAddr1(), GetFragmentPacket(), GetNextFragmentSize(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), ns3::WifiMacHeader::GetSequenceControl(), ns3::Packet::GetSize(), ns3::WifiMacQueue::IsEmpty(), ns3::Mac48Address::IsGroup(), IsLastFragment(), Low(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_queue, m_transmissionListener, m_txMiddle, NeedFragmentation(), NeedRts(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetSequenceNumber(), and ns3::MacLow::StartTransmission().

Referenced by ns3::DcaTxop::Dcf::DoNotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::NotifyChannelSwitching ( void )

private

When a channel switching occurs, enqueued packets are removed.

Definition at line 480 of file dca-txop.cc.

References ns3::WifiMacQueue::Flush(), m_currentPacket, and m_queue.

Referenced by ns3::DcaTxop::Dcf::DoNotifyChannelSwitching().

Here is the call graph for this function:

Here is the caller graph for this function:

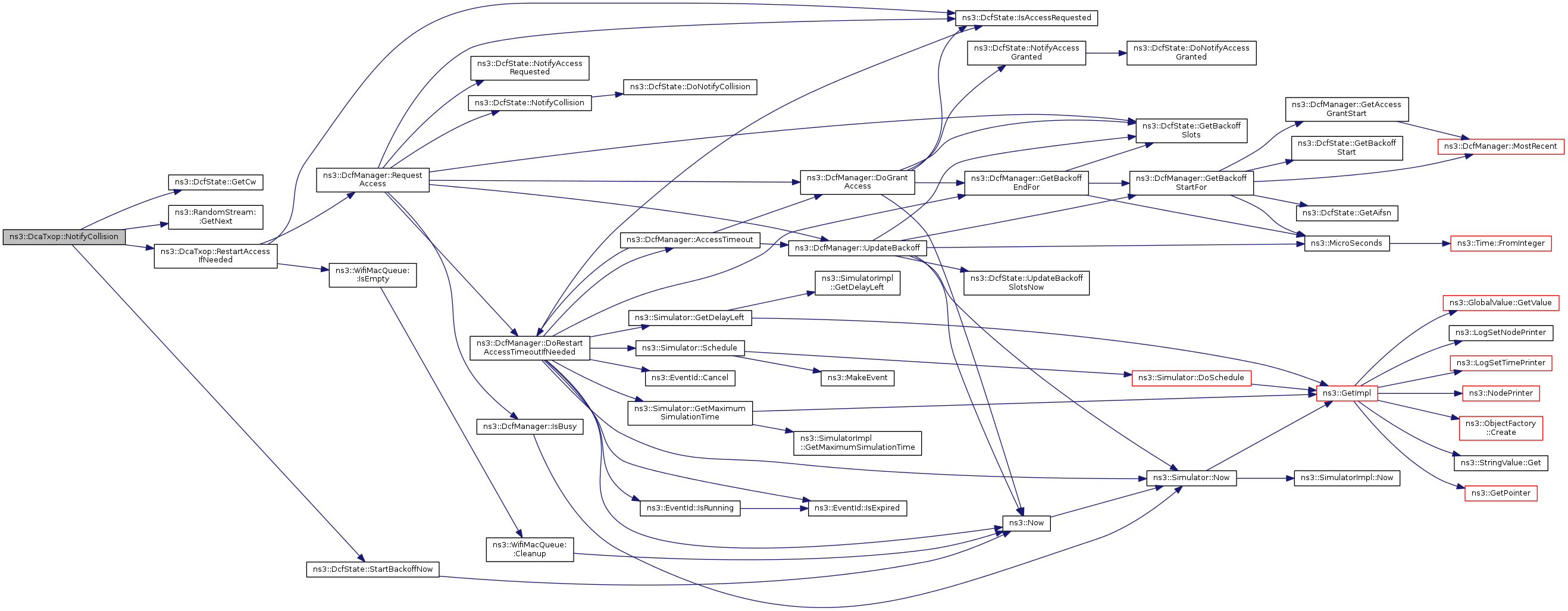

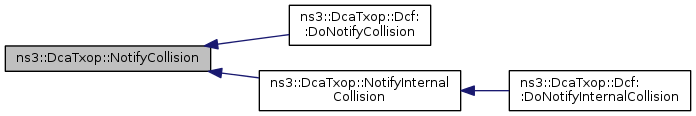

void ns3::DcaTxop::NotifyCollision ( void )

private

Definition at line 471 of file dca-txop.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, NS_LOG_DEBUG, NS_LOG_FUNCTION, RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::DcaTxop::Dcf::DoNotifyCollision(), and NotifyInternalCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::NotifyInternalCollision ( void )

private

Definition at line 465 of file dca-txop.cc.

References NotifyCollision(), and NS_LOG_FUNCTION.

Referenced by ns3::DcaTxop::Dcf::DoNotifyInternalCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

DcaTxop& ns3::DcaTxop::operator= ( const DcaTxop & )

private

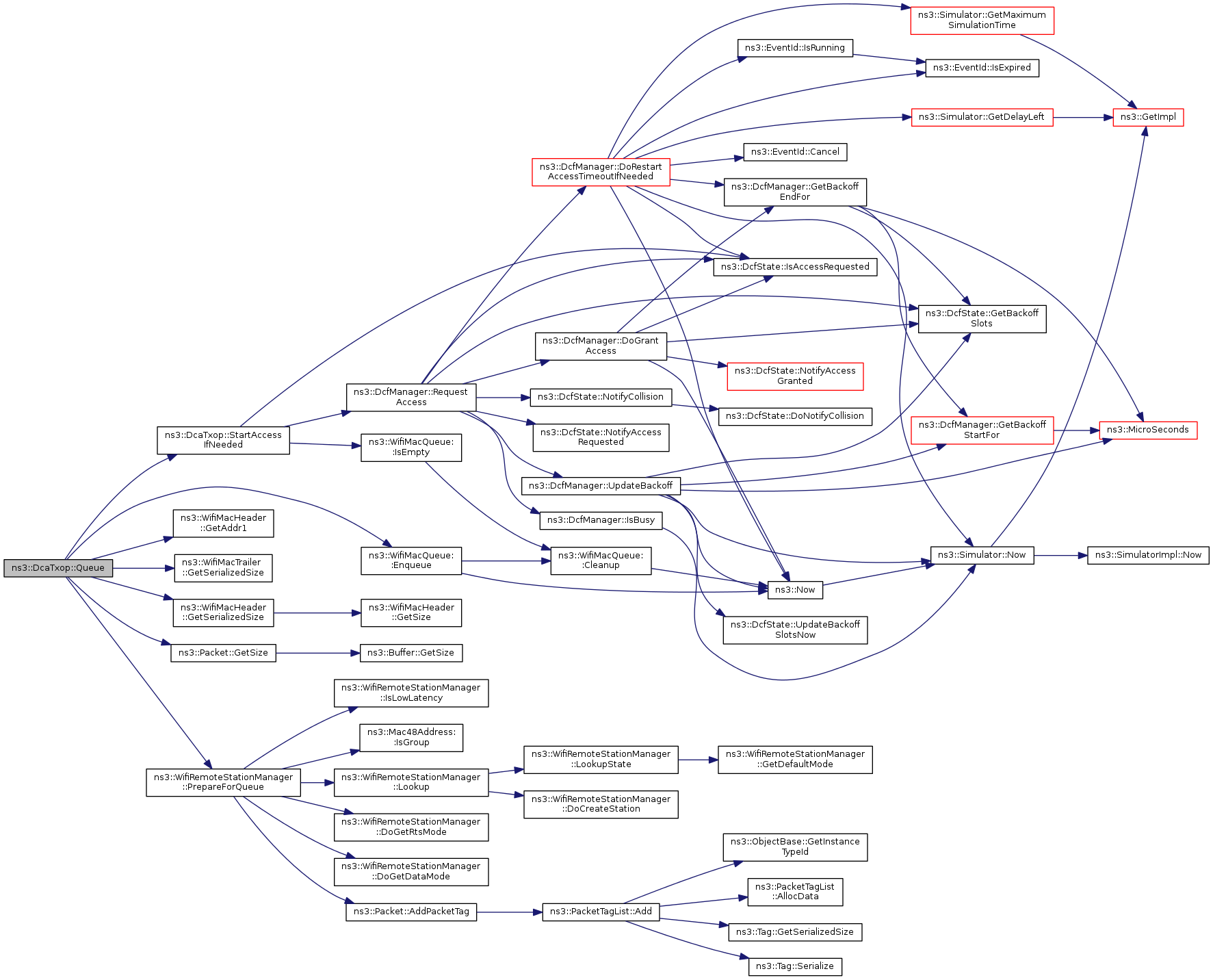

void ns3::DcaTxop::Queue	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Parameters

packet	packet to send
hdr	header of packet to send.

Store the packet in the internal queue until it can be sent safely.

Definition at line 238 of file dca-txop.cc.

References ns3::WifiMacQueue::Enqueue(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacTrailer::GetSerializedSize(), ns3::WifiMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_queue, m_stationManager, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::PrepareForQueue(), and StartAccessIfNeeded().

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::RestartAccessIfNeeded ( void )

private

Definition at line 258 of file dca-txop.cc.

References ns3::DcfState::IsAccessRequested(), ns3::WifiMacQueue::IsEmpty(), m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by GotAck(), MissedAck(), MissedCts(), and NotifyCollision().

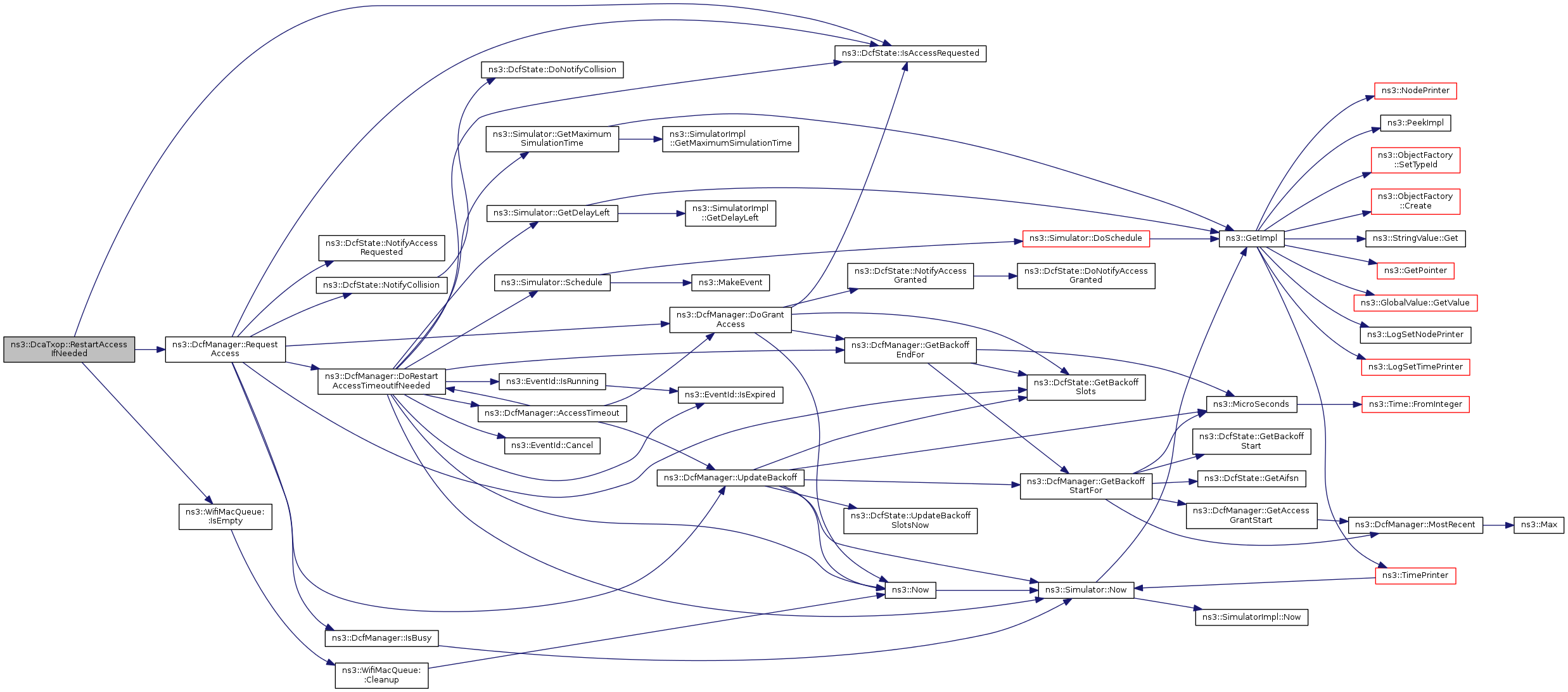

Here is the call graph for this function:

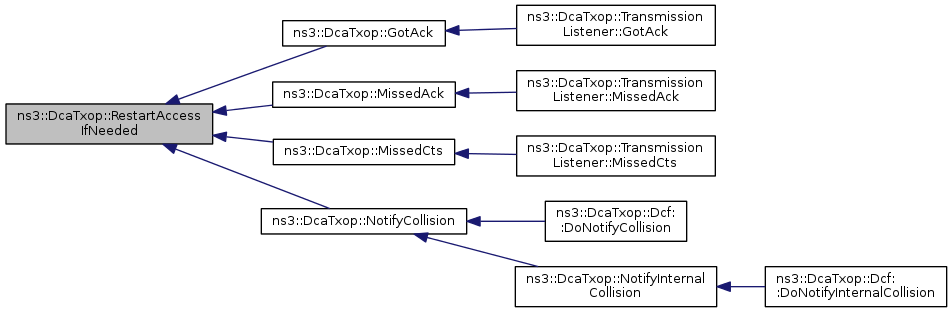

Here is the caller graph for this function:

void ns3::DcaTxop::SetAifsn ( uint32_t aifsn )

virtual

Implements ns3::Dcf.

Definition at line 216 of file dca-txop.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetAifsn().

Referenced by ns3::ApWifiMac::ApWifiMac(), and ns3::MeshWifiInterfaceMac::FinishConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::SetLow ( Ptr< MacLow > low )

Definition at line 174 of file dca-txop.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::ApWifiMac(), and ns3::RegularWifiMac::RegularWifiMac().

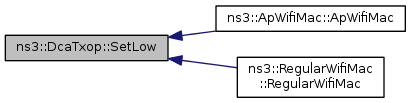

Here is the caller graph for this function:

void ns3::DcaTxop::SetManager ( DcfManager * manager )

Definition at line 166 of file dca-txop.cc.

References ns3::DcfManager::Add(), m_dcf, m_manager, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::ApWifiMac(), and ns3::RegularWifiMac::RegularWifiMac().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::SetMaxCw ( uint32_t maxCw )

virtual

Implements ns3::Dcf.

Definition at line 210 of file dca-txop.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMax().

Referenced by ns3::ApWifiMac::ApWifiMac(), and ns3::MeshWifiInterfaceMac::FinishConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

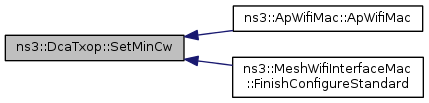

void ns3::DcaTxop::SetMinCw ( uint32_t minCw )

virtual

Implements ns3::Dcf.

Definition at line 204 of file dca-txop.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMin().

Referenced by ns3::ApWifiMac::ApWifiMac(), and ns3::MeshWifiInterfaceMac::FinishConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::SetTxFailedCallback ( TxFailed callback )

Parameters

callback the callback to invoke when a packet transmission was completed unsuccessfully.

Definition at line 191 of file dca-txop.cc.

References m_txFailedCallback.

Referenced by ns3::RegularWifiMac::RegularWifiMac().

Here is the caller graph for this function:

void ns3::DcaTxop::SetTxOkCallback ( TxOk callback )

Parameters

callback the callback to invoke when a packet transmission was completed successfully.

Definition at line 186 of file dca-txop.cc.

References m_txOkCallback.

Referenced by ns3::RegularWifiMac::RegularWifiMac().

Here is the caller graph for this function:

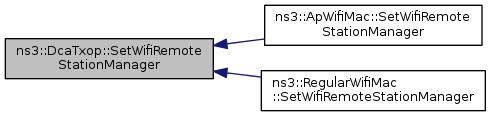

void ns3::DcaTxop::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager > remoteManager )

Definition at line 180 of file dca-txop.cc.

References m_stationManager, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::SetWifiRemoteStationManager(), and ns3::RegularWifiMac::SetWifiRemoteStationManager().

Here is the caller graph for this function:

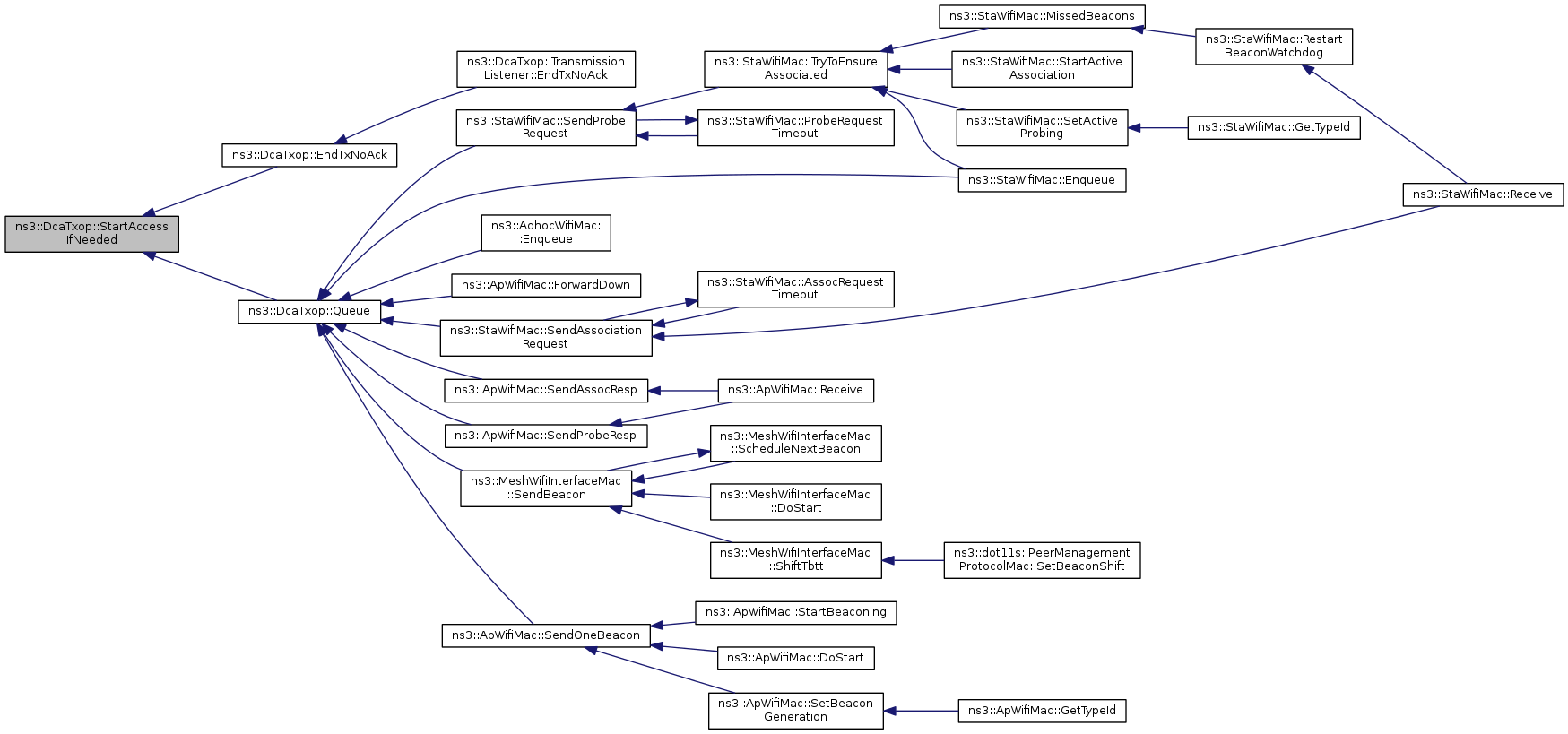

void ns3::DcaTxop::StartAccessIfNeeded ( void )

private

Definition at line 270 of file dca-txop.cc.

References ns3::DcfState::IsAccessRequested(), ns3::WifiMacQueue::IsEmpty(), m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by EndTxNoAck(), and Queue().

Here is the call graph for this function:

Here is the caller graph for this function:

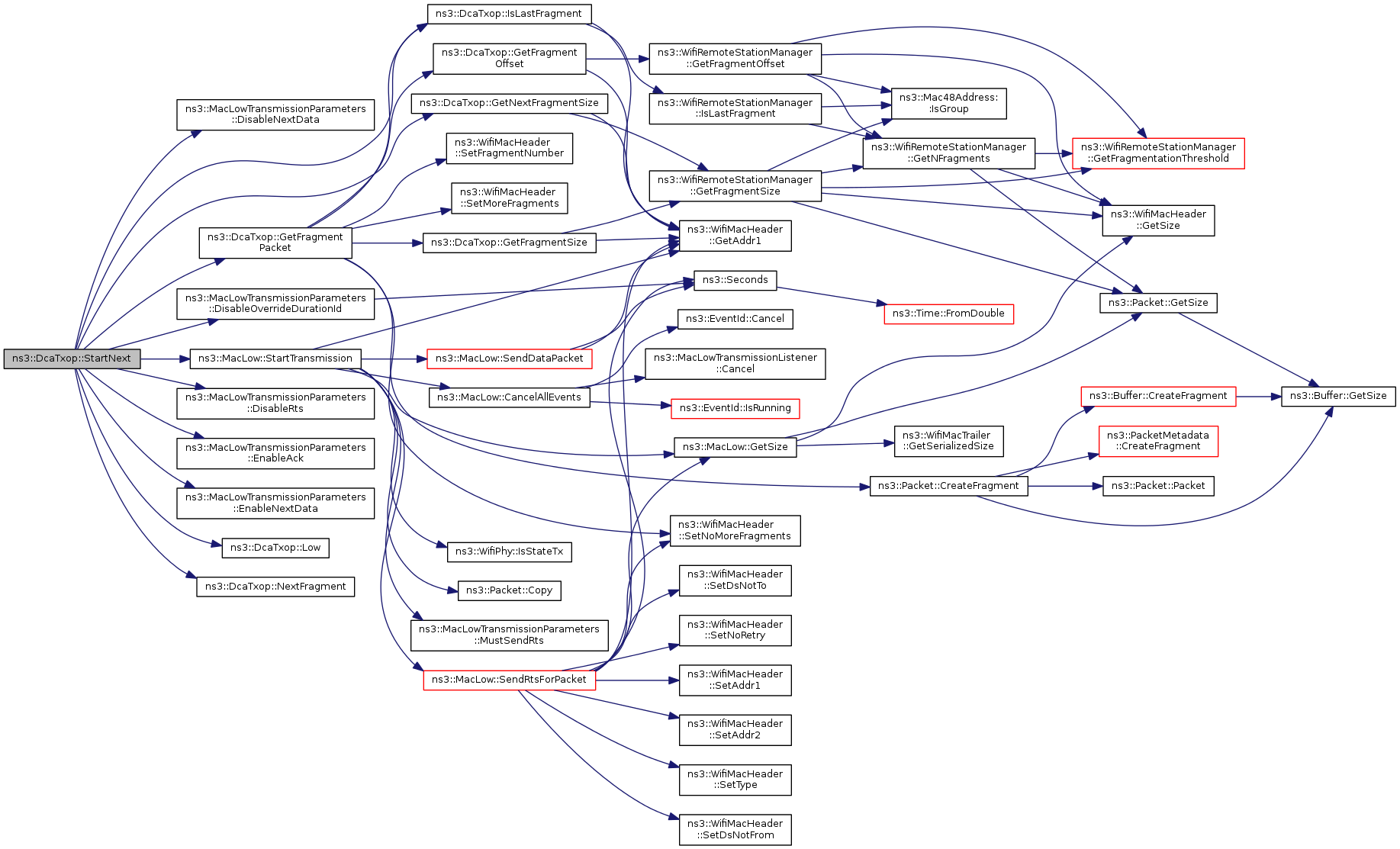

void ns3::DcaTxop::StartNext ( void )

private

Definition at line 569 of file dca-txop.cc.

References ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), GetFragmentPacket(), GetNextFragmentSize(), IsLastFragment(), Low(), m_transmissionListener, NextFragment(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::MacLow::StartTransmission().

Referenced by ns3::DcaTxop::TransmissionListener::StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class Dcf

friend

Definition at line 124 of file dca-txop.h.

Referenced by DcaTxop().

friend class TransmissionListener

friend

Definition at line 126 of file dca-txop.h.

Referenced by DcaTxop().

Member Data Documentation

bool ns3::DcaTxop::m_accessOngoing

private

Definition at line 177 of file dca-txop.h.

WifiMacHeader ns3::DcaTxop::m_currentHdr

private

Definition at line 179 of file dca-txop.h.

Referenced by GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), GotAck(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRtsRetransmission(), and NotifyAccessGranted().

Ptr<const Packet> ns3::DcaTxop::m_currentPacket

private

Definition at line 178 of file dca-txop.h.

Referenced by EndTxNoAck(), GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), GotAck(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRtsRetransmission(), NeedsAccess(), NotifyAccessGranted(), NotifyChannelSwitching(), RestartAccessIfNeeded(), and StartAccessIfNeeded().

Dcf* ns3::DcaTxop::m_dcf

private

Definition at line 166 of file dca-txop.h.

Referenced by DcaTxop(), DoDispose(), DoStart(), EndTxNoAck(), GetAifsn(), GetMaxCw(), GetMinCw(), GotAck(), MissedAck(), MissedCts(), NotifyCollision(), RestartAccessIfNeeded(), SetAifsn(), SetManager(), SetMaxCw(), SetMinCw(), and StartAccessIfNeeded().

uint8_t ns3::DcaTxop::m_fragmentNumber

private

Definition at line 180 of file dca-txop.h.

Referenced by GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), NextFragment(), and NotifyAccessGranted().

Ptr<MacLow> ns3::DcaTxop::m_low

private

Definition at line 172 of file dca-txop.h.

Referenced by DoDispose(), Low(), and SetLow().

DcfManager* ns3::DcaTxop::m_manager

private

Definition at line 167 of file dca-txop.h.

Referenced by RestartAccessIfNeeded(), SetManager(), and StartAccessIfNeeded().

Ptr<WifiMacQueue> ns3::DcaTxop::m_queue

private

Definition at line 170 of file dca-txop.h.

Referenced by DcaTxop(), DoDispose(), GetQueue(), NeedsAccess(), NotifyAccessGranted(), NotifyChannelSwitching(), Queue(), RestartAccessIfNeeded(), and StartAccessIfNeeded().

RandomStream* ns3::DcaTxop::m_rng

private

Definition at line 175 of file dca-txop.h.

Referenced by AssignStreams(), DcaTxop(), DoDispose(), DoStart(), EndTxNoAck(), GotAck(), MissedAck(), MissedCts(), and NotifyCollision().

Ptr<WifiRemoteStationManager> ns3::DcaTxop::m_stationManager

private

Definition at line 173 of file dca-txop.h.

Referenced by DoDispose(), GetFragmentOffset(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), Queue(), and SetWifiRemoteStationManager().

TransmissionListener* ns3::DcaTxop::m_transmissionListener

private

Definition at line 174 of file dca-txop.h.

Referenced by DcaTxop(), DoDispose(), NotifyAccessGranted(), and StartNext().

TxFailed ns3::DcaTxop::m_txFailedCallback

private

Definition at line 169 of file dca-txop.h.

Referenced by MissedAck(), MissedCts(), and SetTxFailedCallback().

MacTxMiddle* ns3::DcaTxop::m_txMiddle

private

Definition at line 171 of file dca-txop.h.

Referenced by DcaTxop(), DoDispose(), and NotifyAccessGranted().

TxOk ns3::DcaTxop::m_txOkCallback

private

Definition at line 168 of file dca-txop.h.

Referenced by GotAck(), and SetTxOkCallback().

The documentation for this class was generated from the following files:

src/wifi/model/dca-txop.h
src/wifi/model/dca-txop.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::Dcf

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
