ns3::Dcf Class Reference
Wifi Models

#include <dcf.h>

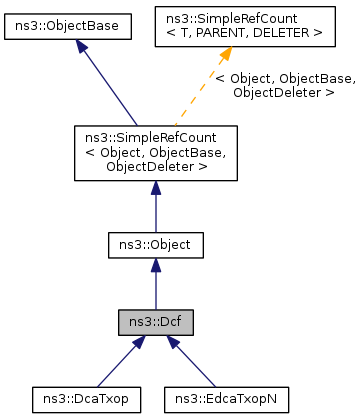

+ Inheritance diagram for ns3::Dcf:

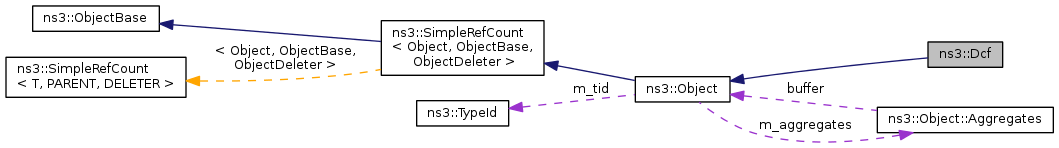

+ Collaboration diagram for ns3::Dcf:

Public Member Functions

virtual uint32_t GetAifsn (void) const =0
virtual uint32_t GetMaxCw (void) const =0
virtual uint32_t GetMinCw (void) const =0
virtual void SetAifsn (uint32_t aifsn)=0
virtual void SetMaxCw (uint32_t maxCw)=0
virtual void SetMinCw (uint32_t minCw)=0
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoStart (void)
virtual void NotifyNewAggregate (void)

Detailed Description

This type is not accessible from the Config system.

Attributes

  • MinCw: The minimum value of the contention window.
  • MaxCw: The maximum value of the contention window.
  • Aifsn: The AIFSN: the default value conforms to simple DCA.

No TraceSources are defined for this type.

Definition at line 32 of file dcf.h.

Member Function Documentation

virtual uint32_t ns3::Dcf::GetAifsn ( void  ) const
pure virtual

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

virtual uint32_t ns3::Dcf::GetMaxCw ( void  ) const
pure virtual

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

virtual uint32_t ns3::Dcf::GetMinCw ( void  ) const
pure virtual

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

TypeId ns3::Dcf::GetTypeId ( void  )
static

Reimplemented from ns3::Object.

Reimplemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Definition at line 28 of file dcf.cc.

References GetAifsn(), GetMaxCw(), GetMinCw(), SetAifsn(), SetMaxCw(), SetMinCw(), and ns3::TypeId::SetParent().

Referenced by ns3::DcaTxop::GetTypeId(), and ns3::EdcaTxopN::GetTypeId().

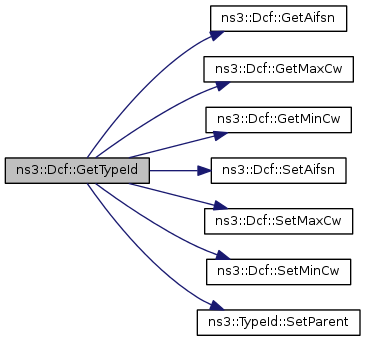

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

virtual void ns3::Dcf::SetAifsn ( uint32_t  aifsn)
pure virtual

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

virtual void ns3::Dcf::SetMaxCw ( uint32_t  maxCw)
pure virtual

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

virtual void ns3::Dcf::SetMinCw ( uint32_t  minCw)
pure virtual

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

The documentation for this class was generated from the following files:
