ns3::RrFfMacScheduler Class Reference

Implements the SCHED SAP and CSCHED SAP for a Round Robin scheduler. More...

#include <rr-ff-mac-scheduler.h>

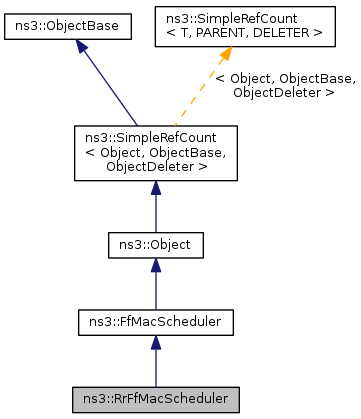

+ Inheritance diagram for ns3::RrFfMacScheduler:

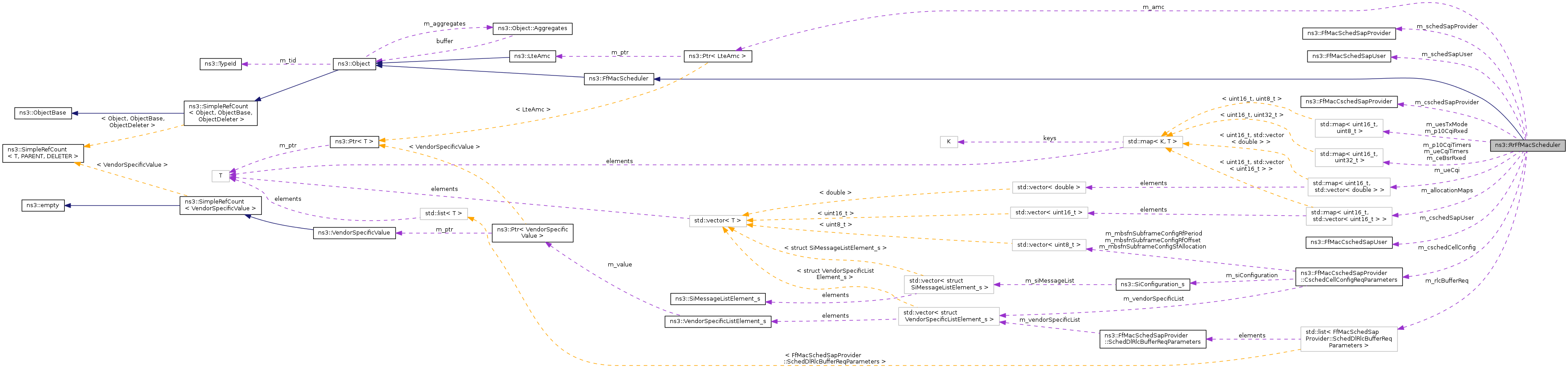

+ Collaboration diagram for ns3::RrFfMacScheduler:

Public Member Functions

 RrFfMacScheduler ()
 Constructor.
virtual ~RrFfMacScheduler ()
virtual void DoDispose (void)
virtual FfMacCschedSapProvider * GetFfMacCschedSapProvider ()
virtual FfMacSchedSapProvider * GetFfMacSchedSapProvider ()
virtual void SetFfMacCschedSapUser (FfMacCschedSapUser *s)
virtual void SetFfMacSchedSapUser (FfMacSchedSapUser *s)
void TransmissionModeConfigurationUpdate (uint16_t rnti, uint8_t txMode)
- Public Member Functions inherited from ns3::FfMacScheduler
 FfMacScheduler ()
virtual ~FfMacScheduler ()
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)

Private Member Functions

void DoCschedCellConfigReq (const struct FfMacCschedSapProvider::CschedCellConfigReqParameters &params)
void DoCschedLcConfigReq (const struct FfMacCschedSapProvider::CschedLcConfigReqParameters &params)
void DoCschedLcReleaseReq (const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters &params)
void DoCschedUeConfigReq (const struct FfMacCschedSapProvider::CschedUeConfigReqParameters &params)
void DoCschedUeReleaseReq (const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters &params)
void DoSchedDlCqiInfoReq (const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &params)
void DoSchedDlMacBufferReq (const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters &params)
void DoSchedDlPagingBufferReq (const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters &params)
void DoSchedDlRachInfoReq (const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters &params)
void DoSchedDlRlcBufferReq (const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters &params)
void DoSchedDlTriggerReq (const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters &params)
void DoSchedUlCqiInfoReq (const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &params)
void DoSchedUlMacCtrlInfoReq (const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters &params)
void DoSchedUlNoiseInterferenceReq (const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters &params)
void DoSchedUlSrInfoReq (const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters &params)
void DoSchedUlTriggerReq (const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters &params)
int GetRbgSize (int dlbandwidth)
void RefreshDlCqiMaps (void)
void RefreshUlCqiMaps (void)
void UpdateDlRlcBufferInfo (uint16_t rnti, uint8_t lcid, uint16_t size)
void UpdateUlRlcBufferInfo (uint16_t rnti, uint16_t size)

Static Private Member Functions

static bool SortRlcBufferReq (FfMacSchedSapProvider::SchedDlRlcBufferReqParameters i, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters j)

Private Attributes

std::map< uint16_t,
std::vector< uint16_t > > 		m_allocationMaps
Ptr< LteAmc > m_amc
std::map< uint16_t, uint32_t > m_ceBsrRxed
uint32_t m_cqiTimersThreshold
FfMacCschedSapProvider::CschedCellConfigReqParameters m_cschedCellConfig
FfMacCschedSapProvider * m_cschedSapProvider
FfMacCschedSapUser * m_cschedSapUser
uint16_t m_nextRntiDl
uint16_t m_nextRntiUl
std::map< uint16_t, uint8_t > m_p10CqiRxed
std::map< uint16_t, uint32_t > m_p10CqiTimers
std::list
< FfMacSchedSapProvider::SchedDlRlcBufferReqParameters > 		m_rlcBufferReq
FfMacSchedSapProvider * m_schedSapProvider
FfMacSchedSapUser * m_schedSapUser
std::map< uint16_t,
std::vector< double > > 		m_ueCqi
std::map< uint16_t, uint32_t > m_ueCqiTimers
std::map< uint16_t, uint8_t > m_uesTxMode

Friends

class RrSchedulerMemberCschedSapProvider
class RrSchedulerMemberSchedSapProvider

Additional Inherited Members

- Public Types inherited from ns3::FfMacScheduler
enum  UlCqiFilter_t { SRS_UL_CQI, PUSCH_UL_CQI, ALL_UL_CQI }
- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoStart (void)
virtual void NotifyNewAggregate (void)
- Protected Attributes inherited from ns3::FfMacScheduler
UlCqiFilter_t m_ulCqiFilter

Detailed Description

Implements the SCHED SAP and CSCHED SAP for a Round Robin scheduler.

This class implements the interface defined by the FfMacScheduler abstract class

Config Paths

ns3::RrFfMacScheduler is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/FfMacScheduler/$ns3::RrFfMacScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/FfMacScheduler/$ns3::RrFfMacScheduler

Attributes

  • CqiTimerThreshold: The number of TTIs a CQI is valid (default 1000 - 1 sec.)

Attributes defined in parent class ns3::FfMacScheduler

  • UlCqiFilter: The filter to apply on UL CQIs received
    • Set with class: ns3::EnumValue
    • Underlying type: SRS_UL_CQI|PUSCH_UL_CQI|ALL_UL_CQI
    • Initial value: ALL_UL_CQI
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 49 of file rr-ff-mac-scheduler.h.

Constructor & Destructor Documentation

ns3::RrFfMacScheduler::RrFfMacScheduler ( )

Constructor.

Creates the MAC Scheduler interface implementation

Definition at line 214 of file rr-ff-mac-scheduler.cc.

References m_amc, m_cschedSapProvider, m_schedSapProvider, RrSchedulerMemberCschedSapProvider, and RrSchedulerMemberSchedSapProvider.

ns3::RrFfMacScheduler::~RrFfMacScheduler ( )
virtual

Destructor

Definition at line 225 of file rr-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::RrFfMacScheduler::DoCschedCellConfigReq ( const struct FfMacCschedSapProvider::CschedCellConfigReqParameters &  params)
private

Definition at line 280 of file rr-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigCnf(), m_cschedCellConfig, m_cschedSapUser, ns3::FfMacCschedSapUser::CschedUeConfigCnfParameters::m_result, NS_LOG_FUNCTION, and ns3::SUCCESS.

Referenced by ns3::RrSchedulerMemberCschedSapProvider::CschedCellConfigReq().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoCschedLcConfigReq ( const struct FfMacCschedSapProvider::CschedLcConfigReqParameters &  params)
private

Definition at line 308 of file rr-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::RrSchedulerMemberCschedSapProvider::CschedLcConfigReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoCschedLcReleaseReq ( const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters &  params)
private

Definition at line 316 of file rr-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::RrSchedulerMemberCschedSapProvider::CschedLcReleaseReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoCschedUeConfigReq ( const struct FfMacCschedSapProvider::CschedUeConfigReqParameters &  params)
private

Definition at line 292 of file rr-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_rnti, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_transmissionMode, m_uesTxMode, and NS_LOG_FUNCTION.

Referenced by ns3::RrSchedulerMemberCschedSapProvider::CschedUeConfigReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoCschedUeReleaseReq ( const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters &  params)
private

Definition at line 324 of file rr-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::RrSchedulerMemberCschedSapProvider::CschedUeReleaseReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::FfMacScheduler.

Definition at line 231 of file rr-ff-mac-scheduler.cc.

References m_cschedSapProvider, m_schedSapProvider, and NS_LOG_FUNCTION.

void ns3::RrFfMacScheduler::DoSchedDlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &  params)
private

Definition at line 606 of file rr-ff-mac-scheduler.cc.

References ns3::CqiListElement_s::A30, ns3::FfMacSchedSapProvider::SchedDlCqiInfoReqParameters::m_cqiList, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_LOG_ERROR, NS_LOG_FUNCTION, and ns3::CqiListElement_s::P10.

Referenced by ns3::RrSchedulerMemberSchedSapProvider::SchedDlCqiInfoReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoSchedDlMacBufferReq ( const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters &  params)
private

Definition at line 374 of file rr-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::RrSchedulerMemberSchedSapProvider::SchedDlMacBufferReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoSchedDlPagingBufferReq ( const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters &  params)
private

Definition at line 366 of file rr-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::RrSchedulerMemberSchedSapProvider::SchedDlPagingBufferReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoSchedDlRachInfoReq ( const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters &  params)
private

Definition at line 598 of file rr-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::RrSchedulerMemberSchedSapProvider::SchedDlRachInfoReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoSchedDlRlcBufferReq ( const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters &  params)
private

Definition at line 333 of file rr-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_logicalChannelIdentity, m_p10CqiRxed, m_p10CqiTimers, m_rlcBufferReq, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::RrSchedulerMemberSchedSapProvider::SchedDlRlcBufferReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoSchedDlTriggerReq ( const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters &  params)
private

Definition at line 403 of file rr-ff-mac-scheduler.cc.

References ns3::LteAmc::GetMcsFromCqi(), GetRbgSize(), ns3::LteAmc::GetTbSizeFromMcs(), m_amc, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildDataList, m_cschedCellConfig, ns3::BuildDataListElement_s::m_dci, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_dlBandwidth, ns3::RlcPduListElement_s::m_logicalChannelIdentity, ns3::DlDciListElement_s::m_mcs, ns3::DlDciListElement_s::m_ndi, m_nextRntiDl, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_nrOfPdcchOfdmSymbols, m_p10CqiRxed, ns3::DlDciListElement_s::m_rbBitmap, ns3::DlDciListElement_s::m_resAlloc, m_rlcBufferReq, ns3::BuildDataListElement_s::m_rlcPduList, ns3::DlDciListElement_s::m_rnti, ns3::BuildDataListElement_s::m_rnti, ns3::DlDciListElement_s::m_rv, m_schedSapUser, ns3::FfMacSchedSapProvider::SchedDlTriggerReqParameters::m_sfnSf, ns3::RlcPduListElement_s::m_size, ns3::DlDciListElement_s::m_tbsSize, m_uesTxMode, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, RefreshDlCqiMaps(), ns3::FfMacSchedSapUser::SchedDlConfigInd(), SortRlcBufferReq(), ns3::TransmissionModesLayers::TxMode2LayerNum(), and UpdateDlRlcBufferInfo().

Referenced by ns3::RrSchedulerMemberSchedSapProvider::SchedDlTriggerReq().

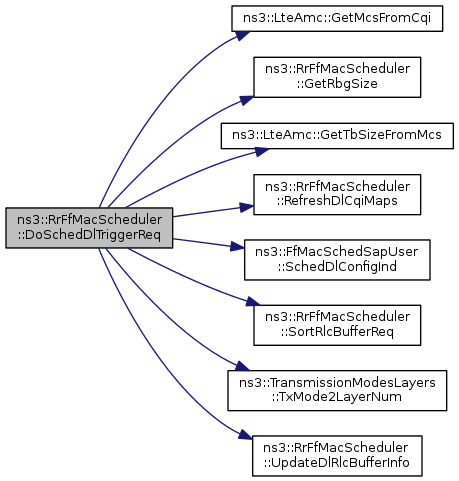

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoSchedUlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &  params)
private

Definition at line 851 of file rr-ff-mac-scheduler.cc.

References ns3::FfMacScheduler::ALL_UL_CQI, ns3::LteFfConverter::fpS11dot3toDouble(), m_allocationMaps, m_cqiTimersThreshold, m_cschedCellConfig, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_sfnSf, ns3::UlCqi_s::m_sinr, ns3::UlCqi_s::m_type, m_ueCqi, m_ueCqiTimers, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_ulCqi, ns3::FfMacScheduler::m_ulCqiFilter, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_vendorSpecificList, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::UlCqi_s::PRACH, ns3::UlCqi_s::PUCCH_1, ns3::UlCqi_s::PUCCH_2, ns3::UlCqi_s::PUSCH, ns3::FfMacScheduler::PUSCH_UL_CQI, ns3::UlCqi_s::SRS, SRS_CQI_RNTI_VSP, and ns3::FfMacScheduler::SRS_UL_CQI.

Referenced by ns3::RrSchedulerMemberSchedSapProvider::SchedUlCqiInfoReq().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoSchedUlMacCtrlInfoReq ( const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters &  params)
private

Definition at line 817 of file rr-ff-mac-scheduler.cc.

References ns3::MacCeListElement_s::BSR, ns3::BufferSizeLevelBsr::BsrId2BufferSize(), m_ceBsrRxed, ns3::FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters::m_macCeList, and NS_LOG_FUNCTION.

Referenced by ns3::RrSchedulerMemberSchedSapProvider::SchedUlMacCtrlInfoReq().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoSchedUlNoiseInterferenceReq ( const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters &  params)
private

Definition at line 801 of file rr-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::RrSchedulerMemberSchedSapProvider::SchedUlNoiseInterferenceReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoSchedUlSrInfoReq ( const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters &  params)
private

Definition at line 809 of file rr-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::RrSchedulerMemberSchedSapProvider::SchedUlSrInfoReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::DoSchedUlTriggerReq ( const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters &  params)
private

Definition at line 651 of file rr-ff-mac-scheduler.cc.

References ns3::LteAmc::GetCqiFromSpectralEfficiency(), ns3::LteAmc::GetMcsFromCqi(), ns3::LteAmc::GetTbSizeFromMcs(), ns3::UlDciListElement_s::m_aggrLevel, m_allocationMaps, m_amc, ns3::UlDciListElement_s::m_cceIndex, m_ceBsrRxed, ns3::UlDciListElement_s::m_cqiRequest, m_cschedCellConfig, ns3::UlDciListElement_s::m_dai, ns3::FfMacSchedSapUser::SchedUlConfigIndParameters::m_dciList, ns3::UlDciListElement_s::m_freqHopping, ns3::UlDciListElement_s::m_hopping, ns3::UlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_n2Dmrs, ns3::UlDciListElement_s::m_ndi, m_nextRntiUl, ns3::UlDciListElement_s::m_pdcchPowerOffset, ns3::UlDciListElement_s::m_rbLen, ns3::UlDciListElement_s::m_rbStart, ns3::UlDciListElement_s::m_rnti, m_schedSapUser, ns3::FfMacSchedSapProvider::SchedUlTriggerReqParameters::m_sfnSf, ns3::UlDciListElement_s::m_tbSize, ns3::UlDciListElement_s::m_tpc, m_ueCqi, ns3::UlDciListElement_s::m_ueTxAntennaSelection, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, ns3::UlDciListElement_s::m_ulIndex, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, RefreshUlCqiMaps(), ns3::FfMacSchedSapUser::SchedUlConfigInd(), and UpdateUlRlcBufferInfo().

Referenced by ns3::RrSchedulerMemberSchedSapProvider::SchedUlTriggerReq().

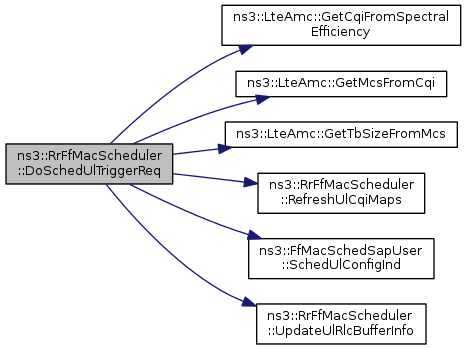

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

FfMacCschedSapProvider * ns3::RrFfMacScheduler::GetFfMacCschedSapProvider ( )
virtual
Returns
the Provider part of the FfMacCschedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 268 of file rr-ff-mac-scheduler.cc.

References m_cschedSapProvider.

FfMacSchedSapProvider * ns3::RrFfMacScheduler::GetFfMacSchedSapProvider ( )
virtual
Returns
the Provider part of the FfMacSchedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 274 of file rr-ff-mac-scheduler.cc.

References m_schedSapProvider.

int ns3::RrFfMacScheduler::GetRbgSize ( int  dlbandwidth)
private

Definition at line 382 of file rr-ff-mac-scheduler.cc.

References ns3::Type0AllocationRbg.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

TypeId ns3::RrFfMacScheduler::GetTypeId ( void  )
static

Reimplemented from ns3::FfMacScheduler.

Definition at line 239 of file rr-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::RrFfMacScheduler::RefreshDlCqiMaps ( void  )
private

Definition at line 1001 of file rr-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::RefreshUlCqiMaps ( void  )
private

Definition at line 1032 of file rr-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_ueCqi, m_ueCqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::SetFfMacCschedSapUser ( FfMacCschedSapUser *  s)
virtual

set the user part of the FfMacCschedSap that this Scheduler will interact with. Normally this part of the SAP is exported by the MAC.

Parameters
s

Implements ns3::FfMacScheduler.

Definition at line 256 of file rr-ff-mac-scheduler.cc.

References m_cschedSapUser.

void ns3::RrFfMacScheduler::SetFfMacSchedSapUser ( FfMacSchedSapUser *  s)
virtual

set the user part of the FfMacSchedSap that this Scheduler will interact with. Normally this part of the SAP is exported by the MAC.

Parameters
s

Implements ns3::FfMacScheduler.

Definition at line 262 of file rr-ff-mac-scheduler.cc.

References m_schedSapUser.

bool ns3::RrFfMacScheduler::SortRlcBufferReq ( FfMacSchedSapProvider::SchedDlRlcBufferReqParameters  i,
FfMacSchedSapProvider::SchedDlRlcBufferReqParameters  j
)
staticprivate

Definition at line 396 of file rr-ff-mac-scheduler.cc.

References ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_rnti.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::TransmissionModeConfigurationUpdate ( uint16_t  rnti,
uint8_t  txMode
)

Definition at line 1137 of file rr-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigUpdateInd(), m_cschedSapUser, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_rnti, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_transmissionMode, and NS_LOG_FUNCTION.

Referenced by ns3::LenaMimoTestCase::DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::UpdateDlRlcBufferInfo ( uint16_t  rnti,
uint8_t  lcid,
uint16_t  size
)
private

Definition at line 1062 of file rr-ff-mac-scheduler.cc.

References m_rlcBufferReq.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::RrFfMacScheduler::UpdateUlRlcBufferInfo ( uint16_t  rnti,
uint16_t  size
)
private

Definition at line 1111 of file rr-ff-mac-scheduler.cc.

References m_ceBsrRxed, and NS_LOG_ERROR.

Referenced by DoSchedUlTriggerReq().

+ Here is the caller graph for this function:

Friends And Related Function Documentation

friend class RrSchedulerMemberCschedSapProvider
friend

Definition at line 74 of file rr-ff-mac-scheduler.h.

Referenced by RrFfMacScheduler().

friend class RrSchedulerMemberSchedSapProvider
friend

Definition at line 75 of file rr-ff-mac-scheduler.h.

Referenced by RrFfMacScheduler().

Member Data Documentation

std::map<uint16_t, std::vector <uint16_t> > ns3::RrFfMacScheduler::m_allocationMaps
private

Definition at line 153 of file rr-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and DoSchedUlTriggerReq().

Ptr<LteAmc> ns3::RrFfMacScheduler::m_amc
private

Definition at line 133 of file rr-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and RrFfMacScheduler().

std::map<uint16_t,uint32_t> ns3::RrFfMacScheduler::m_ceBsrRxed
private

Definition at line 169 of file rr-ff-mac-scheduler.h.

Referenced by DoSchedUlMacCtrlInfoReq(), DoSchedUlTriggerReq(), and UpdateUlRlcBufferInfo().

uint32_t ns3::RrFfMacScheduler::m_cqiTimersThreshold
private

Definition at line 184 of file rr-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlRlcBufferReq(), DoSchedUlCqiInfoReq(), GetTypeId(), RefreshDlCqiMaps(), and RefreshUlCqiMaps().

FfMacCschedSapProvider::CschedCellConfigReqParameters ns3::RrFfMacScheduler::m_cschedCellConfig
private

Definition at line 179 of file rr-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), DoSchedUlCqiInfoReq(), and DoSchedUlTriggerReq().

FfMacCschedSapProvider* ns3::RrFfMacScheduler::m_cschedSapProvider
private

Definition at line 174 of file rr-ff-mac-scheduler.h.

Referenced by DoDispose(), GetFfMacCschedSapProvider(), and RrFfMacScheduler().

FfMacCschedSapUser* ns3::RrFfMacScheduler::m_cschedSapUser
private

Definition at line 172 of file rr-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), SetFfMacCschedSapUser(), and TransmissionModeConfigurationUpdate().

uint16_t ns3::RrFfMacScheduler::m_nextRntiDl
private

Definition at line 181 of file rr-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq().

uint16_t ns3::RrFfMacScheduler::m_nextRntiUl
private

Definition at line 182 of file rr-ff-mac-scheduler.h.

Referenced by DoSchedUlTriggerReq().

std::map<uint16_t,uint8_t> ns3::RrFfMacScheduler::m_p10CqiRxed
private

Definition at line 143 of file rr-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlRlcBufferReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().

std::map<uint16_t,uint32_t> ns3::RrFfMacScheduler::m_p10CqiTimers
private

Definition at line 147 of file rr-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlRlcBufferReq(), and RefreshDlCqiMaps().

std::list<FfMacSchedSapProvider::SchedDlRlcBufferReqParameters> ns3::RrFfMacScheduler::m_rlcBufferReq
private

Definition at line 138 of file rr-ff-mac-scheduler.h.

Referenced by DoSchedDlRlcBufferReq(), DoSchedDlTriggerReq(), and UpdateDlRlcBufferInfo().

FfMacSchedSapProvider* ns3::RrFfMacScheduler::m_schedSapProvider
private

Definition at line 175 of file rr-ff-mac-scheduler.h.

Referenced by DoDispose(), GetFfMacSchedSapProvider(), and RrFfMacScheduler().

FfMacSchedSapUser* ns3::RrFfMacScheduler::m_schedSapUser
private

Definition at line 173 of file rr-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and SetFfMacSchedSapUser().

std::map<uint16_t, std::vector <double> > ns3::RrFfMacScheduler::m_ueCqi
private

Definition at line 158 of file rr-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), and RefreshUlCqiMaps().

std::map<uint16_t, uint32_t> ns3::RrFfMacScheduler::m_ueCqiTimers
private

Definition at line 162 of file rr-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and RefreshUlCqiMaps().

std::map<uint16_t,uint8_t> ns3::RrFfMacScheduler::m_uesTxMode
private

Definition at line 186 of file rr-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), and DoSchedDlTriggerReq().

The documentation for this class was generated from the following files:
