Default SINR model for UanPhyDual. More...

#include <uan-phy-dual.h>

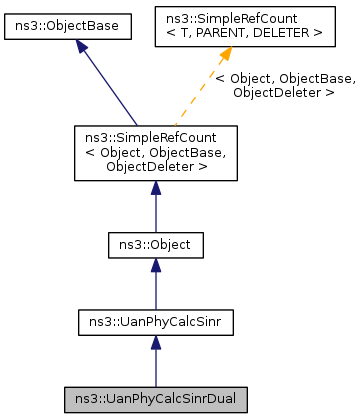

Inheritance diagram for ns3::UanPhyCalcSinrDual:

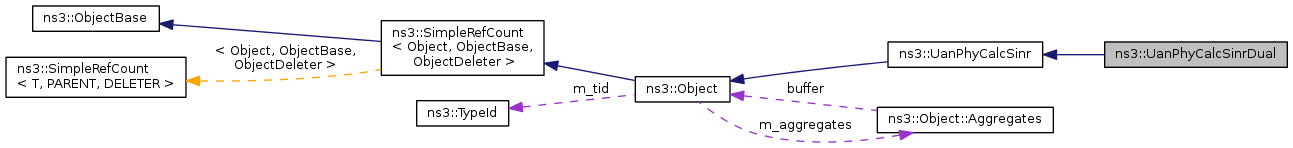

Collaboration diagram for ns3::UanPhyCalcSinrDual:

Public Member Functions
	UanPhyCalcSinrDual ()
virtual	~UanPhyCalcSinrDual ()
virtual double	CalcSinrDb (Ptr< Packet > pkt, Time arrTime, double rxPowerDb, double ambNoiseDb, UanTxMode mode, UanPdp pdp, const UanTransducer::ArrivalList &arrivalList) const
Public Member Functions inherited from ns3::UanPhyCalcSinr
virtual void	Clear (void)
double	DbToKp (double db) const
	Converts dB re 1 uPa to kilopascals.
virtual void	DoDispose (void)
double	KpToDb (double kp) const
	Converts kilopascals to dB re 1 uPa.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Default SINR model for UanPhyDual.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Considers interfering packet power as additional ambient noise only if there is overlap in frequency band as found from supplied UanTxMode. If there is no overlap, then the packets are considered not to interfere.

Definition at line 43 of file uan-phy-dual.h.

Constructor & Destructor Documentation

ns3::UanPhyCalcSinrDual::UanPhyCalcSinrDual ( )

Definition at line 47 of file uan-phy-dual.cc.

ns3::UanPhyCalcSinrDual::~UanPhyCalcSinrDual ( )

virtual

Definition at line 51 of file uan-phy-dual.cc.

Member Function Documentation

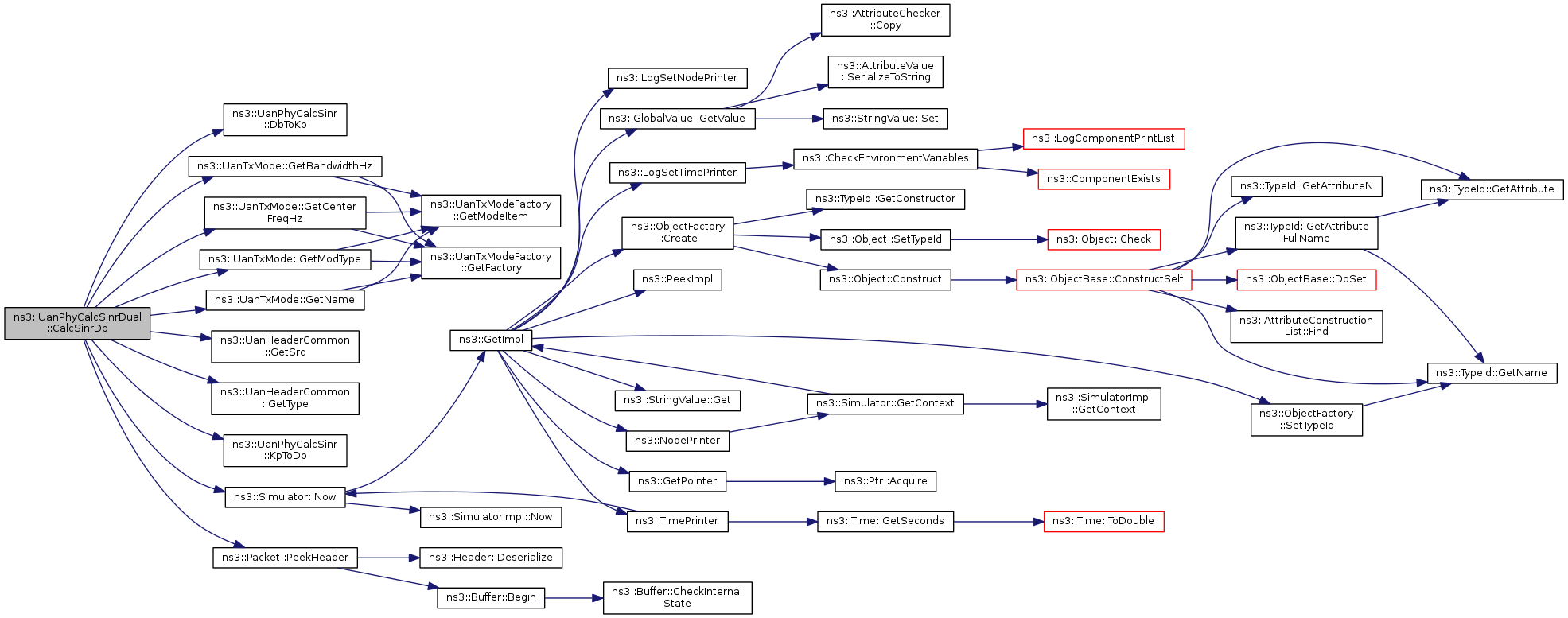

double ns3::UanPhyCalcSinrDual::CalcSinrDb	(	Ptr< Packet >	pkt,
		Time	arrTime,
		double	rxPowerDb,
		double	ambNoiseDb,
		UanTxMode	mode,
		UanPdp	pdp,
		const UanTransducer::ArrivalList &	arrivalList
	)		const

virtual

Parameters

pkt	Packet to calculate SINR for
arrTime	Arrival time of pkt
rxPowerDb	The received signal strength of the packet in dB re 1 uPa
ambNoiseDb	Ambient channel noise in dB re 1 uPa
mode	TX Mode of pkt
pdp	Power delay profile of pkt
arrivalList	List of interfering arrivals given from Transducer.
