Virtual base for Transducer objects. More...

#include <uan-transducer.h>

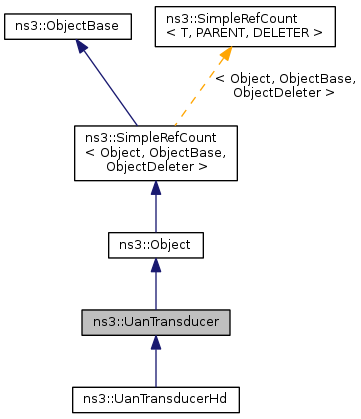

Inheritance diagram for ns3::UanTransducer:

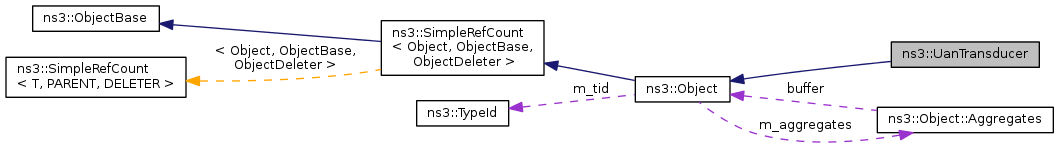

Collaboration diagram for ns3::UanTransducer:

Public Types
typedef std::list < UanPacketArrival >	ArrivalList
	Arrival list is a standard template library list of UanPacketArrivals objects.
enum	State { TX, RX }
	Transducer state (receiving or transmitting) More...
typedef std::list< Ptr< UanPhy > >	UanPhyList
	UanPhyList is a standard template library list of UanPhy objects.

Public Member Functions
virtual void	AddPhy (Ptr< UanPhy > phy)=0

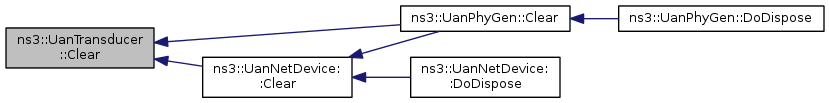

virtual void	Clear (void)=0

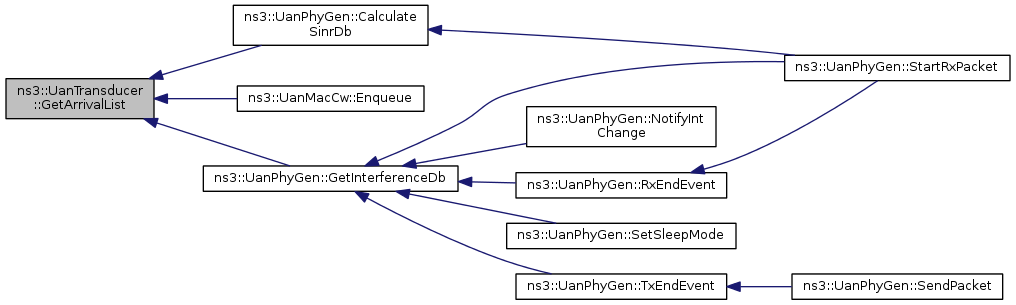

virtual const ArrivalList &	GetArrivalList (void) const =0
virtual Ptr< UanChannel >	GetChannel (void) const =0
virtual const UanPhyList &	GetPhyList (void) const =0
virtual State	GetState (void) const =0
virtual bool	IsRx (void) const =0
virtual bool	IsTx (void) const =0
virtual void	Receive (Ptr< Packet > packet, double rxPowerDb, UanTxMode txMode, UanPdp pdp)=0
	Receive Notify this object that a new packet has arrived at this nodes location.

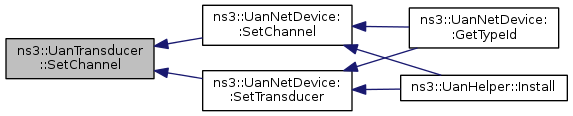

virtual void	SetChannel (Ptr< UanChannel > chan)=0
virtual void	Transmit (Ptr< UanPhy > src, Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)=0
	Transmit a packet from this transducer.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Virtual base for Transducer objects.

Config Paths

ns3::UanTransducer is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer

No Attributes are defined for this type.
No TraceSources are defined for this type.

The Transducer was added to support classes such as UanPhyDual. In a generic Phy setting, this class functions to hold information about all possibly interfering packets.

Definition at line 123 of file uan-transducer.h.
