Half duplex implementation of transducer object. More...

#include <uan-transducer-hd.h>

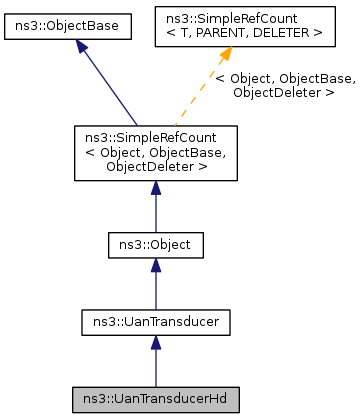

Inheritance diagram for ns3::UanTransducerHd:

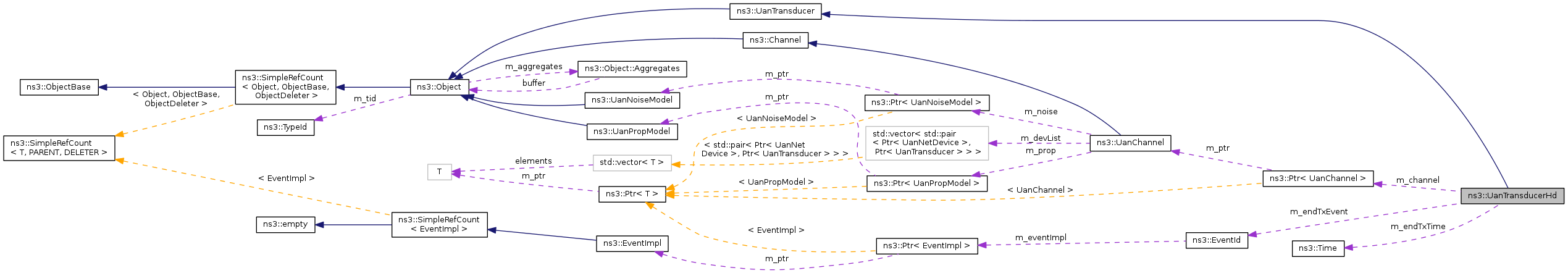

Collaboration diagram for ns3::UanTransducerHd:

Public Member Functions
	UanTransducerHd ()
virtual	~UanTransducerHd ()
virtual void	AddPhy (Ptr< UanPhy >)
virtual void	Clear (void)
virtual const ArrivalList &	GetArrivalList (void) const
virtual Ptr< UanChannel >	GetChannel (void) const
virtual const UanPhyList &	GetPhyList (void) const
virtual State	GetState (void) const
virtual bool	IsRx (void) const
virtual bool	IsTx (void) const

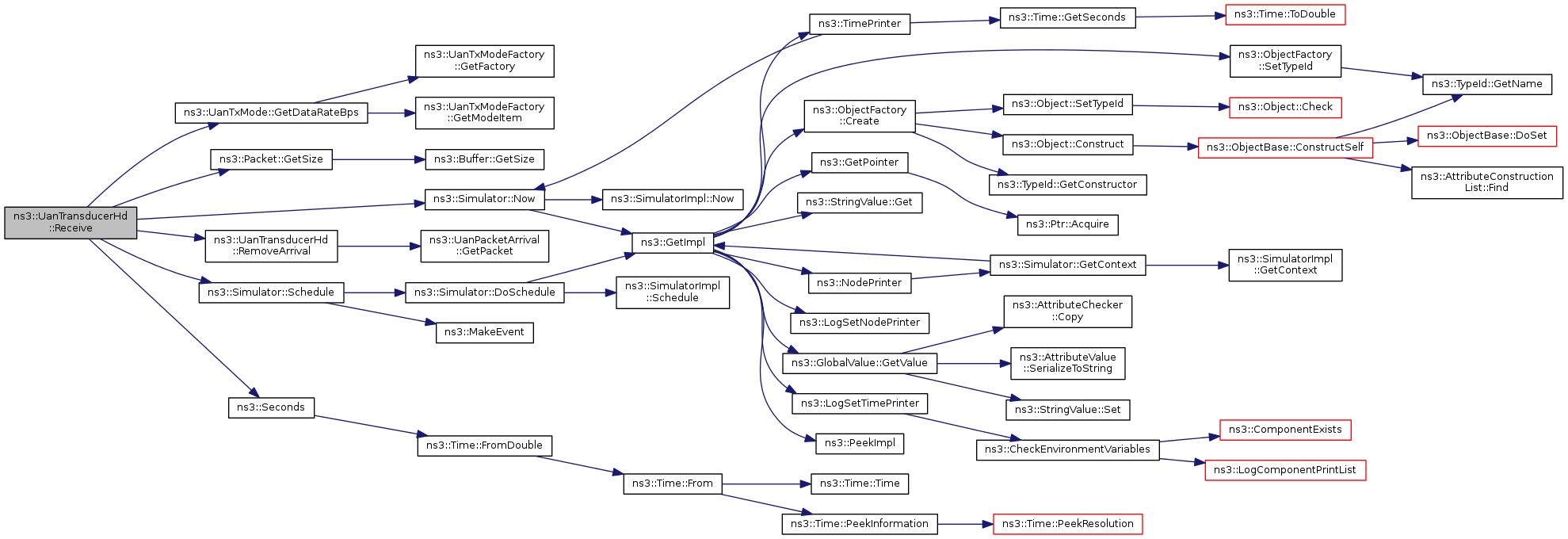

virtual void	Receive (Ptr< Packet > packet, double rxPowerDb, UanTxMode txMode, UanPdp pdp)
	Receive Notify this object that a new packet has arrived at this nodes location.
virtual void	SetChannel (Ptr< UanChannel > chan)

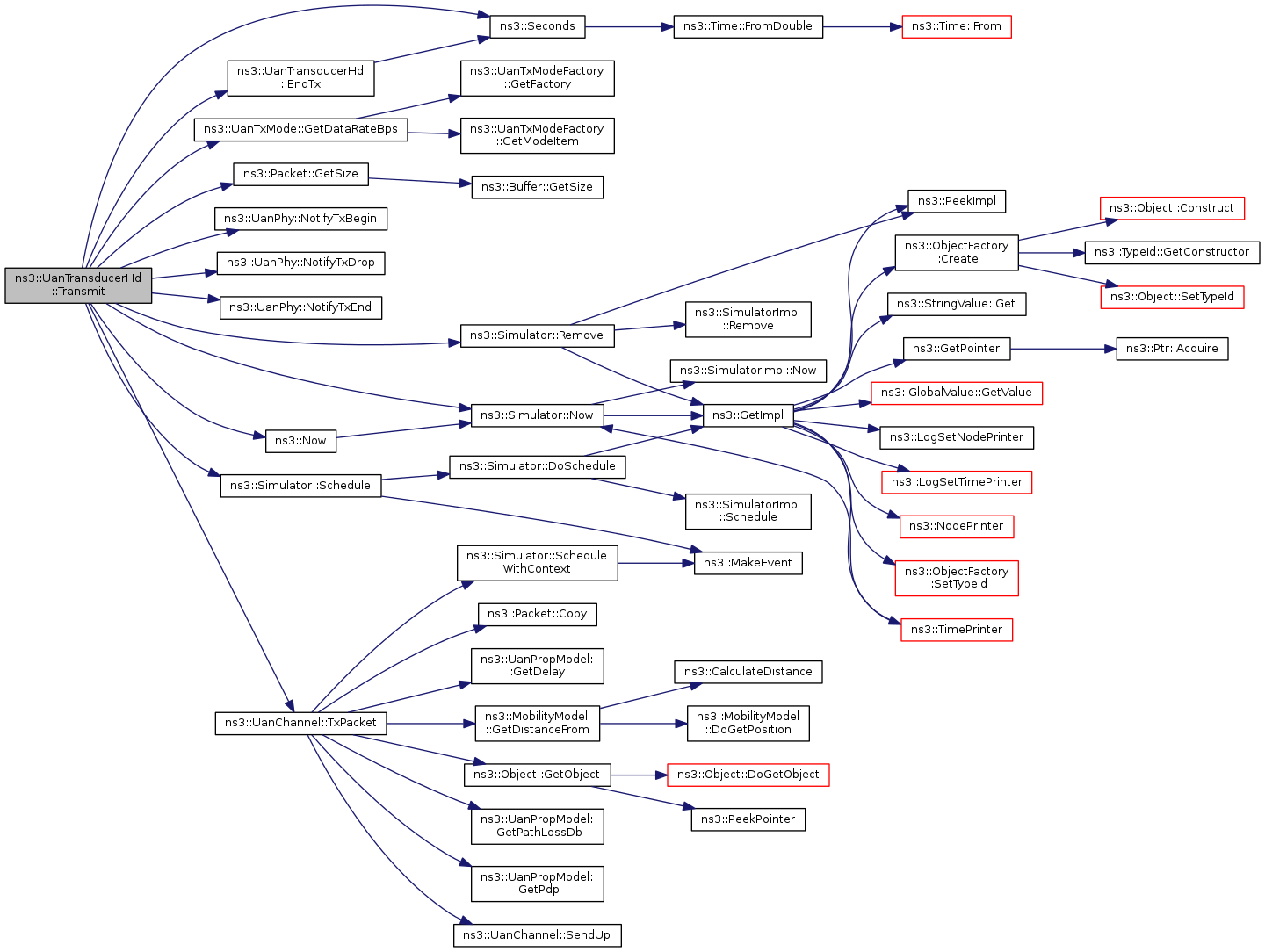

virtual void	Transmit (Ptr< UanPhy > src, Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)
	Transmit a packet from this transducer.

Static Public Member Functions
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoDispose ()

Private Member Functions

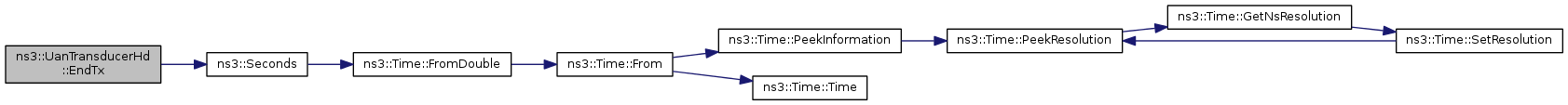

void	EndTx (void)
void	RemoveArrival (UanPacketArrival arrival)

Private Attributes
ArrivalList	m_arrivalList
Ptr< UanChannel >	m_channel
bool	m_cleared
EventId	m_endTxEvent
Time	m_endTxTime
UanPhyList	m_phyList
State	m_state

Additional Inherited Members
Public Types inherited from ns3::UanTransducer
typedef std::list < UanPacketArrival >	ArrivalList
	Arrival list is a standard template library list of UanPacketArrivals objects.
enum	State { TX, RX }
	Transducer state (receiving or transmitting) More...
typedef std::list< Ptr< UanPhy > >	UanPhyList
	UanPhyList is a standard template library list of UanPhy objects.

Detailed Description

Half duplex implementation of transducer object.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

This class will only allow attached Phy's to receive packets if not in TX mode

Definition at line 34 of file uan-transducer-hd.h.

Constructor & Destructor Documentation

ns3::UanTransducerHd::UanTransducerHd ( )

Definition at line 35 of file uan-transducer-hd.cc.

ns3::UanTransducerHd::~UanTransducerHd ( )

virtual

Definition at line 43 of file uan-transducer-hd.cc.

Member Function Documentation

void ns3::UanTransducerHd::AddPhy ( Ptr< UanPhy > phy )

virtual

Parameters

phy	Add phy above this transducer (may connect > 1 Phy to a transducer)

Implements ns3::UanTransducer.

Definition at line 213 of file uan-transducer-hd.cc.

References m_phyList.

void ns3::UanTransducerHd::Clear ( void )

virtual

Clears all pointer references

Implements ns3::UanTransducer.

Definition at line 48 of file uan-transducer-hd.cc.

References ns3::EventId::Cancel(), ns3::UanChannel::Clear(), m_arrivalList, m_channel, m_cleared, m_endTxEvent, and m_phyList.

Referenced by DoDispose().

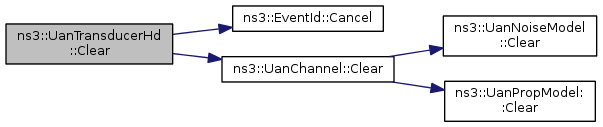

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanTransducerHd::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 81 of file uan-transducer-hd.cc.

References Clear().

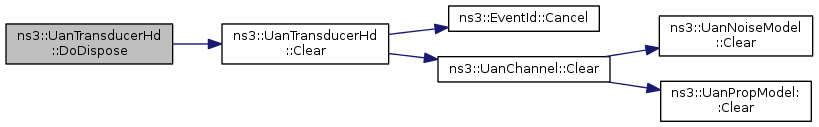

Here is the call graph for this function:
