#include <waveform-generator.h>

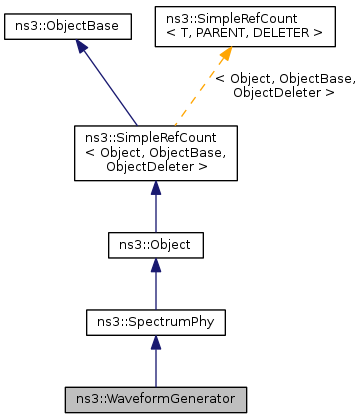

Inheritance diagram for ns3::WaveformGenerator:

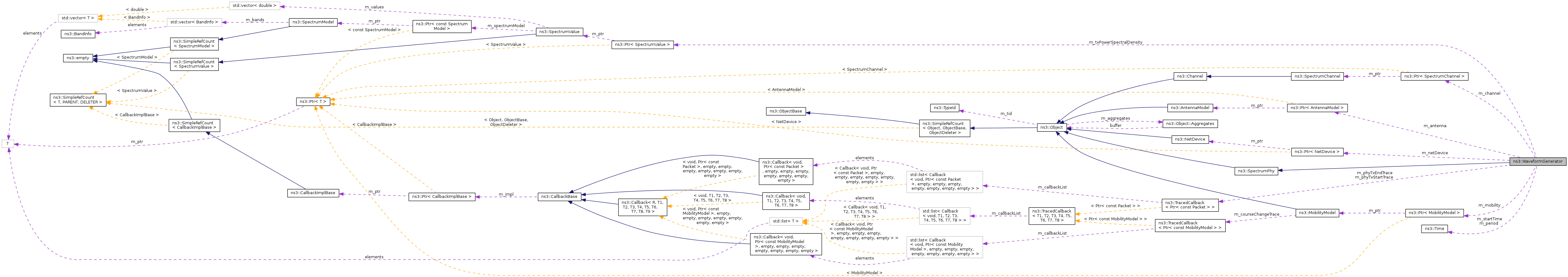

Collaboration diagram for ns3::WaveformGenerator:

Public Member Functions
	WaveformGenerator ()
virtual	~WaveformGenerator ()
Ptr< NetDevice >	GetDevice ()
double	GetDutyCycle () const
Ptr< MobilityModel >	GetMobility ()
Time	GetPeriod () const
Ptr< AntennaModel >	GetRxAntenna ()
Ptr< const SpectrumModel >	GetRxSpectrumModel () const
void	SetAntenna (Ptr< AntennaModel > a)
void	SetChannel (Ptr< SpectrumChannel > c)
void	SetDevice (Ptr< NetDevice > d)
void	SetDutyCycle (double value)
void	SetMobility (Ptr< MobilityModel > m)
void	SetPeriod (Time period)
void	SetTxPowerSpectralDensity (Ptr< SpectrumValue > txs)
virtual void	Start ()
void	StartRx (Ptr< SpectrumSignalParameters > params)
virtual void	Stop ()
Public Member Functions inherited from ns3::SpectrumPhy
	SpectrumPhy ()
virtual	~SpectrumPhy ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
virtual void	DoDispose (void)
virtual void	GenerateWaveform ()

Private Attributes
bool	m_active
Ptr< AntennaModel >	m_antenna
Ptr< SpectrumChannel >	m_channel
double	m_dutyCycle
Ptr< MobilityModel >	m_mobility
Ptr< NetDevice >	m_netDevice
Time	m_period
TracedCallback< Ptr< const Packet > >	m_phyTxEndTrace
TracedCallback< Ptr< const Packet > >	m_phyTxStartTrace
Time	m_startTime
Ptr< SpectrumValue >	m_txPowerSpectralDensity

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Simple SpectrumPhy implementation that sends customizable waveform. The generated waveforms have a given Spectrum Power Density and duration (set with the SetResolution()) . The generator activates and deactivates periodically with a given period and with a duty cycle of 1/2.

This PHY model supports a single antenna model instance which is used for both transmission and reception (though received signals are discarded by this PHY).

This type is not accessible from the Config system.

Attributes

Period: the period (=1/frequency)
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +1000000000.0ns
- Flags: construct write read
DutyCycle: the duty cycle of the generator, i.e., the fraction of the period that is occupied by a signal
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.5
- Flags: construct write read

TraceSources

TxStart: Trace fired when a new transmission is started
TxEnd: Trace fired when a previosuly started transmission is finished

Definition at line 52 of file waveform-generator.h.

Constructor & Destructor Documentation

ns3::WaveformGenerator::WaveformGenerator ( )

Definition at line 37 of file waveform-generator.cc.

ns3::WaveformGenerator::~WaveformGenerator ( )

virtual

Definition at line 49 of file waveform-generator.cc.

Member Function Documentation

void ns3::WaveformGenerator::DoDispose ( void )

privatevirtual

Definition at line 56 of file waveform-generator.cc.

References m_channel, m_mobility, m_netDevice, and NS_LOG_FUNCTION.

void ns3::WaveformGenerator::GenerateWaveform ( )

privatevirtual

Definition at line 192 of file waveform-generator.cc.

References m_active, m_antenna, m_channel, m_dutyCycle, m_period, m_phyTxStartTrace, m_txPowerSpectralDensity, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Simulator::Schedule(), and ns3::SpectrumChannel::StartTx().

Referenced by Start().

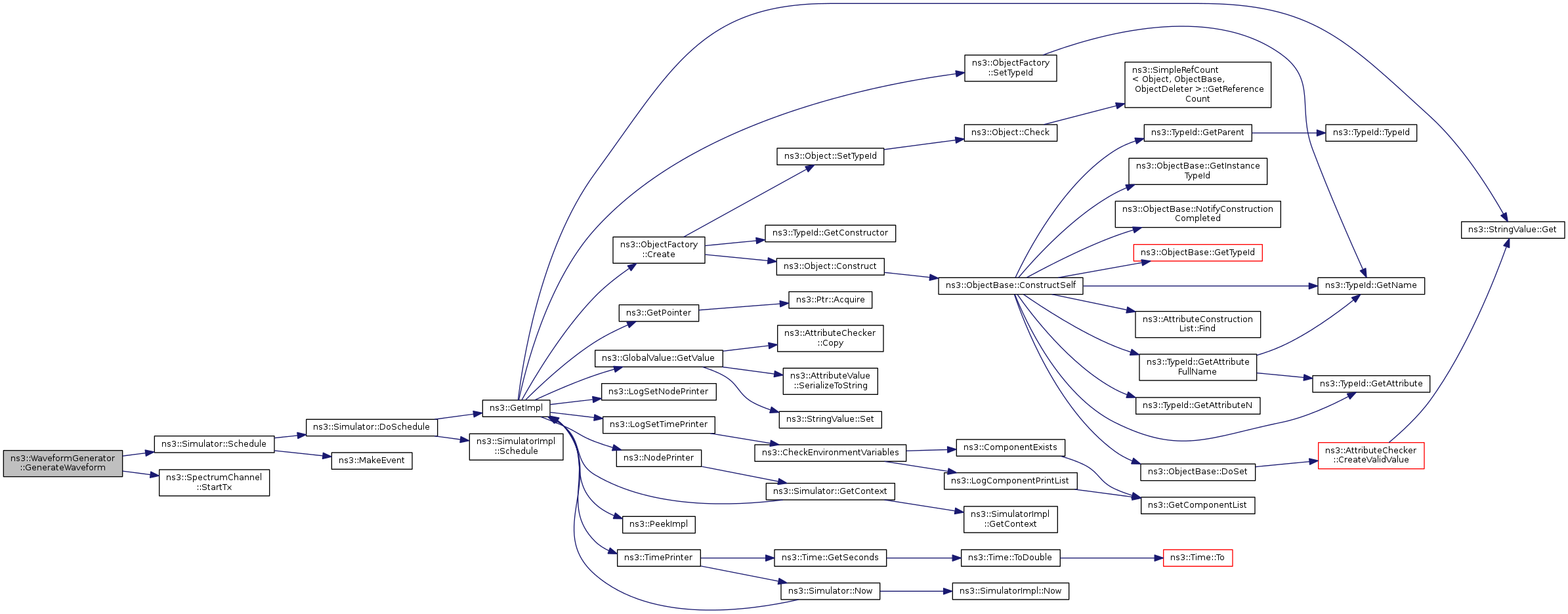

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< NetDevice > ns3::WaveformGenerator::GetDevice ( )

virtual

get the associated NetDevice instance

Returns: a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 95 of file waveform-generator.cc.

References m_netDevice.

double ns3::WaveformGenerator::GetDutyCycle ( ) const

Returns: the value of the duty cycle

Definition at line 184 of file waveform-generator.cc.

References m_dutyCycle.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< MobilityModel > ns3::WaveformGenerator::GetMobility ( )

virtual

get the associated MobilityModel instance

Returns: a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 102 of file waveform-generator.cc.

References m_mobility.

Time ns3::WaveformGenerator::GetPeriod ( ) const

Returns: the value of the period according to which the WaveformGenerator switches on and off

Definition at line 171 of file waveform-generator.cc.

References m_period.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< AntennaModel > ns3::WaveformGenerator::GetRxAntenna ( )

virtual

get the AntennaModel used by the NetDevice for reception

Returns: a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 152 of file waveform-generator.cc.

References m_antenna.

Ptr< const SpectrumModel > ns3::WaveformGenerator::GetRxSpectrumModel ( ) const

virtual

Returns: returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 109 of file waveform-generator.cc.

TypeId ns3::WaveformGenerator::GetTypeId ( void )

static

Reimplemented from ns3::SpectrumPhy.

Definition at line 65 of file waveform-generator.cc.

References GetDutyCycle(), GetPeriod(), m_phyTxEndTrace, m_phyTxStartTrace, ns3::MakeTraceSourceAccessor(), ns3::Seconds(), SetDutyCycle(), ns3::TypeId::SetParent(), and SetPeriod().

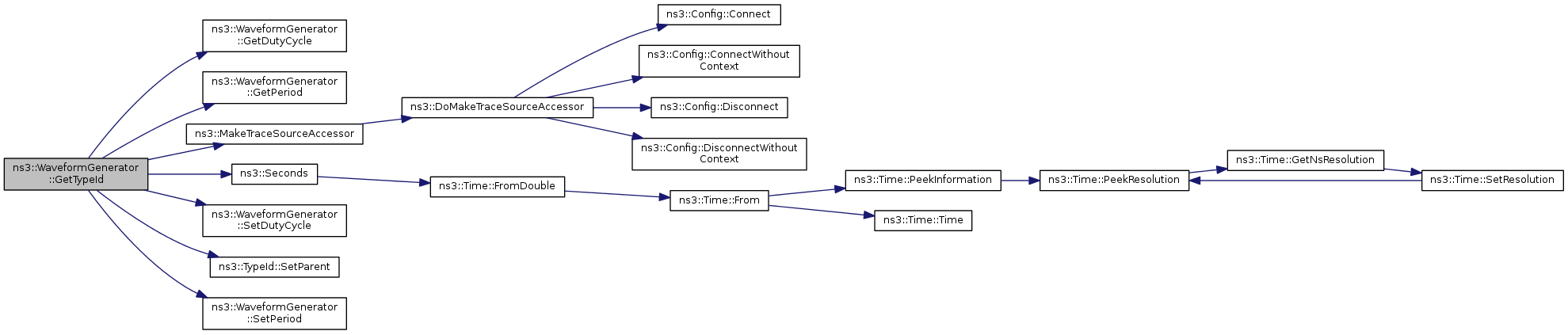

Here is the call graph for this function:
