GlobalPathlossDatabase Class Reference

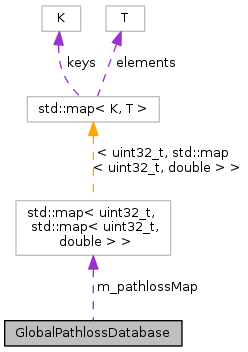

Collaboration diagram for GlobalPathlossDatabase:

Public Member Functions
void	Print ()
void	UpdatePathloss (std::string context, Ptr< SpectrumPhy > txPhy, Ptr< SpectrumPhy > rxPhy, double lossDb)

Private Attributes
std::map< uint32_t, std::map < uint32_t, double > >	m_pathlossMap

Detailed Description

Store the last pathloss value for each TX-RX pair. This is an example of how the PathlossTrace (provided by some SpectrumChannel implementations) work.

Definition at line 69 of file adhoc-aloha-ideal-phy-matrix-propagation-loss-model.cc.

Member Function Documentation

void GlobalPathlossDatabase::Print

(

void

)

print the stored pathloss values to standard output

Definition at line 105 of file adhoc-aloha-ideal-phy-matrix-propagation-loss-model.cc.

Referenced by main().

Here is the caller graph for this function:

void GlobalPathlossDatabase::UpdatePathloss	(	std::string	context,
		Ptr< SpectrumPhy >	txPhy,
		Ptr< SpectrumPhy >	rxPhy,
		double	lossDb
	)

update the pathloss value

Parameters

context
txPhy	the transmitting PHY
rxPhy	the receiving PHY
lossDb	the loss in dB

Definition at line 94 of file adhoc-aloha-ideal-phy-matrix-propagation-loss-model.cc.

References ns3::SpectrumPhy::GetMobility(), and ns3::Object::GetObject().

Referenced by main().

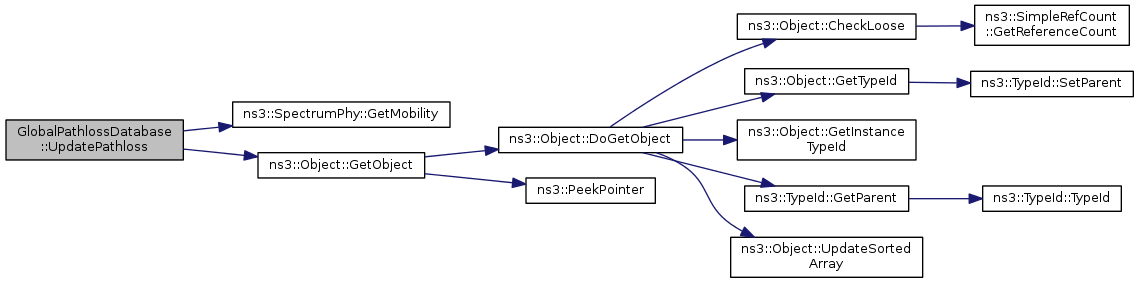

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

std::map<uint32_t, std::map<uint32_t, double> > GlobalPathlossDatabase::m_pathlossMap

private

Definition at line 90 of file adhoc-aloha-ideal-phy-matrix-propagation-loss-model.cc.

---

The documentation for this class was generated from the following file:

• src/spectrum/examples/adhoc-aloha-ideal-phy-matrix-propagation-loss-model.cc
