#include <spectrum-phy.h>

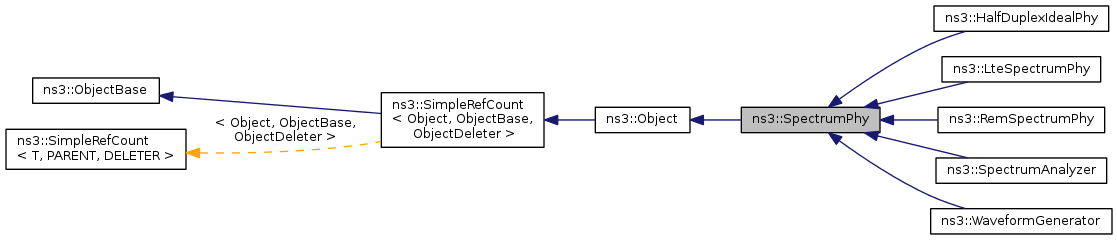

Inheritance diagram for ns3::SpectrumPhy:

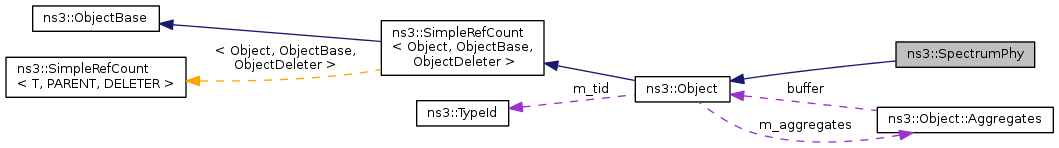

Collaboration diagram for ns3::SpectrumPhy:

Public Member Functions
	SpectrumPhy ()
virtual	~SpectrumPhy ()
virtual Ptr< NetDevice >	GetDevice ()=0
virtual Ptr< MobilityModel >	GetMobility ()=0
virtual Ptr< AntennaModel >	GetRxAntenna ()=0
virtual Ptr< const SpectrumModel >	GetRxSpectrumModel () const =0
virtual void	SetChannel (Ptr< SpectrumChannel > c)=0
virtual void	SetDevice (Ptr< NetDevice > d)=0
virtual void	SetMobility (Ptr< MobilityModel > m)=0
virtual void	StartRx (Ptr< SpectrumSignalParameters > params)=0
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
	SpectrumPhy (SpectrumPhy const &)
SpectrumPhy &	operator= (SpectrumPhy const &)

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Abstract base class for Spectrum-aware PHY layers

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 45 of file spectrum-phy.h.

Constructor & Destructor Documentation

ns3::SpectrumPhy::SpectrumPhy ( )

Definition at line 45 of file spectrum-phy.cc.

References NS_LOG_FUNCTION.

ns3::SpectrumPhy::~SpectrumPhy ( )

virtual

Definition at line 50 of file spectrum-phy.cc.

References NS_LOG_FUNCTION.

ns3::SpectrumPhy::SpectrumPhy ( SpectrumPhy const & )

private

Member Function Documentation

virtual Ptr<NetDevice> ns3::SpectrumPhy::GetDevice ( )

pure virtual

get the associated NetDevice instance

Returns: a Ptr to the associated NetDevice instance

Implemented in ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

Referenced by ns3::DownlinkLteGlobalPathlossDatabase::UpdatePathloss(), and ns3::UplinkLteGlobalPathlossDatabase::UpdatePathloss().

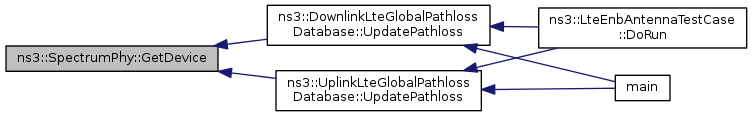

Here is the caller graph for this function:

virtual Ptr<MobilityModel> ns3::SpectrumPhy::GetMobility ( )

pure virtual

get the associated MobilityModel instance

Returns: a Ptr to the associated MobilityModel instance

Implemented in ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

Referenced by GlobalPathlossDatabase::UpdatePathloss().

Here is the caller graph for this function:

virtual Ptr<AntennaModel> ns3::SpectrumPhy::GetRxAntenna ( )

pure virtual

get the AntennaModel used by the NetDevice for reception

Returns: a Ptr to the AntennaModel used by the NetDevice for reception

Implemented in ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

virtual Ptr<const SpectrumModel> ns3::SpectrumPhy::GetRxSpectrumModel ( ) const

pure virtual

Returns: returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implemented in ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

Referenced by ns3::MultiModelSpectrumChannel::AddRx().

Here is the caller graph for this function:
