#include <lte-spectrum-phy.h>

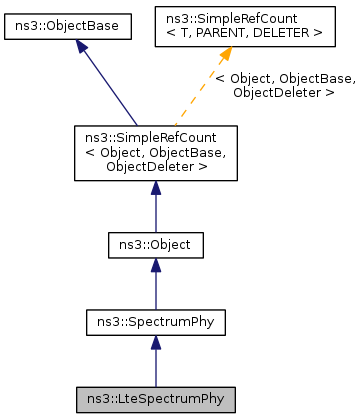

Inheritance diagram for ns3::LteSpectrumPhy:

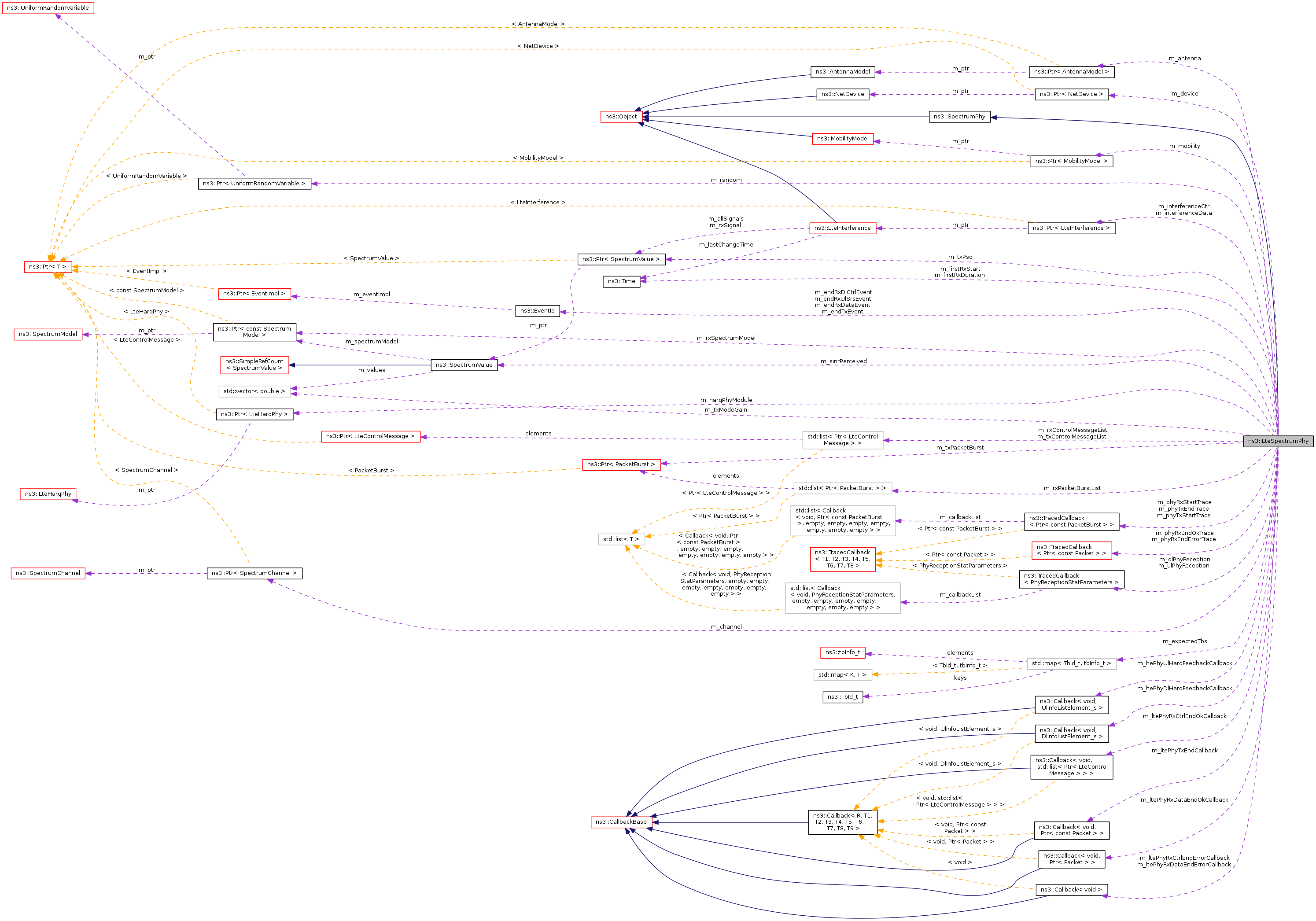

Collaboration diagram for ns3::LteSpectrumPhy:

Public Types
enum	State { IDLE, TX, RX_DATA, RX_CTRL }

Public Member Functions
	LteSpectrumPhy ()
virtual	~LteSpectrumPhy ()
void	AddCtrlSinrChunkProcessor (Ptr< LteSinrChunkProcessor > p)
void	AddDataSinrChunkProcessor (Ptr< LteSinrChunkProcessor > p)
void	AddExpectedTb (uint16_t rnti, uint8_t ndi, uint16_t size, uint8_t mcs, std::vector< int > map, uint8_t layer, uint8_t harqId, uint8_t rv, bool downlink)
void	AddInterferenceChunkProcessor (Ptr< LteSinrChunkProcessor > p)
void	AddRsPowerChunkProcessor (Ptr< LteSinrChunkProcessor > p)
int64_t	AssignStreams (int64_t stream)
virtual void	DoDispose ()
Ptr< SpectrumChannel >	GetChannel ()
Ptr< NetDevice >	GetDevice ()
Ptr< MobilityModel >	GetMobility ()
Ptr< AntennaModel >	GetRxAntenna ()
Ptr< const SpectrumModel >	GetRxSpectrumModel () const
void	Reset ()
void	SetAntenna (Ptr< AntennaModel > a)
void	SetCellId (uint16_t cellId)
void	SetChannel (Ptr< SpectrumChannel > c)
void	SetDevice (Ptr< NetDevice > d)
void	SetHarqPhyModule (Ptr< LteHarqPhy > harq)
void	SetLtePhyDlHarqFeedbackCallback (LtePhyDlHarqFeedbackCallback c)
void	SetLtePhyRxCtrlEndErrorCallback (LtePhyRxCtrlEndErrorCallback c)
void	SetLtePhyRxCtrlEndOkCallback (LtePhyRxCtrlEndOkCallback c)
void	SetLtePhyRxDataEndErrorCallback (LtePhyRxDataEndErrorCallback c)
void	SetLtePhyRxDataEndOkCallback (LtePhyRxDataEndOkCallback c)
void	SetLtePhyTxEndCallback (LtePhyTxEndCallback c)
void	SetLtePhyUlHarqFeedbackCallback (LtePhyUlHarqFeedbackCallback c)
void	SetMobility (Ptr< MobilityModel > m)
void	SetNoisePowerSpectralDensity (Ptr< const SpectrumValue > noisePsd)
	set the noise power spectral density
void	SetState (State newState)
	Set the state of the phy layer.
void	SetTransmissionMode (uint8_t txMode)
void	SetTxPowerSpectralDensity (Ptr< SpectrumValue > txPsd)
void	StartRx (Ptr< SpectrumSignalParameters > params)
void	StartRxCtrl (Ptr< SpectrumSignalParameters > params)
void	StartRxData (Ptr< LteSpectrumSignalParametersDataFrame > params)
bool	StartTxDataFrame (Ptr< PacketBurst > pb, std::list< Ptr< LteControlMessage > > ctrlMsgList, Time duration)
bool	StartTxDlCtrlFrame (std::list< Ptr< LteControlMessage > > ctrlMsgList)
bool	StartTxUlSrsFrame ()
void	UpdateSinrPerceived (const SpectrumValue &sinr)
Public Member Functions inherited from ns3::SpectrumPhy
	SpectrumPhy ()
virtual	~SpectrumPhy ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
void	ChangeState (State newState)
void	EndRxData ()
void	EndRxDlCtrl ()
void	EndRxUlSrs ()
void	EndTx ()
void	SetTxModeGain (uint8_t txMode, double gain)

Private Attributes
Ptr< AntennaModel >	m_antenna
uint16_t	m_cellId
Ptr< SpectrumChannel >	m_channel
bool	m_ctrlErrorModelEnabled
bool	m_dataErrorModelEnabled
Ptr< NetDevice >	m_device
TracedCallback < PhyReceptionStatParameters >	m_dlPhyReception
EventId	m_endRxDataEvent
EventId	m_endRxDlCtrlEvent
EventId	m_endRxUlSrsEvent
EventId	m_endTxEvent
expectedTbs_t	m_expectedTbs
Time	m_firstRxDuration
Time	m_firstRxStart
Ptr< LteHarqPhy >	m_harqPhyModule
Ptr< LteInterference >	m_interferenceCtrl
Ptr< LteInterference >	m_interferenceData
uint8_t	m_layersNum
LtePhyDlHarqFeedbackCallback	m_ltePhyDlHarqFeedbackCallback
LtePhyRxCtrlEndErrorCallback	m_ltePhyRxCtrlEndErrorCallback
LtePhyRxCtrlEndOkCallback	m_ltePhyRxCtrlEndOkCallback
LtePhyRxDataEndErrorCallback	m_ltePhyRxDataEndErrorCallback
LtePhyRxDataEndOkCallback	m_ltePhyRxDataEndOkCallback
LtePhyTxEndCallback	m_ltePhyTxEndCallback
LtePhyUlHarqFeedbackCallback	m_ltePhyUlHarqFeedbackCallback
Ptr< MobilityModel >	m_mobility
TracedCallback< Ptr< const Packet > >	m_phyRxEndErrorTrace
TracedCallback< Ptr< const Packet > >	m_phyRxEndOkTrace
TracedCallback< Ptr< const PacketBurst > >	m_phyRxStartTrace
TracedCallback< Ptr< const PacketBurst > >	m_phyTxEndTrace
TracedCallback< Ptr< const PacketBurst > >	m_phyTxStartTrace
Ptr< UniformRandomVariable >	m_random
	Provides uniform random variables.
std::list< Ptr < LteControlMessage > >	m_rxControlMessageList
std::list< Ptr< PacketBurst > >	m_rxPacketBurstList
Ptr< const SpectrumModel >	m_rxSpectrumModel
SpectrumValue	m_sinrPerceived
State	m_state
uint8_t	m_transmissionMode
std::list< Ptr < LteControlMessage > >	m_txControlMessageList
std::vector< double >	m_txModeGain
Ptr< PacketBurst >	m_txPacketBurst
Ptr< SpectrumValue >	m_txPsd
TracedCallback < PhyReceptionStatParameters >	m_ulPhyReception

Friends
class	LteUePhy

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

The LteSpectrumPhy models the physical layer of LTE

It supports a single antenna model instance which is used for both transmission and reception.

Config Paths

ns3::LteSpectrumPhy is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbPhy/DlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbPhy/UlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbPhy/DlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbPhy/UlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUePhy/DlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUePhy/UlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUePhy/DlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUePhy/UlSpectrumPhy

Attributes

DataErrorModelEnabled: Activate/Deactivate the error model of data (TBs of PDSCH and PUSCH) [by default is active].
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
CtrlErrorModelEnabled: Activate/Deactivate the error model of control (PCFICH-PDCCH decodification) [by default is active].
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

TraceSources

TxStart: Trace fired when a new transmission is started
TxEnd: Trace fired when a previosuly started transmission is finished
RxStart: Trace fired when the start of a signal is detected
RxEndOk: Trace fired when a previosuly started RX terminates successfully
RxEndError: Trace fired when a previosuly started RX terminates with an error
DlPhyReception: DL reception PHY layer statistics.
UlPhyReception: DL reception PHY layer statistics.

Definition at line 146 of file lte-spectrum-phy.h.

Member Enumeration Documentation

enum ns3::LteSpectrumPhy::State

PHY states

Enumerator:

IDLE
TX
RX_DATA
RX_CTRL

Definition at line 156 of file lte-spectrum-phy.h.

Constructor & Destructor Documentation

ns3::LteSpectrumPhy::LteSpectrumPhy ( )

Definition at line 115 of file lte-spectrum-phy.cc.

References m_interferenceCtrl, m_interferenceData, m_random, m_txModeGain, NS_LOG_FUNCTION, and ns3::ObjectBase::SetAttribute().

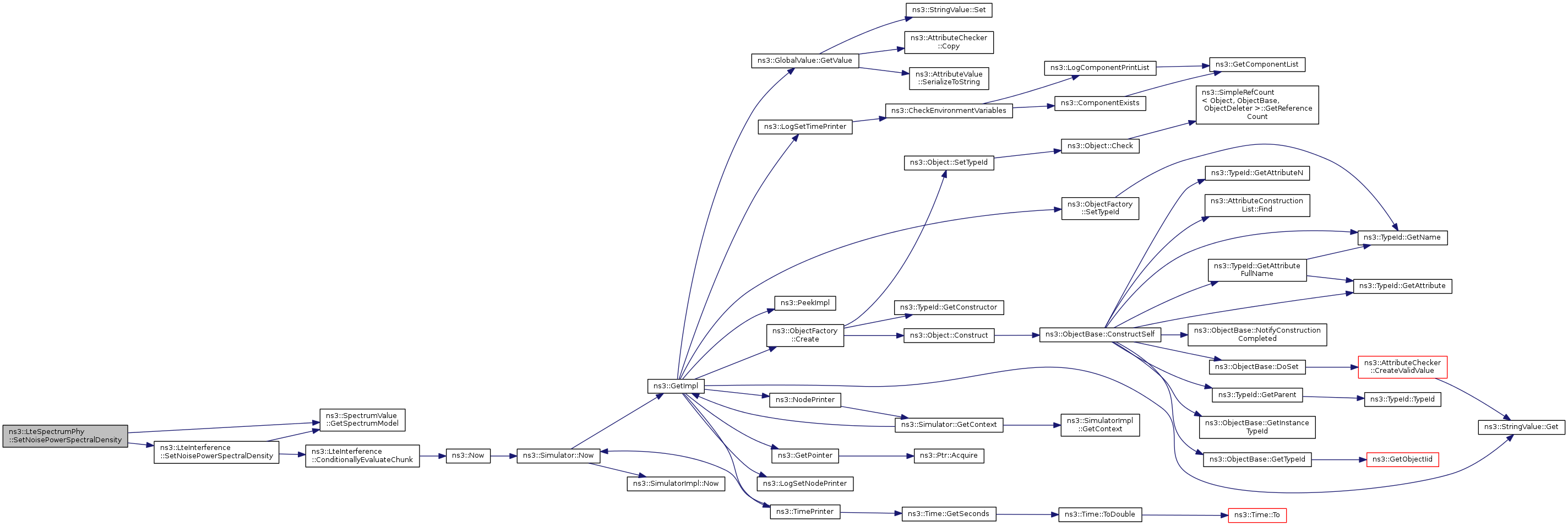

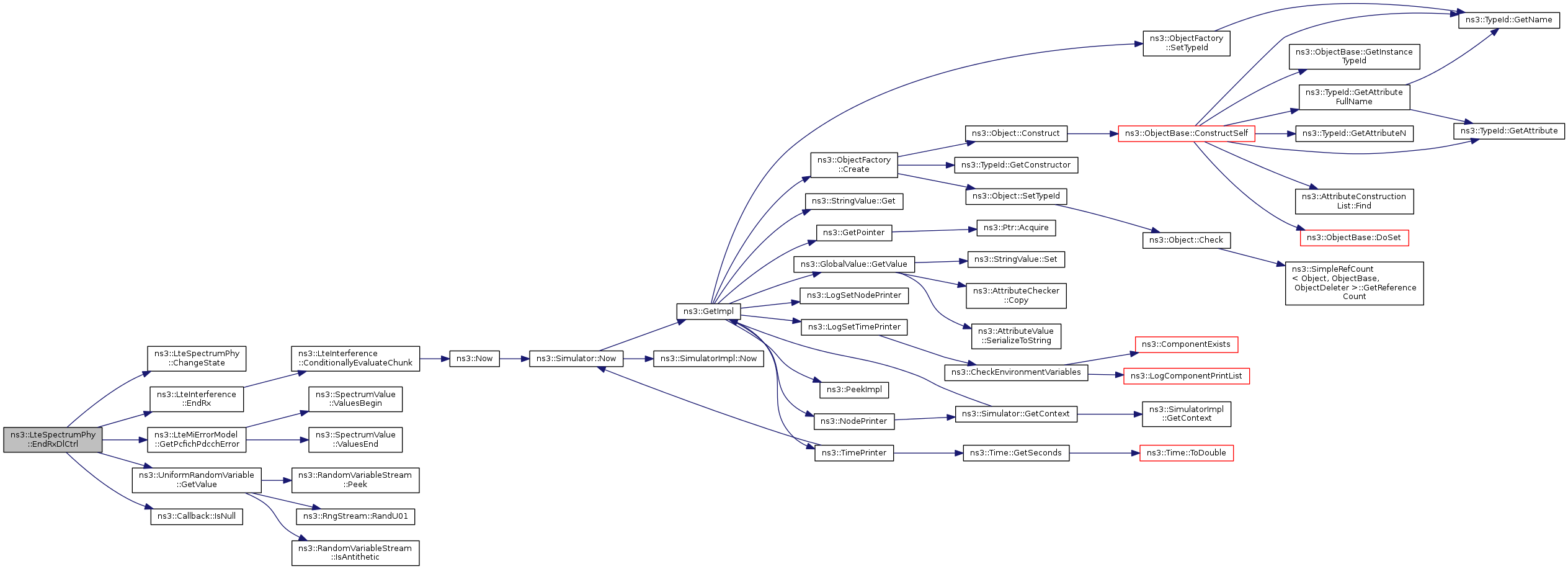

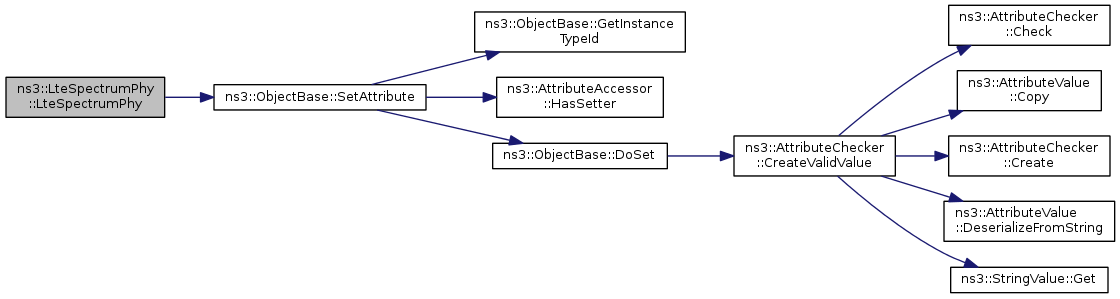

Here is the call graph for this function:

ns3::LteSpectrumPhy::~LteSpectrumPhy ( )

virtual

Definition at line 134 of file lte-spectrum-phy.cc.

References m_expectedTbs, m_txModeGain, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteSpectrumPhy::AddCtrlSinrChunkProcessor ( Ptr< LteSinrChunkProcessor > p )

Parameters

p	the new LteSinrChunkProcessor to be added to the ctrl processing chain

Definition at line 1114 of file lte-spectrum-phy.cc.

References ns3::LteInterference::AddSinrChunkProcessor(), and m_interferenceCtrl.

Referenced by ns3::LteLinkAdaptationTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::AddDataSinrChunkProcessor ( Ptr< LteSinrChunkProcessor > p )

Parameters

p	the new LteSinrChunkProcessor to be added to the data processing chain

Definition at line 1102 of file lte-spectrum-phy.cc.

References ns3::LteInterference::AddSinrChunkProcessor(), and m_interferenceData.

Referenced by ns3::LteInterferenceTestCase::DoRun(), and ns3::LteEnbAntennaTestCase::DoRun().

Here is the call graph for this function:

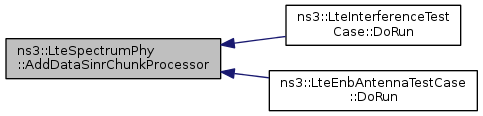

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::AddExpectedTb	(	uint16_t	rnti,
		uint8_t	ndi,
		uint16_t	size,
		uint8_t	mcs,
		std::vector< int >	map,
		uint8_t	layer,
		uint8_t	harqId,
		uint8_t	rv,
		bool	downlink
	)

Parameters

rnti	the rnti of the source of the TB
ndi	new data indicator flag
size	the size of the TB
mcs	the MCS of the TB
map	the map of RB(s) used
layer	the layer (in case of MIMO tx)
harqId	the id of the HARQ process (valid only for DL)
downlink	true when the TB is for DL

Definition at line 812 of file lte-spectrum-phy.cc.

References m_expectedTbs, ns3::TbId_t::m_layer, ns3::TbId_t::m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::ReceiveLteControlMessageList(), and ns3::LteEnbPhy::StartSubFrame().

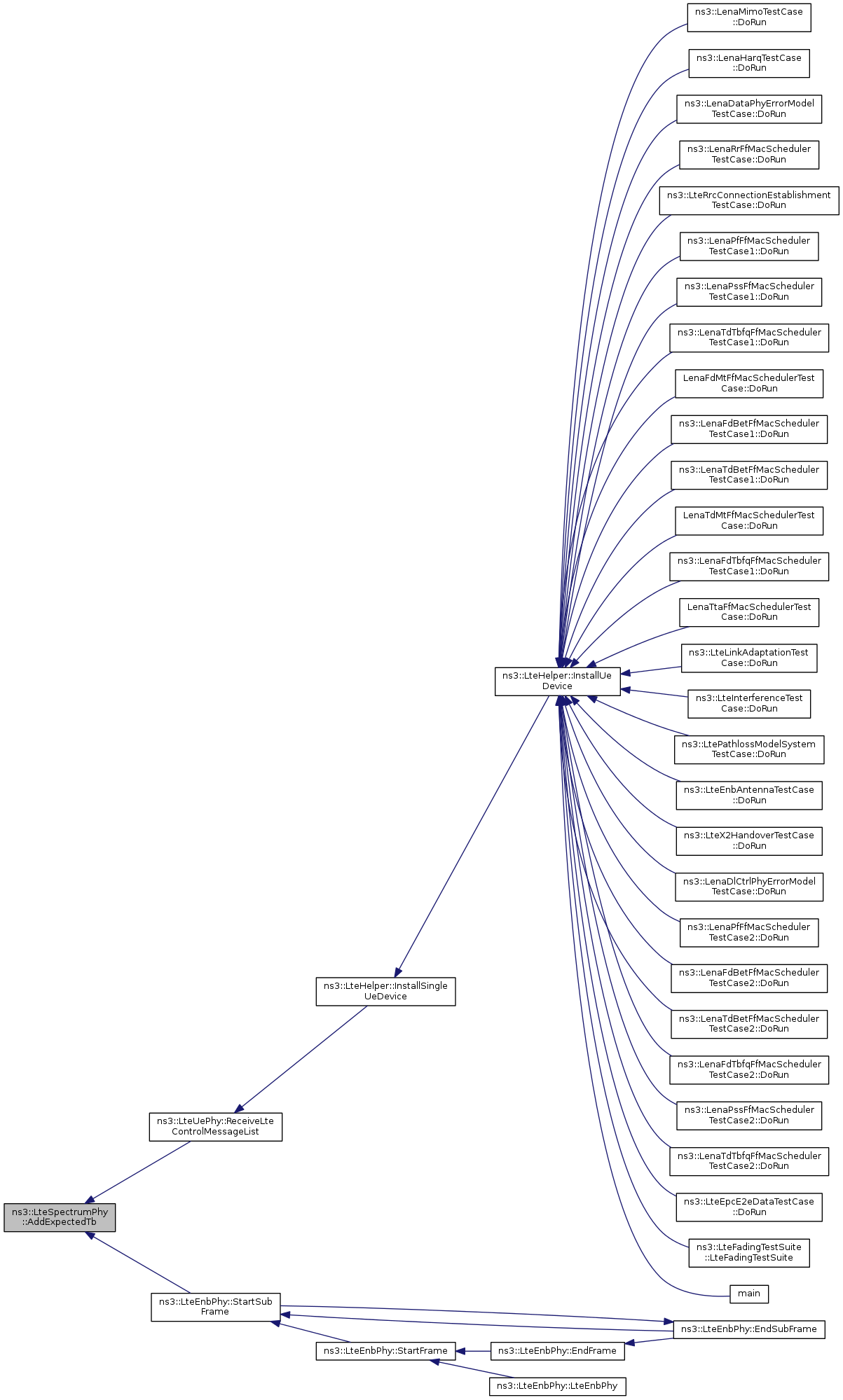

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::AddInterferenceChunkProcessor ( Ptr< LteSinrChunkProcessor > p )

LteSinrChunkProcessor devoted to evaluate intefrerence + noise power in data frame

Parameters

p	the new LteSinrChunkProcessor to be added to the data processing chain

Definition at line 1108 of file lte-spectrum-phy.cc.

References ns3::LteInterference::AddInterferenceChunkProcessor(), and m_interferenceData.

Here is the call graph for this function:

void ns3::LteSpectrumPhy::AddRsPowerChunkProcessor ( Ptr< LteSinrChunkProcessor > p )

Parameters

p	the new LteSinrChunkProcessor to be added to the RS power chain

Definition at line 1095 of file lte-spectrum-phy.cc.

References ns3::LteInterference::AddRsPowerChunkProcessor(), and m_interferenceCtrl.

Here is the call graph for this function:

int64_t ns3::LteSpectrumPhy::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 1156 of file lte-spectrum-phy.cc.

References m_random, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Referenced by ns3::LteHelper::AssignStreams().

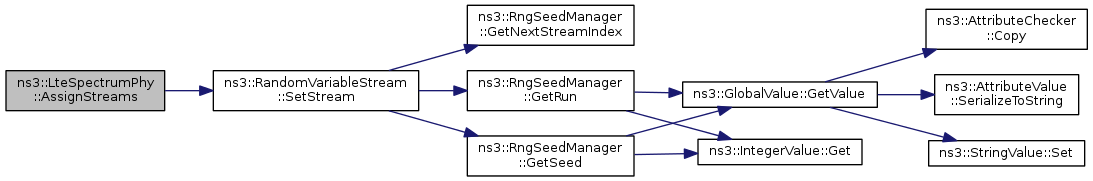

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::ChangeState ( State newState )

private

Definition at line 393 of file lte-spectrum-phy.cc.

References m_state, and NS_LOG_LOGIC.

Referenced by EndRxData(), EndRxDlCtrl(), EndRxUlSrs(), EndTx(), SetState(), StartRxCtrl(), StartRxData(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

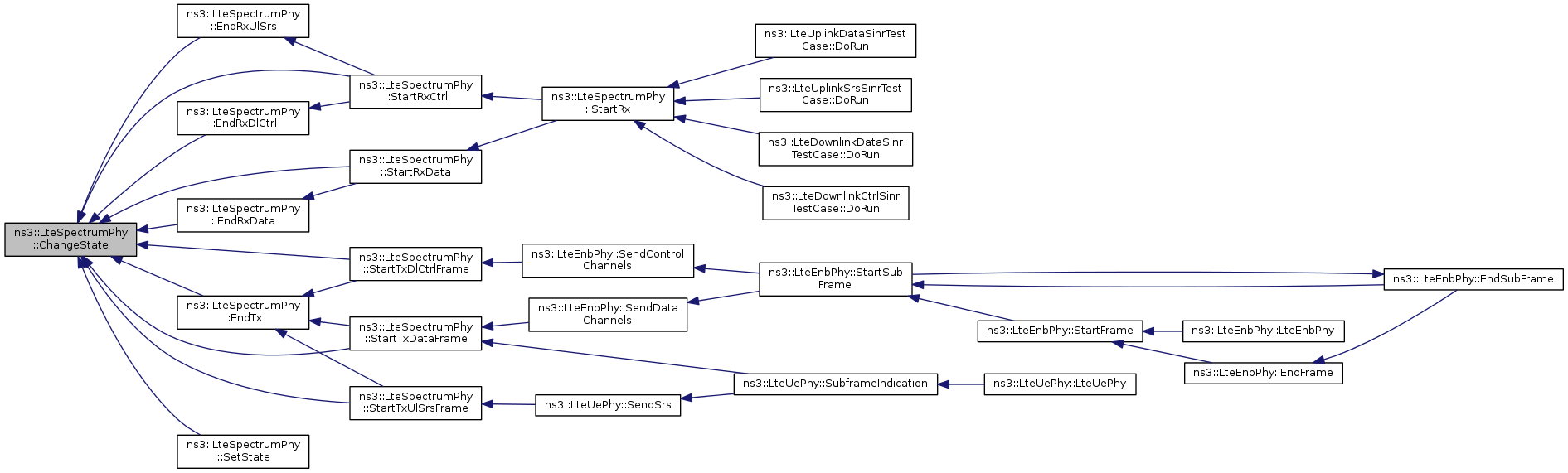

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 141 of file lte-spectrum-phy.cc.

References ns3::Object::Dispose(), m_channel, m_device, m_interferenceCtrl, m_interferenceData, m_ltePhyDlHarqFeedbackCallback, m_ltePhyRxCtrlEndErrorCallback, m_ltePhyRxCtrlEndOkCallback, m_ltePhyRxDataEndErrorCallback, m_ltePhyRxDataEndOkCallback, m_ltePhyTxEndCallback, m_ltePhyUlHarqFeedbackCallback, m_mobility, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteSpectrumPhy::EndRxData ( )

private

Definition at line 832 of file lte-spectrum-phy.cc.

References ns3::DlInfoListElement_s::ACK, ChangeState(), ns3::EffectiveCodingRate, ns3::LteInterference::EndRx(), ns3::LteHarqPhy::GetHarqProcessInfoDl(), ns3::LteHarqPhy::GetHarqProcessInfoUl(), ns3::LteRadioBearerTag::GetLayer(), ns3::Time::GetMilliSeconds(), ns3::LteRadioBearerTag::GetRnti(), ns3::LteMiErrorModel::GetTbDecodificationStats(), ns3::UniformRandomVariable::GetValue(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), list, ns3::PhyReceptionStatParameters::m_cellId, m_cellId, ns3::PhyReceptionStatParameters::m_correctness, m_dataErrorModelEnabled, m_dlPhyReception, m_expectedTbs, m_harqPhyModule, ns3::DlInfoListElement_s::m_harqProcessId, ns3::DlInfoListElement_s::m_harqStatus, ns3::PhyReceptionStatParameters::m_imsi, m_interferenceData, ns3::TbId_t::m_layer, ns3::PhyReceptionStatParameters::m_layer, m_layersNum, m_ltePhyDlHarqFeedbackCallback, m_ltePhyRxCtrlEndOkCallback, m_ltePhyRxDataEndOkCallback, m_ltePhyUlHarqFeedbackCallback, ns3::PhyReceptionStatParameters::m_mcs, ns3::PhyReceptionStatParameters::m_ndi, m_phyRxEndErrorTrace, m_phyRxEndOkTrace, m_random, ns3::UlInfoListElement_s::m_receptionStatus, ns3::TbId_t::m_rnti, ns3::PhyReceptionStatParameters::m_rnti, ns3::UlInfoListElement_s::m_rnti, ns3::DlInfoListElement_s::m_rnti, ns3::PhyReceptionStatParameters::m_rv, m_rxControlMessageList, m_rxPacketBurstList, m_sinrPerceived, ns3::PhyReceptionStatParameters::m_size, m_state, ns3::PhyReceptionStatParameters::m_timestamp, ns3::UlInfoListElement_s::m_tpc, m_transmissionMode, ns3::PhyReceptionStatParameters::m_txMode, m_txModeGain, m_ulPhyReception, ns3::TbStats_t::mi, ns3::DlInfoListElement_s::NACK, ns3::UlInfoListElement_s::NotOk, ns3::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::UlInfoListElement_s::Ok, ns3::LteHarqPhy::ResetDlHarqProcessStatus(), ns3::LteHarqPhy::ResetUlHarqProcessStatus(), RX_DATA, ns3::TbStats_t::tbler, ns3::LteHarqPhy::UpdateDlHarqProcessStatus(), and ns3::LteHarqPhy::UpdateUlHarqProcessStatus().

Referenced by StartRxData().

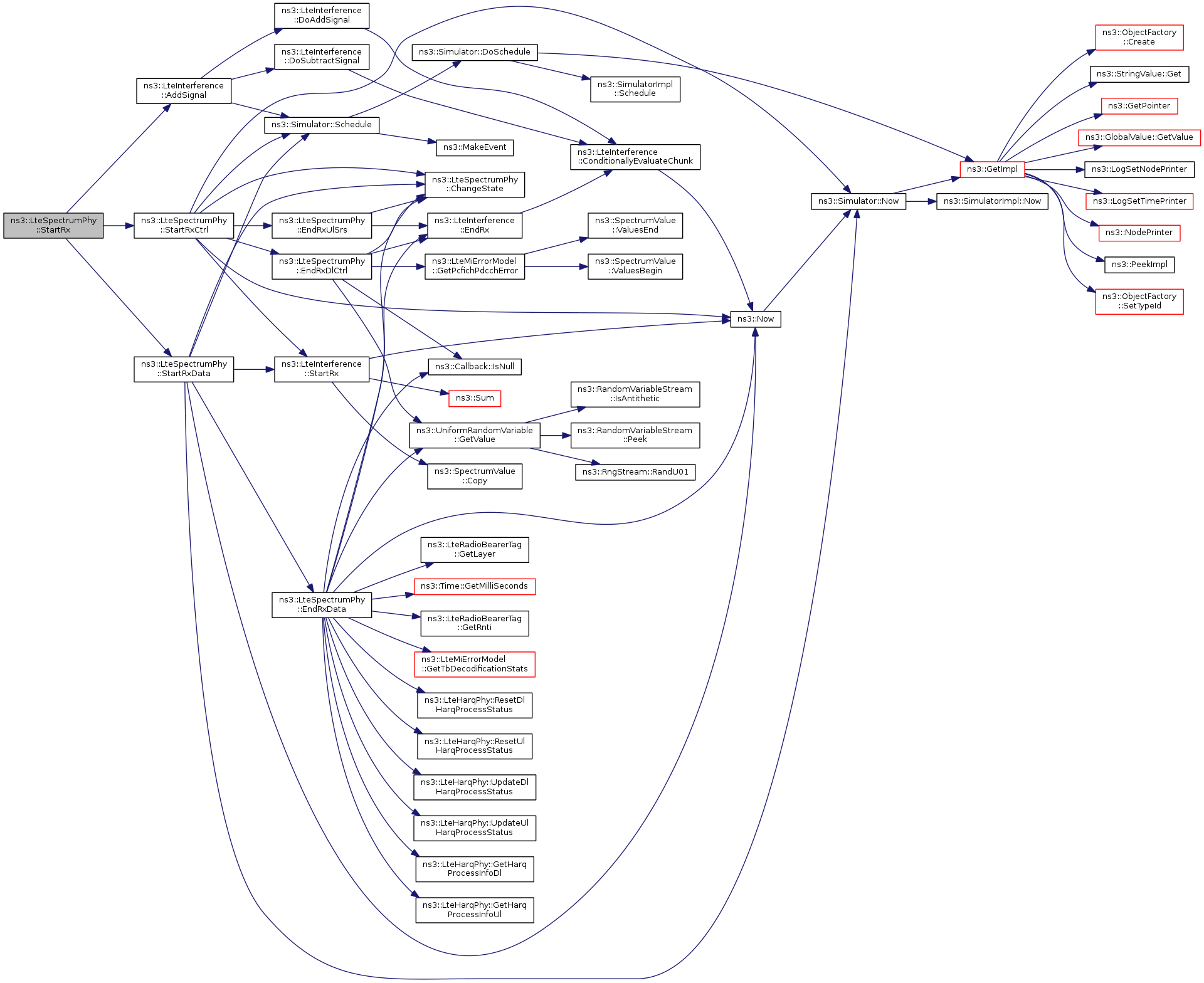

Here is the call graph for this function:

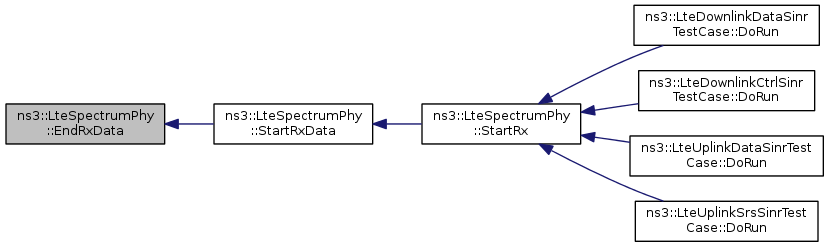

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::EndRxDlCtrl ( )

private

Definition at line 1030 of file lte-spectrum-phy.cc.

References ChangeState(), ns3::LteInterference::EndRx(), ns3::LteMiErrorModel::GetPcfichPdcchError(), ns3::UniformRandomVariable::GetValue(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_ctrlErrorModelEnabled, m_interferenceCtrl, m_ltePhyRxCtrlEndErrorCallback, m_ltePhyRxCtrlEndOkCallback, m_random, m_rxControlMessageList, m_sinrPerceived, m_state, m_transmissionMode, m_txModeGain, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and RX_CTRL.

Referenced by StartRxCtrl().

Here is the call graph for this function:

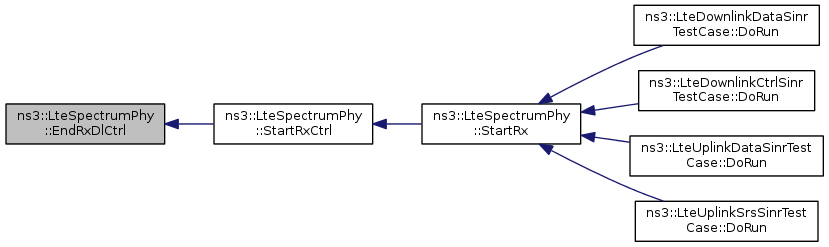

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::EndRxUlSrs ( )

private

Definition at line 1079 of file lte-spectrum-phy.cc.

References ChangeState(), ns3::LteInterference::EndRx(), IDLE, m_interferenceCtrl, m_state, NS_ASSERT, and RX_CTRL.

Referenced by StartRxCtrl().

Here is the call graph for this function:

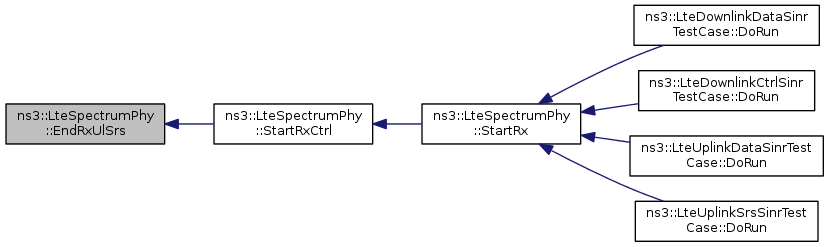

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::EndTx ( )

private

Definition at line 578 of file lte-spectrum-phy.cc.

References ns3::PacketBurst::Begin(), ChangeState(), ns3::Packet::Copy(), ns3::PacketBurst::End(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), list, m_ltePhyTxEndCallback, m_phyTxEndTrace, m_state, m_txPacketBurst, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and TX.

Referenced by StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

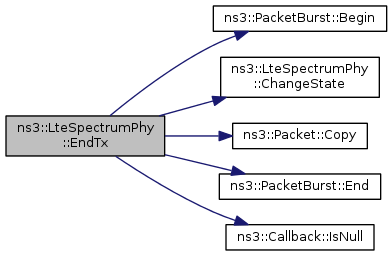

Here is the call graph for this function:

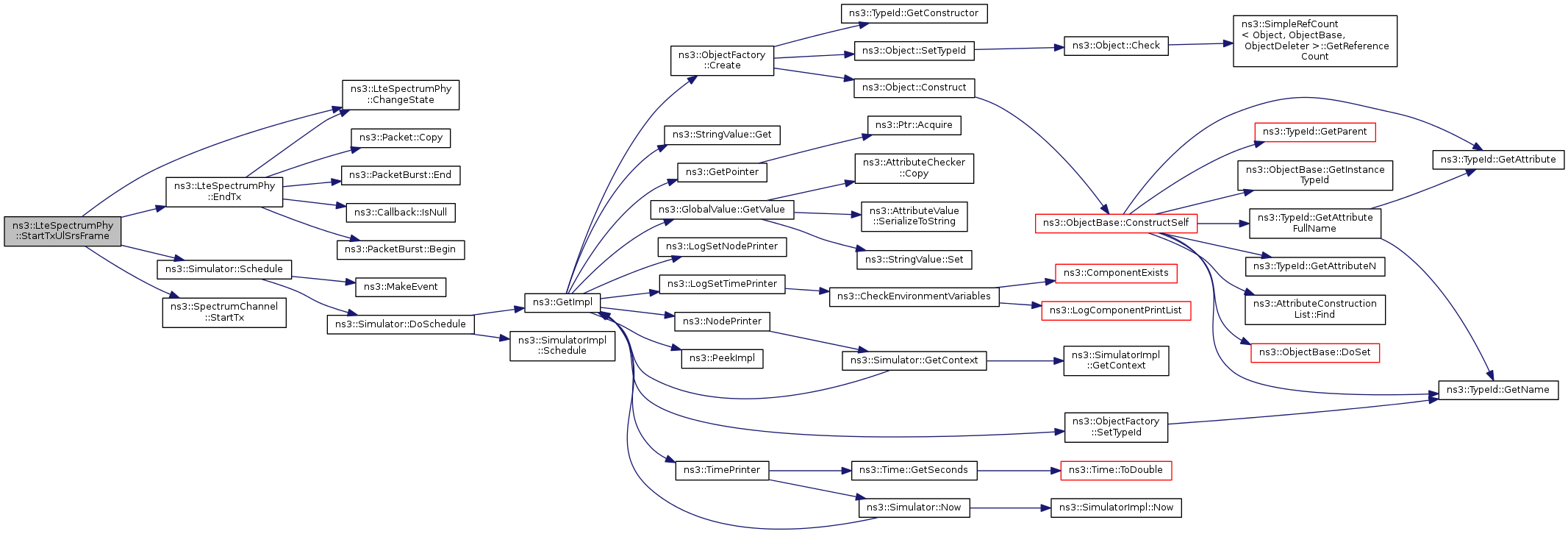

Here is the caller graph for this function:

Ptr< SpectrumChannel > ns3::LteSpectrumPhy::GetChannel ( void )

Returns: the previously set channel

Definition at line 266 of file lte-spectrum-phy.cc.

References m_channel.

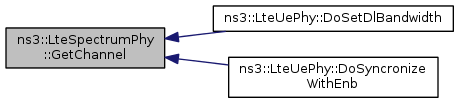

Referenced by ns3::LteUePhy::DoSetDlBandwidth(), and ns3::LteUePhy::DoSyncronizeWithEnb().

Here is the caller graph for this function:

Ptr< NetDevice > ns3::LteSpectrumPhy::GetDevice ( )

virtual

get the associated NetDevice instance

Returns: a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 227 of file lte-spectrum-phy.cc.

References m_device, and NS_LOG_FUNCTION.

Ptr< MobilityModel > ns3::LteSpectrumPhy::GetMobility ( )

virtual

get the associated MobilityModel instance

Returns: a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 235 of file lte-spectrum-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

Ptr< AntennaModel > ns3::LteSpectrumPhy::GetRxAntenna ( )

virtual

get the AntennaModel used by the NetDevice for reception

Returns: a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 373 of file lte-spectrum-phy.cc.

References m_antenna.

Ptr< const SpectrumModel > ns3::LteSpectrumPhy::GetRxSpectrumModel ( ) const

virtual

Returns: returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 272 of file lte-spectrum-phy.cc.

References m_rxSpectrumModel.

TypeId ns3::LteSpectrumPhy::GetTypeId ( void )

static

Reimplemented from ns3::SpectrumPhy.

Definition at line 185 of file lte-spectrum-phy.cc.

References m_ctrlErrorModelEnabled, m_dataErrorModelEnabled, m_dlPhyReception, m_phyRxEndErrorTrace, m_phyRxEndOkTrace, m_phyRxStartTrace, m_phyTxEndTrace, m_phyTxStartTrace, m_ulPhyReception, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

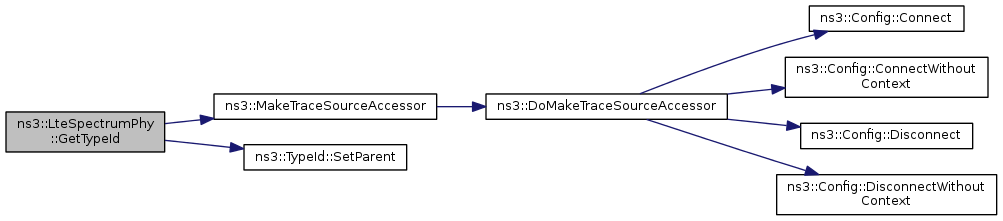

Here is the call graph for this function:

void ns3::LteSpectrumPhy::Reset ( void )

reset the internal state

Definition at line 299 of file lte-spectrum-phy.cc.

References ns3::EventId::Cancel(), IDLE, m_cellId, m_endRxDataEvent, m_endRxDlCtrlEvent, m_endRxUlSrsEvent, m_endTxEvent, m_expectedTbs, m_layersNum, m_rxControlMessageList, m_rxPacketBurstList, m_rxSpectrumModel, m_state, m_transmissionMode, m_txControlMessageList, m_txPacketBurst, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::DoReset().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::SetAntenna ( Ptr< AntennaModel > a )

set the AntennaModel to be used

Parameters

a	the Antenna Model

Definition at line 379 of file lte-spectrum-phy.cc.

References m_antenna, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetCellId ( uint16_t cellId )

Parameters

cellId the Cell Identifier

Definition at line 1088 of file lte-spectrum-phy.cc.

References m_cellId.

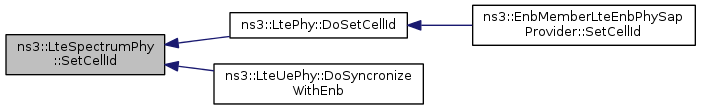

Referenced by ns3::LtePhy::DoSetCellId(), and ns3::LteUePhy::DoSyncronizeWithEnb().

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::SetChannel ( Ptr< SpectrumChannel > c )

virtual

Set the channel attached to this device.

Parameters

c	the channel

Implements ns3::SpectrumPhy.

Definition at line 259 of file lte-spectrum-phy.cc.

References m_channel, and NS_LOG_FUNCTION.

Referenced by ns3::LtePhy::SetDownlinkChannel(), and ns3::LtePhy::SetUplinkChannel().

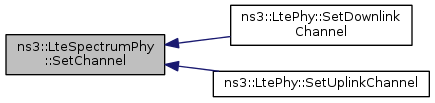

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::SetDevice ( Ptr< NetDevice > d )

virtual

set the associated NetDevice instance

Parameters

d	the NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 243 of file lte-spectrum-phy.cc.

References m_device, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetHarqPhyModule ( Ptr< LteHarqPhy > harq )

Definition at line 401 of file lte-spectrum-phy.cc.

References m_harqPhyModule.

Referenced by ns3::LteEnbPhy::LteEnbPhy().

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::SetLtePhyDlHarqFeedbackCallback ( LtePhyDlHarqFeedbackCallback c )

set the callback for the DL HARQ feedback as part of the interconnections betweenthe LteSpectrumPhy and the PHY

Parameters

c	the callback

Definition at line 358 of file lte-spectrum-phy.cc.

References m_ltePhyDlHarqFeedbackCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxCtrlEndErrorCallback ( LtePhyRxCtrlEndErrorCallback c )

set the callback for the erroneous end of a RX ctrl frame, as part of the interconnections betweenthe LteSpectrumPhy and the PHY

Parameters

c	the callback

Definition at line 351 of file lte-spectrum-phy.cc.

References m_ltePhyRxCtrlEndErrorCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxCtrlEndOkCallback ( LtePhyRxCtrlEndOkCallback c )

set the callback for the successful end of a RX ctrl frame, as part of the interconnections betweenthe LteSpectrumPhy and the PHY

Parameters

c	the callback

Definition at line 344 of file lte-spectrum-phy.cc.

References m_ltePhyRxCtrlEndOkCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxDataEndErrorCallback ( LtePhyRxDataEndErrorCallback c )

set the callback for the end of a RX in error, as part of the interconnections betweenthe PHY and the MAC

Parameters

c	the callback

Definition at line 329 of file lte-spectrum-phy.cc.

References m_ltePhyRxDataEndErrorCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxDataEndOkCallback ( LtePhyRxDataEndOkCallback c )

set the callback for the successful end of a RX, as part of the interconnections betweenthe PHY and the MAC

Parameters

c	the callback

Definition at line 337 of file lte-spectrum-phy.cc.

References m_ltePhyRxDataEndOkCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyTxEndCallback ( LtePhyTxEndCallback c )

set the callback for the end of a TX, as part of the interconnections betweenthe PHY and the MAC

Parameters

c	the callback

Definition at line 321 of file lte-spectrum-phy.cc.

References m_ltePhyTxEndCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyUlHarqFeedbackCallback ( LtePhyUlHarqFeedbackCallback c )

set the callback for the UL HARQ feedback as part of the interconnections betweenthe LteSpectrumPhy and the PHY

Parameters

c	the callback

Definition at line 365 of file lte-spectrum-phy.cc.

References m_ltePhyUlHarqFeedbackCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetMobility ( Ptr< MobilityModel > m )

virtual

Set the mobility model associated with this device.

Parameters

m	the mobility model

Implements ns3::SpectrumPhy.

Definition at line 251 of file lte-spectrum-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetNoisePowerSpectralDensity ( Ptr< const SpectrumValue > noisePsd )

set the noise power spectral density

Parameters

noisePsd the Noise Power Spectral Density in power units (Watt, Pascal...) per Hz.

Definition at line 288 of file lte-spectrum-phy.cc.

References ns3::SpectrumValue::GetSpectrumModel(), m_interferenceCtrl, m_interferenceData, m_rxSpectrumModel, NS_ASSERT, NS_LOG_FUNCTION, and ns3::LteInterference::SetNoisePowerSpectralDensity().

Referenced by ns3::LteEnbPhy::DoInitialize(), ns3::LteUePhy::DoSetDlBandwidth(), and ns3::LteUePhy::DoSyncronizeWithEnb().

Here is the call graph for this function:

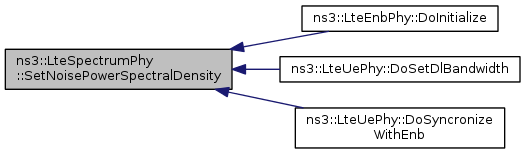

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::SetState ( State newState )

Set the state of the phy layer.

Parameters

newState the state

Definition at line 386 of file lte-spectrum-phy.cc.

References ChangeState().

Here is the call graph for this function:

void ns3::LteSpectrumPhy::SetTransmissionMode ( uint8_t txMode )

Parameters

txMode UE transmission mode (SISO, MIMO tx diversity, ...)

Definition at line 1120 of file lte-spectrum-phy.cc.

References m_layersNum, m_transmissionMode, m_txModeGain, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::TransmissionModesLayers::TxMode2LayerNum().

Referenced by ns3::LteUePhy::DoSetTransmissionMode().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::SetTxModeGain	(	uint8_t	txMode,
		double	gain
	)

private

Definition at line 1130 of file lte-spectrum-phy.cc.

References m_txModeGain, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::SetTxModeGain().

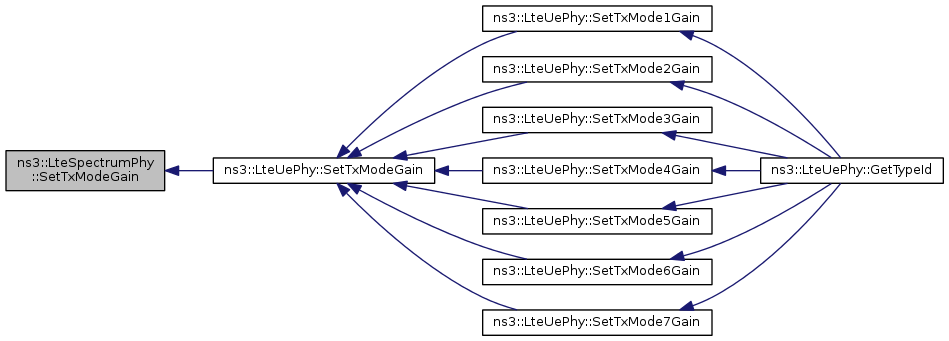

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::SetTxPowerSpectralDensity ( Ptr< SpectrumValue > txPsd )

set the Power Spectral Density of outgoing signals in W/Hz.

Parameters

txPsd

Definition at line 279 of file lte-spectrum-phy.cc.

References m_txPsd, NS_ASSERT, and NS_LOG_FUNCTION.

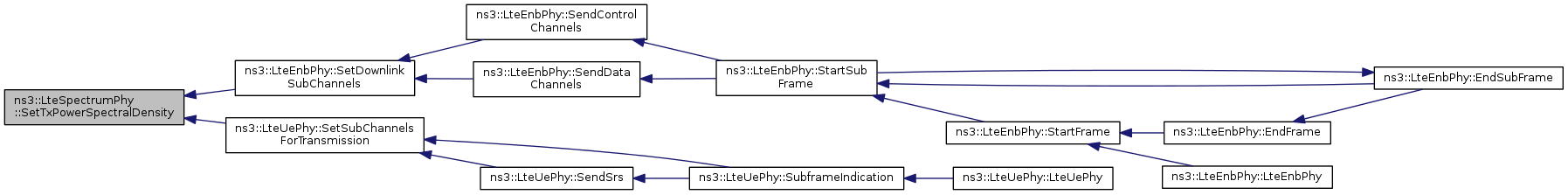

Referenced by ns3::LteEnbPhy::SetDownlinkSubChannels(), and ns3::LteUePhy::SetSubChannelsForTransmission().

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::StartRx ( Ptr< SpectrumSignalParameters > params )

virtual

Notify the SpectrumPhy instance of an incoming signal

Parameters

params the parameters of the signals being received

Implements ns3::SpectrumPhy.

Definition at line 603 of file lte-spectrum-phy.cc.

References ns3::LteInterference::AddSignal(), m_interferenceCtrl, m_interferenceData, m_state, NS_LOG_FUNCTION, NS_LOG_LOGIC, StartRxCtrl(), and StartRxData().

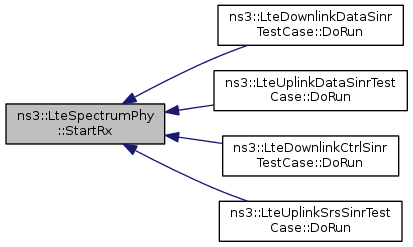

Referenced by ns3::LteDownlinkDataSinrTestCase::DoRun(), ns3::LteUplinkDataSinrTestCase::DoRun(), ns3::LteDownlinkCtrlSinrTestCase::DoRun(), and ns3::LteUplinkSrsSinrTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::StartRxCtrl ( Ptr< SpectrumSignalParameters > params )

Definition at line 715 of file lte-spectrum-phy.cc.

References ChangeState(), EndRxDlCtrl(), EndRxUlSrs(), IDLE, m_cellId, m_endRxDlCtrlEvent, m_endRxUlSrsEvent, m_firstRxDuration, m_firstRxStart, m_interferenceCtrl, m_rxControlMessageList, m_state, ns3::Now(), ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), ns3::LteInterference::StartRx(), and TX.

Referenced by StartRx().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::StartRxData ( Ptr< LteSpectrumSignalParametersDataFrame > params )

Definition at line 639 of file lte-spectrum-phy.cc.

References ChangeState(), EndRxData(), IDLE, m_cellId, m_endRxDataEvent, m_firstRxDuration, m_firstRxStart, m_interferenceData, m_phyRxStartTrace, m_rxControlMessageList, m_rxPacketBurstList, m_state, ns3::Now(), ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), ns3::LteInterference::StartRx(), and TX.

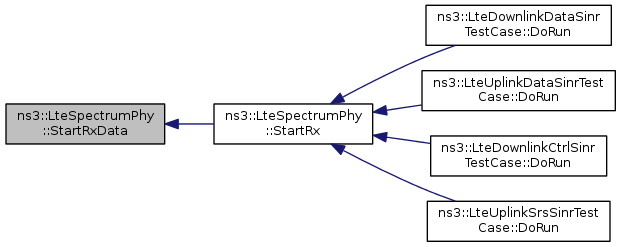

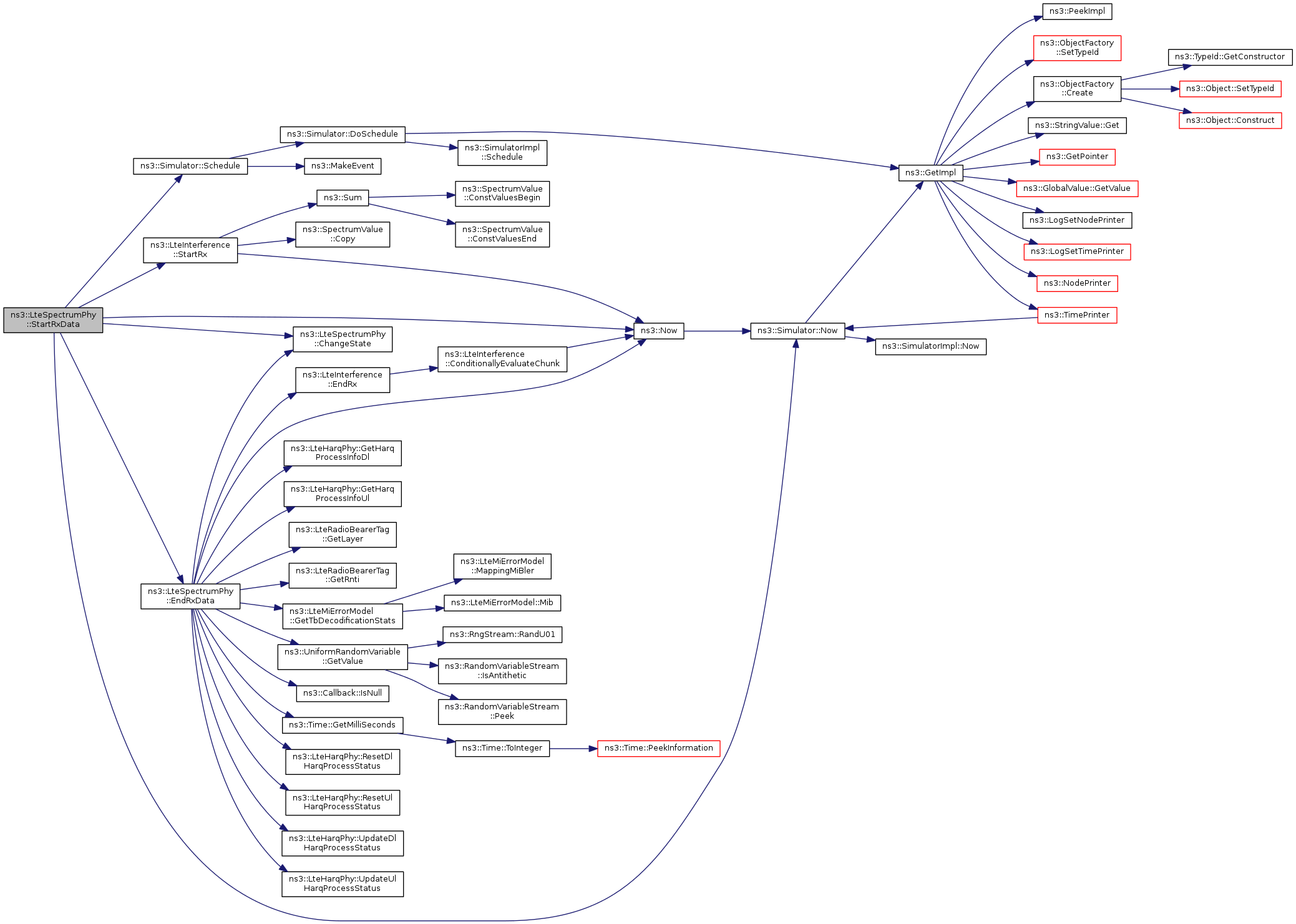

Referenced by StartRx().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::LteSpectrumPhy::StartTxDataFrame	(	Ptr< PacketBurst >	pb,
		std::list< Ptr< LteControlMessage > >	ctrlMsgList,
		Time	duration
	)

Start a transmission of data frame in DL and UL

Parameters

pb	the burst of packets to be transmitted in PDSCH/PUSCH
ctrlMsgList	the list of LteControlMessage to send
duration	the duration of the data frame

Returns: true if an error occurred and the transmission was not started, false otherwise.

Definition at line 410 of file lte-spectrum-phy.cc.

References ChangeState(), EndTx(), IDLE, m_antenna, m_cellId, m_channel, m_endTxEvent, m_phyTxStartTrace, m_state, m_txPacketBurst, m_txPsd, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), ns3::SpectrumChannel::StartTx(), and TX.

Referenced by ns3::LteEnbPhy::SendDataChannels(), and ns3::LteUePhy::SubframeIndication().

Here is the call graph for this function:

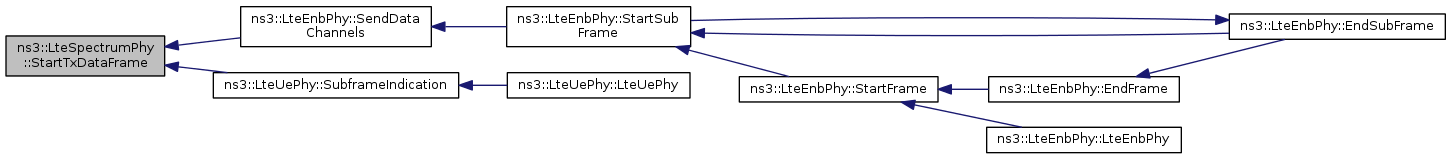

Here is the caller graph for this function:

bool ns3::LteSpectrumPhy::StartTxDlCtrlFrame ( std::list< Ptr< LteControlMessage > > ctrlMsgList )

Start a transmission of control frame in DL

Parameters

dlDci	the burst of DL-DCIs to be transmitted
ulDci	the burst of UL-DCIs to be transmitted

Returns: true if an error occurred and the transmission was not started, false otherwise.

Definition at line 466 of file lte-spectrum-phy.cc.

References ChangeState(), ns3::DL_CTRL_DURATION, EndTx(), IDLE, m_antenna, m_cellId, m_channel, m_endTxEvent, m_state, m_txPsd, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), ns3::SpectrumChannel::StartTx(), and TX.

Referenced by ns3::LteEnbPhy::SendControlChannels().

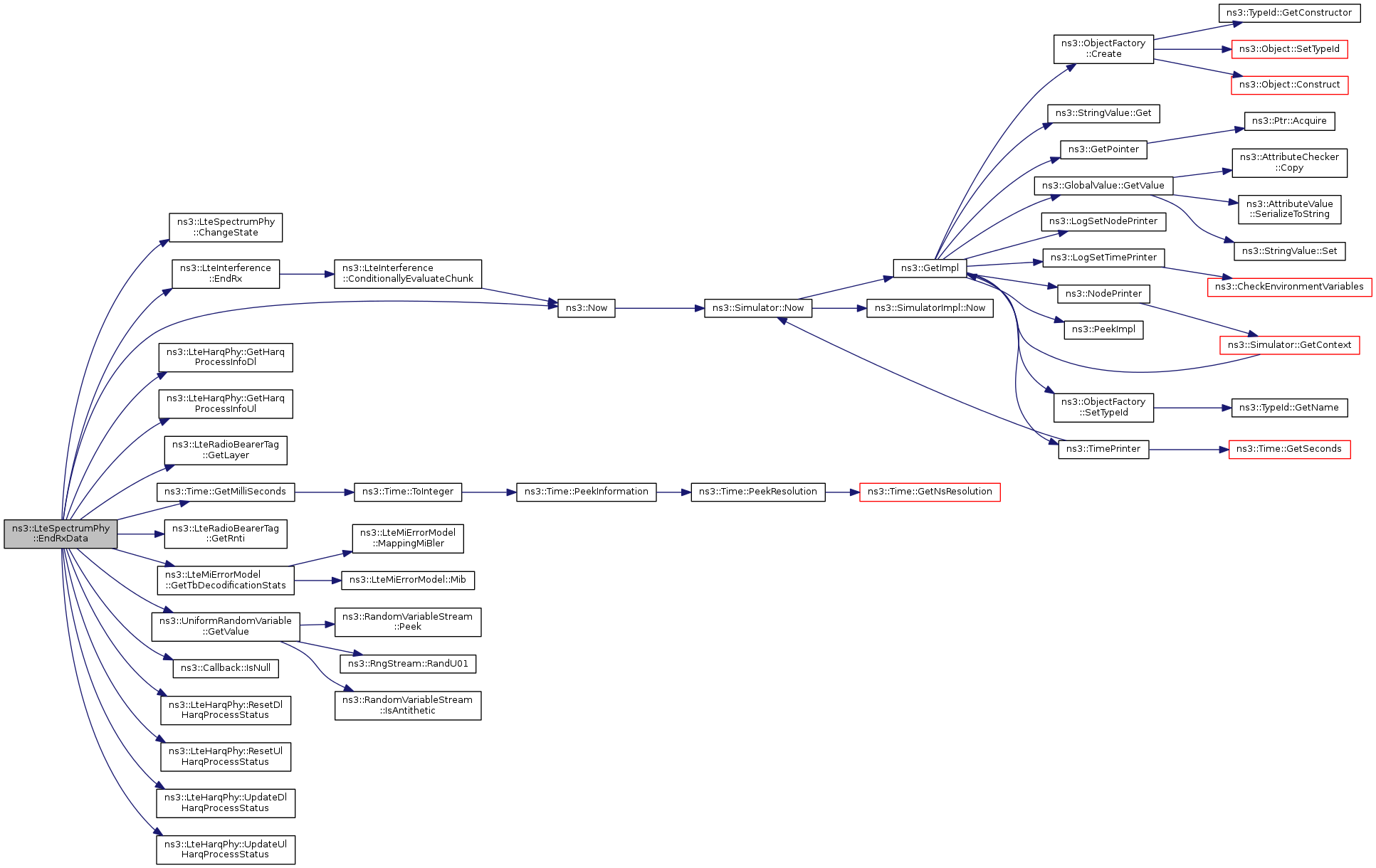

Here is the call graph for this function:

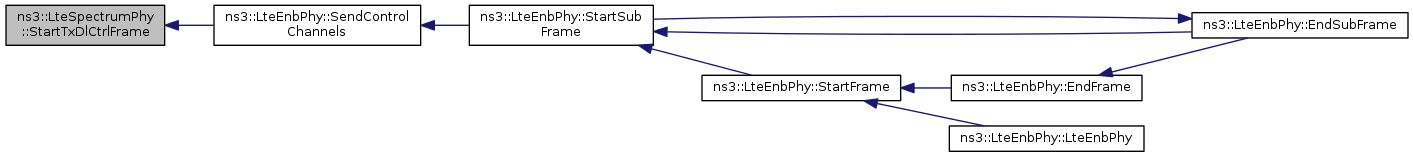

Here is the caller graph for this function:

bool ns3::LteSpectrumPhy::StartTxUlSrsFrame ( )

Start a transmission of control frame in UL

Parameters

pb	the burst of control messages to be transmitted

Returns: true if an error occurred and the transmission was not started, false otherwise.

Definition at line 522 of file lte-spectrum-phy.cc.

References ChangeState(), EndTx(), IDLE, m_antenna, m_cellId, m_channel, m_endTxEvent, m_state, m_txPsd, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), ns3::SpectrumChannel::StartTx(), TX, and ns3::UL_SRS_DURATION.

Referenced by ns3::LteUePhy::SendSrs().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::UpdateSinrPerceived ( const SpectrumValue & sinr )

Parameters

sinr	vector of sinr perceived per each RB

Definition at line 804 of file lte-spectrum-phy.cc.

References m_sinrPerceived, and NS_LOG_FUNCTION.

Referenced by ns3::LteCtrlSinrChunkProcessor::End(), and ns3::LteDataSinrChunkProcessor::End().

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class LteUePhy

friend

Definition at line 381 of file lte-spectrum-phy.h.

Member Data Documentation

Ptr<AntennaModel> ns3::LteSpectrumPhy::m_antenna

private

Definition at line 404 of file lte-spectrum-phy.h.

Referenced by GetRxAntenna(), SetAntenna(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

uint16_t ns3::LteSpectrumPhy::m_cellId

private

Definition at line 438 of file lte-spectrum-phy.h.

Referenced by EndRxData(), Reset(), SetCellId(), StartRxCtrl(), StartRxData(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

Ptr<SpectrumChannel> ns3::LteSpectrumPhy::m_channel

private

Definition at line 407 of file lte-spectrum-phy.h.

Referenced by DoDispose(), GetChannel(), SetChannel(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

bool ns3::LteSpectrumPhy::m_ctrlErrorModelEnabled

private

Definition at line 446 of file lte-spectrum-phy.h.

Referenced by EndRxDlCtrl(), and GetTypeId().

bool ns3::LteSpectrumPhy::m_dataErrorModelEnabled

private

Definition at line 445 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

Ptr<NetDevice> ns3::LteSpectrumPhy::m_device

private

Definition at line 405 of file lte-spectrum-phy.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

TracedCallback<PhyReceptionStatParameters> ns3::LteSpectrumPhy::m_dlPhyReception

private

Trace information regarding PHY stats from DL Rx perspective PhyReceptionStatParameters (see lte-common.h)

Definition at line 461 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

EventId ns3::LteSpectrumPhy::m_endRxDataEvent

private

Definition at line 471 of file lte-spectrum-phy.h.

Referenced by Reset(), and StartRxData().

EventId ns3::LteSpectrumPhy::m_endRxDlCtrlEvent

private

Definition at line 472 of file lte-spectrum-phy.h.

Referenced by Reset(), and StartRxCtrl().

EventId ns3::LteSpectrumPhy::m_endRxUlSrsEvent

private

Definition at line 473 of file lte-spectrum-phy.h.

Referenced by Reset(), and StartRxCtrl().

EventId ns3::LteSpectrumPhy::m_endTxEvent

private

Definition at line 470 of file lte-spectrum-phy.h.

Referenced by Reset(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

expectedTbs_t ns3::LteSpectrumPhy::m_expectedTbs

private

Definition at line 440 of file lte-spectrum-phy.h.

Referenced by AddExpectedTb(), EndRxData(), Reset(), and ~LteSpectrumPhy().

Time ns3::LteSpectrumPhy::m_firstRxDuration

private

Definition at line 420 of file lte-spectrum-phy.h.

Referenced by StartRxCtrl(), and StartRxData().

Time ns3::LteSpectrumPhy::m_firstRxStart

private

Definition at line 419 of file lte-spectrum-phy.h.

Referenced by StartRxCtrl(), and StartRxData().

Ptr<LteHarqPhy> ns3::LteSpectrumPhy::m_harqPhyModule

private

Definition at line 452 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and SetHarqPhyModule().

Ptr<LteInterference> ns3::LteSpectrumPhy::m_interferenceCtrl

private

Definition at line 436 of file lte-spectrum-phy.h.

Referenced by AddCtrlSinrChunkProcessor(), AddRsPowerChunkProcessor(), DoDispose(), EndRxDlCtrl(), EndRxUlSrs(), LteSpectrumPhy(), SetNoisePowerSpectralDensity(), StartRx(), and StartRxCtrl().

Ptr<LteInterference> ns3::LteSpectrumPhy::m_interferenceData

private

Definition at line 435 of file lte-spectrum-phy.h.

Referenced by AddDataSinrChunkProcessor(), AddInterferenceChunkProcessor(), DoDispose(), EndRxData(), LteSpectrumPhy(), SetNoisePowerSpectralDensity(), StartRx(), and StartRxData().

uint8_t ns3::LteSpectrumPhy::m_layersNum

private

Definition at line 449 of file lte-spectrum-phy.h.

Referenced by EndRxData(), Reset(), and SetTransmissionMode().

LtePhyDlHarqFeedbackCallback ns3::LteSpectrumPhy::m_ltePhyDlHarqFeedbackCallback

private

Definition at line 453 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxData(), and SetLtePhyDlHarqFeedbackCallback().

LtePhyRxCtrlEndErrorCallback ns3::LteSpectrumPhy::m_ltePhyRxCtrlEndErrorCallback

private

Definition at line 433 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxDlCtrl(), and SetLtePhyRxCtrlEndErrorCallback().

LtePhyRxCtrlEndOkCallback ns3::LteSpectrumPhy::m_ltePhyRxCtrlEndOkCallback

private

Definition at line 432 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxData(), EndRxDlCtrl(), and SetLtePhyRxCtrlEndOkCallback().

LtePhyRxDataEndErrorCallback ns3::LteSpectrumPhy::m_ltePhyRxDataEndErrorCallback

private

Definition at line 429 of file lte-spectrum-phy.h.

Referenced by DoDispose(), and SetLtePhyRxDataEndErrorCallback().

LtePhyRxDataEndOkCallback ns3::LteSpectrumPhy::m_ltePhyRxDataEndOkCallback

private

Definition at line 430 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxData(), and SetLtePhyRxDataEndOkCallback().

LtePhyTxEndCallback ns3::LteSpectrumPhy::m_ltePhyTxEndCallback

private

Definition at line 428 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndTx(), and SetLtePhyTxEndCallback().

LtePhyUlHarqFeedbackCallback ns3::LteSpectrumPhy::m_ltePhyUlHarqFeedbackCallback

private

Definition at line 454 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxData(), and SetLtePhyUlHarqFeedbackCallback().

Ptr<MobilityModel> ns3::LteSpectrumPhy::m_mobility

private

Definition at line 403 of file lte-spectrum-phy.h.

Referenced by DoDispose(), GetMobility(), and SetMobility().

TracedCallback<Ptr<const Packet> > ns3::LteSpectrumPhy::m_phyRxEndErrorTrace

private

Definition at line 426 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::LteSpectrumPhy::m_phyRxEndOkTrace

private

Definition at line 425 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

TracedCallback<Ptr<const PacketBurst> > ns3::LteSpectrumPhy::m_phyRxStartTrace

private

Definition at line 424 of file lte-spectrum-phy.h.

Referenced by GetTypeId(), and StartRxData().

TracedCallback<Ptr<const PacketBurst> > ns3::LteSpectrumPhy::m_phyTxEndTrace

private

Definition at line 423 of file lte-spectrum-phy.h.

Referenced by EndTx(), and GetTypeId().

TracedCallback<Ptr<const PacketBurst> > ns3::LteSpectrumPhy::m_phyTxStartTrace

private

Definition at line 422 of file lte-spectrum-phy.h.

Referenced by GetTypeId(), and StartTxDataFrame().

Ptr<UniformRandomVariable> ns3::LteSpectrumPhy::m_random

private

Provides uniform random variables.

Definition at line 444 of file lte-spectrum-phy.h.

Referenced by AssignStreams(), EndRxData(), EndRxDlCtrl(), and LteSpectrumPhy().

std::list<Ptr<LteControlMessage> > ns3::LteSpectrumPhy::m_rxControlMessageList

private

Definition at line 415 of file lte-spectrum-phy.h.

Referenced by EndRxData(), EndRxDlCtrl(), Reset(), StartRxCtrl(), and StartRxData().

std::list<Ptr<PacketBurst> > ns3::LteSpectrumPhy::m_rxPacketBurstList

private

Definition at line 412 of file lte-spectrum-phy.h.

Referenced by EndRxData(), Reset(), and StartRxData().

Ptr<const SpectrumModel> ns3::LteSpectrumPhy::m_rxSpectrumModel

private

Definition at line 409 of file lte-spectrum-phy.h.

Referenced by GetRxSpectrumModel(), Reset(), and SetNoisePowerSpectralDensity().

SpectrumValue ns3::LteSpectrumPhy::m_sinrPerceived

private

Definition at line 441 of file lte-spectrum-phy.h.

Referenced by EndRxData(), EndRxDlCtrl(), and UpdateSinrPerceived().

State ns3::LteSpectrumPhy::m_state

private

Definition at line 418 of file lte-spectrum-phy.h.

Referenced by ChangeState(), EndRxData(), EndRxDlCtrl(), EndRxUlSrs(), EndTx(), Reset(), StartRx(), StartRxCtrl(), StartRxData(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

uint8_t ns3::LteSpectrumPhy::m_transmissionMode

private

Definition at line 448 of file lte-spectrum-phy.h.

Referenced by EndRxData(), EndRxDlCtrl(), Reset(), and SetTransmissionMode().

std::list<Ptr<LteControlMessage> > ns3::LteSpectrumPhy::m_txControlMessageList

private

Definition at line 414 of file lte-spectrum-phy.h.

Referenced by Reset().

std::vector<double> ns3::LteSpectrumPhy::m_txModeGain

private

Definition at line 450 of file lte-spectrum-phy.h.

Referenced by EndRxData(), EndRxDlCtrl(), LteSpectrumPhy(), SetTransmissionMode(), SetTxModeGain(), and ~LteSpectrumPhy().

Ptr<PacketBurst> ns3::LteSpectrumPhy::m_txPacketBurst

private

Definition at line 411 of file lte-spectrum-phy.h.

Referenced by EndTx(), Reset(), and StartTxDataFrame().

Ptr<SpectrumValue> ns3::LteSpectrumPhy::m_txPsd

private

Definition at line 410 of file lte-spectrum-phy.h.

Referenced by SetTxPowerSpectralDensity(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

TracedCallback<PhyReceptionStatParameters> ns3::LteSpectrumPhy::m_ulPhyReception

private

Trace information regarding PHY stats from UL Rx perspective PhyReceptionStatParameters (see lte-common.h)

Definition at line 468 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

The documentation for this class was generated from the following files:

src/lte/model/lte-spectrum-phy.h
src/lte/model/lte-spectrum-phy.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
