ns3::LteUePhy Class Reference

#include <lte-ue-phy.h>

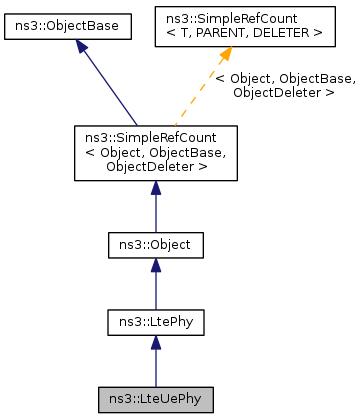

Inheritance diagram for ns3::LteUePhy:

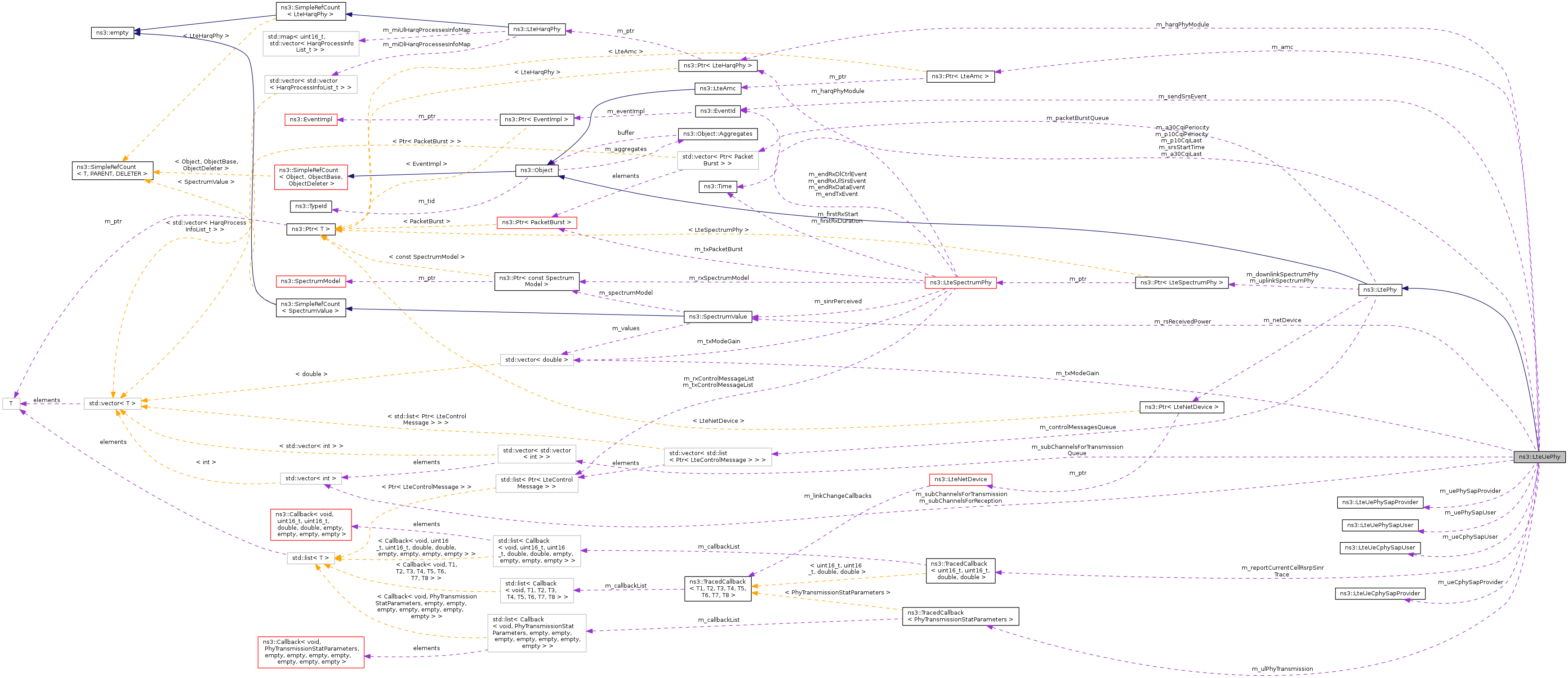

Collaboration diagram for ns3::LteUePhy:

Public Member Functions
	LteUePhy ()
	LteUePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)
virtual	~LteUePhy ()
Ptr< DlCqiLteControlMessage >	CreateDlCqiFeedbackMessage (const SpectrumValue &sinr)
	Create the DL CQI feedback from SINR values perceived at the physical layer with the signal received from eNB.
virtual Ptr< SpectrumValue >	CreateTxPowerSpectralDensity ()
	Create the PSD for the TX.
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	GenerateCtrlCqiReport (const SpectrumValue &sinr)
virtual void	GenerateDataCqiReport (const SpectrumValue &sinr)
Ptr< LteSpectrumPhy >	GetDlSpectrumPhy () const
LteUeCphySapProvider *	GetLteUeCphySapProvider ()
	Get the CPHY SAP provider.
LteUePhySapProvider *	GetLteUePhySapProvider ()
	Get the PHY SAP provider.
uint8_t	GetMacChDelay (void) const
double	GetNoiseFigure () const
std::vector< int >	GetSubChannelsForReception (void)
	Get a list of sub channels to use in RX.
std::vector< int >	GetSubChannelsForTransmission (void)
	Get a list of sub channels to use in RX.
double	GetTxPower () const
Ptr< LteSpectrumPhy >	GetUlSpectrumPhy () const
void	PhyPduReceived (Ptr< Packet > p)
	PhySpectrum received a new PHY-PDU.
virtual void	ReceiveLteControlMessageList (std::list< Ptr< LteControlMessage > >)
virtual void	ReceiveLteDlHarqFeedback (DlInfoListElement_s mes)
	PhySpectrum generated a new DL HARQ feedback.
virtual void	ReportInterference (const SpectrumValue &interf)
virtual void	ReportRsReceivedPower (const SpectrumValue &power)
void	SendSrs ()
	Send the SRS signal in the last symbols of the frame.
void	SetHarqPhyModule (Ptr< LteHarqPhy > harq)
	Set the HARQ PHY module.
void	SetLteUeCphySapUser (LteUeCphySapUser *s)
	Set the CPHY SAP User.
void	SetLteUePhySapUser (LteUePhySapUser *s)
	Set the PHY SAP User.
void	SetNoiseFigure (double pow)
void	SetSubChannelsForReception (std::vector< int > mask)
	Get a list of sub channels to use in RX.
void	SetSubChannelsForTransmission (std::vector< int > mask)
	Set a list of sub channels to use in TX.
void	SetTxPower (double pow)
void	SubframeIndication (uint32_t frameNo, uint32_t subframeNo)
	trigger from eNB the start from a new frame
Public Member Functions inherited from ns3::LtePhy
	LtePhy ()
	LtePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)
virtual	~LtePhy ()
virtual void	DoSendMacPdu (Ptr< Packet > p)=0
	Queue the MAC PDU to be sent (according to m_macChTtiDelay)
void	DoSetCellId (uint16_t cellId)
std::list< Ptr < LteControlMessage > >	GetControlMessages (void)
Ptr< LteNetDevice >	GetDevice ()
	Get the device where the phy layer is attached.
Ptr< LteSpectrumPhy >	GetDownlinkSpectrumPhy ()
Ptr< PacketBurst >	GetPacketBurst (void)
uint8_t	GetRbgSize (void) const
uint16_t	GetSrsPeriodicity (uint16_t srcCi) const
uint16_t	GetSrsSubframeOffset (uint16_t srcCi) const
double	GetTti (void) const
Ptr< LteSpectrumPhy >	GetUplinkSpectrumPhy ()
void	SetControlMessages (Ptr< LteControlMessage > m)
void	SetDevice (Ptr< LteNetDevice > d)
	Set the device where the phy layer is attached.
void	SetDownlinkChannel (Ptr< SpectrumChannel > c)
void	SetMacPdu (Ptr< Packet > p)
void	SetTti (double tti)
	Receive SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.
void	SetUplinkChannel (Ptr< SpectrumChannel > c)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
void	DoConfigureUplink (uint16_t ulEarfcn, uint8_t ulBandwidth)
void	DoReset ()
virtual void	DoSendLteControlMessage (Ptr< LteControlMessage > msg)
virtual void	DoSendMacPdu (Ptr< Packet > p)
virtual void	DoSendRachPreamble (uint32_t prachId, uint32_t raRnti)
void	DoSetDlBandwidth (uint8_t ulBandwidth)
void	DoSetRnti (uint16_t rnti)
void	DoSetSrsConfigurationIndex (uint16_t srcCi)
void	DoSetTransmissionMode (uint8_t txMode)
void	DoSyncronizeWithEnb (uint16_t cellId, uint16_t dlEarfcn)
void	QueueSubChannelsForTransmission (std::vector< int > rbMap)
void	SetTxMode1Gain (double gain)
void	SetTxMode2Gain (double gain)
void	SetTxMode3Gain (double gain)
void	SetTxMode4Gain (double gain)
void	SetTxMode5Gain (double gain)
void	SetTxMode6Gain (double gain)
void	SetTxMode7Gain (double gain)
void	SetTxModeGain (uint8_t txMode, double gain)

Private Attributes
Time	m_a30CqiLast
Time	m_a30CqiPeriocity
Ptr< LteAmc >	m_amc
bool	m_dlConfigured
Ptr< LteHarqPhy >	m_harqPhyModule
Time	m_p10CqiLast
Time	m_p10CqiPeriocity
uint32_t	m_raPreambleId
uint32_t	m_raRnti
TracedCallback< uint16_t, uint16_t, double, double >	m_reportCurrentCellRsrpSinrTrace
uint16_t	m_rnti
SpectrumValue	m_rsReceivedPower
bool	m_rsReceivedPowerUpdated
uint16_t	m_rsrpSinrSampleCounter
uint16_t	m_rsrpSinrSamplePeriod
EventId	m_sendSrsEvent
uint16_t	m_srsConfigured
uint16_t	m_srsPeriodicity
Time	m_srsStartTime
uint16_t	m_srsSubframeOffset
std::vector< int >	m_subChannelsForReception
std::vector< int >	m_subChannelsForTransmission
std::vector< std::vector< int > >	m_subChannelsForTransmissionQueue
uint8_t	m_transmissionMode
std::vector< double >	m_txModeGain
LteUeCphySapProvider *	m_ueCphySapProvider
LteUeCphySapUser *	m_ueCphySapUser
LteUePhySapProvider *	m_uePhySapProvider
LteUePhySapUser *	m_uePhySapUser
bool	m_ulConfigured
TracedCallback < PhyTransmissionStatParameters >	m_ulPhyTransmission

Friends
class	MemberLteUeCphySapProvider< LteUePhy >
class	UeMemberLteUePhySapProvider

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	NotifyNewAggregate (void)
Protected Attributes inherited from ns3::LtePhy
uint16_t	m_cellId
std::vector< std::list< Ptr < LteControlMessage > > >	m_controlMessagesQueue
uint8_t	m_dlBandwidth
uint16_t	m_dlEarfcn
Ptr< LteSpectrumPhy >	m_downlinkSpectrumPhy
uint8_t	m_macChTtiDelay
Ptr< LteNetDevice >	m_netDevice
double	m_noiseFigure
std::vector< Ptr< PacketBurst > >	m_packetBurstQueue
uint8_t	m_rbgSize
double	m_tti
double	m_txPower
uint8_t	m_ulBandwidth
uint16_t	m_ulEarfcn
Ptr< LteSpectrumPhy >	m_uplinkSpectrumPhy

Detailed Description

The LteSpectrumPhy models the physical layer of LTE

Config Paths

ns3::LteUePhy is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUePhy
• /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUePhy

Attributes

• TxPower: Transmission power in dBm
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 10
  • Flags: construct write read
• NoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0." In this model, we consider T0 = 290K.
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 9
  • Flags: construct write read
• TxMode1Gain: Transmission mode 1 gain in dB
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0
  • Flags: construct write
• TxMode2Gain: Transmission mode 2 gain in dB
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 4.2
  • Flags: construct write
• TxMode3Gain: Transmission mode 3 gain in dB
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: -2.8
  • Flags: construct write
• TxMode4Gain: Transmission mode 4 gain in dB
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0
  • Flags: construct write
• TxMode5Gain: Transmission mode 5 gain in dB
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0
  • Flags: construct write
• TxMode6Gain: Transmission mode 6 gain in dB
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0
  • Flags: construct write
• TxMode7Gain: Transmission mode 7 gain in dB
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0
  • Flags: construct write
• RsrpSinrSamplePeriod: The sampling period for reporting RSRP-SINR stats (default value 1)
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:65535
  • Initial value: 1
  • Flags: construct write read
• DlSpectrumPhy: The downlink LteSpectrumPhy associated to this LtePhy
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::LteSpectrumPhy >
  • Flags: read
• UlSpectrumPhy: The uplink LteSpectrumPhy associated to this LtePhy
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::LteSpectrumPhy >
  • Flags: read

TraceSources

• ReportCurrentCellRsrpSinr: RSRP and SINR statistics.
• UlPhyTransmission: DL transmission PHY layer statistics.

Definition at line 48 of file lte-ue-phy.h.

Constructor & Destructor Documentation

ns3::LteUePhy::LteUePhy

(

)

Warning

the default constructor should not be used

Definition at line 112 of file lte-ue-phy.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

ns3::LteUePhy::LteUePhy	(	Ptr< LteSpectrumPhy >	dlPhy,
		Ptr< LteSpectrumPhy >	ulPhy
	)

Parameters

dlPhy	the downlink LteSpectrumPhy instance
ulPhy	the uplink LteSpectrumPhy instance

Definition at line 118 of file lte-ue-phy.cc.

References DoReset(), m_amc, ns3::LtePhy::m_macChTtiDelay, m_ueCphySapProvider, m_uePhySapProvider, ns3::Simulator::Now(), NS_ASSERT_MSG, ns3::Simulator::ScheduleNow(), SubframeIndication(), UeMemberLteUePhySapProvider, and UL_PUSCH_TTIS_DELAY.

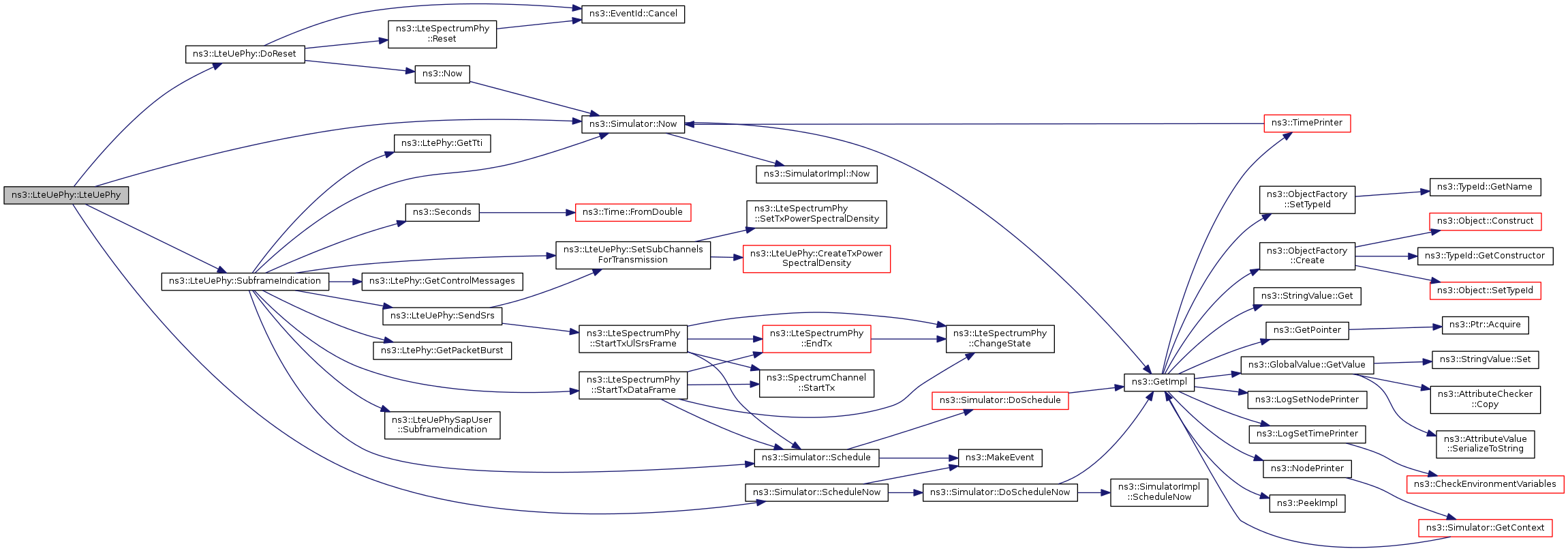

Here is the call graph for this function:

ns3::LteUePhy::~LteUePhy ( )

virtual

Definition at line 140 of file lte-ue-phy.cc.

References m_txModeGain.

Member Function Documentation

Ptr< DlCqiLteControlMessage > ns3::LteUePhy::CreateDlCqiFeedbackMessage

(

const SpectrumValue &

sinr

)

Create the DL CQI feedback from SINR values perceived at the physical layer with the signal received from eNB.

Parameters

sinr	SINR values vector

Definition at line 443 of file lte-ue-phy.cc.

References ns3::CqiListElement_s::A30, ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), ns3::LteAmc::CreateCqiFeedbacks(), ns3::LtePhy::GetRbgSize(), m_a30CqiLast, m_a30CqiPeriocity, m_amc, ns3::LtePhy::m_cellId, ns3::LtePhy::m_dlBandwidth, ns3::SbMeasResult_s::m_higherLayerSelected, m_p10CqiLast, m_p10CqiPeriocity, m_reportCurrentCellRsrpSinrTrace, m_rnti, m_rsReceivedPower, m_rsReceivedPowerUpdated, m_rsrpSinrSampleCounter, m_rsrpSinrSamplePeriod, ns3::HigherLayerSelected_s::m_sbCqi, ns3::HigherLayerSelected_s::m_sbPmi, m_transmissionMode, m_txModeGain, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::CqiListElement_s::P10, and ns3::TransmissionModesLayers::TxMode2LayerNum().

Referenced by GenerateCtrlCqiReport().

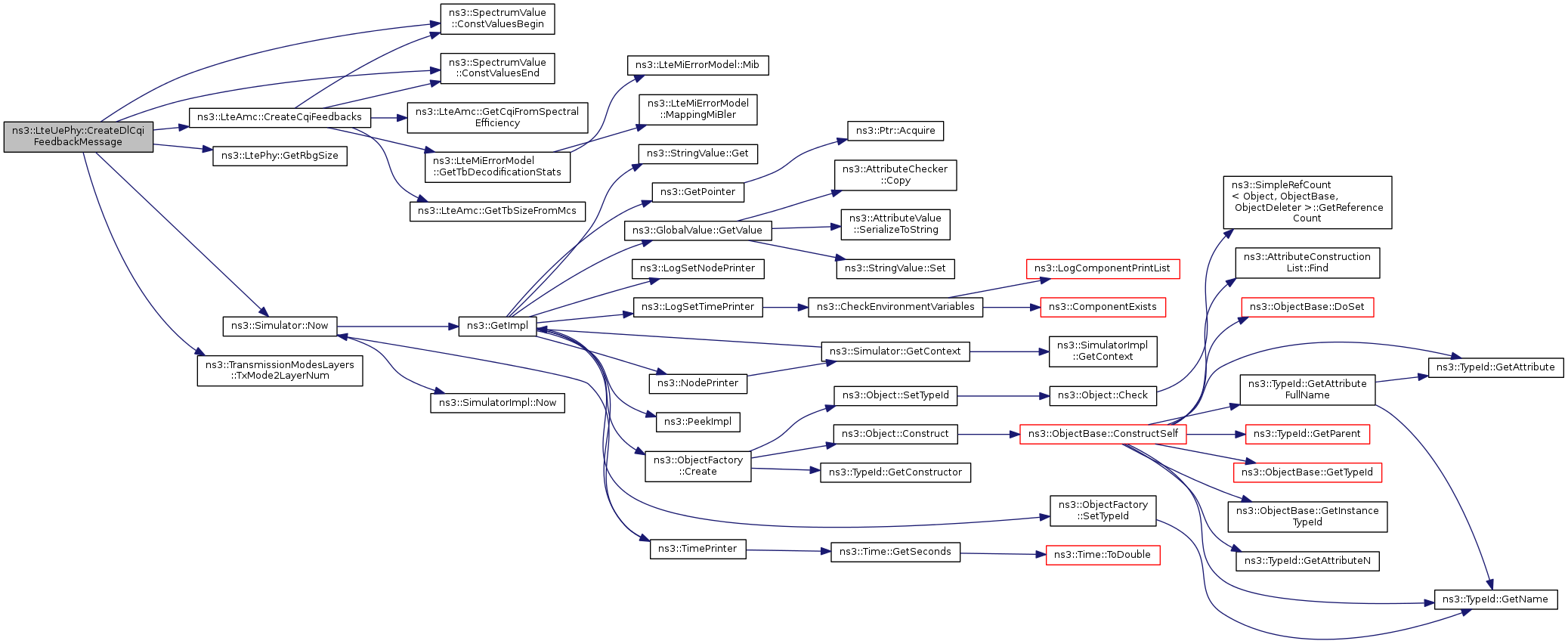

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< SpectrumValue > ns3::LteUePhy::CreateTxPowerSpectralDensity ( )

virtual

Create the PSD for the TX.

Returns

the pointer to the PSD

Implements ns3::LtePhy.

Definition at line 377 of file lte-ue-phy.cc.

References ns3::LteSpectrumValueHelper::CreateTxPowerSpectralDensity(), GetSubChannelsForTransmission(), ns3::LtePhy::m_txPower, ns3::LtePhy::m_ulBandwidth, ns3::LtePhy::m_ulEarfcn, and NS_LOG_FUNCTION.

Referenced by SetSubChannelsForTransmission().

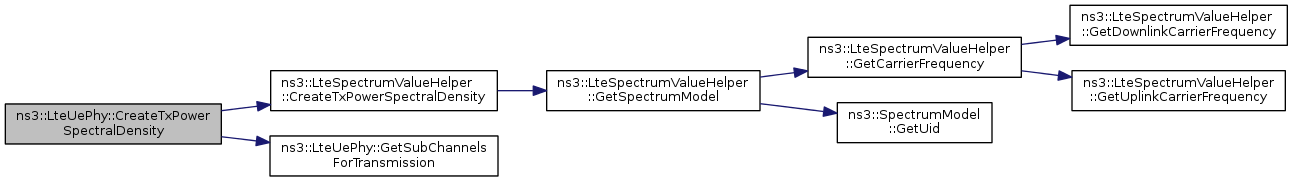

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoConfigureUplink ( uint16_t  ulEarfcn, uint8_t  ulBandwidth  )

private

Definition at line 929 of file lte-ue-phy.cc.

References ns3::LtePhy::m_ulBandwidth, m_ulConfigured, and ns3::LtePhy::m_ulEarfcn.

void ns3::LteUePhy::DoDispose ( void  )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LtePhy.

Definition at line 146 of file lte-ue-phy.cc.

References m_ueCphySapProvider, m_uePhySapProvider, and NS_LOG_FUNCTION.

void ns3::LteUePhy::DoInitialize ( void  )

virtual

This method is called only once by Object::Initialize. If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 243 of file lte-ue-phy.cc.

References NS_LOG_FUNCTION.

void ns3::LteUePhy::DoReset ( void  )

private

Definition at line 844 of file lte-ue-phy.cc.

References ns3::EventId::Cancel(), m_a30CqiLast, ns3::LtePhy::m_controlMessagesQueue, m_dlConfigured, ns3::LtePhy::m_downlinkSpectrumPhy, ns3::LtePhy::m_macChTtiDelay, m_p10CqiLast, ns3::LtePhy::m_packetBurstQueue, m_raPreambleId, m_raRnti, m_rnti, m_rsrpSinrSampleCounter, m_sendSrsEvent, m_srsConfigured, m_srsPeriodicity, m_subChannelsForTransmissionQueue, m_transmissionMode, m_ulConfigured, ns3::LtePhy::m_uplinkSpectrumPhy, ns3::Now(), NS_LOG_FUNCTION, and ns3::LteSpectrumPhy::Reset().

Referenced by LteUePhy().

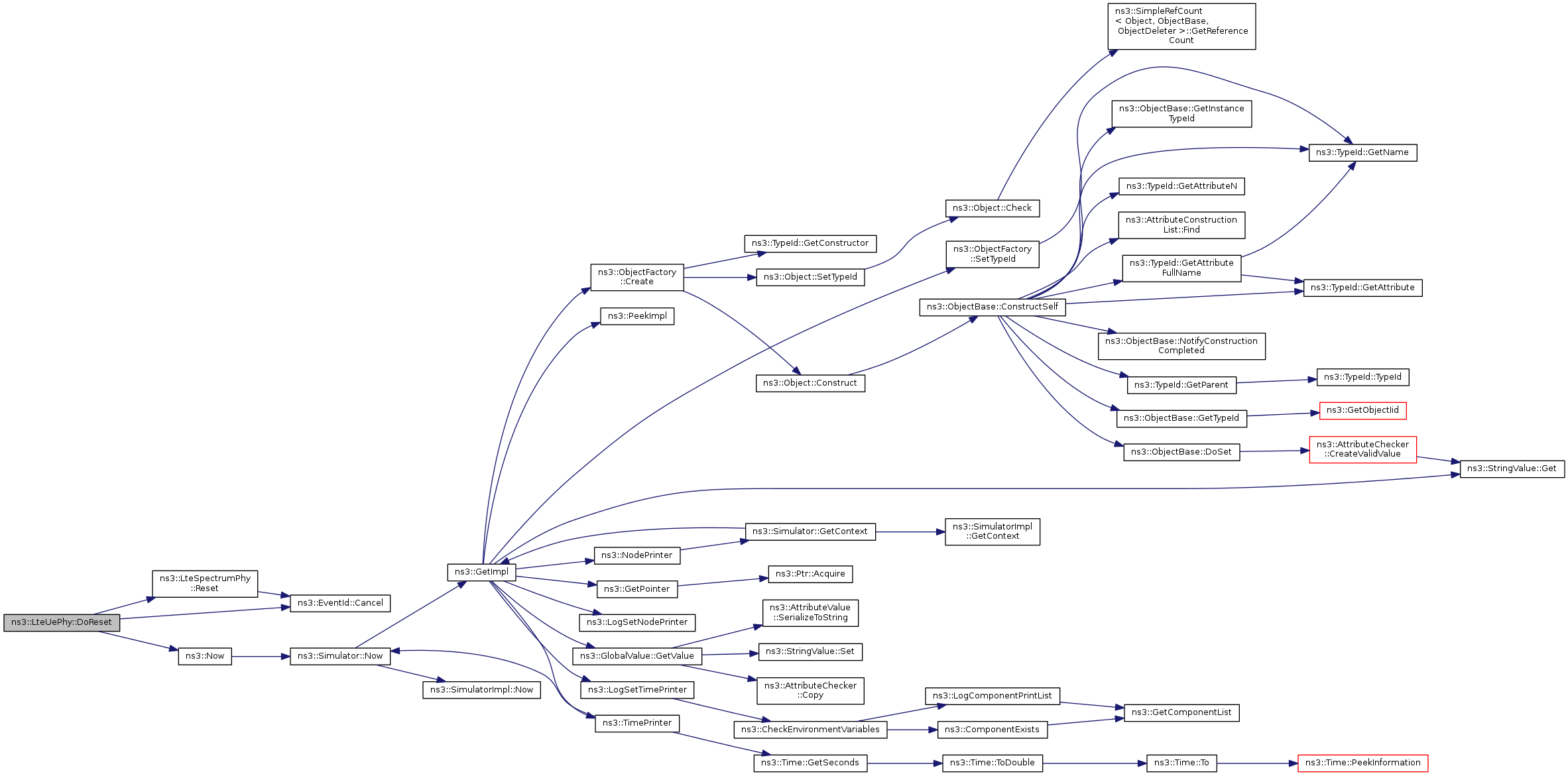

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoSendLteControlMessage ( Ptr< LteControlMessage >  msg )

privatevirtual

Definition at line 584 of file lte-ue-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetControlMessages().

Referenced by GenerateCtrlCqiReport(), and ns3::UeMemberLteUePhySapProvider::SendLteControlMessage().

Here is the call graph for this function:

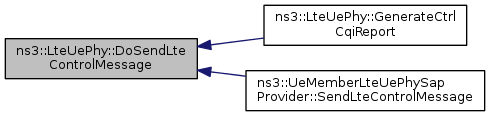

Here is the caller graph for this function:

void ns3::LteUePhy::DoSendMacPdu ( Ptr< Packet >  p )

privatevirtual

Definition at line 326 of file lte-ue-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetMacPdu().

Referenced by ns3::UeMemberLteUePhySapProvider::SendMacPdu().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoSendRachPreamble ( uint32_t  prachId, uint32_t  raRnti  )

privatevirtual

Definition at line 592 of file lte-ue-phy.cc.

References ns3::LtePhy::m_controlMessagesQueue, m_raPreambleId, m_raRnti, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUePhySapProvider::SendRachPreamble().

Here is the caller graph for this function:

void ns3::LteUePhy::DoSetDlBandwidth ( uint8_t  ulBandwidth )

private

Definition at line 898 of file lte-ue-phy.cc.

References ns3::SpectrumChannel::AddRx(), ns3::LteSpectrumValueHelper::CreateNoisePowerSpectralDensity(), ns3::LteSpectrumPhy::GetChannel(), ns3::LtePhy::m_dlBandwidth, m_dlConfigured, ns3::LtePhy::m_dlEarfcn, ns3::LtePhy::m_downlinkSpectrumPhy, ns3::LtePhy::m_noiseFigure, ns3::LtePhy::m_rbgSize, NS_LOG_FUNCTION, ns3::LteSpectrumPhy::SetNoisePowerSpectralDensity(), and ns3::Type0AllocationRbg.

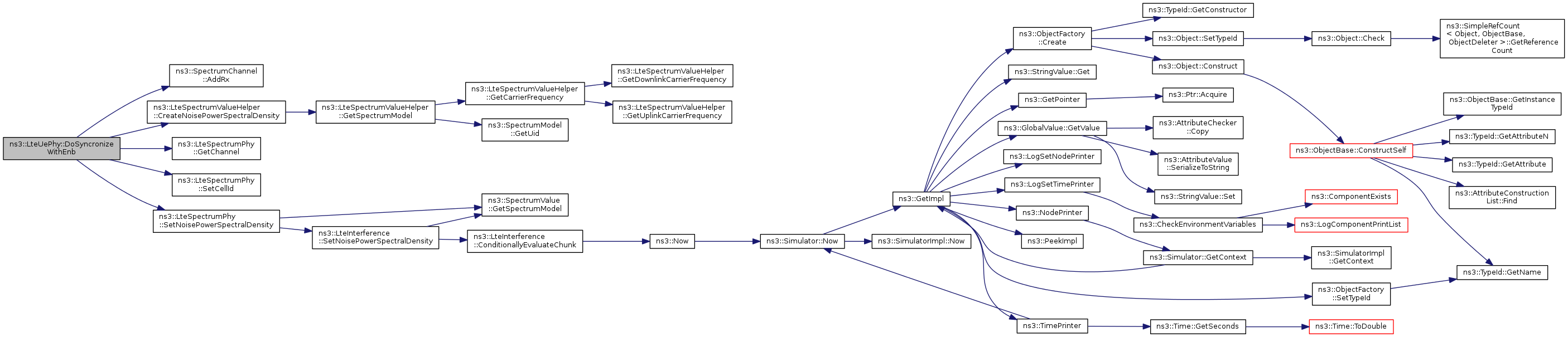

Here is the call graph for this function:

void ns3::LteUePhy::DoSetRnti ( uint16_t  rnti )

private

Definition at line 938 of file lte-ue-phy.cc.

References m_rnti, and NS_LOG_FUNCTION.

void ns3::LteUePhy::DoSetSrsConfigurationIndex ( uint16_t  srcCi )

private

Definition at line 953 of file lte-ue-phy.cc.

References ns3::LtePhy::GetSrsPeriodicity(), ns3::LtePhy::GetSrsSubframeOffset(), ns3::LtePhy::m_cellId, m_rnti, m_srsConfigured, m_srsPeriodicity, m_srsStartTime, m_srsSubframeOffset, ns3::MilliSeconds(), ns3::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

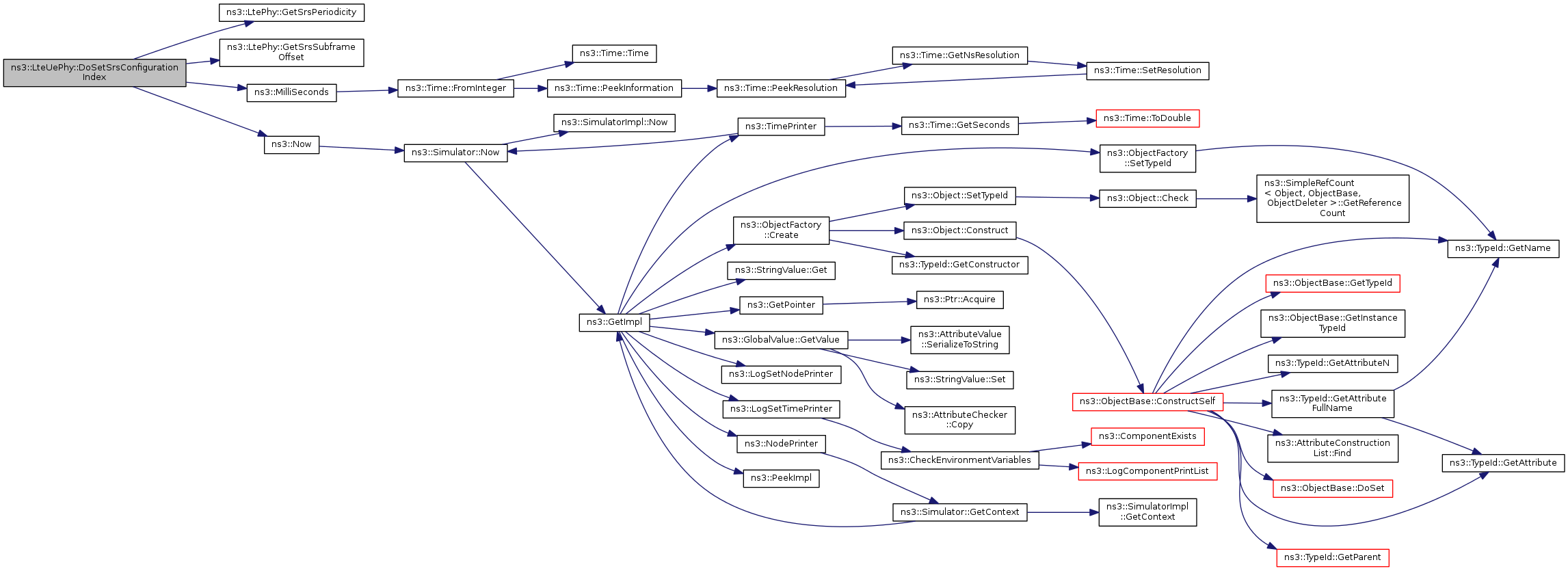

Here is the call graph for this function:

void ns3::LteUePhy::DoSetTransmissionMode ( uint8_t  txMode )

private

Definition at line 945 of file lte-ue-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy, m_transmissionMode, NS_LOG_FUNCTION, and ns3::LteSpectrumPhy::SetTransmissionMode().

Here is the call graph for this function:

void ns3::LteUePhy::DoSyncronizeWithEnb ( uint16_t  cellId, uint16_t  dlEarfcn  )

private

Definition at line 879 of file lte-ue-phy.cc.

References ns3::SpectrumChannel::AddRx(), ns3::LteSpectrumValueHelper::CreateNoisePowerSpectralDensity(), ns3::LteSpectrumPhy::GetChannel(), ns3::LtePhy::m_cellId, ns3::LtePhy::m_dlBandwidth, m_dlConfigured, ns3::LtePhy::m_dlEarfcn, ns3::LtePhy::m_downlinkSpectrumPhy, ns3::LtePhy::m_noiseFigure, m_ulConfigured, ns3::LtePhy::m_uplinkSpectrumPhy, NS_LOG_FUNCTION, ns3::LteSpectrumPhy::SetCellId(), and ns3::LteSpectrumPhy::SetNoisePowerSpectralDensity().

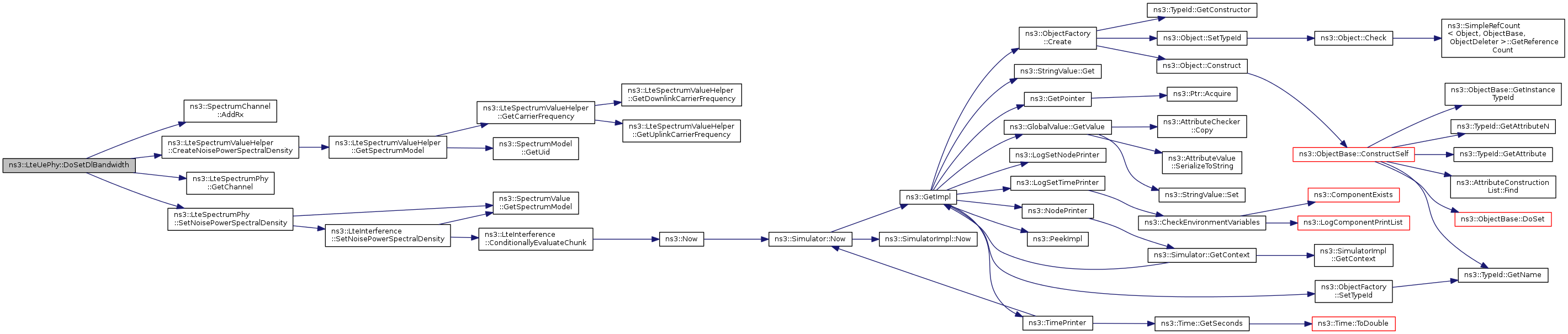

Here is the call graph for this function:

void ns3::LteUePhy::GenerateCtrlCqiReport ( const SpectrumValue &  sinr )

virtual

generate a CQI report based on the given SINR of Ctrl frame

Parameters

sinr	the SINR vs frequency measured by the device

Implements ns3::LtePhy.

Definition at line 387 of file lte-ue-phy.cc.

References CreateDlCqiFeedbackMessage(), DoSendLteControlMessage(), ns3::LtePhy::GetDevice(), ns3::Object::GetObject(), m_a30CqiLast, m_a30CqiPeriocity, m_dlConfigured, m_p10CqiLast, m_p10CqiPeriocity, m_ulConfigured, ns3::Now(), ns3::Simulator::Now(), and NS_LOG_FUNCTION.

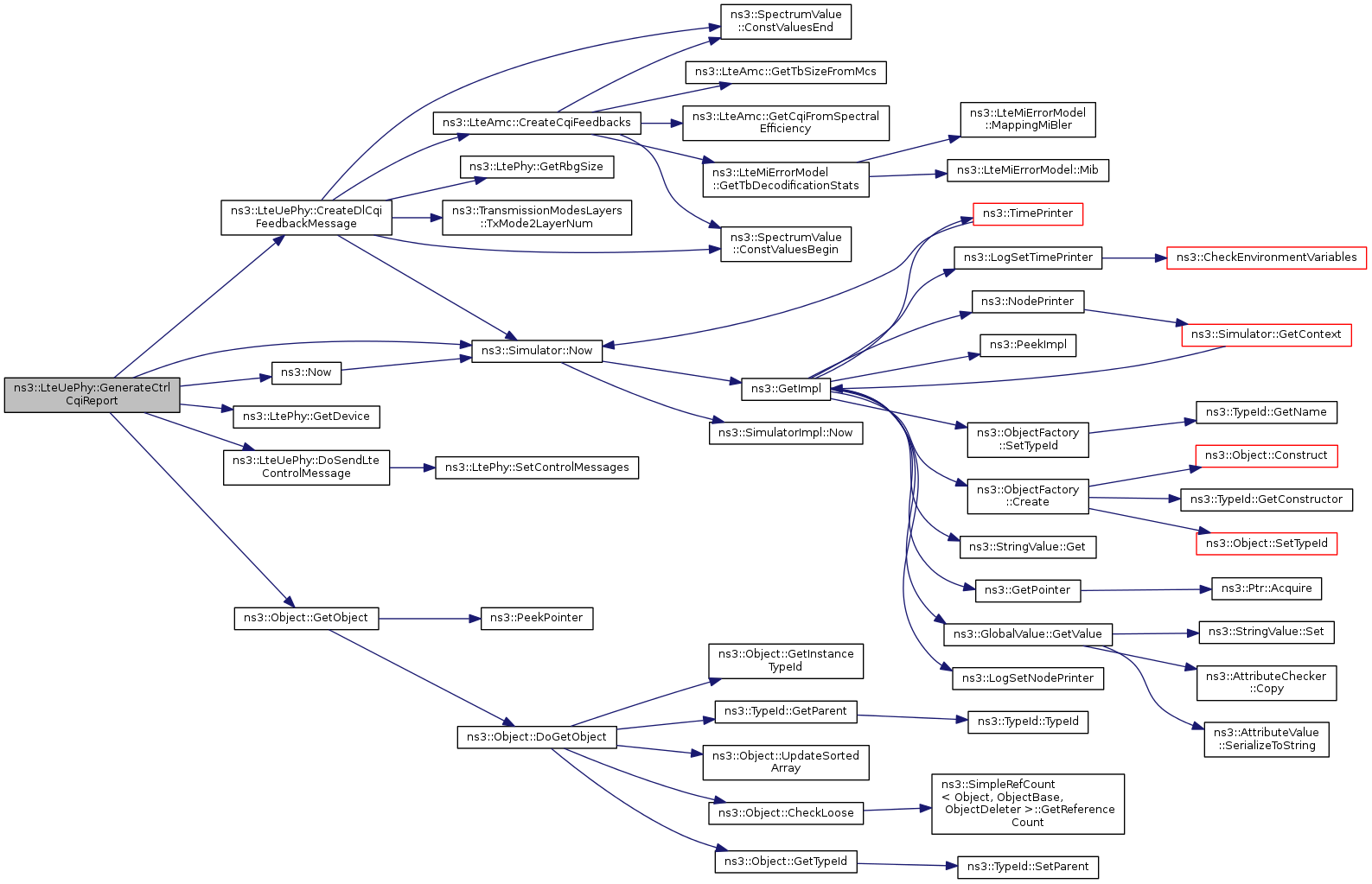

Here is the call graph for this function:

void ns3::LteUePhy::GenerateDataCqiReport ( const SpectrumValue &  sinr )

virtual

generate a CQI report based on the given SINR of Data frame (used for PUSCH CQIs)

Parameters

sinr	the SINR vs frequency measured by the device

Implements ns3::LtePhy.

Definition at line 421 of file lte-ue-phy.cc.

Ptr< LteSpectrumPhy > ns3::LteUePhy::GetDlSpectrumPhy

(

)

const

Returns

a pointer to the LteSpectrumPhy instance relative to the downlink

Definition at line 314 of file lte-ue-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy.

Referenced by GetTypeId().

Here is the caller graph for this function:

LteUeCphySapProvider * ns3::LteUePhy::GetLteUeCphySapProvider

(

)

Get the CPHY SAP provider.

Returns

a pointer to the SAP Provider

Definition at line 272 of file lte-ue-phy.cc.

References m_ueCphySapProvider, and NS_LOG_FUNCTION.

LteUePhySapProvider * ns3::LteUePhy::GetLteUePhySapProvider

(

)

Get the PHY SAP provider.

Returns

a pointer to the SAP Provider

Definition at line 257 of file lte-ue-phy.cc.

References m_uePhySapProvider, and NS_LOG_FUNCTION.

uint8_t ns3::LteUePhy::GetMacChDelay

(

void

)

const

Returns

the TTI delay between MAC and channel

Definition at line 308 of file lte-ue-phy.cc.

References ns3::LtePhy::m_macChTtiDelay.

double ns3::LteUePhy::GetNoiseFigure

(

)

const

Returns

the noise figure in dB

Definition at line 286 of file lte-ue-phy.cc.

References ns3::LtePhy::m_noiseFigure, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

std::vector< int > ns3::LteUePhy::GetSubChannelsForReception

(

void

)

Get a list of sub channels to use in RX.

Returns

a list of sub channels

Definition at line 369 of file lte-ue-phy.cc.

References m_subChannelsForReception, and NS_LOG_FUNCTION.

std::vector< int > ns3::LteUePhy::GetSubChannelsForTransmission

(

void

)

Get a list of sub channels to use in RX.

Returns

a list of sub channels

Definition at line 361 of file lte-ue-phy.cc.

References m_subChannelsForTransmission, and NS_LOG_FUNCTION.

Referenced by CreateTxPowerSpectralDensity().

Here is the caller graph for this function:

double ns3::LteUePhy::GetTxPower

(

)

const

Returns

the transmission power in dBm

Definition at line 300 of file lte-ue-phy.cc.

References ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::LteUePhy::GetTypeId ( void  )

static

Reimplemented from ns3::LtePhy.

Definition at line 157 of file lte-ue-phy.cc.

References ns3::TypeId::ATTR_GET, GetDlSpectrumPhy(), GetNoiseFigure(), GetTxPower(), GetUlSpectrumPhy(), m_reportCurrentCellRsrpSinrTrace, m_rsrpSinrSamplePeriod, m_ulPhyTransmission, ns3::MakeTraceSourceAccessor(), SetNoiseFigure(), ns3::TypeId::SetParent(), SetTxMode1Gain(), SetTxMode2Gain(), SetTxMode3Gain(), SetTxMode4Gain(), SetTxMode5Gain(), SetTxMode6Gain(), SetTxMode7Gain(), and SetTxPower().

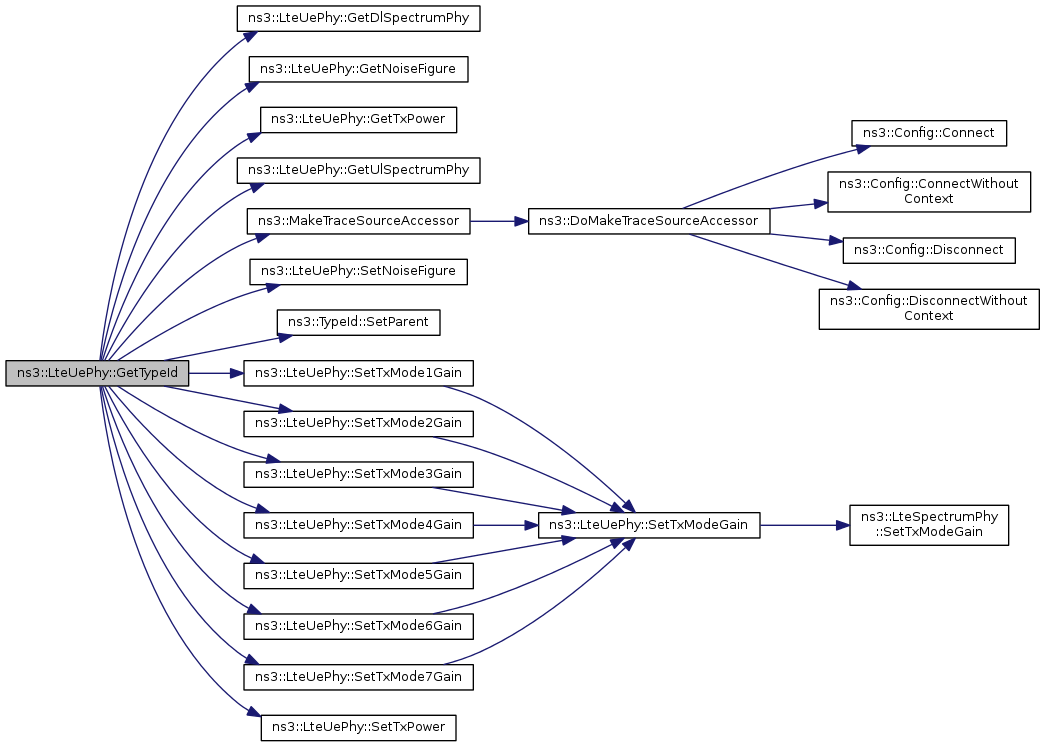

Here is the call graph for this function:

Ptr< LteSpectrumPhy > ns3::LteUePhy::GetUlSpectrumPhy

(

)

const

Returns

a pointer to the LteSpectrumPhy instance relative to the uplink

Definition at line 320 of file lte-ue-phy.cc.

References ns3::LtePhy::m_uplinkSpectrumPhy.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteUePhy::PhyPduReceived

(

Ptr< Packet >

p

)

PhySpectrum received a new PHY-PDU.

Definition at line 335 of file lte-ue-phy.cc.

References m_uePhySapUser, and ns3::LteUePhySapUser::ReceivePhyPdu().

Referenced by ns3::LteHelper::InstallSingleUeDevice().

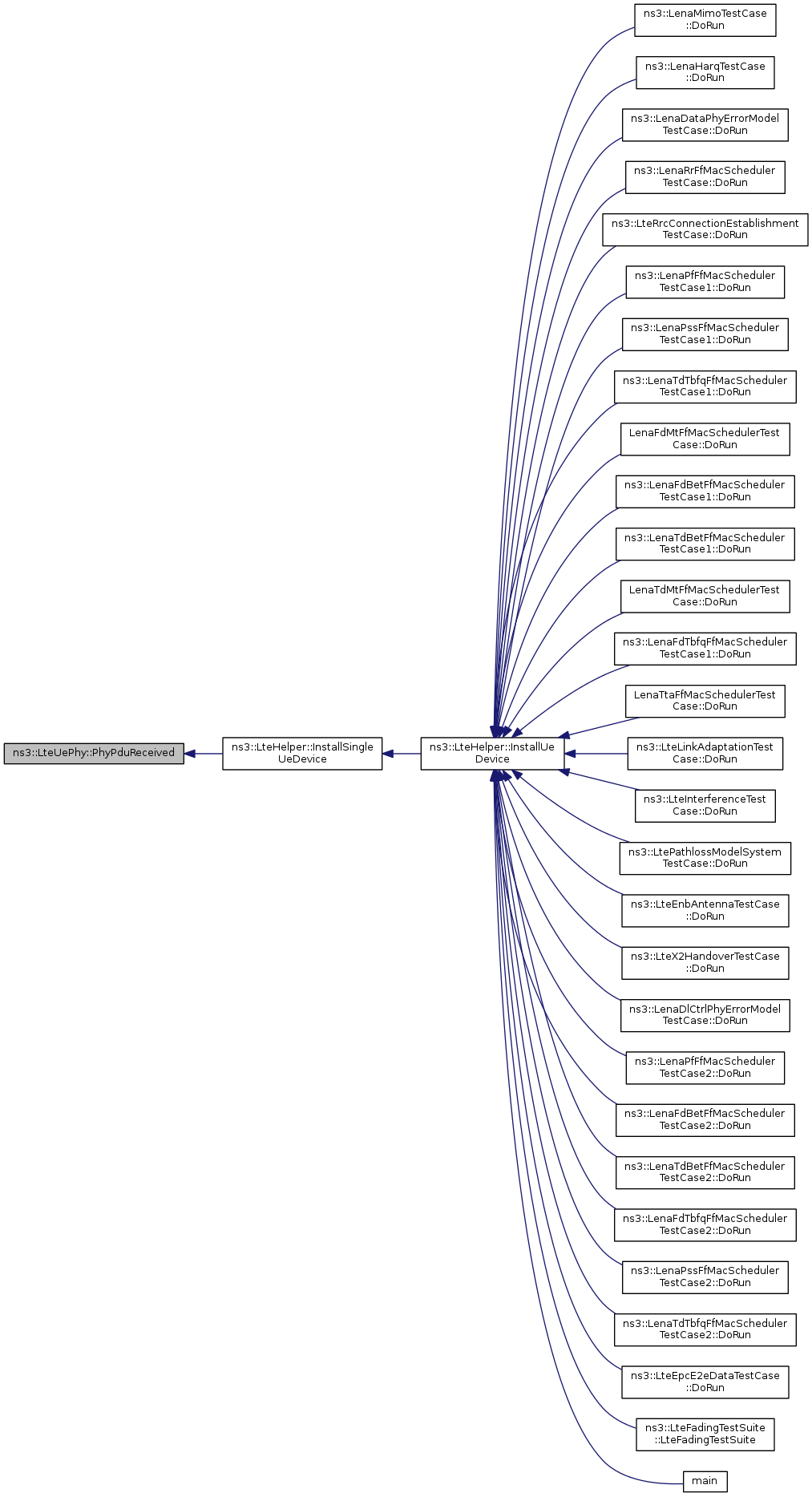

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::QueueSubChannelsForTransmission ( std::vector< int >  rbMap )

private

Definition at line 745 of file lte-ue-phy.cc.

References ns3::LtePhy::m_macChTtiDelay, and m_subChannelsForTransmissionQueue.

Referenced by ReceiveLteControlMessageList().

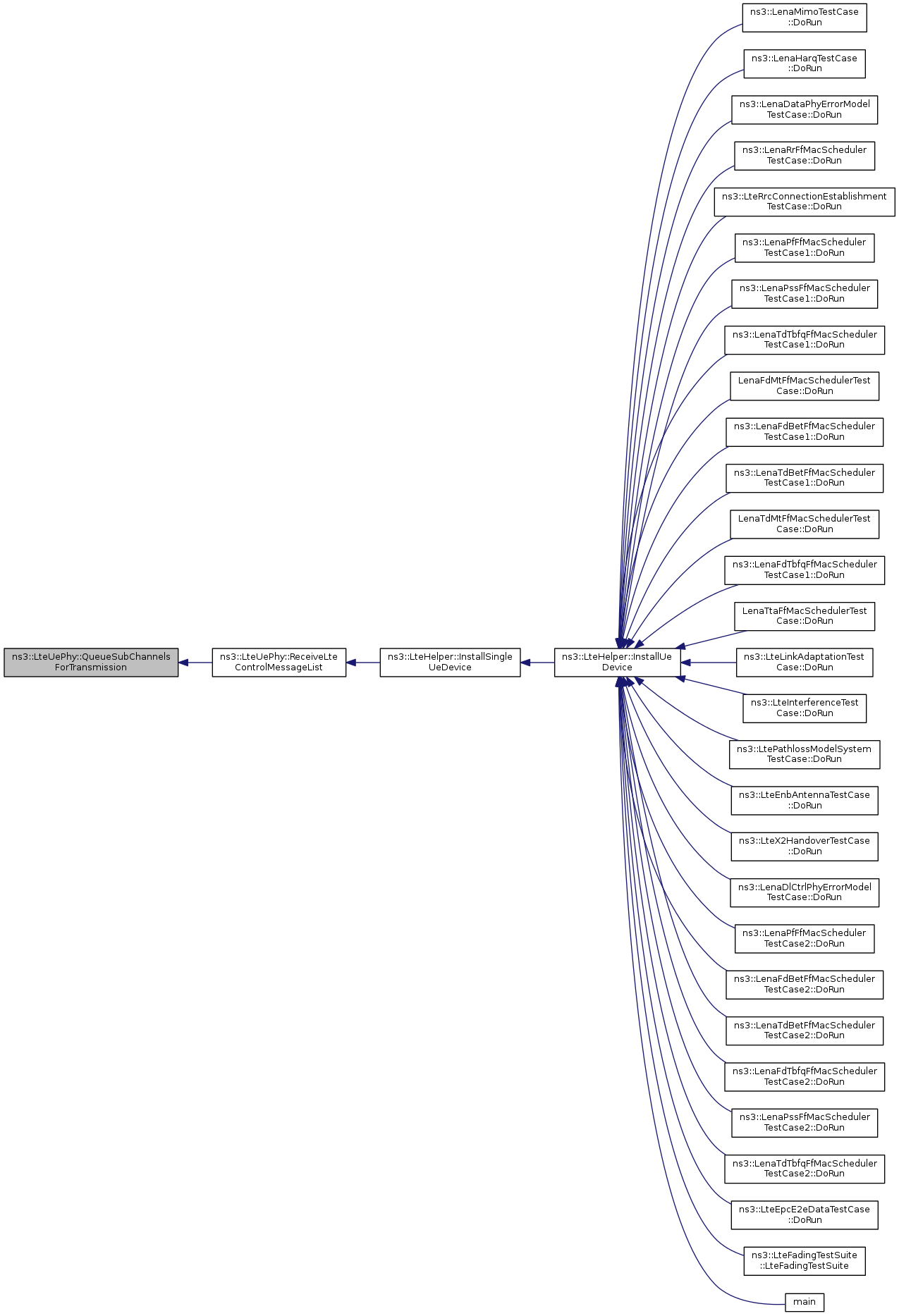

Here is the caller graph for this function:

void ns3::LteUePhy::ReceiveLteControlMessageList ( std::list< Ptr< LteControlMessage > >  msgList )

virtual

Definition at line 606 of file lte-ue-phy.cc.

References ns3::LteSpectrumPhy::AddExpectedTb(), ns3::LteControlMessage::DL_DCI, ns3::LteHarqPhy::GetHarqProcessInfoUl(), ns3::LteControlMessage::GetMessageType(), ns3::Time::GetMilliSeconds(), ns3::LtePhy::GetRbgSize(), ns3::PhyTransmissionStatParameters::m_cellId, ns3::LtePhy::m_cellId, ns3::LtePhy::m_downlinkSpectrumPhy, m_harqPhyModule, ns3::PhyTransmissionStatParameters::m_imsi, ns3::PhyTransmissionStatParameters::m_layer, ns3::PhyTransmissionStatParameters::m_mcs, ns3::PhyTransmissionStatParameters::m_ndi, m_raPreambleId, m_raRnti, ns3::PhyTransmissionStatParameters::m_rnti, m_rnti, ns3::PhyTransmissionStatParameters::m_rv, ns3::PhyTransmissionStatParameters::m_size, ns3::PhyTransmissionStatParameters::m_timestamp, ns3::PhyTransmissionStatParameters::m_txMode, m_ueCphySapUser, m_uePhySapUser, m_ulPhyTransmission, ns3::LteControlMessage::MIB, ns3::Now(), NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, QueueSubChannelsForTransmission(), ns3::LteControlMessage::RAR, ns3::LteUePhySapUser::ReceiveLteControlMessage(), ns3::LteUeCphySapUser::RecvMasterInformationBlock(), SetSubChannelsForReception(), ns3::LteControlMessage::UL_DCI, and UL_PUSCH_TTIS_DELAY.

Referenced by ns3::LteHelper::InstallSingleUeDevice().

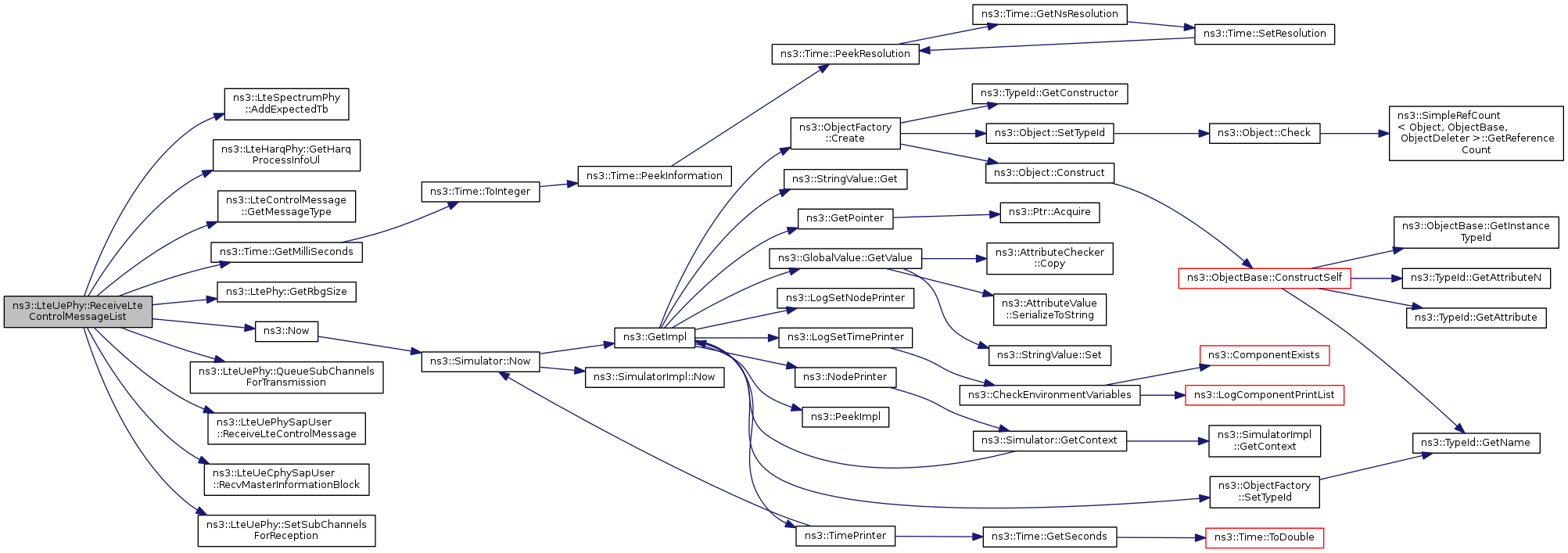

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::ReceiveLteDlHarqFeedback ( DlInfoListElement_s  mes )

virtual

PhySpectrum generated a new DL HARQ feedback.

Definition at line 1041 of file lte-ue-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetControlMessages().

Referenced by ns3::LteHelper::InstallSingleUeDevice().

Here is the call graph for this function:

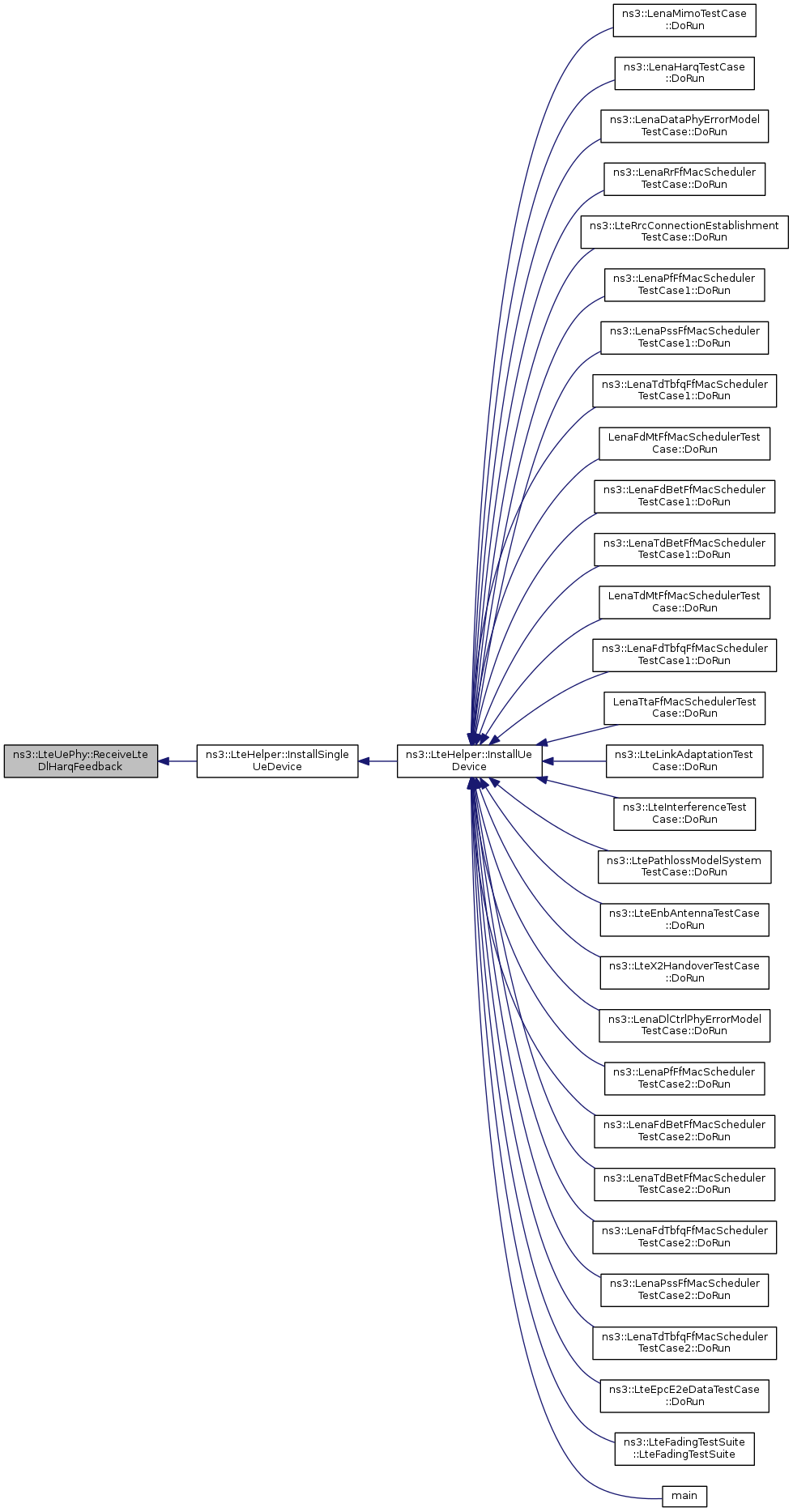

Here is the caller graph for this function:

void ns3::LteUePhy::ReportInterference ( const SpectrumValue &  power )

virtual

generate a report based on the linear interference and noise power perceived during DATA frame NOTE: used only by eNB

Parameters

sinr	the interference + noise power measured by the device

Implements ns3::LtePhy.

Definition at line 427 of file lte-ue-phy.cc.

void ns3::LteUePhy::ReportRsReceivedPower ( const SpectrumValue &  interf )

virtual

generate a report based on the linear RS power perceived during CTRL frame NOTE: used only by UE for evaluating RSRP

Parameters

sinr	the RS power measured by the device

Implements ns3::LtePhy.

Definition at line 433 of file lte-ue-phy.cc.

References m_rsReceivedPower, m_rsReceivedPowerUpdated, and NS_LOG_FUNCTION.

void ns3::LteUePhy::SendSrs

(

)

Send the SRS signal in the last symbols of the frame.

Definition at line 828 of file lte-ue-phy.cc.

References ns3::LtePhy::m_cellId, m_rnti, ns3::LtePhy::m_ulBandwidth, ns3::LtePhy::m_uplinkSpectrumPhy, NS_ASSERT, NS_LOG_FUNCTION, SetSubChannelsForTransmission(), and ns3::LteSpectrumPhy::StartTxUlSrsFrame().

Referenced by SubframeIndication().

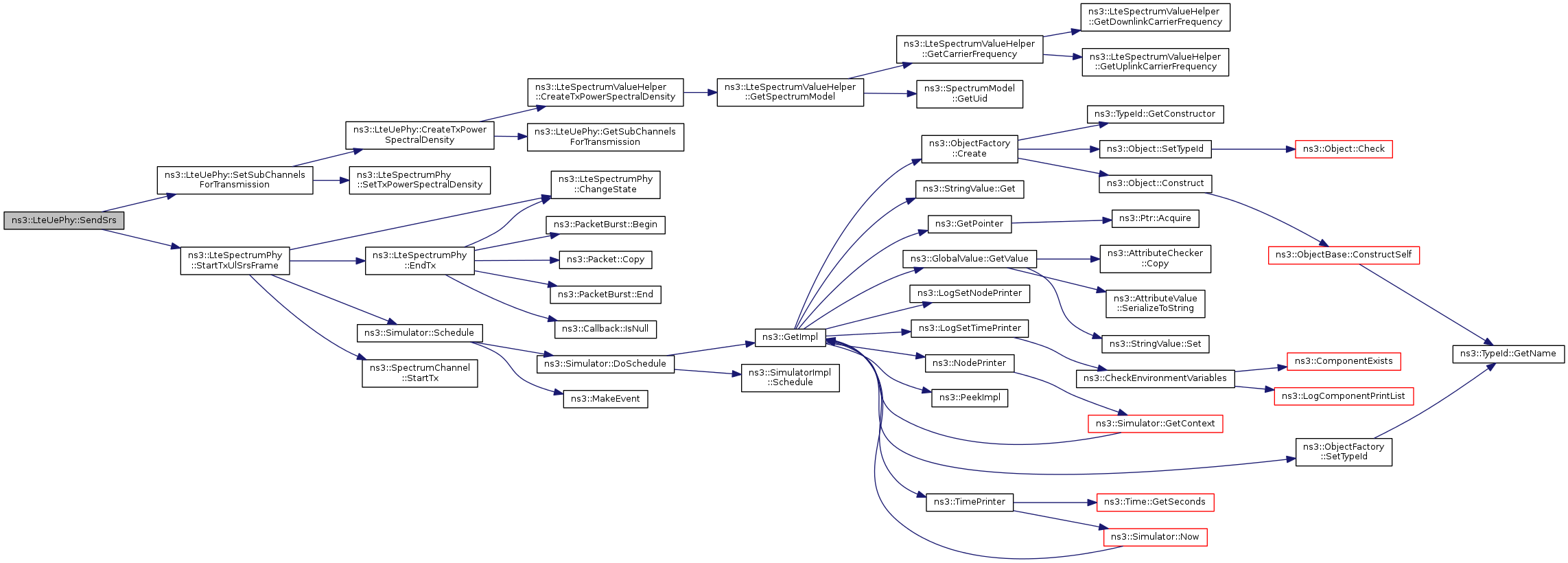

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetHarqPhyModule

(

Ptr< LteHarqPhy >

harq

)

Set the HARQ PHY module.

Definition at line 1051 of file lte-ue-phy.cc.

References m_harqPhyModule.

void ns3::LteUePhy::SetLteUeCphySapUser

(

LteUeCphySapUser *

s

)

Set the CPHY SAP User.

Parameters

s	a pointer to the SAP user

Definition at line 265 of file lte-ue-phy.cc.

References m_ueCphySapUser, and NS_LOG_FUNCTION.

void ns3::LteUePhy::SetLteUePhySapUser

(

LteUePhySapUser *

s

)

Set the PHY SAP User.

Parameters

s	a pointer to the SAP user

Definition at line 250 of file lte-ue-phy.cc.

References m_uePhySapUser, and NS_LOG_FUNCTION.

void ns3::LteUePhy::SetNoiseFigure

(

double

pow

)

Parameters

pw	the noise figure in dB

Definition at line 279 of file lte-ue-phy.cc.

References ns3::LtePhy::m_noiseFigure, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteUePhy::SetSubChannelsForReception

(

std::vector< int >

mask

)

Get a list of sub channels to use in RX.

Parameters

mask	list of sub channels

Definition at line 353 of file lte-ue-phy.cc.

References m_subChannelsForReception, and NS_LOG_FUNCTION.

Referenced by ReceiveLteControlMessageList().

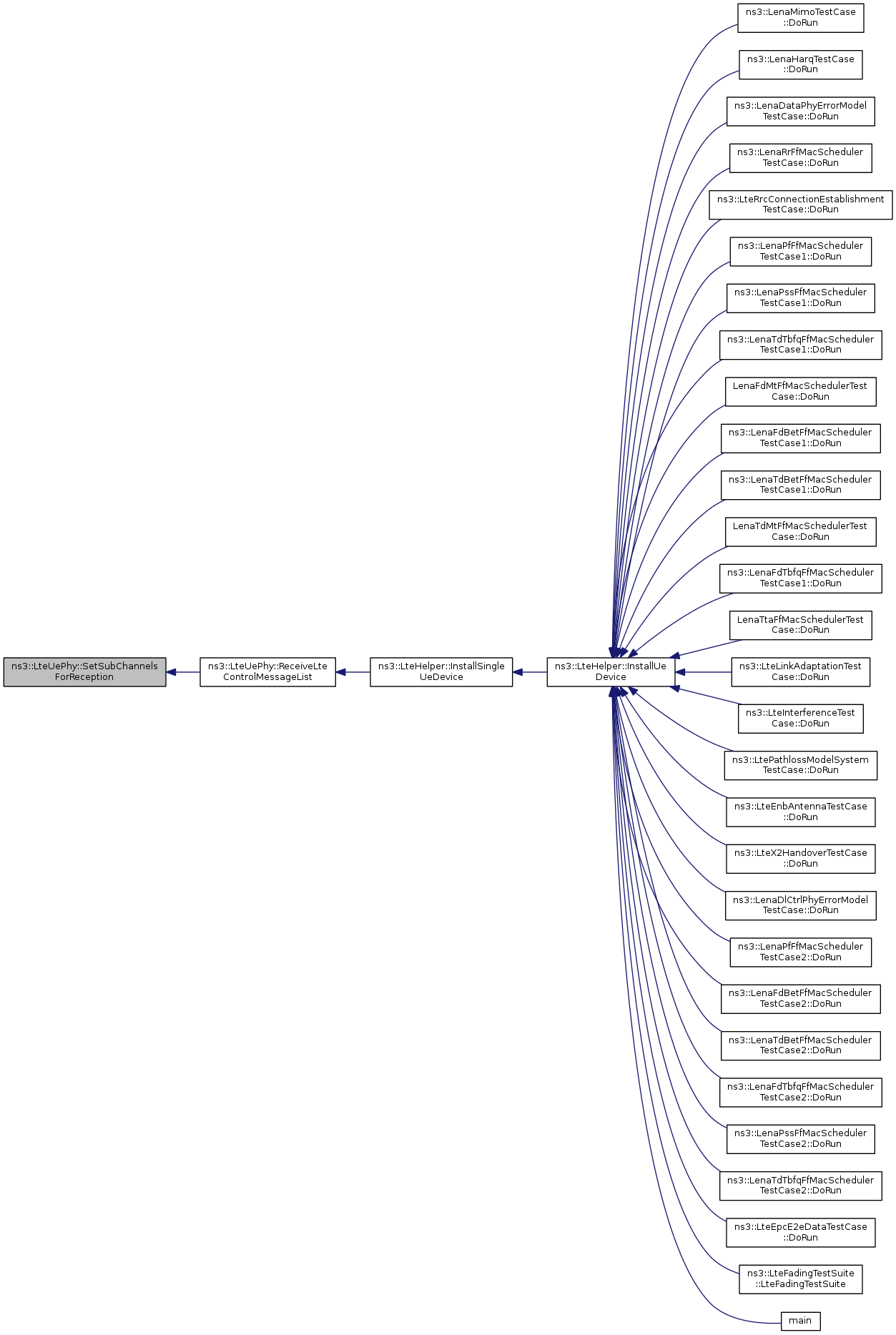

Here is the caller graph for this function:

void ns3::LteUePhy::SetSubChannelsForTransmission

(

std::vector< int >

mask

)

Set a list of sub channels to use in TX.

Parameters

mask	a list of sub channels

Definition at line 341 of file lte-ue-phy.cc.

References CreateTxPowerSpectralDensity(), m_subChannelsForTransmission, ns3::LtePhy::m_uplinkSpectrumPhy, NS_LOG_FUNCTION, and ns3::LteSpectrumPhy::SetTxPowerSpectralDensity().

Referenced by SendSrs(), and SubframeIndication().

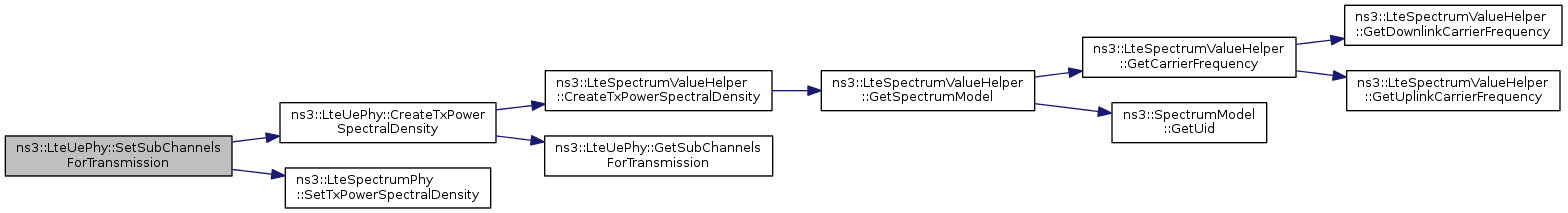

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode1Gain ( double  gain )

private

Definition at line 968 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode2Gain ( double  gain )

private

Definition at line 974 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode3Gain ( double  gain )

private

Definition at line 980 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode4Gain ( double  gain )

private

Definition at line 986 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode5Gain ( double  gain )

private

Definition at line 992 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode6Gain ( double  gain )

private

Definition at line 998 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode7Gain ( double  gain )

private

Definition at line 1004 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxModeGain ( uint8_t  txMode, double  gain  )

private

Definition at line 1011 of file lte-ue-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy, m_txModeGain, NS_LOG_FUNCTION, and ns3::LteSpectrumPhy::SetTxModeGain().

Referenced by SetTxMode1Gain(), SetTxMode2Gain(), SetTxMode3Gain(), SetTxMode4Gain(), SetTxMode5Gain(), SetTxMode6Gain(), and SetTxMode7Gain().

Here is the call graph for this function:

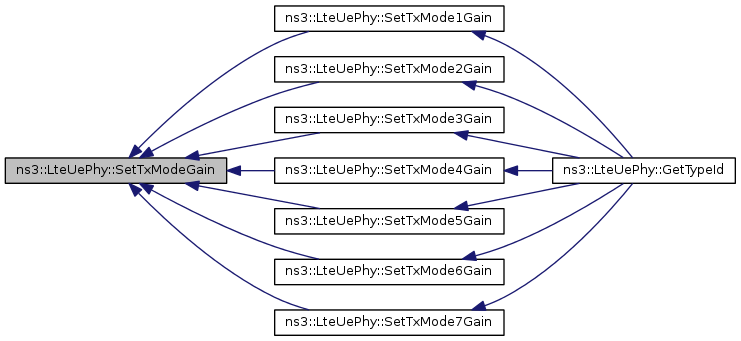

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxPower

(

double

pow

)

Parameters

pw	the transmission power in dBm

Definition at line 293 of file lte-ue-phy.cc.

References ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteUePhy::SubframeIndication	(	uint32_t	frameNo,
		uint32_t	subframeNo
	)

trigger from eNB the start from a new frame

Parameters

frameNo	frame number
subframeNo	subframe number

Definition at line 752 of file lte-ue-phy.cc.

References ns3::LtePhy::GetControlMessages(), ns3::LtePhy::GetPacketBurst(), ns3::LtePhy::GetTti(), ns3::LtePhy::m_cellId, ns3::LtePhy::m_macChTtiDelay, m_rnti, m_rsReceivedPowerUpdated, m_sendSrsEvent, m_srsConfigured, m_srsPeriodicity, m_srsStartTime, m_srsSubframeOffset, m_subChannelsForTransmissionQueue, m_uePhySapUser, m_ulConfigured, ns3::LtePhy::m_uplinkSpectrumPhy, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Simulator::Schedule(), ns3::Seconds(), SendSrs(), SetSubChannelsForTransmission(), ns3::LteSpectrumPhy::StartTxDataFrame(), ns3::LteUePhySapUser::SubframeIndication(), ns3::UL_DATA_DURATION, and ns3::UL_SRS_DELAY_FROM_SUBFRAME_START.

Referenced by LteUePhy().

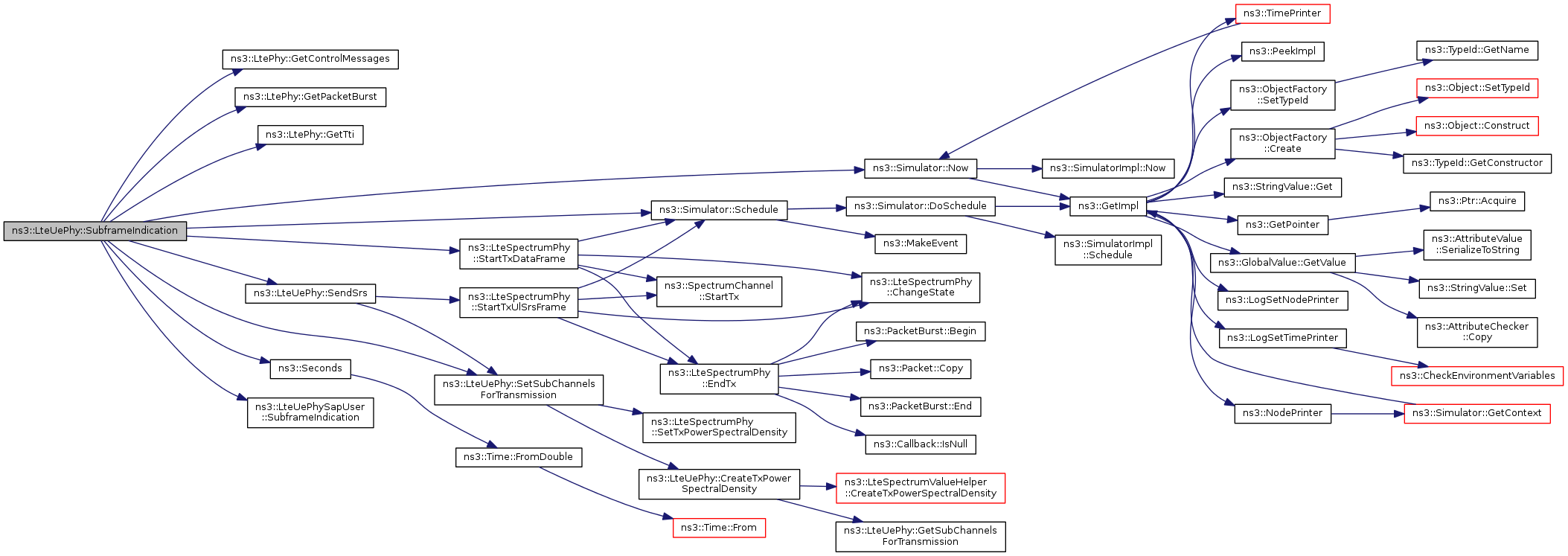

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class MemberLteUeCphySapProvider< LteUePhy >

friend

Definition at line 52 of file lte-ue-phy.h.

friend class UeMemberLteUePhySapProvider

friend

Definition at line 51 of file lte-ue-phy.h.

Referenced by LteUePhy().

Member Data Documentation

Time ns3::LteUePhy::m_a30CqiLast

private

Definition at line 257 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), DoReset(), and GenerateCtrlCqiReport().

Time ns3::LteUePhy::m_a30CqiPeriocity

private

Definition at line 256 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and GenerateCtrlCqiReport().

Ptr<LteAmc> ns3::LteUePhy::m_amc

private

Definition at line 249 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and LteUePhy().

bool ns3::LteUePhy::m_dlConfigured

private

Definition at line 275 of file lte-ue-phy.h.

Referenced by DoReset(), DoSetDlBandwidth(), DoSyncronizeWithEnb(), and GenerateCtrlCqiReport().

Ptr<LteHarqPhy> ns3::LteUePhy::m_harqPhyModule

private

Definition at line 281 of file lte-ue-phy.h.

Referenced by ReceiveLteControlMessageList(), and SetHarqPhyModule().

Time ns3::LteUePhy::m_p10CqiLast

private

SubBand Aperiodic CQI: activated by DCI format 0 or Random Access Response Grant

Definition at line 254 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), DoReset(), and GenerateCtrlCqiReport().

Time ns3::LteUePhy::m_p10CqiPeriocity

private

Wideband Periodic CQI: 2, 5, 10, 16, 20, 32, 40, 64, 80 or 160 ms

Definition at line 251 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and GenerateCtrlCqiReport().

uint32_t ns3::LteUePhy::m_raPreambleId

private

Definition at line 283 of file lte-ue-phy.h.

Referenced by DoReset(), DoSendRachPreamble(), and ReceiveLteControlMessageList().

uint32_t ns3::LteUePhy::m_raRnti

private

Definition at line 284 of file lte-ue-phy.h.

Referenced by DoReset(), DoSendRachPreamble(), and ReceiveLteControlMessageList().

TracedCallback<uint16_t, uint16_t, double, double> ns3::LteUePhy::m_reportCurrentCellRsrpSinrTrace

private

Trace information regarding RSRP and average SINR (see TS 36.214) uint16_t cellId, uint16_t rnti, double rsrp, double sinr

Definition at line 290 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and GetTypeId().

uint16_t ns3::LteUePhy::m_rnti

private

Definition at line 265 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), DoReset(), DoSetRnti(), DoSetSrsConfigurationIndex(), ReceiveLteControlMessageList(), SendSrs(), and SubframeIndication().

SpectrumValue ns3::LteUePhy::m_rsReceivedPower

private

Definition at line 279 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and ReportRsReceivedPower().

bool ns3::LteUePhy::m_rsReceivedPowerUpdated

private

Definition at line 278 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), ReportRsReceivedPower(), and SubframeIndication().

uint16_t ns3::LteUePhy::m_rsrpSinrSampleCounter

private

Definition at line 292 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and DoReset().

uint16_t ns3::LteUePhy::m_rsrpSinrSamplePeriod

private

Definition at line 291 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and GetTypeId().

EventId ns3::LteUePhy::m_sendSrsEvent

private

Definition at line 294 of file lte-ue-phy.h.

Referenced by DoReset(), and SubframeIndication().

uint16_t ns3::LteUePhy::m_srsConfigured

private

Definition at line 272 of file lte-ue-phy.h.

Referenced by DoReset(), DoSetSrsConfigurationIndex(), and SubframeIndication().

uint16_t ns3::LteUePhy::m_srsPeriodicity

private

Definition at line 270 of file lte-ue-phy.h.

Referenced by DoReset(), DoSetSrsConfigurationIndex(), and SubframeIndication().

Time ns3::LteUePhy::m_srsStartTime

private

Definition at line 273 of file lte-ue-phy.h.

Referenced by DoSetSrsConfigurationIndex(), and SubframeIndication().

uint16_t ns3::LteUePhy::m_srsSubframeOffset

private

Definition at line 271 of file lte-ue-phy.h.

Referenced by DoSetSrsConfigurationIndex(), and SubframeIndication().

std::vector<int> ns3::LteUePhy::m_subChannelsForReception

private

Definition at line 244 of file lte-ue-phy.h.

Referenced by GetSubChannelsForReception(), and SetSubChannelsForReception().

std::vector<int> ns3::LteUePhy::m_subChannelsForTransmission

private

Definition at line 243 of file lte-ue-phy.h.

Referenced by GetSubChannelsForTransmission(), and SetSubChannelsForTransmission().

std::vector< std::vector <int> > ns3::LteUePhy::m_subChannelsForTransmissionQueue

private

Definition at line 246 of file lte-ue-phy.h.

Referenced by DoReset(), QueueSubChannelsForTransmission(), and SubframeIndication().

uint8_t ns3::LteUePhy::m_transmissionMode

private

Definition at line 267 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), DoReset(), and DoSetTransmissionMode().

std::vector<double> ns3::LteUePhy::m_txModeGain

private

Definition at line 268 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), SetTxModeGain(), and ~LteUePhy().

LteUeCphySapProvider* ns3::LteUePhy::m_ueCphySapProvider

private

Definition at line 262 of file lte-ue-phy.h.

Referenced by DoDispose(), GetLteUeCphySapProvider(), and LteUePhy().

LteUeCphySapUser* ns3::LteUePhy::m_ueCphySapUser

private

Definition at line 263 of file lte-ue-phy.h.

Referenced by ReceiveLteControlMessageList(), and SetLteUeCphySapUser().

LteUePhySapProvider* ns3::LteUePhy::m_uePhySapProvider

private

Definition at line 259 of file lte-ue-phy.h.

Referenced by DoDispose(), GetLteUePhySapProvider(), and LteUePhy().

LteUePhySapUser* ns3::LteUePhy::m_uePhySapUser

private

Definition at line 260 of file lte-ue-phy.h.

Referenced by PhyPduReceived(), ReceiveLteControlMessageList(), SetLteUePhySapUser(), and SubframeIndication().

bool ns3::LteUePhy::m_ulConfigured

private

Definition at line 276 of file lte-ue-phy.h.

Referenced by DoConfigureUplink(), DoReset(), DoSyncronizeWithEnb(), GenerateCtrlCqiReport(), and SubframeIndication().

TracedCallback<PhyTransmissionStatParameters> ns3::LteUePhy::m_ulPhyTransmission

private

Trace information regarding PHY stats from DL Tx perspective PhyTrasmissionStatParameters see lte-common.h

Definition at line 300 of file lte-ue-phy.h.

Referenced by GetTypeId(), and ReceiveLteControlMessageList().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-ue-phy.h
• src/lte/model/lte-ue-phy.cc
