#include <bs-net-device.h>

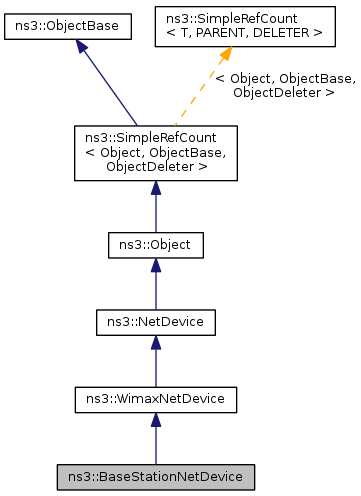

Inheritance diagram for ns3::BaseStationNetDevice:

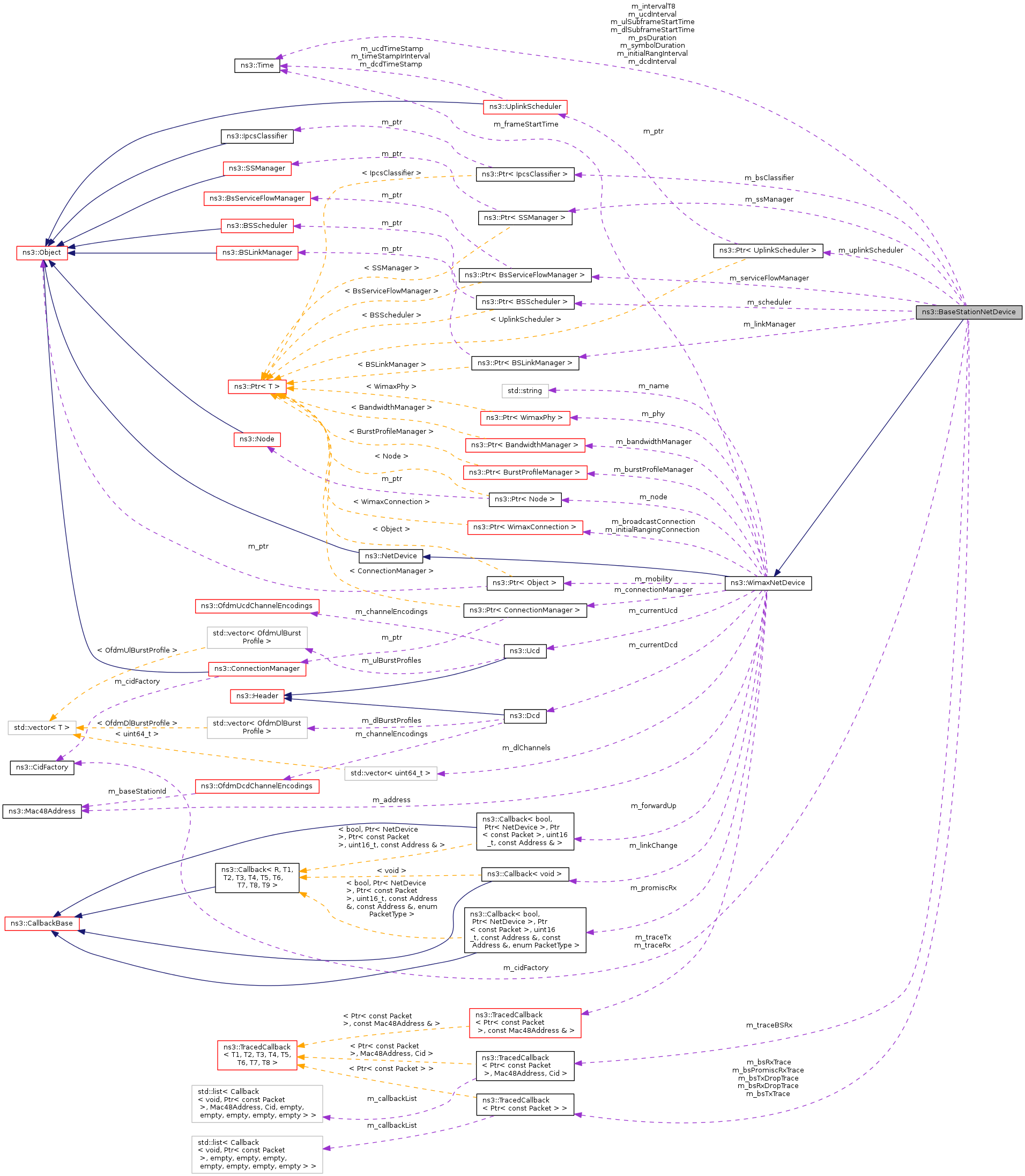

Collaboration diagram for ns3::BaseStationNetDevice:

Public Types
enum	MacPreamble { SHORT_PREAMBLE = 1, LONG_PREAMBLE }
enum	State { BS_STATE_DL_SUB_FRAME, BS_STATE_UL_SUB_FRAME, BS_STATE_TTG, BS_STATE_RTG }
Public Types inherited from ns3::WimaxNetDevice
enum	Direction { DIRECTION_DOWNLINK, DIRECTION_UPLINK }
enum	RangingStatus { RANGING_STATUS_EXPIRED, RANGING_STATUS_CONTINUE, RANGING_STATUS_ABORT, RANGING_STATUS_SUCCESS }
Public Types inherited from ns3::NetDevice
enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback
typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions

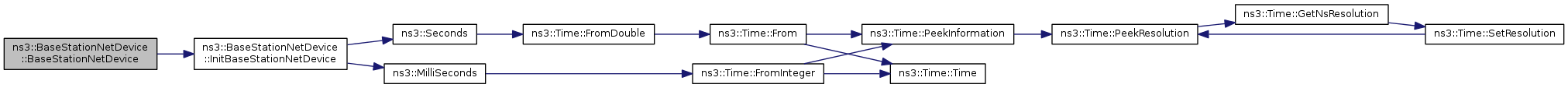

	BaseStationNetDevice (void)
	BaseStationNetDevice (Ptr< Node > node, Ptr< WimaxPhy > phy)
	BaseStationNetDevice (Ptr< Node > node, Ptr< WimaxPhy > phy, Ptr< UplinkScheduler > uplinkScheduler, Ptr< BSScheduler > bsScheduler)
	~BaseStationNetDevice (void)

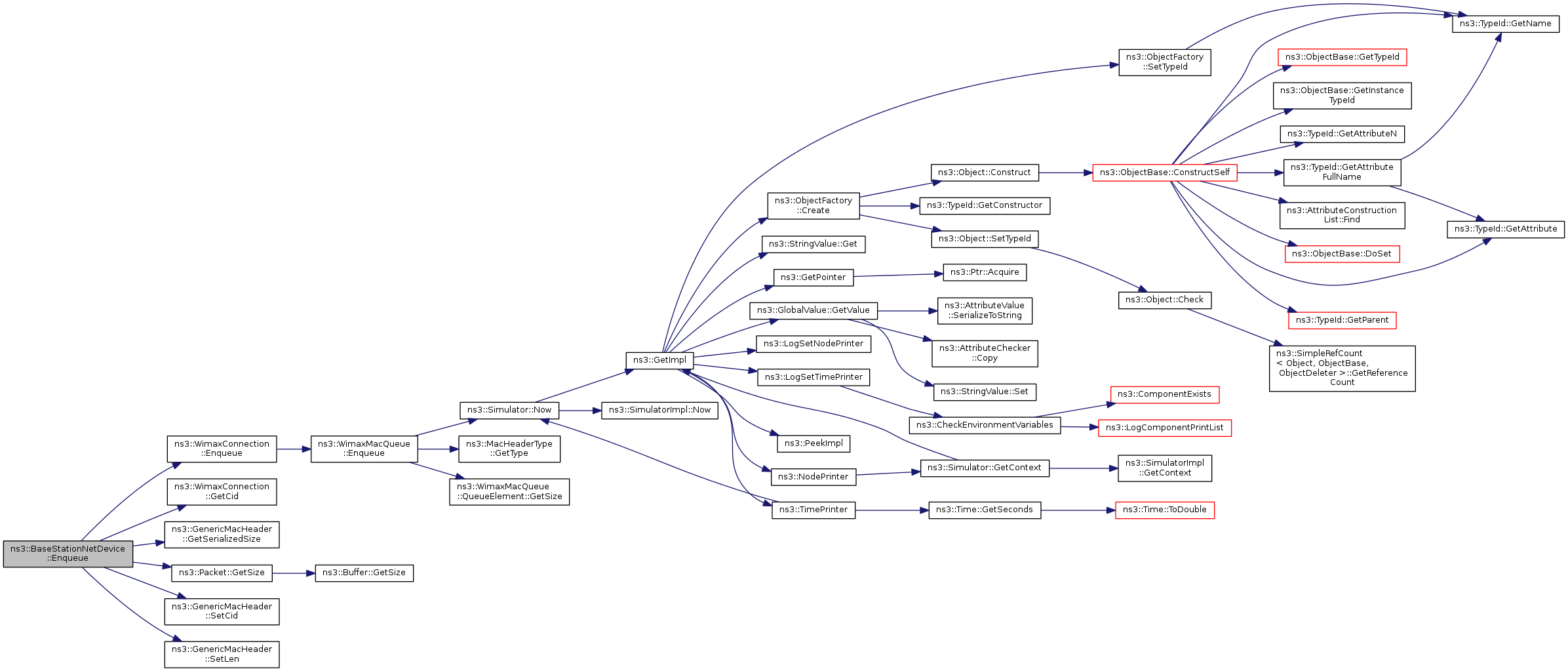

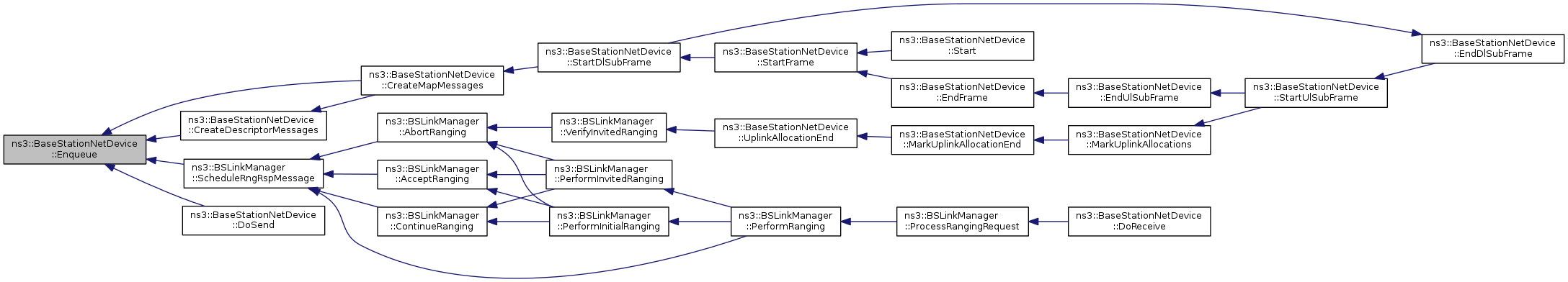

bool	Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, Ptr< WimaxConnection > connection)
	Enqueue a packet into a connection queue.
Ptr< IpcsClassifier >	GetBsClassifier (void) const
Ptr< BSScheduler >	GetBSScheduler (void) const

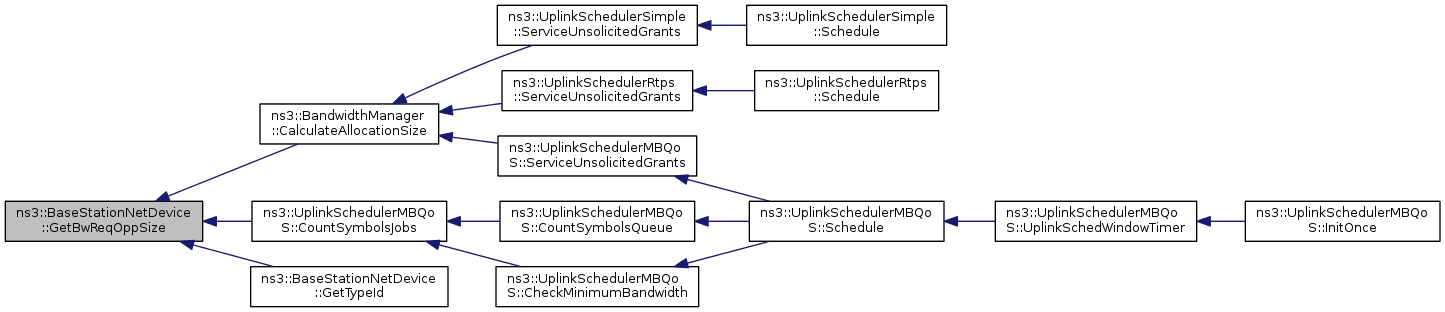

uint8_t	GetBwReqOppSize (void) const

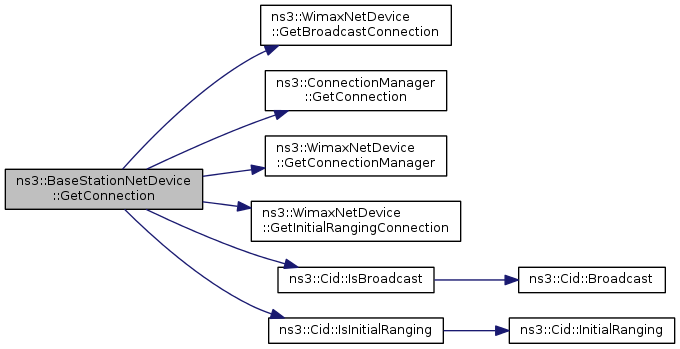

Ptr< WimaxConnection >	GetConnection (Cid cid)
Time	GetDcdInterval (void) const
Time	GetDlSubframeStartTime (void) const
Time	GetInitialRangingInterval (void) const

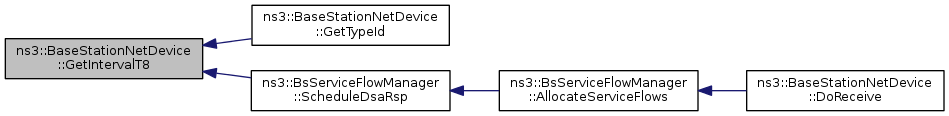

Time	GetIntervalT8 (void) const
Ptr< BSLinkManager >	GetLinkManager (void) const

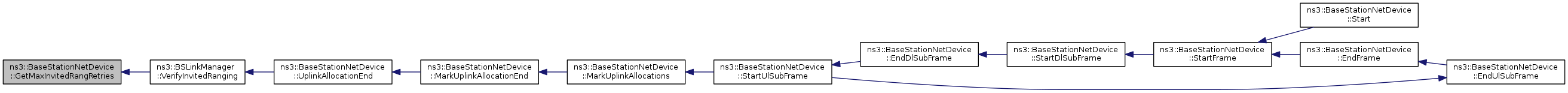

uint8_t	GetMaxInvitedRangRetries (void) const

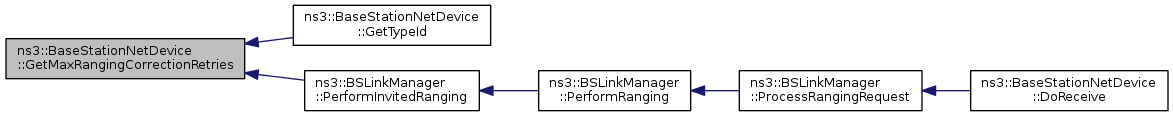

uint8_t	GetMaxRangingCorrectionRetries (void) const
uint32_t	GetNrDcdSent (void) const
uint32_t	GetNrDlSymbols (void) const
uint32_t	GetNrUcdSent (void) const

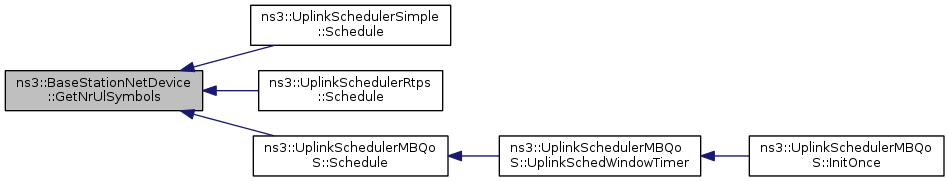

uint32_t	GetNrUlSymbols (void) const
Time	GetPsDuration (void) const
uint8_t	GetRangingOppNumber (void) const

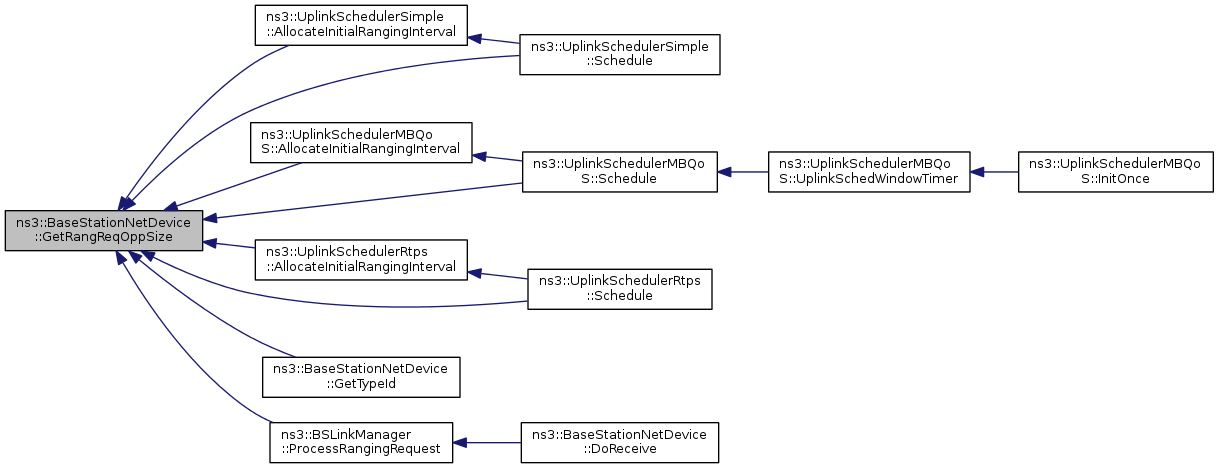

uint8_t	GetRangReqOppSize (void) const

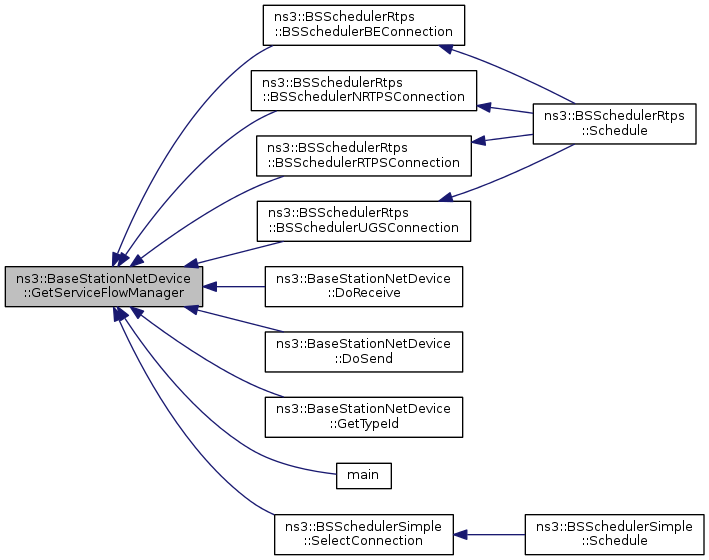

Ptr< BsServiceFlowManager >	GetServiceFlowManager (void) const
Ptr< SSManager >	GetSSManager (void) const
Time	GetSymbolDuration (void) const
Time	GetUcdInterval (void) const
Time	GetUlSubframeStartTime (void) const

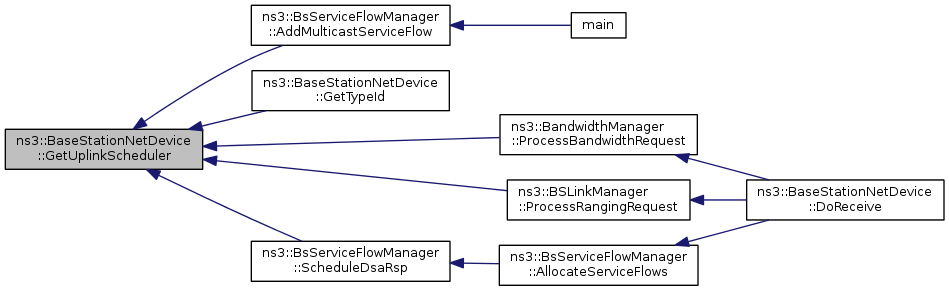

Ptr< UplinkScheduler >	GetUplinkScheduler (void) const
void	InitBaseStationNetDevice (void)
	initializes the BS net device and sets its parameters to the default values

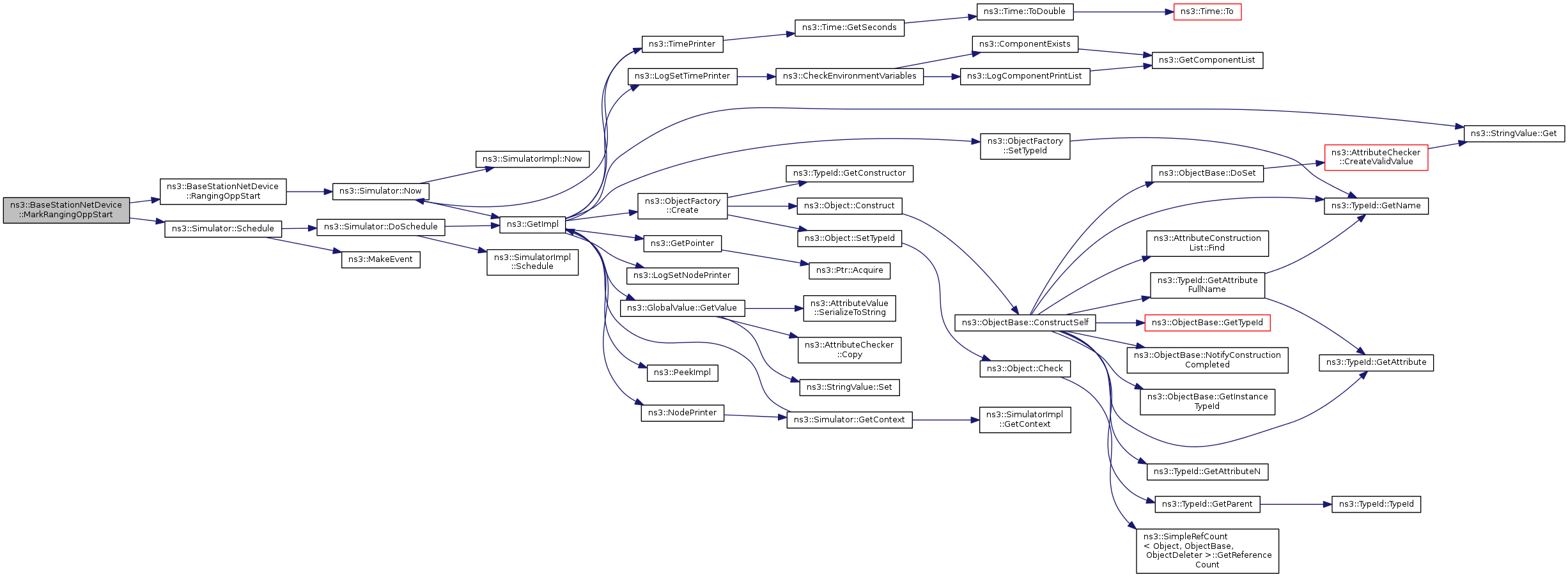

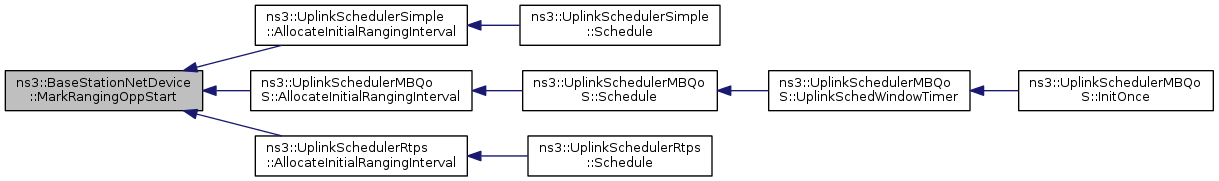

void	MarkRangingOppStart (Time rangingOppStartTime)

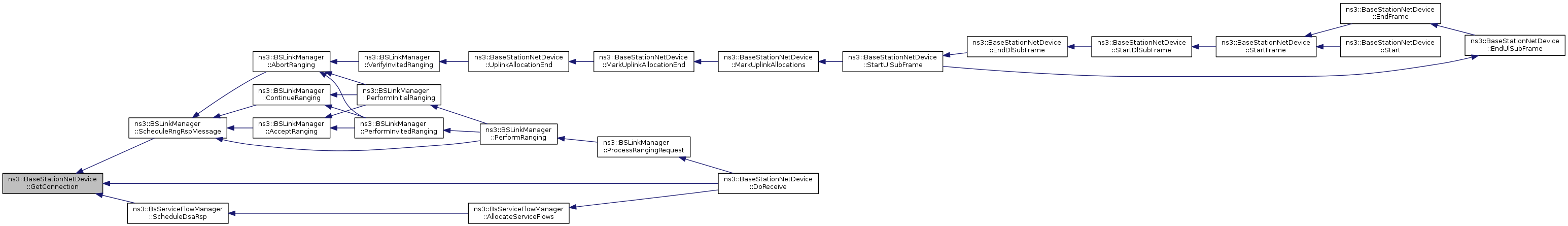

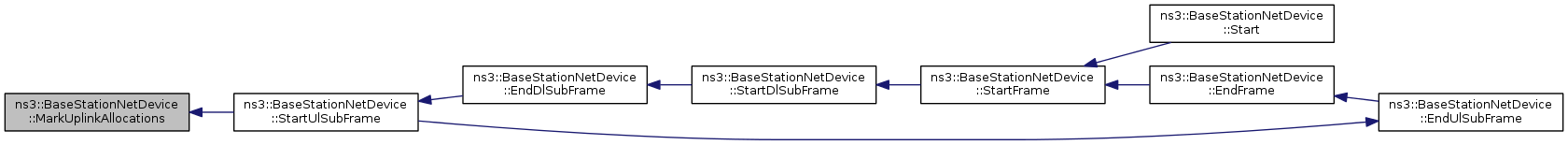

void	MarkUplinkAllocations (void)
void	SetBsClassifier (Ptr< IpcsClassifier > classifier)
void	SetBSScheduler (Ptr< BSScheduler > bsSchedule)
void	SetBwReqOppSize (uint8_t bwReqOppSize)
void	SetDcdInterval (Time dcdInterval)
void	SetInitialRangingInterval (Time initialRangInterval)
void	SetIntervalT8 (Time interval)
void	SetLinkManager (Ptr< BSLinkManager > linkManager)
void	SetMaxInvitedRangRetries (uint8_t maxInvitedRangRetries)
void	SetMaxRangingCorrectionRetries (uint8_t maxRangCorrectionRetries)
void	SetNrDlSymbols (uint32_t dlSymbols)
void	SetNrUlSymbols (uint32_t ulSymbols)
void	SetRangReqOppSize (uint8_t rangReqOppSize)
void	SetServiceFlowManager (Ptr< BsServiceFlowManager >)
void	SetSSManager (Ptr< SSManager > ssManager)
void	SetUcdInterval (Time ucdInterval)
void	SetUplinkScheduler (Ptr< UplinkScheduler > ulScheduler)

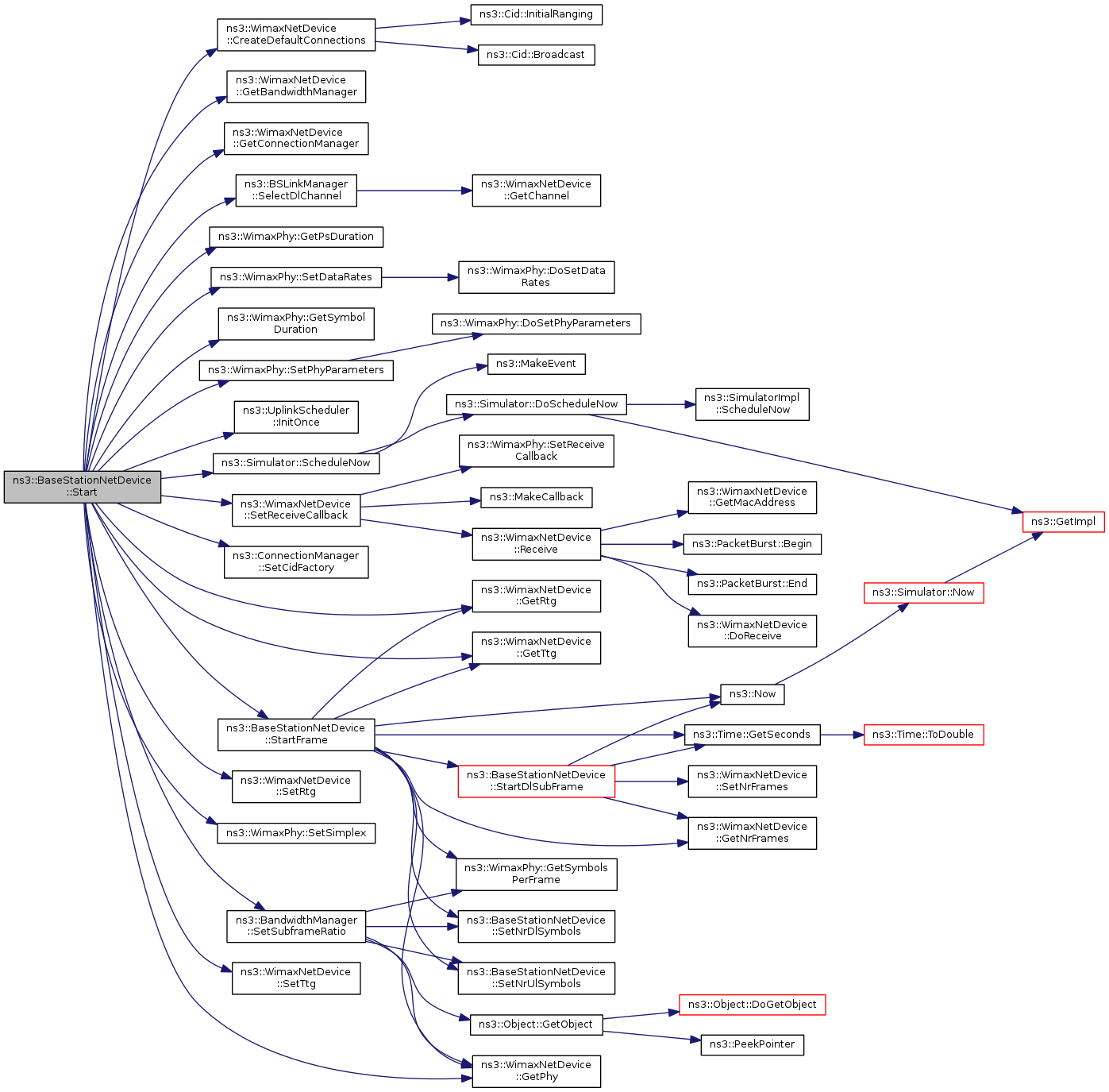

void	Start (void)
void	Stop (void)
Public Member Functions inherited from ns3::WimaxNetDevice
	WimaxNetDevice (void)
virtual	~WimaxNetDevice (void)
virtual void	AddLinkChangeCallback (Callback< void > callback)
void	Attach (Ptr< WimaxChannel > channel)
void	CreateDefaultConnections (void)
virtual void	DoDispose (void)
void	ForwardDown (Ptr< PacketBurst > burst, WimaxPhy::ModulationType modulationType)
void	ForwardUp (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest)
virtual Address	GetAddress (void) const
Ptr< BandwidthManager >	GetBandwidthManager (void) const
virtual Address	GetBroadcast (void) const
Ptr< WimaxConnection >	GetBroadcastConnection (void) const
Ptr< BurstProfileManager >	GetBurstProfileManager (void) const
uint64_t	GetChannel (uint8_t index) const
virtual Ptr< Channel >	GetChannel (void) const
Ptr< ConnectionManager >	GetConnectionManager (void) const
Dcd	GetCurrentDcd (void) const
Ucd	GetCurrentUcd (void) const
virtual uint32_t	GetIfIndex (void) const
Ptr< WimaxConnection >	GetInitialRangingConnection (void) const
Mac48Address	GetMacAddress (void) const
virtual uint16_t	GetMtu (void) const
virtual Address	GetMulticast (void) const
virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided.
virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group.
virtual std::string	GetName (void) const
virtual Ptr< Node >	GetNode (void) const
uint32_t	GetNrFrames (void) const
Ptr< WimaxPhy >	GetPhy (void) const
virtual Ptr< Channel >	GetPhyChannel (void) const
NetDevice::PromiscReceiveCallback	GetPromiscReceiveCallback (void)
uint16_t	GetRtg (void) const
uint8_t	GetState (void) const
uint16_t	GetTtg (void) const
virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge.
virtual bool	IsBroadcast (void) const
virtual bool	IsLinkUp (void) const
virtual bool	IsMulticast (void) const
virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link.
bool	IsPromisc (void)
virtual Address	MakeMulticastAddress (Ipv4Address multicastGroup) const
virtual bool	NeedsArp (void) const
void	NotifyPromiscTrace (Ptr< Packet > p)
virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)
virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)
virtual void	SetAddress (Address address)
void	SetBandwidthManager (Ptr< BandwidthManager > bandwidthManager)
void	SetBurstProfileManager (Ptr< BurstProfileManager > burstProfileManager)
void	SetChannel (Ptr< WimaxChannel > wimaxChannel)
virtual void	SetConnectionManager (Ptr< ConnectionManager > connectionManager)
void	SetCurrentDcd (Dcd dcd)
void	SetCurrentUcd (Ucd ucd)
virtual void	SetIfIndex (const uint32_t index)
virtual void	SetLinkChangeCallback (Callback< void > callback)
void	SetMacAddress (Mac48Address address)
virtual bool	SetMtu (const uint16_t mtu)
virtual void	SetName (const std::string name)
virtual void	SetNode (Ptr< Node > node)
void	SetNrFrames (uint32_t nrFrames)
void	SetPhy (Ptr< WimaxPhy > phy)
virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)
void	SetReceiveCallback (void)
virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)
void	SetRtg (uint16_t rtg)
void	SetState (uint8_t state)
void	SetTtg (uint16_t ttg)
virtual bool	SupportsSendFrom (void) const
Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

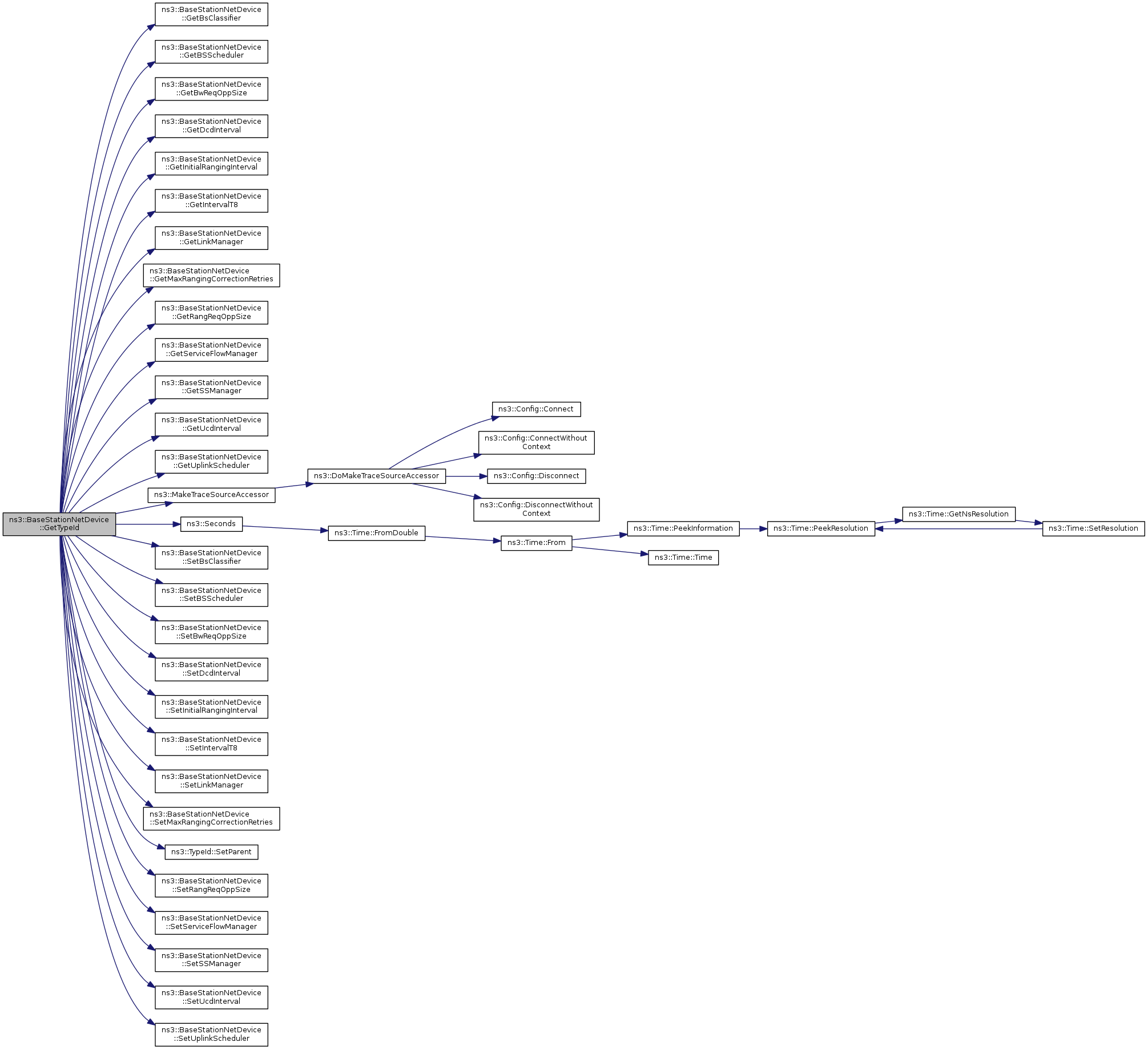

static TypeId	GetTypeId (void)

Private Member Functions

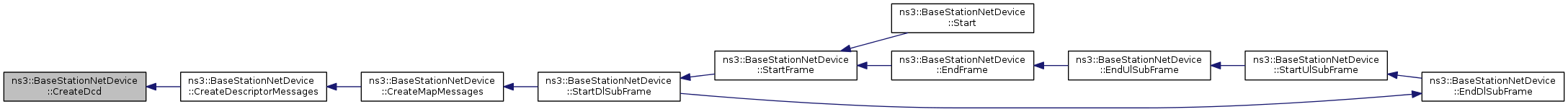

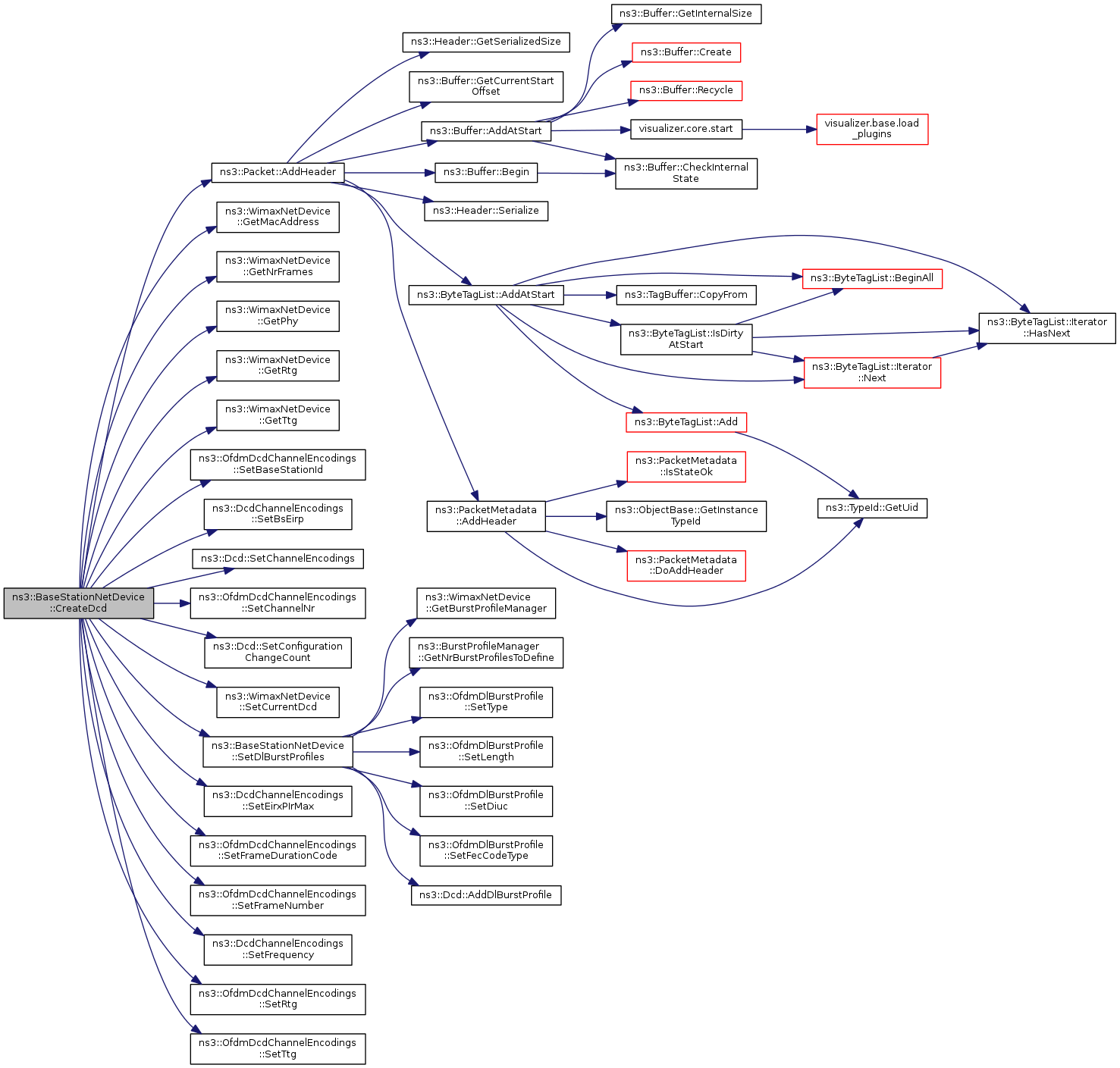

Ptr< Packet >	CreateDcd (void)

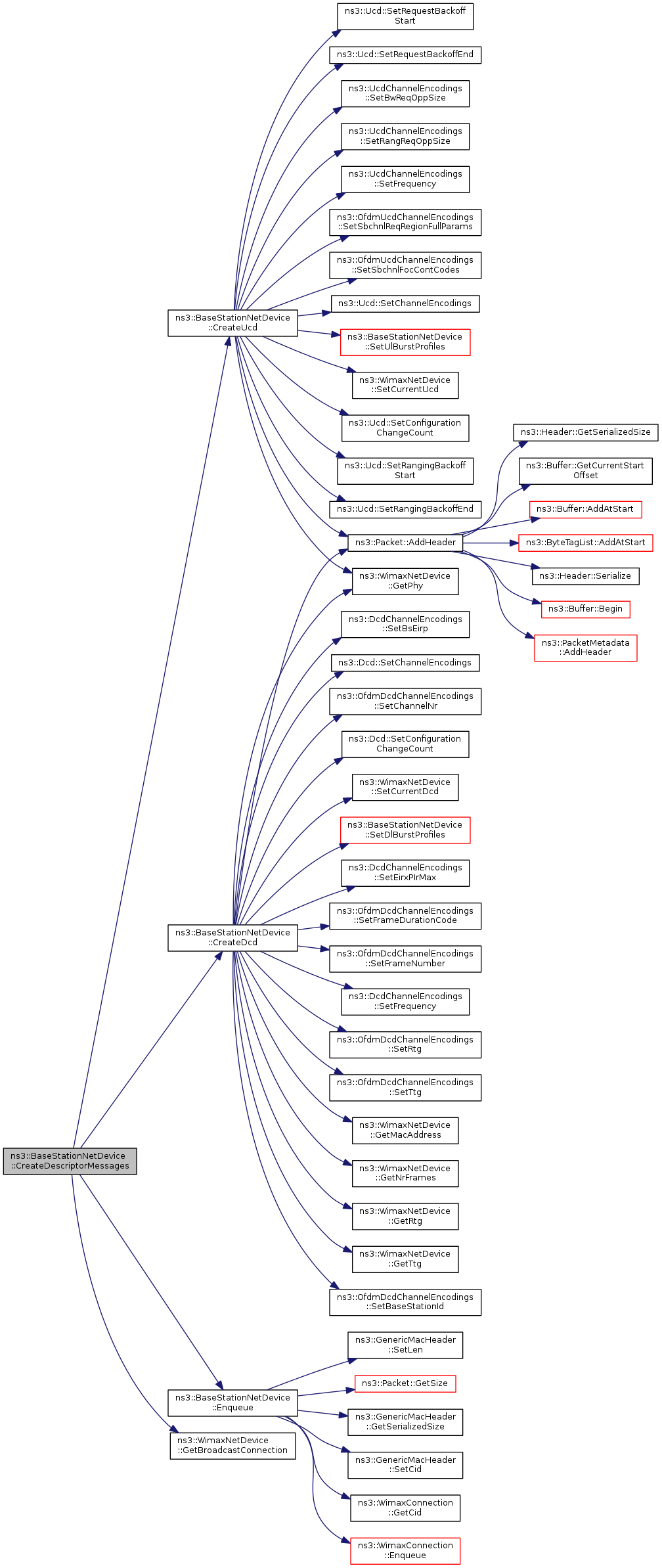

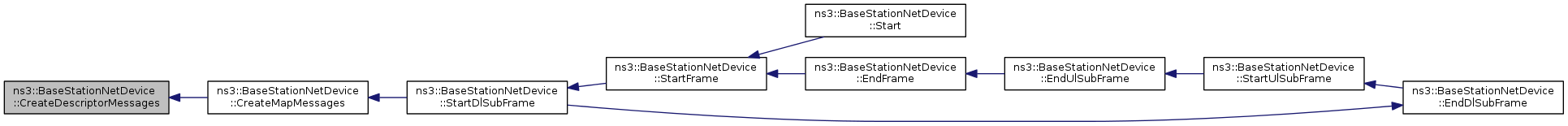

void	CreateDescriptorMessages (bool sendDcd, bool senUcd)
	creates the channel descriptor MAC management messages DCD and UCD

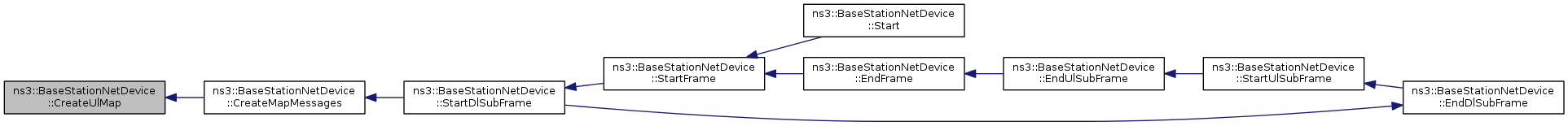

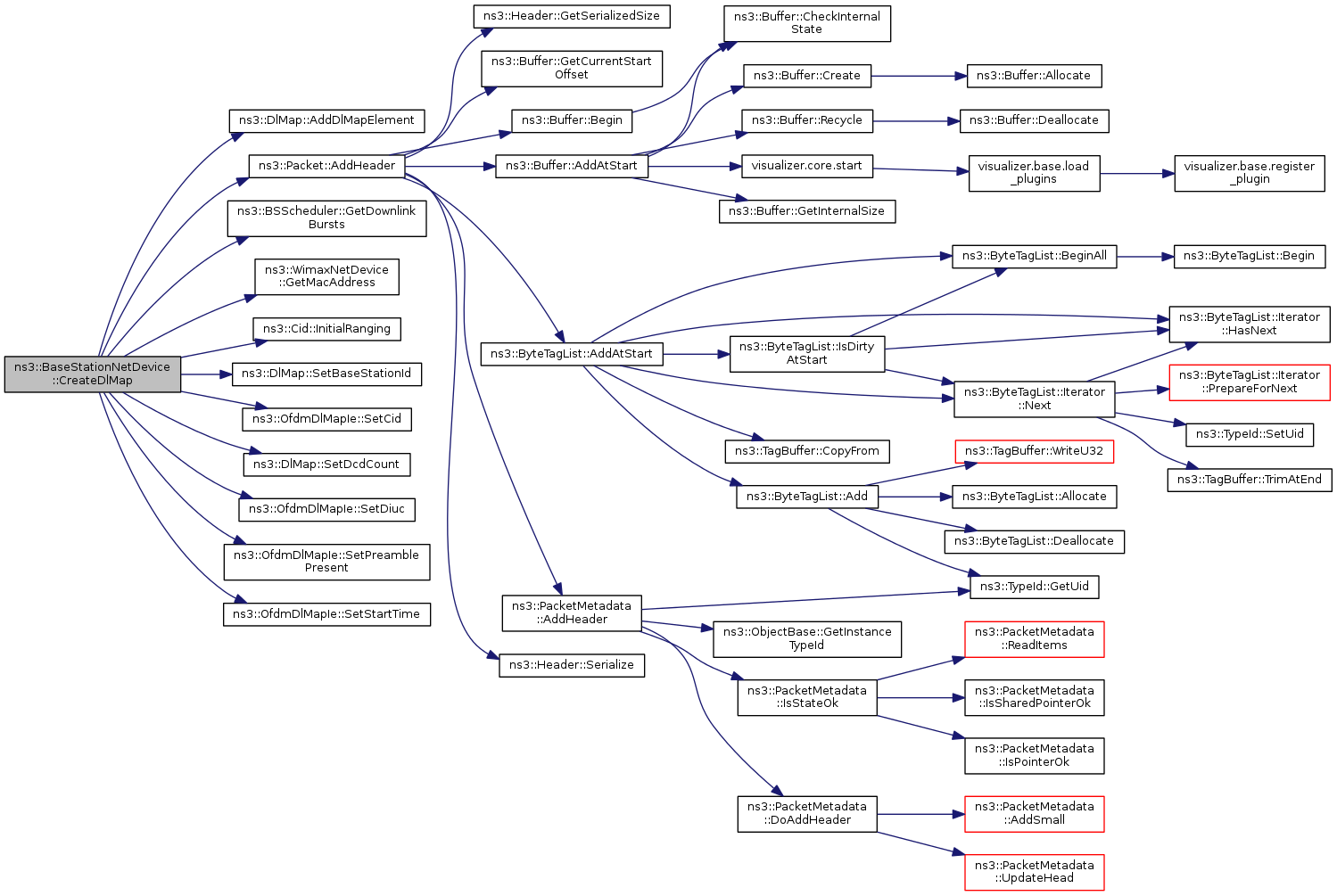

Ptr< Packet >	CreateDlMap (void)

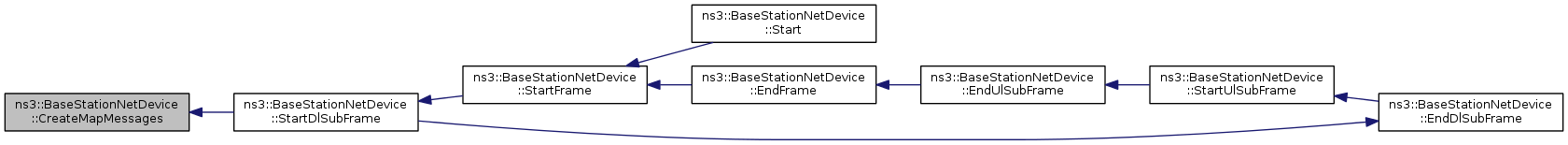

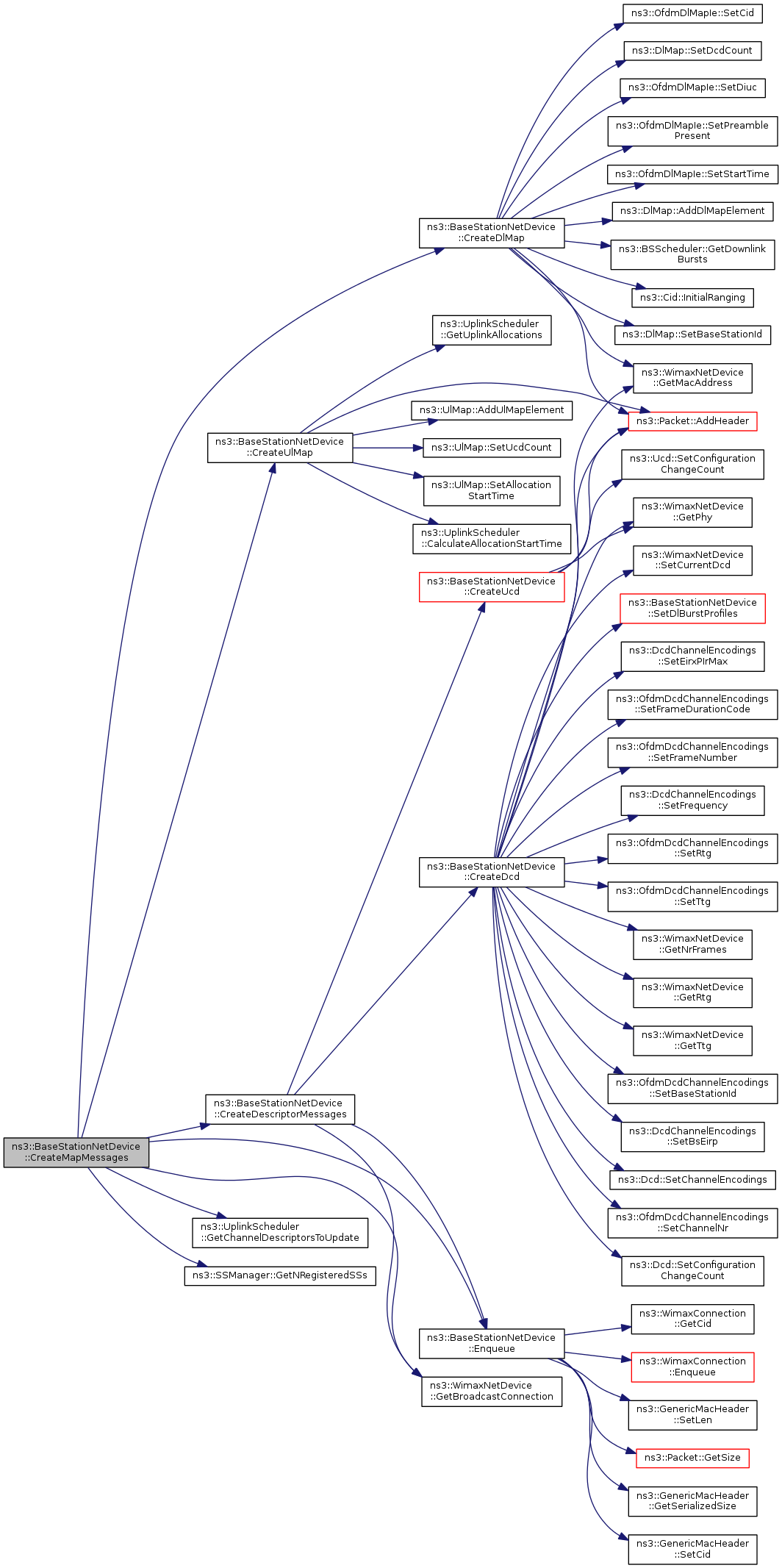

void	CreateMapMessages (void)
	creates the MAC management messages DL-MAP and UL-MAP

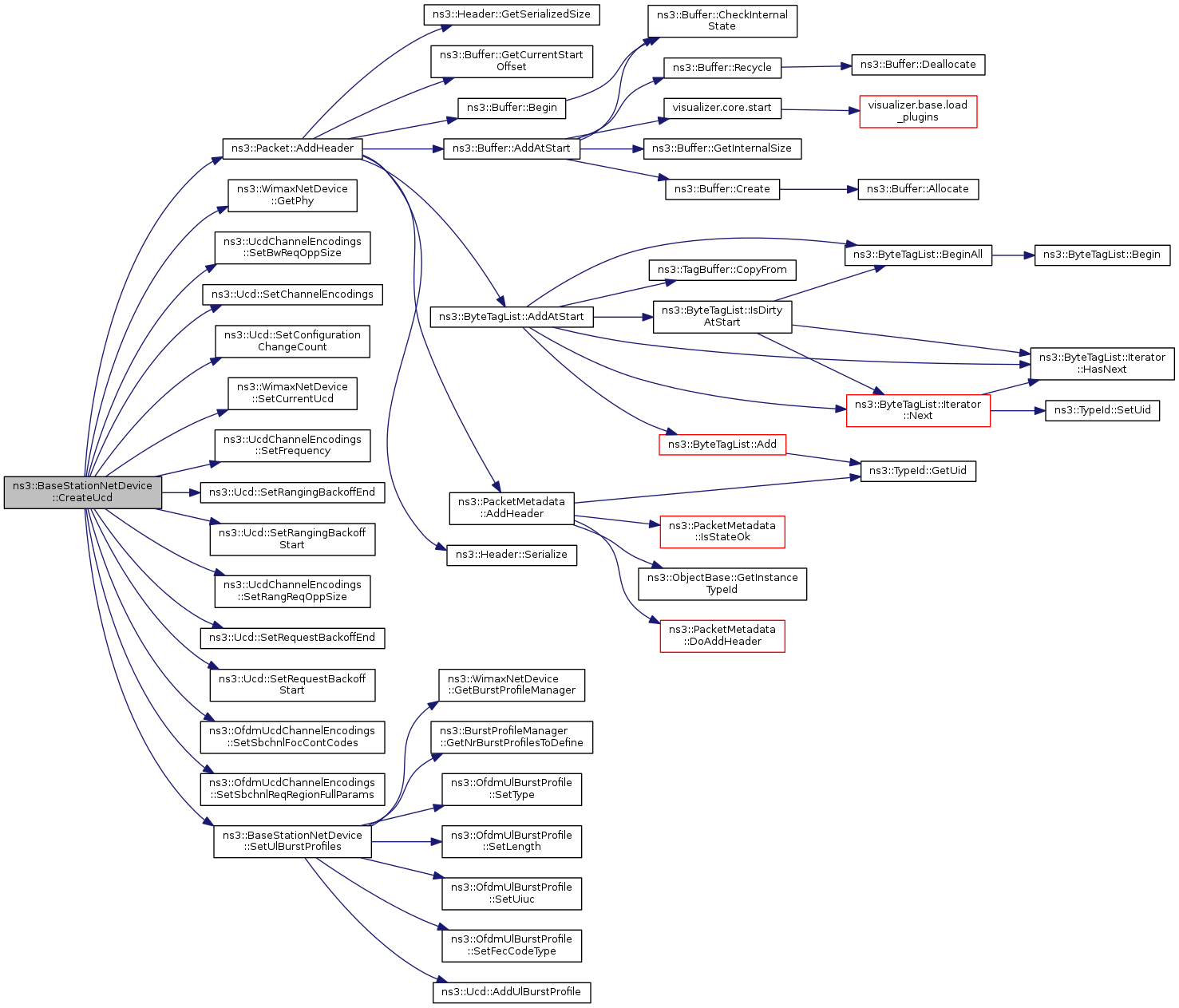

Ptr< Packet >	CreateUcd (void)

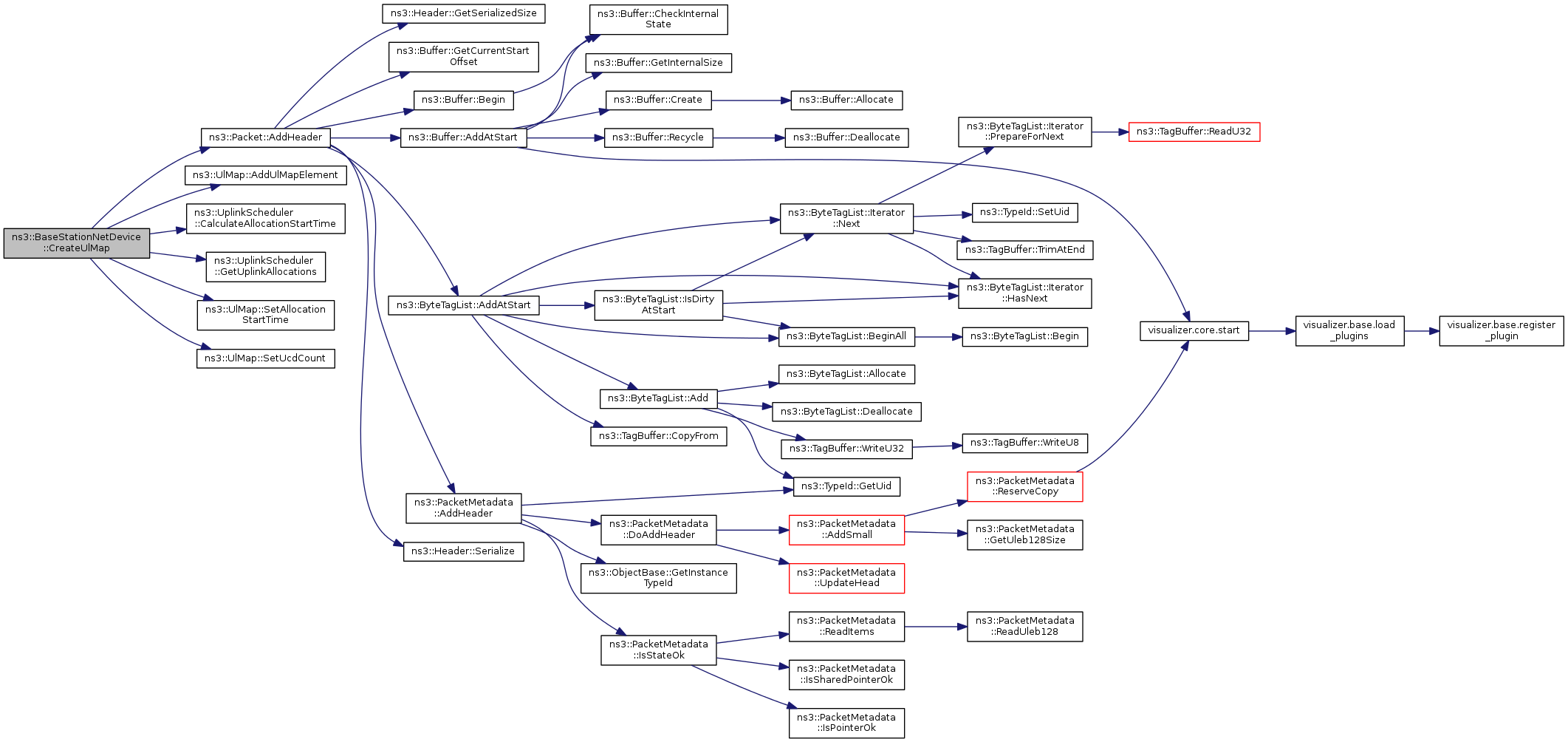

Ptr< Packet >	CreateUlMap (void)
void	DoDispose (void)

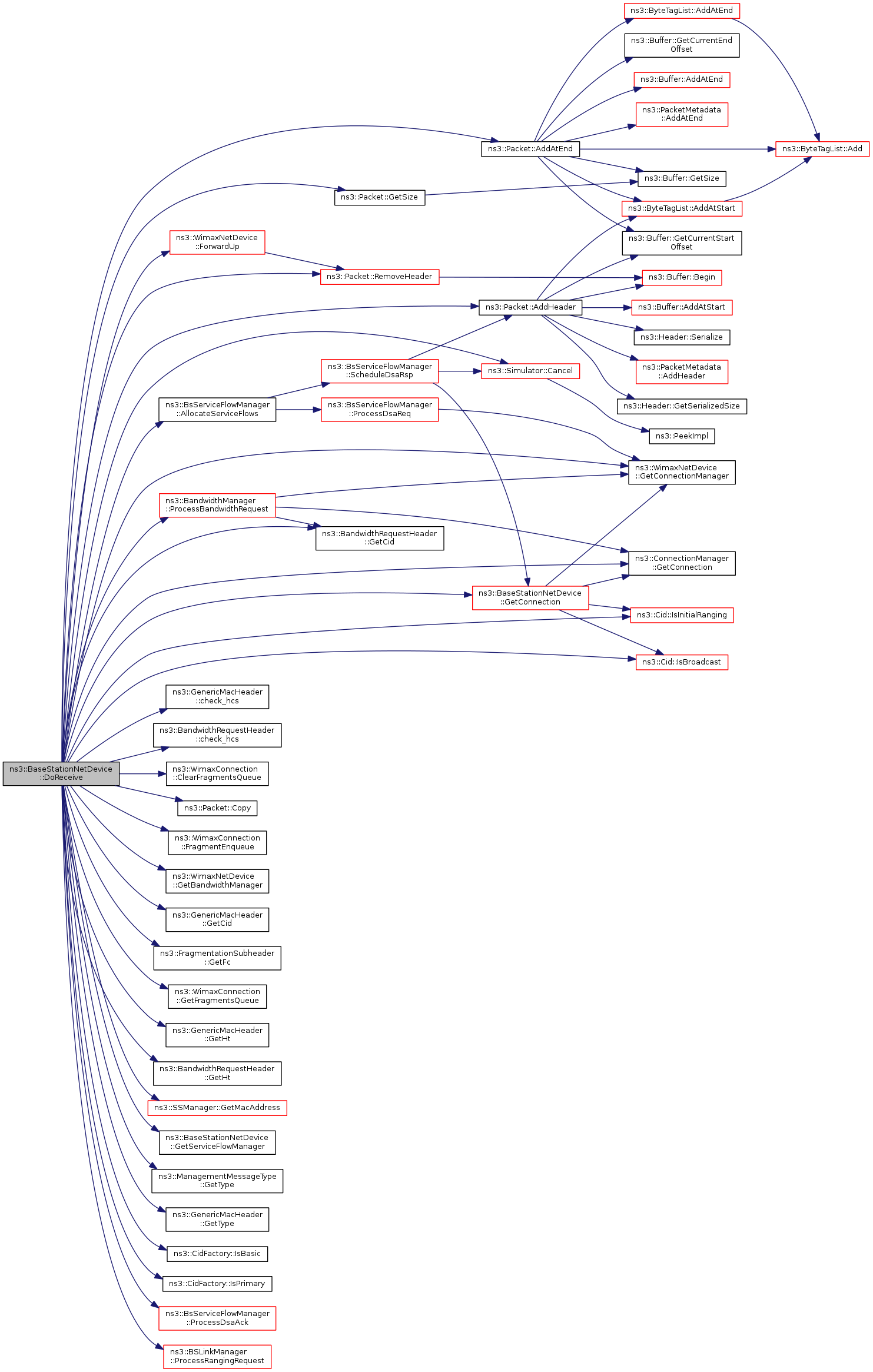

void	DoReceive (Ptr< Packet > packet)

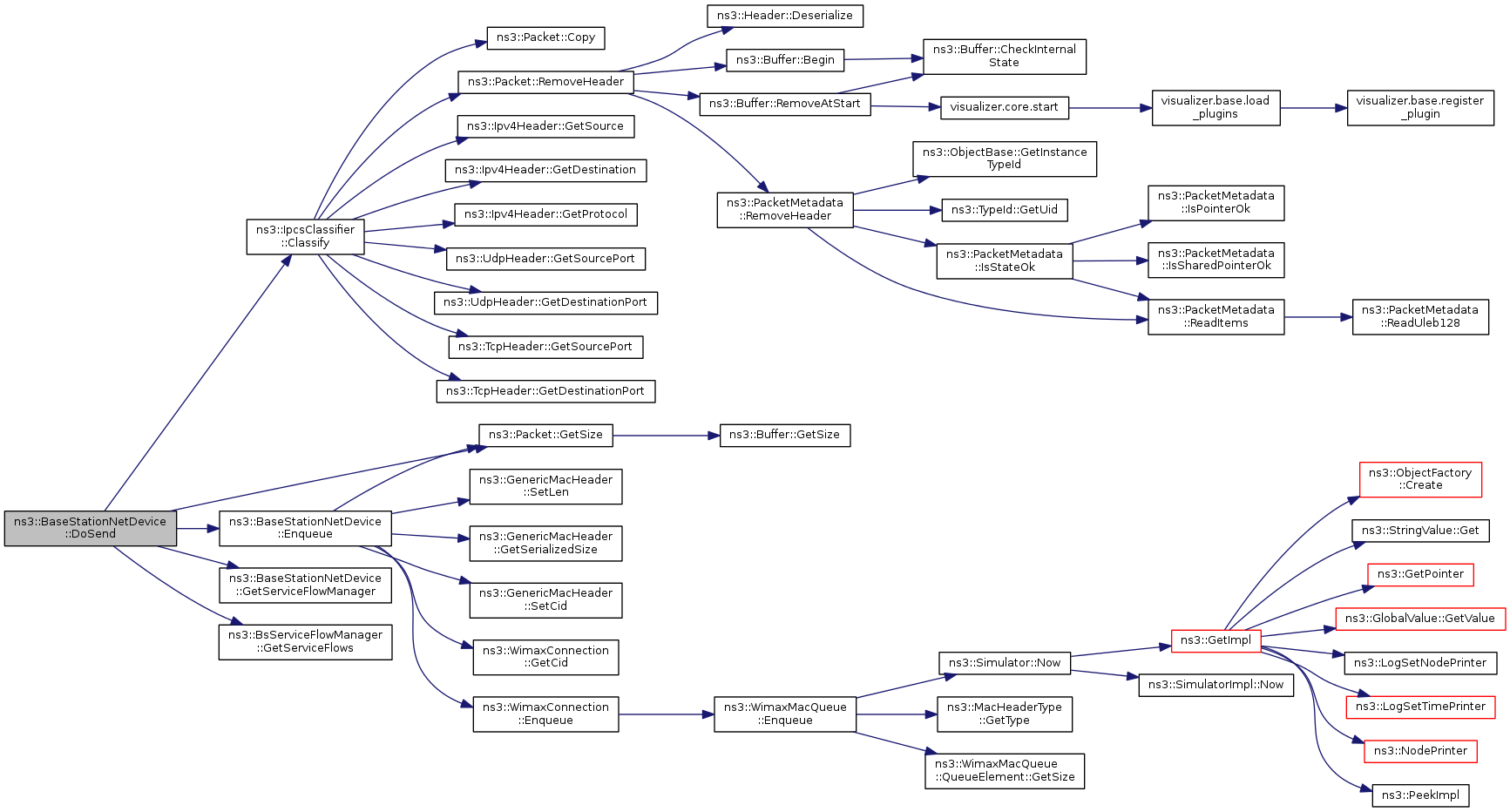

bool	DoSend (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest, uint16_t protocolNumber)

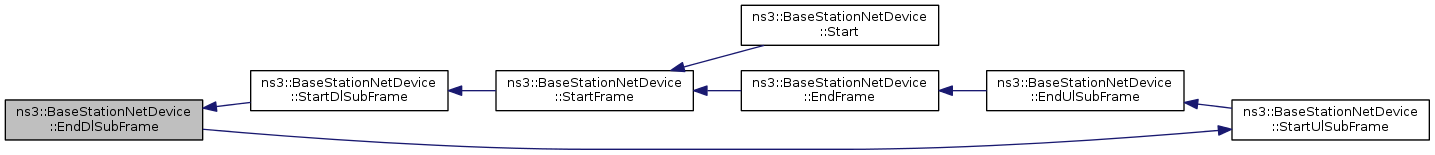

void	EndDlSubFrame (void)
void	EndFrame (void)

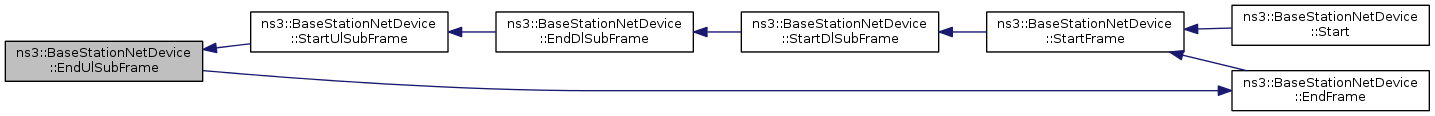

void	EndUlSubFrame (void)

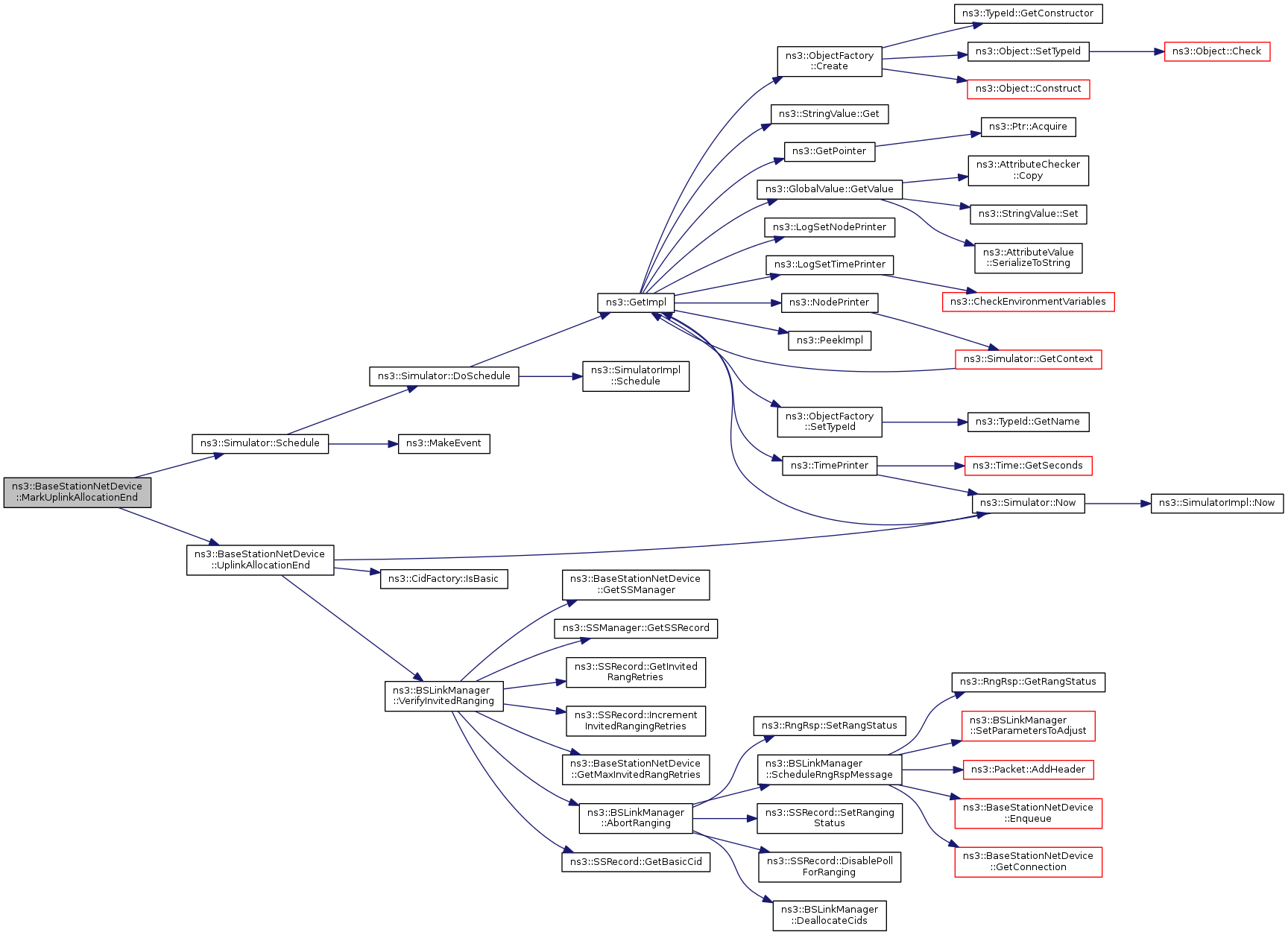

void	MarkUplinkAllocationEnd (Time allocationEndTime, Cid cid, uint8_t uiuc)

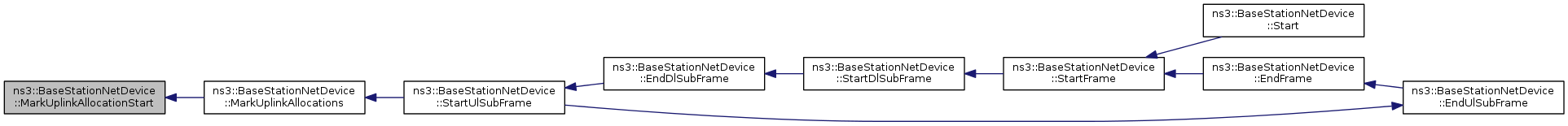

void	MarkUplinkAllocationStart (Time allocationStartTime)

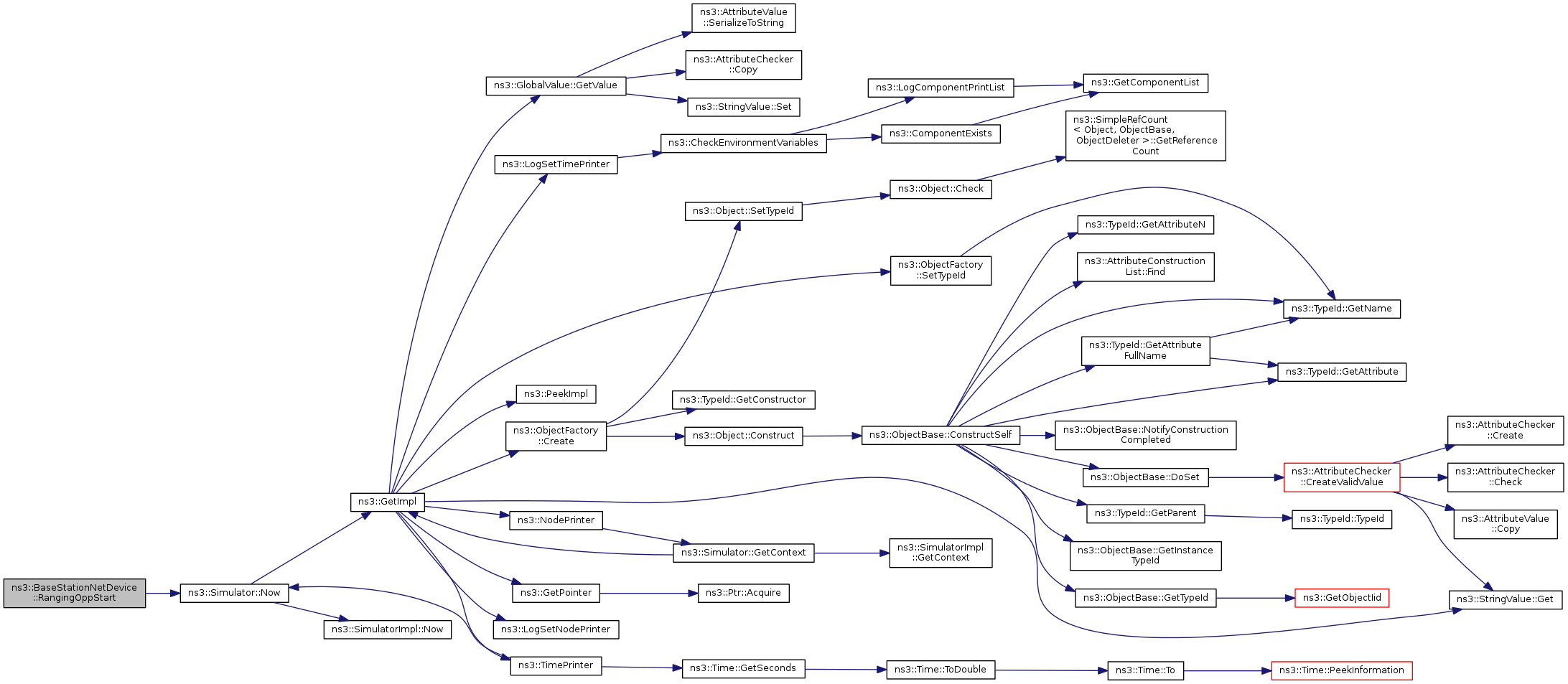

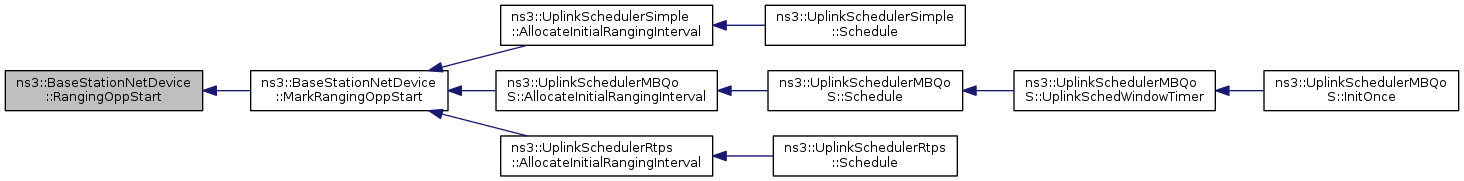

void	RangingOppStart (void)

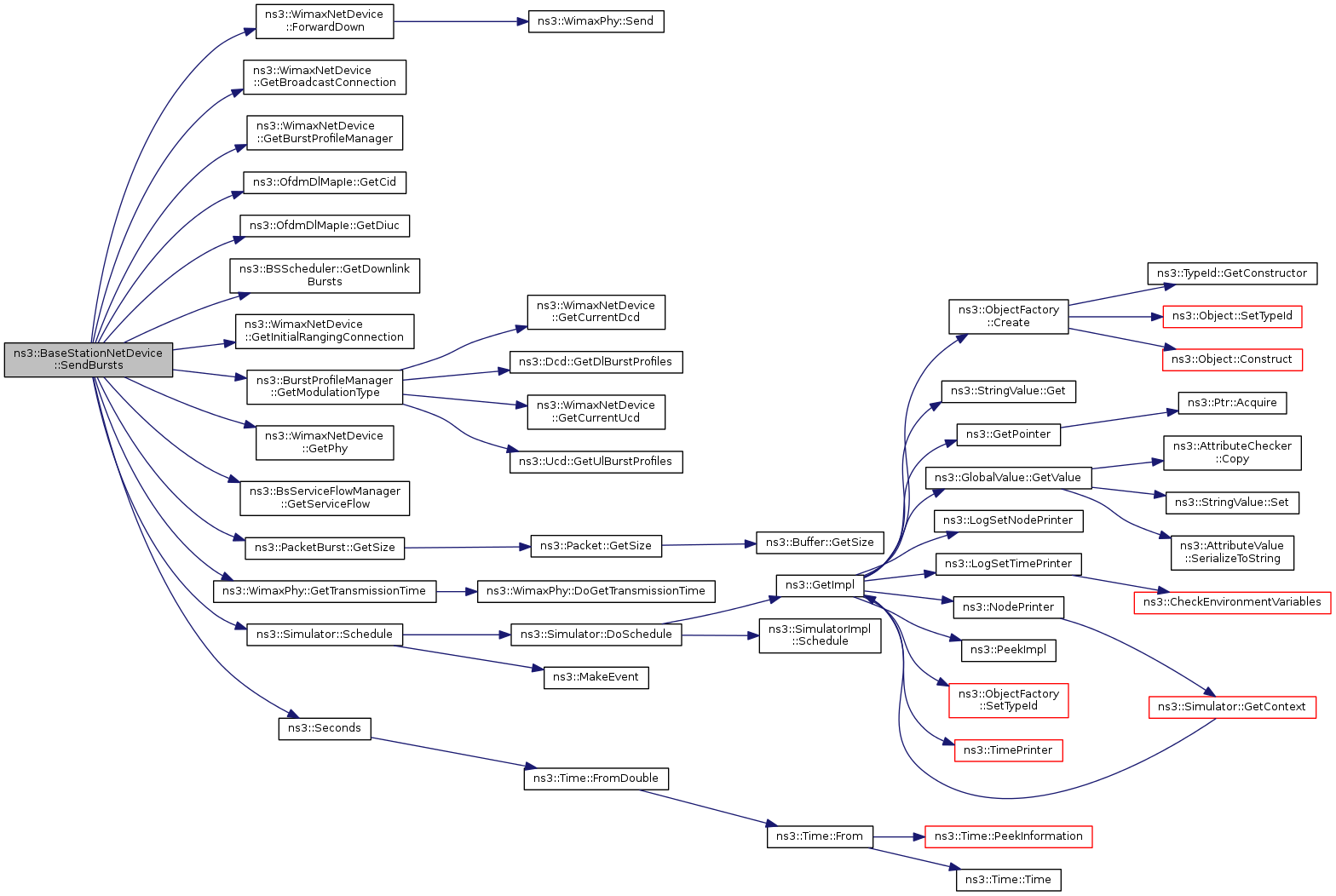

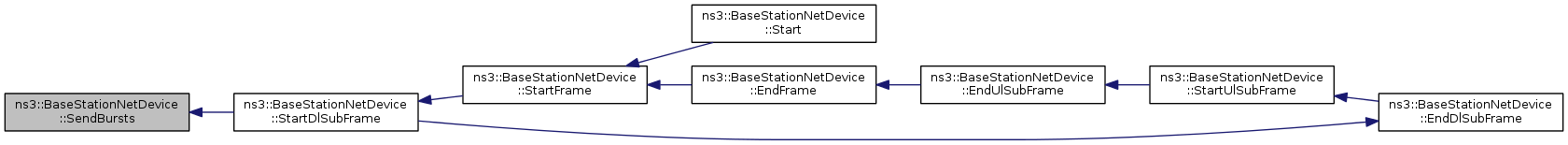

void	SendBursts (void)

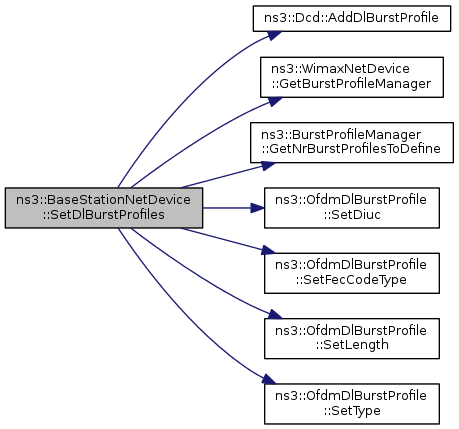

void	SetDlBurstProfiles (Dcd *dcd)

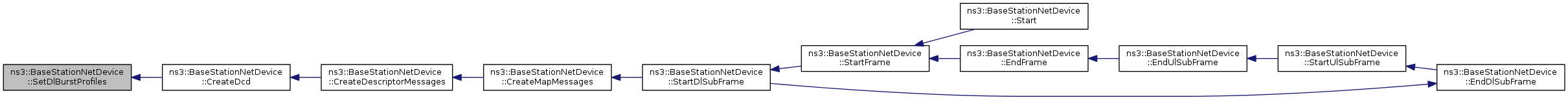

void	SetUlBurstProfiles (Ucd *ucd)

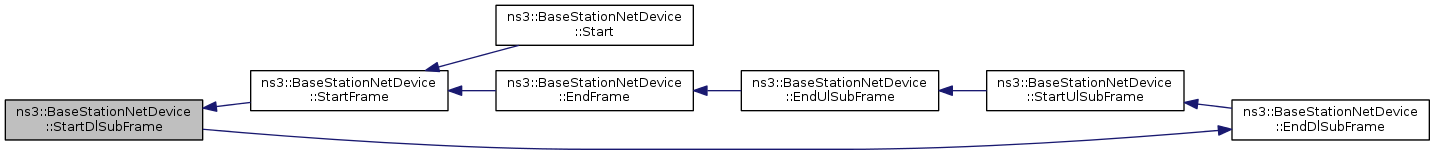

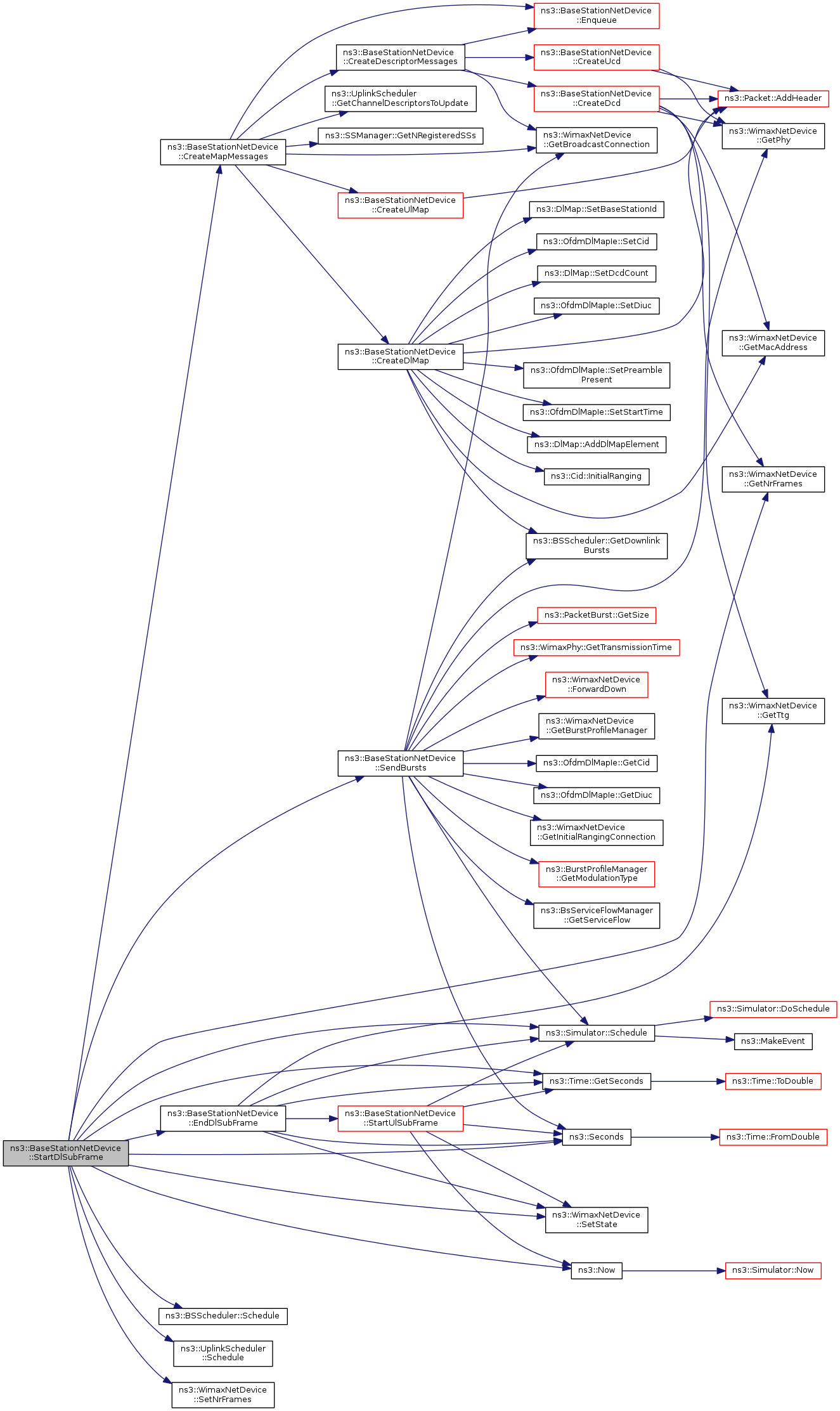

void	StartDlSubFrame (void)

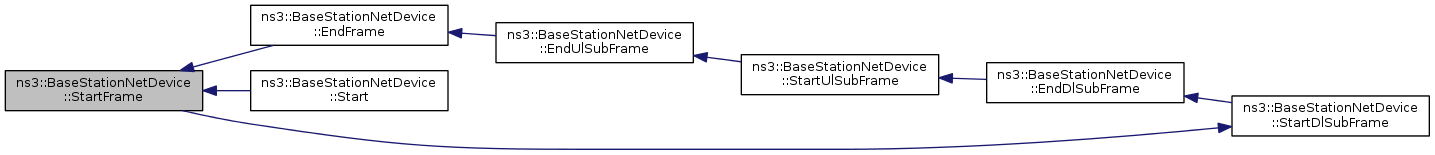

void	StartFrame (void)
void	StartUlSubFrame (void)

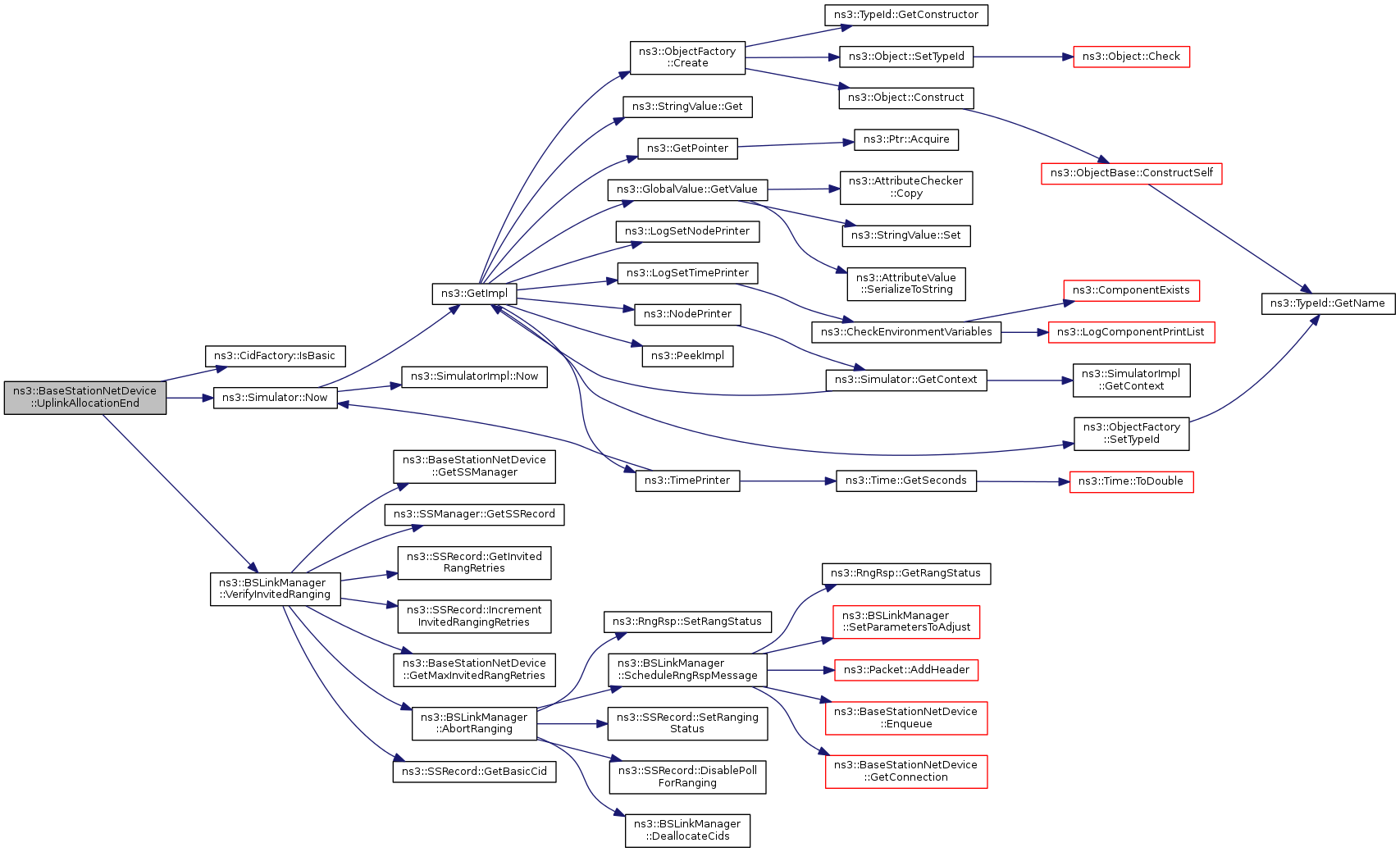

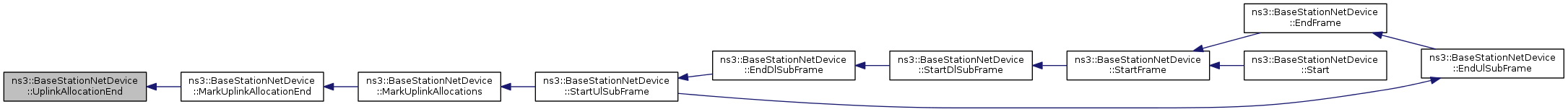

void	UplinkAllocationEnd (Cid cid, uint8_t uiuc)
void	UplinkAllocationStart (void)

Private Attributes
uint32_t	m_allocationStartTime
Ptr< IpcsClassifier >	m_bsClassifier
TracedCallback< Ptr< const Packet > >	m_bsPromiscRxTrace
TracedCallback< Ptr< const Packet > >	m_bsRxDropTrace
TracedCallback< Ptr< const Packet > >	m_bsRxTrace
TracedCallback< Ptr< const Packet > >	m_bsTxDropTrace
TracedCallback< Ptr< const Packet > >	m_bsTxTrace
uint8_t	m_bwReqOppSize
CidFactory *	m_cidFactory
uint32_t	m_dcdConfigChangeCount
Time	m_dcdInterval
Time	m_dlSubframeStartTime
uint32_t	m_framesSinceLastDcd
uint32_t	m_framesSinceLastUcd
Time	m_initialRangInterval
Time	m_intervalT8
Ptr< BSLinkManager >	m_linkManager
uint8_t	m_maxInvitedRangRetries
uint8_t	m_maxRangCorrectionRetries
uint32_t	m_nrDcdSent
uint16_t	m_nrDlAllocations
uint32_t	m_nrDlFrames
uint32_t	m_nrDlMapSent
uint32_t	m_nrDlSymbols
uint16_t	m_nrSsRegistered
uint32_t	m_nrUcdSent
uint16_t	m_nrUlAllocations
uint32_t	m_nrUlFrames
uint32_t	m_nrUlMapSent
uint32_t	m_nrUlSymbols
Time	m_psDuration
uint8_t	m_rangingOppNumber
uint8_t	m_rangReqOppSize
Ptr< BSScheduler >	m_scheduler
Ptr< BsServiceFlowManager >	m_serviceFlowManager
Ptr< SSManager >	m_ssManager
Time	m_symbolDuration
TracedCallback< Ptr< const Packet >, Mac48Address, Cid >	m_traceBSRx
uint32_t	m_ucdConfigChangeCount
Time	m_ucdInterval
uint8_t	m_ulAllocationNumber
Time	m_ulSubframeStartTime
Ptr< UplinkScheduler >	m_uplinkScheduler

Additional Inherited Members
Public Attributes inherited from ns3::WimaxNetDevice
TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceRx
TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceTx
Static Public Attributes inherited from ns3::WimaxNetDevice
static uint8_t	m_direction = ~0
static Time	m_frameStartTime = Seconds (0)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Config Paths

ns3::BaseStationNetDevice is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice

Attributes

BSScheduler: Downlink Scheduler for BS
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BSScheduler >
- Initial value: 0
- Flags: construct write read
InitialRangInterval: Time between Initial Ranging regions assigned by the BS. Maximum is 2s
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +50000000.0ns
- Flags: construct write read
DcdInterval: Time between transmission of DCD messages. Maximum value is 10s.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +3000000000.0ns
- Flags: construct write read
UcdInterval: Time between transmission of UCD messages. Maximum value is 10s.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +3000000000.0ns
- Flags: construct write read
IntervalT8: Wait for DSA/DSC Acknowledge timeout. Maximum 300ms.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +50000000.0ns
- Flags: construct write read
RangReqOppSize: The ranging opportunity size in symbols
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:256
- Initial value: 8
- Flags: construct write read
BwReqOppSize: The bandwidth request opportunity size in symbols
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:256
- Initial value: 2
- Flags: construct write read
MaxRangCorrectionRetries: Number of retries on contention Ranging Requests
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:16
- Initial value: 16
- Flags: construct write read
SSManager: The ss manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::SSManager >
- Initial value: 0
- Flags: construct write read
Scheduler: The BS scheduler attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BSScheduler >
- Initial value: 0
- Flags: construct write read
LinkManager: The link manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BSLinkManager >
- Initial value: 0
- Flags: construct write read
UplinkScheduler: The uplink scheduler attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UplinkScheduler >
- Initial value: 0
- Flags: construct write read
BsIpcsPacketClassifier: The uplink IP packet classifier attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::IpcsClassifier >
- Initial value: 0
- Flags: construct write read
ServiceFlowManager: The service flow manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ServiceFlowManager >
- Initial value: 0
- Flags: construct write read

Attributes defined in parent class ns3::WimaxNetDevice

Mtu: The MAC-level Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:1500
- Initial value: 1400
- Flags: construct write read
Phy: The PHY layer attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxPhy >
- Initial value: 0
- Flags: construct write read
Channel: The channel attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxChannel >
- Initial value: 0
- Flags: construct write read
RTG: receive/transmit transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: construct write read
TTG: transmit/receive transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: construct write read
ConnectionManager: The connection manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ConnectionManager >
- Initial value: 0
- Flags: construct write read
BurstProfileManager: The burst profile manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BurstProfileManager >
- Initial value: 0
- Flags: construct write read
BandwidthManager: The bandwidth manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BandwidthManager >
- Initial value: 0
- Flags: construct write read
InitialRangingConnection: Initial ranging connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection >
- Initial value: 0
- Flags: construct write read
BroadcastConnection: Broadcast connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection >
- Initial value: 0
- Flags: construct write read

TraceSources

BSTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
BSTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
BSPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
BSRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
BSRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

TraceSources defined in parent class ns3::WimaxNetDevice

Rx: Receive trace
Tx: Transmit trace

Definition at line 50 of file bs-net-device.h.

Member Enumeration Documentation

enum ns3::BaseStationNetDevice::MacPreamble

Enumerator:

SHORT_PREAMBLE
LONG_PREAMBLE

Definition at line 58 of file bs-net-device.h.

enum ns3::BaseStationNetDevice::State

Enumerator:

BS_STATE_DL_SUB_FRAME
BS_STATE_UL_SUB_FRAME
BS_STATE_TTG
BS_STATE_RTG

Definition at line 53 of file bs-net-device.h.

Constructor & Destructor Documentation

ns3::BaseStationNetDevice::BaseStationNetDevice ( void )

Definition at line 176 of file bs-net-device.cc.

References InitBaseStationNetDevice().

Here is the call graph for this function:

ns3::BaseStationNetDevice::BaseStationNetDevice	(	Ptr< Node >	node,
		Ptr< WimaxPhy >	phy
	)

Definition at line 223 of file bs-net-device.cc.

References InitBaseStationNetDevice(), ns3::WimaxNetDevice::SetNode(), and ns3::WimaxNetDevice::SetPhy().

Here is the call graph for this function:

ns3::BaseStationNetDevice::BaseStationNetDevice	(	Ptr< Node >	node,
		Ptr< WimaxPhy >	phy,
		Ptr< UplinkScheduler >	uplinkScheduler,
		Ptr< BSScheduler >	bsScheduler
	)

Definition at line 230 of file bs-net-device.cc.

References InitBaseStationNetDevice(), m_scheduler, m_uplinkScheduler, ns3::WimaxNetDevice::SetNode(), and ns3::WimaxNetDevice::SetPhy().

Here is the call graph for this function:

ns3::BaseStationNetDevice::~BaseStationNetDevice ( void )

Definition at line 242 of file bs-net-device.cc.

Member Function Documentation

Ptr< Packet > ns3::BaseStationNetDevice::CreateDcd ( void )

private

Definition at line 1022 of file bs-net-device.cc.

Referenced by CreateDescriptorMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::CreateDescriptorMessages	(	bool	sendDcd,
		bool	senUcd
	)

private

creates the channel descriptor MAC management messages DCD and UCD

Definition at line 911 of file bs-net-device.cc.

References CreateDcd(), CreateUcd(), Enqueue(), ns3::WimaxNetDevice::GetBroadcastConnection(), m_framesSinceLastDcd, m_framesSinceLastUcd, m_nrDcdSent, and m_nrUcdSent.

Referenced by CreateMapMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::BaseStationNetDevice::CreateDlMap ( void )

private

Definition at line 987 of file bs-net-device.cc.

References ns3::DlMap::AddDlMapElement(), ns3::Packet::AddHeader(), ns3::OfdmDlBurstProfile::DIUC_END_OF_MAP, ns3::BSScheduler::GetDownlinkBursts(), ns3::WimaxNetDevice::GetMacAddress(), ns3::Cid::InitialRanging(), list, m_dcdConfigChangeCount, m_nrDlAllocations, m_scheduler, ns3::ManagementMessageType::MESSAGE_TYPE_DL_MAP, ns3::DlMap::SetBaseStationId(), ns3::OfdmDlMapIe::SetCid(), ns3::DlMap::SetDcdCount(), ns3::OfdmDlMapIe::SetDiuc(), ns3::OfdmDlMapIe::SetPreamblePresent(), and ns3::OfdmDlMapIe::SetStartTime().

Referenced by CreateMapMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::CreateMapMessages ( void )

private

creates the MAC management messages DL-MAP and UL-MAP

Definition at line 867 of file bs-net-device.cc.

References CreateDescriptorMessages(), CreateDlMap(), CreateUlMap(), Enqueue(), ns3::WimaxNetDevice::GetBroadcastConnection(), ns3::UplinkScheduler::GetChannelDescriptorsToUpdate(), ns3::SSManager::GetNRegisteredSSs(), m_dcdConfigChangeCount, m_nrDlMapSent, m_nrSsRegistered, m_nrUlMapSent, m_ssManager, m_ucdConfigChangeCount, and m_uplinkScheduler.

Referenced by StartDlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::BaseStationNetDevice::CreateUcd ( void )

private

Definition at line 1076 of file bs-net-device.cc.

References ns3::Packet::AddHeader(), ns3::WimaxNetDevice::GetPhy(), m_bwReqOppSize, m_rangReqOppSize, m_ucdConfigChangeCount, ns3::ManagementMessageType::MESSAGE_TYPE_UCD, ns3::UcdChannelEncodings::SetBwReqOppSize(), ns3::Ucd::SetChannelEncodings(), ns3::Ucd::SetConfigurationChangeCount(), ns3::WimaxNetDevice::SetCurrentUcd(), ns3::UcdChannelEncodings::SetFrequency(), ns3::Ucd::SetRangingBackoffEnd(), ns3::Ucd::SetRangingBackoffStart(), ns3::UcdChannelEncodings::SetRangReqOppSize(), ns3::Ucd::SetRequestBackoffEnd(), ns3::Ucd::SetRequestBackoffStart(), ns3::OfdmUcdChannelEncodings::SetSbchnlFocContCodes(), ns3::OfdmUcdChannelEncodings::SetSbchnlReqRegionFullParams(), and SetUlBurstProfiles().

Referenced by CreateDescriptorMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::BaseStationNetDevice::CreateUlMap ( void )

private

Definition at line 1050 of file bs-net-device.cc.

References ns3::Packet::AddHeader(), ns3::UlMap::AddUlMapElement(), ns3::UplinkScheduler::CalculateAllocationStartTime(), ns3::UplinkScheduler::GetUplinkAllocations(), m_nrUlAllocations, m_rangingOppNumber, m_ucdConfigChangeCount, m_ulAllocationNumber, m_uplinkScheduler, ns3::ManagementMessageType::MESSAGE_TYPE_UL_MAP, ns3::UlMap::SetAllocationStartTime(), and ns3::UlMap::SetUcdCount().

Referenced by CreateMapMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::DoDispose ( void )

private

Definition at line 247 of file bs-net-device.cc.

References m_bsClassifier, m_cidFactory, m_linkManager, m_scheduler, m_serviceFlowManager, m_ssManager, and m_uplinkScheduler.

void ns3::BaseStationNetDevice::DoReceive ( Ptr< Packet > packet )

private

Definition at line 662 of file bs-net-device.cc.

Here is the call graph for this function:

bool ns3::BaseStationNetDevice::DoSend	(	Ptr< Packet >	packet,
		const Mac48Address &	source,
		const Mac48Address &	dest,
		uint16_t	protocolNumber
	)

private

Definition at line 596 of file bs-net-device.cc.

References ns3::IpcsClassifier::Classify(), Enqueue(), GetServiceFlowManager(), ns3::BsServiceFlowManager::GetServiceFlows(), ns3::Packet::GetSize(), m_bsClassifier, m_bsTxDropTrace, m_bsTxTrace, NS_LOG_INFO, ns3::ServiceFlow::SF_DIRECTION_DOWN, and ns3::ServiceFlow::SF_TYPE_ALL.

Here is the call graph for this function:

void ns3::BaseStationNetDevice::EndDlSubFrame ( void )

private

Definition at line 559 of file bs-net-device.cc.

References BS_STATE_TTG, ns3::Time::GetSeconds(), ns3::WimaxNetDevice::GetTtg(), m_nrDlFrames, m_psDuration, ns3::Simulator::Schedule(), ns3::Seconds(), ns3::WimaxNetDevice::SetState(), and StartUlSubFrame().

Referenced by StartDlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::EndFrame ( void )

private

Definition at line 590 of file bs-net-device.cc.

References StartFrame().

Referenced by EndUlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::EndUlSubFrame ( void )

private

Definition at line 582 of file bs-net-device.cc.

References BS_STATE_RTG, EndFrame(), ns3::WimaxNetDevice::GetRtg(), ns3::Time::GetSeconds(), m_nrUlFrames, m_psDuration, ns3::Simulator::Schedule(), ns3::Seconds(), and ns3::WimaxNetDevice::SetState().

Referenced by StartUlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::BaseStationNetDevice::Enqueue	(	Ptr< Packet >	packet,
		const MacHeaderType &	hdrType,
		Ptr< WimaxConnection >	connection
	)

virtual

Enqueue a packet into a connection queue.

Parameters

packet	the packet to be enqueued
hdrType	the mac header type to be appended to the packet
connection	the connection to be used

Implements ns3::WimaxNetDevice.

Definition at line 648 of file bs-net-device.cc.

References ns3::WimaxConnection::Enqueue(), ns3::WimaxConnection::GetCid(), ns3::GenericMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), NS_ASSERT_MSG, ns3::GenericMacHeader::SetCid(), and ns3::GenericMacHeader::SetLen().

Referenced by CreateDescriptorMessages(), CreateMapMessages(), DoSend(), and ns3::BSLinkManager::ScheduleRngRspMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< IpcsClassifier > ns3::BaseStationNetDevice::GetBsClassifier ( void ) const

Returns: a pointer to the classifier installed on the BS

Definition at line 271 of file bs-net-device.cc.

References m_bsClassifier.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< BSScheduler > ns3::BaseStationNetDevice::GetBSScheduler ( void ) const

Returns: The BS scheduler installed on the BS

Definition at line 480 of file bs-net-device.cc.

References m_scheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint8_t ns3::BaseStationNetDevice::GetBwReqOppSize ( void ) const

Returns: The bandwidth request opportunity size in symbols

Definition at line 367 of file bs-net-device.cc.

References m_bwReqOppSize.

Referenced by ns3::BandwidthManager::CalculateAllocationSize(), ns3::UplinkSchedulerMBQoS::CountSymbolsJobs(), and GetTypeId().

Here is the caller graph for this function:

Ptr< WimaxConnection > ns3::BaseStationNetDevice::GetConnection ( Cid cid )

Definition at line 1136 of file bs-net-device.cc.

References ns3::WimaxNetDevice::GetBroadcastConnection(), ns3::ConnectionManager::GetConnection(), ns3::WimaxNetDevice::GetConnectionManager(), ns3::WimaxNetDevice::GetInitialRangingConnection(), ns3::Cid::IsBroadcast(), ns3::Cid::IsInitialRanging(), and NS_ASSERT_MSG.

Referenced by DoReceive(), ns3::BsServiceFlowManager::ScheduleDsaRsp(), and ns3::BSLinkManager::ScheduleRngRspMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::BaseStationNetDevice::GetDcdInterval ( void ) const

Returns: the Time between transmission of DCD messages

Definition at line 295 of file bs-net-device.cc.

References m_dcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::BaseStationNetDevice::GetDlSubframeStartTime ( void ) const

Definition at line 409 of file bs-net-device.cc.

References m_dlSubframeStartTime.

Time ns3::BaseStationNetDevice::GetInitialRangingInterval ( void ) const

Returns: Time between Initial Ranging regions assigned by the BS

Definition at line 283 of file bs-net-device.cc.

References m_initialRangInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::BaseStationNetDevice::GetIntervalT8 ( void ) const

Returns: the Wait for DSA/DSC Acknowledge timeout

Definition at line 319 of file bs-net-device.cc.

References m_intervalT8.

Referenced by GetTypeId(), and ns3::BsServiceFlowManager::ScheduleDsaRsp().

Here is the caller graph for this function:

Ptr< BSLinkManager > ns3::BaseStationNetDevice::GetLinkManager ( void ) const

Returns: a pointer to the link manager installed on the BS

Definition at line 463 of file bs-net-device.cc.

References m_linkManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint8_t ns3::BaseStationNetDevice::GetMaxInvitedRangRetries ( void ) const

Returns: the number of retries on contention Ranging

Definition at line 343 of file bs-net-device.cc.

References m_maxInvitedRangRetries.

Referenced by ns3::BSLinkManager::VerifyInvitedRanging().

Here is the caller graph for this function:

uint8_t ns3::BaseStationNetDevice::GetMaxRangingCorrectionRetries ( void ) const

Returns: the number of retries on contention Ranging Requests

Definition at line 331 of file bs-net-device.cc.

References m_maxRangCorrectionRetries.

Referenced by GetTypeId(), and ns3::BSLinkManager::PerformInvitedRanging().

Here is the caller graph for this function:

uint32_t ns3::BaseStationNetDevice::GetNrDcdSent ( void ) const

Returns: the number dcd messages already sent

Definition at line 397 of file bs-net-device.cc.

References m_nrDcdSent.

uint32_t ns3::BaseStationNetDevice::GetNrDlSymbols ( void ) const

Returns: the number of symbols in the downlink sub-frame

Definition at line 379 of file bs-net-device.cc.

References m_nrDlSymbols.

Referenced by ns3::UplinkSchedulerSimple::CalculateAllocationStartTime(), ns3::UplinkSchedulerRtps::CalculateAllocationStartTime(), ns3::UplinkSchedulerMBQoS::CalculateAllocationStartTime(), ns3::BSSchedulerSimple::Schedule(), and ns3::BSSchedulerRtps::Schedule().

Here is the caller graph for this function:

uint32_t ns3::BaseStationNetDevice::GetNrUcdSent ( void ) const

Returns: the number ucd messages already sent

Definition at line 403 of file bs-net-device.cc.

References m_nrUcdSent.

uint32_t ns3::BaseStationNetDevice::GetNrUlSymbols ( void ) const

Returns: the number of symbols in the uplink sub-frame

Definition at line 391 of file bs-net-device.cc.

References m_nrUlSymbols.

Referenced by ns3::UplinkSchedulerSimple::Schedule(), ns3::UplinkSchedulerRtps::Schedule(), and ns3::UplinkSchedulerMBQoS::Schedule().

Here is the caller graph for this function:

Time ns3::BaseStationNetDevice::GetPsDuration ( void ) const

Definition at line 486 of file bs-net-device.cc.

References m_psDuration.

uint8_t ns3::BaseStationNetDevice::GetRangingOppNumber ( void ) const

Definition at line 421 of file bs-net-device.cc.

References m_rangingOppNumber.

Referenced by ns3::BSLinkManager::PerformRanging().

Here is the caller graph for this function:

uint8_t ns3::BaseStationNetDevice::GetRangReqOppSize ( void ) const

Returns: The ranging opportunity size in symbols

Definition at line 355 of file bs-net-device.cc.

References m_rangReqOppSize.

Referenced by ns3::UplinkSchedulerSimple::AllocateInitialRangingInterval(), ns3::UplinkSchedulerMBQoS::AllocateInitialRangingInterval(), ns3::UplinkSchedulerRtps::AllocateInitialRangingInterval(), GetTypeId(), ns3::BSLinkManager::ProcessRangingRequest(), ns3::UplinkSchedulerSimple::Schedule(), ns3::UplinkSchedulerRtps::Schedule(), and ns3::UplinkSchedulerMBQoS::Schedule().

Here is the caller graph for this function:

Ptr< BsServiceFlowManager > ns3::BaseStationNetDevice::GetServiceFlowManager ( void ) const

Definition at line 439 of file bs-net-device.cc.

References m_serviceFlowManager.

Referenced by ns3::BSSchedulerRtps::BSSchedulerBEConnection(), ns3::BSSchedulerRtps::BSSchedulerNRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerUGSConnection(), DoReceive(), DoSend(), GetTypeId(), main(), and ns3::BSSchedulerSimple::SelectConnection().

Here is the caller graph for this function:

Ptr< SSManager > ns3::BaseStationNetDevice::GetSSManager ( void ) const

Returns: a pointer to the SS manager

Definition at line 427 of file bs-net-device.cc.

References m_ssManager.

Referenced by ns3::BSSchedulerRtps::BSSchedulerBasicConnection(), ns3::BSSchedulerRtps::BSSchedulerBEConnection(), ns3::BSSchedulerRtps::BSSchedulerNRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerPrimaryConnection(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerUGSConnection(), ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth(), ns3::BandwidthManager::GetSymbolsPerFrameAllocated(), GetTypeId(), ns3::BSLinkManager::PerformInitialRanging(), ns3::BSLinkManager::PerformInvitedRanging(), ns3::UplinkSchedulerMBQoS::ProcessBandwidthRequest(), ns3::BsServiceFlowManager::ProcessDsaAck(), ns3::BsServiceFlowManager::ProcessDsaReq(), ns3::UplinkSchedulerSimple::Schedule(), ns3::BSSchedulerSimple::Schedule(), ns3::UplinkSchedulerRtps::Schedule(), ns3::UplinkSchedulerMBQoS::Schedule(), ns3::BsServiceFlowManager::ScheduleDsaRsp(), ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection(), ns3::UplinkSchedulerMBQoS::UplinkSchedWindowTimer(), and ns3::BSLinkManager::VerifyInvitedRanging().

Here is the caller graph for this function:

Time ns3::BaseStationNetDevice::GetSymbolDuration ( void ) const

Definition at line 492 of file bs-net-device.cc.

References m_symbolDuration.

Referenced by ns3::BSLinkManager::ProcessRangingRequest().

Here is the caller graph for this function:

TypeId ns3::BaseStationNetDevice::GetTypeId ( void )

static

Reimplemented from ns3::WimaxNetDevice.

Definition at line 55 of file bs-net-device.cc.

References GetBsClassifier(), GetBSScheduler(), GetBwReqOppSize(), GetDcdInterval(), GetInitialRangingInterval(), GetIntervalT8(), GetLinkManager(), GetMaxRangingCorrectionRetries(), GetRangReqOppSize(), GetServiceFlowManager(), GetSSManager(), GetUcdInterval(), GetUplinkScheduler(), m_bsPromiscRxTrace, m_bsRxDropTrace, m_bsRxTrace, m_bsTxDropTrace, m_bsTxTrace, m_scheduler, ns3::MakeTraceSourceAccessor(), ns3::Seconds(), SetBsClassifier(), SetBSScheduler(), SetBwReqOppSize(), SetDcdInterval(), SetInitialRangingInterval(), SetIntervalT8(), SetLinkManager(), SetMaxRangingCorrectionRetries(), ns3::TypeId::SetParent(), SetRangReqOppSize(), SetServiceFlowManager(), SetSSManager(), SetUcdInterval(), and SetUplinkScheduler().

Here is the call graph for this function:

Time ns3::BaseStationNetDevice::GetUcdInterval ( void ) const

Returns: Time between transmission of UCD messages

Definition at line 307 of file bs-net-device.cc.

References m_ucdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::BaseStationNetDevice::GetUlSubframeStartTime ( void ) const

Definition at line 415 of file bs-net-device.cc.

References m_ulSubframeStartTime.

Referenced by ns3::BSLinkManager::ProcessRangingRequest().

Here is the caller graph for this function:

Ptr< UplinkScheduler > ns3::BaseStationNetDevice::GetUplinkScheduler ( void ) const

Returns: a pointer to the uplink scheduler installed on the device

Definition at line 451 of file bs-net-device.cc.

References m_uplinkScheduler.

Referenced by ns3::BsServiceFlowManager::AddMulticastServiceFlow(), GetTypeId(), ns3::BandwidthManager::ProcessBandwidthRequest(), ns3::BSLinkManager::ProcessRangingRequest(), and ns3::BsServiceFlowManager::ScheduleDsaRsp().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::InitBaseStationNetDevice ( void )

initializes the BS net device and sets its parameters to the default values

Definition at line 182 of file bs-net-device.cc.

References m_allocationStartTime, m_bsClassifier, m_bwReqOppSize, m_cidFactory, m_dcdConfigChangeCount, m_dcdInterval, m_dlSubframeStartTime, m_framesSinceLastDcd, m_framesSinceLastUcd, m_initialRangInterval, m_intervalT8, m_linkManager, m_maxInvitedRangRetries, m_maxRangCorrectionRetries, m_nrDcdSent, m_nrDlAllocations, m_nrDlFrames, m_nrDlMapSent, m_nrDlSymbols, m_nrSsRegistered, m_nrUcdSent, m_nrUlAllocations, m_nrUlFrames, m_nrUlMapSent, m_nrUlSymbols, m_psDuration, m_rangingOppNumber, m_rangReqOppSize, m_serviceFlowManager, m_ssManager, m_symbolDuration, m_ucdConfigChangeCount, m_ucdInterval, m_ulAllocationNumber, m_ulSubframeStartTime, ns3::MilliSeconds(), and ns3::Seconds().

Referenced by BaseStationNetDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::MarkRangingOppStart ( Time rangingOppStartTime )

Definition at line 1211 of file bs-net-device.cc.

References RangingOppStart(), and ns3::Simulator::Schedule().

Referenced by ns3::UplinkSchedulerSimple::AllocateInitialRangingInterval(), ns3::UplinkSchedulerMBQoS::AllocateInitialRangingInterval(), and ns3::UplinkSchedulerRtps::AllocateInitialRangingInterval().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::MarkUplinkAllocationEnd	(	Time	allocationEndTime,
		Cid	cid,
		uint8_t	uiuc
	)

private

Definition at line 1184 of file bs-net-device.cc.

References ns3::Simulator::Schedule(), and UplinkAllocationEnd().

Referenced by MarkUplinkAllocations().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::MarkUplinkAllocations ( void )

Definition at line 1157 of file bs-net-device.cc.

References ns3::OfdmUlMapIe::GetCid(), ns3::OfdmUlMapIe::GetDuration(), ns3::Time::GetSeconds(), ns3::OfdmUlMapIe::GetStartTime(), ns3::OfdmUlMapIe::GetUiuc(), ns3::UplinkScheduler::GetUplinkAllocations(), m_symbolDuration, m_uplinkScheduler, MarkUplinkAllocationEnd(), MarkUplinkAllocationStart(), ns3::Seconds(), and ns3::OfdmUlBurstProfile::UIUC_END_OF_MAP.

Referenced by StartUlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::MarkUplinkAllocationStart ( Time allocationStartTime )

private

Definition at line 1178 of file bs-net-device.cc.

References ns3::Simulator::Schedule(), and UplinkAllocationStart().

Referenced by MarkUplinkAllocations().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::RangingOppStart ( void )

private

Definition at line 1217 of file bs-net-device.cc.

References m_rangingOppNumber, ns3::Simulator::Now(), and NS_LOG_DEBUG.

Referenced by MarkRangingOppStart().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SendBursts ( void )

private

Definition at line 945 of file bs-net-device.cc.

References ns3::WimaxNetDevice::DIRECTION_DOWNLINK, ns3::WimaxNetDevice::ForwardDown(), ns3::WimaxNetDevice::GetBroadcastConnection(), ns3::WimaxNetDevice::GetBurstProfileManager(), ns3::OfdmDlMapIe::GetCid(), ns3::OfdmDlMapIe::GetDiuc(), ns3::BSScheduler::GetDownlinkBursts(), ns3::WimaxNetDevice::GetInitialRangingConnection(), ns3::BurstProfileManager::GetModulationType(), ns3::WimaxNetDevice::GetPhy(), ns3::BsServiceFlowManager::GetServiceFlow(), ns3::PacketBurst::GetSize(), ns3::WimaxPhy::GetTransmissionTime(), m_scheduler, m_serviceFlowManager, ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, ns3::Simulator::Schedule(), and ns3::Seconds().

Referenced by StartDlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetBsClassifier ( Ptr< IpcsClassifier > classifier )

Parameters

classifier a classifier to be installed on the BS

Definition at line 265 of file bs-net-device.cc.

References m_bsClassifier.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetBSScheduler ( Ptr< BSScheduler > bsSchedule )

Parameters

bsSchedule the downlink scheduler to be installed on the BS

Definition at line 475 of file bs-net-device.cc.

References m_scheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetBwReqOppSize ( uint8_t bwReqOppSize )

Parameters

bwReqOppSize The bandwidth request opportunity size in symbols

Definition at line 361 of file bs-net-device.cc.

References m_bwReqOppSize.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetDcdInterval ( Time dcdInterval )

Parameters

dcdInterval Time between transmission of DCD messages

Definition at line 289 of file bs-net-device.cc.

References m_dcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetDlBurstProfiles ( Dcd * dcd )

private

Definition at line 1106 of file bs-net-device.cc.

References ns3::Dcd::AddDlBurstProfile(), ns3::WimaxNetDevice::GetBurstProfileManager(), ns3::BurstProfileManager::GetNrBurstProfilesToDefine(), ns3::OfdmDlBurstProfile::SetDiuc(), ns3::OfdmDlBurstProfile::SetFecCodeType(), ns3::OfdmDlBurstProfile::SetLength(), and ns3::OfdmDlBurstProfile::SetType().

Referenced by CreateDcd().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetInitialRangingInterval ( Time initialRangInterval )

Parameters

initialRangInterval Time between Initial Ranging regions assigned by the BS

Definition at line 277 of file bs-net-device.cc.

References m_initialRangInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetIntervalT8 ( Time interval )

Parameters

interval the Wait for DSA/DSC Acknowledge timeout

Definition at line 313 of file bs-net-device.cc.

References m_intervalT8.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetLinkManager ( Ptr< BSLinkManager > linkManager )

Parameters

linkManager The link manager installed on the BS

Definition at line 469 of file bs-net-device.cc.

References m_linkManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetMaxInvitedRangRetries ( uint8_t maxInvitedRangRetries )

Parameters

maxInvitedRangRetries the number of retries on contention Ranging

Definition at line 337 of file bs-net-device.cc.

References m_maxInvitedRangRetries.

void ns3::BaseStationNetDevice::SetMaxRangingCorrectionRetries ( uint8_t maxRangCorrectionRetries )

Parameters

maxRangCorrectionRetries the number of retries on contention Ranging Requests

Definition at line 325 of file bs-net-device.cc.

References m_maxRangCorrectionRetries.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetNrDlSymbols ( uint32_t dlSymbols )

Parameters

dlSymbols the number of symbols in the downlink sub-frame

Definition at line 373 of file bs-net-device.cc.

References m_nrDlSymbols.

Referenced by ns3::BandwidthManager::SetSubframeRatio(), and StartFrame().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetNrUlSymbols ( uint32_t ulSymbols )

Parameters

ulSymbols the number of symbols in the uplink sub-frame

Definition at line 385 of file bs-net-device.cc.

References m_nrUlSymbols.

Referenced by ns3::BandwidthManager::SetSubframeRatio(), and StartFrame().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetRangReqOppSize ( uint8_t rangReqOppSize )

Parameters

rangReqOppSize The ranging opportunity size in symbols

Definition at line 349 of file bs-net-device.cc.

References m_rangReqOppSize.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetServiceFlowManager ( Ptr< BsServiceFlowManager > sfm )

Definition at line 445 of file bs-net-device.cc.

References m_serviceFlowManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetSSManager ( Ptr< SSManager > ssManager )

Parameters

ssManager the SS manager to be installed on the BS

Definition at line 433 of file bs-net-device.cc.

References m_ssManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetUcdInterval ( Time ucdInterval )

Parameters

ucdInterval the Time between transmission of UCD messages

Definition at line 301 of file bs-net-device.cc.

References m_ucdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetUlBurstProfiles ( Ucd * ucd )

private

Definition at line 1120 of file bs-net-device.cc.

References ns3::Ucd::AddUlBurstProfile(), ns3::WimaxNetDevice::GetBurstProfileManager(), ns3::BurstProfileManager::GetNrBurstProfilesToDefine(), ns3::OfdmUlBurstProfile::SetFecCodeType(), ns3::OfdmUlBurstProfile::SetLength(), ns3::OfdmUlBurstProfile::SetType(), and ns3::OfdmUlBurstProfile::SetUiuc().

Referenced by CreateUcd().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetUplinkScheduler ( Ptr< UplinkScheduler > ulScheduler )

Parameters

ulScheduler the ulScheduler to be isnstalled on the BS

Definition at line 457 of file bs-net-device.cc.

References m_uplinkScheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::Start ( void )

virtual

Implements ns3::WimaxNetDevice.

Definition at line 498 of file bs-net-device.cc.

Here is the call graph for this function:

void ns3::BaseStationNetDevice::StartDlSubFrame ( void )

private

Definition at line 540 of file bs-net-device.cc.

References BS_STATE_DL_SUB_FRAME, CreateMapMessages(), ns3::WimaxNetDevice::DIRECTION_DOWNLINK, EndDlSubFrame(), ns3::WimaxNetDevice::GetNrFrames(), ns3::Time::GetSeconds(), ns3::WimaxNetDevice::m_direction, m_dlSubframeStartTime, ns3::WimaxNetDevice::m_frameStartTime, m_nrDlSymbols, m_scheduler, m_symbolDuration, m_uplinkScheduler, ns3::Now(), NS_LOG_DEBUG, ns3::BSScheduler::Schedule(), ns3::UplinkScheduler::Schedule(), ns3::Simulator::Schedule(), ns3::Seconds(), SendBursts(), ns3::WimaxNetDevice::SetNrFrames(), and ns3::WimaxNetDevice::SetState().

Referenced by StartFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::StartFrame ( void )

private

Definition at line 525 of file bs-net-device.cc.

References ns3::WimaxNetDevice::GetNrFrames(), ns3::WimaxNetDevice::GetPhy(), ns3::WimaxNetDevice::GetRtg(), ns3::Time::GetSeconds(), ns3::WimaxPhy::GetSymbolsPerFrame(), ns3::WimaxNetDevice::GetTtg(), ns3::WimaxNetDevice::m_frameStartTime, m_psDuration, m_symbolDuration, ns3::Now(), NS_LOG_INFO, SetNrDlSymbols(), SetNrUlSymbols(), and StartDlSubFrame().

Referenced by EndFrame(), and Start().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::StartUlSubFrame ( void )

private

Definition at line 567 of file bs-net-device.cc.

References BS_STATE_UL_SUB_FRAME, ns3::WimaxNetDevice::DIRECTION_UPLINK, EndUlSubFrame(), ns3::Time::GetSeconds(), ns3::WimaxNetDevice::m_direction, m_nrUlSymbols, m_symbolDuration, m_ulSubframeStartTime, MarkUplinkAllocations(), ns3::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), ns3::Seconds(), and ns3::WimaxNetDevice::SetState().

Referenced by EndDlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::Stop ( void )

virtual

Implements ns3::WimaxNetDevice.

Definition at line 520 of file bs-net-device.cc.

void ns3::BaseStationNetDevice::UplinkAllocationEnd	(	Cid	cid,
		uint8_t	uiuc
	)

private

Definition at line 1200 of file bs-net-device.cc.

References ns3::CidFactory::IsBasic(), m_cidFactory, m_linkManager, m_ulAllocationNumber, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::BSLinkManager::VerifyInvitedRanging().

Referenced by MarkUplinkAllocationEnd().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::UplinkAllocationStart ( void )

private

Definition at line 1190 of file bs-net-device.cc.

References m_ulAllocationNumber, ns3::Simulator::Now(), and NS_LOG_DEBUG.

Referenced by MarkUplinkAllocationStart().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::BaseStationNetDevice::m_allocationStartTime

private

Definition at line 307 of file bs-net-device.h.

Referenced by InitBaseStationNetDevice().

Ptr<IpcsClassifier> ns3::BaseStationNetDevice::m_bsClassifier

private

Definition at line 313 of file bs-net-device.h.

Referenced by DoDispose(), DoSend(), GetBsClassifier(), InitBaseStationNetDevice(), and SetBsClassifier().

TracedCallback<Ptr<const Packet> > ns3::BaseStationNetDevice::m_bsPromiscRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). This is a promiscuous trace.

See Also: class CallBackTraceSource

Definition at line 344 of file bs-net-device.h.

Referenced by GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::BaseStationNetDevice::m_bsRxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception.

See Also: class CallBackTraceSource

Definition at line 361 of file bs-net-device.h.

Referenced by DoReceive(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::BaseStationNetDevice::m_bsRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). This is a non- promiscuous trace.
