Helper class to handle the creation of the EPC entities and protocols. More...

#include <epc-helper.h>

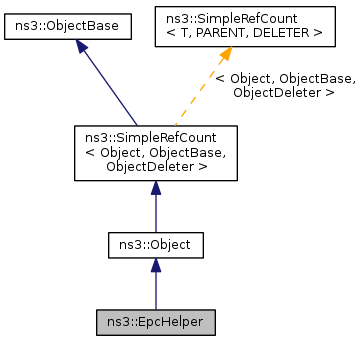

Inheritance diagram for ns3::EpcHelper:

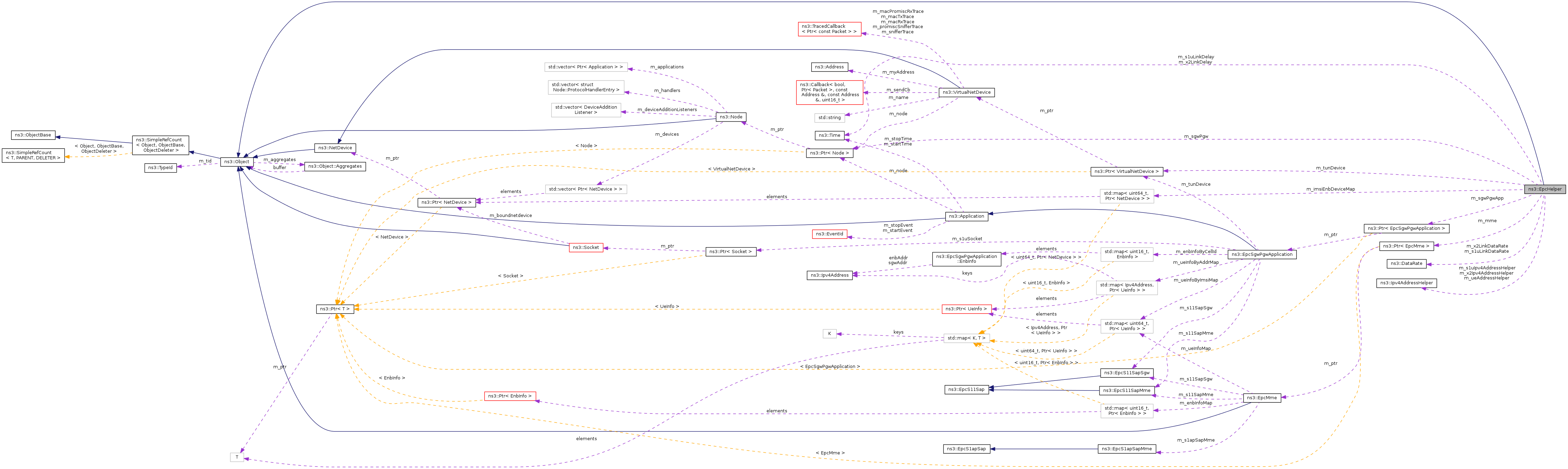

Collaboration diagram for ns3::EpcHelper:

Public Member Functions
	EpcHelper ()
virtual	~EpcHelper ()
void	ActivateEpsBearer (Ptr< NetDevice > ueLteDevice, uint64_t imsi, Ptr< EpcTft > tft, EpsBearer bearer)
void	AddEnb (Ptr< Node > enbNode, Ptr< NetDevice > lteEnbNetDevice, uint16_t cellId)
void	AddUe (Ptr< NetDevice > ueLteDevice, uint64_t imsi)
void	AddX2Interface (Ptr< Node > enbNode1, Ptr< Node > enbNode2)
Ipv4InterfaceContainer	AssignUeIpv4Address (NetDeviceContainer ueDevices)
virtual void	DoDispose ()
Ptr< Node >	GetPgwNode ()

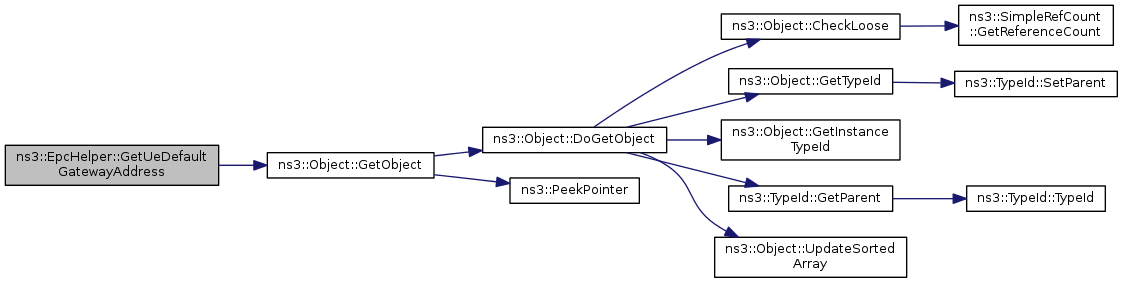

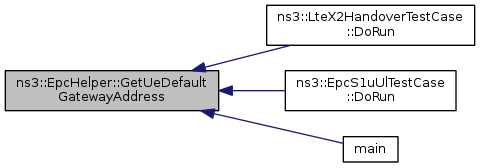

Ipv4Address	GetUeDefaultGatewayAddress ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

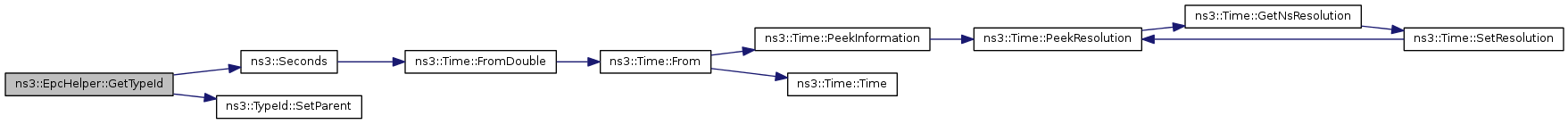

static TypeId	GetTypeId (void)

Private Attributes
uint16_t	m_gtpuUdpPort
std::map< uint64_t, Ptr < NetDevice > >	m_imsiEnbDeviceMap
Ptr< EpcMme >	m_mme
Ipv4AddressHelper	m_s1uIpv4AddressHelper
DataRate	m_s1uLinkDataRate
Time	m_s1uLinkDelay
uint16_t	m_s1uLinkMtu
Ptr< Node >	m_sgwPgw
Ptr< EpcSgwPgwApplication >	m_sgwPgwApp
Ptr< VirtualNetDevice >	m_tunDevice
Ipv4AddressHelper	m_ueAddressHelper
Ipv4AddressHelper	m_x2Ipv4AddressHelper
DataRate	m_x2LinkDataRate
Time	m_x2LinkDelay
uint16_t	m_x2LinkMtu

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Helper class to handle the creation of the EPC entities and protocols.

This Helper will create an EPC network topology comprising of a single node that implements both the SGW and PGW functionality, and is connected to all the eNBs in the simulation by means of the S1-U interface.

Doxygen introspection did not find any typical Config paths.

Attributes

S1uLinkDataRate: The data rate to be used for the next S1-U link to be created
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 10000000000bps
- Flags: construct write read
S1uLinkDelay: The delay to be used for the next S1-U link to be created
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read
S1uLinkMtu: The MTU of the next S1-U link to be created. Note that, because of the additional GTP/UDP/IP tunneling overhead, you need a MTU larger than the end-to-end MTU that you want to support.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 2000
- Flags: construct write read
X2LinkDataRate: The data rate to be used for the next X2 link to be created
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 10000000000bps
- Flags: construct write read
X2LinkDelay: The delay to be used for the next X2 link to be created
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read
X2LinkMtu: The MTU of the next X2 link to be created. Note that, because of some big X2 messages, you need a big MTU.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 3000
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 49 of file epc-helper.h.

Constructor & Destructor Documentation

ns3::EpcHelper::EpcHelper ( )

Constructor

Definition at line 50 of file epc-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::Node::AddApplication(), ns3::Node::AddDevice(), ns3::Mac48Address::Allocate(), ns3::Ipv4AddressHelper::Assign(), ns3::Socket::Bind(), ns3::Socket::CreateSocket(), ns3::Ipv4Address::GetAny(), ns3::EpcMme::GetS11SapMme(), ns3::EpcSgwPgwApplication::GetS11SapSgw(), ns3::InternetStackHelper::Install(), ns3::TypeId::LookupByName(), m_gtpuUdpPort, m_mme, m_s1uIpv4AddressHelper, m_sgwPgw, m_sgwPgwApp, m_tunDevice, m_ueAddressHelper, m_x2Ipv4AddressHelper, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION, ns3::EpcSgwPgwApplication::RecvFromTunDevice(), ns3::VirtualNetDevice::SetAddress(), ns3::ObjectBase::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), ns3::EpcSgwPgwApplication::SetS11SapMme(), and ns3::EpcMme::SetS11SapSgw().

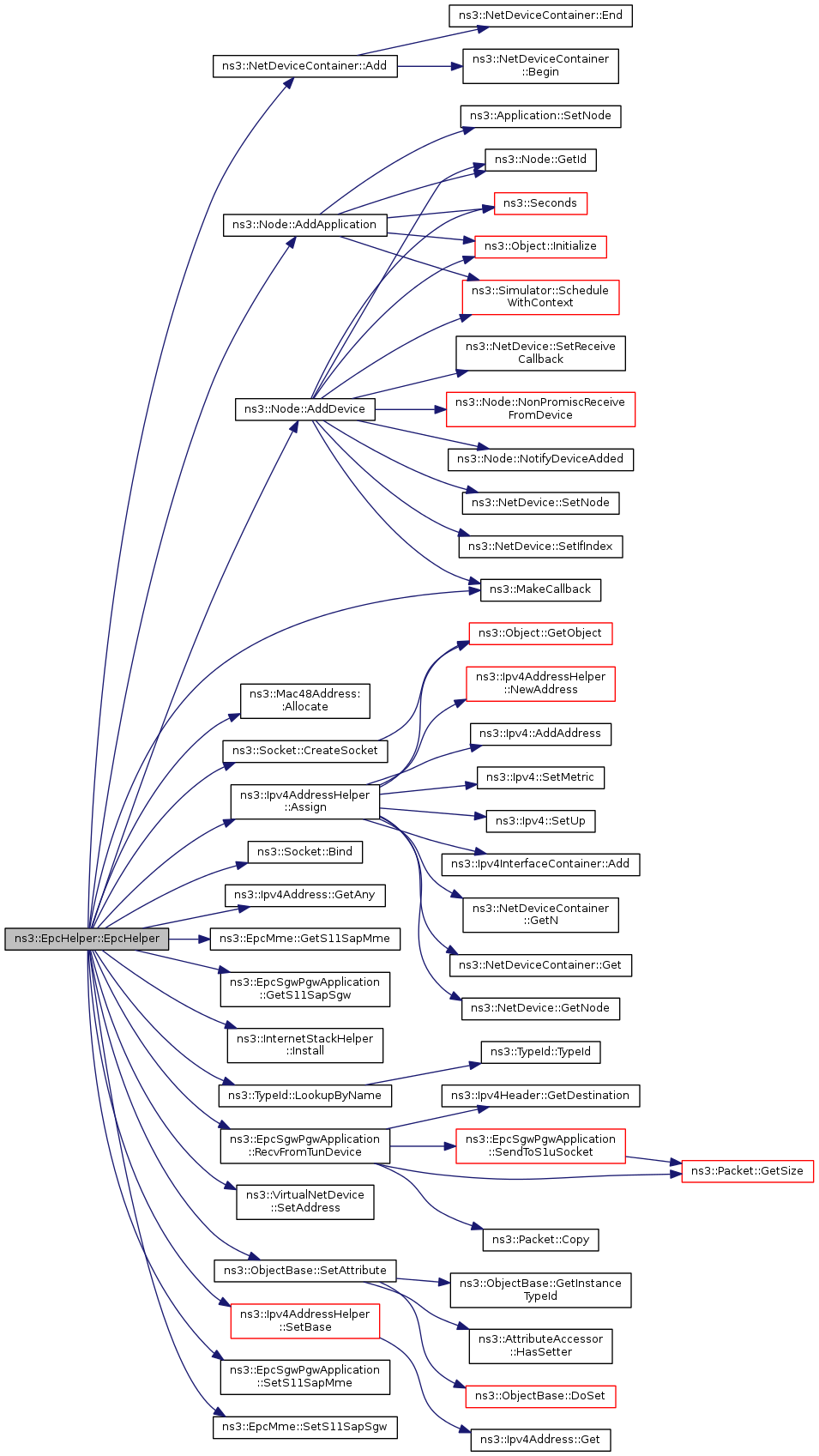

Here is the call graph for this function:

ns3::EpcHelper::~EpcHelper ( )

virtual

Destructor

Definition at line 105 of file epc-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::EpcHelper::ActivateEpsBearer	(	Ptr< NetDevice >	ueLteDevice,
		uint64_t	imsi,
		Ptr< EpcTft >	tft,
		EpsBearer	bearer
	)

Activate an EPS bearer, setting up the corresponding S1-U tunnel.

Parameters

ueLteDevice	the Ipv4-enabled device of the UE, normally connected via the LTE radio interface
imsi	the unique identifier of the UE
tft	the Traffic Flow Template of the new bearer
bearer	struct describing the characteristics of the EPS bearer to be activated

Definition at line 293 of file epc-helper.cc.

References ns3::EpcMme::AddBearer(), ns3::Ipv4::GetAddress(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4::GetNAddresses(), ns3::NetDevice::GetNode(), ns3::Object::GetObject(), m_mme, m_sgwPgwApp, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::EpcSgwPgwApplication::SetUeAddress().

Referenced by ns3::LteHelper::ActivateDedicatedEpsBearer(), ns3::LteHelper::Attach(), ns3::EpcS1uDlTestCase::DoRun(), and ns3::EpcS1uUlTestCase::DoRun().

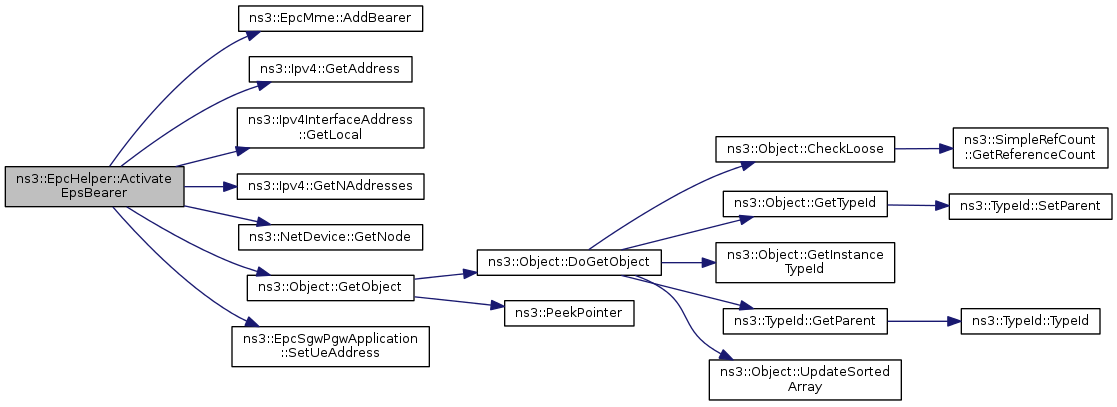

Here is the call graph for this function:

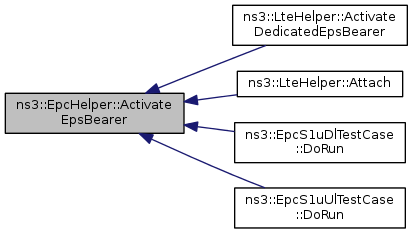

Here is the caller graph for this function:

void ns3::EpcHelper::AddEnb	(	Ptr< Node >	enbNode,
		Ptr< NetDevice >	lteEnbNetDevice,
		uint16_t	cellId
	)

Add an eNB to the EPC

Parameters

enbNode	the previosuly created eNB node which is to be added to the EPC
lteEnbNetDevice	the LteEnbNetDevice of the eNB node
cellId	ID of the eNB

Definition at line 162 of file epc-helper.cc.

References ns3::NodeContainer::Add(), ns3::Node::AddApplication(), ns3::EpcMme::AddEnb(), ns3::EpcSgwPgwApplication::AddEnb(), ns3::Object::AggregateObject(), ns3::Ipv4AddressHelper::Assign(), ns3::Socket::Bind(), ns3::Socket::Connect(), ns3::Socket::CreateSocket(), ns3::NetDeviceContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Node::GetApplication(), ns3::Mac48Address::GetBroadcast(), ns3::NetDevice::GetIfIndex(), ns3::Node::GetNApplications(), ns3::Ipv4::GetNInterfaces(), ns3::NetDevice::GetNode(), ns3::Object::GetObject(), ns3::EpcMme::GetS1apSapMme(), ns3::PointToPointHelper::Install(), ns3::InternetStackHelper::Install(), ns3::TypeId::LookupByName(), m_gtpuUdpPort, m_mme, m_s1uIpv4AddressHelper, m_s1uLinkDataRate, m_s1uLinkDelay, m_s1uLinkMtu, m_sgwPgw, m_sgwPgwApp, ns3::Ipv4AddressHelper::NewNetwork(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Ipv4L3Protocol::PROT_NUMBER, ns3::PointToPointHelper::SetChannelAttribute(), ns3::PointToPointHelper::SetDeviceAttribute(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), and ns3::PacketSocketAddress::SetSingleDevice().

Referenced by ns3::EpcS1uDlTestCase::DoRun(), ns3::EpcS1uUlTestCase::DoRun(), and ns3::LteHelper::InstallSingleEnbDevice().

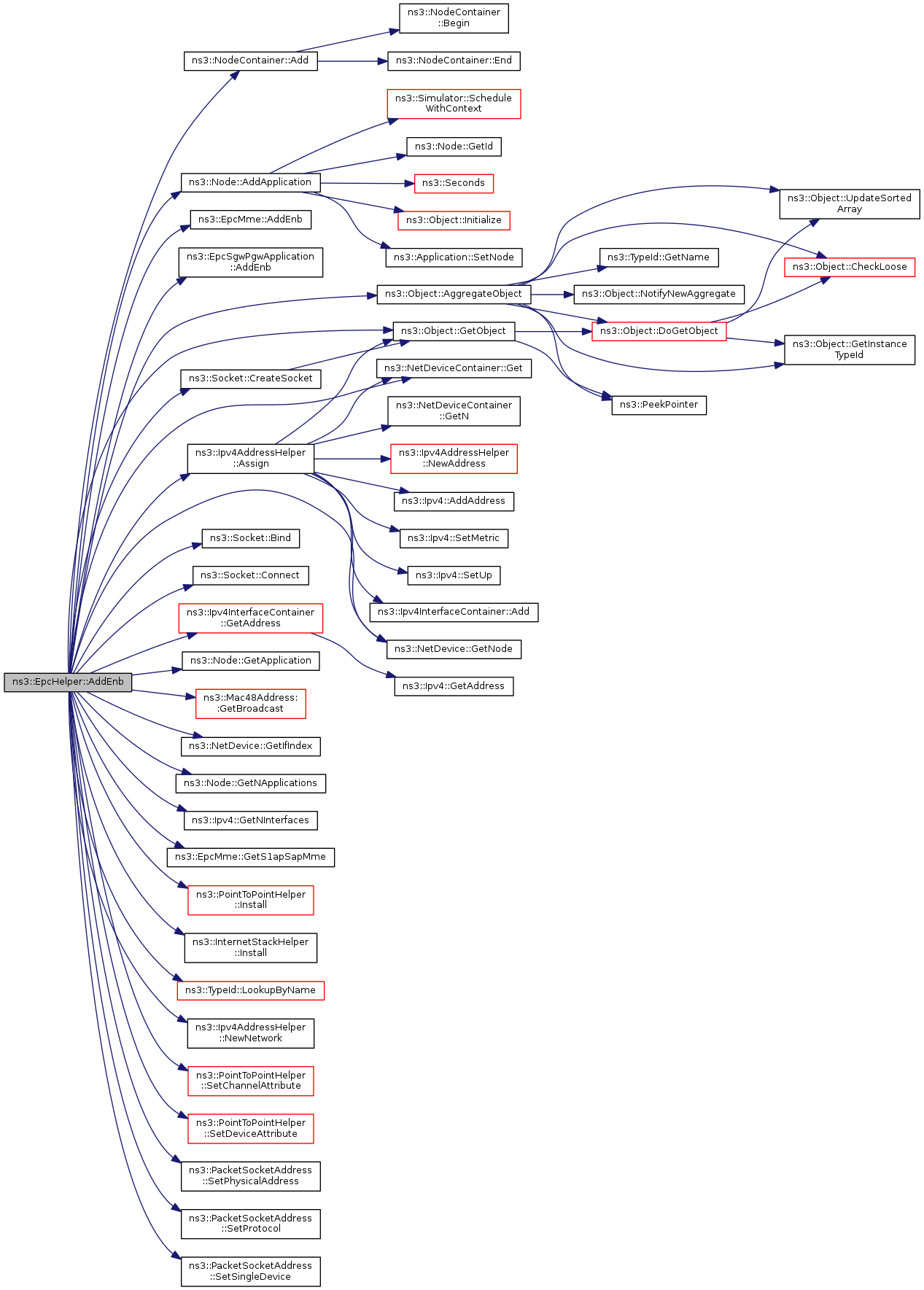

Here is the call graph for this function:

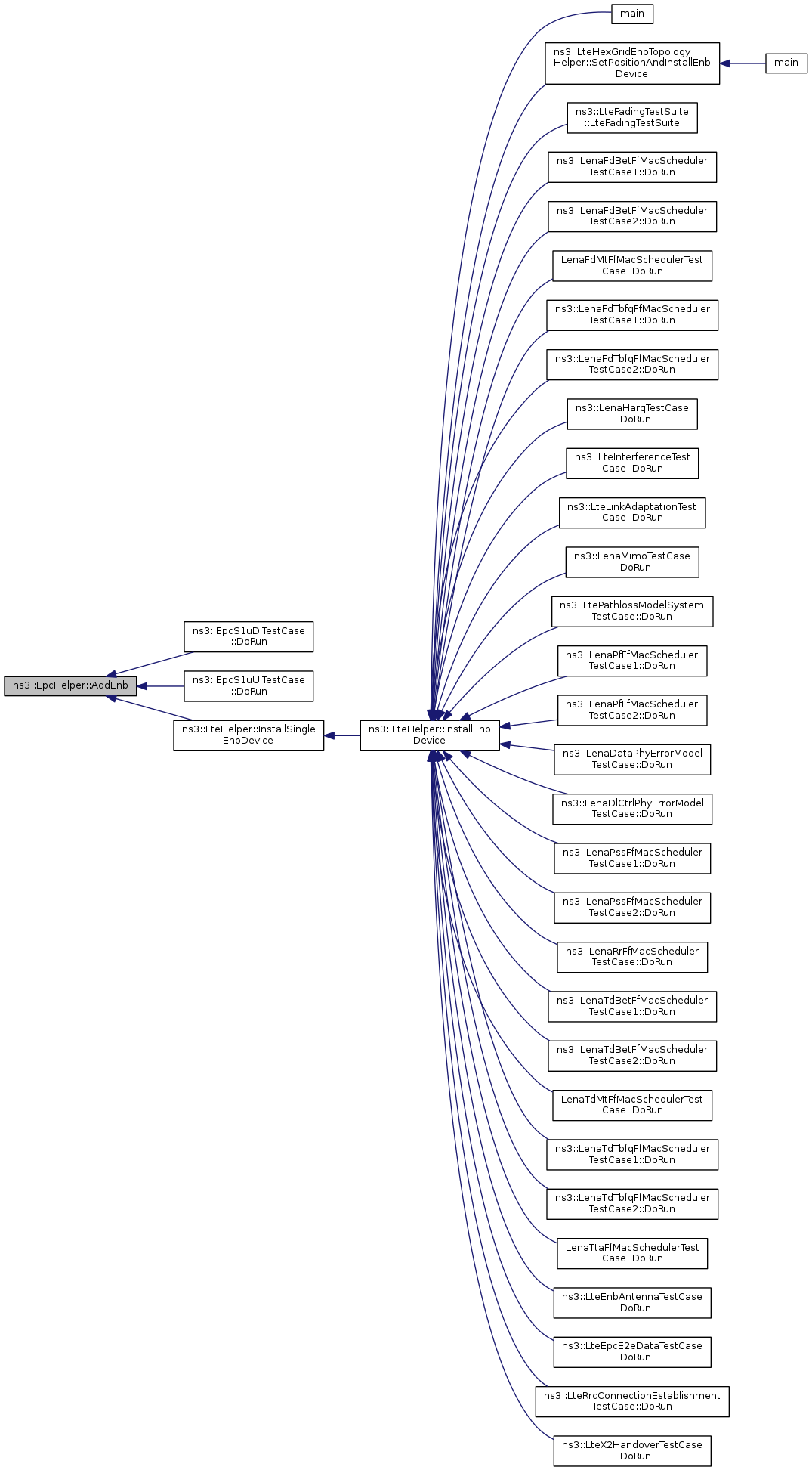

Here is the caller graph for this function:

void ns3::EpcHelper::AddUe	(	Ptr< NetDevice >	ueLteDevice,
		uint64_t	imsi
	)

Notify the EPC of the existance of a new UE which might attach at a later time

Parameters

ueLteDevice	the UE device to be attached
imsi	the unique identifier of the UE

Definition at line 282 of file epc-helper.cc.

References ns3::EpcMme::AddUe(), ns3::EpcSgwPgwApplication::AddUe(), m_mme, m_sgwPgwApp, and NS_LOG_FUNCTION.

Referenced by ns3::EpcS1uDlTestCase::DoRun(), ns3::EpcS1uUlTestCase::DoRun(), and ns3::LteHelper::InstallSingleUeDevice().

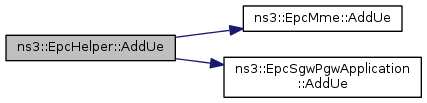

Here is the call graph for this function:

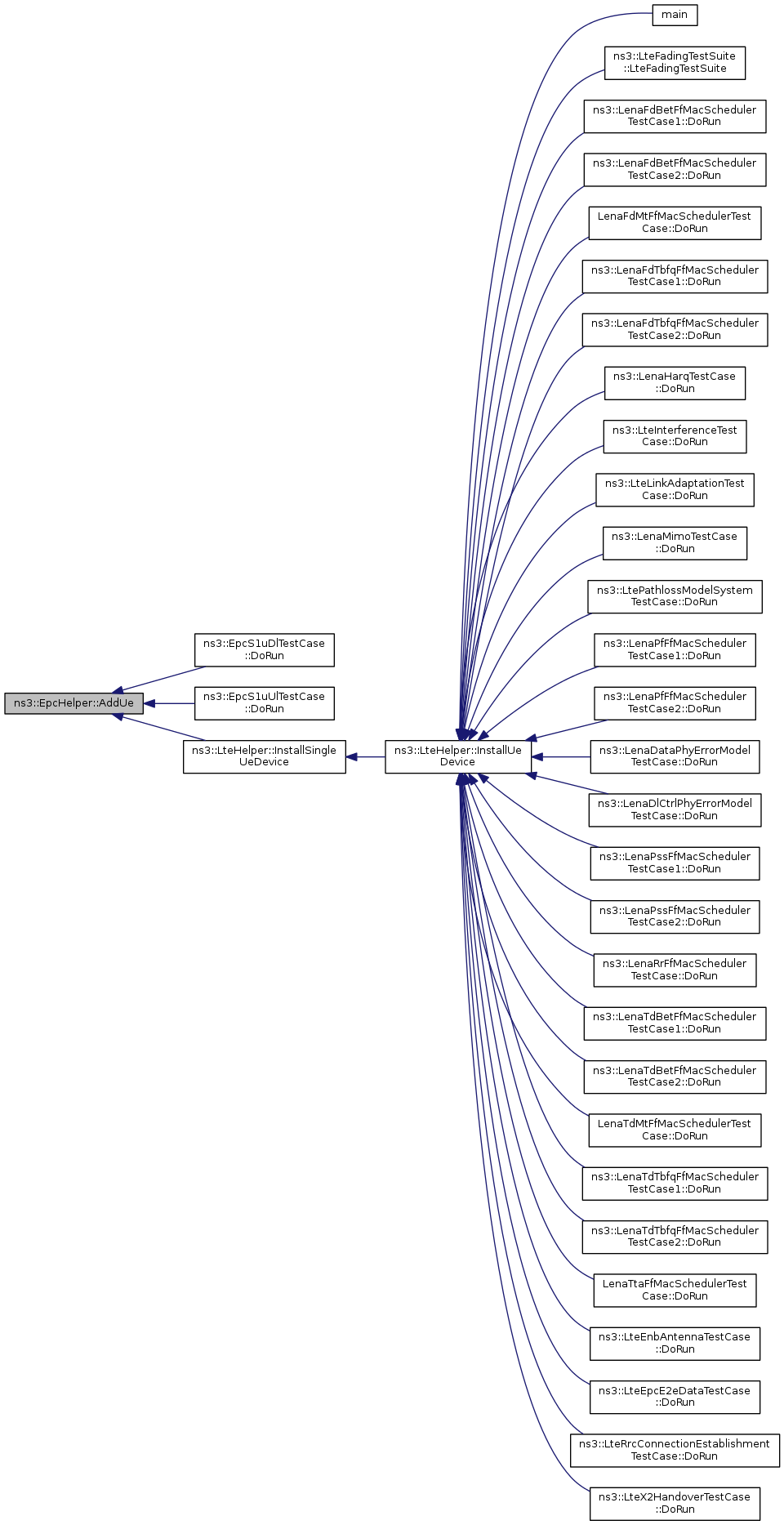

Here is the caller graph for this function:

void ns3::EpcHelper::AddX2Interface	(	Ptr< Node >	enbNode1,
		Ptr< Node >	enbNode2
	)

Add an X2 interface between two eNB

Parameters

enbNode1	one eNB peer of the X2 interface
enbNode2	the other eNB peer of the X2 interface

Definition at line 238 of file epc-helper.cc.

References ns3::NodeContainer::Add(), ns3::Ipv4AddressHelper::Assign(), ns3::NetDeviceContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::LteEnbNetDevice::GetCellId(), ns3::Node::GetDevice(), ns3::Ipv4::GetNInterfaces(), ns3::Object::GetObject(), ns3::PointToPointHelper::Install(), m_x2Ipv4AddressHelper, m_x2LinkDataRate, m_x2LinkDelay, m_x2LinkMtu, ns3::Ipv4AddressHelper::NewNetwork(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::PointToPointHelper::SetChannelAttribute(), and ns3::PointToPointHelper::SetDeviceAttribute().

Referenced by ns3::LteHelper::AddX2Interface().

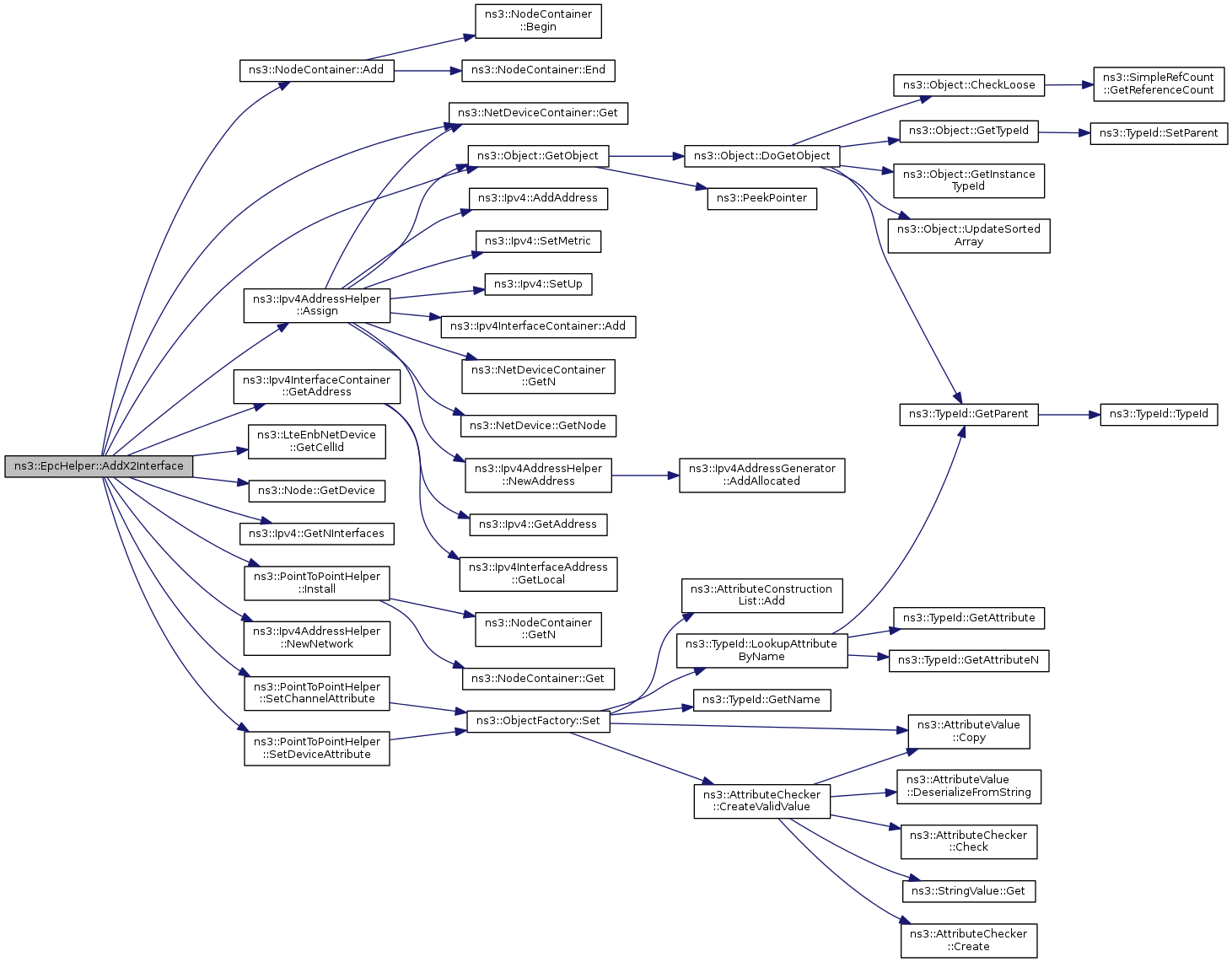

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv4InterfaceContainer ns3::EpcHelper::AssignUeIpv4Address ( NetDeviceContainer ueDevices )

Assign IPv4 addresses to UE devices

Parameters

ueDevices the set of UE devices

Returns: the interface container,

See Also: Ipv4AddressHelper::Assign() which has similar semantics

Definition at line 326 of file epc-helper.cc.

References ns3::Ipv4AddressHelper::Assign(), and m_ueAddressHelper.

Referenced by ns3::LteX2HandoverTestCase::DoRun(), ns3::EpcS1uDlTestCase::DoRun(), ns3::EpcS1uUlTestCase::DoRun(), and main().

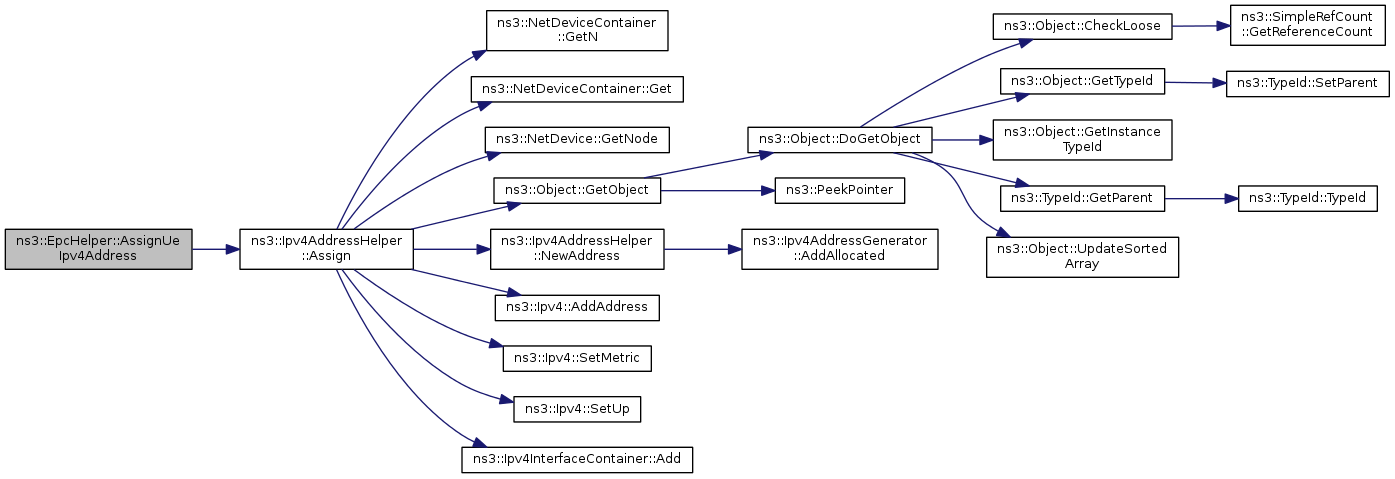

Here is the call graph for this function:

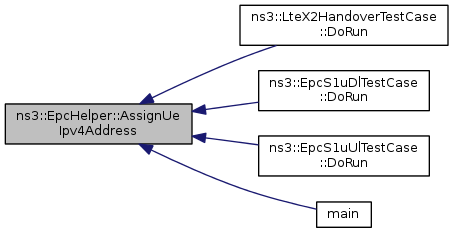

Here is the caller graph for this function:

void ns3::EpcHelper::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 151 of file epc-helper.cc.

References ns3::Object::Dispose(), m_sgwPgw, m_sgwPgwApp, m_tunDevice, ns3::MakeNullCallback(), NS_LOG_FUNCTION, and ns3::VirtualNetDevice::SetSendCallback().

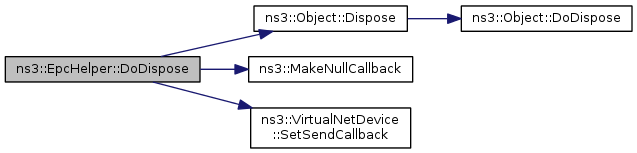

Here is the call graph for this function:

Ptr< Node > ns3::EpcHelper::GetPgwNode ( )

Returns: a pointer to the node implementing PGW functionality. Note that in this particular implementation this node will also hold the SGW functionality. The primary use intended for this method is to allow the user to configure the Gi interface of the PGW, i.e., to connect the PGW to the internet.

Definition at line 319 of file epc-helper.cc.

References m_sgwPgw.

Referenced by ns3::LteX2HandoverTestCase::DoRun(), ns3::EpcS1uDlTestCase::DoRun(), ns3::EpcS1uUlTestCase::DoRun(), and main().

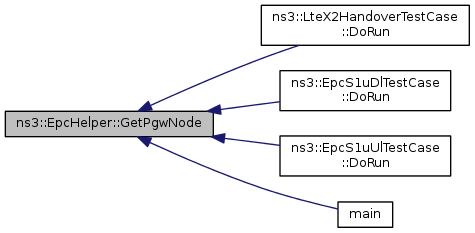

Here is the caller graph for this function:
