ns3::FixedRssLossModel Class Reference
Propagation Models

Return a constant received power level independent of the transmit power. More...

#include <propagation-loss-model.h>

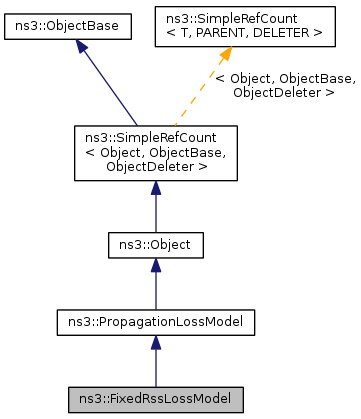

+ Inheritance diagram for ns3::FixedRssLossModel:

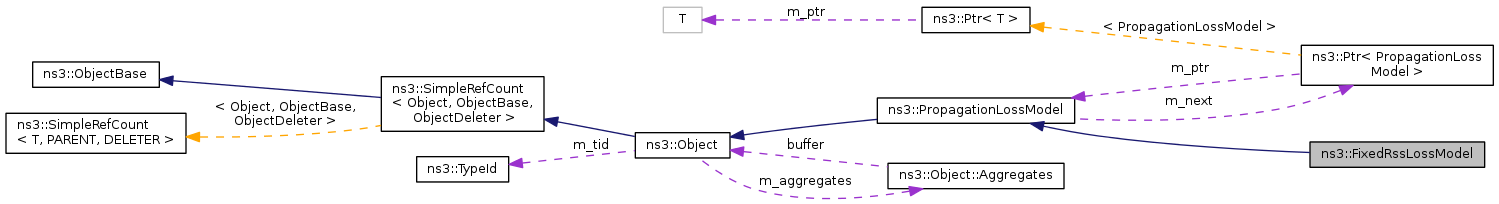

+ Collaboration diagram for ns3::FixedRssLossModel:

Public Member Functions

 FixedRssLossModel ()
virtual ~FixedRssLossModel ()
void SetRss (double rss)
- Public Member Functions inherited from ns3::PropagationLossModel
 PropagationLossModel ()
virtual ~PropagationLossModel ()
int64_t AssignStreams (int64_t stream)
double CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Ptr< PropagationLossModel > GetNext ()
 Gets the next PropagationLossModel in the chain of loss models that act on the signal.
void SetNext (Ptr< PropagationLossModel > next)
 Enables a chain of loss models to act on the signal.
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Initialize (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)

Private Member Functions

 FixedRssLossModel (const FixedRssLossModel &o)
virtual int64_t DoAssignStreams (int64_t stream)
virtual double DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
FixedRssLossModel & operator= (const FixedRssLossModel &o)

Private Attributes

double m_rss

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoInitialize (void)
virtual void NotifyNewAggregate (void)

Detailed Description

Return a constant received power level independent of the transmit power.

The received power is constant independent of the transmit power. The user must set received power level through the Rss attribute or public SetRss() method. Note that if this loss model is chained to other loss models via SetNext() method, it can only be the first loss model in such a chain, or else it will disregard the losses computed by loss models that precede it in the chain.

Config Paths

ns3::FixedRssLossModel is accessible through the following paths with Config::Set and Config::Connect:

  • /ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FixedRssLossModel
  • /ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FixedRssLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FixedRssLossModel

Attributes

  • Rss: The fixed receiver Rss.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: -150
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 514 of file propagation-loss-model.h.

Constructor & Destructor Documentation

ns3::FixedRssLossModel::FixedRssLossModel ( )

Definition at line 770 of file propagation-loss-model.cc.

ns3::FixedRssLossModel::~FixedRssLossModel ( )
virtual

Definition at line 775 of file propagation-loss-model.cc.

ns3::FixedRssLossModel::FixedRssLossModel ( const FixedRssLossModel &  o)
private

Member Function Documentation

int64_t ns3::FixedRssLossModel::DoAssignStreams ( int64_t  stream)
privatevirtual

Definition at line 794 of file propagation-loss-model.cc.

double ns3::FixedRssLossModel::DoCalcRxPower ( double  txPowerDbm,
Ptr< MobilityModel >  a,
Ptr< MobilityModel >  b
) const
privatevirtual

Definition at line 786 of file propagation-loss-model.cc.

References m_rss.

TypeId ns3::FixedRssLossModel::GetTypeId ( void  )
static

Reimplemented from ns3::PropagationLossModel.

Definition at line 758 of file propagation-loss-model.cc.

References m_rss, and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

FixedRssLossModel& ns3::FixedRssLossModel::operator= ( const FixedRssLossModel &  o)
private
void ns3::FixedRssLossModel::SetRss ( double  rss)
Parameters
rss(dBm) the received signal strength

Set the received signal strength (RSS) in dBm.

Definition at line 780 of file propagation-loss-model.cc.

References m_rss.

Member Data Documentation

double ns3::FixedRssLossModel::m_rss
private

Definition at line 535 of file propagation-loss-model.h.

Referenced by DoCalcRxPower(), GetTypeId(), and SetRss().

The documentation for this class was generated from the following files:
