ns3::FlameStack Class Reference

Helper class used to install FLAME mesh stack (actually single protocol in this stack) More...

#include <flame-installer.h>

Inheritance diagram for ns3::FlameStack:

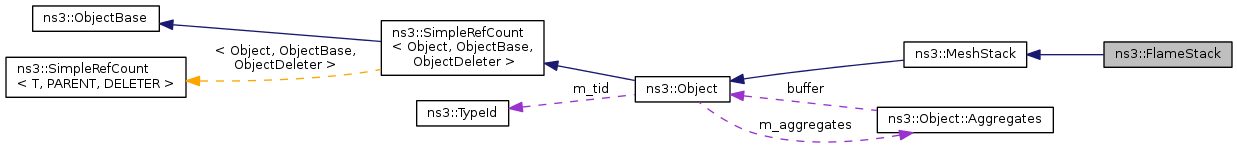

Collaboration diagram for ns3::FlameStack:

Public Member Functions
	FlameStack ()
	~FlameStack ()
void	DoDispose ()
bool	InstallStack (Ptr< MeshPointDevice > mp)
	Install a flame stack on the given MeshPointDevice.
void	Report (const Ptr< MeshPointDevice > mp, std::ostream &)
	Print flame protocol statistics.
void	ResetStats (const Ptr< MeshPointDevice > mp)
	Reset the statistics.

Static Public Member Functions
static TypeId	GetTypeId ()

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Helper class used to install FLAME mesh stack (actually single protocol in this stack)

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 34 of file flame-installer.h.

Constructor & Destructor Documentation

ns3::FlameStack::FlameStack

(

)

Construct a FlameStack helper class.

Definition at line 38 of file flame-installer.cc.

ns3::FlameStack::~FlameStack

(

)

Destroy a FlameStack helper class.

Definition at line 41 of file flame-installer.cc.

Member Function Documentation

void ns3::FlameStack::DoDispose ( void  )

virtual

Break any reference cycles in the installer helper. Required for ns-3 Object support.

Reimplemented from ns3::Object.

Definition at line 45 of file flame-installer.cc.

TypeId ns3::FlameStack::GetTypeId ( void  )

static

Reimplemented from ns3::Object.

Definition at line 31 of file flame-installer.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::FlameStack::InstallStack ( Ptr< MeshPointDevice >  mp )

virtual

Install a flame stack on the given MeshPointDevice.

Parameters

mp	The Ptr<MeshPointDevice> to use.

Implements ns3::MeshStack.

Definition at line 49 of file flame-installer.cc.

References ns3::flame::FlameProtocol::Install().

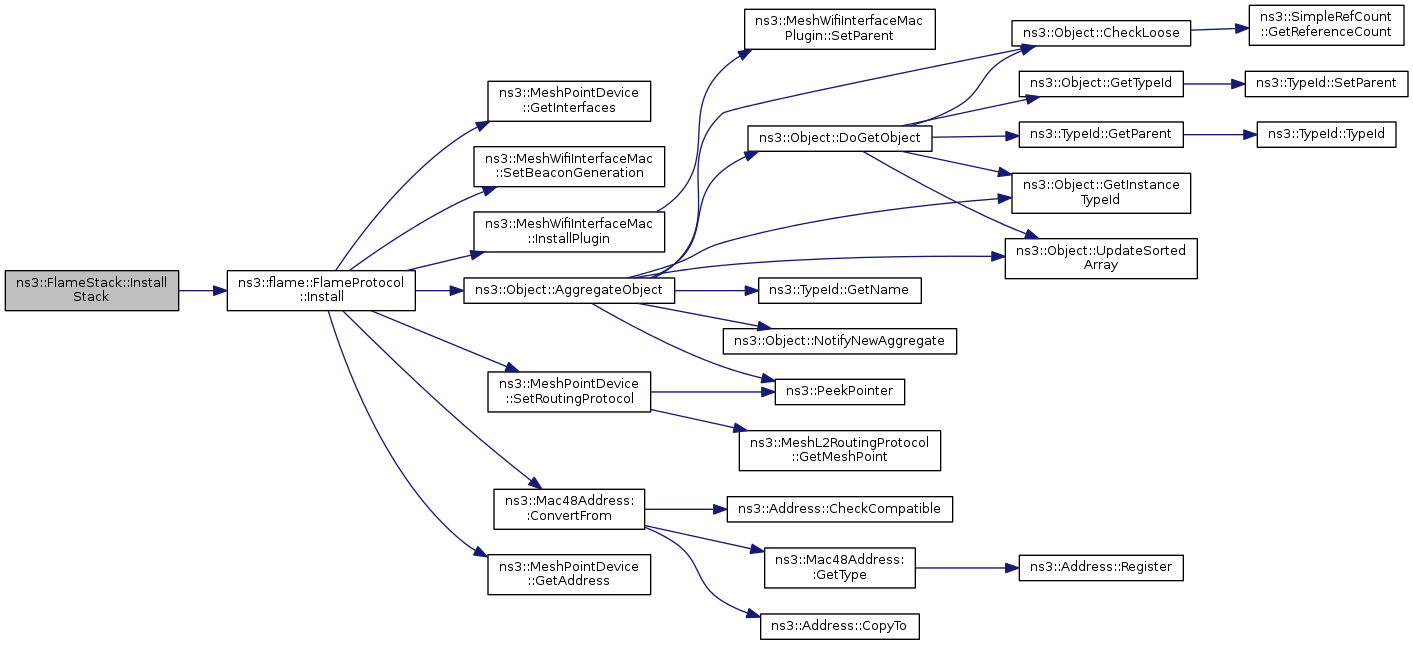

Here is the call graph for this function:

void ns3::FlameStack::Report ( const Ptr< MeshPointDevice >  mp, std::ostream &  os  )

virtual

Print flame protocol statistics.

Implements ns3::MeshStack.

Definition at line 55 of file flame-installer.cc.

References ns3::Object::GetObject(), NS_ASSERT, ns3::flame::FlameProtocol::Report(), and ns3::MeshPointDevice::Report().

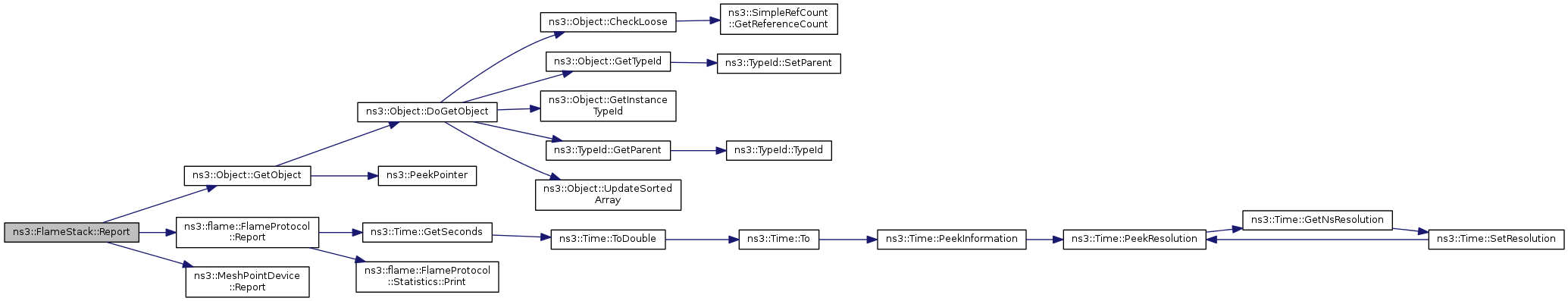

Here is the call graph for this function:

void ns3::FlameStack::ResetStats ( const Ptr< MeshPointDevice >  mp )

virtual

Reset the statistics.

Implements ns3::MeshStack.

Definition at line 64 of file flame-installer.cc.

References ns3::Object::GetObject(), NS_ASSERT, ns3::flame::FlameProtocol::ResetStats(), and ns3::MeshPointDevice::ResetStats().

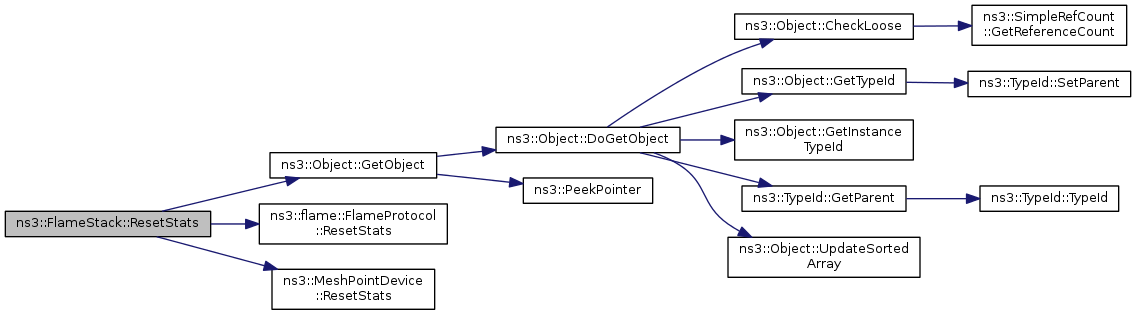

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/mesh/helper/flame/flame-installer.h
• src/mesh/helper/flame/flame-installer.cc
