ns3::ItuR1411LosPropagationLossModel Class Reference
Propagation Models

the ITU-R 1411 LOS propagation model More...

#include <itu-r-1411-los-propagation-loss-model.h>

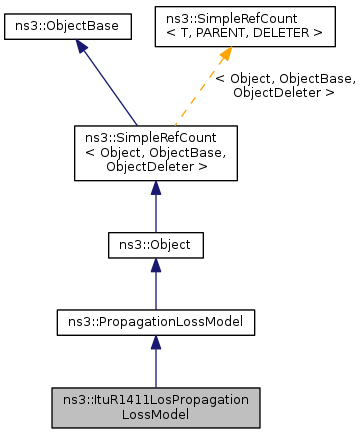

+ Inheritance diagram for ns3::ItuR1411LosPropagationLossModel:

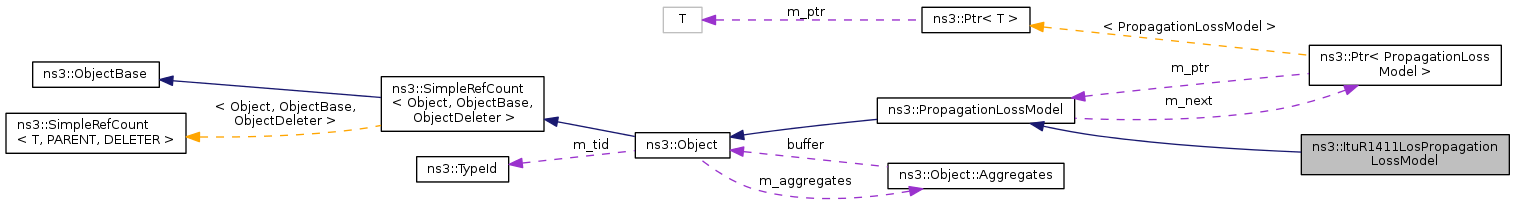

+ Collaboration diagram for ns3::ItuR1411LosPropagationLossModel:

Public Member Functions

double GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
void SetFrequency (double freq)
- Public Member Functions inherited from ns3::PropagationLossModel
 PropagationLossModel ()
virtual ~PropagationLossModel ()
int64_t AssignStreams (int64_t stream)
double CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Ptr< PropagationLossModel > GetNext ()
 Gets the next PropagationLossModel in the chain of loss models that act on the signal.
void SetNext (Ptr< PropagationLossModel > next)
 Enables a chain of loss models to act on the signal.
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Initialize (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)

Private Member Functions

virtual int64_t DoAssignStreams (int64_t stream)
virtual double DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Private Attributes

double m_lambda

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoInitialize (void)
virtual void NotifyNewAggregate (void)

Detailed Description

the ITU-R 1411 LOS propagation model

This class implements the ITU-R 1411 LOS propagation model for Line-of-Sight (LoS) short range outdoor communication in the frequency range 300 MHz to 100 GHz. For more information about the model, please see the propagation module documentation in .rst format.

Config Paths

ns3::ItuR1411LosPropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:

  • /ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1411LosPropagationLossModel
  • /ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1411LosPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1411LosPropagationLossModel

Attributes

  • Frequency: The propagation frequency in Hz
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 2.16e+09
    • Flags: construct write

No TraceSources are defined for this type.

Definition at line 42 of file itu-r-1411-los-propagation-loss-model.h.

Member Function Documentation

int64_t ns3::ItuR1411LosPropagationLossModel::DoAssignStreams ( int64_t  stream)
privatevirtual

Definition at line 97 of file itu-r-1411-los-propagation-loss-model.cc.

double ns3::ItuR1411LosPropagationLossModel::DoCalcRxPower ( double  txPowerDbm,
Ptr< MobilityModel >  a,
Ptr< MobilityModel >  b
) const
privatevirtual

Definition at line 89 of file itu-r-1411-los-propagation-loss-model.cc.

References GetLoss().

+ Here is the call graph for this function:

double ns3::ItuR1411LosPropagationLossModel::GetLoss ( Ptr< MobilityModel >  a,
Ptr< MobilityModel >  b
) const
Parameters
athe first mobility model
bthe second mobility model
Returns
the loss in dBm for the propagation between the two given mobility models

Definition at line 53 of file itu-r-1411-los-propagation-loss-model.cc.

References ns3::MobilityModel::GetDistanceFrom(), ns3::MobilityModel::GetPosition(), m_lambda, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Vector3D::z.

Referenced by DoCalcRxPower(), ns3::ItuR1411LosPropagationLossModelTestCase::DoRun(), and ns3::HybridBuildingsPropagationLossModel::ItuR1411().

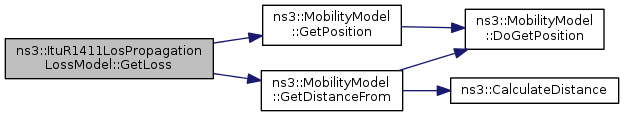

+ Here is the call graph for this function:

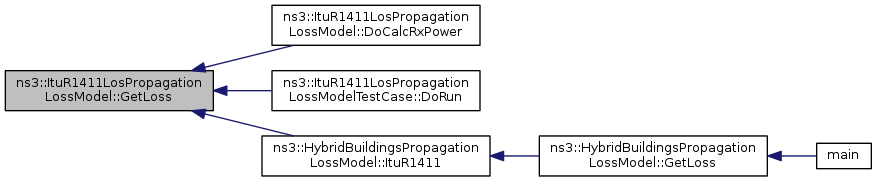

+ Here is the caller graph for this function:

TypeId ns3::ItuR1411LosPropagationLossModel::GetTypeId ( void  )
static

Reimplemented from ns3::PropagationLossModel.

Definition at line 37 of file itu-r-1411-los-propagation-loss-model.cc.

References SetFrequency(), and ns3::TypeId::SetParent().

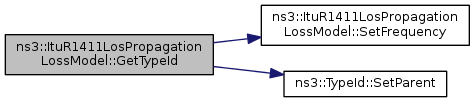

+ Here is the call graph for this function:

void ns3::ItuR1411LosPropagationLossModel::SetFrequency ( double  freq)

Set the operating frequency

Parameters
freqthe frequency in Hz

Definition at line 81 of file itu-r-1411-los-propagation-loss-model.cc.

References m_lambda, and NS_ASSERT.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Member Data Documentation

double ns3::ItuR1411LosPropagationLossModel::m_lambda
private

Definition at line 76 of file itu-r-1411-los-propagation-loss-model.h.

Referenced by GetLoss(), and SetFrequency().

The documentation for this class was generated from the following files:
