Empirical propagation model for the 2.6 GHz frequency. More...

#include <kun-2600-mhz-propagation-loss-model.h>

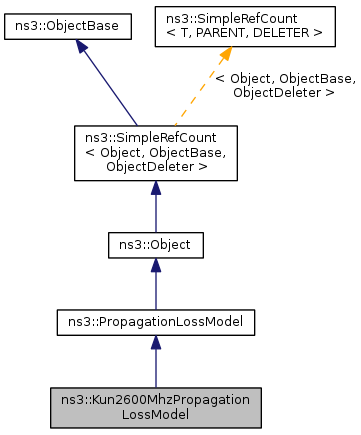

Inheritance diagram for ns3::Kun2600MhzPropagationLossModel:

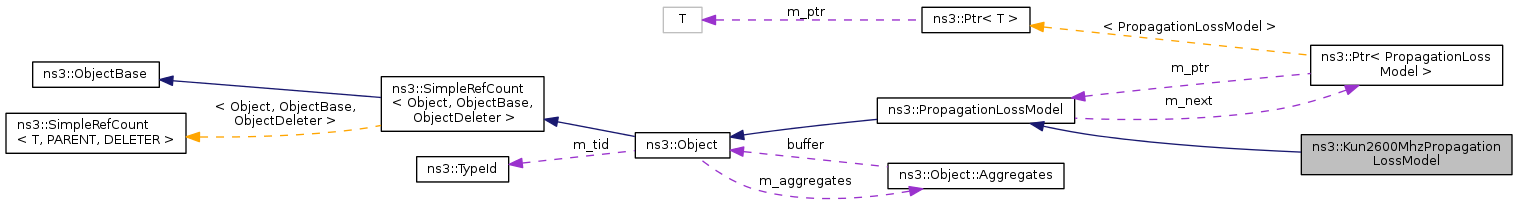

Collaboration diagram for ns3::Kun2600MhzPropagationLossModel:

Public Member Functions
double	GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()
virtual	~PropagationLossModel ()
int64_t	AssignStreams (int64_t stream)
double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal.
void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
virtual int64_t	DoAssignStreams (int64_t stream)
virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Empirical propagation model for the 2.6 GHz frequency.

This class implements the empirical model for 2.6 GHz taken from this paper: Sun Kun, Wang Ping, Li Yingze "Path Loss Models for Suburban Scenario at 2.3GHz, 2.6GHz and 3.5GHz" 8th International Symposium on Antennas, Propagation and EM Theory (ISAPE), 2008.

Config Paths

ns3::Kun2600MhzPropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:

/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::Kun2600MhzPropagationLossModel
/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::Kun2600MhzPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::Kun2600MhzPropagationLossModel

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 41 of file kun-2600-mhz-propagation-loss-model.h.

Member Function Documentation

int64_t ns3::Kun2600MhzPropagationLossModel::DoAssignStreams ( int64_t stream )

privatevirtual

Definition at line 63 of file kun-2600-mhz-propagation-loss-model.cc.

double ns3::Kun2600MhzPropagationLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

privatevirtual

Definition at line 55 of file kun-2600-mhz-propagation-loss-model.cc.

References GetLoss().

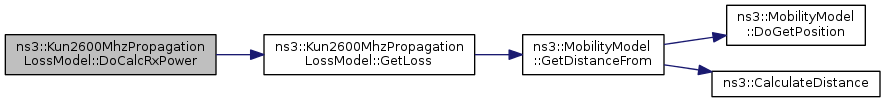

Here is the call graph for this function:

double ns3::Kun2600MhzPropagationLossModel::GetLoss	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

Parameters

a	the first mobility model
b	the second mobility model

Returns: the loss in dBm for the propagation between the two given mobility models

Definition at line 47 of file kun-2600-mhz-propagation-loss-model.cc.

References ns3::MobilityModel::GetDistanceFrom().

Referenced by DoCalcRxPower(), ns3::Kun2600MhzPropagationLossModelTestCase::DoRun(), and ns3::HybridBuildingsPropagationLossModel::OkumuraHata().

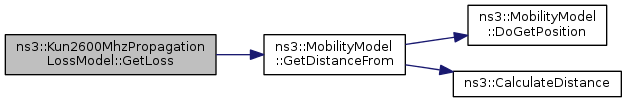

Here is the call graph for this function:

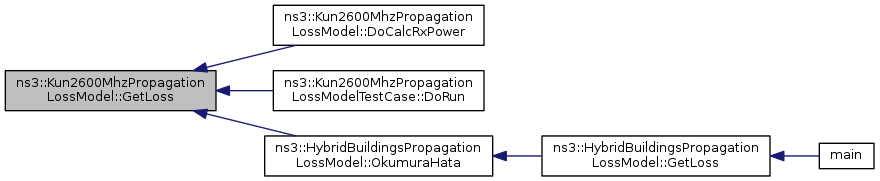

Here is the caller graph for this function:

TypeId ns3::Kun2600MhzPropagationLossModel::GetTypeId ( void )

static

Reimplemented from ns3::PropagationLossModel.

Definition at line 38 of file kun-2600-mhz-propagation-loss-model.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/propagation/model/kun-2600-mhz-propagation-loss-model.h
src/propagation/model/kun-2600-mhz-propagation-loss-model.cc
