ns3::LteEnbPhy Class Reference

#include <lte-enb-phy.h>

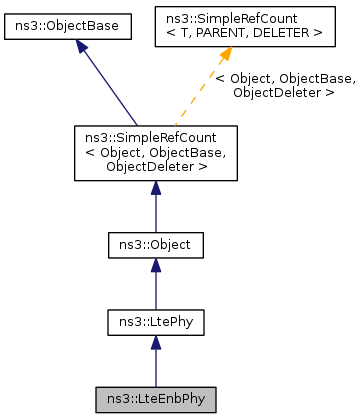

Inheritance diagram for ns3::LteEnbPhy:

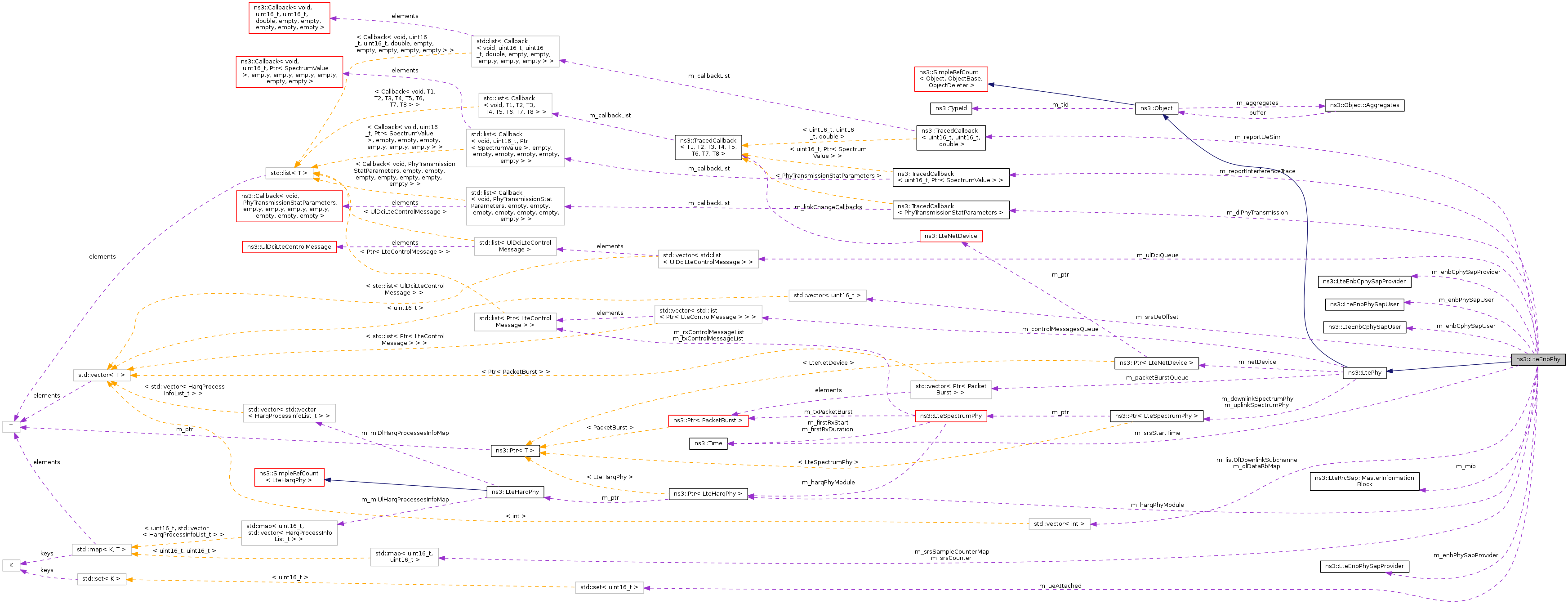

Collaboration diagram for ns3::LteEnbPhy:

Public Member Functions
	LteEnbPhy ()
	LteEnbPhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)
virtual	~LteEnbPhy ()
void	CalcChannelQualityForUe (std::vector< double > sinr, Ptr< LteSpectrumPhy > ue)
	Calculate the channel quality for a given UE.
FfMacSchedSapProvider::SchedUlCqiInfoReqParameters	CreatePuschCqiReport (const SpectrumValue &sinr)
	Create the UL CQI feedback from SINR values perceived at the physical layer with the PUSCH signal received from eNB.
FfMacSchedSapProvider::SchedUlCqiInfoReqParameters	CreateSrsCqiReport (const SpectrumValue &sinr)
	Create the UL CQI feedback from SINR values perceived at the physical layer with the SRS signal received from eNB.
virtual Ptr< SpectrumValue >	CreateTxPowerSpectralDensity ()
	Create the PSD for TX.
std::list< UlDciLteControlMessage >	DequeueUlDci (void)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
void	EndFrame (void)
	End a LTE frame.
void	EndSubFrame (void)
	End a LTE sub frame.
virtual void	GenerateCtrlCqiReport (const SpectrumValue &sinr)
virtual void	GenerateDataCqiReport (const SpectrumValue &sinr)
Ptr< LteSpectrumPhy >	GetDlSpectrumPhy () const
std::vector< int >	GetDownlinkSubChannels (void)
LteEnbCphySapProvider *	GetLteEnbCphySapProvider ()
	Get the CPHY SAP provider.
LteEnbPhySapProvider *	GetLteEnbPhySapProvider ()
	Get the PHY SAP provider.
uint8_t	GetMacChDelay (void) const
double	GetNoiseFigure () const
double	GetTxPower () const
Ptr< LteSpectrumPhy >	GetUlSpectrumPhy () const
void	PhyPduReceived (Ptr< Packet > p)
	PhySpectrum received a new PHY-PDU.
void	QueueUlDci (UlDciLteControlMessage m)
virtual void	ReceiveLteControlMessage (Ptr< LteControlMessage > msg)
	Receive the control message.
virtual void	ReceiveLteControlMessageList (std::list< Ptr< LteControlMessage > >)
	PhySpectrum received a new list of LteControlMessage.
virtual void	ReceiveLteUlHarqFeedback (UlInfoListElement_s mes)
	PhySpectrum generated a new UL HARQ feedback.
virtual void	ReportInterference (const SpectrumValue &interf)
virtual void	ReportRsReceivedPower (const SpectrumValue &interf)
void	SendControlChannels (std::list< Ptr< LteControlMessage > > ctrlMsgList)
	Send the PDCCH and PCFICH in the first 3 symbols.
void	SendDataChannels (Ptr< PacketBurst > pb)
	Send the PDSCH.
void	SetDownlinkSubChannels (std::vector< int > mask)
	set the resource blocks (a.k.a. sub channels) to be used in the downlink for transmission
void	SetHarqPhyModule (Ptr< LteHarqPhy > harq)
void	SetLteEnbCphySapUser (LteEnbCphySapUser *s)
	Set the CPHY SAP User.
void	SetLteEnbPhySapUser (LteEnbPhySapUser *s)
	Set the PHY SAP User.
void	SetMacChDelay (uint8_t delay)
void	SetNoiseFigure (double pow)
void	SetTxPower (double pow)
void	StartFrame (void)
	Start a LTE frame.
void	StartSubFrame (void)
	Start a LTE sub frame.
Public Member Functions inherited from ns3::LtePhy
	LtePhy ()
	LtePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)
virtual	~LtePhy ()
virtual void	DoSendMacPdu (Ptr< Packet > p)=0
	Queue the MAC PDU to be sent (according to m_macChTtiDelay)
void	DoSetCellId (uint16_t cellId)
std::list< Ptr < LteControlMessage > >	GetControlMessages (void)
Ptr< LteNetDevice >	GetDevice ()
	Get the device where the phy layer is attached.
Ptr< LteSpectrumPhy >	GetDownlinkSpectrumPhy ()
Ptr< PacketBurst >	GetPacketBurst (void)
uint8_t	GetRbgSize (void) const
uint16_t	GetSrsPeriodicity (uint16_t srcCi) const
uint16_t	GetSrsSubframeOffset (uint16_t srcCi) const
double	GetTti (void) const
Ptr< LteSpectrumPhy >	GetUplinkSpectrumPhy ()
void	SetControlMessages (Ptr< LteControlMessage > m)
void	SetDevice (Ptr< LteNetDevice > d)
	Set the device where the phy layer is attached.
void	SetDownlinkChannel (Ptr< SpectrumChannel > c)
void	SetMacPdu (Ptr< Packet > p)
void	SetTti (double tti)
	Receive SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.
void	SetUplinkChannel (Ptr< SpectrumChannel > c)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
bool	AddUePhy (uint16_t rnti)
void	CreateSrsReport (uint16_t rnti, double srs)
bool	DeleteUePhy (uint16_t rnti)
void	DoAddUe (uint16_t rnti)
uint8_t	DoGetMacChTtiDelay ()
void	DoRemoveUe (uint16_t rnti)
void	DoSendLteControlMessage (Ptr< LteControlMessage > msg)
void	DoSendMacPdu (Ptr< Packet > p)
void	DoSetBandwidth (uint8_t ulBandwidth, uint8_t dlBandwidth)
void	DoSetEarfcn (uint16_t dlEarfcn, uint16_t ulEarfcn)
void	DoSetMasterInformationBlock (LteRrcSap::MasterInformationBlock mib)
void	DoSetSrsConfigurationIndex (uint16_t rnti, uint16_t srcCi)
void	DoSetTransmissionMode (uint16_t rnti, uint8_t txMode)

Private Attributes
uint16_t	m_currentSrsOffset
std::vector< int >	m_dlDataRbMap
TracedCallback < PhyTransmissionStatParameters >	m_dlPhyTransmission
LteEnbCphySapProvider *	m_enbCphySapProvider
LteEnbCphySapUser *	m_enbCphySapUser
LteEnbPhySapProvider *	m_enbPhySapProvider
LteEnbPhySapUser *	m_enbPhySapUser
Ptr< LteHarqPhy >	m_harqPhyModule
uint16_t	m_interferenceSampleCounter
uint16_t	m_interferenceSamplePeriod
std::vector< int >	m_listOfDownlinkSubchannel
LteRrcSap::MasterInformationBlock	m_mib
uint32_t	m_nrFrames
uint32_t	m_nrSubFrames
TracedCallback< uint16_t, Ptr < SpectrumValue > >	m_reportInterferenceTrace
TracedCallback< uint16_t, uint16_t, double >	m_reportUeSinr
std::map< uint16_t, uint16_t >	m_srsCounter
uint16_t	m_srsPeriodicity
std::map< uint16_t, uint16_t >	m_srsSampleCounterMap
uint16_t	m_srsSamplePeriod
Time	m_srsStartTime
std::vector< uint16_t >	m_srsUeOffset
std::set< uint16_t >	m_ueAttached
std::vector< std::list < UlDciLteControlMessage > >	m_ulDciQueue

Friends
class	EnbMemberLteEnbPhySapProvider
class	MemberLteEnbCphySapProvider< LteEnbPhy >

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	NotifyNewAggregate (void)
Protected Attributes inherited from ns3::LtePhy
uint16_t	m_cellId
std::vector< std::list< Ptr < LteControlMessage > > >	m_controlMessagesQueue
uint8_t	m_dlBandwidth
uint16_t	m_dlEarfcn
Ptr< LteSpectrumPhy >	m_downlinkSpectrumPhy
uint8_t	m_macChTtiDelay
Ptr< LteNetDevice >	m_netDevice
double	m_noiseFigure
std::vector< Ptr< PacketBurst > >	m_packetBurstQueue
uint8_t	m_rbgSize
double	m_tti
double	m_txPower
uint8_t	m_ulBandwidth
uint16_t	m_ulEarfcn
Ptr< LteSpectrumPhy >	m_uplinkSpectrumPhy

Detailed Description

LteEnbPhy models the physical layer for the eNodeB

Config Paths

ns3::LteEnbPhy is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbPhy
• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbPhy

Attributes

• TxPower: Transmission power in dBm
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 30
  • Flags: construct write read
• NoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0." In this model, we consider T0 = 290K.
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 5
  • Flags: construct write read
• MacToChannelDelay: The delay in TTI units that occurs between a scheduling decision in the MAC and the actual start of the transmission by the PHY. This is intended to be used to model the latency of real PHY and MAC implementations.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:255
  • Initial value: 2
  • Flags: construct write read
• UeSinrSamplePeriod: The sampling period for reporting UEs' SINR stats (default value 1)
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:65535
  • Initial value: 1
  • Flags: construct write read
• InterferenceSamplePeriod: The sampling period for reporting interference stats (default value 1)
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:65535
  • Initial value: 1
  • Flags: construct write read
• DlSpectrumPhy: The downlink LteSpectrumPhy associated to this LtePhy
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::LteSpectrumPhy >
  • Flags: read
• UlSpectrumPhy: The uplink LteSpectrumPhy associated to this LtePhy
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::LteSpectrumPhy >
  • Flags: read

TraceSources

• ReportUeSinr: Report UEs' averaged linear SINR
• ReportInterference: Report linear interference power per PHY RB
• DlPhyTransmission: DL transmission PHY layer statistics.

Definition at line 47 of file lte-enb-phy.h.

Constructor & Destructor Documentation

ns3::LteEnbPhy::LteEnbPhy

(

)

Warning

the default constructor should not be used

Definition at line 125 of file lte-enb-phy.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

ns3::LteEnbPhy::LteEnbPhy	(	Ptr< LteSpectrumPhy >	dlPhy,
		Ptr< LteSpectrumPhy >	ulPhy
	)

Parameters

dlPhy	the downlink LteSpectrumPhy instance
ulPhy	the uplink LteSpectrumPhy instance

Definition at line 131 of file lte-enb-phy.cc.

References EnbMemberLteEnbPhySapProvider, ns3::LtePhy::m_downlinkSpectrumPhy, m_enbCphySapProvider, m_enbPhySapProvider, m_harqPhyModule, ns3::LtePhy::m_uplinkSpectrumPhy, ns3::Simulator::ScheduleNow(), ns3::LteSpectrumPhy::SetHarqPhyModule(), and StartFrame().

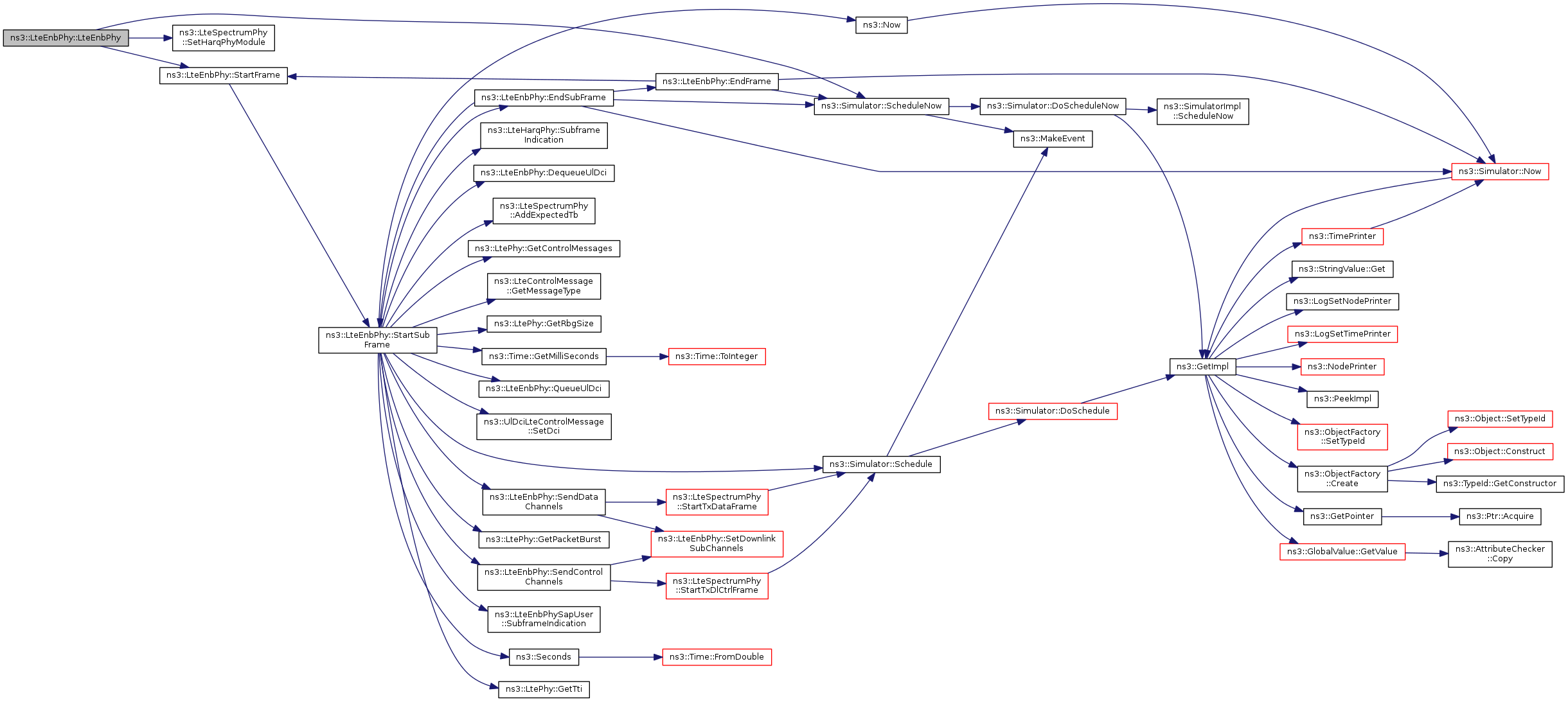

Here is the call graph for this function:

ns3::LteEnbPhy::~LteEnbPhy ( )

virtual

Definition at line 216 of file lte-enb-phy.cc.

Member Function Documentation

bool ns3::LteEnbPhy::AddUePhy ( uint16_t  rnti )

private

Definition at line 335 of file lte-enb-phy.cc.

References m_ueAttached, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Referenced by DoAddUe().

Here is the caller graph for this function:

void ns3::LteEnbPhy::CalcChannelQualityForUe	(	std::vector< double >	sinr,
		Ptr< LteSpectrumPhy >	ue
	)

Calculate the channel quality for a given UE.

Parameters

sinr	a list of computed SINR
ue	the UE

Definition at line 421 of file lte-enb-phy.cc.

References NS_LOG_FUNCTION.

FfMacSchedSapProvider::SchedUlCqiInfoReqParameters ns3::LteEnbPhy::CreatePuschCqiReport

(

const SpectrumValue &

sinr

)

Create the UL CQI feedback from SINR values perceived at the physical layer with the PUSCH signal received from eNB.

Parameters

sinr	SINR values vector

Definition at line 735 of file lte-enb-phy.cc.

References ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), ns3::LteFfConverter::double2fpS11dot3(), ns3::UlCqi_s::m_sinr, ns3::UlCqi_s::m_type, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_ulCqi, NS_LOG_FUNCTION, and ns3::UlCqi_s::PUSCH.

Referenced by GenerateDataCqiReport().

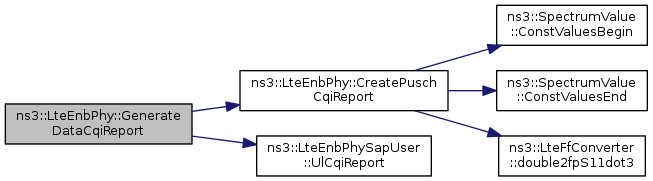

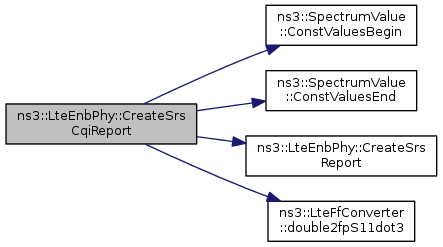

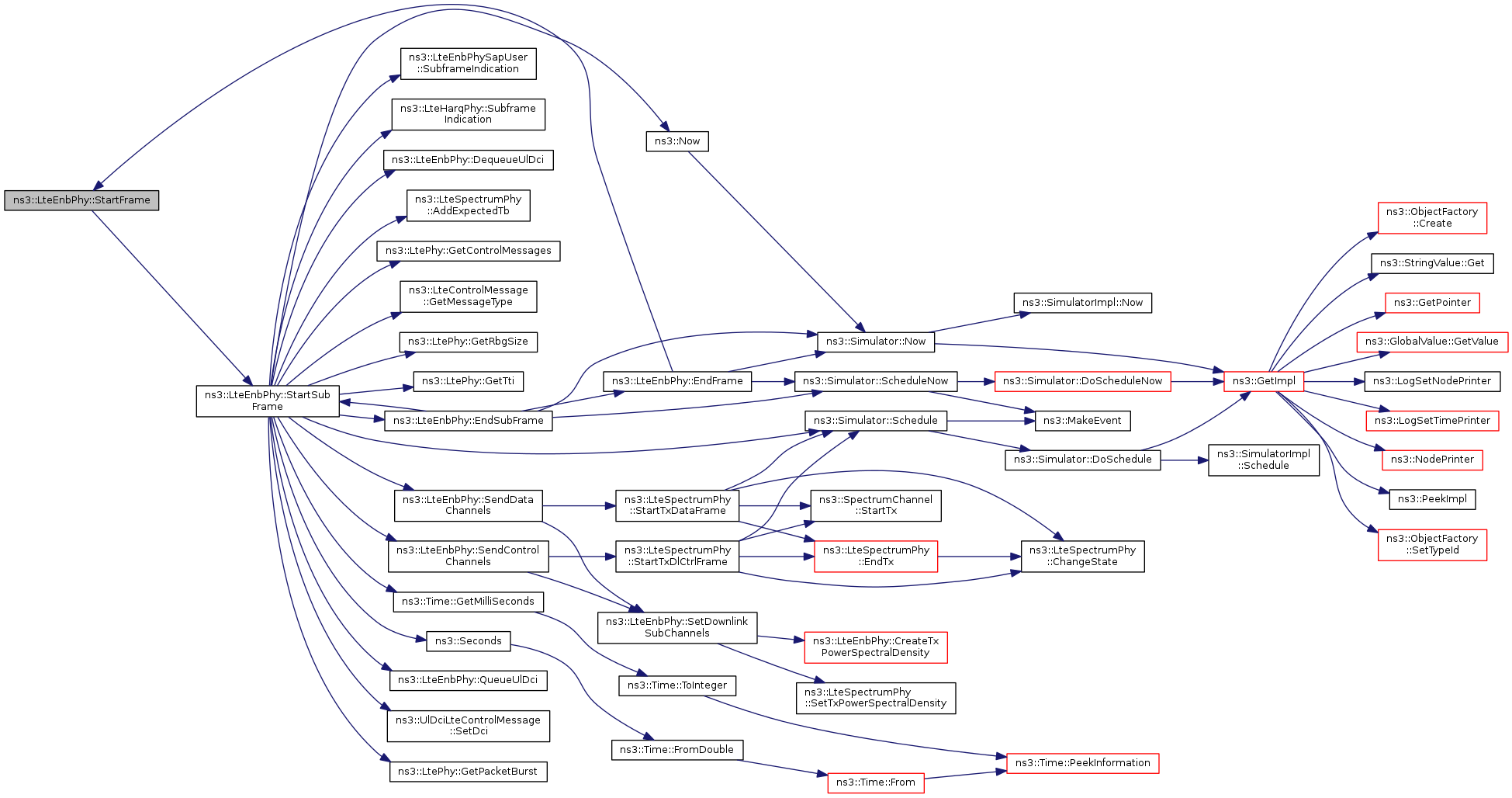

Here is the call graph for this function:

Here is the caller graph for this function:

FfMacSchedSapProvider::SchedUlCqiInfoReqParameters ns3::LteEnbPhy::CreateSrsCqiReport

(

const SpectrumValue &

sinr

)

Create the UL CQI feedback from SINR values perceived at the physical layer with the SRS signal received from eNB.

Parameters

sinr	SINR values vector

Definition at line 808 of file lte-enb-phy.cc.

References ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), CreateSrsReport(), ns3::LteFfConverter::double2fpS11dot3(), m_currentSrsOffset, ns3::UlCqi_s::m_sinr, m_srsUeOffset, ns3::VendorSpecificListElement_s::m_type, ns3::UlCqi_s::m_type, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_ulCqi, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_vendorSpecificList, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::UlCqi_s::SRS, and SRS_CQI_RNTI_VSP.

Referenced by GenerateCtrlCqiReport().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::CreateSrsReport ( uint16_t  rnti, double  srs  )

private

Definition at line 842 of file lte-enb-phy.cc.

References ns3::LtePhy::m_cellId, m_reportUeSinr, m_srsSampleCounterMap, m_srsSamplePeriod, and NS_LOG_FUNCTION.

Referenced by CreateSrsCqiReport().

Here is the caller graph for this function:

Ptr< SpectrumValue > ns3::LteEnbPhy::CreateTxPowerSpectralDensity ( )

virtual

Create the PSD for TX.

Implements ns3::LtePhy.

Definition at line 410 of file lte-enb-phy.cc.

References GetDownlinkSubChannels(), ns3::LtePhy::m_dlBandwidth, ns3::LtePhy::m_dlEarfcn, ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by SetDownlinkSubChannels().

Here is the call graph for this function:

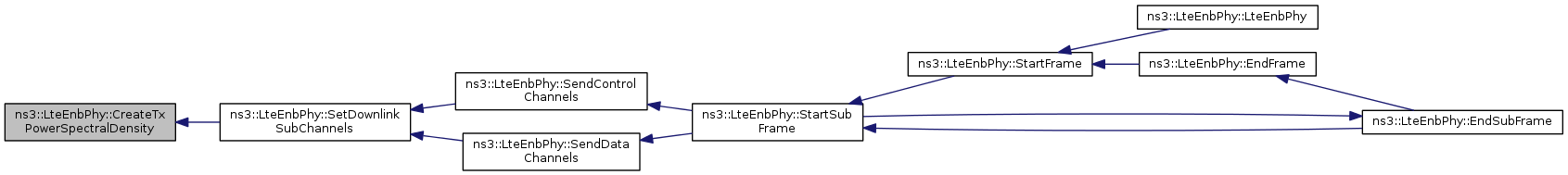

Here is the caller graph for this function:

bool ns3::LteEnbPhy::DeleteUePhy ( uint16_t  rnti )

private

Definition at line 353 of file lte-enb-phy.cc.

References m_ueAttached, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Referenced by DoRemoveUe().

Here is the caller graph for this function:

std::list< UlDciLteControlMessage > ns3::LteEnbPhy::DequeueUlDci

(

void

)

Returns

the list of UL-CQI to be processed

Definition at line 875 of file lte-enb-phy.cc.

References m_ulDciQueue, and NS_LOG_FUNCTION.

Referenced by StartSubFrame().

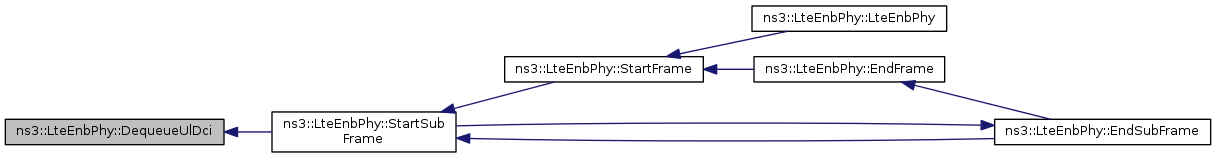

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoAddUe ( uint16_t  rnti )

private

Definition at line 789 of file lte-enb-phy.cc.

References AddUePhy(), NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbPhy::DoDispose ( void  )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LtePhy.

Definition at line 221 of file lte-enb-phy.cc.

References m_enbCphySapProvider, m_enbPhySapProvider, m_srsUeOffset, m_ueAttached, and NS_LOG_FUNCTION.

uint8_t ns3::LteEnbPhy::DoGetMacChTtiDelay ( )

private

Definition at line 380 of file lte-enb-phy.cc.

References ns3::LtePhy::m_macChTtiDelay.

Referenced by ns3::EnbMemberLteEnbPhySapProvider::GetMacChTtiDelay().

Here is the caller graph for this function:

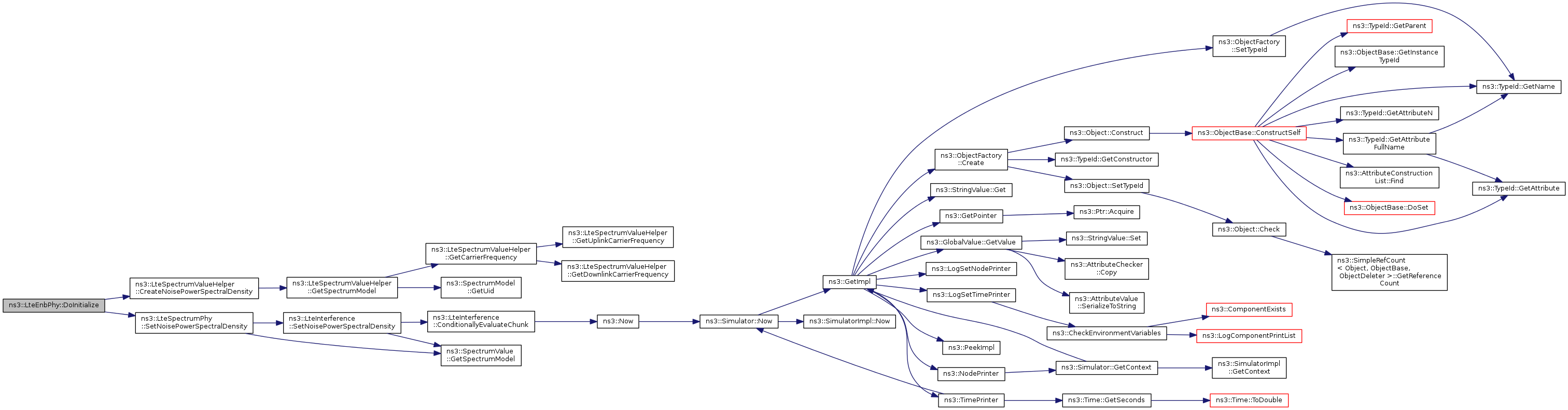

void ns3::LteEnbPhy::DoInitialize ( void  )

virtual

This method is called only once by Object::Initialize. If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 232 of file lte-enb-phy.cc.

References ns3::LteSpectrumValueHelper::CreateNoisePowerSpectralDensity(), ns3::LtePhy::m_noiseFigure, ns3::LtePhy::m_ulBandwidth, ns3::LtePhy::m_ulEarfcn, ns3::LtePhy::m_uplinkSpectrumPhy, NS_LOG_FUNCTION, and ns3::LteSpectrumPhy::SetNoisePowerSpectralDensity().

Here is the call graph for this function:

void ns3::LteEnbPhy::DoRemoveUe ( uint16_t  rnti )

private

Definition at line 798 of file lte-enb-phy.cc.

References DeleteUePhy(), NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbPhy::DoSendLteControlMessage ( Ptr< LteControlMessage >  msg )

private

Definition at line 428 of file lte-enb-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetControlMessages().

Referenced by ns3::EnbMemberLteEnbPhySapProvider::SendLteControlMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoSendMacPdu ( Ptr< Packet >  p )

private

Definition at line 373 of file lte-enb-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetMacPdu().

Referenced by ns3::EnbMemberLteEnbPhySapProvider::SendMacPdu().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoSetBandwidth ( uint8_t  ulBandwidth, uint8_t  dlBandwidth  )

private

Definition at line 757 of file lte-enb-phy.cc.

References ns3::LtePhy::m_dlBandwidth, ns3::LtePhy::m_rbgSize, ns3::LtePhy::m_ulBandwidth, NS_LOG_FUNCTION, and ns3::Type0AllocationRbg.

Referenced by ns3::EnbMemberLteEnbPhySapProvider::SetBandwidth().

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoSetEarfcn ( uint16_t  dlEarfcn, uint16_t  ulEarfcn  )

private

Definition at line 780 of file lte-enb-phy.cc.

References ns3::LtePhy::m_dlEarfcn, ns3::LtePhy::m_ulEarfcn, and NS_LOG_FUNCTION.

void ns3::LteEnbPhy::DoSetMasterInformationBlock ( LteRrcSap::MasterInformationBlock  mib )

private

Definition at line 930 of file lte-enb-phy.cc.

References m_mib, and NS_LOG_FUNCTION.

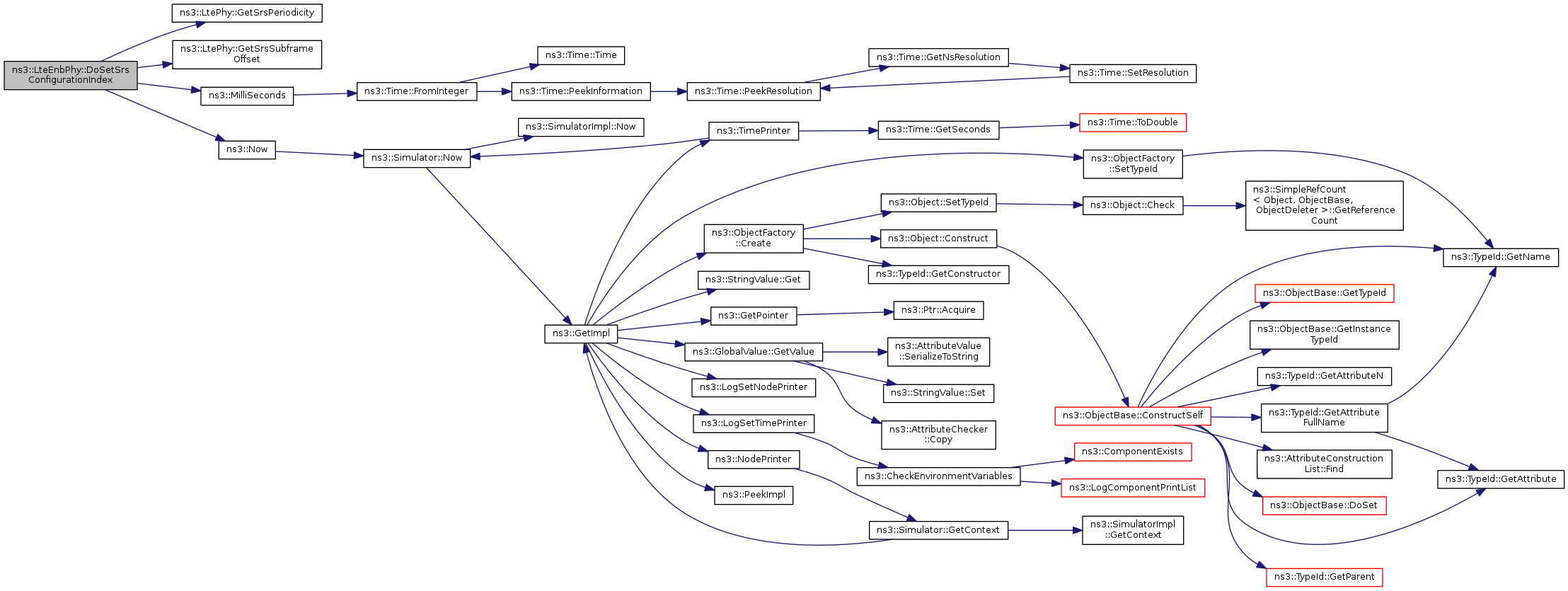

void ns3::LteEnbPhy::DoSetSrsConfigurationIndex ( uint16_t  rnti, uint16_t  srcCi  )

private

Definition at line 897 of file lte-enb-phy.cc.

References ns3::LtePhy::GetSrsPeriodicity(), ns3::LtePhy::GetSrsSubframeOffset(), ns3::LtePhy::m_macChTtiDelay, m_srsCounter, m_srsPeriodicity, m_srsStartTime, m_srsUeOffset, ns3::MilliSeconds(), ns3::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbPhy::DoSetTransmissionMode ( uint16_t  rnti, uint8_t  txMode  )

private

Definition at line 861 of file lte-enb-phy.cc.

References NS_LOG_FUNCTION.

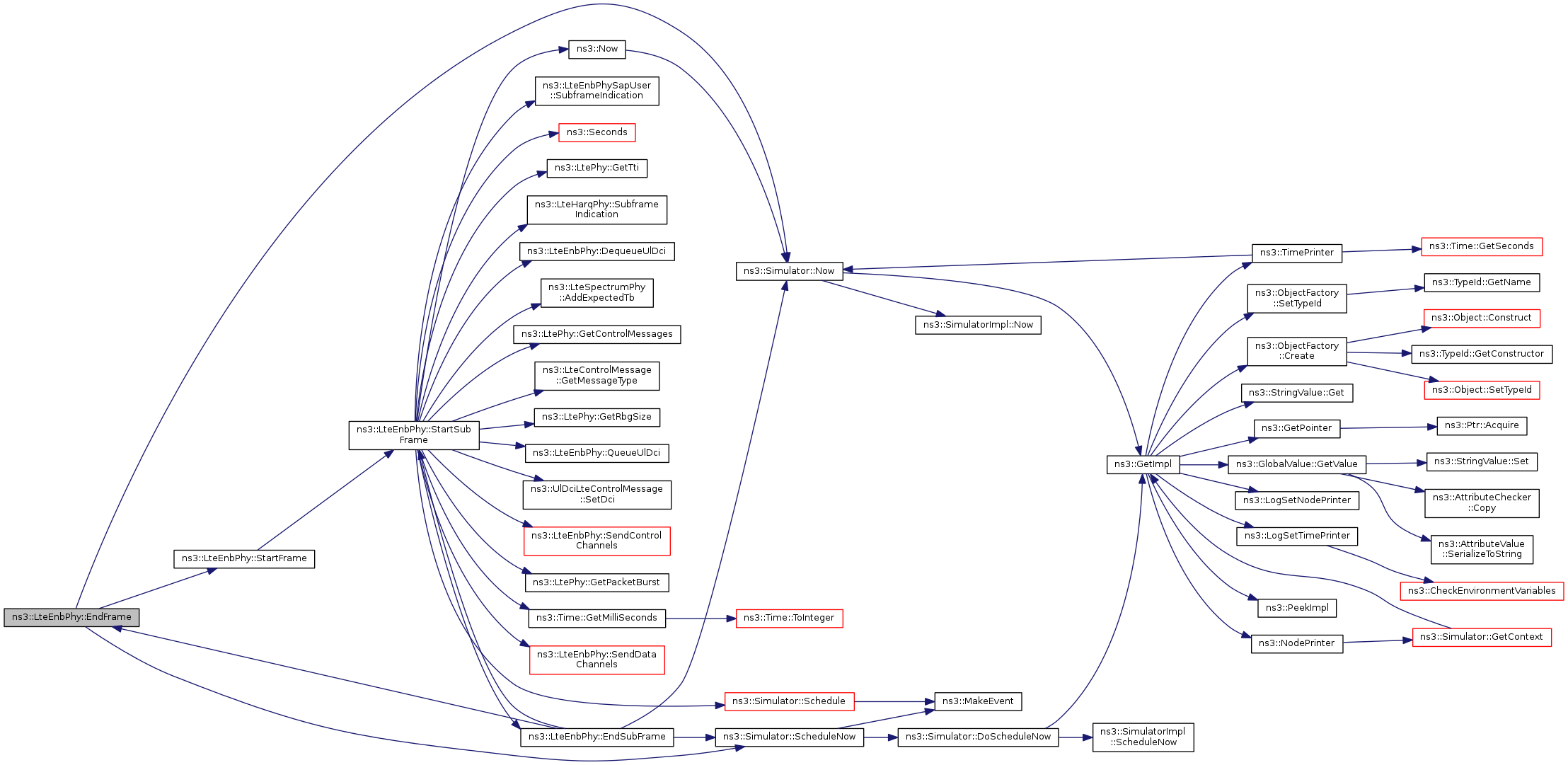

void ns3::LteEnbPhy::EndFrame

(

void

)

End a LTE frame.

Definition at line 686 of file lte-enb-phy.cc.

References ns3::Simulator::Now(), NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and StartFrame().

Referenced by EndSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

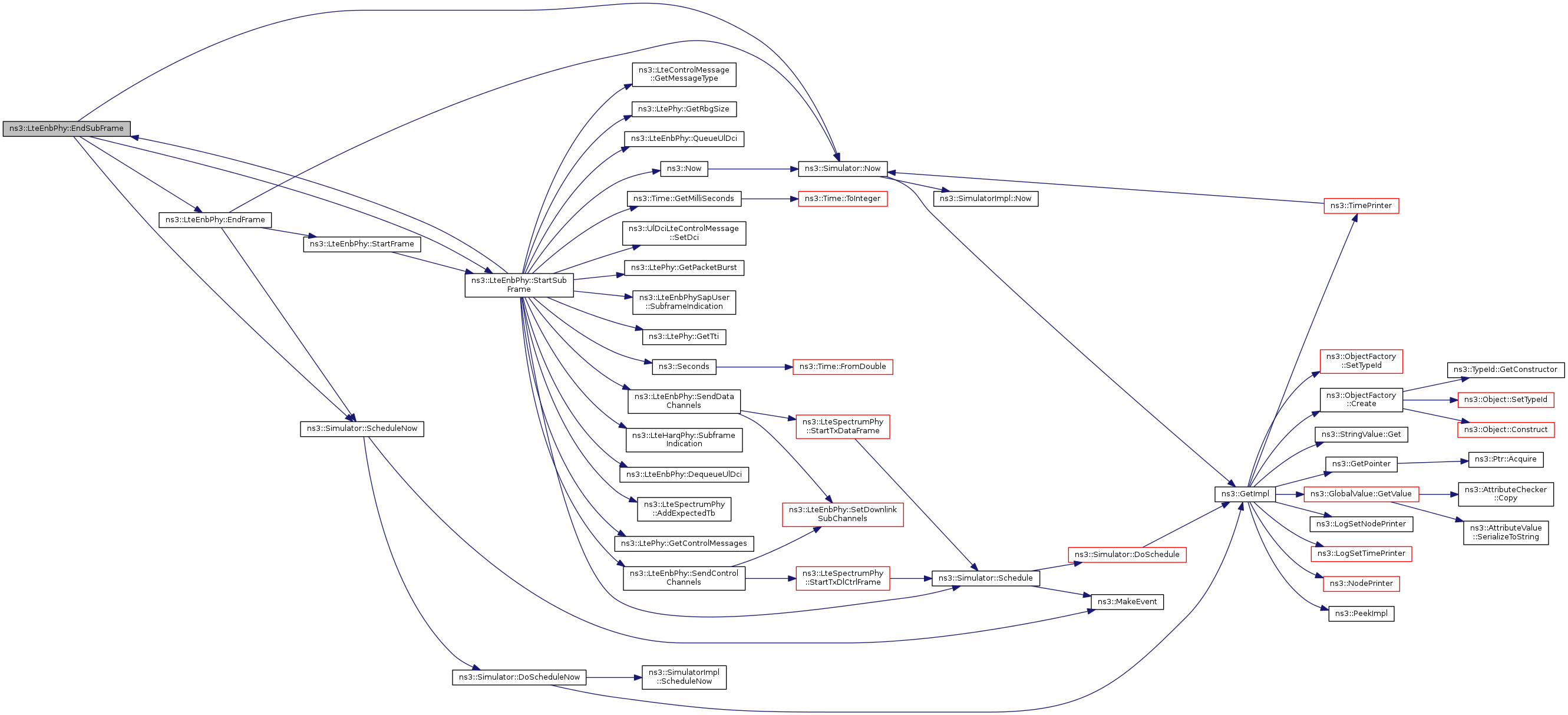

void ns3::LteEnbPhy::EndSubFrame

(

void

)

End a LTE sub frame.

Definition at line 671 of file lte-enb-phy.cc.

References EndFrame(), m_nrSubFrames, ns3::Simulator::Now(), NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and StartSubFrame().

Referenced by StartSubFrame().

Here is the call graph for this function:

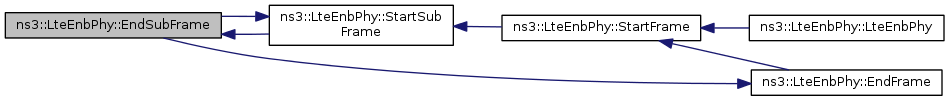

Here is the caller graph for this function:

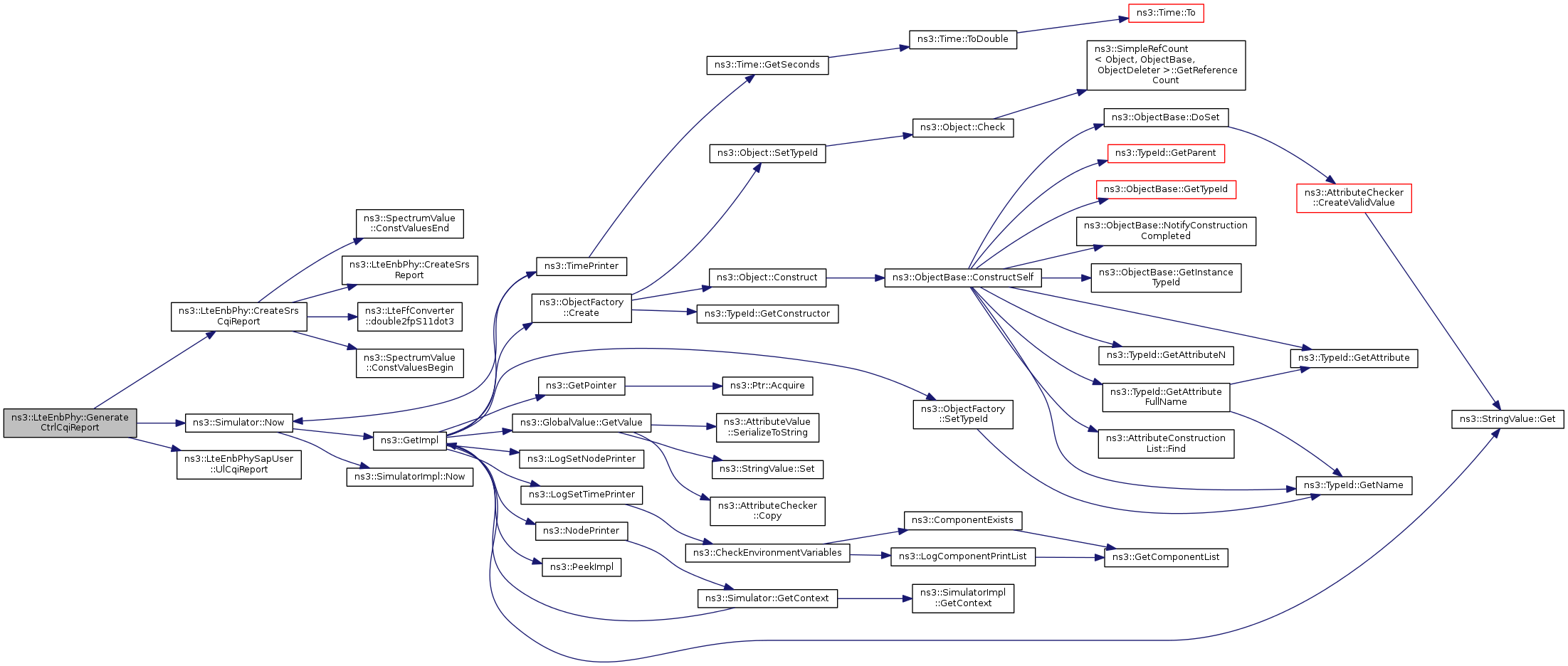

void ns3::LteEnbPhy::GenerateCtrlCqiReport ( const SpectrumValue &  sinr )

virtual

generate a CQI report based on the given SINR of Ctrl frame

Parameters

sinr	the SINR vs frequency measured by the device

Implements ns3::LtePhy.

Definition at line 694 of file lte-enb-phy.cc.

References CreateSrsCqiReport(), m_enbPhySapUser, m_srsStartTime, ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::LteEnbPhySapUser::UlCqiReport().

Here is the call graph for this function:

void ns3::LteEnbPhy::GenerateDataCqiReport ( const SpectrumValue &  sinr )

virtual

generate a CQI report based on the given SINR of Data frame (used for PUSCH CQIs)

Parameters

sinr	the SINR vs frequency measured by the device

Implements ns3::LtePhy.

Definition at line 706 of file lte-enb-phy.cc.

References CreatePuschCqiReport(), m_enbPhySapUser, NS_LOG_FUNCTION, and ns3::LteEnbPhySapUser::UlCqiReport().

Here is the call graph for this function:

Ptr< LteSpectrumPhy > ns3::LteEnbPhy::GetDlSpectrumPhy

(

)

const

Returns

a pointer to the LteSpectrumPhy instance relative to the downlink

Definition at line 323 of file lte-enb-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy.

Referenced by GetTypeId().

Here is the caller graph for this function:

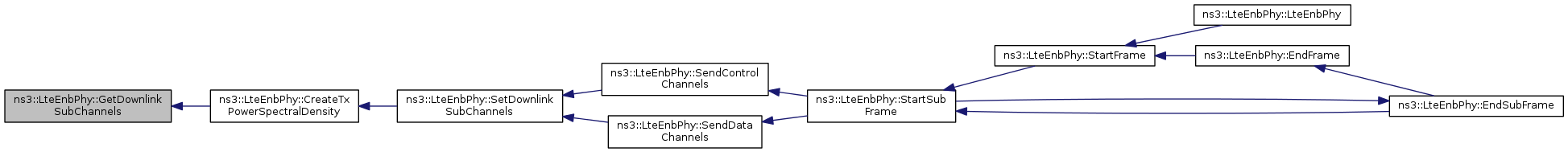

std::vector< int > ns3::LteEnbPhy::GetDownlinkSubChannels

(

void

)

Returns

a vector of integers, if the i-th value is j it means that the j-th resource block is used for transmission in the downlink. If there is no i such that the value of the i-th element is j, it means that RB j is not used.

Definition at line 403 of file lte-enb-phy.cc.

References m_listOfDownlinkSubchannel, and NS_LOG_FUNCTION.

Referenced by CreateTxPowerSpectralDensity().

Here is the caller graph for this function:

LteEnbCphySapProvider * ns3::LteEnbPhy::GetLteEnbCphySapProvider

(

)

Get the CPHY SAP provider.

Returns

a pointer to the SAP Provider

Definition at line 261 of file lte-enb-phy.cc.

References m_enbCphySapProvider, and NS_LOG_FUNCTION.

LteEnbPhySapProvider * ns3::LteEnbPhy::GetLteEnbPhySapProvider

(

)

Get the PHY SAP provider.

Returns

a pointer to the SAP Provider of the PHY

Definition at line 248 of file lte-enb-phy.cc.

References m_enbPhySapProvider.

uint8_t ns3::LteEnbPhy::GetMacChDelay

(

void

)

const

Returns

the TTI delay between MAC and channel

Definition at line 317 of file lte-enb-phy.cc.

References ns3::LtePhy::m_macChTtiDelay.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::LteEnbPhy::GetNoiseFigure

(

)

const

Returns

the noise figure in dB

Definition at line 289 of file lte-enb-phy.cc.

References ns3::LtePhy::m_noiseFigure, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::LteEnbPhy::GetTxPower

(

)

const

Returns

the transmission power in dBm

Definition at line 275 of file lte-enb-phy.cc.

References ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

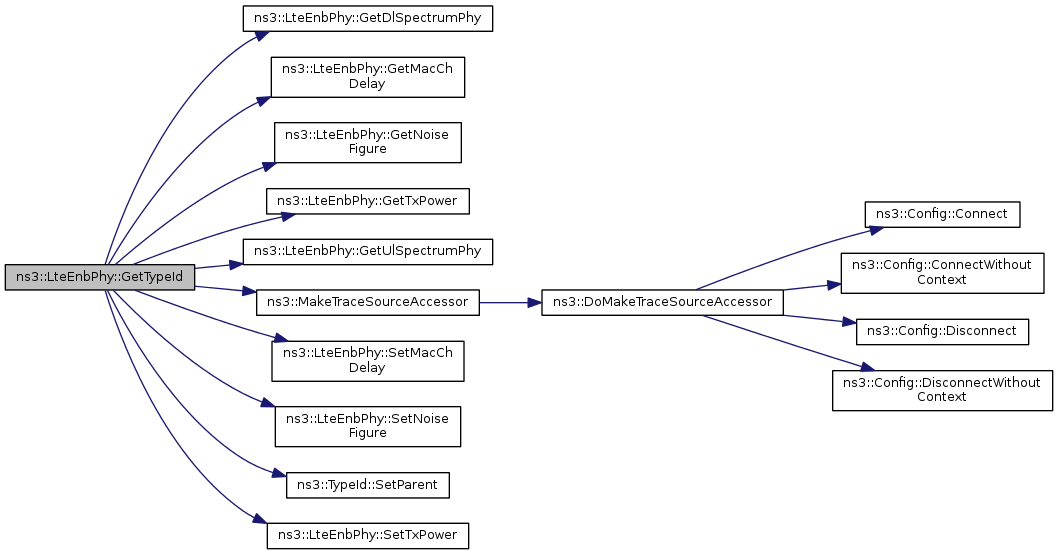

TypeId ns3::LteEnbPhy::GetTypeId ( void  )

static

Reimplemented from ns3::LtePhy.

Definition at line 151 of file lte-enb-phy.cc.

References ns3::TypeId::ATTR_GET, GetDlSpectrumPhy(), GetMacChDelay(), GetNoiseFigure(), GetTxPower(), GetUlSpectrumPhy(), m_dlPhyTransmission, m_interferenceSamplePeriod, m_reportInterferenceTrace, m_reportUeSinr, m_srsSamplePeriod, ns3::MakeTraceSourceAccessor(), SetMacChDelay(), SetNoiseFigure(), ns3::TypeId::SetParent(), and SetTxPower().

Here is the call graph for this function:

Ptr< LteSpectrumPhy > ns3::LteEnbPhy::GetUlSpectrumPhy

(

)

const

Returns

a pointer to the LteSpectrumPhy instance relative to the uplink

Definition at line 329 of file lte-enb-phy.cc.

References ns3::LtePhy::m_uplinkSpectrumPhy.

Referenced by GetTypeId().

Here is the caller graph for this function:

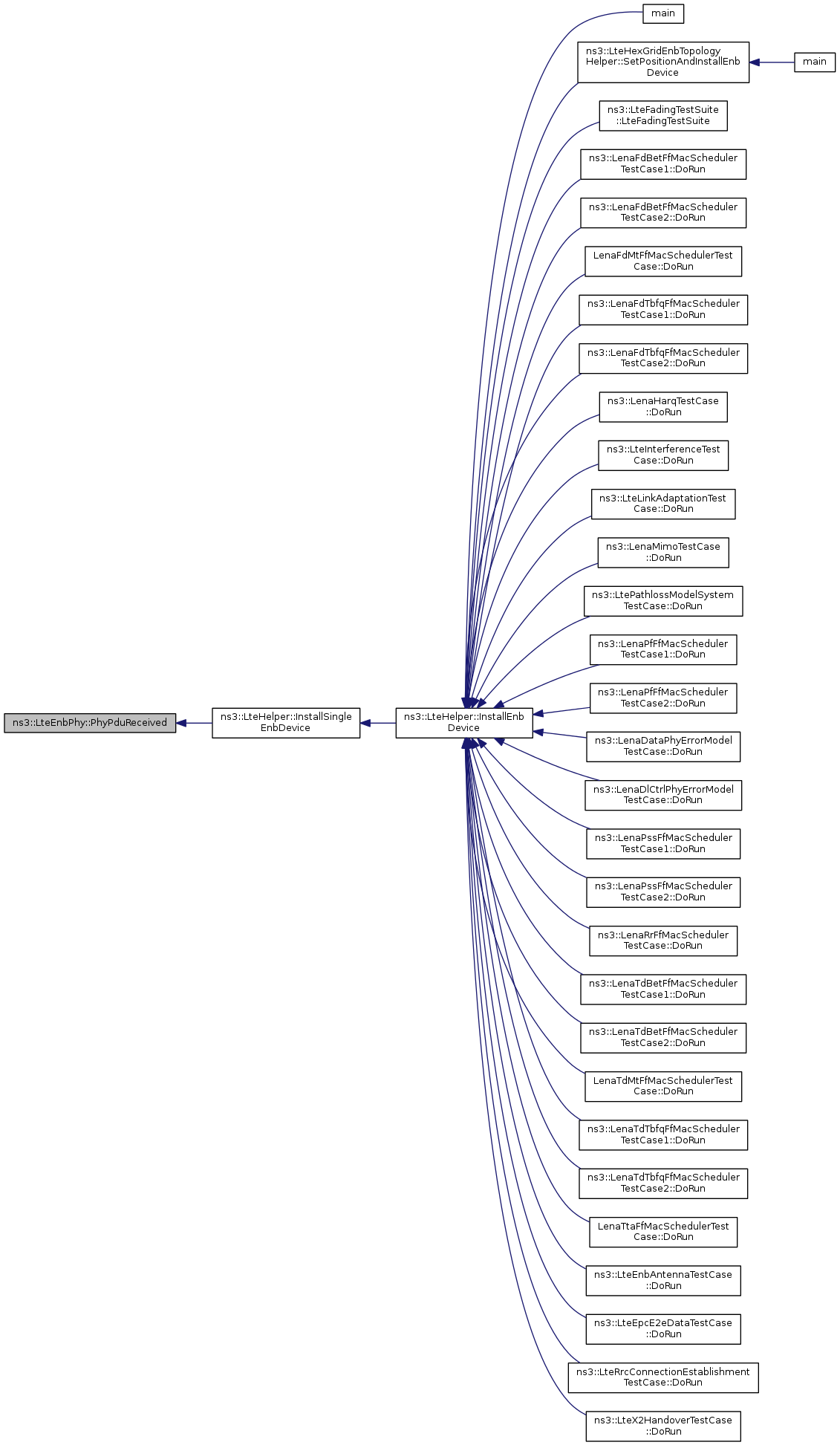

void ns3::LteEnbPhy::PhyPduReceived

(

Ptr< Packet >

p

)

PhySpectrum received a new PHY-PDU.

Definition at line 387 of file lte-enb-phy.cc.

References m_enbPhySapUser, NS_LOG_FUNCTION, and ns3::LteEnbPhySapUser::ReceivePhyPdu().

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::QueueUlDci

(

UlDciLteControlMessage

m

)

Parameters

m	the UL-CQI to be queued

Definition at line 868 of file lte-enb-phy.cc.

References m_ulDciQueue, NS_LOG_FUNCTION, and UL_PUSCH_TTIS_DELAY.

Referenced by StartSubFrame().

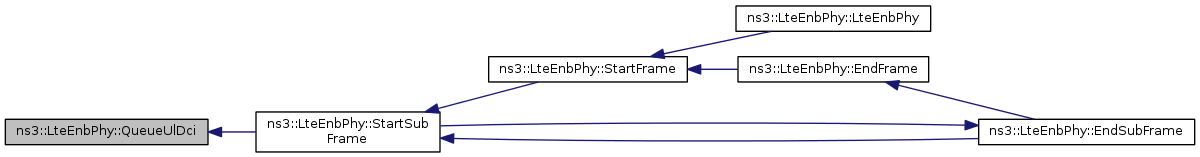

Here is the caller graph for this function:

void ns3::LteEnbPhy::ReceiveLteControlMessage ( Ptr< LteControlMessage >  msg )

virtual

Receive the control message.

Parameters

msg	the received message

Definition at line 438 of file lte-enb-phy.cc.

References m_enbPhySapUser, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::LteEnbPhySapUser::ReceiveLteControlMessage().

Here is the call graph for this function:

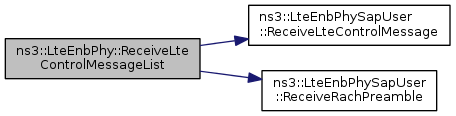

void ns3::LteEnbPhy::ReceiveLteControlMessageList ( std::list< Ptr< LteControlMessage > >  msgList )

virtual

PhySpectrum received a new list of LteControlMessage.

Definition at line 446 of file lte-enb-phy.cc.

References m_enbPhySapUser, NS_LOG_FUNCTION, ns3::LteControlMessage::RACH_PREAMBLE, ns3::LteEnbPhySapUser::ReceiveLteControlMessage(), and ns3::LteEnbPhySapUser::ReceiveRachPreamble().

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

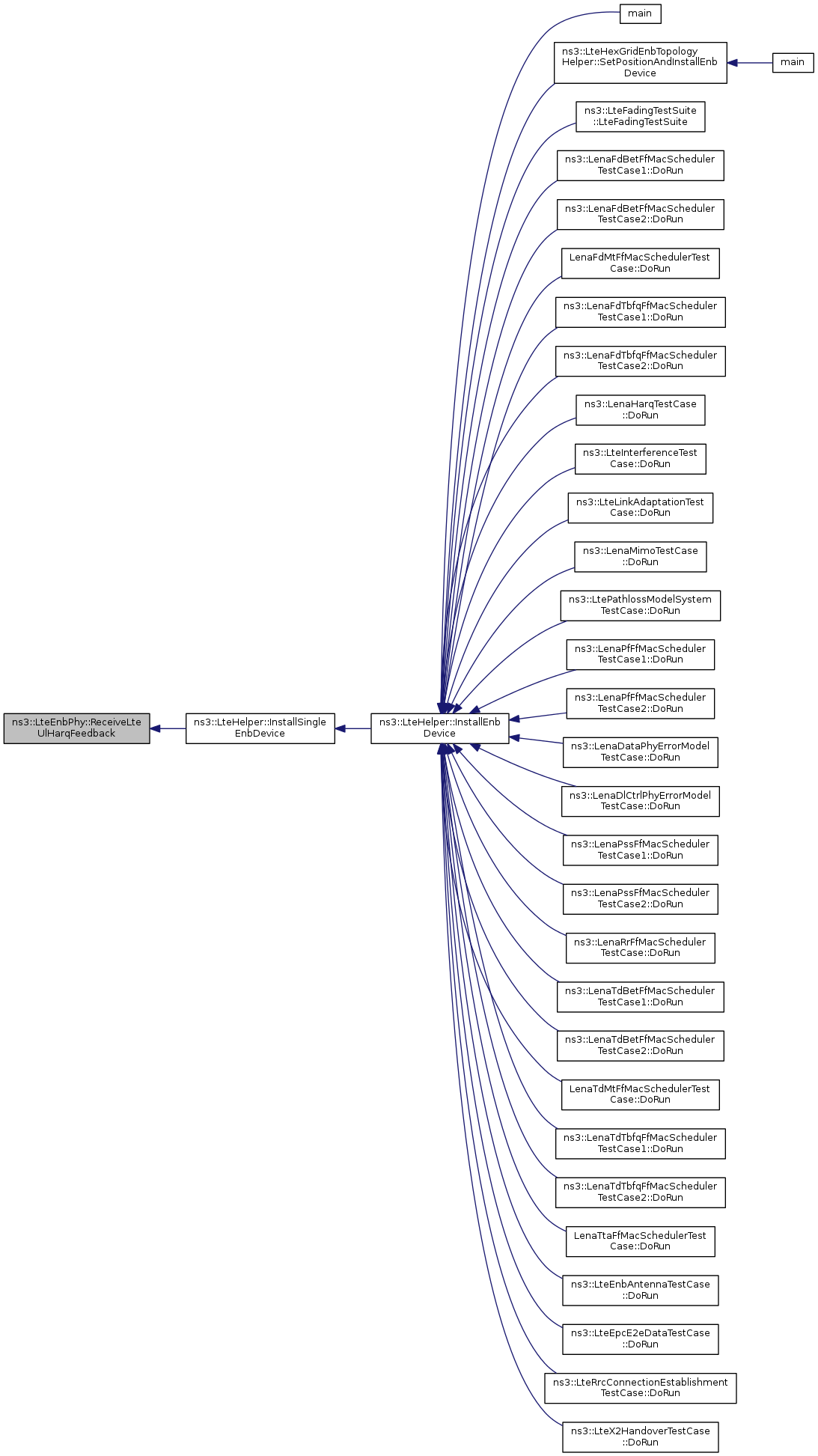

void ns3::LteEnbPhy::ReceiveLteUlHarqFeedback ( UlInfoListElement_s  mes )

virtual

PhySpectrum generated a new UL HARQ feedback.

Definition at line 945 of file lte-enb-phy.cc.

References m_enbPhySapUser, NS_LOG_FUNCTION, and ns3::LteEnbPhySapUser::UlInfoListElementHarqFeeback().

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::ReportInterference ( const SpectrumValue &  power )

virtual

generate a report based on the linear interference and noise power perceived during DATA frame NOTE: used only by eNB

Parameters

sinr	the interference + noise power measured by the device

Implements ns3::LtePhy.

Definition at line 714 of file lte-enb-phy.cc.

References ns3::LtePhy::m_cellId, m_interferenceSampleCounter, m_interferenceSamplePeriod, m_reportInterferenceTrace, and NS_LOG_FUNCTION.

void ns3::LteEnbPhy::ReportRsReceivedPower ( const SpectrumValue &  interf )

virtual

generate a report based on the linear RS power perceived during CTRL frame NOTE: used only by UE for evaluating RSRP

Parameters

sinr	the RS power measured by the device

Implements ns3::LtePhy.

Definition at line 727 of file lte-enb-phy.cc.

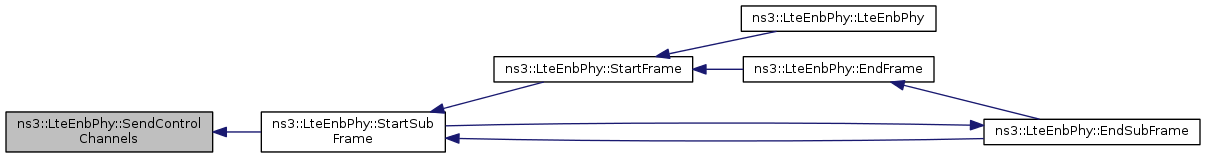

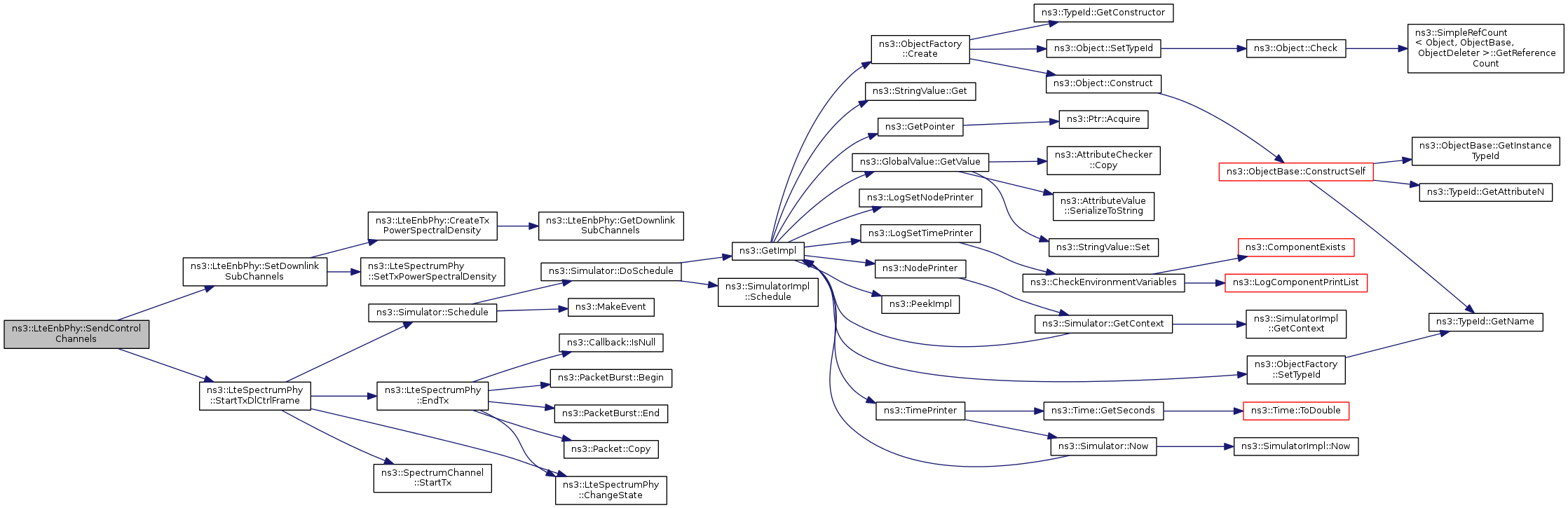

void ns3::LteEnbPhy::SendControlChannels

(

std::list< Ptr< LteControlMessage > >

ctrlMsgList

)

Send the PDCCH and PCFICH in the first 3 symbols.

Parameters

ctrlMsgList

the list of control messages of PDCCH

Definition at line 642 of file lte-enb-phy.cc.

References ns3::LtePhy::m_cellId, ns3::LtePhy::m_dlBandwidth, ns3::LtePhy::m_downlinkSpectrumPhy, NS_LOG_FUNCTION, NS_LOG_LOGIC, SetDownlinkSubChannels(), and ns3::LteSpectrumPhy::StartTxDlCtrlFrame().

Referenced by StartSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::SendDataChannels

(

Ptr< PacketBurst >

pb

)

Send the PDSCH.

Parameters

pb	the PacketBurst to be sent

Definition at line 658 of file lte-enb-phy.cc.

References ns3::DL_DATA_DURATION, m_dlDataRbMap, ns3::LtePhy::m_downlinkSpectrumPhy, NS_LOG_LOGIC, SetDownlinkSubChannels(), and ns3::LteSpectrumPhy::StartTxDataFrame().

Referenced by StartSubFrame().

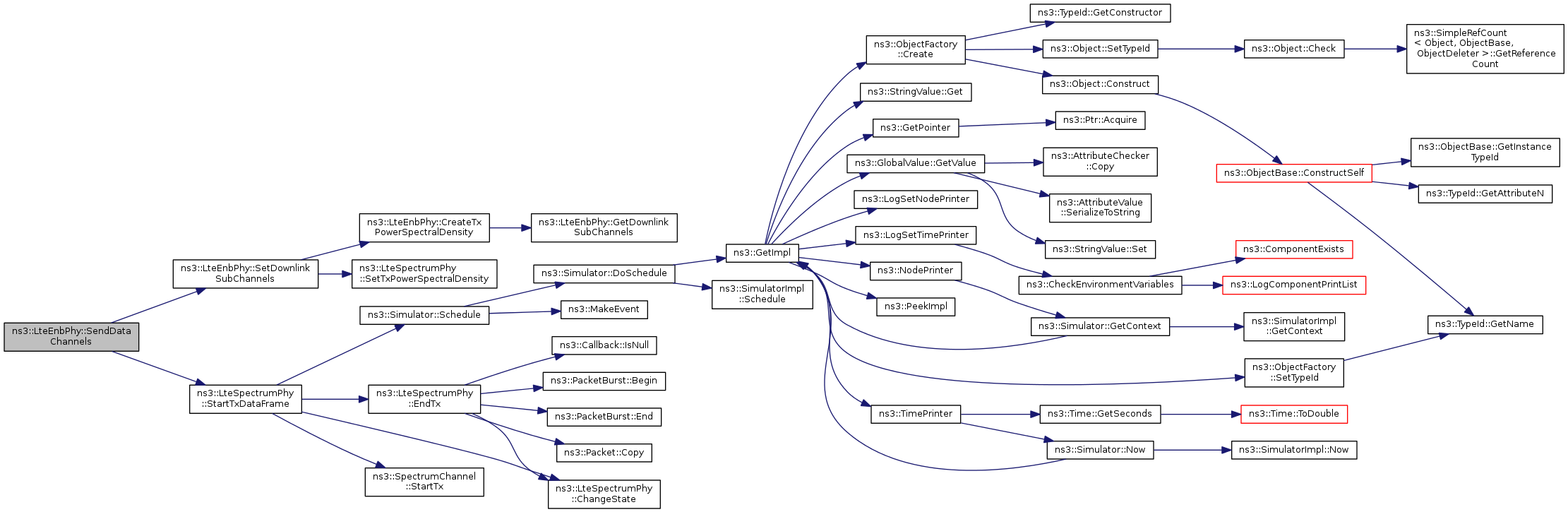

Here is the call graph for this function:

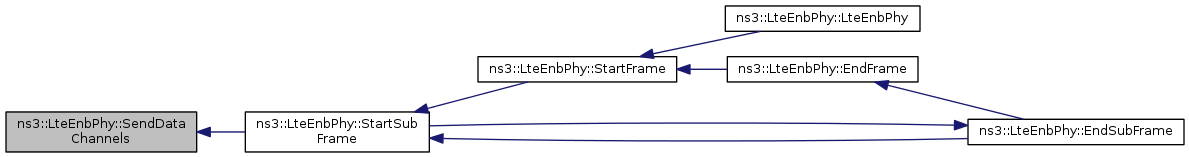

Here is the caller graph for this function:

void ns3::LteEnbPhy::SetDownlinkSubChannels

(

std::vector< int >

mask

)

set the resource blocks (a.k.a. sub channels) to be used in the downlink for transmission

Parameters

mask	a vector of integers, if the i-th value is j it means that the j-th resource block is used for transmission in the downlink. If there is no i such that the value of the i-th element is j, it means that RB j is not used.

Definition at line 394 of file lte-enb-phy.cc.

References CreateTxPowerSpectralDensity(), ns3::LtePhy::m_downlinkSpectrumPhy, m_listOfDownlinkSubchannel, NS_LOG_FUNCTION, and ns3::LteSpectrumPhy::SetTxPowerSpectralDensity().

Referenced by SendControlChannels(), and SendDataChannels().

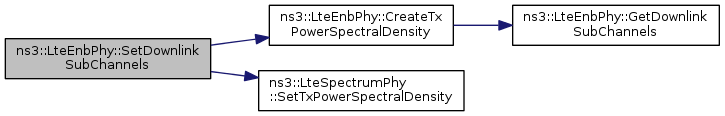

Here is the call graph for this function:

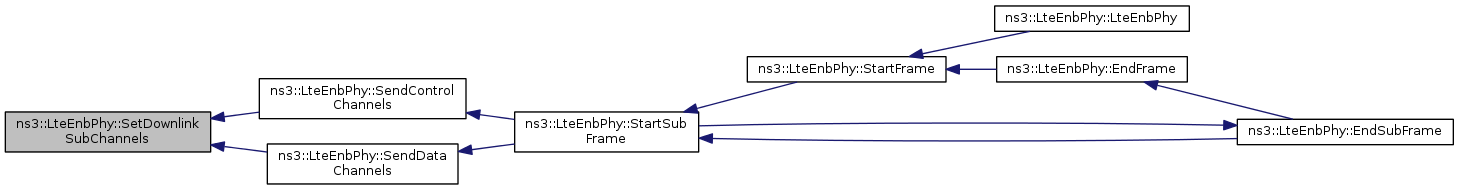

Here is the caller graph for this function:

void ns3::LteEnbPhy::SetHarqPhyModule

(

Ptr< LteHarqPhy >

harq

)

Definition at line 938 of file lte-enb-phy.cc.

References m_harqPhyModule.

void ns3::LteEnbPhy::SetLteEnbCphySapUser

(

LteEnbCphySapUser *

s

)

Set the CPHY SAP User.

Parameters

s	a pointer to the SAP user

Definition at line 254 of file lte-enb-phy.cc.

References m_enbCphySapUser, and NS_LOG_FUNCTION.

void ns3::LteEnbPhy::SetLteEnbPhySapUser

(

LteEnbPhySapUser *

s

)

Set the PHY SAP User.

Parameters

s	a pointer to the PHY SAP user

Definition at line 242 of file lte-enb-phy.cc.

References m_enbPhySapUser.

void ns3::LteEnbPhy::SetMacChDelay

(

uint8_t

delay

)

Parameters

delay

the TTI delay between MAC and channel

Definition at line 296 of file lte-enb-phy.cc.

References ns3::LtePhy::m_controlMessagesQueue, ns3::LtePhy::m_macChTtiDelay, ns3::LtePhy::m_packetBurstQueue, m_ulDciQueue, NS_LOG_FUNCTION, and UL_PUSCH_TTIS_DELAY.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteEnbPhy::SetNoiseFigure

(

double

pow

)

Parameters

pw	the noise figure in dB

Definition at line 282 of file lte-enb-phy.cc.

References ns3::LtePhy::m_noiseFigure, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteEnbPhy::SetTxPower

(

double

pow

)

Parameters

pw	the transmission power in dBm

Definition at line 268 of file lte-enb-phy.cc.

References ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteEnbPhy::StartFrame

(

void

)

Start a LTE frame.

Definition at line 471 of file lte-enb-phy.cc.

References ns3::LtePhy::m_controlMessagesQueue, m_mib, m_nrFrames, m_nrSubFrames, NS_LOG_FUNCTION, NS_LOG_INFO, StartSubFrame(), and ns3::LteRrcSap::MasterInformationBlock::systemFrameNumber.

Referenced by EndFrame(), and LteEnbPhy().

Here is the call graph for this function:

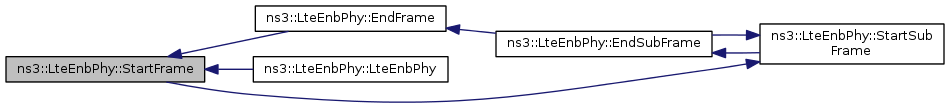

Here is the caller graph for this function:

void ns3::LteEnbPhy::StartSubFrame

(

void

)

Start a LTE sub frame.

Definition at line 490 of file lte-enb-phy.cc.

References ns3::LteSpectrumPhy::AddExpectedTb(), DequeueUlDci(), ns3::DL_CTRL_DELAY_FROM_SUBFRAME_START, ns3::LteControlMessage::DL_DCI, EndSubFrame(), ns3::LtePhy::GetControlMessages(), ns3::LteControlMessage::GetMessageType(), ns3::Time::GetMilliSeconds(), ns3::LtePhy::GetPacketBurst(), ns3::LtePhy::GetRbgSize(), ns3::LtePhy::GetTti(), ns3::PhyTransmissionStatParameters::m_cellId, ns3::LtePhy::m_cellId, ns3::UlDciListElement_s::m_cqiRequest, ns3::UlGrant_s::m_cqiRequest, m_currentSrsOffset, m_dlDataRbMap, m_dlPhyTransmission, m_enbPhySapUser, m_harqPhyModule, ns3::UlDciListElement_s::m_hopping, ns3::UlGrant_s::m_hopping, ns3::PhyTransmissionStatParameters::m_imsi, ns3::PhyTransmissionStatParameters::m_layer, ns3::PhyTransmissionStatParameters::m_mcs, ns3::UlDciListElement_s::m_mcs, ns3::UlGrant_s::m_mcs, ns3::PhyTransmissionStatParameters::m_ndi, ns3::UlDciListElement_s::m_ndi, m_nrFrames, m_nrSubFrames, ns3::UlDciListElement_s::m_rbLen, ns3::UlGrant_s::m_rbLen, ns3::UlDciListElement_s::m_rbStart, ns3::UlGrant_s::m_rbStart, ns3::PhyTransmissionStatParameters::m_rnti, ns3::UlDciListElement_s::m_rnti, ns3::UlGrant_s::m_rnti, ns3::PhyTransmissionStatParameters::m_rv, ns3::PhyTransmissionStatParameters::m_size, m_srsPeriodicity, ns3::UlDciListElement_s::m_tbSize, ns3::UlGrant_s::m_tbSize, ns3::PhyTransmissionStatParameters::m_timestamp, ns3::UlDciListElement_s::m_tpc, ns3::UlGrant_s::m_tpc, ns3::PhyTransmissionStatParameters::m_txMode, m_ueAttached, ns3::LtePhy::m_uplinkSpectrumPhy, ns3::Now(), NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, QueueUlDci(), ns3::LteControlMessage::RAR, ns3::Simulator::Schedule(), ns3::Seconds(), SendControlChannels(), SendDataChannels(), ns3::UlDciLteControlMessage::SetDci(), ns3::LteHarqPhy::SubframeIndication(), ns3::LteEnbPhySapUser::SubframeIndication(), and ns3::LteControlMessage::UL_DCI.

Referenced by EndSubFrame(), and StartFrame().

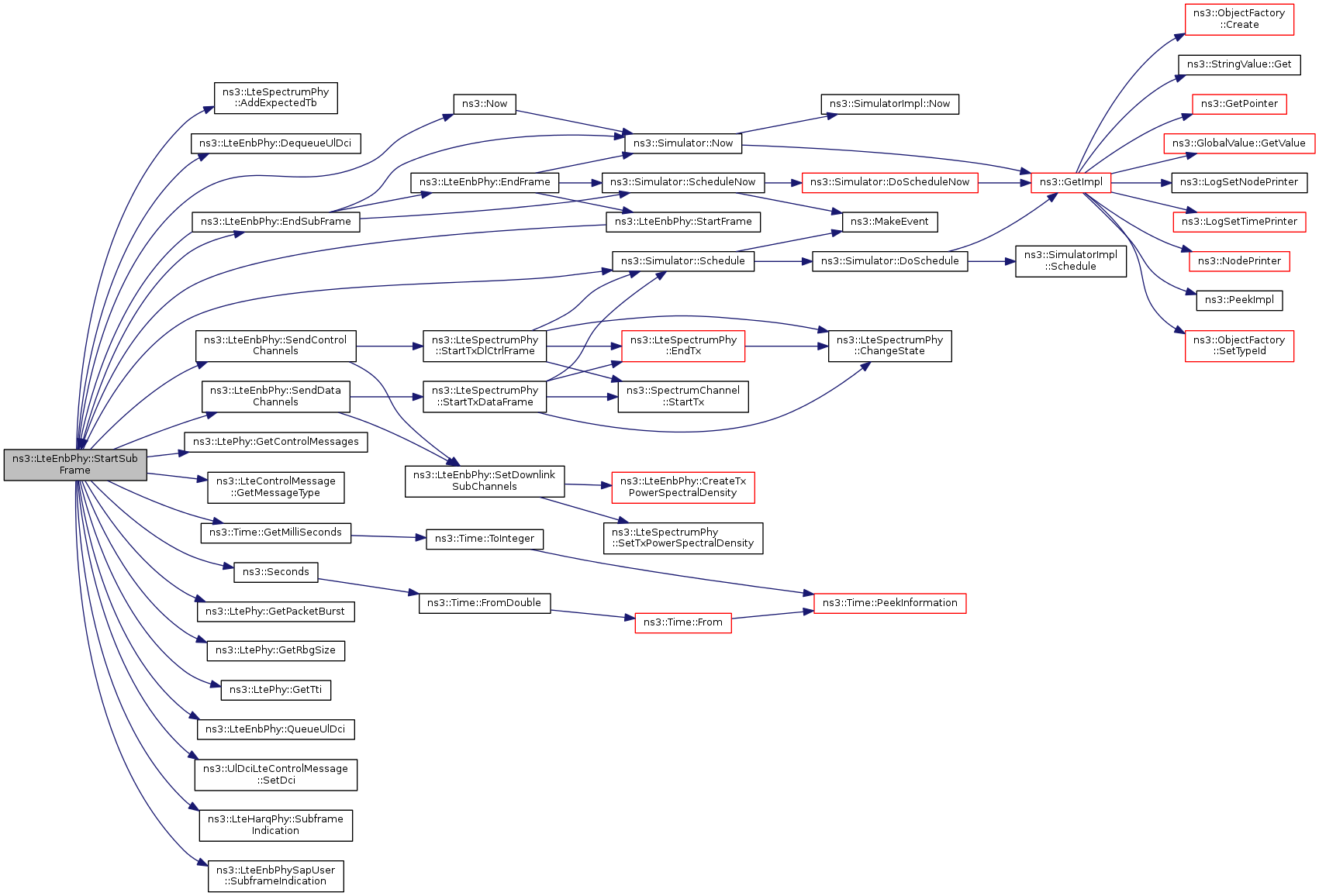

Here is the call graph for this function:

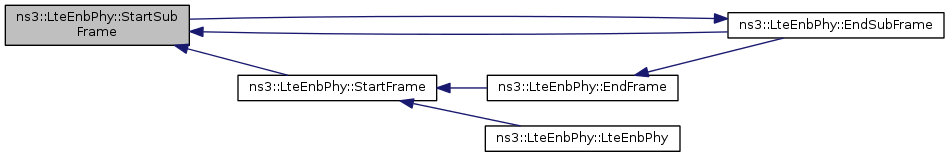

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class EnbMemberLteEnbPhySapProvider

friend

Definition at line 49 of file lte-enb-phy.h.

Referenced by LteEnbPhy().

friend class MemberLteEnbCphySapProvider< LteEnbPhy >

friend

Definition at line 50 of file lte-enb-phy.h.

Member Data Documentation

uint16_t ns3::LteEnbPhy::m_currentSrsOffset

private

Definition at line 301 of file lte-enb-phy.h.

Referenced by CreateSrsCqiReport(), and StartSubFrame().

std::vector<int> ns3::LteEnbPhy::m_dlDataRbMap

private

Definition at line 284 of file lte-enb-phy.h.

Referenced by SendDataChannels(), and StartSubFrame().

TracedCallback<PhyTransmissionStatParameters> ns3::LteEnbPhy::m_dlPhyTransmission

private

Trace information regarding PHY stats from UL Tx perspective PhyTrasmissionStatParameters see lte-common.h

Definition at line 328 of file lte-enb-phy.h.

Referenced by GetTypeId(), and StartSubFrame().

LteEnbCphySapProvider* ns3::LteEnbPhy::m_enbCphySapProvider

private

Definition at line 291 of file lte-enb-phy.h.

Referenced by DoDispose(), GetLteEnbCphySapProvider(), and LteEnbPhy().

LteEnbCphySapUser* ns3::LteEnbPhy::m_enbCphySapUser

private

Definition at line 292 of file lte-enb-phy.h.

Referenced by SetLteEnbCphySapUser().

LteEnbPhySapProvider* ns3::LteEnbPhy::m_enbPhySapProvider

private

Definition at line 288 of file lte-enb-phy.h.

Referenced by DoDispose(), GetLteEnbPhySapProvider(), and LteEnbPhy().

LteEnbPhySapUser* ns3::LteEnbPhy::m_enbPhySapUser

private

Definition at line 289 of file lte-enb-phy.h.

Referenced by GenerateCtrlCqiReport(), GenerateDataCqiReport(), PhyPduReceived(), ReceiveLteControlMessage(), ReceiveLteControlMessageList(), ReceiveLteUlHarqFeedback(), SetLteEnbPhySapUser(), and StartSubFrame().

Ptr<LteHarqPhy> ns3::LteEnbPhy::m_harqPhyModule

private

Definition at line 305 of file lte-enb-phy.h.

Referenced by LteEnbPhy(), SetHarqPhyModule(), and StartSubFrame().

uint16_t ns3::LteEnbPhy::m_interferenceSampleCounter

private

Definition at line 322 of file lte-enb-phy.h.

Referenced by ReportInterference().

uint16_t ns3::LteEnbPhy::m_interferenceSamplePeriod

private

Definition at line 321 of file lte-enb-phy.h.

Referenced by GetTypeId(), and ReportInterference().

std::vector<int> ns3::LteEnbPhy::m_listOfDownlinkSubchannel

private

Definition at line 282 of file lte-enb-phy.h.

Referenced by GetDownlinkSubChannels(), and SetDownlinkSubChannels().

LteRrcSap::MasterInformationBlock ns3::LteEnbPhy::m_mib

private

Definition at line 303 of file lte-enb-phy.h.

Referenced by DoSetMasterInformationBlock(), and StartFrame().

uint32_t ns3::LteEnbPhy::m_nrFrames

private

Definition at line 294 of file lte-enb-phy.h.

Referenced by StartFrame(), and StartSubFrame().

uint32_t ns3::LteEnbPhy::m_nrSubFrames

private

Definition at line 295 of file lte-enb-phy.h.

Referenced by EndSubFrame(), StartFrame(), and StartSubFrame().

TracedCallback<uint16_t, Ptr<SpectrumValue> > ns3::LteEnbPhy::m_reportInterferenceTrace

private

Trace reporting the interference per PHY RB (TS 36.214 section 5.2.2, measured on DATA) uint16_t cellId, Ptr<SpectrumValue> interference linear power per RB basis

Definition at line 320 of file lte-enb-phy.h.

Referenced by GetTypeId(), and ReportInterference().

TracedCallback<uint16_t, uint16_t, double> ns3::LteEnbPhy::m_reportUeSinr

private

Trace reporting the linear average of SRS SINRs uint16_t cellId, uint16_t rnti, double sinrLinear

Definition at line 311 of file lte-enb-phy.h.

Referenced by CreateSrsReport(), and GetTypeId().

std::map<uint16_t,uint16_t> ns3::LteEnbPhy::m_srsCounter

private

Definition at line 299 of file lte-enb-phy.h.

Referenced by DoSetSrsConfigurationIndex().

uint16_t ns3::LteEnbPhy::m_srsPeriodicity

private

Definition at line 297 of file lte-enb-phy.h.

Referenced by DoSetSrsConfigurationIndex(), and StartSubFrame().

std::map<uint16_t,uint16_t> ns3::LteEnbPhy::m_srsSampleCounterMap

private

Definition at line 313 of file lte-enb-phy.h.

Referenced by CreateSrsReport().

uint16_t ns3::LteEnbPhy::m_srsSamplePeriod

private

Definition at line 312 of file lte-enb-phy.h.

Referenced by CreateSrsReport(), and GetTypeId().

Time ns3::LteEnbPhy::m_srsStartTime

private

Definition at line 298 of file lte-enb-phy.h.

Referenced by DoSetSrsConfigurationIndex(), and GenerateCtrlCqiReport().

std::vector<uint16_t> ns3::LteEnbPhy::m_srsUeOffset

private

Definition at line 300 of file lte-enb-phy.h.

Referenced by CreateSrsCqiReport(), DoDispose(), and DoSetSrsConfigurationIndex().

std::set<uint16_t> ns3::LteEnbPhy::m_ueAttached

private

Definition at line 280 of file lte-enb-phy.h.

Referenced by AddUePhy(), DeleteUePhy(), DoDispose(), and StartSubFrame().

std::vector< std::list<UlDciLteControlMessage> > ns3::LteEnbPhy::m_ulDciQueue

private

Definition at line 286 of file lte-enb-phy.h.

Referenced by DequeueUlDci(), QueueUlDci(), and SetMacChDelay().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-enb-phy.h
• src/lte/model/lte-enb-phy.cc
